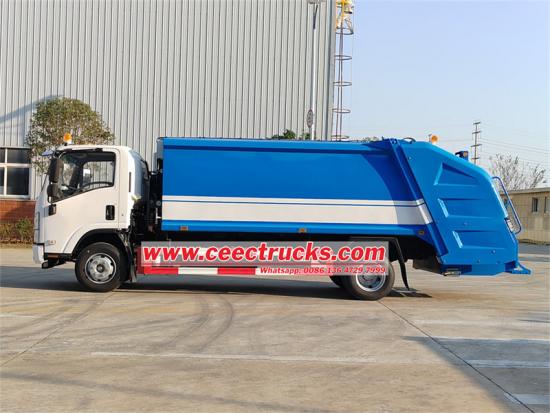

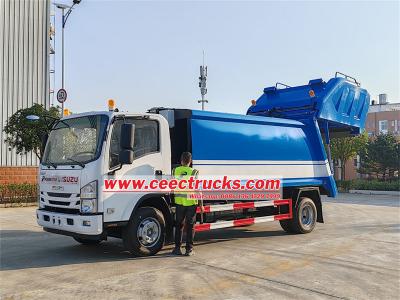

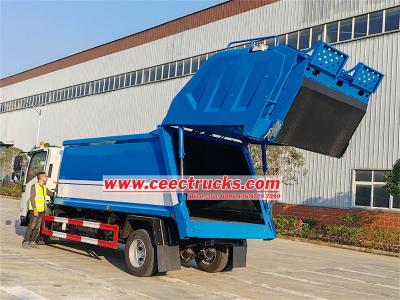

ISUZU 10CBM refuse compactor truck for sale

ISUZU NPR Refuse Garbage Compactor Truck

The ISUZU NPR refuse garbage compactor truck is a specialized vehicle modified based on the ISUZU NPR 4×2 chassis. It employs bidirectional compression technology with a compression ratio of over 2.5, and is equipped with a T420 special steel plate body. Powered by an ISUZU 4HK1-TCG61 diesel engine (with a maximum power of 139KW and a maximum torque of 507N.m), this truck integrates efficient compression, intelligent control, and user-friendly design. It is suitable for urban garbage collection and transportation, sanitation departments and municipal facilities, industrial parks and commercial areas, as well as special occasions, providing an efficient and environmentally friendly solution for urban waste management.

Lead Time:
30 Days
Work capacity:
10 CBM
Truck model:
CEEC5110ZYS
Engine power:
190 HP
Engine type:
4HK1-TCG61
Axle drive:
4x2, left hand drive
Gear box:
MLD 6-speed,manual
Remarks:
Stainless steel waste water collection tanks

Inquiry now

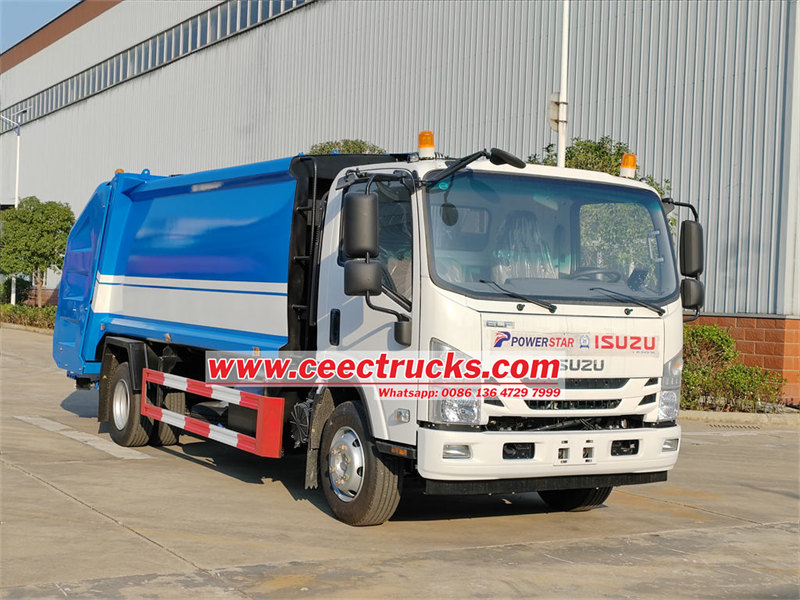

The ISUZU NPR rear load garbage truck is a professionally designed and modified vehicle for garbage collection and transportation, based on the ISUZU NPR 4×2 chassis. It is equipped with an ISUZU 4HK1-TCG61 diesel engine, boasting a maximum power of 139KW and a maximum torque of 507N.m. This engine, characterized by its strong power and fuel efficiency, can meet the demands of various operating conditions. Additionally, the vehicle is fitted with a 6-speed manual transmission and robust rear axle load-bearing capacity, ensuring stability and reliability.

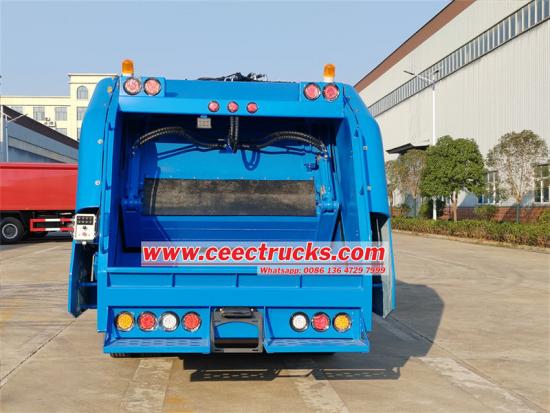

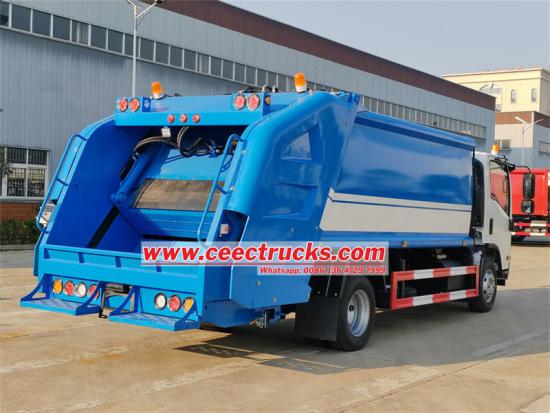

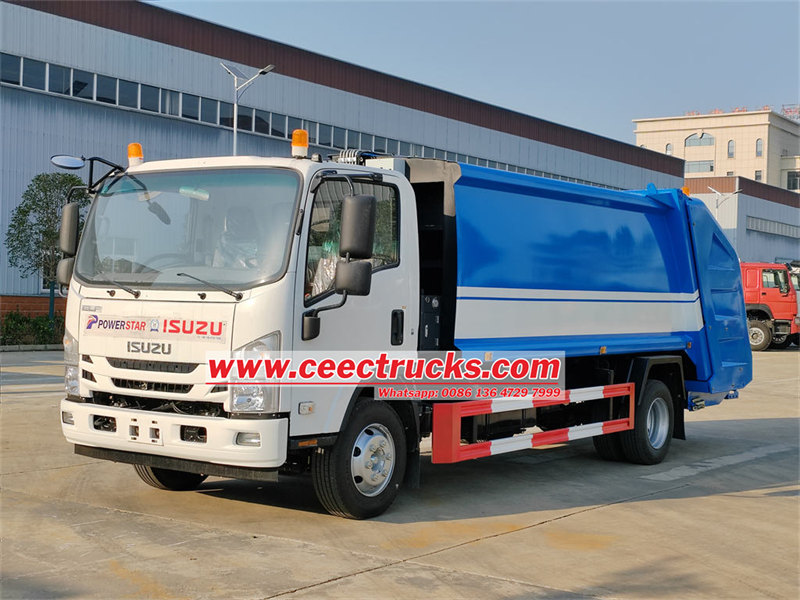

ISUZU NPR 10CBM rear loader truck

The ISUZU NPR refuse garbage compactor truck adopts advanced bidirectional compression technology, which not only increases the garbage compression ratio but also significantly enhances its loading capacity, making it an ideal choice for urban waste management. With a garbage bin capacity of 10CBM, it can adequately meet the needs of most urban garbage collection tasks. The emergence of this model aims to address issues such as low loading efficiency, high transportation costs, and significant environmental pollution associated with traditional garbage trucks, providing a more efficient and environmentally friendly waste disposal solution for cities.

ISUZU 10CBM REAR LOAD GARBAGE TRUCK SPECIFICATIONS
Chassis Model	QL1110AN Driving type: 4*2 left hand driving
Engine	Make: ISUZU
	Diesel 4-stroke direct injection diesel engine
	Engine model:4HK1-TCG61, Euro 6 emission standard
	4-cylinder in-line with water cooled, turbocharged and intercooler
	Maximum output: 189HP/139KW
	Maximum torque: 507 Nm
	Displacement: 5.2 L
Transmission	ISUZU MLD, 6 forwards and 1 reverse, manual
Chassis	Frame: U-profile parallel ladder frame and reinforced subframe
	Front suspension:8 pcs semi-elliptic leaf spring
	Rear suspension:10+6 pcs semi-elliptic lea spring
	Fuel tank: 100 L capacity with locking fuel cap
Steering	Power steering, hydraulic steering with power assitance
Brakes	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
	ABS
Wheels & Tyres	Tire: 7 pcs 235/75R17.5
	Optional:8.25R20
Driver's Cab	ISUZU NPR wide cab, with three seats, A/C, electric glass, central lock
Dimensions mm	Wheel base	4175 MM
	Overall length	7400 MM
	Overall width	2300 MM
	Overall height	2640 MM
Weight kg	Curb weight	6900 KG
	Rated Loading Capacity	4000 KG
	Gross vehicle weight(GVW)	11000 KG
	Front axle loading capacity	4000 KG
	Rear axle loading capacity	7000 KG
Compactor Body	Volume of body(m3)	10
	Volume of filler(m3)	2
	Time of one filling cycle(s)	≤25

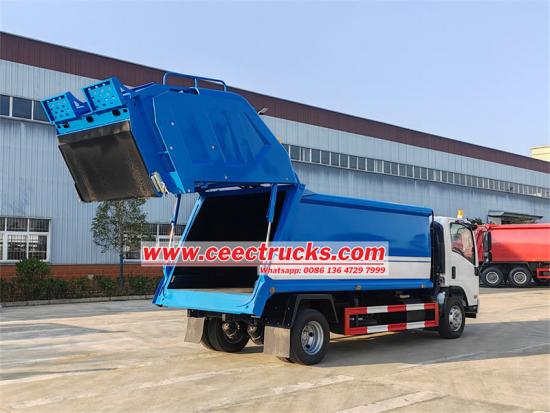

	Lifting time of filler (s)	8-10
	Time of discharge (s)	≤40
	Pressure of hydraulic system (Mpa)	18
	Front/rear sewage capacity (L)	250+150

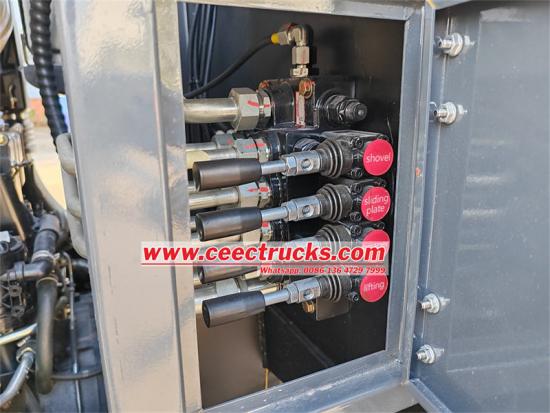

	Control system	CAN-bus (electrical) and manual (hydraulic)

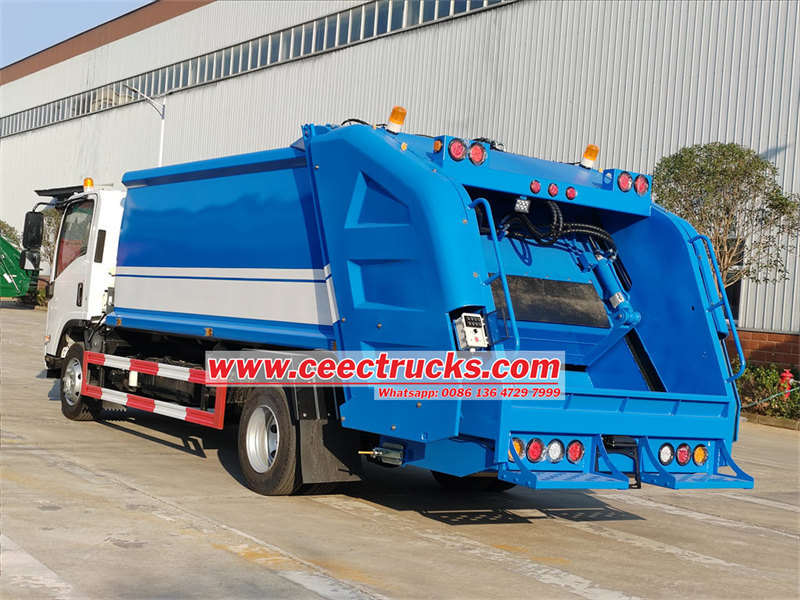

ISUZU 700P waste compactor truck for sale

Features of the ISUZU compression garbage truck:

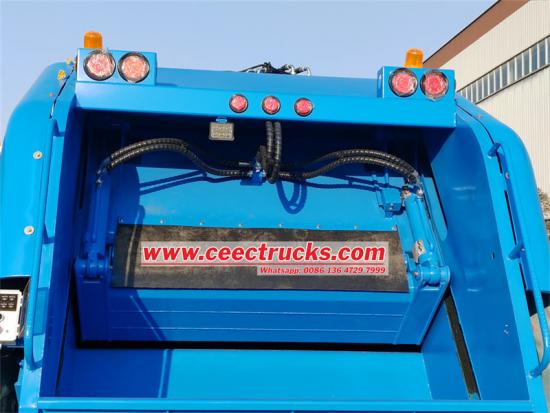

1. Bidirectional Compression Technology: The ISUZU NPR rear loader truck employs advanced bidirectional compression technology, utilizing high-precision hydraulic cylinders and multi-way valve systems to achieve efficient garbage compression. This technology not only increases the loading density of garbage but also reduces space occupancy during transportation, thereby lowering transportation costs.

2. High-Strength Curved Body: The body is constructed with T420 special steel plates, with a bottom plate thickness of 5mm and side plates of 4mm, ensuring durability and robustness. The curved design is not only aesthetically pleasing and practical but also facilitates uniform distribution and compression of garbage, enhancing compression efficiency.

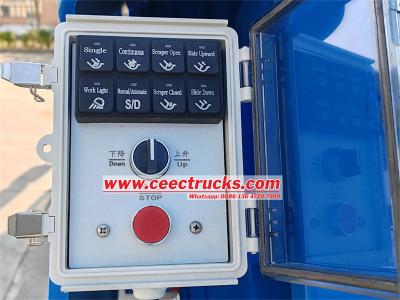

3. Intelligent Operating System: This ISUZU waste compactor truck is equipped with an advanced CAN-bus electronic control system, enabling intelligent control of various vehicle functions. The operating interface is simple and intuitive, making it easy to use. Both automatic and manual modes ensure smooth progress during the garbage disposal process.

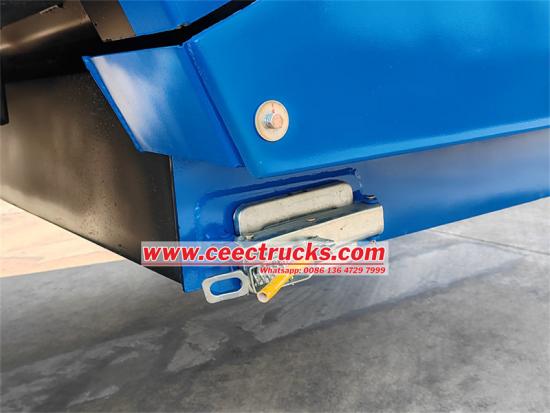

4. Environmentally Friendly and Safe Design: The two sewage collection tanks of this ISUZU trash compactor truck are made of 201 stainless steel, effectively preventing sewage leakage and corrosion. Furthermore, the vehicle is equipped with safety features such as footrests and safety handrails, ensuring the safety of operators.

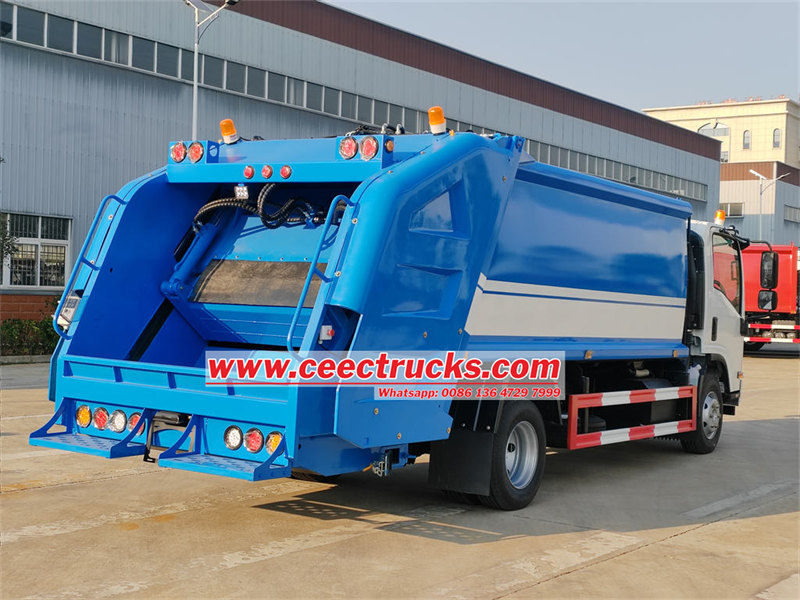

ISUZU 10CBM trash compactor truck price
