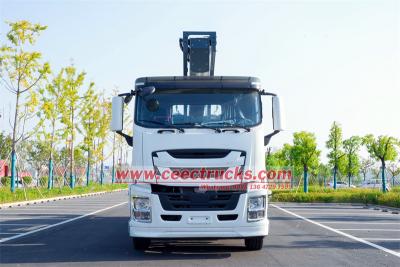

Isuzu 56 meter manlift hydraulic platform truck

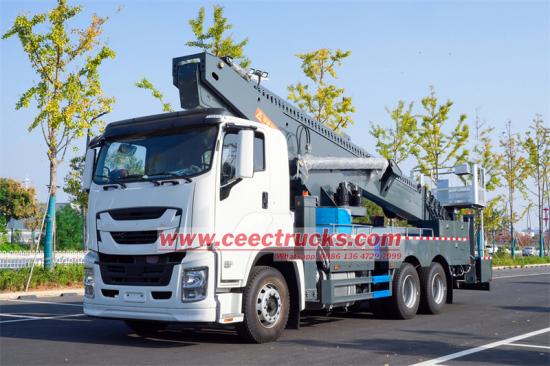

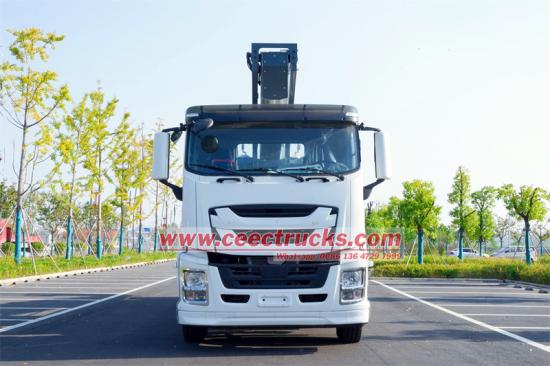

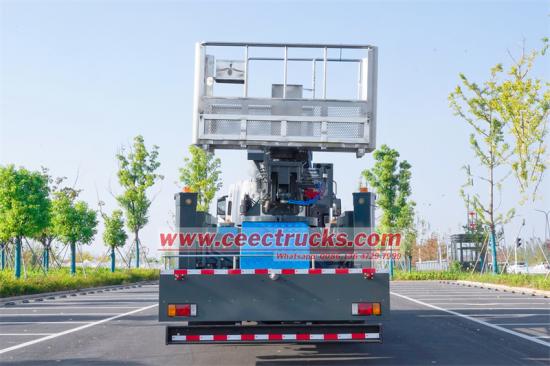

Isuzu GIGA 56m aerial platform truck

The ISUZU GIGA 56m aerial platform is a professional engineering special truck that integrates excellent technical performance and safety design. Based on the ISUZU New GIGA chassis, the truck is equipped with a 6WG1-TCG61 engine with a maximum output power of 460 horsepower and a total vehicle mass of 25,000 kg. The Isuzu GIGA aerial platform truck has a maximum working height of 56 meters, a platform height of 29 meters above the ground, a maximum working radius of 7 meters, and a hydraulic static balance system to ensure stability.

Lead Time:
80 days
Work capacity:
56m
Truck model:
CEEC5336GXZ
Engine power:
460HP
Engine type:
Isuzu 6UZ1-TCG61
Axle drive:
6x4,LHD
Gear box:
Fast 12-shift gearbox,manual
Remarks:
Nine-section fourteen-sided synchronous telescopic arm

Inquiry now

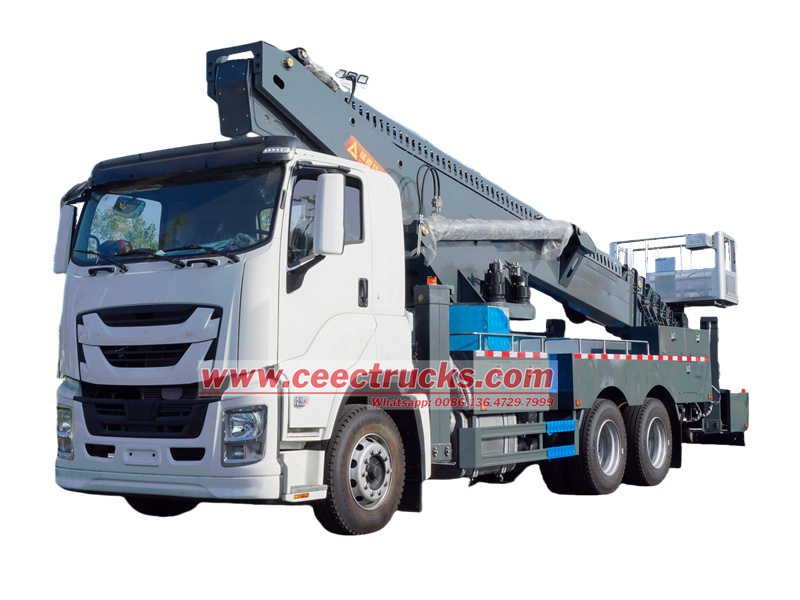

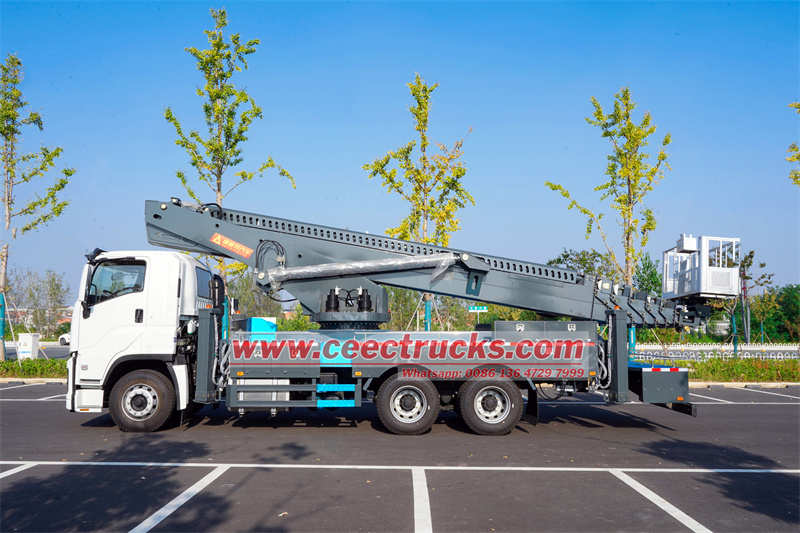

ISUZU GIGA 56m aerial platform truck

Its unique H-type hydraulic outrigger design has a horizontal and vertical expansion distance of 8,600 mm and is equipped with a two-way hydraulic locking mechanism to ensure stability during operation. The truck is also equipped with a dual operating system of manual and wireless remote control, a platform rated load of 250 kg, 360° hydraulic rotation, and built-in multiple safety protection devices, such as automatic out-of-bounds limit, emergency stop device and leakage protection.

Specifications:

ISUZU GIGA 56m aerial platform truck

Isuzu GIGA 56m aerial platform truck
Vehicle model		PST5336GKZ			Overall dimensions (mm)	11500×2550×4020
GVW (kg)		33000			Operational height (m)	56
Curb weight(kg)		11995			Max. Speed (km/h)	95
Chassis Description
Chassis Model				ISUZU GIGA chassis
Cab				Single cab with A/C
Allowable person in cab				3
Wheel base (mm)				4350+1370
Front/Rear overhang (mm)				1155/3185
Number of axles				2
Axle	Front axle (kg)			9000
	Rear axle (kg)			13000+13000
Traction system				6*4
Operation control system				Power steering
Braking system				Air brake
Transmission				Fast 12-speed
Tire specification				295/80R22.5 18PR
Tire quantity				12+1
Engine Description
Engine manufacture				ISUZU Engines
Engine model				6WG1-TCG61
Emission standard				Euro 6
Exhaust/output				15.681L/ 338 kw
Horse power				460HP
Upper Body Description
Max. working height (m)				56
Height of platform above ground (m)				29
Max. working radius (m)				7
Working pressure (Mpa)				16
Control type				1. Manual operation in two positions 2. Wireless remote operation
Type				Insulating type
Rated loading (kg)				250
Adjusting balance mode				Hydrostatic Leveling System
Safety belt				1 set
Rotation Angle				360° Hydraulic
Boom Amplitude Time				160 ≤ t ≤ 180
Boom Telescopic Time				140 ≤ t ≤ 160
Boom Rotation Time				160 ≤ t ≤ 180
Hydraulic leg span			Horizontal(mm)	8600
			Vertical(mm)	9400
Hydraulic leg retraction time (s)				100 ≤ t ≤ 120
Type				H type
Quantity				4 PCS
Adjustment				Adjusted separately or interconnected
Hydraulic lock				Two-way hydraulic lock for four legs
Strobe light on rear landing legs				Two yellow lights
Main structure
Material				High quality carbon steel and profiles, with slip-proof decorative steel plates
Tool box				Mould stamping door with stainless steel door lock
Fencing				Stainless steel tube
Steps				With steps on drivers’ side
Guard railing				High quality cold bending carbon steel profile; High strength
Wheel casing				Injection mold molding, beautiful, high strength
Rotary table
Supporting Boom				Low alloy steel plate welding
Slewing bearing				Single row of four - point contact ball belt outer teeth
Reduction gears				Planetary gear type
Motor				Axial piston motor
Security configuration
Automatic interlock device for get on and off				Prevent the risk of misoperation
Hand-operated emergency pump				When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state
Emergency stop device for working platform				Used for emergency stop operation and restricted boom operation
Automatically limit work range				When the working range reaches the specified value, the dangerous direction is automatically restricted.
Leakage protection device				Equipped with leakage protector to ensure the safety of power supply and power tools

Performance characteristics:

Ultra-high operating capacity

——Maximum operating height of 56 meters: suitable for high-altitude operations in large projects such as high-rise buildings, bridges, and power towers.

——Maximum operating range of 29 meters: wide coverage, flexible to complex operating environments.

——Nine-section fourteen-sided synchronous telescopic arm: multi-section arm design combined with high-strength materials to improve stability and telescopic efficiency, adapting to different operating angles.

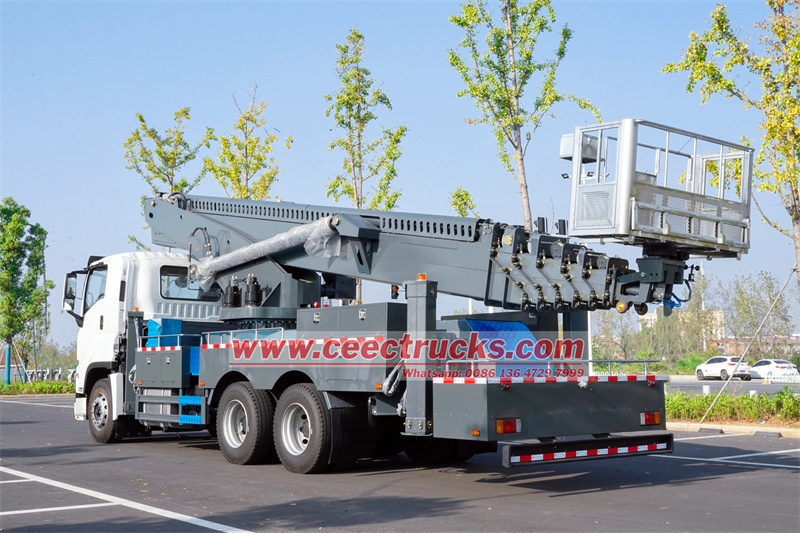

ISUZU GIGA 56m aerial platform truck

Efficient power and control

——Isuzu GIGA 6X4 chassis: equipped with 6HKI-TCG60 engine (221kW/300ps), powerful power to meet high-speed driving (up to 100km/h) and complex working conditions.

——Fully hydraulic electric emergency operation: supports turntable fixed operation, wireless remote control and hydraulic handle operation. In an emergency, the electric emergency pump can be used to restore the action to ensure personnel safety.

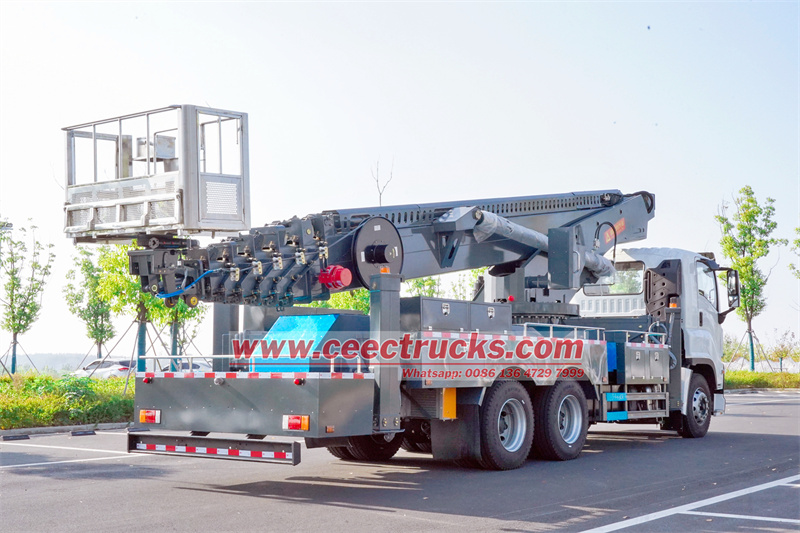

ISUZU GIGA 56m aerial platform truck

Intelligent safety system

——Outrigger soft leg detection: real-time monitoring of the outrigger status to prevent loosening or tilting and ensure operational stability.

——Automatic limit and horizontal state detection: limit the operating range and detect the body tilt in real time to avoid the risk of over-limit or imbalance.

——Triple emergency stop device: distributed on the turntable, remote control box and hydraulic handle, all actions can be stopped immediately in an emergency.

——Double wire rope chain break protection: ensure that the left and right wire ropes are evenly stressed through the balance mechanism to prevent breakage accidents.

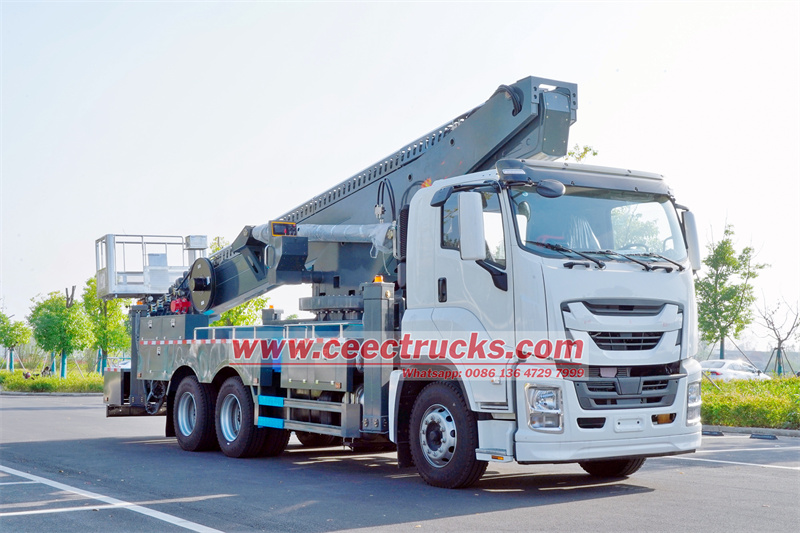

ISUZU GIGA 56m aerial platform truck

Humanized design

——Customized working platform: the size of the hanging basket can be adjusted as needed (standard 2000×700×1000mm) to adapt to different working scenarios.

——Cab configuration: equipped with heating and cooling air conditioning, multi-function LCD instrument, ABS system, to improve operating comfort and safety.

——360° continuous rotation: the working platform and boom support all-round rotation, reducing blind spots and improving working efficiency.

ISUZU GIGA 56m aerial platform truck

★ ISUZU 6UZ1 diesel engine, super powerful

★ Expert for producing ISUZU Bucket Lift Truck over 10 years with good reputation

★ High quality carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for ISUZU aerial work platform trucks
