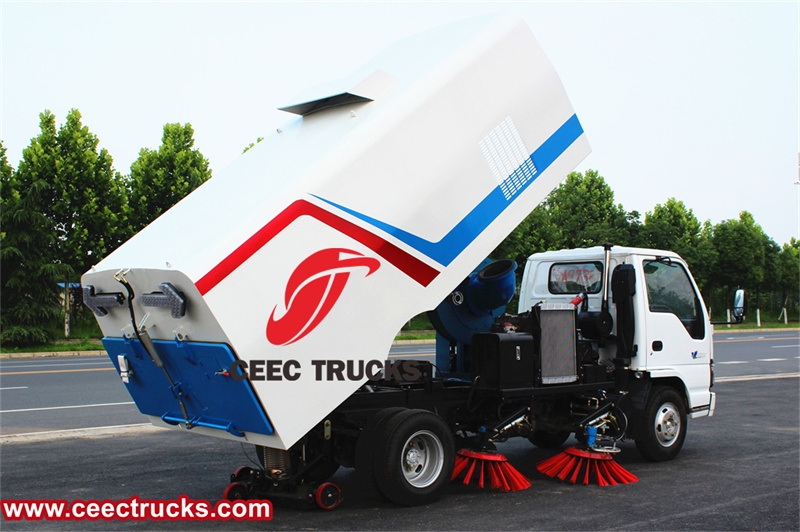

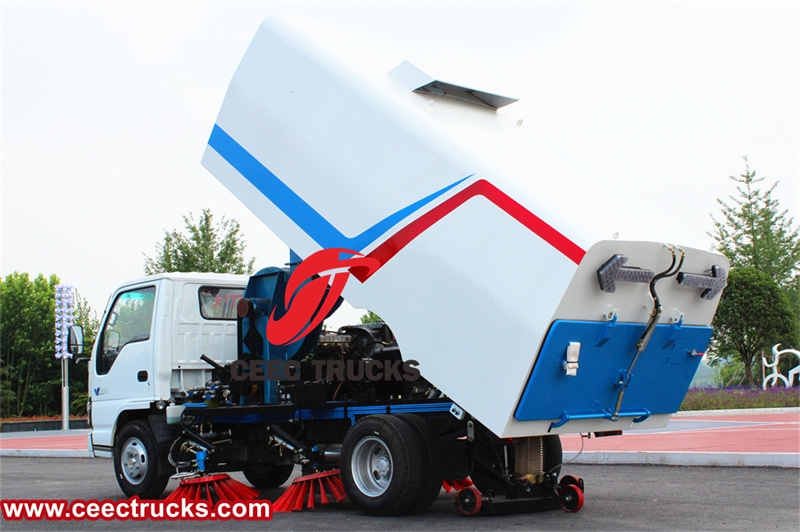

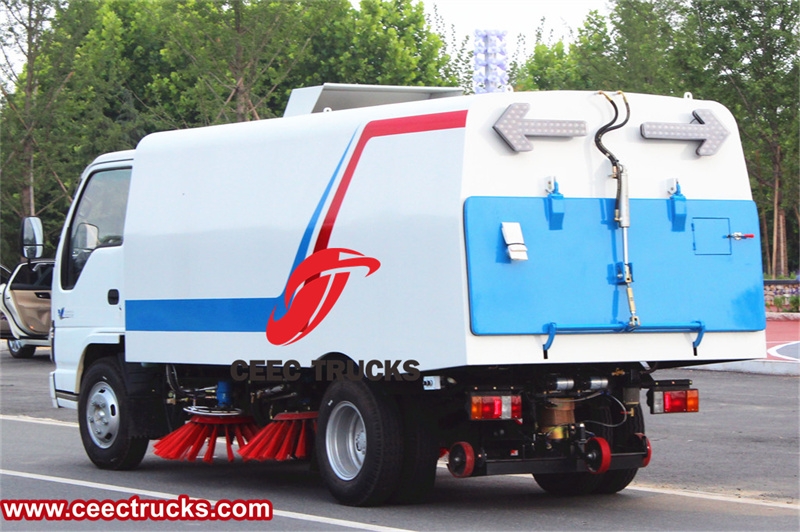

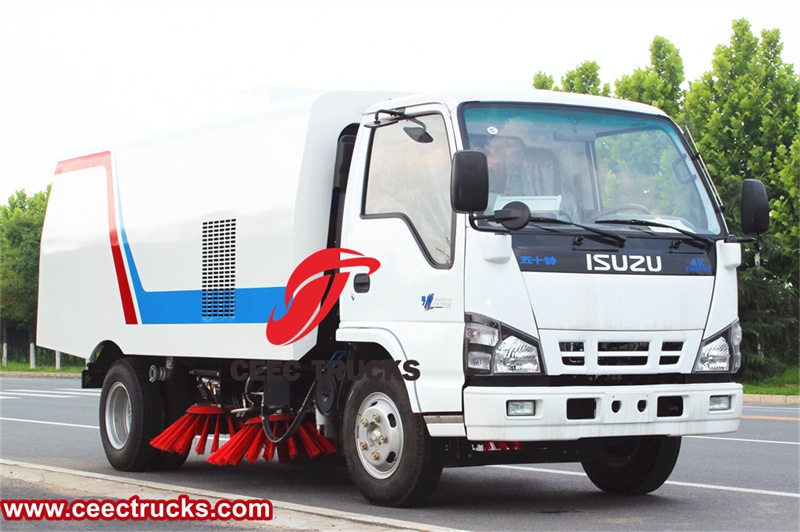

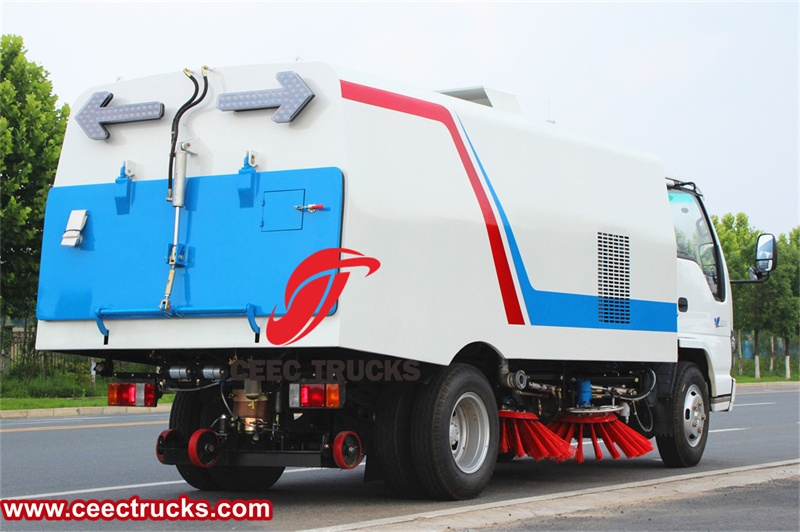

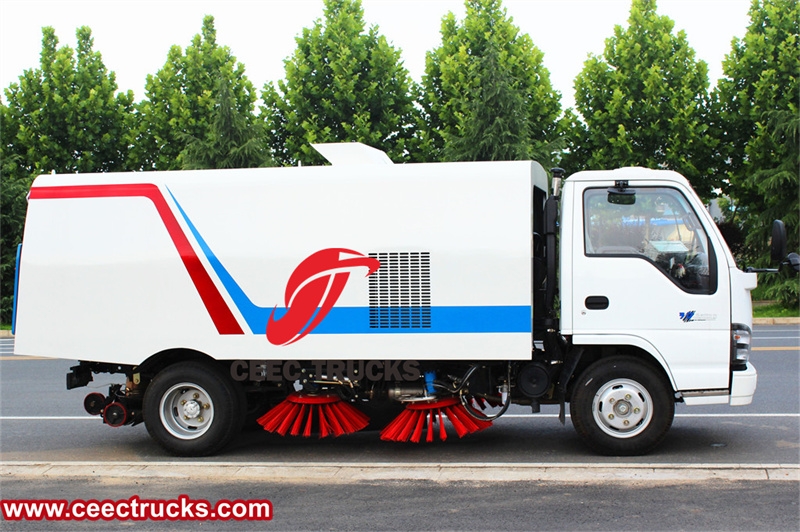

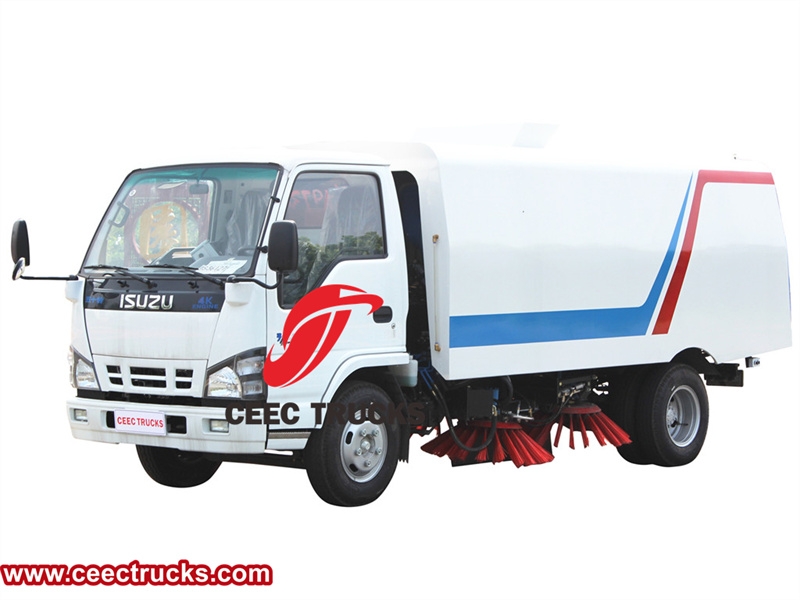

ISUZU 5 CBM road sweeper truck with factory direct sale

Isuzu NKR 600P Road Sweeper Cleaning Truck

Best quality ISUZU brand road sweeper, which use small ISUZU 4*2 chassis, equipped with 5cbm stainless steel material tanker, ISUZU 120HP diesel engine, MSB 5-shift manual transmission box. with original import & china brand motor and valves optional. All kinds of painting & logos depend on request

Product Origin:
China CEEC
Shipping Port:
Shanghai Seaport
Lead Time:
15 Days
Payment:
T/T, West Union
FOB Price:
USD $32,000-45,000
Market Price:
$39000

contact now

Applications:

Road Sweeper 5cbm ISUZU (also called road sweeper truck, hydraulic street sweeper, vacuum road sweeping truck, trash collection truck, road cleaning vehicle) is designed for daily sweeping in community, city, highway, construction site, overhead roads, bridges, squares, airports as well as docks with asphalt concrete and cement concrete road surface.

CEEC TRUCKS Isuzu NKR 600P Road Sweeper Cleaning Truck has powerful sweeping performance and efficient working speed, and is suitable for cleaning urban roads and squares. Its 4CBM dust collection box and 1CBM water tank, combined with the sweeper body made of 4mm stainless steel, ensure long-lasting durability and efficient cleaning. Equipped with a 130HP diesel engine and ISUZU MSB 5-speed transmission, ensuring ample power and a smooth driving experience. In addition, optional rear alarm and camera, Italian/American brand hydraulic motor and front snow clearing device further enhance the safety and versatility of the Isuzu Road Sweeper Cleaning Truck. At the same time, the factory's standard hydraulic system, safety protection devices, rotating lights, work lights, etc. ensure the convenience and safety of operation. This Isuzu NKR Road Sweeper Cleaning Truck also provides an English operating manual, a spare parts list and all necessary export documents, providing customers with comprehensive support and guarantee.

The road sweeper vehicle with shot peening painting, with all painting color and logos depend on requirement.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU diesel engine, super powerful, no overhaul within 100,000 km.

---- Road Sweeper body capacity from 1 to 16 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

Specifications:

Manufacturer		CEEC Trucks
Chassis model		ISUZU NKR
Wheelbase		3360mm
Engine model	Chassis engine	4KH1CN5HS
Engine rate	Chassis engine	130HP
Engine rate	Auxiliary engine	77 HP
Emission standard		Eu 5
Accelerating outside noise		≤84dB(A)
Max speed		95 km/h
Approach angle		21°
Departure angle		13°
Weight specifications	Gross weight	7,300 kg
Weight specifications	Kerb weight	4,200 kg
Dimension specifications	Whole dimension	599520002650 mm
Dimension specifications	Minimum height above ground	250 mm
High pressure clean	Clean speed	3~20 Km/h
	Clean width	3 m
	Water pressure	12 MPa
	Water pump flow	115 L/min
Clean and suction performance	Cleaning efficiency	≥95%
	Maximum suction particle size	110 mm
	Clean and suction width	3 m
	Max clean capacity	60000 m2/h
	Disc brush size	≥400 mm
	Clean and suction speed	3-20 km/h
Water Tank	Water tank volume	1 m³
Dust tank	Dust tank volume	4 m³
	Dump bin tilting angle	≥46°
	Discharge door opening angle	≥85°
Hydraulic system	Model	Open, electrical control
	Major parts	Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve
	System pressure	16 MPa
	Oil tank	60 L
	Oil temperature	60 ˚C
Electrical system	Model	DC12 V
	Voltage	12 V
	Battery	12 V
Water spray system	Major parts	Electric diaphragm pumps, water filters, nozzles, etc.

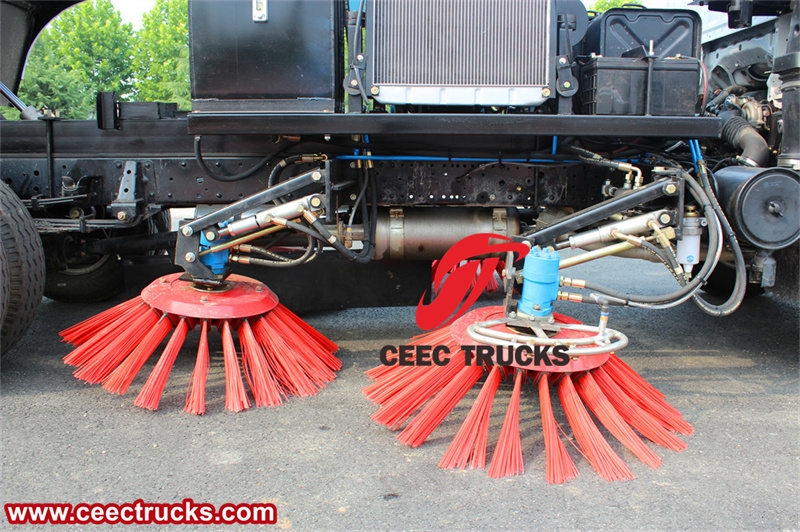

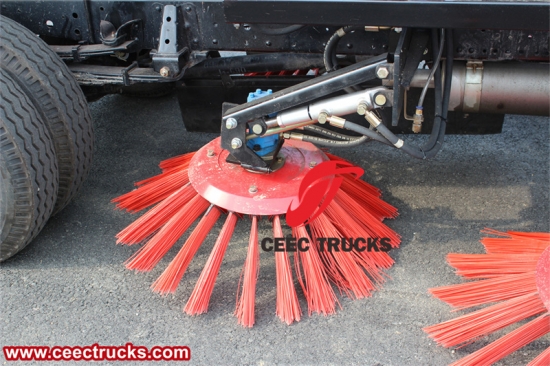

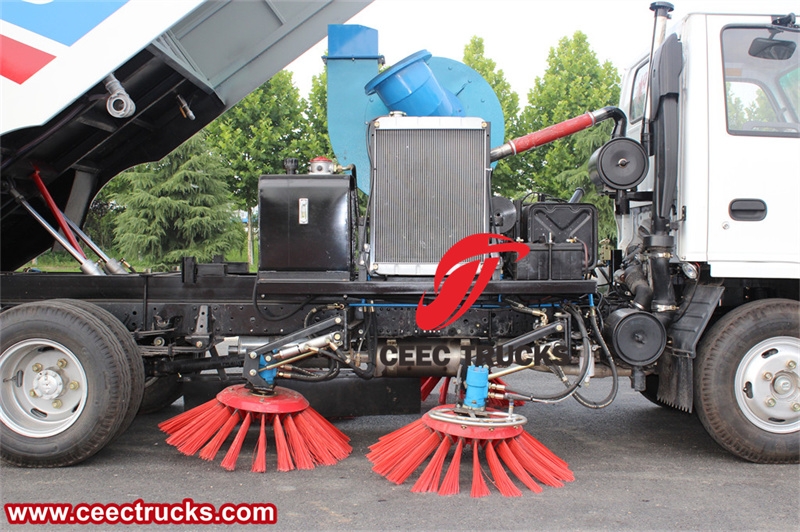

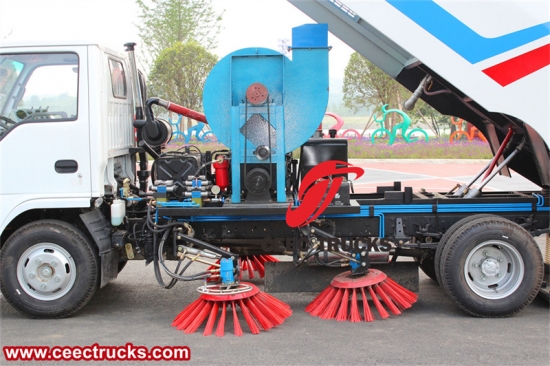

Sweeping devise	Modle	Center two swabs, driven by a hydraulic motor, and the front right can be controlled independently, with a evasive reply function.
	Brush diameter	850 mm
	Brush angle	Tilt forward: 4-6 degrees Tilt: 4-7 degrees
Sucking plate	Model	Double suction, hydraulic control, spring suspension.
	Suction plate diameter	180 mm
	Suction plate width	1800mm
High pressure water system	Model	post pump
	No:.	Germany PT36
	System pressure	10 MPa
	Speed	1150 r/min
	Water valve model	Hydraulic pressure ball valve.
	Water valve pressure	7 MPa
	Spray nozzles model	High pressure washing type
	Water filter	Mesh type

ISUZU 5cbm road sweeper truck drawing

---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

ISUZU road sweeper truck inspection

---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.

ISUZU road sweeper truck spare parts

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...

CEEC road sweeper truck export documents

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

ISUZU road sweeper truck factory advantage

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

ISUZU road sweeper truck export review

---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.

ISUZU road sweeper truck stock

Watch Road Sweeper Kit on YOUTUBE

5CBM road sweeper superstructure under production: https://www.youtube.com/watch?v=wEaK1FccCmE

https://www.youtube.com/watch?v=ZGEjfcVdK58

https://www.youtube.com/watch?v=8TC9THA4vLU

https://www.youtube.com/watch?v=qncsHzbs3d4

https://www.youtube.com/watch?v=p90fjv6S1cU

https://www.youtube.com/watch?v=uLIEHF7TDI0

https://www.youtube.com/watch?v=twPzL71FeAo

https://www.youtube.com/watch?v=2UMUyPXQNSM

https://www.youtube.com/watch?v=1CgCwCLLgqQ

5000 liters road sweeper up-body Container delivery: https://www.youtube.com/watch?v=aocnpVlPK90

https://www.youtube.com/watch?v=YvVihFauMEk

https://www.youtube.com/watch?v=2GYv4TNNexA

https://www.youtube.com/watch?v=ajfddlXd4Bw

https://www.youtube.com/watch?v=XHG_yhklLG8

https://www.youtube.com/watch?v=wiHe1xsFiYY

linkdin

How to build a good quality and choose best Road Sweeper Kit?

http://www.ceectrucks.com/ceec-guidance-5cbm-road-sweeper-superstructure-installation-manual_n138

Dubai 5 CBM Road Sweeper Up-Body specification:

http://www.ceectrucks.com/road-sweeper-kits_c92
