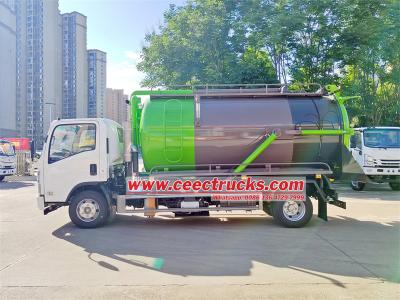

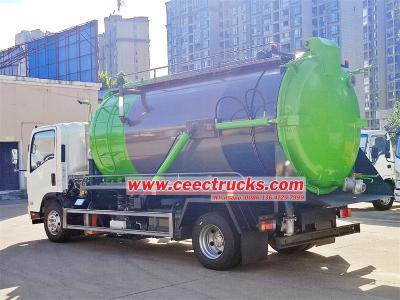

Isuzu NPR vacuum suction truck with ISUZU product bottom plate, high power, equipped with 190hp oil pump. The hotel is equipped with a heated and cooled air conditioning system that accommodates 3 people. 4X2 driving system for Isuzu NQR vacuum suction truck, equipped with 6-speed manual shifting box, maximum speed possible 90km/h. Isuzu ELF vacuum suction truck with steel material quality, capacity 8000-10000 liters, equipped with 7 suction pipes, high efficiency vacuum pump, quick completion suction work.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 DaysWork capacity:
10000 litersTruck model:
PST51173LXWEngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x2,LHDGear box:
Isuzu MLD 6-speed,manualRemarks:
Italy Jurop vacuum pumpIsuzu NPR vacuum suction truck with ISUZU product bottom plate, high power, equipped with 190hp oil pump. The hotel is equipped with a heated and cooled air conditioning system that accommodates 3 people. 4X2 driving system for Isuzu NQR vacuum suction truck, equipped with 6-speed manual shifting box, maximum speed possible 90km/h. Isuzu ELF vacuum suction truck with steel material quality, capacity 8000-10000 liters, equipped with 7 suction pipes, high efficiency vacuum pump, quick completion suction work. Isuzu NPR sewage tank truck has been equipped with high quality steel pipes, control panels and safety equipment such as selectable vehicle overturning vehicles and image heads. Isuzu NPR sewage tanker available for selection, non-steel material quality, large profit vacuum pump high end placement, not enough customer demand.
ISUZU 190hpNPR sewage tanker has excellent performance. The 190hp diesel engine it is equipped with provides powerful power output, allowing the ISUZU 190hpNPR sewage tanker to maintain efficient operation in various working environments. At the same time, the transmission system of the ISUZU 190hp NPR sewage tanker has been optimized, with smooth shifting and rapid acceleration, providing drivers with a good driving experience. In addition, the ISUZU 190hpNPR sewage tanker is also equipped with an efficient vacuum pump, which can quickly complete the sewage suction work, greatly improving work efficiency.
ISUZU 190hp NPR sewage tank truck is widely used in urban sanitation, sewage treatment and other fields. In terms of urban sanitation, it can be used to clean sewage and garbage in public places such as roads, parks, squares, etc., to keep the urban environment clean and hygienic. In terms of sewage treatment, the ISUZU 190hp NPR sewage tank truck can be used to collect, transport and treat various sewage, providing strong support for urban sewage treatment work. In addition, the ISUZU 190hp NPR sewage tank truck can also be customized according to user needs to meet the needs of different industries and scenarios.
Specification:

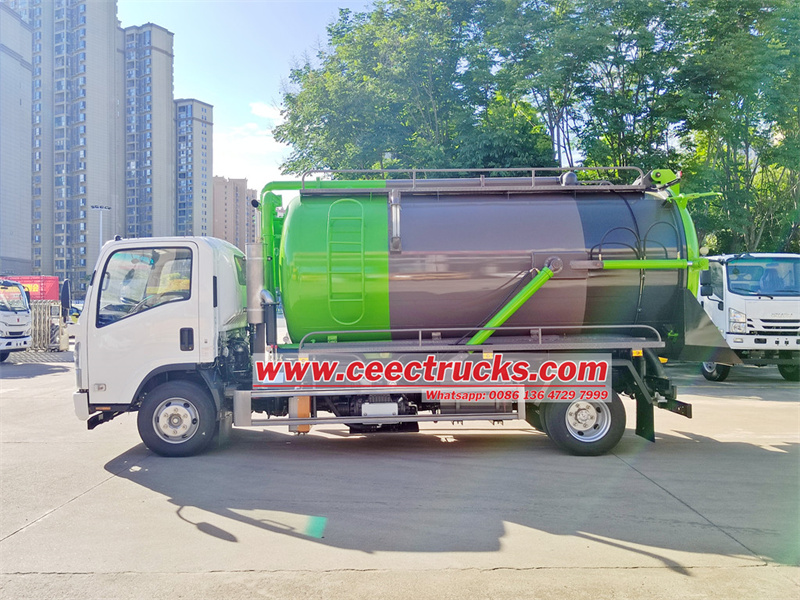

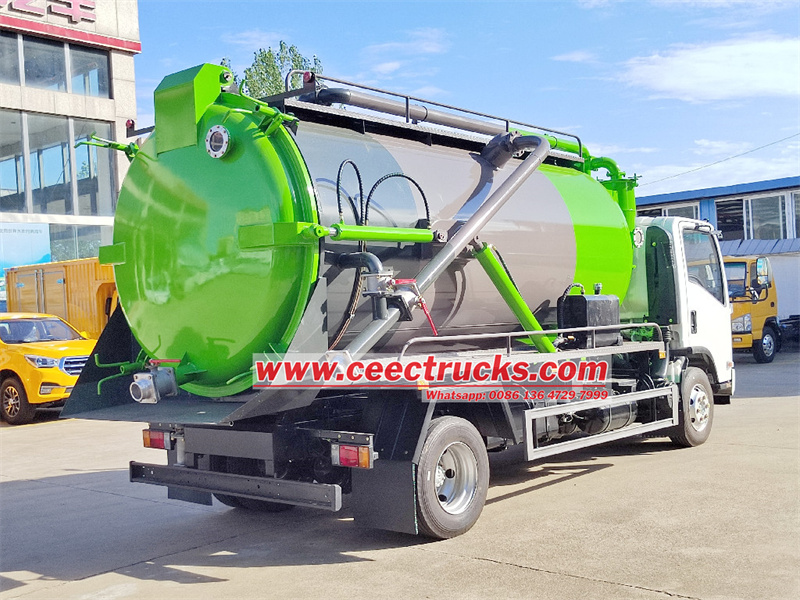

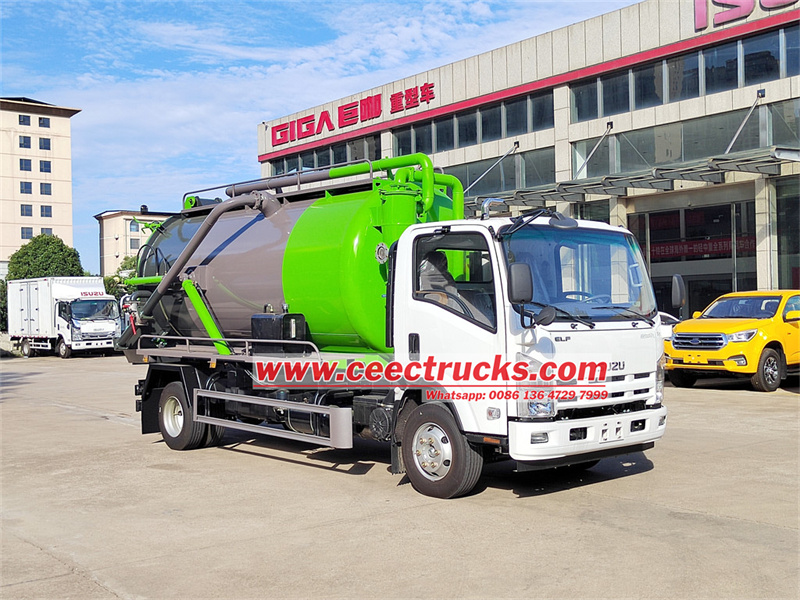

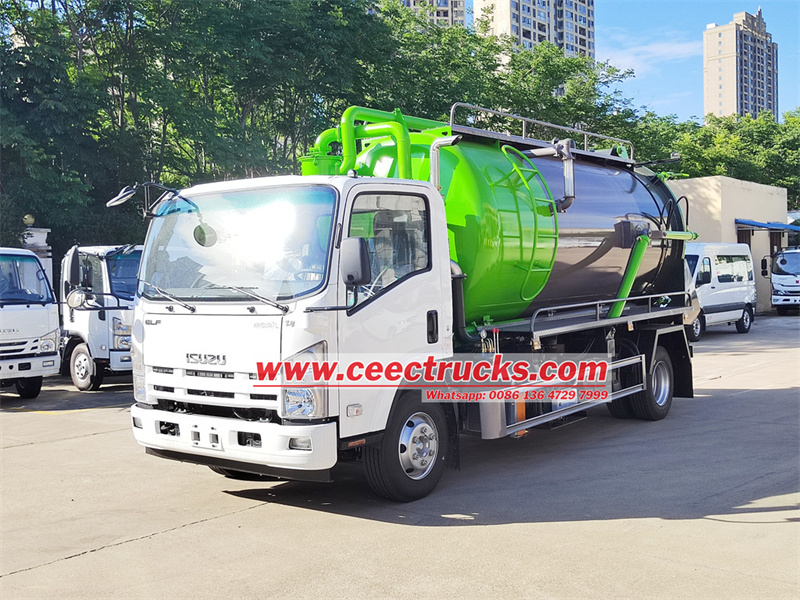

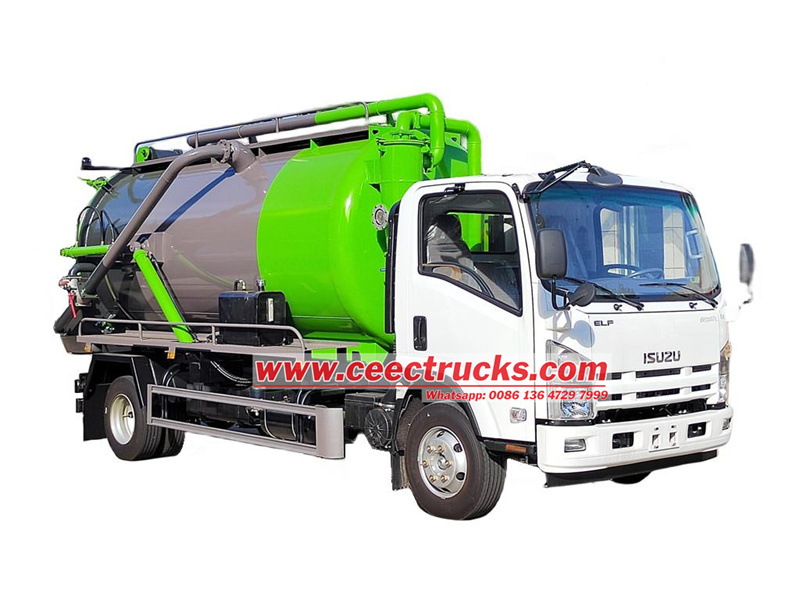

ISUZU NPR 10000L Sewage Sucktion Truck |
||||
Vehicle model |
CEEC51173LXW |
|||
Overall dimensions |
10100*2490*3850 mm |
|||
Fact cubage |
10000 L |
|||
Mass in working order |
11870 kg |
|||
Body internal dimensions |
TBD |
|||
Wheel base |
3815 mm |
|||
Engine |
Model |
ISUZU 4HK1-TCG61 |
||
Displacment/horsepower |
5197ml /190HP |
|||
Type |
4cylinder ,direct Inject , line , turbcharege |
|||
Tire specification |
235 R17.5 |
Traction system |
4X2 |
|
Rear axle |
8T |
transmission |
MLD 6-speed |
|
Equipment |
Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment |
|||
Tank material |
Q235 |
|||
Tank thickness |
Tank 6mm , head cover 6mm |
|||
Fullfilling time |
<5min |
|||
Discharge time |
<4min |
|||
Vertical suction |
8M |
|||
Dump angle |
45 degree |
|||
vacuum pump Pump data |
Model |
50qzxdg-45-400 |
||
Brand |
weilong |
|||
No |
2 |
|||
Rating rotate speed |
500r/mm |
|||
Suction speed |
45L/S |
|||
Main accessory |
Hydraulic cylinder |
2pcs |
||
oil and gas separator |
1pcs |
|||
Hydraulic oil tank |
18L |
|||
High pressure oil pipe |
1pcs |
|||

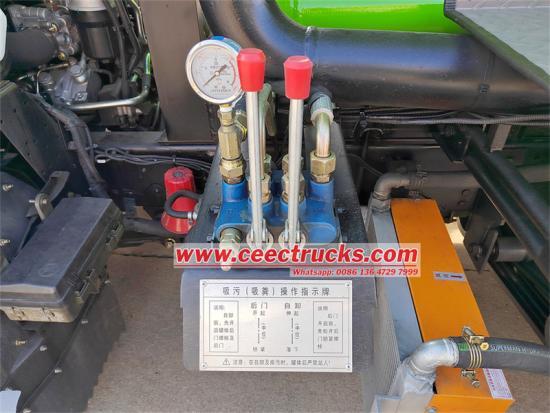

hydraulic directional control valve |
1pcs |
|||
Three way valve |
1pcs |
|||
moisture separator |
1pcs |
|||
All standard accessories: Inlet pipeline, discharge nozzle, cabin pneumatic control box, basic tool kit, English manual…… |
||||
Optional |
** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** Standard WEILONG vacuum pump, Italy vacuum pump optional |
Advantage:
Isuzu NPR vacuum suction truck has significant advantages in protecting the ecological environment. Here are its main advantages:
1. Efficient cleaning: The Isuzu NPR vacuum suction truck uses an efficient vacuum pump and sewage suction system to quickly and thoroughly remove sewage and garbage. This efficient cleaning ability helps reduce environmental pollution from sewage and garbage and maintain ecological balance.
2. Reduce secondary pollution: Traditional sewage treatment methods may cause secondary pollution, but the design of the Isuzu NPR vacuum suction truck fully takes this into consideration. It uses a sealed sewage storage tank, which effectively prevents sewage leakage and odor, thereby reducing secondary pollution to the environment.
3. Energy saving and environmental protection: The diesel engine equipped with the Isuzu NPR vacuum suction truck complies with strict emission standards, effectively reducing the impact of exhaust emissions on the environment. At the same time, its efficient working method also helps reduce energy consumption and achieve the goal of energy conservation and environmental protection.
4. Improve the city's image: By cleaning up sewage and garbage in a timely manner, the Isuzu NPR vacuum suction truck helps improve the city's overall image and hygiene level. A clean and tidy city not only attracts more tourists and investment, but also helps improve the quality of life of its residents.
5. Promote sustainable development: By reducing environmental pollution and improving resource utilization efficiency, this Isuzu NPR vacuum suction truck contributes to the sustainable development of cities. It helps achieve coordinated development of economy, society and environment, and creates a better living environment for the future.
★ Euro 5 type, ISUZU engine, super powerful
★ Vacuum pump super powerful, efficient pump in and out
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU sewage suction trucks exporter
★ Training service for ISUZU sewer cleaner trucks
CEEC TRUCKS is a leading exporter of ISUZU vacuum suction trucks in China. We possess over 10-year export experience of vacuum trucks. We can ensure the fast delivery time and 12 months guarantee for our sewer cleaner trucks. Our vacuum tank trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Professional guidance on your importing documents.
---- Maximize save your sea freight.
---- Safety, Quickly, Timely
