Philippines--ISUZU 18m Manlifter vehicle Manual

Nov 19, 2019
Philippine customer buy  1 unit ISUZU ELF 18m aerial platform truck (also called ISUZU man lifter, ISUZU folding model aerial platform truck, ELF folding boom lifting truck, aerial lift truck, crane truck with basket), which mainly used for high altitude working, including maintenance traffic light, street light, landscape trees, cleaning advertise board, etc. The ISUZU manlifter truck is produced based on ISUZU ELF chassis, which equipped with insulated basket with optional lifting height 6-8m, 10-14m, 16m, 18m, 20-24m, 28-32m. and this PDF manual detailed introduced this ISUZU high altitude basket truck and teach end user right way to operate the aerial platform vehicle.


https://www.ceectrucks.com/uploadfile/news/Philippines--ISUZU%2018m%20Manlifter%20vehicle%20Manual.pdf



     Contents

Chapter 1. General Description-----------------------------------------4
 Chapter 2, Safety Warnings----------------------------------------------5
 Chapter 3, Main Technical Data-----------------------------------------9
            ⅰ, Normal Operation Conditions-----------------------------9
            ⅱ, Performance Parameters---------------------------------9
            ⅲ, Vehicle Specifications--------------------------------------9
 Chapter 4, Man Lifter Structure Components-----------------------11
            ⅰ, PTO System-------------------------------------------------11
            ⅱ, Slewing Rotation System---------------------------------11
            ⅲ, Centre Slewing Joints--------------------------------------11
            ⅳ, Hydraulic System-------------------------------------------11
 Chapter 5, Man Lifter Working Principles----------------------------13
            ⅰ,Driving of the Man Lifter Truck with Crane-------------13
            ⅱ,Pre-operational Checks------------------------------------13
            ⅲ, Man Lifter Truck operations (Very Important)---------13
             ⅳ, Notes & Attentions------------------------------------------21
 Chapter 6, Hoist Hooker Operation------------------------------------22
 Chapter 7, Maintenance & Repair--------------------------------------23
            ⅰ, Chassis Truck Maintenance-------------------------------23
           ⅱ, Routine Checking & Maintenance------------------------23
            ⅲ, Hydraulic System Checking-------------------------------23
           ⅳ, Rob’s Adjustment--------------------------------------------25
           ⅴ, Malfunction Analysis-----------------------------------------26
 Chapter 8, Lubrication-----------------------------------------------------28
 Chapter 9, Transport & Storage-----------------------------------------30

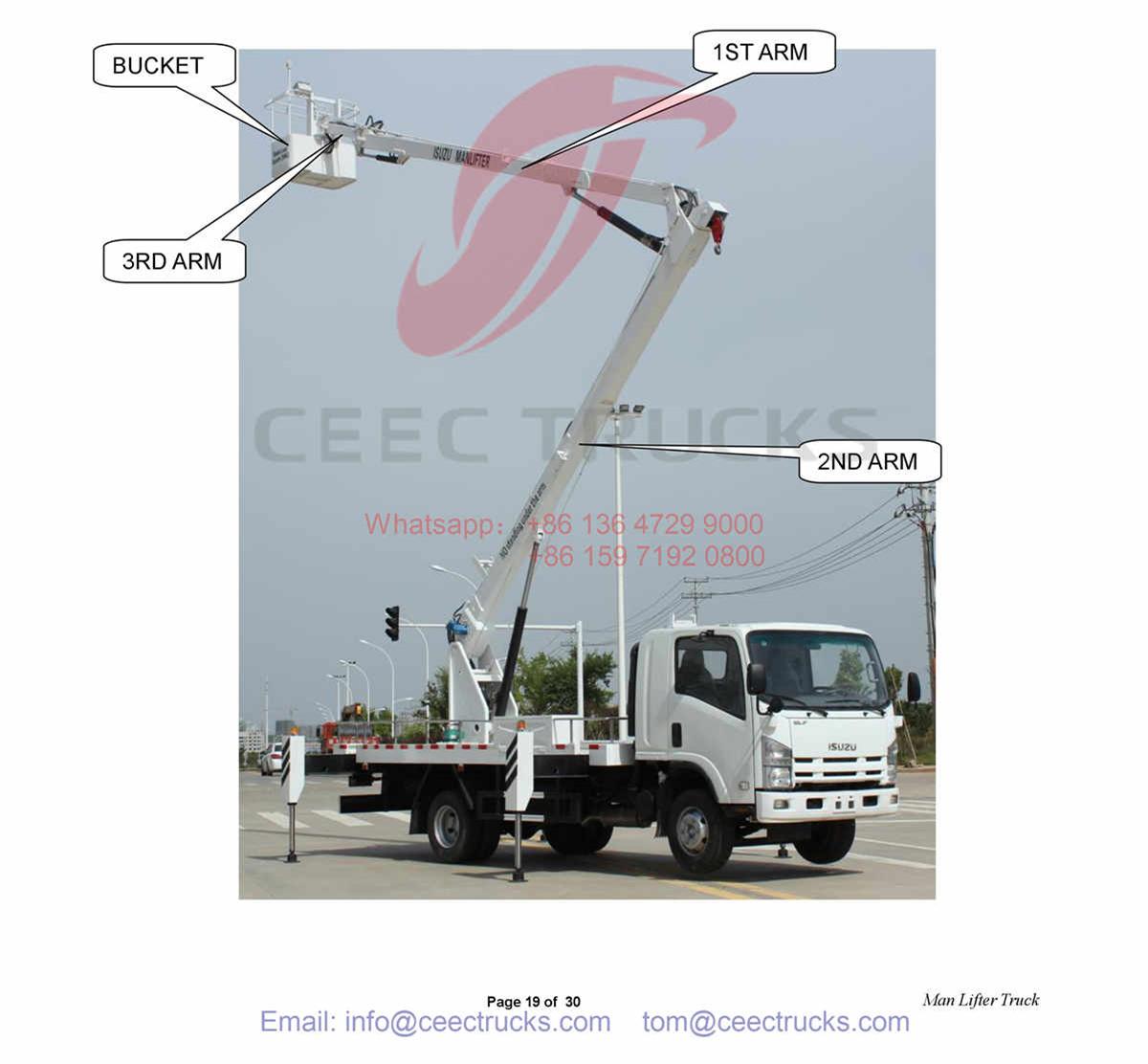

ISUZU ELF 18m aerial platform truck working model
