Philippines--ISUZU GIGA 16m Aerial Platform Truck Manual

Nov 20, 2019
Philippine client order 1 unit ISUZU GIGA 16m aerial platform truck (also called ISUZU GIGA man lifter, GIGA folding model aerial platform truck, ISUZU GIGA folding boom lifting truck, ISUZU GIGA aerial lift truck, ISUZU GIGA aerial platform with insulated basket), which mainly used for high altitude working, including maintenance traffic light, street light, landscape trees, cleaning advertise board, etc. The ISUZU GIGA man lifter truck is produced based on ISUZU ELF chassis, which equipped with insulated basket with optional lifting height 6-8m, 10-14m, 16m, 18m, 20-24m, 28-32m. and this PDF manual detailed introduced this ISUZU high altitude basket truck and teach end user right way to operate the aerial platform vehicle.


https://www.ceectrucks.com/uploadfile/news/Philippines--ISUZU%20GIGA%2016m%20Aerial%20Platform%20Truck%20Manual.pdf



     Contents

Chapter 1. General Description-----------------------------------------4
 Chapter 2, Safety Warnings----------------------------------------------5
 Chapter 3, Main Technical Data-----------------------------------------9
            ⅰ, Normal Operation Conditions-----------------------------9
            ⅱ, Performance Parameters---------------------------------9
            ⅲ, Vehicle Specifications--------------------------------------9
 Chapter 4, Man Lifter Structure Components-----------------------11
            ⅰ, PTO System-------------------------------------------------11
            ⅱ, Slewing Rotation System---------------------------------11
            ⅲ, Centre Slewing Joints--------------------------------------11
            ⅳ, Hydraulic System-------------------------------------------11
 Chapter 5, Man Lifter Working Principles----------------------------13
            ⅰ,Driving of the Man Lifter Truck with Crane-------------13
            ⅱ,Pre-operational Checks------------------------------------13
            ⅲ, Man Lifter Truck operations (Very Important)---------13
             ⅳ, Notes & Attentions------------------------------------------21
 Chapter 6, Hoist Hooker Operation------------------------------------22
 Chapter 7, Maintenance & Repair--------------------------------------23
            ⅰ, Chassis Truck Maintenance-------------------------------23
           ⅱ, Routine Checking & Maintenance------------------------23
            ⅲ, Hydraulic System Checking-------------------------------23
           ⅳ, Rob’s Adjustment--------------------------------------------25
           ⅴ, Malfunction Analysis-----------------------------------------26
 Chapter 8, Lubrication-----------------------------------------------------28
 Chapter 9, Transport & Storage-----------------------------------------30

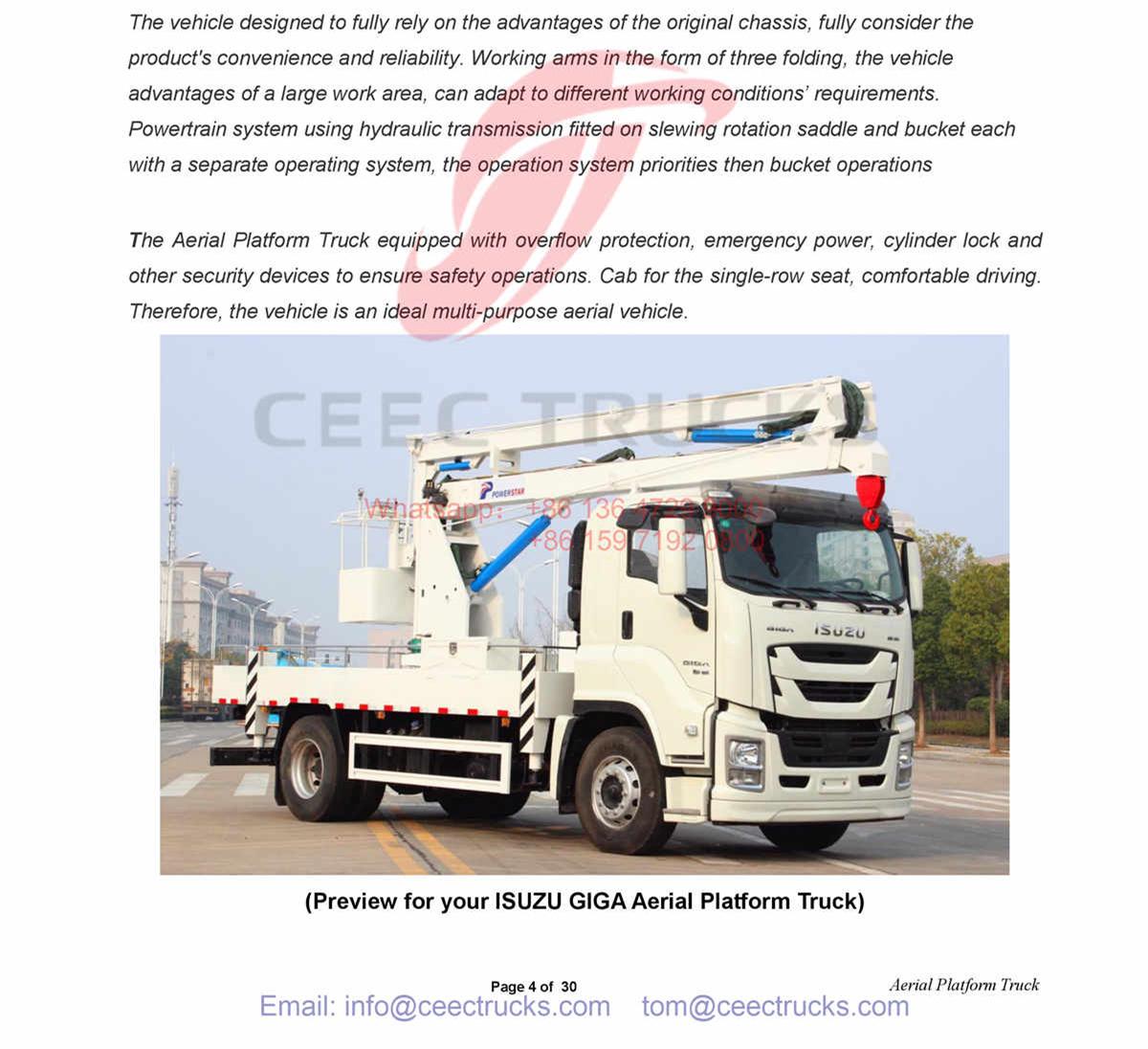

ISUZU GIGA 16m, 18m, 20m, aerial platform truck for sale

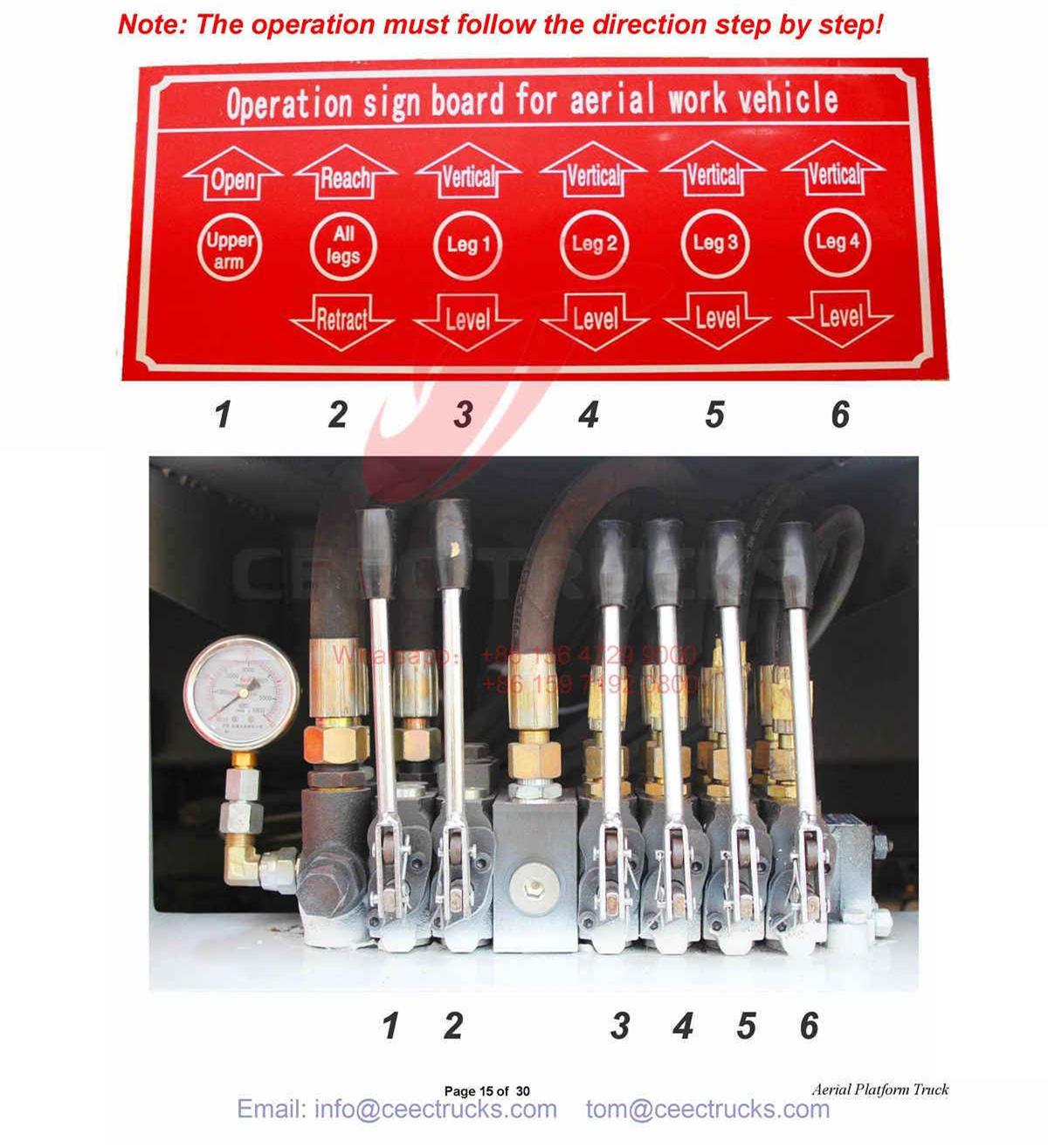

How to use ISUZU GIGA man lifter truck
