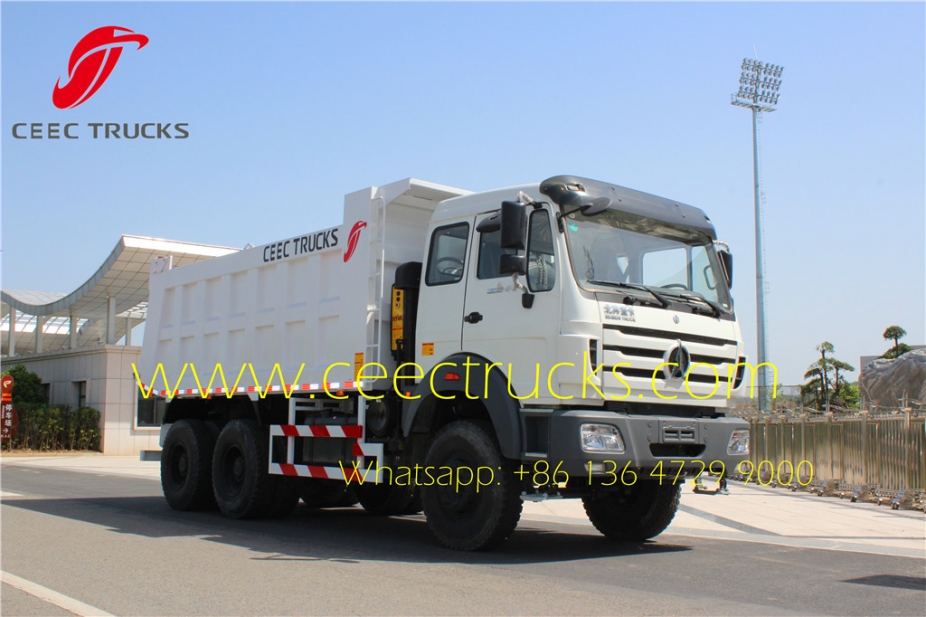

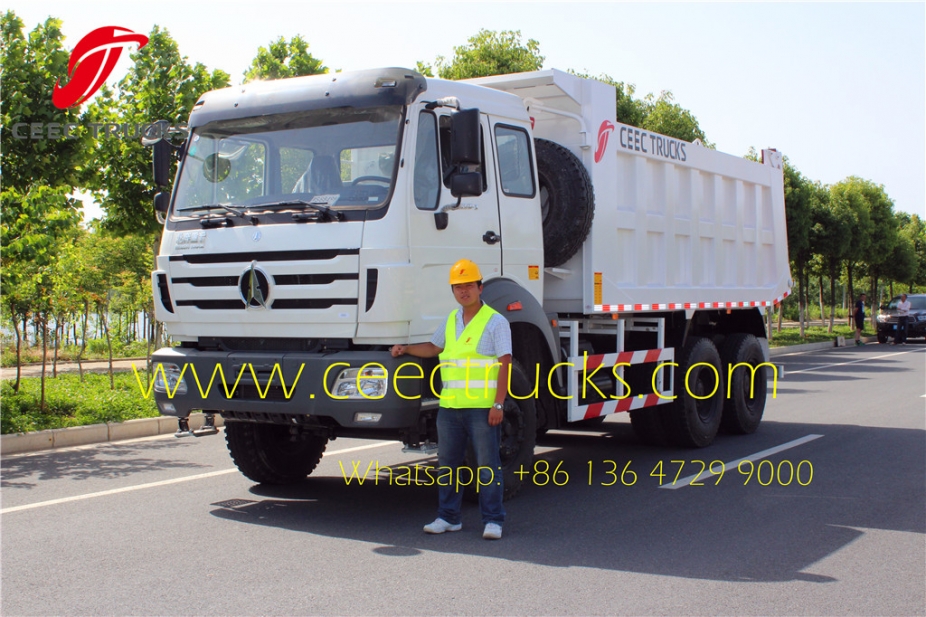

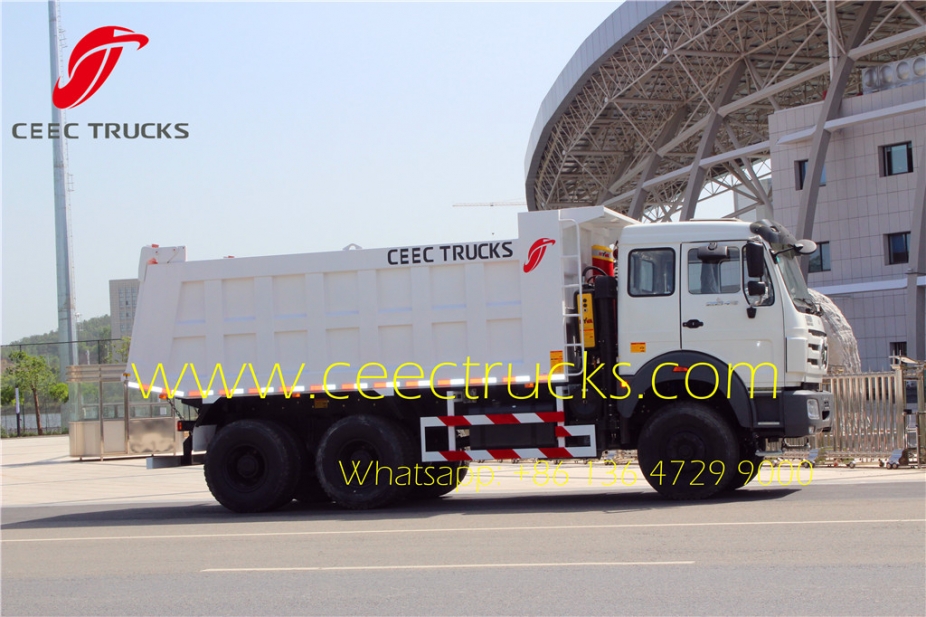

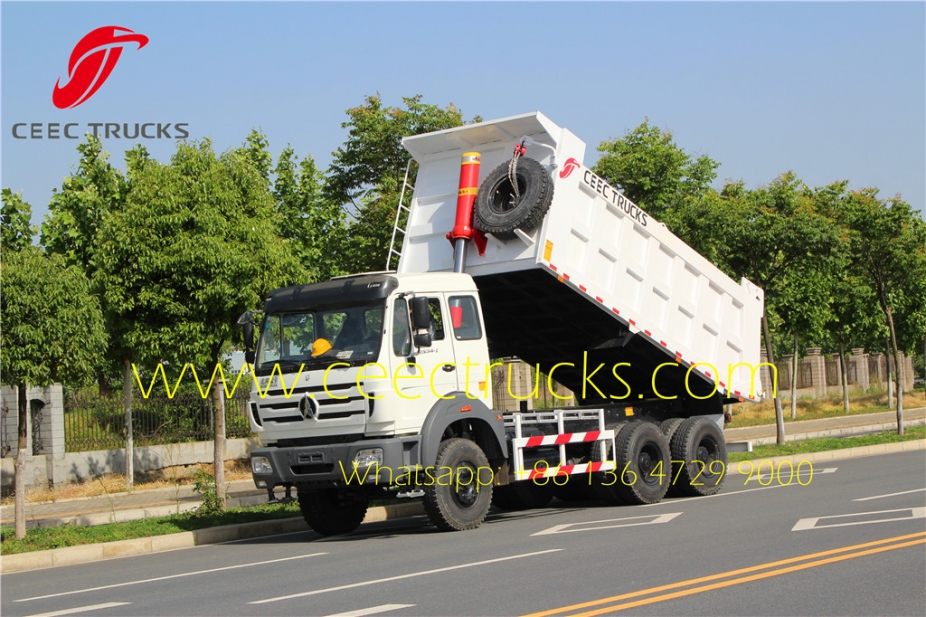

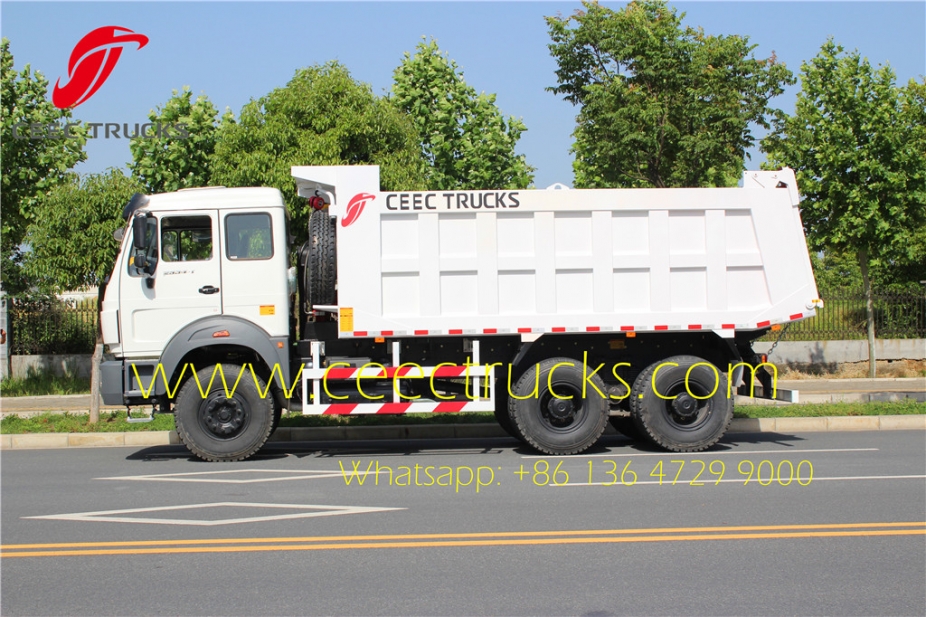

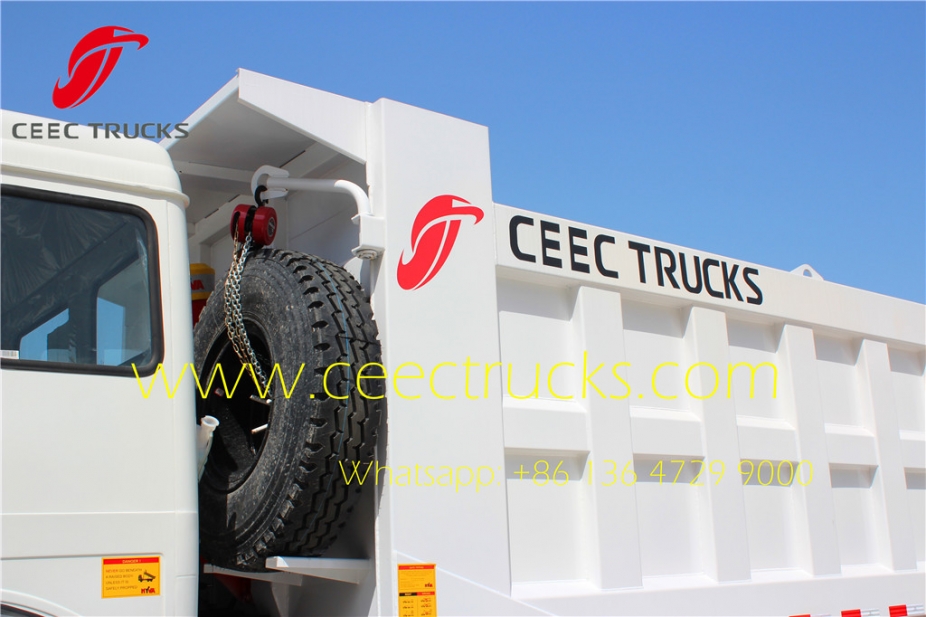

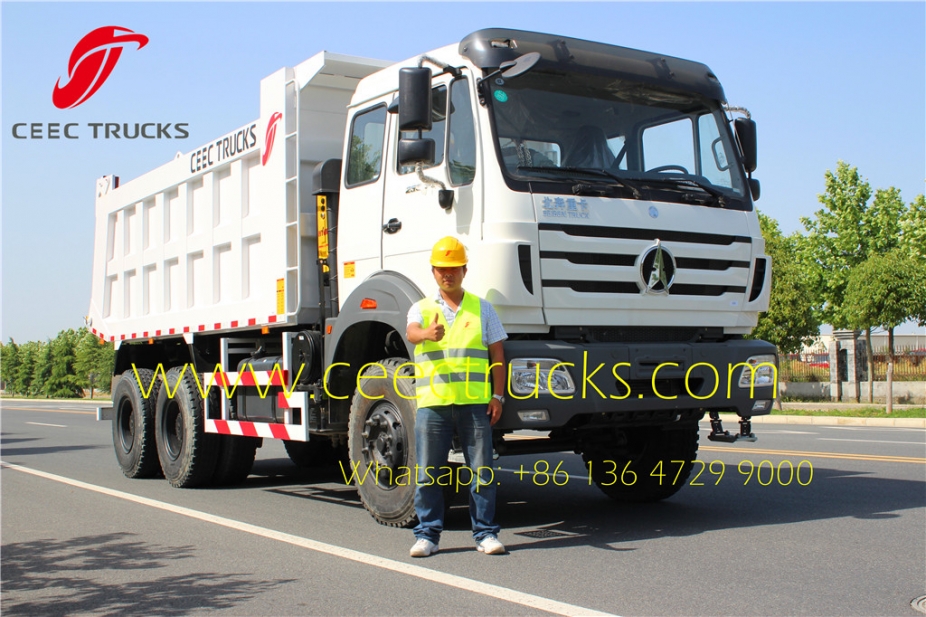

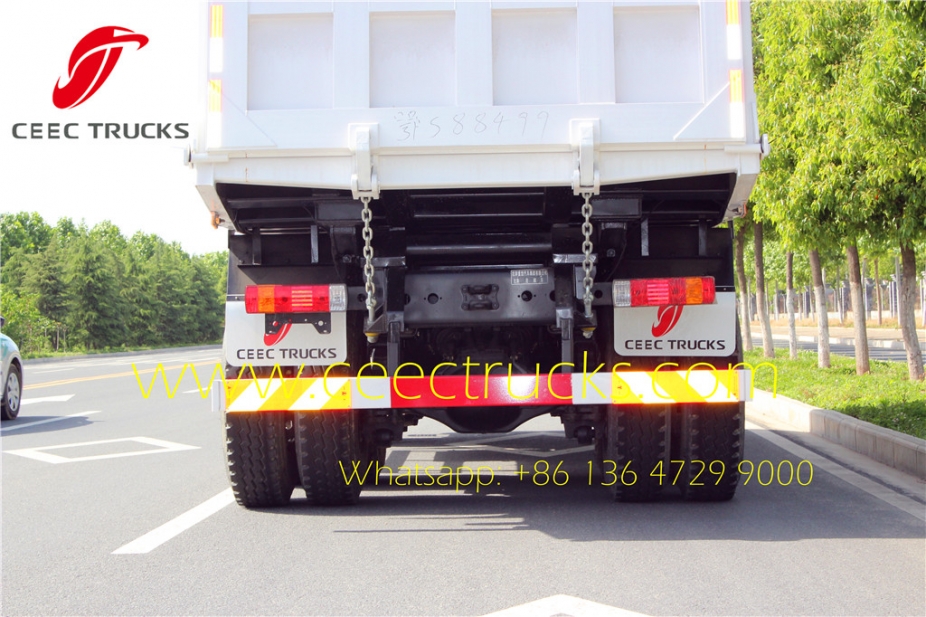

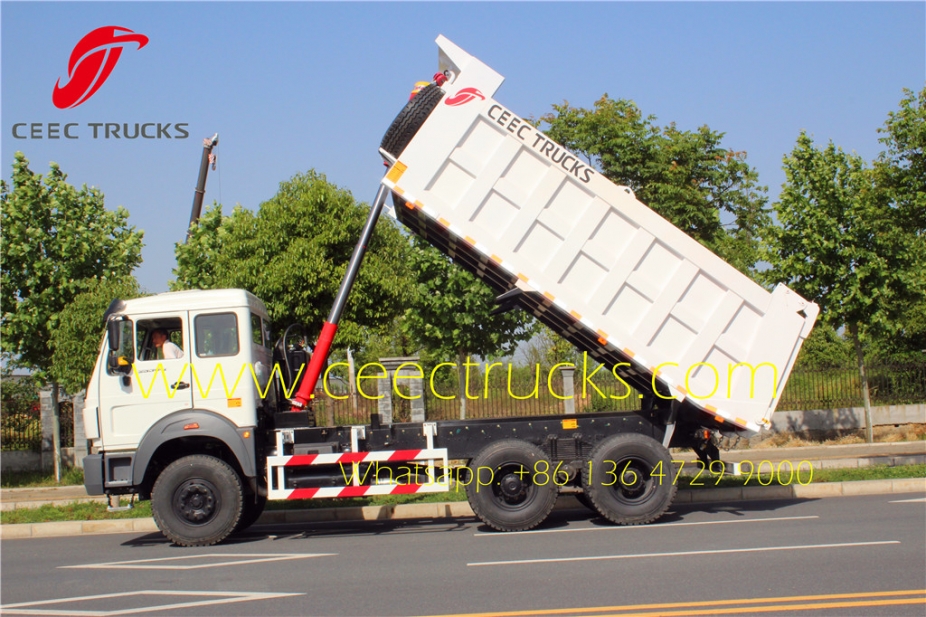

best beiben 50T tipper truck sale

10 wheeler dump truck

North benz 10 wheeler dump truck, 40-50 T loading capacity, weichai 340 hp diesel engine, fast 9 shift transmission, benz technology 7 T front axle, benz technology 16 T double rear axle with wheel reducer. 12.00R20 tyre。 Hyva 149 hydraulic lifting system

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • FOB Price:

    USD $42,000-50,000
contact now

Congo beiben 10 wheeler dumper truck



Beiben 10 wheeler dumper trucks



Best supplier of beiben 6*4 drive dump truck, beiben 6*6 dump truck, we have more than 15 years experience in manufacturing beiben 2527,2529,2532,2534,2538 dumpers. Genuine beiben dump truck spare parts are avaiable in 24 hours. we provide beiben 6 wheeler dump tuck, beiben 10 wheeler dump trucks, beiben 12 wheeler earth moving tipping trucks for congo, kenya, tanzania, etc.



Beiben 10 wheeler dumper truck drawing



Advantages for Beiben 2534 dumper truck:

Beiben 2534 dump truck chassis, also named Germany BENZ technology dumper chassis with high durability and reliability
Weichai WP10.340 diesel engine with 340hp super powerful. combined with original Benz rear axle reducer gear and differential gear
Continuous welding throughout body for additional strength, Full depth rear corner post with full depth rear crossmember.
Enhanced dumper body, and the motherboard adopts variable cross-section beams.
Special beiben Dump Body Design are optional

Beiben 10 wheeler dumper truck advantages



Similar key words: beiben 2534 dumper truck, north benz 2534 dump truck, beiben 2534 sand transportation truck, beiben 2534 tipping truck, beiben 2534 dump truck price, africa beiben dumper manufacturer, kenya beiben dumper truck, congo beiben 2534 dump truck, baotou beiben 2534 dump truck supplier.



Beiben 2534K dumper /6×4/4100+1450/Short Cab/LHD or RHD

Dimension

8880*2500*3430mm

Cargo box

5600x2300x1350mm, HYVA hydraulic lifting system; thickness: bottom 8mm, side 6mm

Approaching angle/Departure angle

26/28°

Overhang(front/rear)

1410/1720mm

Wheel base

3800+1450mm

Max speed

85km/h

Curb weight

12650kg

Engine

Model

WP10.340E32, water-cooled, four strokes, 6 cylinders in line, turbocharged, directly injection


Displacement

9.726L/Diesel


Stroke

126/130mm


Max. power

250/2200 (kw/rpm)


Max.torque

1600/1800(N.m/rpm)


Emission

Euro III

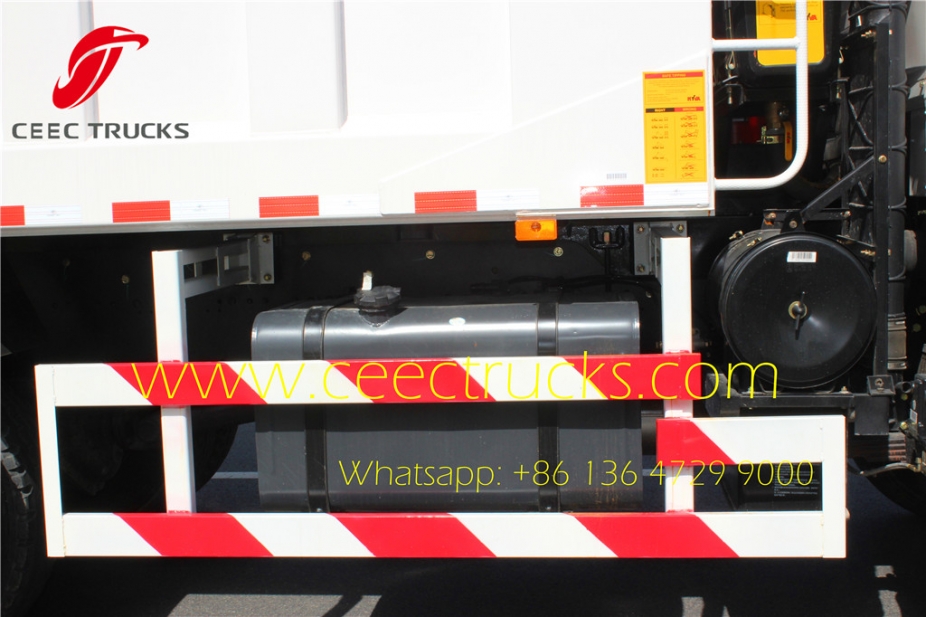

Fuel tanker capacity

300L

Clutch

430, Single dry frictional disc,Hydraulic boosting

Gearbox

9JS180, mechanism, 9 forward gears, 1 reverse gear, manual operated

Gear ratio of gear box

12.65/8.38/6.22/4.57/3.4/2.46/1.83/1.34/1.00 R:13.22

Suspension system

Front

Non-free standing leaf spring,telescopic shock absorber with stabilizer bar suspension , 10pcs


Rear

Non-free standing stabilization spring, balance suspension system, 13pcs

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system


Assistant brake

Engine exhaust brake


Park brake

Potential springs pressing on middle and rear wheels

Steering system

ZF8098 hydraulic steering with power assistance

Frame

Strengthened Straight beam

Front axle (Mercedes Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction 16 T axle

Tyre

12.00-20 tyres

Electrical system

Battery

2X12V/135Ah


Generator

28V-35A


Starter

5.4Kw/24V

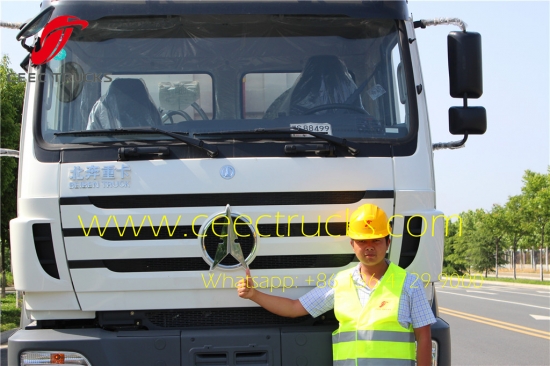

Beiben NG80B dumper Cabin

NG80B Long cabin one sleeper and inner A/C ;
Full steel skeleton structure, covered with double layer steel plate;
Can be tipped forwardly;
High back with arm seat for driver, high back seat for co-driver; With inner A/C

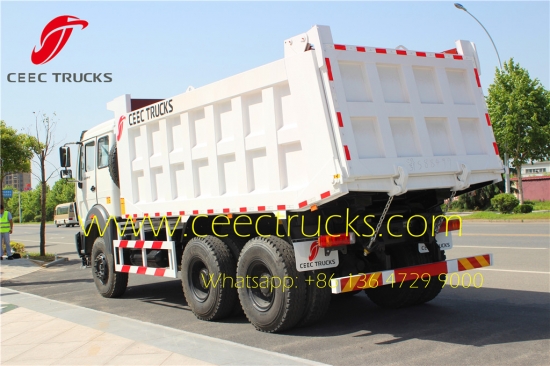

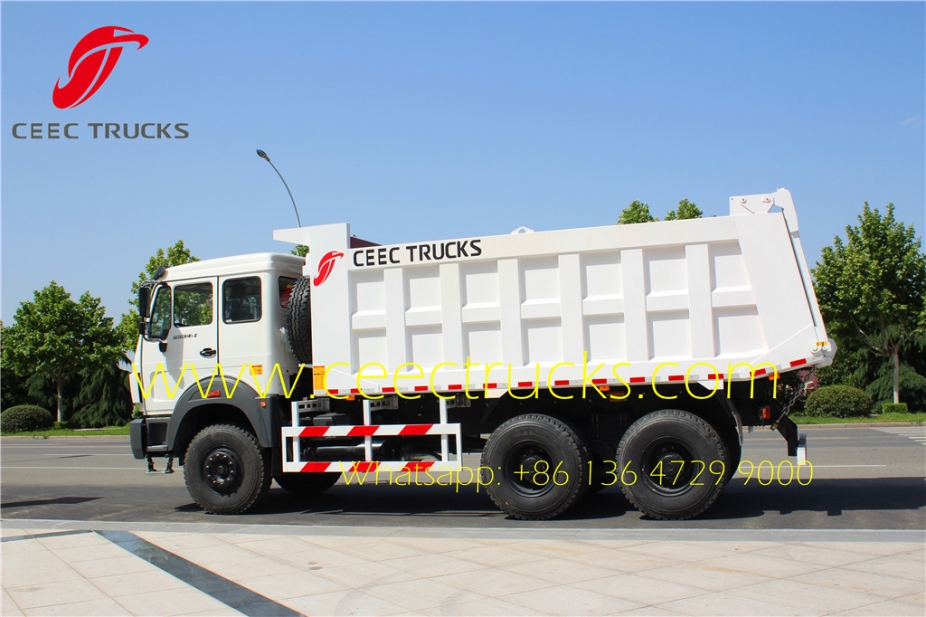

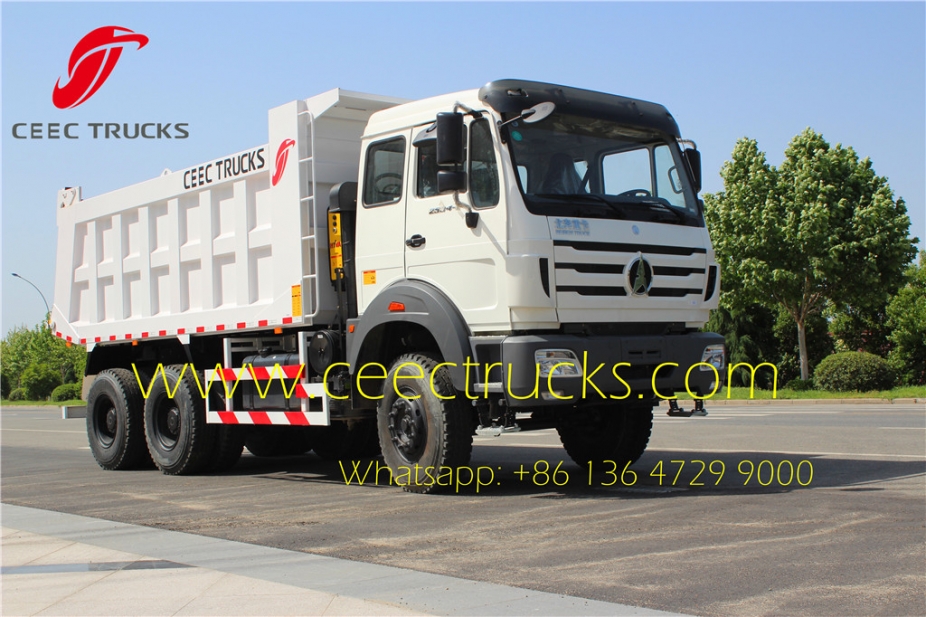

Beiben 10 wheeler dumper trucks



Beiben 10 wheeler dumper trucks



Beiben 10 wheeler dumper trucks    Beiben 10 wheeler dumper trucks



Beiben 10 wheeler dumper trucks    Beiben 10 wheeler dumper trucks



Beiben 10 wheeler dumper trucks



beiben dump trucks on sale





Other beiben trucks display





SaveSaveSaveSaveSaveSaveSaveSaveSaveSaveSave

Beiben 2534 dumper truck equipped with new NG80B cabin, which has attractive appearanc, and export to congo, kenya and tanzania

WEICHAI engine WP10.340E32, Euro 3 emission, strongly 340ps, and FAST 9shift manual mechinical gearbox

Curb weight approx 12110kg and Beiben 2534 tipper trucks loading capacity can be up to 50 T, used for mining

Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

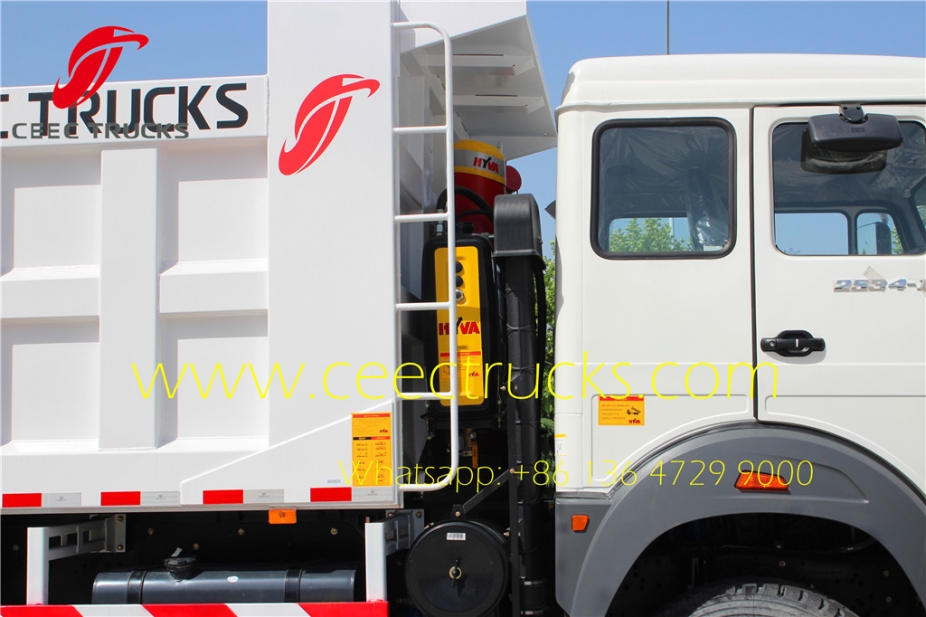

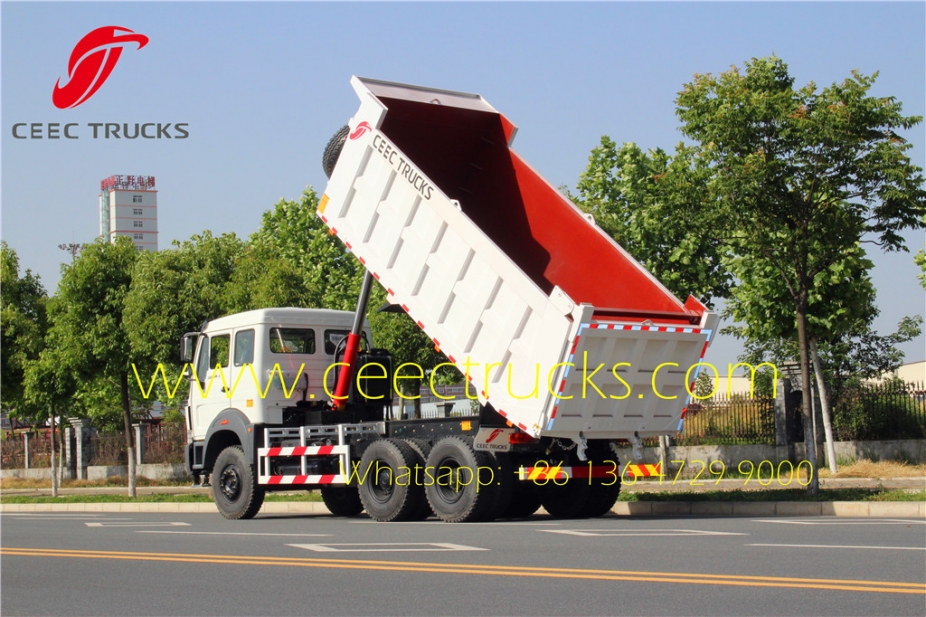

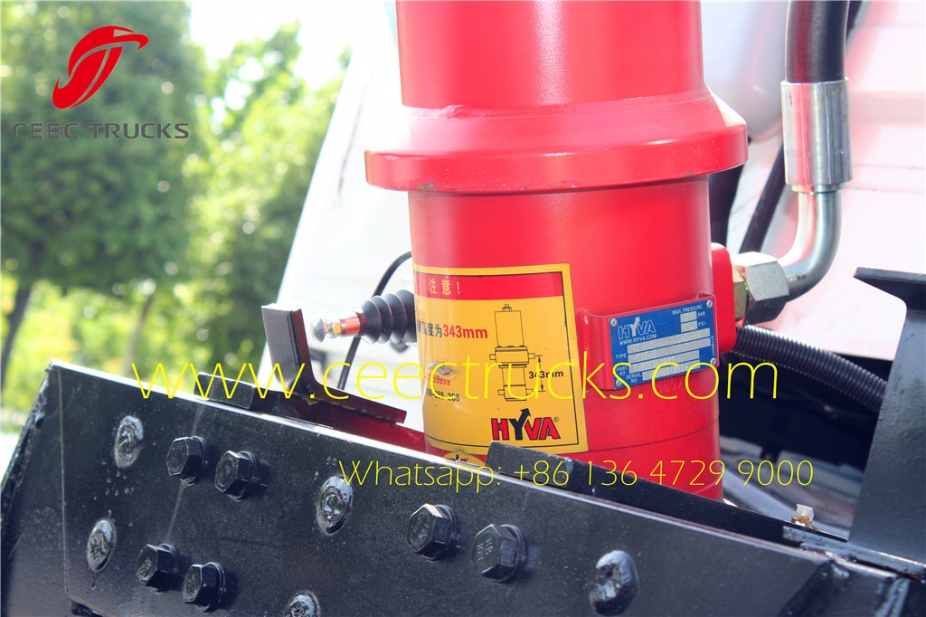

Hydraulic system can be original import brand HYVA hydraulic system



Congo customer choose Beiben 50 T dumper truck



China best beiben 50 T dumper truck manufactured by CEEC TRUCKS. which use original baotou produced Beiben 2534 heavy duty tipper truck chassis, with weichai WP10.340E32 engine, Euro 3 emission. Our beiben 2534 dumper trucks loading capacity can be up to 30T, 40T, 50T, 70T, 100T etc. And benz 2534 tipper trucks can be widely export Congo, Kenya, Tanzania, Ethiopia, Cameroon countries. below show previous export 4 units beiben 2534 dump truck export to Congo.


Beiben 10 wheeler dumper trucks for congo

(Beiben 2534 dumper truck arrived at Shanghai Seaport and ready export to Congo. Pointe Noire)


Beiben 10 wheeler dumper trucks for congo    Beiben 10 wheeler dumper trucks for congo


Beiben 10 wheeler dumper trucks for congo    Beiben 10 wheeler dumper trucks for congo
