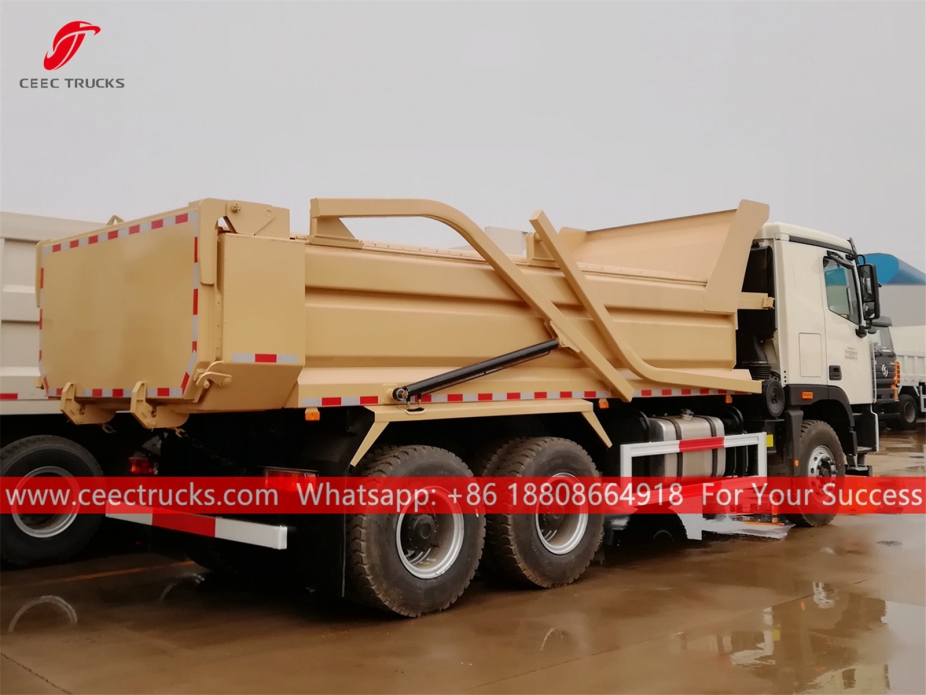

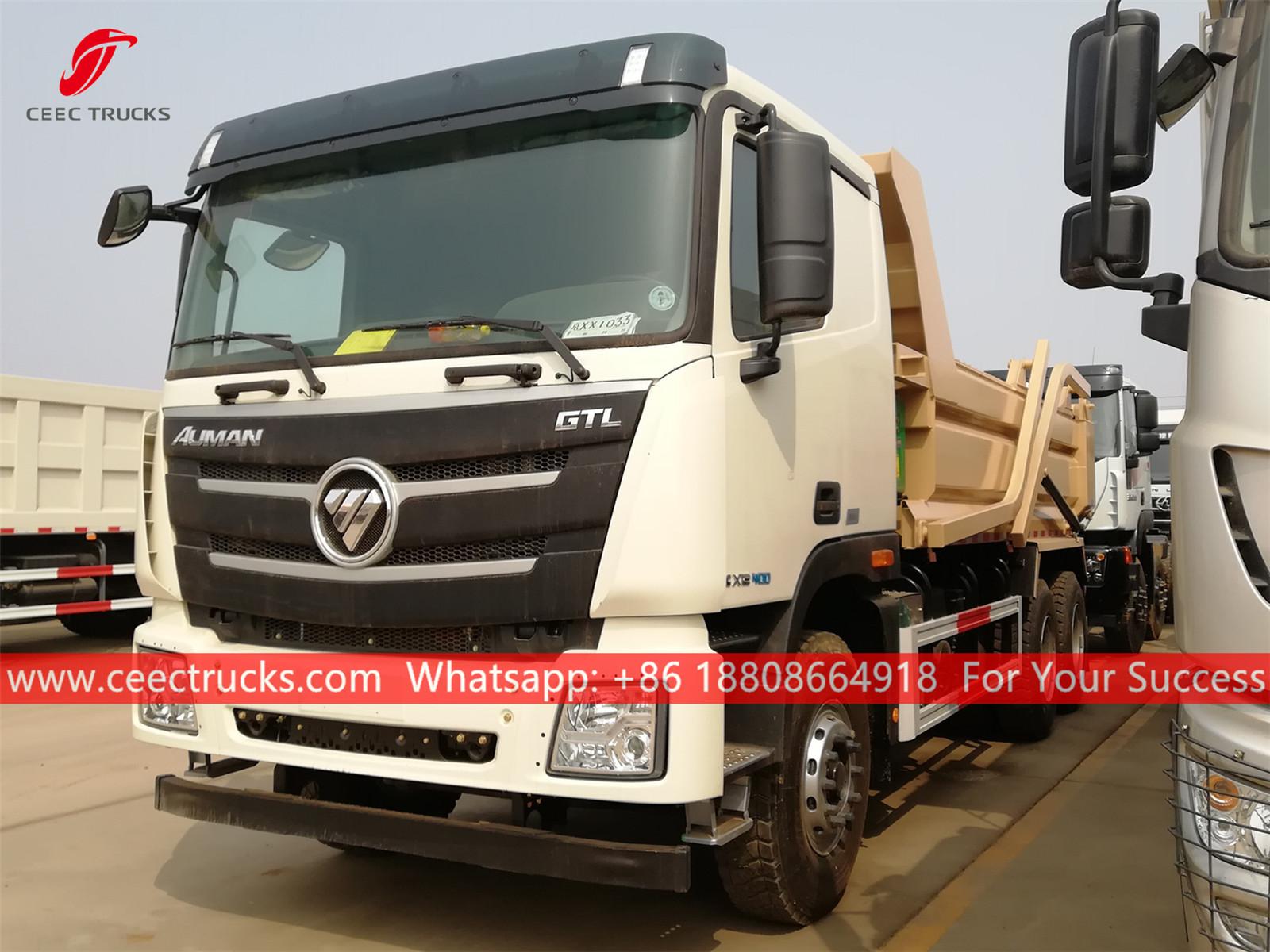

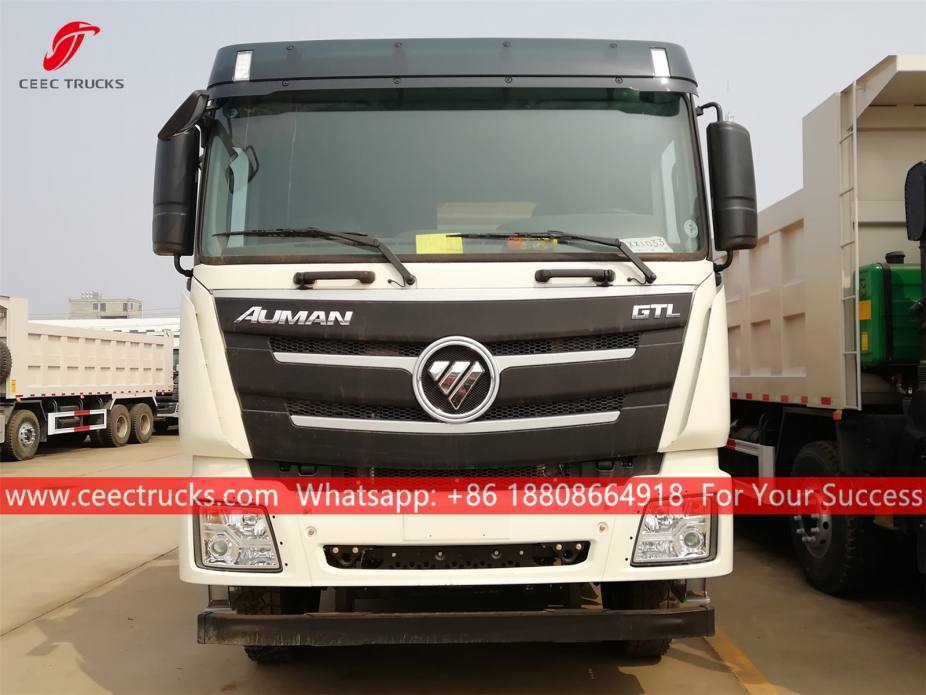

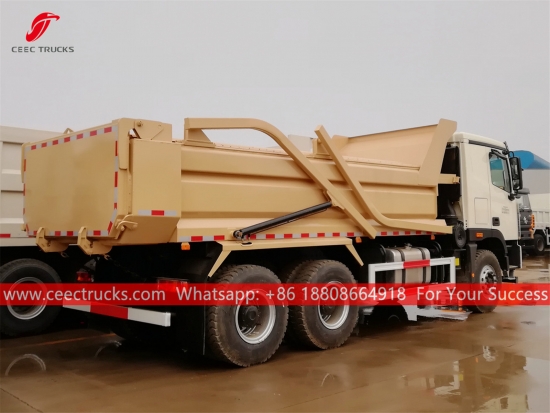

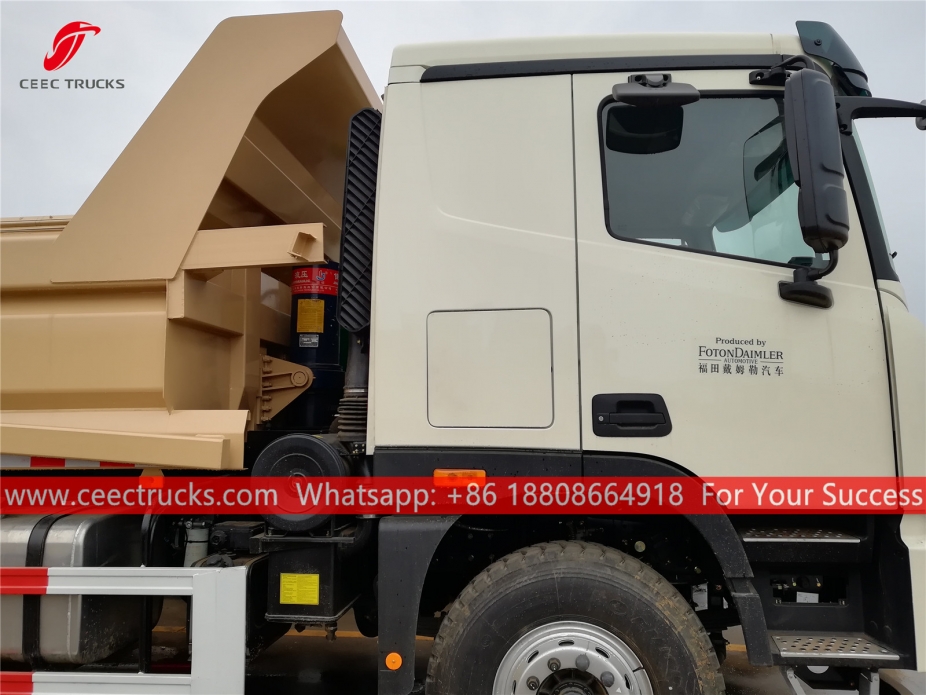

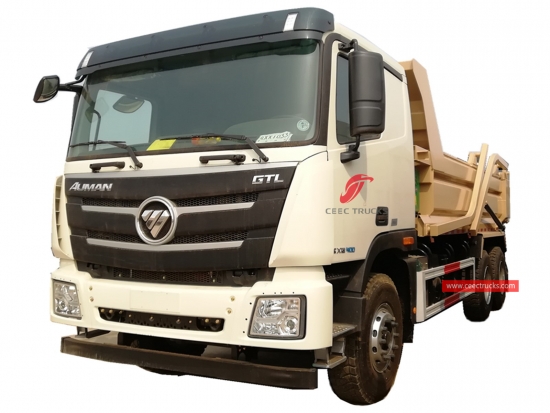

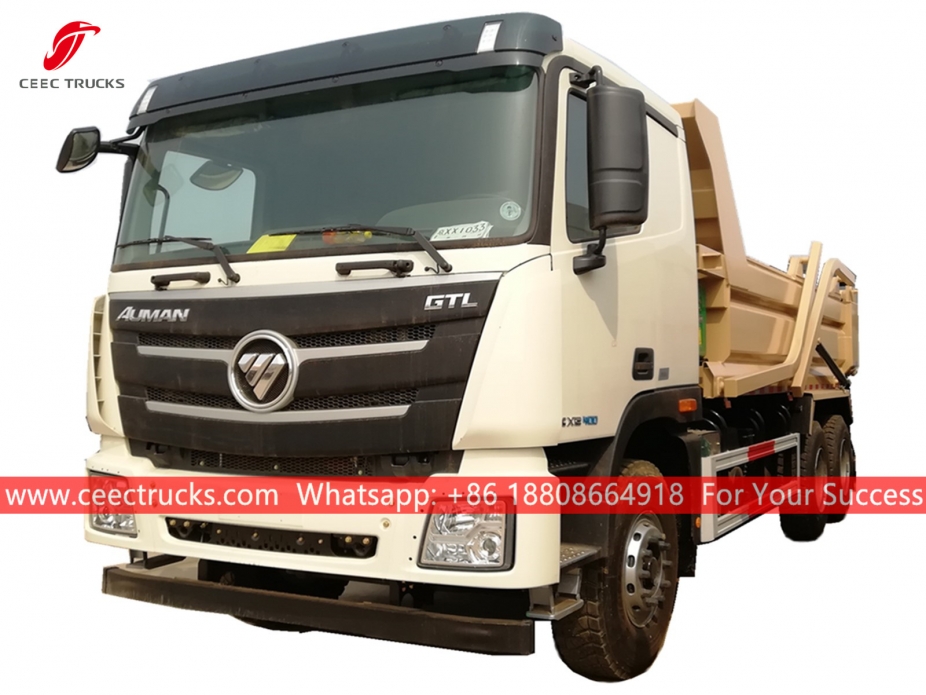

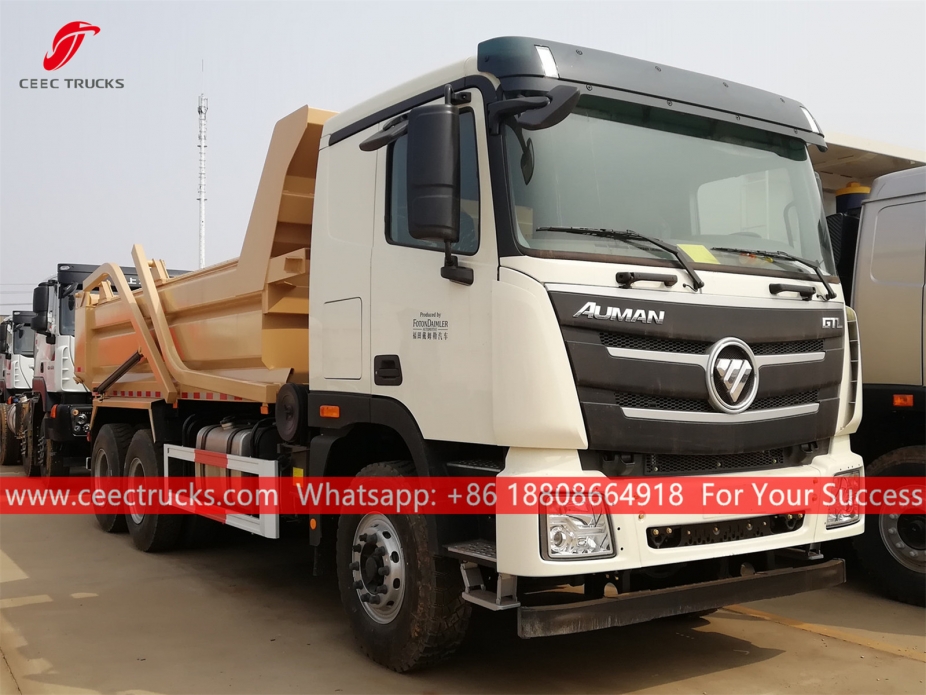

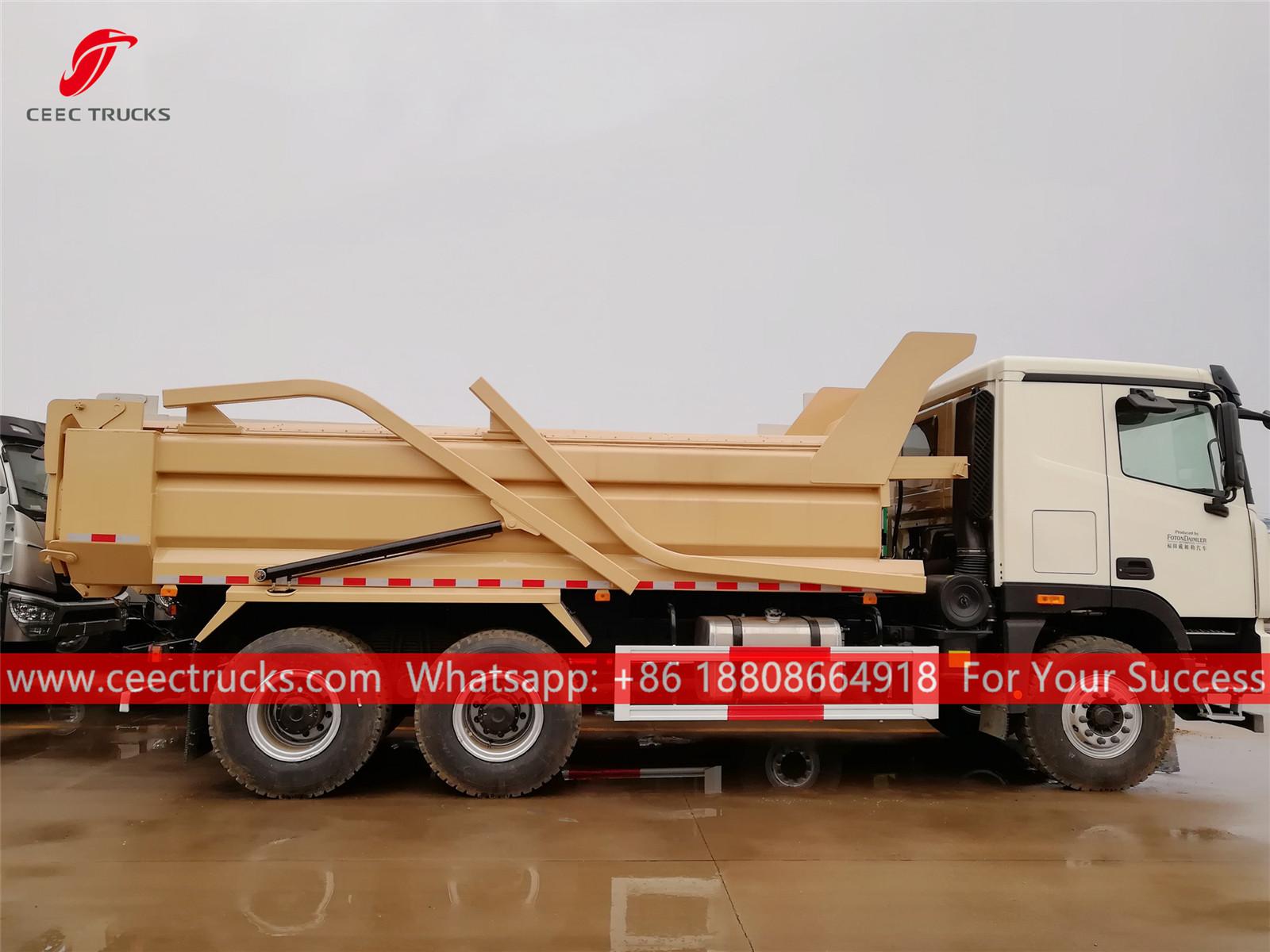

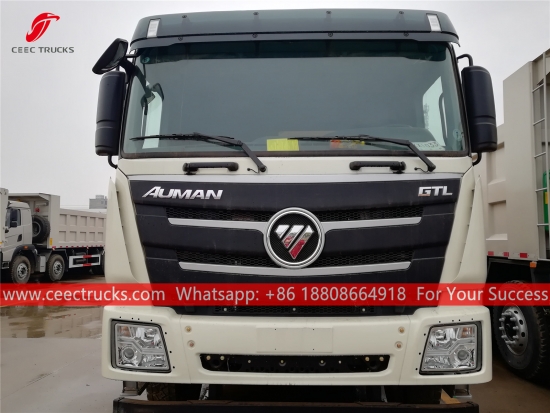

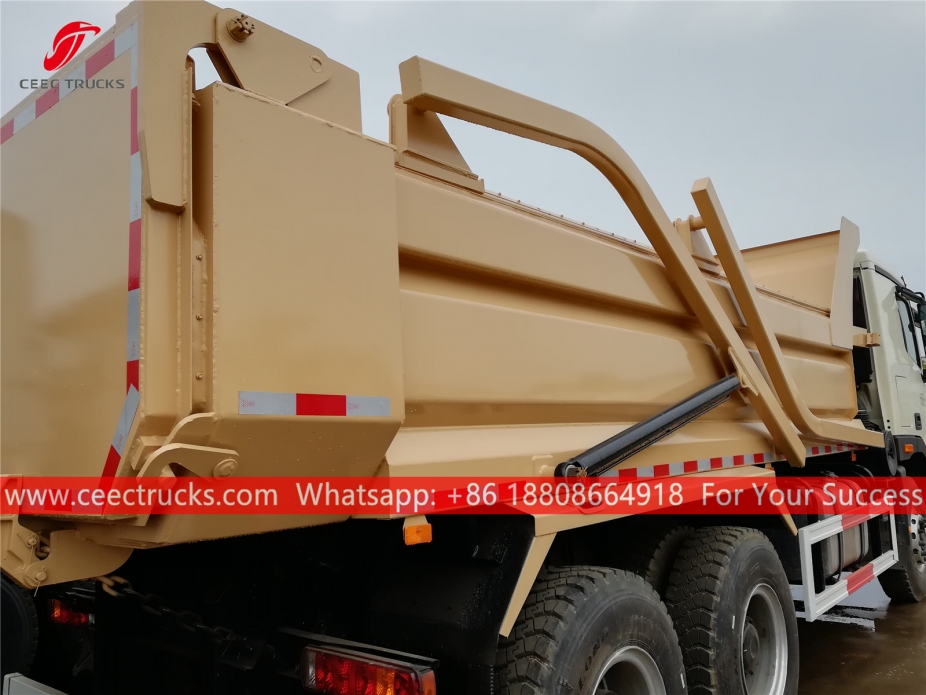

FOTON 6X4 Dump truck

FOTON 6x4 dump tipper truck, FOTON 6x4 LHD chassis, FAST 12-shift manual gearbox, CUMMINS 400HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:

FOTON 6x4 Dumper truck (also called heavy duty dump truck, tipper truck, 40tons tipper trucks, Hyva front lifting dump truck, dump truck, construction sand rock dump truck, tipper lorry, tip truck, dump truck tipping, tipper and lorry, tipper lorry) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.



CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- FOTON heavy duty chassis, perfect performance
---- CUMMINS diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



FOTON 6*4 tipper truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

FOTON

Overall Dimension

8390 * 2495 * 3400 mm

GVW / Kerb Weight

25,000kg / 12,110kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI diesel engine

Power

400 HP (294 KW)

Displacement

11800 ml

Emission Standard

Euro 5

Chassis

Drive Type

6X4 (LHD or RHD)

Transmission

FAST 12 speed levers with 2 reverse

Wheelbase/No. of axle

4100+1350 mm / 4

Tire Specification

12.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

40 Tons

Cargo body

5400*2300*960

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

Cylinder type

T Type or Domestic 220 or HYVA 200

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

Euro 5 type, CUMMINS engine, fuel consumption save 20%

FAST 12-shift manual mechanical transmission gearbox

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

12 months fast moving spare parts for FREE

Authorized FOTON tipper trucks exporter

Training service for FOTON dumper trucks



China best dump truck supplier and exporter, we supply the best quality FOTON 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our FOTON heavy trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
