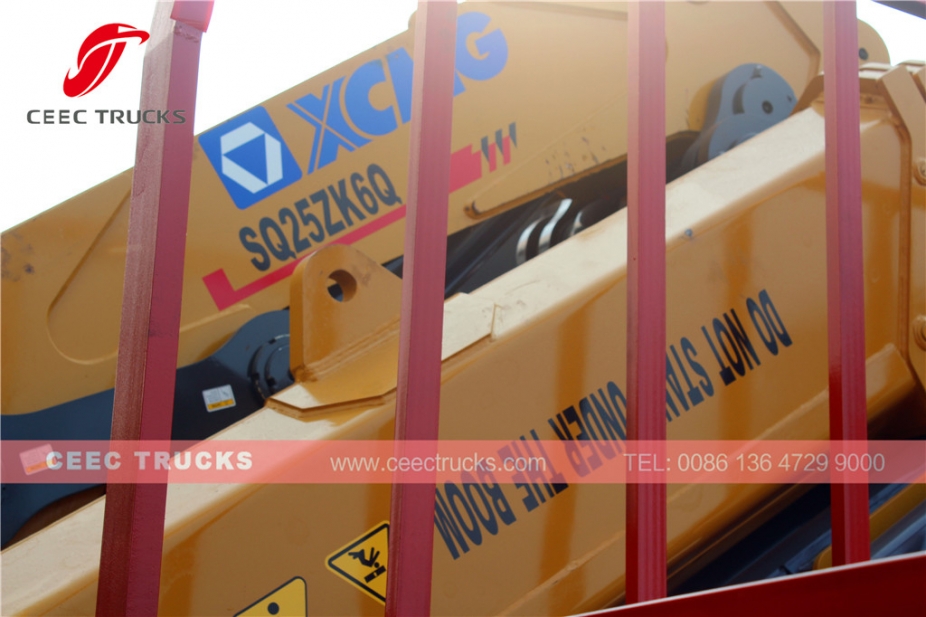

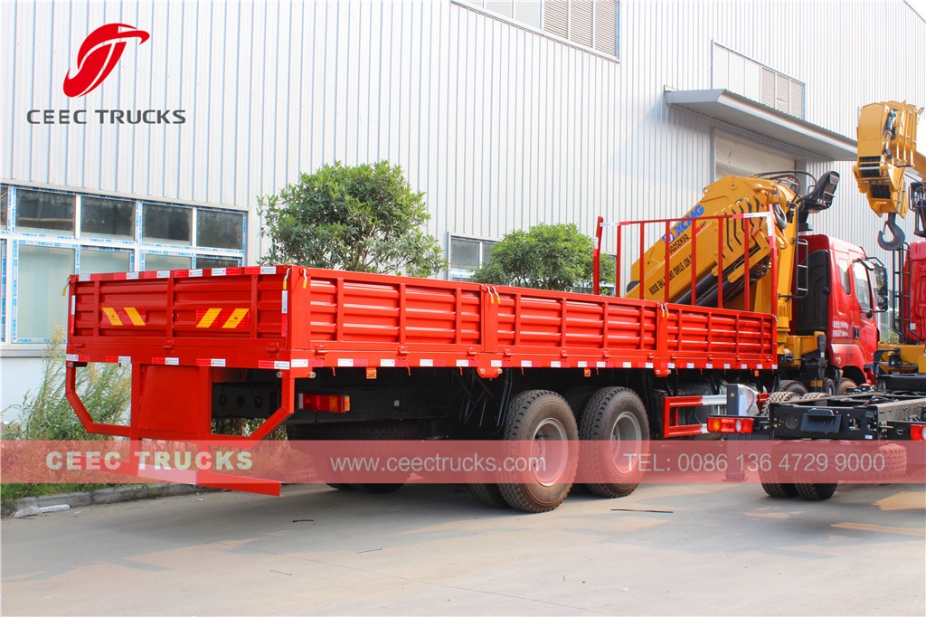

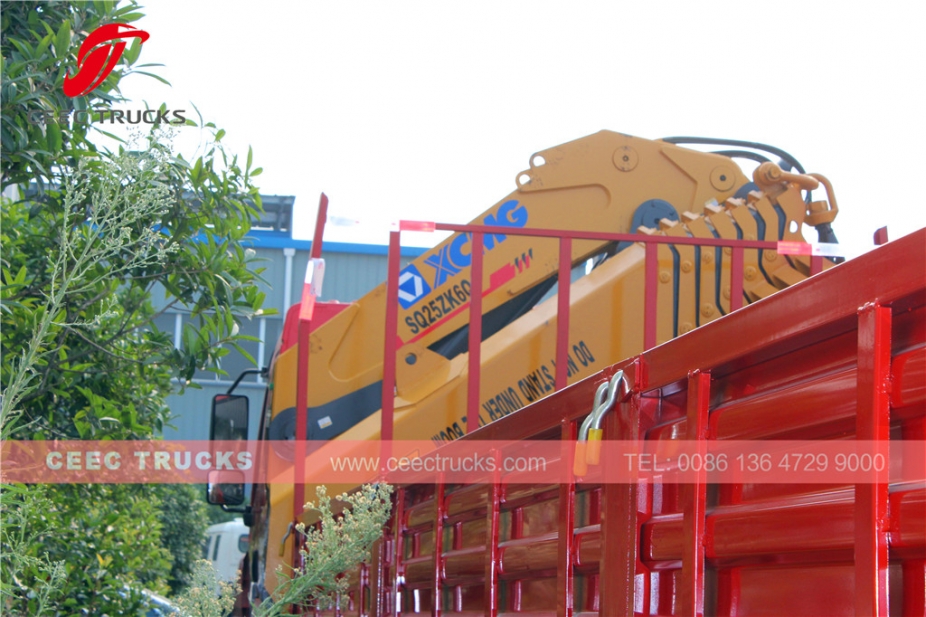

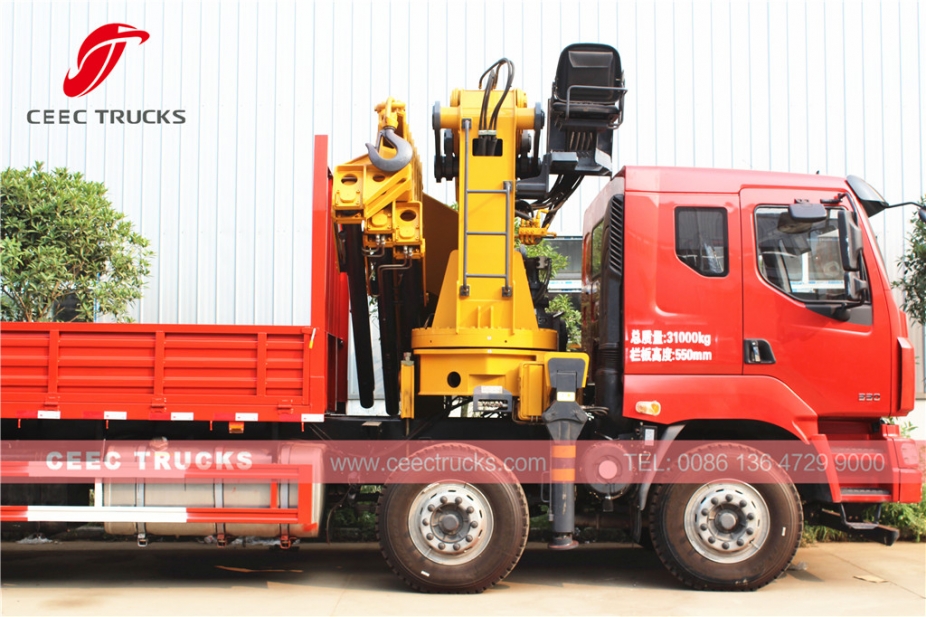

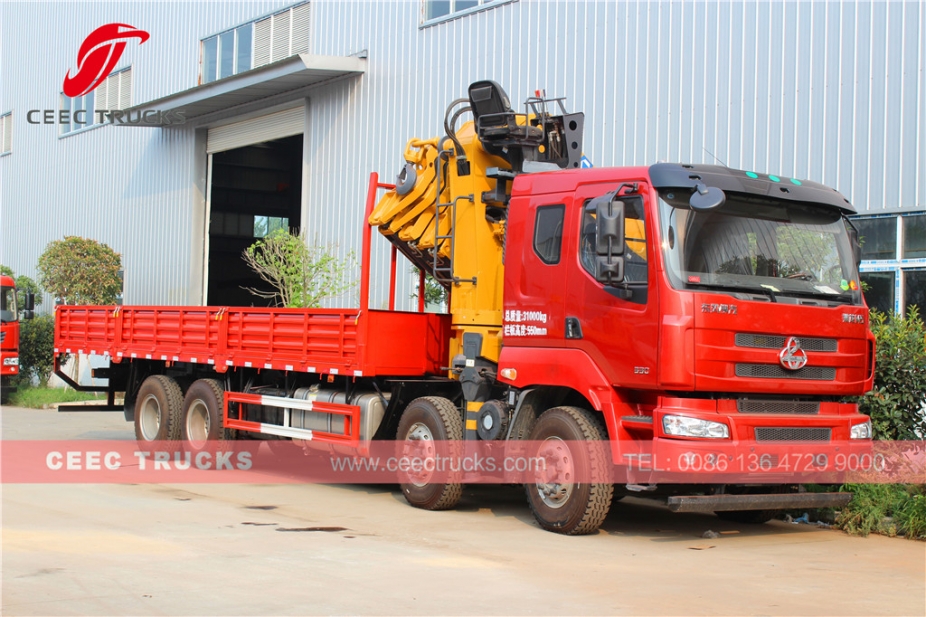

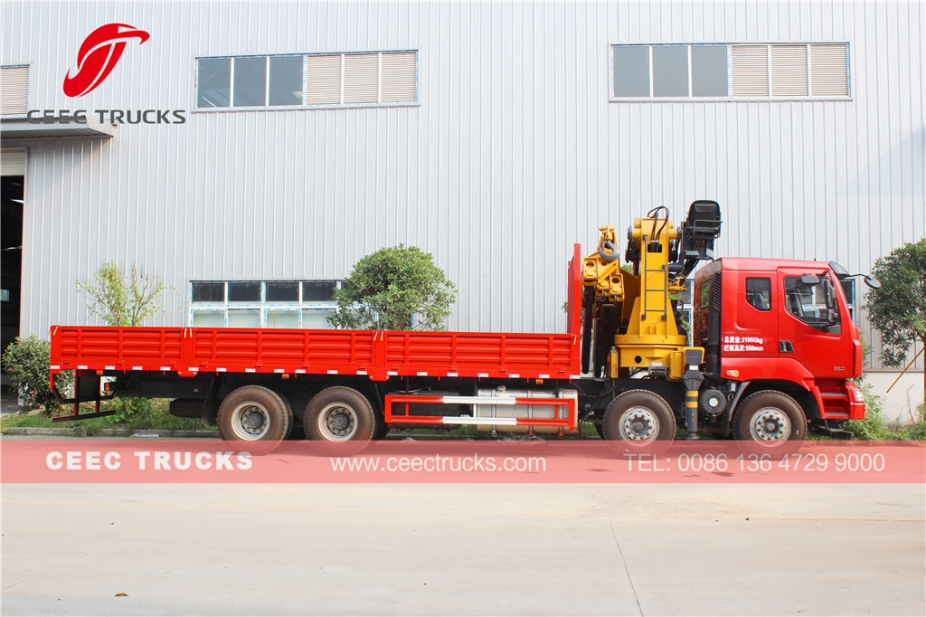

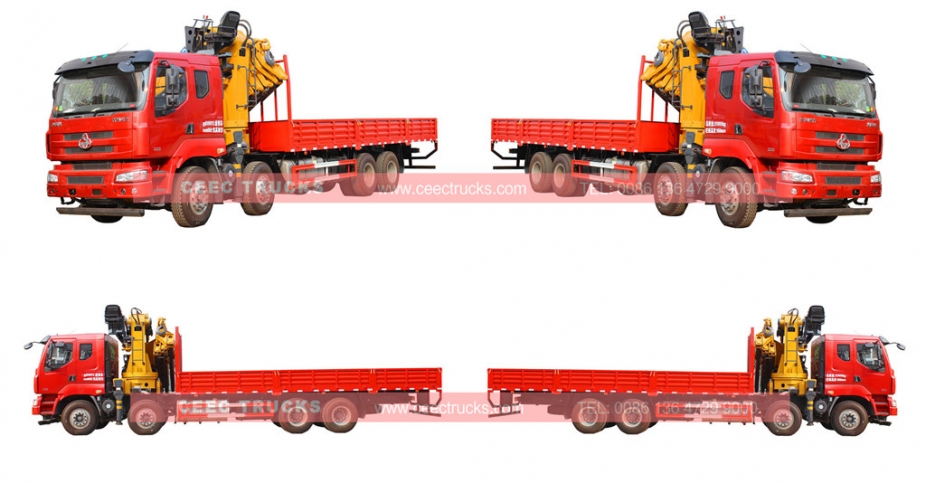

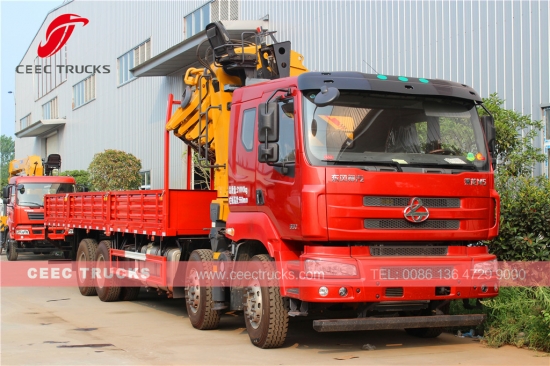

25 T knuckle boom crane truck dongfeng

Dongfeng 12 wheelers 25 T knuckle crane trucks, CUMMINS diesel engine 260HP, EURO 3/4 emission optional, Manual 9-shift gearbox as standard, with Left hand drive and Right hand drive model for optional. With Remote Control for customer choose

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $60,000-75,000
  • Market Price:

    $68000
contact now

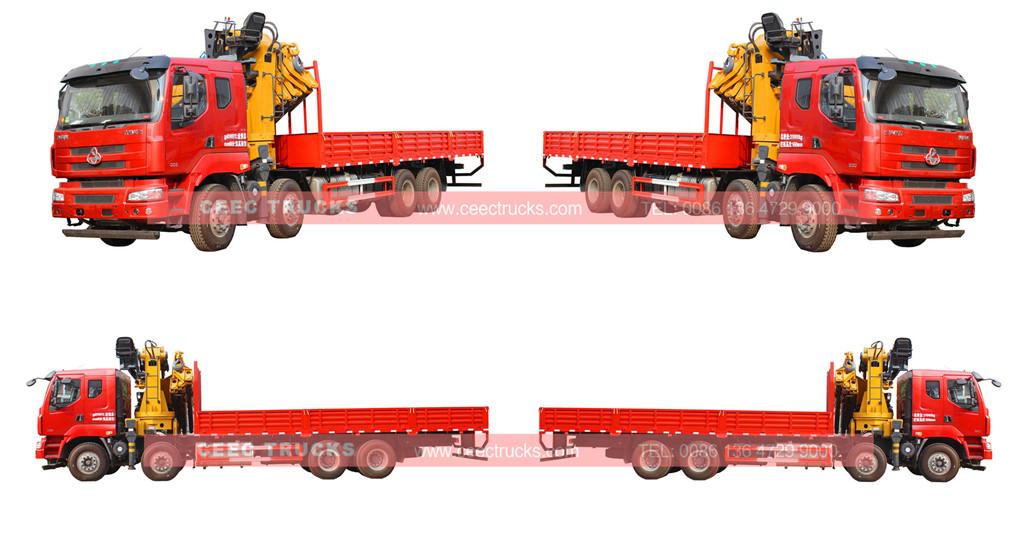

dongfeng 25tons hydraulic knuckle crane trucks



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- DONGFENG chassis ensures perfect performance on driving

---- CUMMINS technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.


Crane Features:

---- Advanced development & analysis means make sure that the design is very reliable.

---- Higher lifting capacity with four connected bar mechanism.

---- Flange telescopic boom coupling technology.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity.

---- Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.



 Specifications:



25 tons Knuckle Crane truck DONGFENG (25000kg boom crane)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

12000*2500*4000  mm

GVW / Kerb Weight

31000kg / 17,800kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

260 HP (194 KW)

Displacement

8300 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

8X4, (Left hand drive or Right hand drive)

Transmission

Manual 8 speed levers with 1 reverse

Wheelbase/No. of axle

2000+5000+1450 mm / 3

Tire Specification

11.00-20

Tire Number

12 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

8900*2300*500 mm

Crane Type

Knuckle boom crane

Max Lifting Capacity

25000 kg

Slewing Angle

360° All rotation

Crane Weight

5280 kg

Installation Space

1500 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

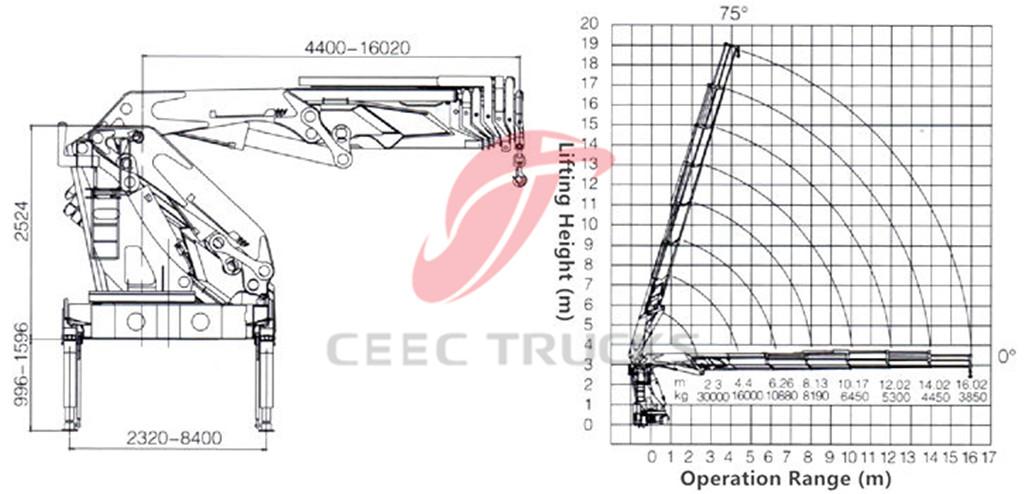

25tons hydraulic knuckle crane CAD drawing



---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.



CEEC Engineers testing boom crane trucks before delivery





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



CEEC boom crane trucks spare parts

CEEC boom crane trucks spare parts



---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



CEEC boom crane trucks export documents






---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks Manufacturer supply





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks previous export cases





---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.



CEEC boom crane trucks in factory stock
