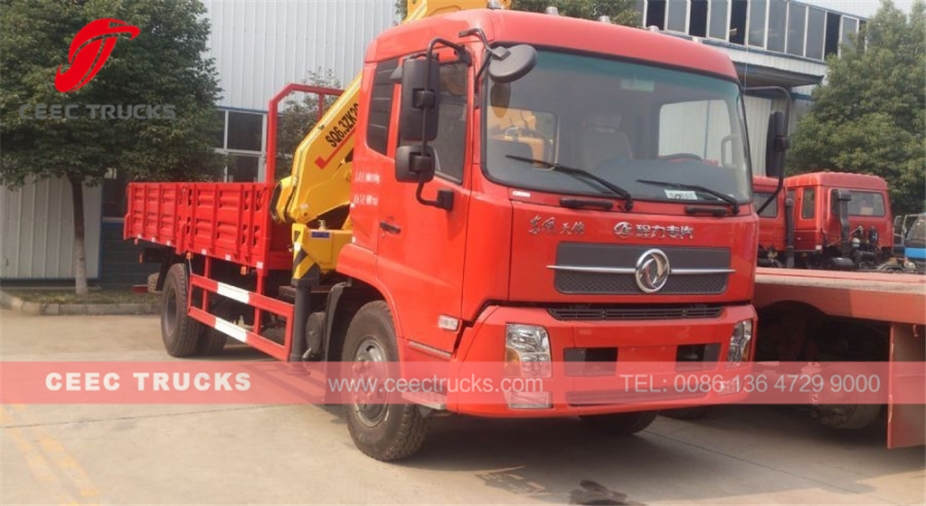

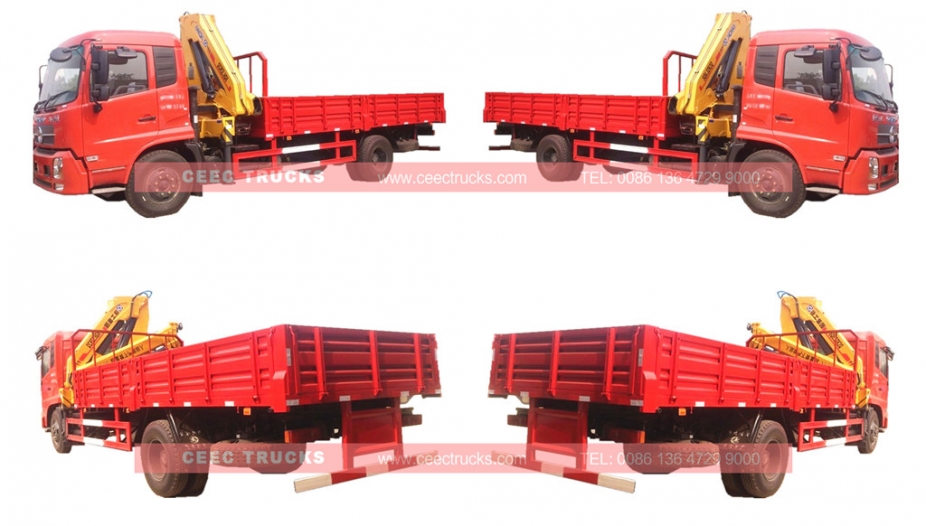

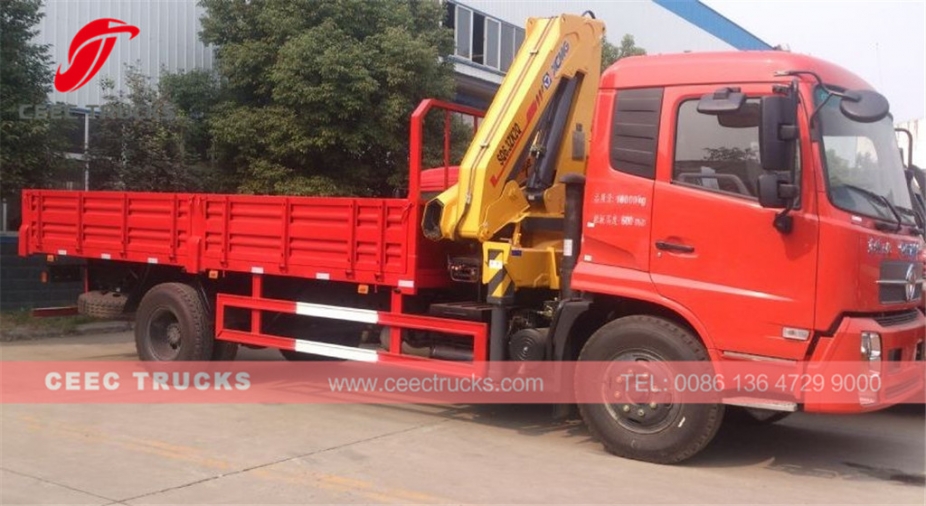

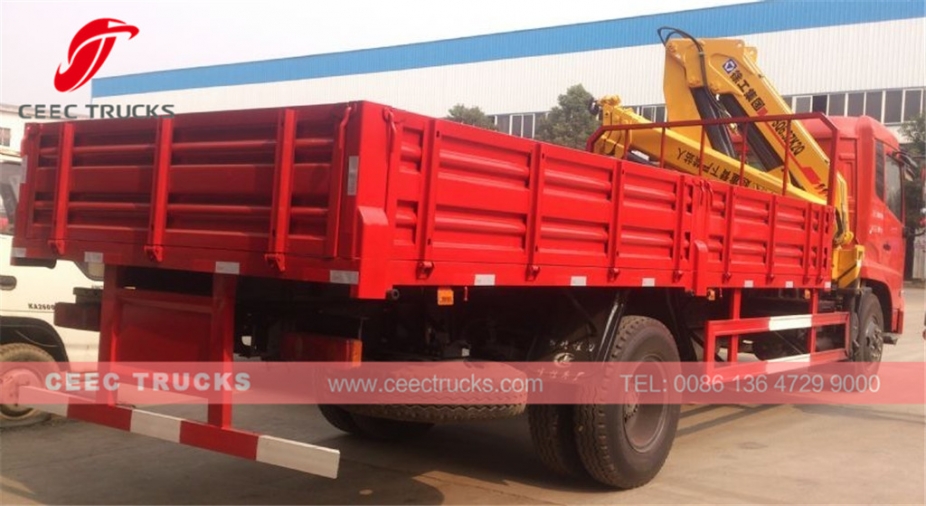

DONGFENG 6.3 Tons knuckle crane mounted trucks

6.3 T dongfeng crane truck

Dongfeng brand 6.3 Tons knuckle boom crane trucks for sale, America technology CUMMINS diesel engine 190HP, Manual 8-shift gearbox as standard, with Left hand drive and Right hand drive model for optional. knuckle crane maximum lifting weight can be 6300kg. With Remote Control for customer choose

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $33,000-42,000
  • Market Price:

    $37000
contact now

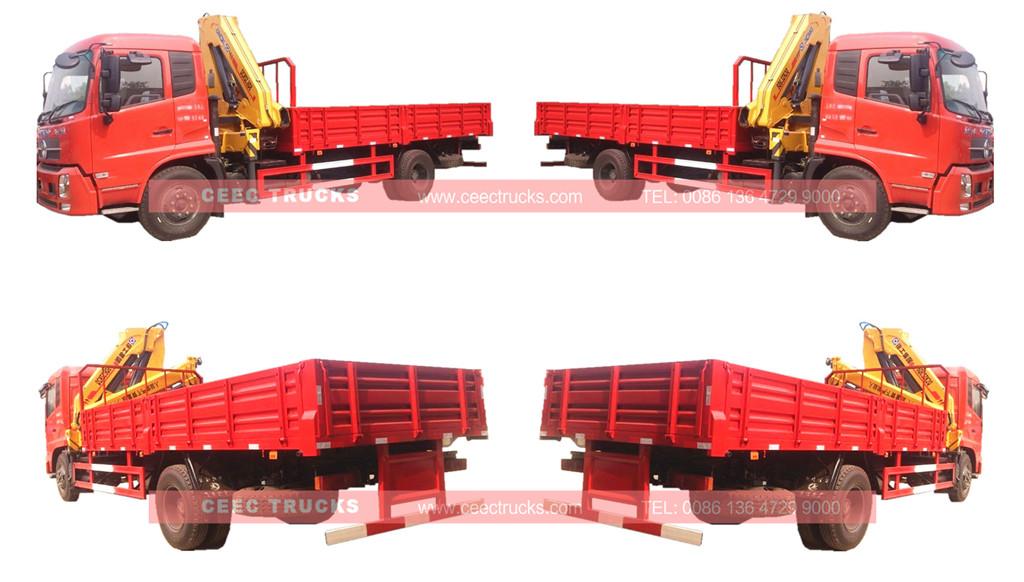

6.3Tons knuckle boom crane truck



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- DONGFENG chassis ensures perfect performance on driving

---- CUMMINS technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.


Crane Features:

---- Advanced development & analysis means make sure that the design is very reliable.

---- Higher lifting capacity with four connected bar mechanism.

---- Flange telescopic boom coupling technology.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- The more symmetrical center design of hexagon boom make it has bigger anti-bending capacity.

---- Float three-point bridge structure design can lower the accessional stress on the chassis frame when traveling.



 Specifications:



6.3 tons Knuckle Crane truck DONGFENG (6300kg boom crane)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

DONGFENG

Overall Dimension

9000*2490*3550  mm

GVW / Kerb Weight

16000kg / 8,900kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

CUMMINS

Power

190 HP (140 KW)

Displacement

5900 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

4X2, (Left hand drive or Right hand drive)

Transmission

Manual 8 speed levers with 1 reverse

Wheelbase/No. of axle

5000 mm / 3

Tire Specification

10.00-20

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

6000*2300*500 mm

Crane Type

Knuckle boom crane

Max Lifting Capacity

6300 kg

Slewing Angle

360° All rotation

Crane Weight

2226 kg

Installation Space

1050 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

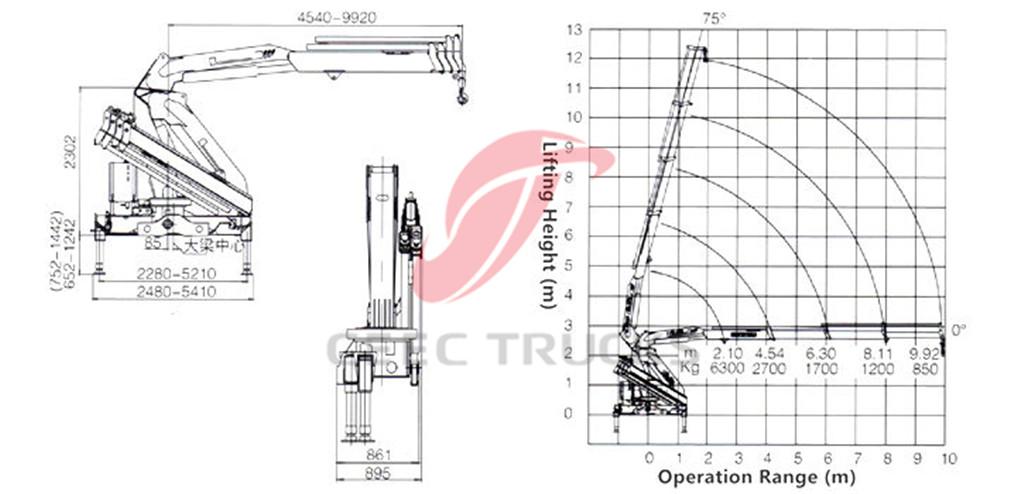

 6.3Tons knuckle boom crane CAD drawing



---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.



CEEC Engineers testing boom crane trucks before delivery





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



CEEC boom crane trucks spare parts

CEEC boom crane trucks spare parts



---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



CEEC boom crane trucks export documents






---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks Manufacturer supply





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks previous export cases





---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.



CEEC boom crane trucks in factory stock
