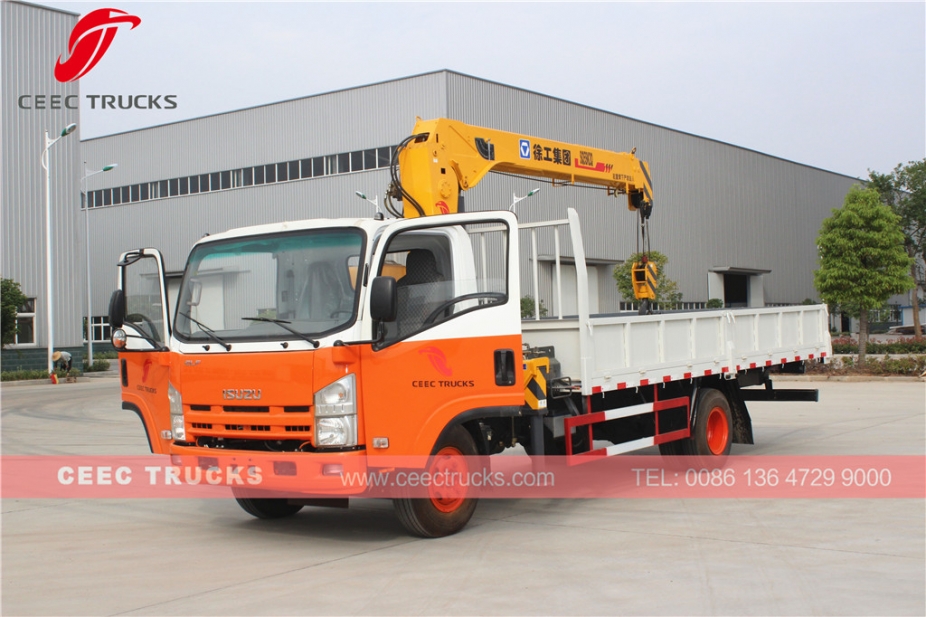

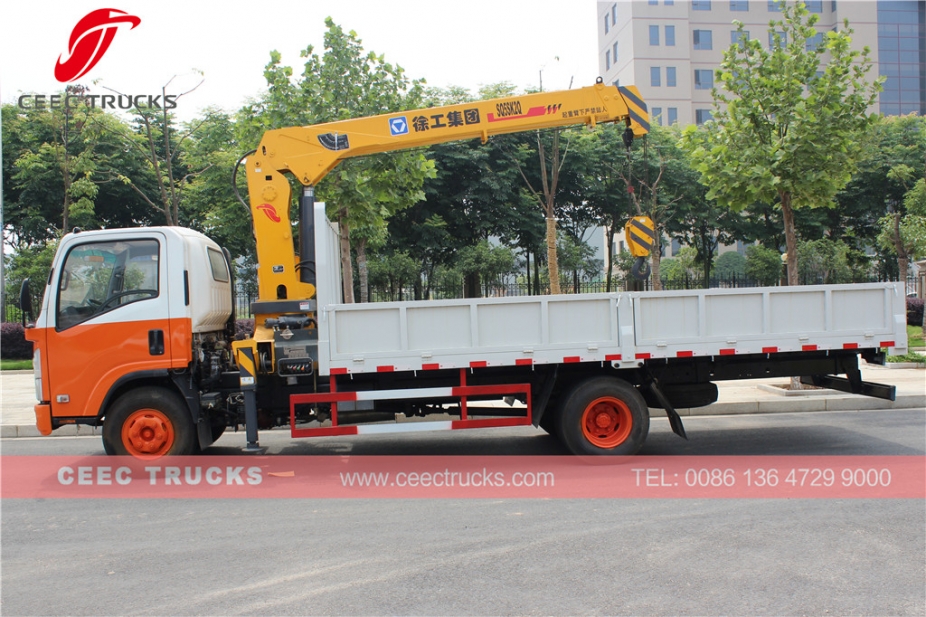

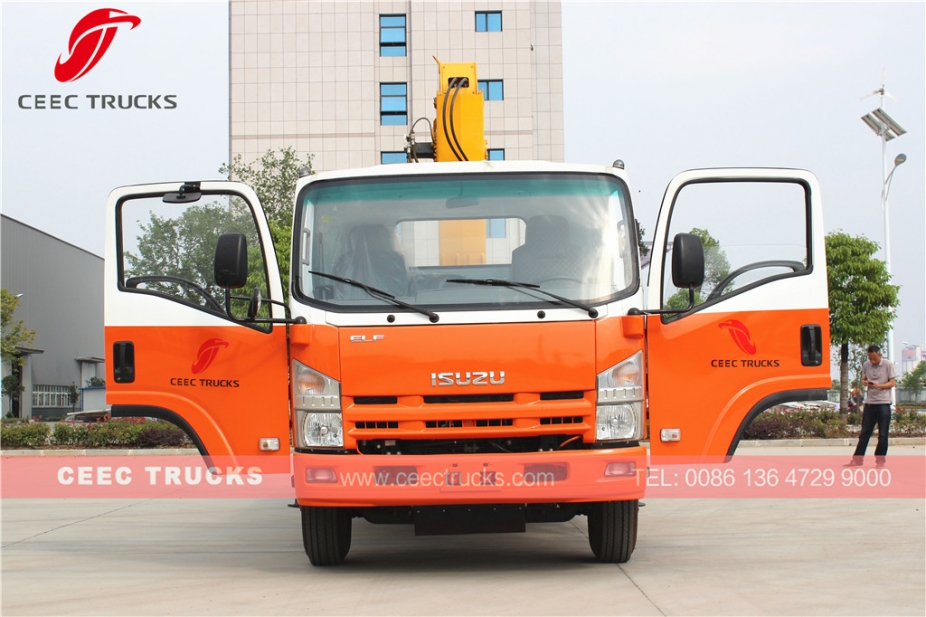

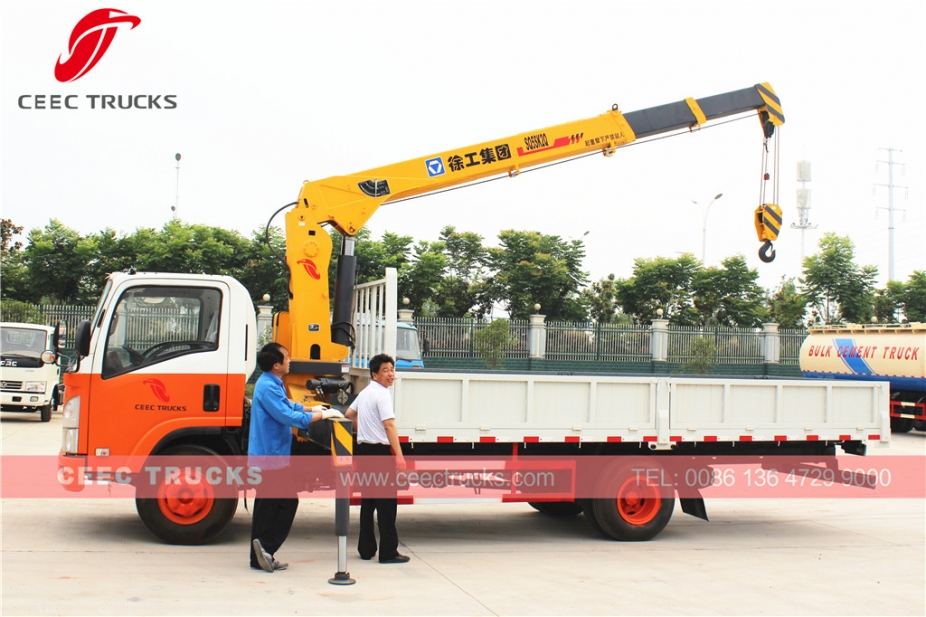

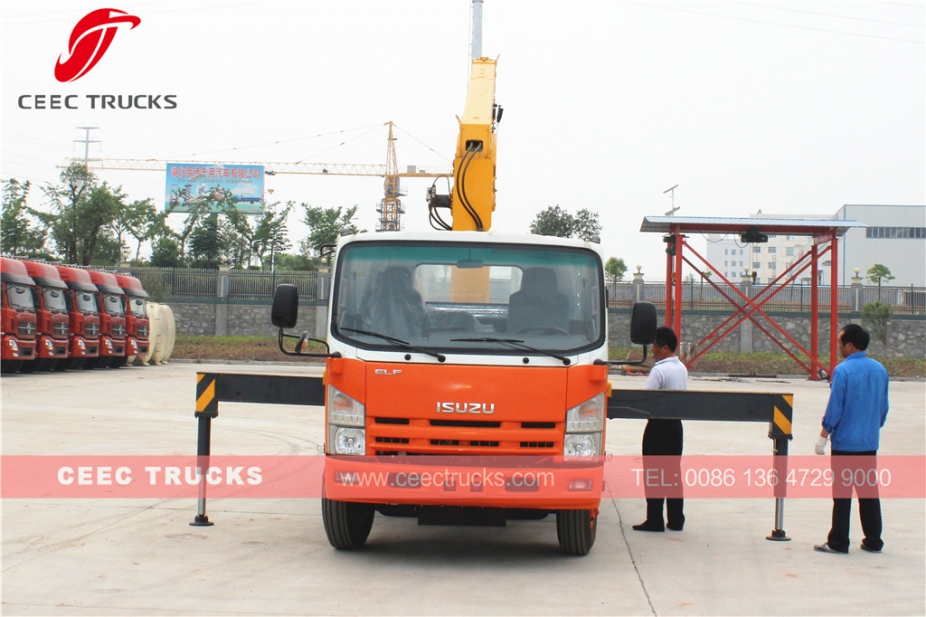

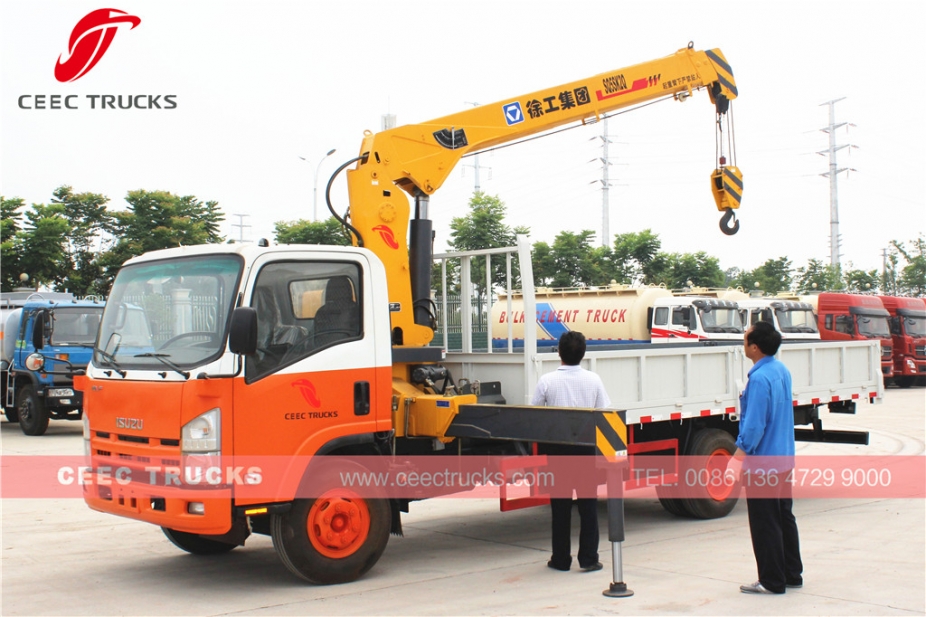

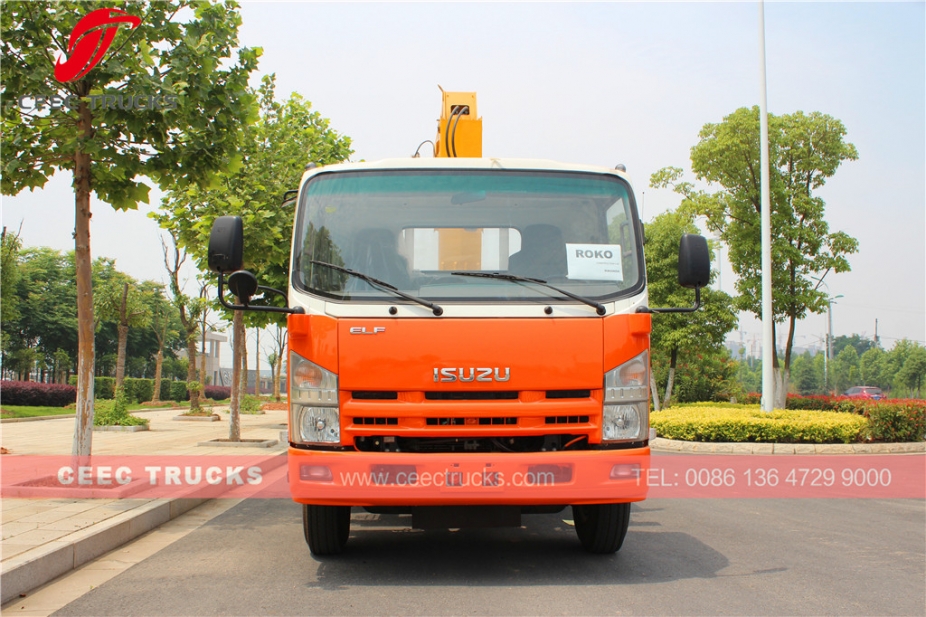

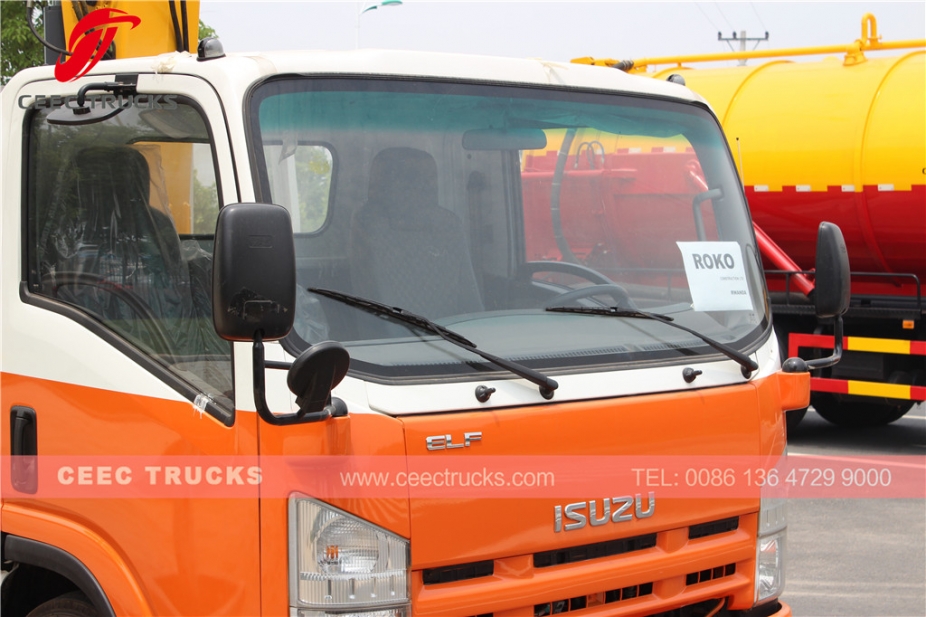

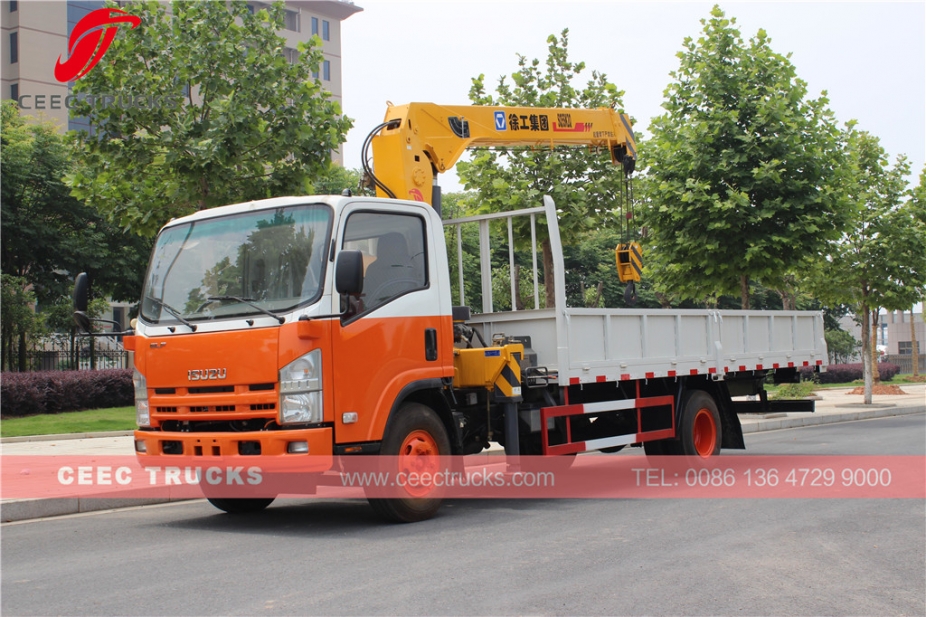

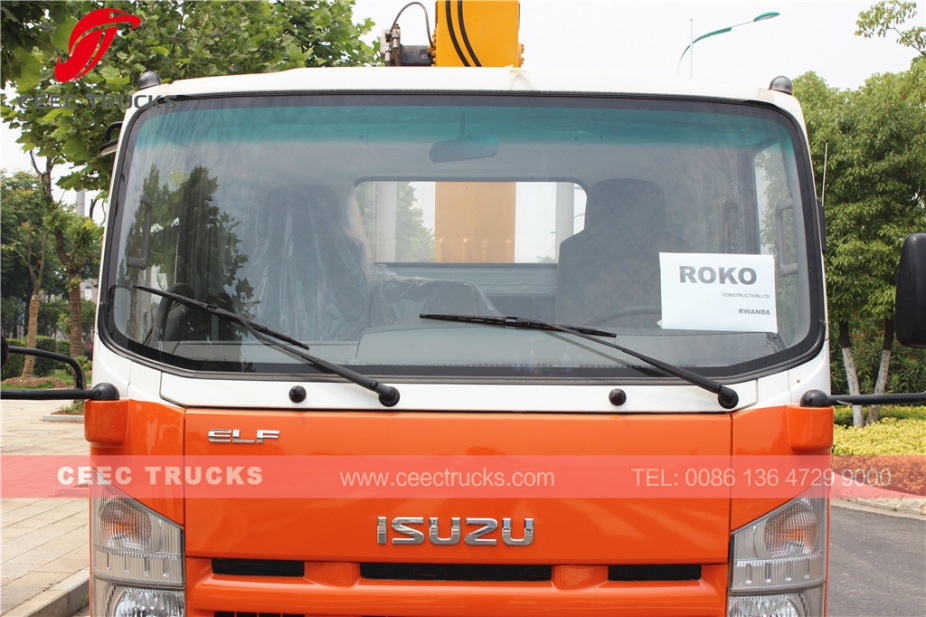

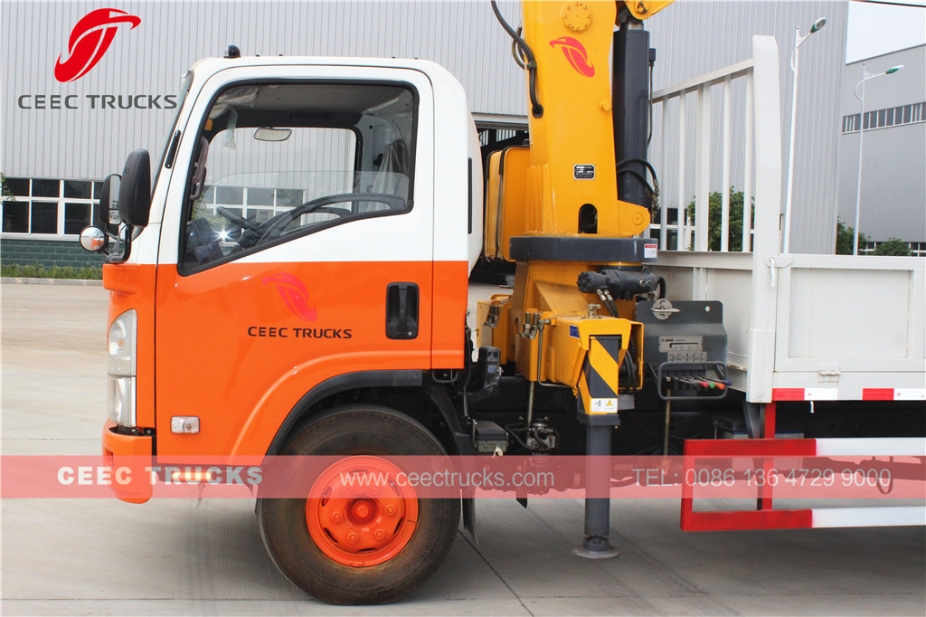

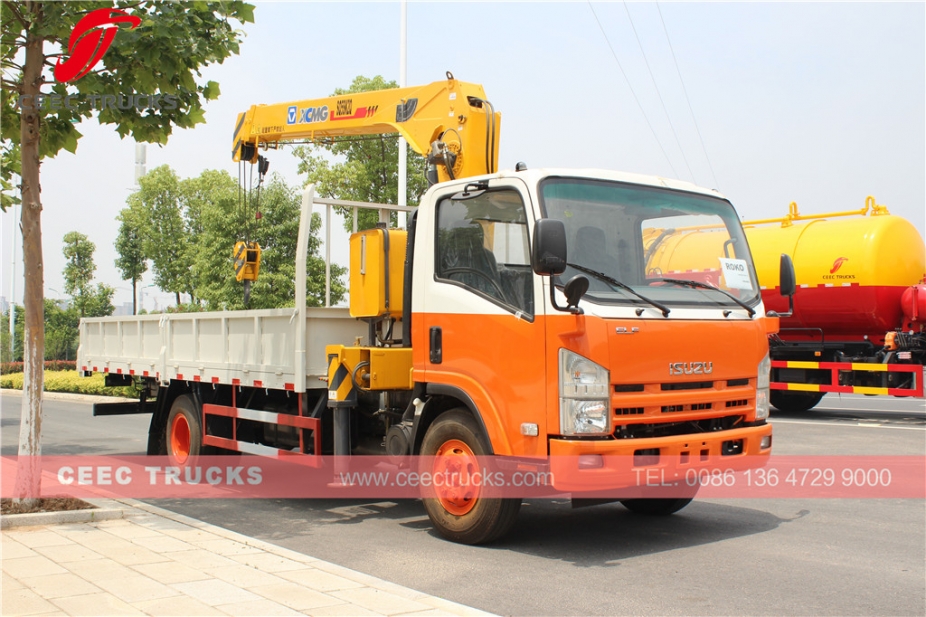

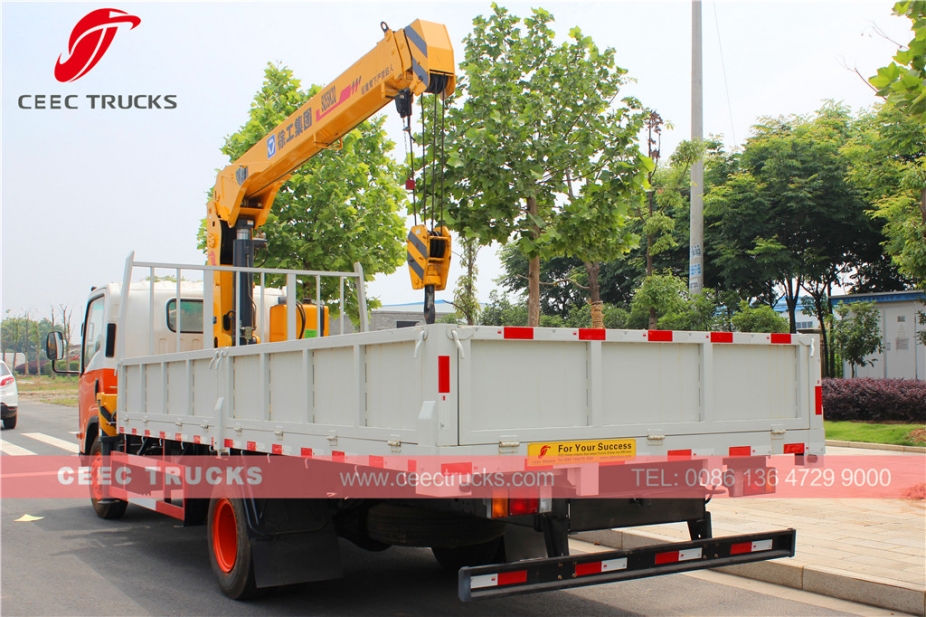

ISUZU 5 T truck mounted crane for sale

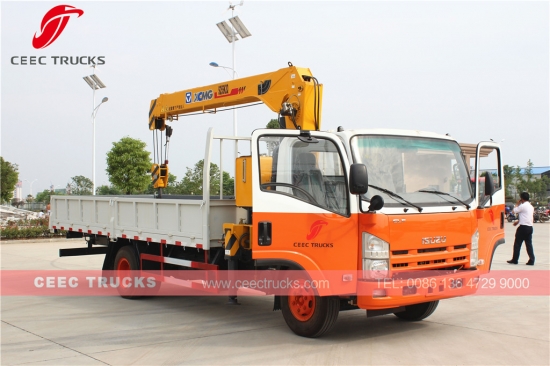

5 T ISUZU crane truck

2018 newly designed ISUZU 5T telescopic boom crane truck, ISUZU technology diesel engine 190HP, Manual MLD 6-shift gearbox for easy operation, Equipped with 5000kg telescopic boom crane, also have Remote Control for choose, cargo box length can be range from 3000mm to 4500mm

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $32,000-42,000
  • Market Price:

    $38000
contact now

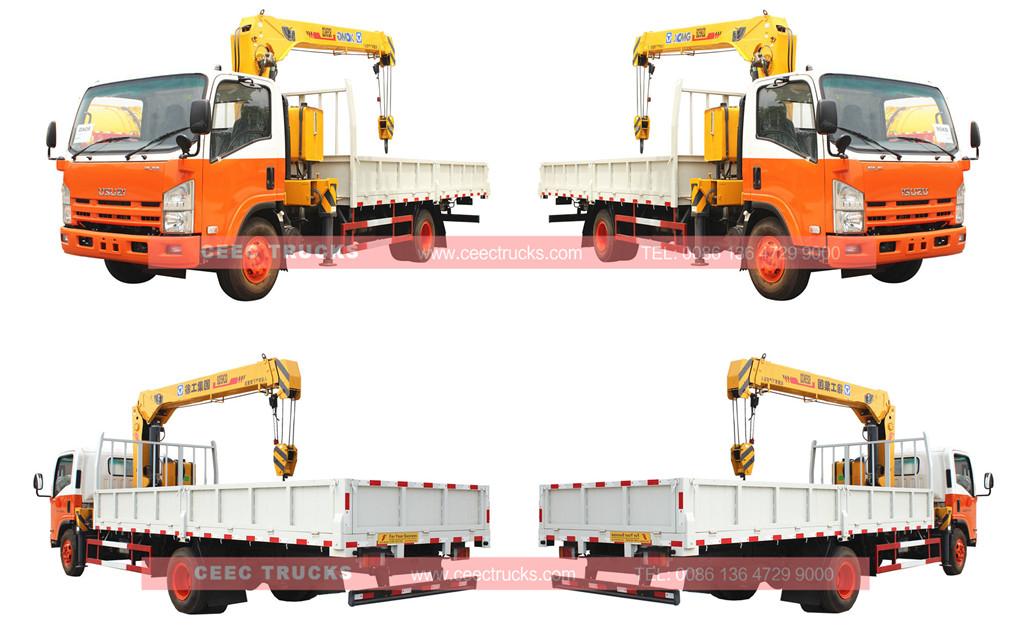

ISUZU 5tons crane mounted truck overview



 Applications:



Truck Mounted Crane (also called XCMG crane, UNIC crane, crane truck, lorry mounted truck, truck cargo with loader, knuckle boom crane on truck chassis, truck with mounted back crane, crane mounted cargo truck, truck with loading crane, boom crane, boom crane truck, articulated crane truck) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



The Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- ISUZU chassis ensures perfect performance on driving

---- ISUZU technology engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.


Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:

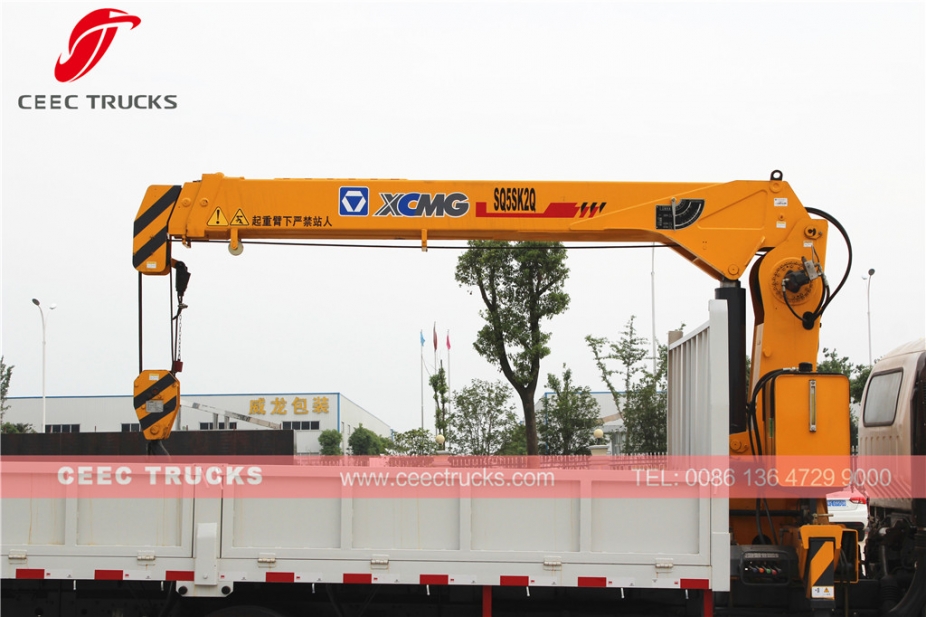

ISUZU Crane truck (5Ton boom crane SQ5SK2Q)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

7500 * 2300 * 3500 mm

GVW / Kerb Weight

9,400kg / 5,400kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP (140 KW)

Displacement

5193 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (Left hand drive ONLY)

Transmission

Manual MLD 6 speed levers with 1 reverse

Wheelbase/No. of axle

4475 mm / 2

Tire Specification

8.25-16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

4500*2000*500 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

5000 kg

Slewing Angle

360° All rotation

Crane Weight

2120 kg

Installation Space

900 mm

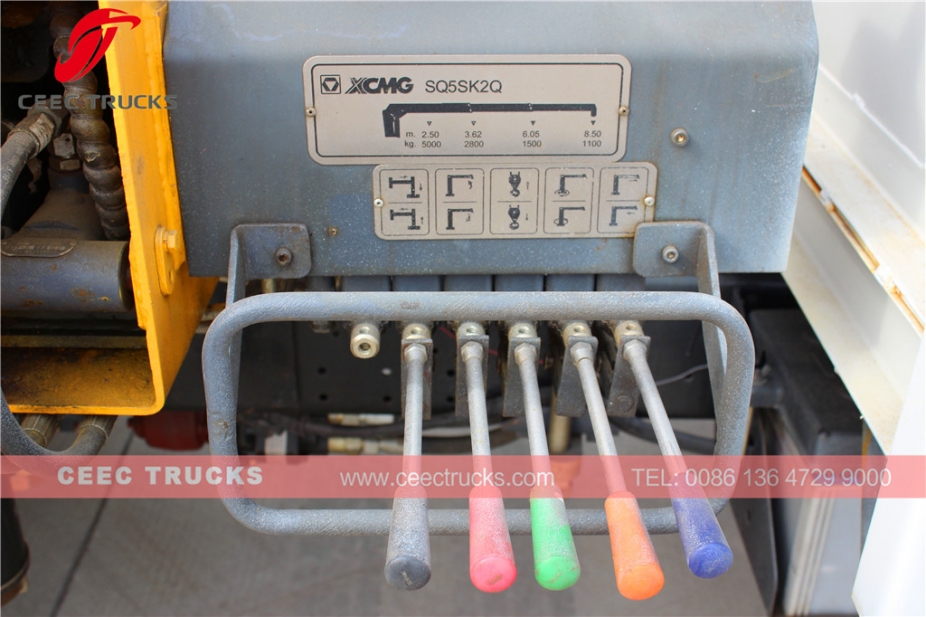

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

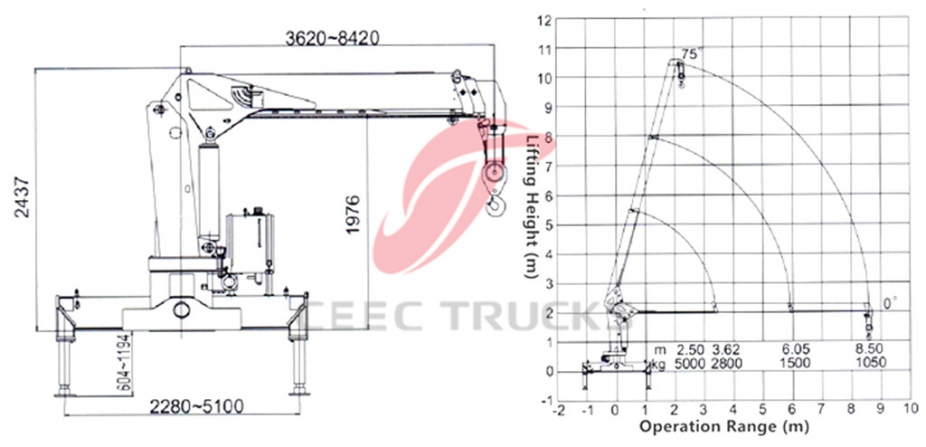

ISUZU 5T truck mounted crane drawing



---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.



CEEC Engineers testing boom crane trucks before delivery





---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.



CEEC boom crane trucks spare parts

CEEC boom crane trucks spare parts



---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



CEEC boom crane trucks export documents






---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks Manufacturer supply





---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC boom crane trucks previous export cases





---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.



CEEC boom crane trucks in factory stock



Watch CEEC Crane Trucks on YOUTUBE

ISUZU Road Rescue Truck with 5T boom crane export Sierra Leone:         https://www.youtube.com/watch?v=ARO65-tpUlI

                                                                                                                                                              https://www.youtube.com/watch?v=4xc-9B79xCg

                                                                                                                                                              https://www.youtube.com/watch?v=UjrkbWzt5tM

                                                                                                                                                              https://www.youtube.com/watch?v=YQmvFQOYfVc

ISUZU 6.3T boom crane truck export Syria:       https://www.youtube.com/watch?v=guEotHmzRWQ

                                                                                                             https://www.youtube.com/watch?v=WINarUdLdFk

ISUZU 5T boom crane truck export Rwanda:       https://www.youtube.com/watch?v=guEotHmzRWQ
