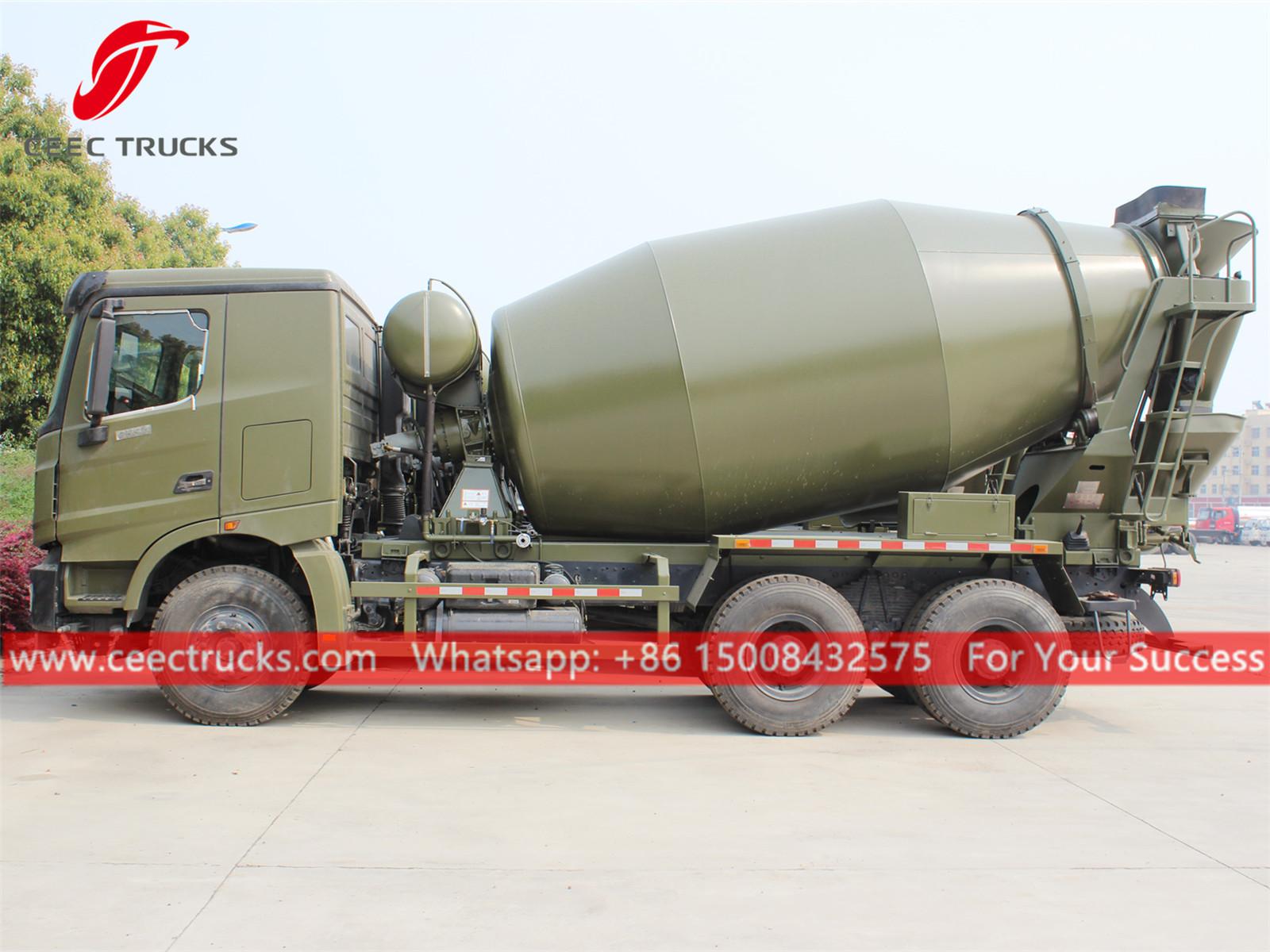

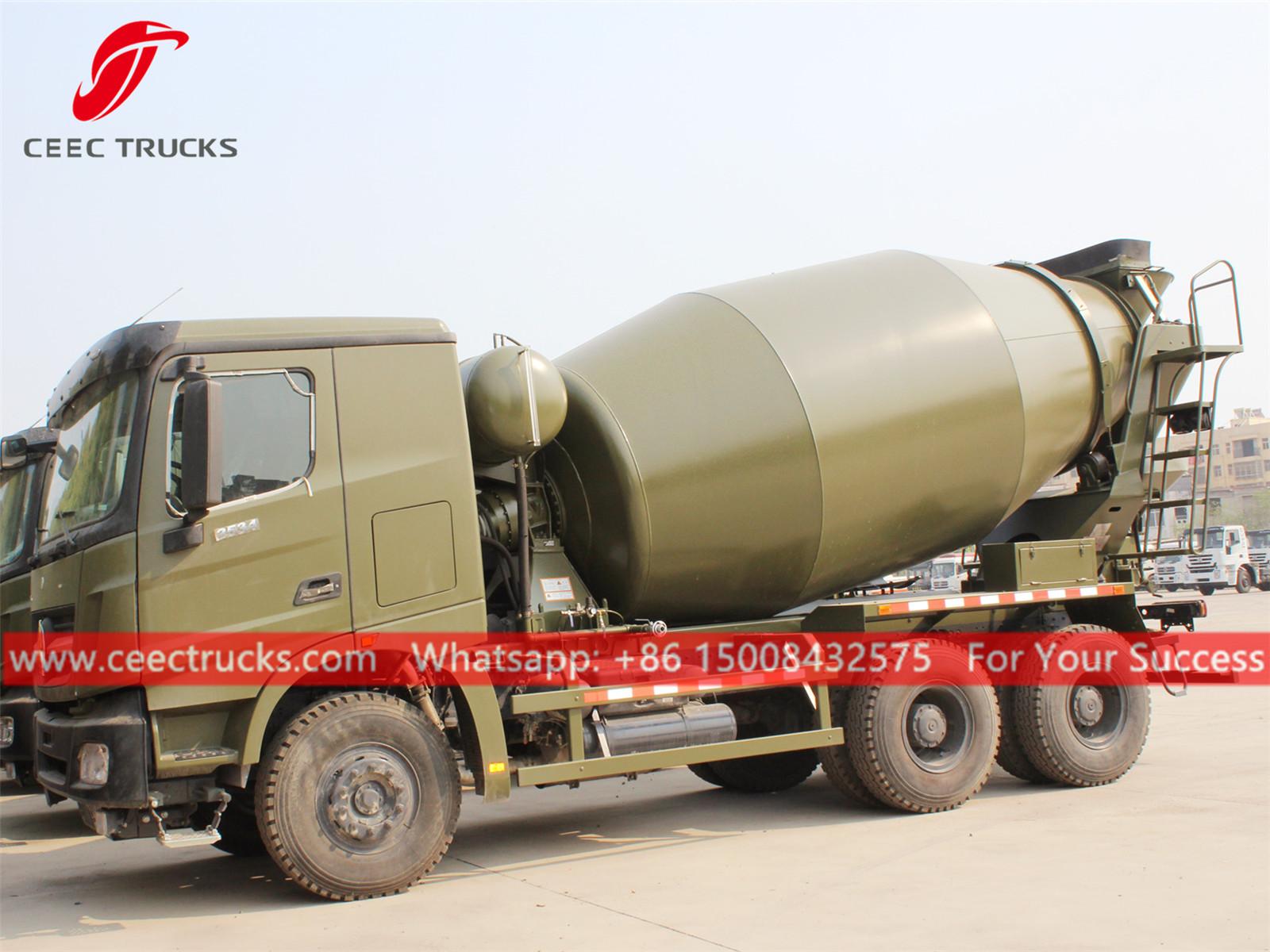

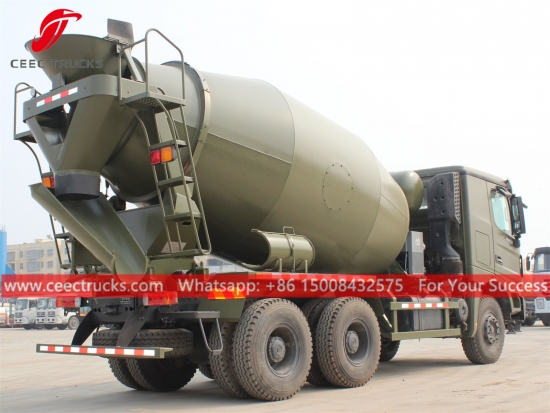

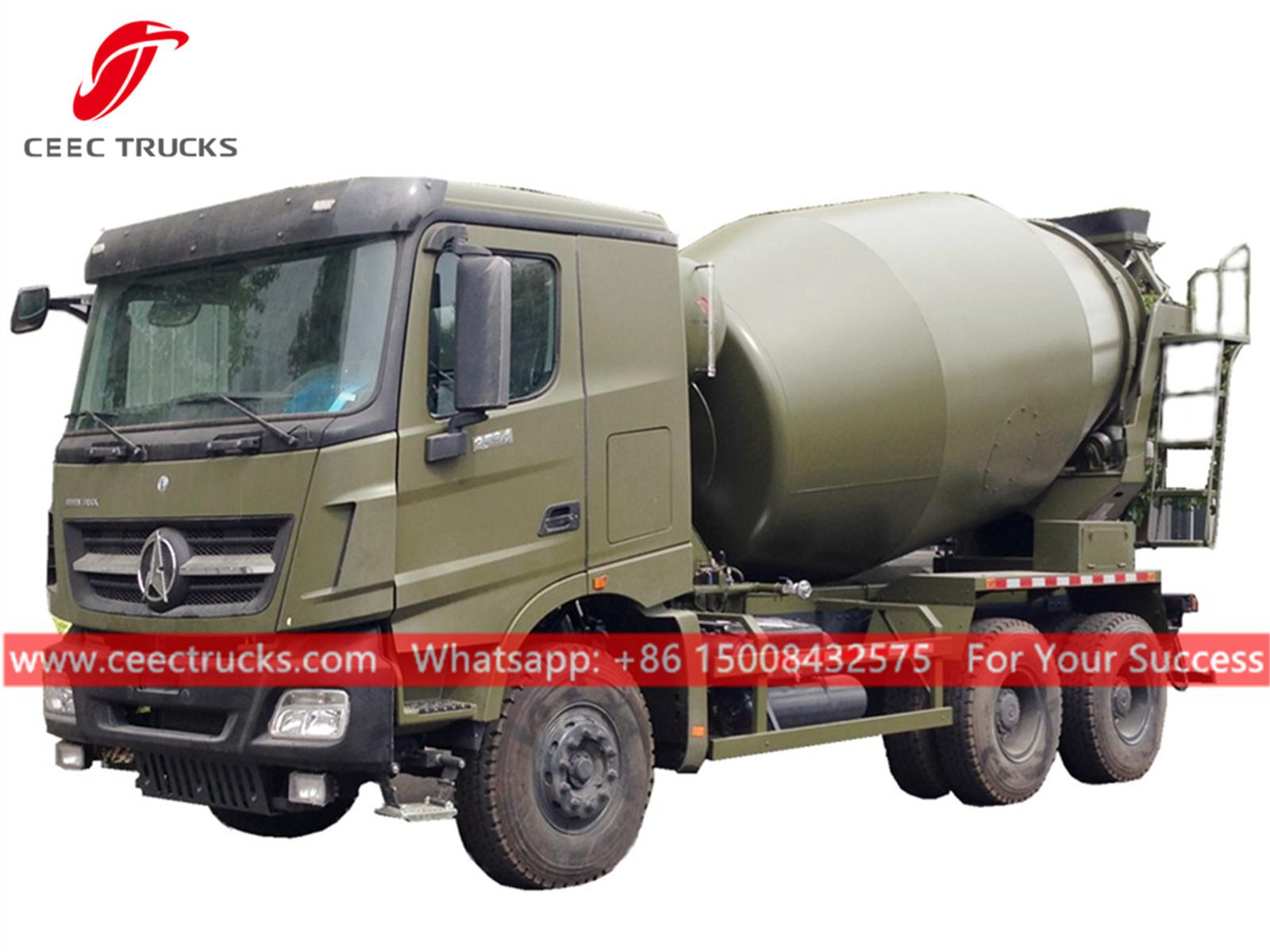

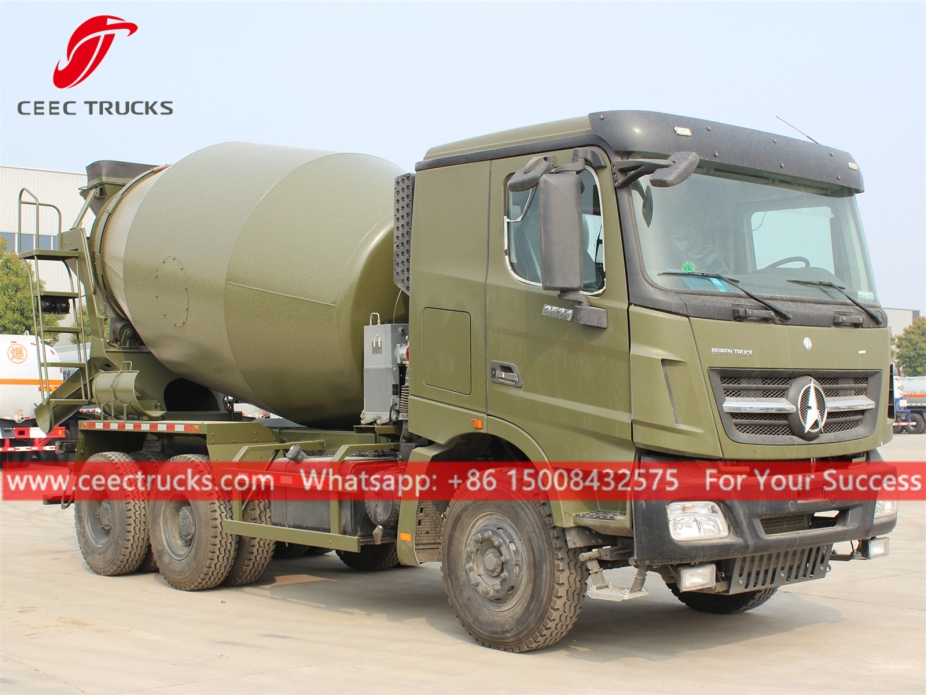

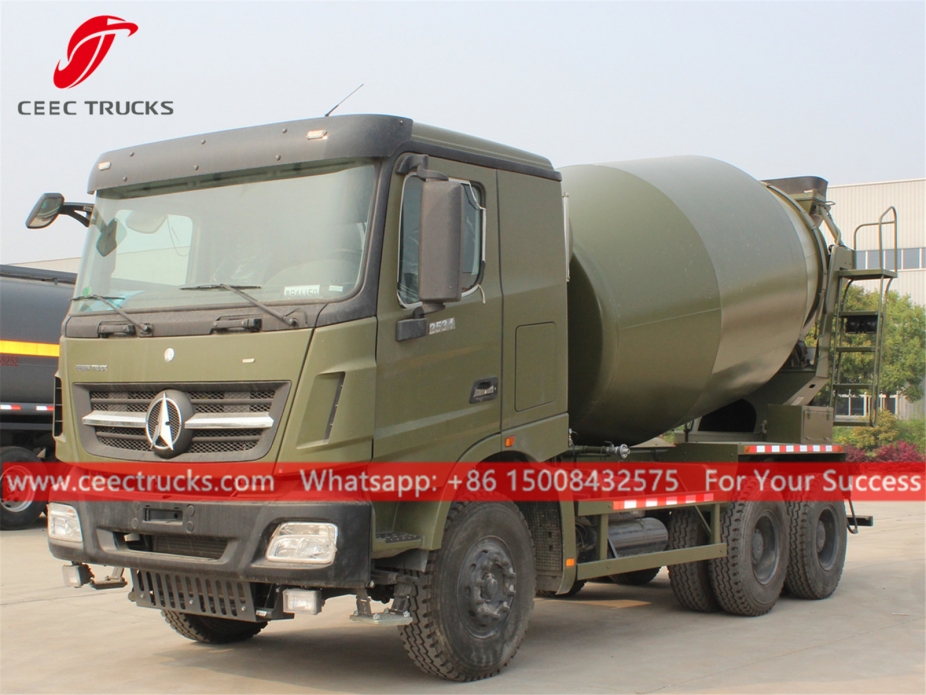

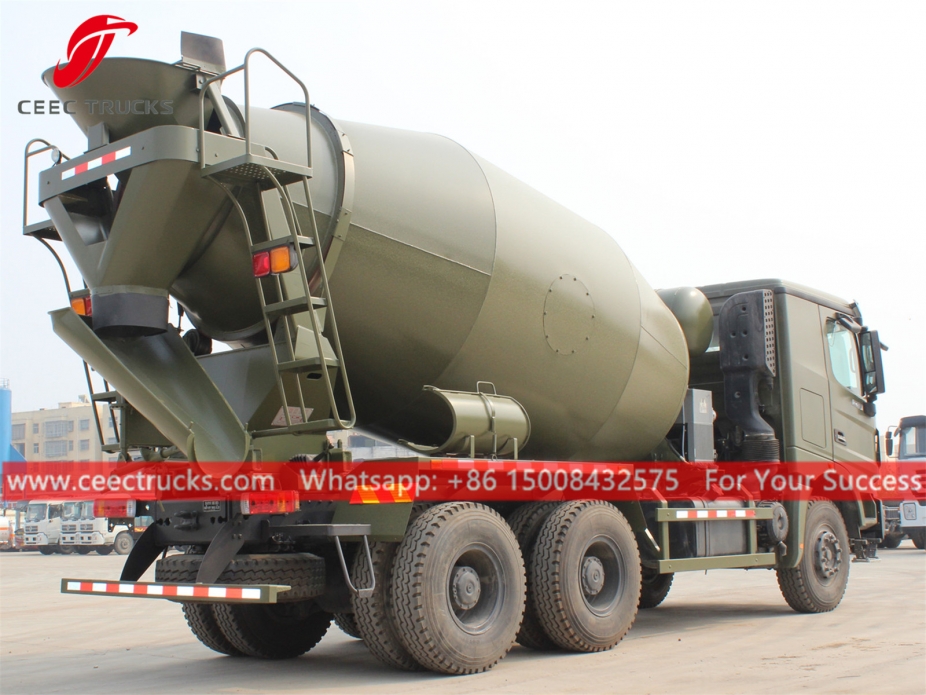

Top quality beiben mixer truck, 6x4 LHD chassis, weicha 340HP diesel engine, FAST 9-shift manual gearbox, as for main parts motor, pump, reducer, which can have brand optional as Eaton, PMP, Rexroth, Bonfiglioli, etc, painting and logos depend on request.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 Days
Applications:
Concrete Mixer truck (also called transit mixer, concrete transport truck, mixer truck, cement mixing truck, concrete mixer, cement mixer, volumetric mixer truck, agitator truck, Cement mixer truck, Transit mixer truck, ) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
CEEC Trucks dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- BEIBEN heavy duty chassis, perfect performance
---- WEICHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Pay loading from 3CBM to 18CBM.
---- Easy operation and easy maintenance.
---- Various types of Hydraulic main parts are available.
Specifications:
|

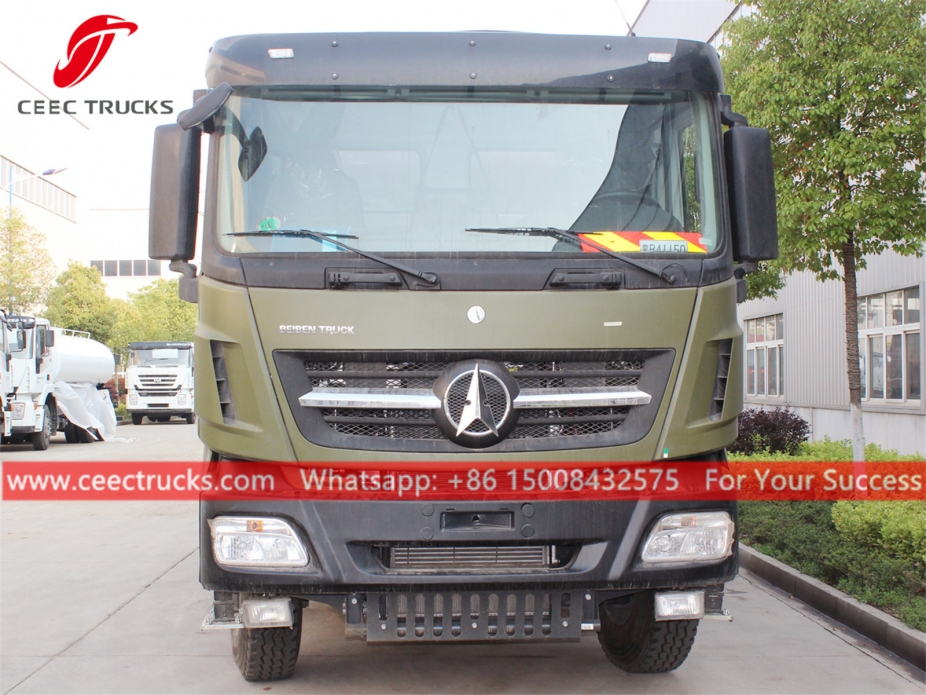

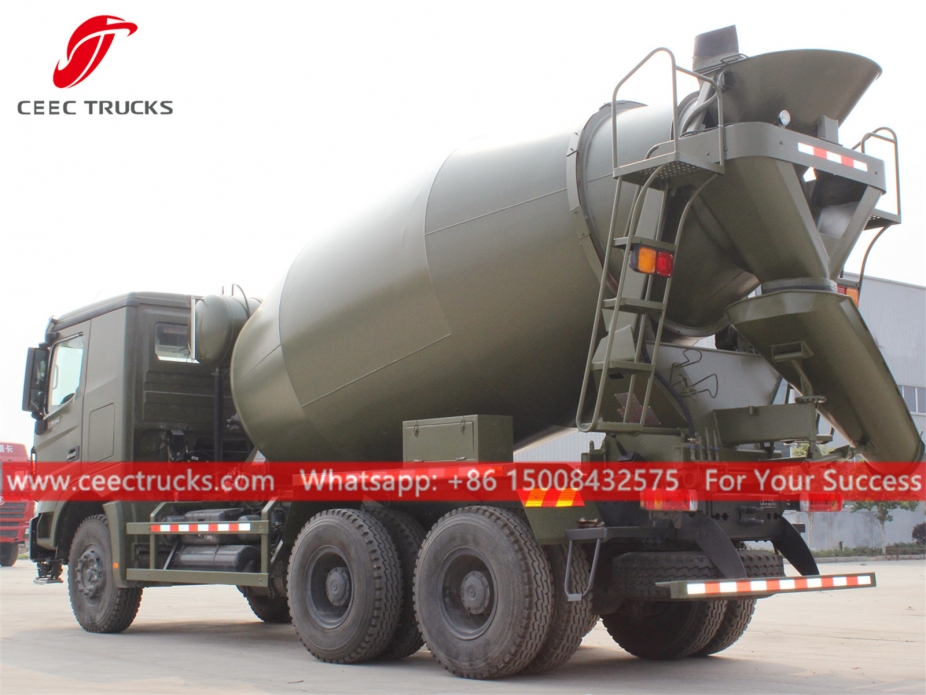

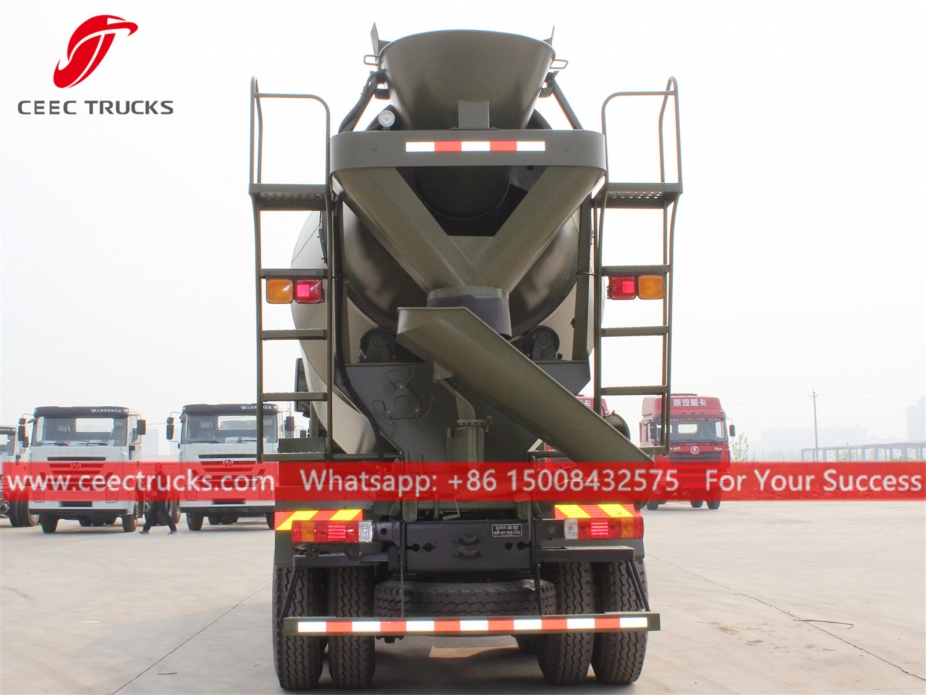

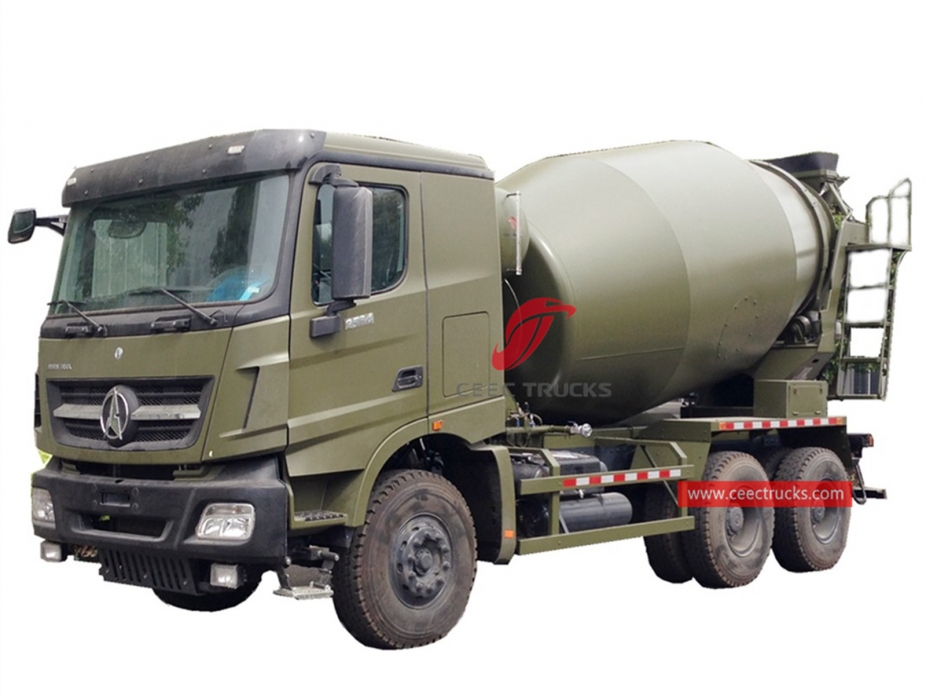

Concrete Mixer truck BEIBEN (10 cbm) |
||
|
General |
Vehicle Brand |
CEEC TRUCKS |
|
Chassis Brand |
BEIBEN |
|
|
Overall Dimension |
8420 * 2500 * 3270 mm |
|
|
GVW / Kerb Weight |
25,000kg / 11,350kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
WEICHAI |
|
|
Power |
340 HP (250 KW) |
|
|
Displacement |
9726 ml |
|
|
Emission Standard |
Euro 3 or 4 |
|
|
Chassis |
Drive Type |
6X4 (left hand drive) |
|
Transmission |
FAST 9 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
3640+1410 mm / 3 |
|
|
Tire Specification |
11.00R20 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Mixer tank volume |
10 cubic meter |
|
Barrel wall Thickness |
5 mm |
|
| Barrel wall material | T520JJ | |
|
Loading speed |
≥ 1.2
|
|
|
Discharging speed |
≥ 2.7 |
|
|
Rest rate |
≤ 1 |
|
|
Control |
Both side with hydraulci control |
|
| Pump |
EATON 5423 |
|
| Motor |
EATON 5433 |
|
| Reducer | TOP P68 | |
|
Color & LOGO |
According to wish |
|
|
All standard accessories: All tools. . Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… |
||
|
Optional |
** Back alarm and Camera can be equipped.
** Other body capacity can be choose.
** Other material and plate thickness can be choose.
|
|
★ Beiben heavy duty chassis, perfect performance
★ Euro 3 or 4 type, WEICHAI engine, fuel consumption save 20%
★ FAST 9-shift manual mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE★ Authorized Beiben mixer trucks exporter
★ Training service for Beiben cement mixer trucks
China best mixer truck supplier and exporter, we supply the best quality Beiben cement mixer trucks. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our Beiben mixer trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
