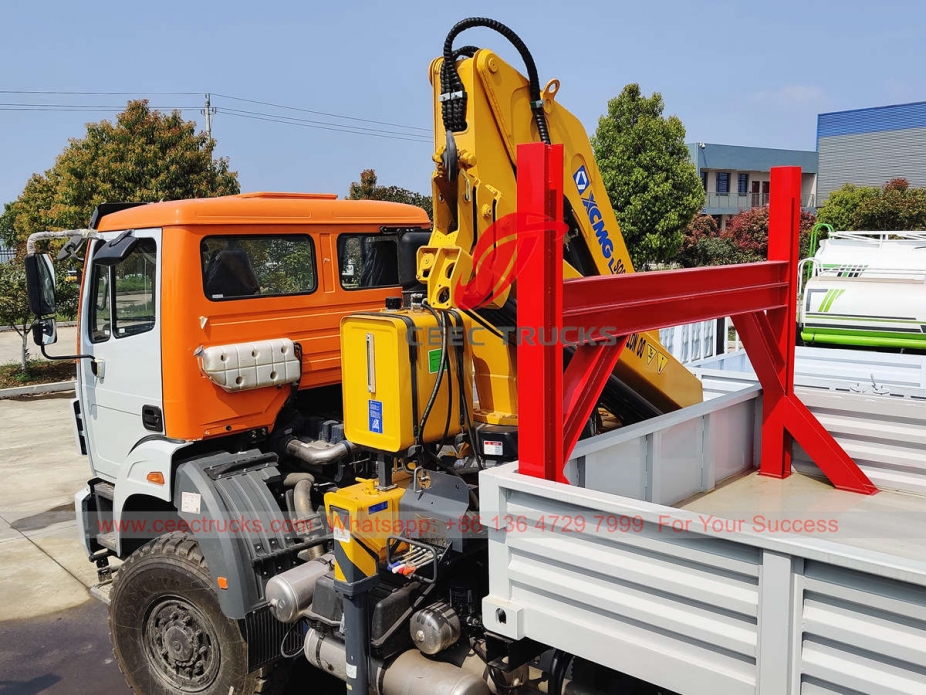

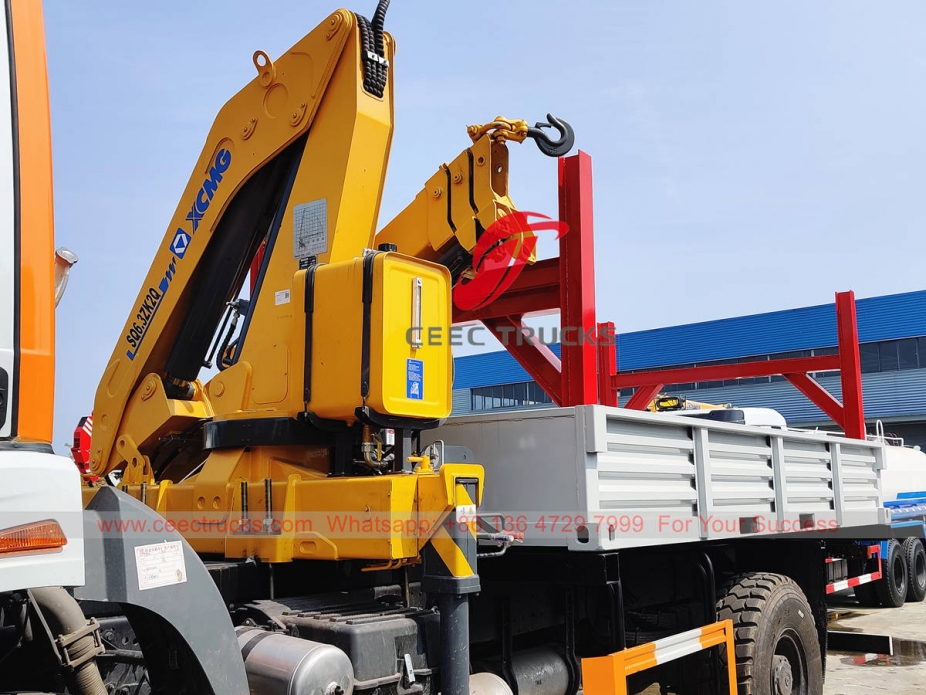

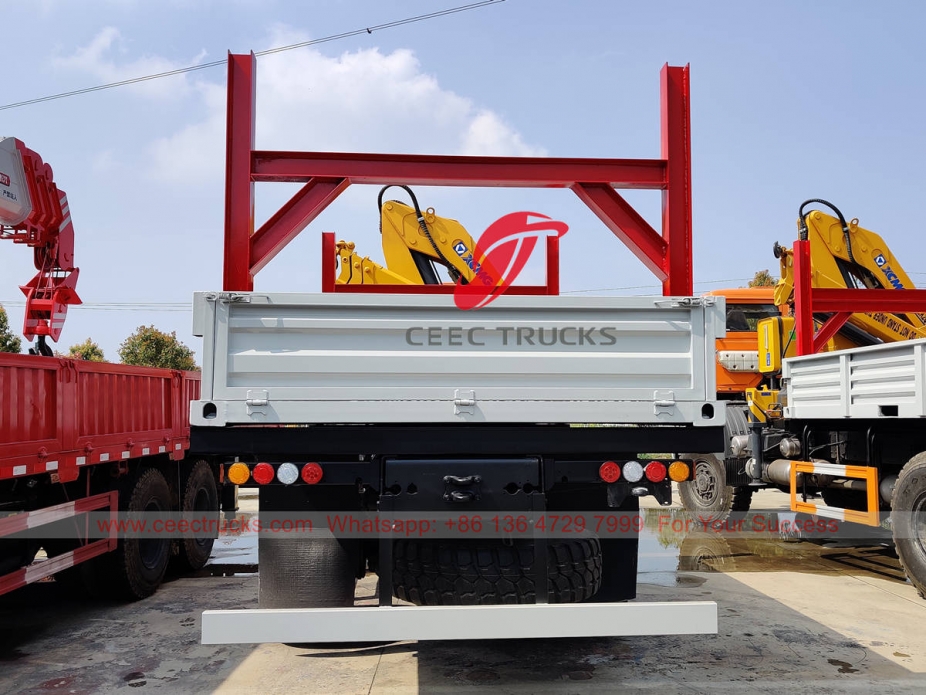

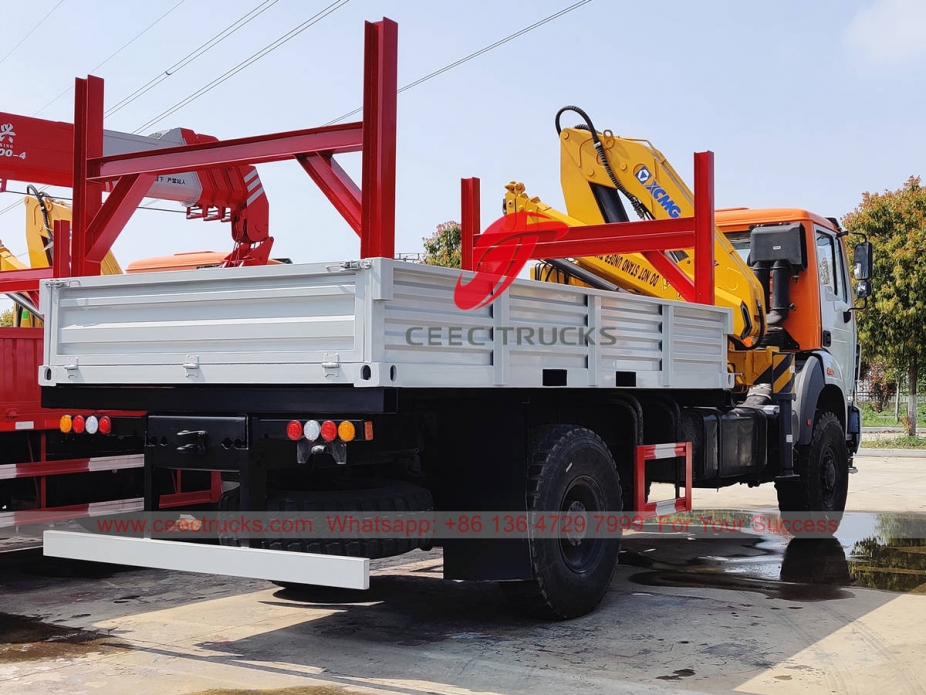

6.3 Tons XCMG crane based on Beiben RHD 4×4 truck

Beiben 4×4 Truck Mounted Crane XCMG

Beiben 6.3tons crane truck, Beiben 4×4 chassis, FAST 9-shift manual gearbox, WEICHAI 290HP diesel engine, cargo body dimension as optional, painting and logos depend on requirement.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days

Inquiry now

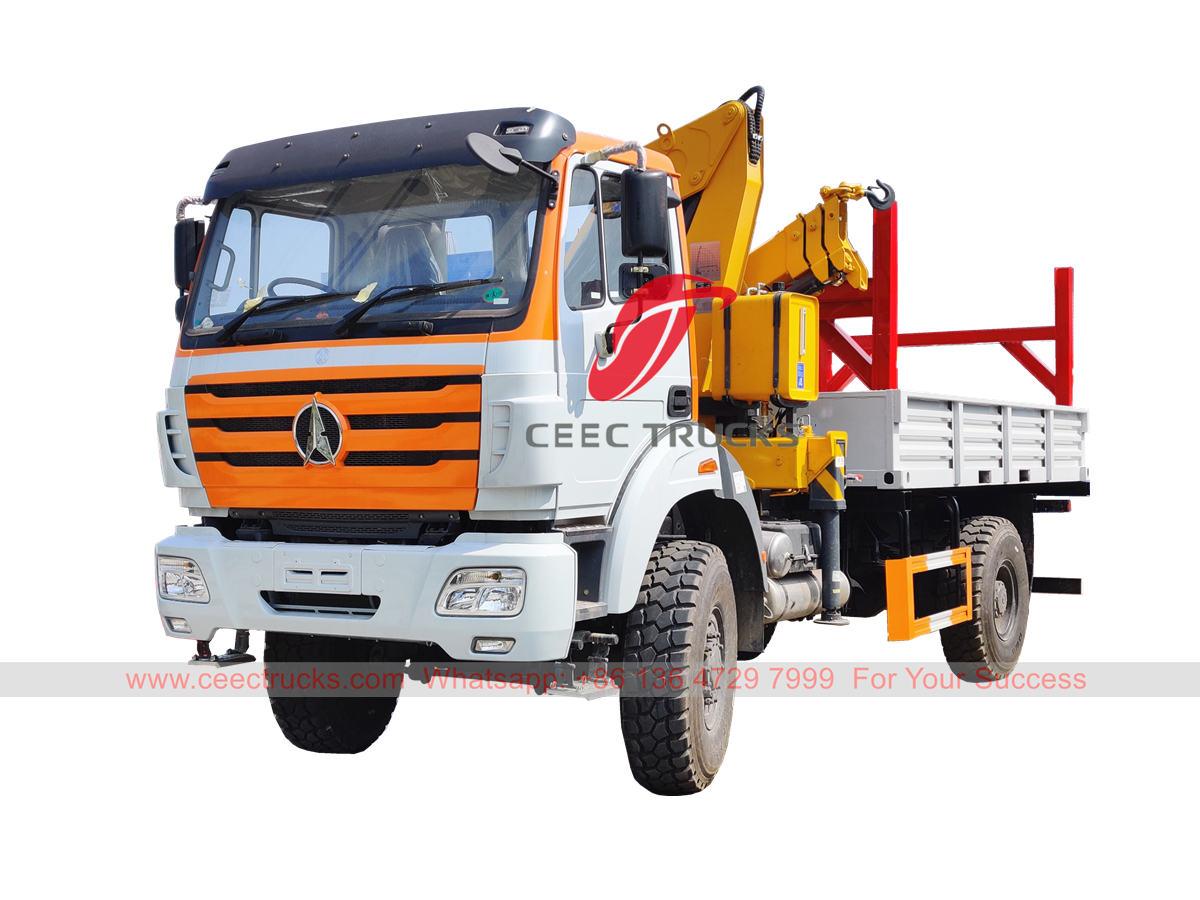

Beiben all wheel drive RHD crane truck

Applications:

Beiben 4×4 Truck Mounted Knuckle Crane (also called Beiben AWD boom crane, Benben RHD cargo truck with crane, Beiben off-road crane truck, truck mounted knuckle crane, Beiben 6.3 tons knuckle boom crane truck, Beiben 4×4 RHD truck mounted crane, crane on Beiben truck chassis, 4×4 truck mounted crane, XCMG crane) is used to lift the cargo, load, transport and unload heavy stuff.

There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T

CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.

Key Features:

---- Beiben chassis ensures perfect performance on driving

---- WEICHAI engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.

Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely

Specifications:

Beiben 4×4 RHD crane truck
General	Vehicle Brand	CEEC
	Chassis Brand	Beiben
	Overall Dimension	8200 * 2500 * 3600 mm
	GVW / Kerb Weight	16,000kg / 8,500kg
Cab	Cab Capacity	3 people allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	WEICHAI
	Power	290 HP (213 KW)
	Displacement	9726 ml
	Emission Standard	Euro 3
Chassis	Drive Type	4X4
	Transmission	FAST 9 speed levers with 1 reverse
	Wheelbase/No. of axle	4500 mm / 2
	Tire Specification	14.00R20
	Tire Number	4 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Cargo Box Dimension	*45002300500 mm*
	Crane Type	XCMG 6.3 tons knuckle boom crane
	Max Lifting Capacity	6300 kg
	Slewing Angle	360° All rotation
	Crane Weight	2506 kg
	Installation Space	1150 mm
	Control panel	English or Your language
	All standard accessories: Basic tool kit, English manual……
Optional	Knuckle boom crane. Hydraulic tipper box. Box thickness according to requirement. Box height could be nominated ** Remote Control Box optional

★ Euro 3 type, WEICHAI engine, fuel consumption save 20%

★ FAST 9-shift manual mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized crane trucks exporter

★ Training service for truck mounted crane.

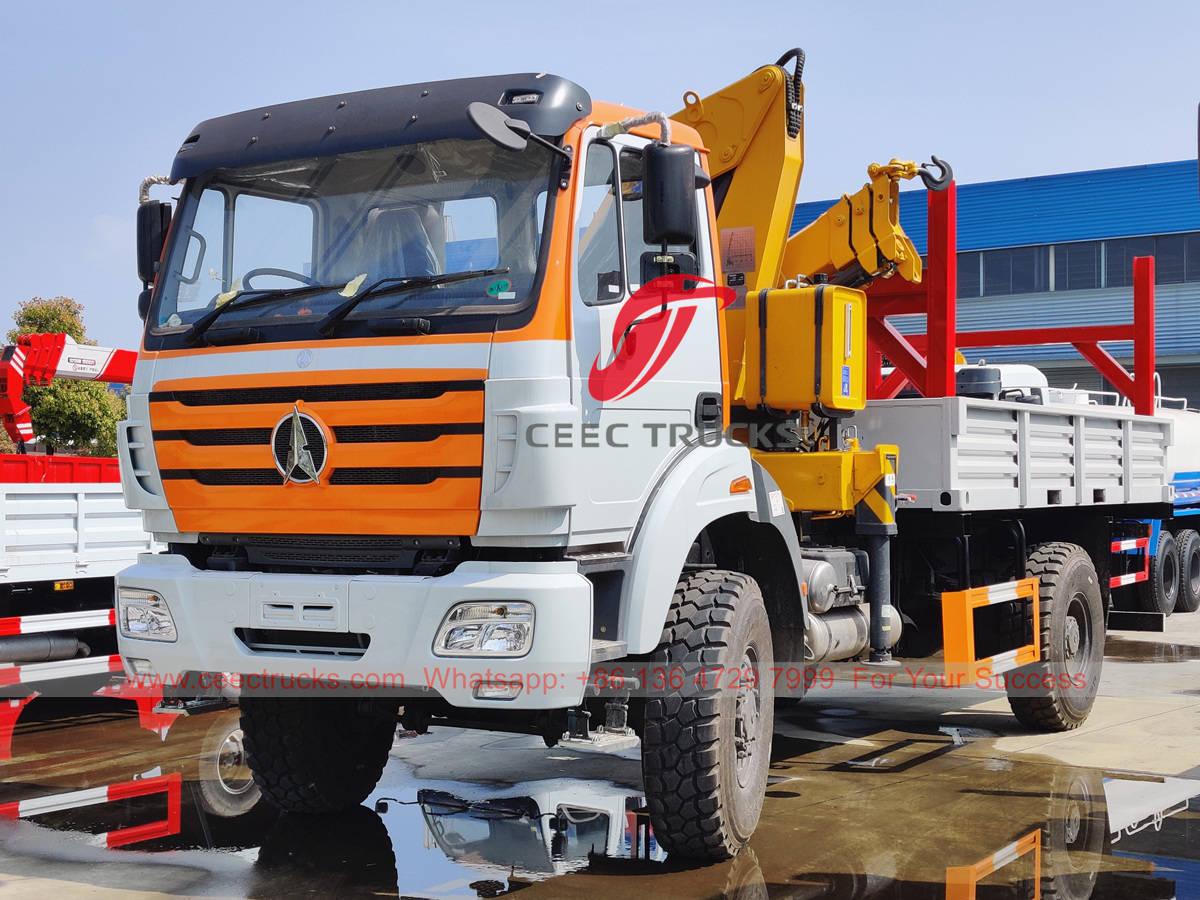

Beiben RHD off-road truck mounted crane

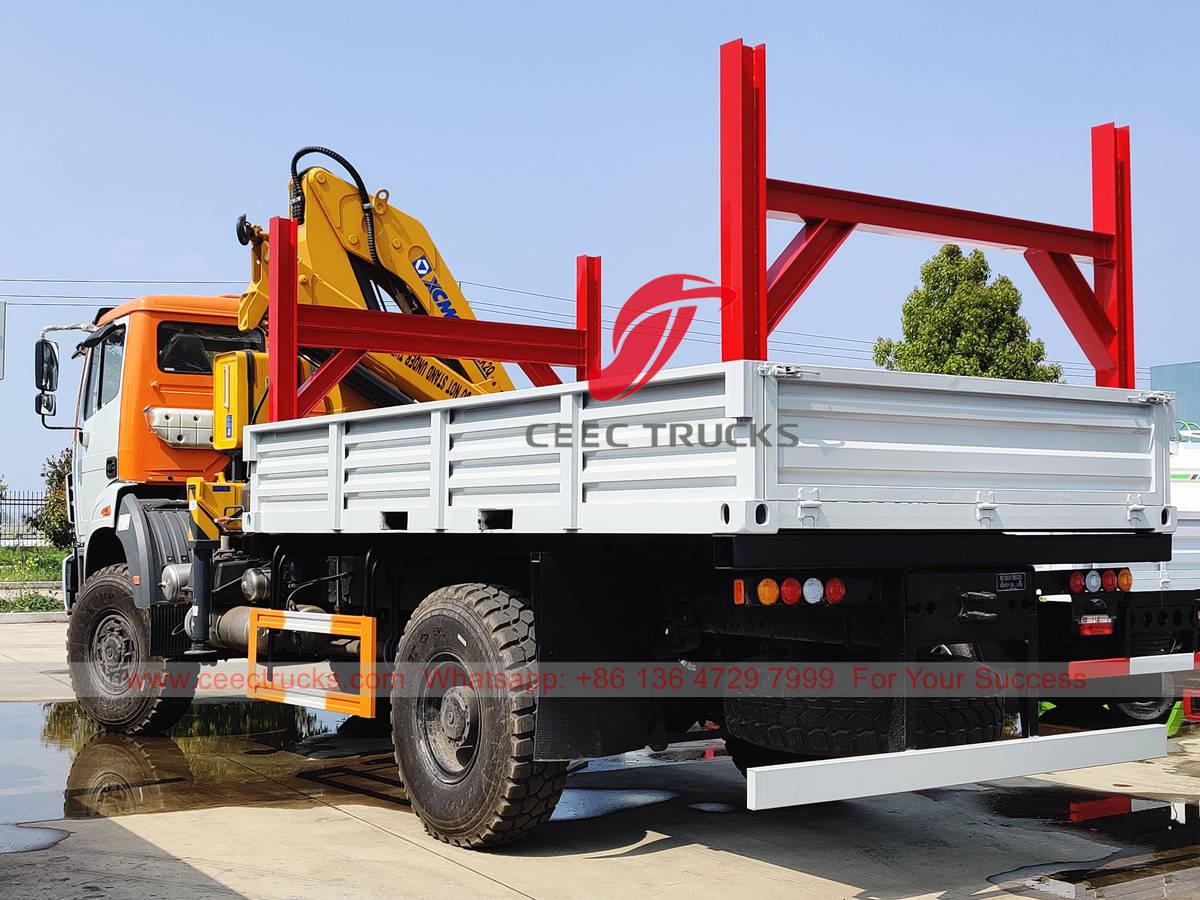

Beiben AWD crane truck

China best truck mounted crane supplier and exporter, we supply the best quality Beiben crane trucks. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our Beiben trucks mounted crane are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
