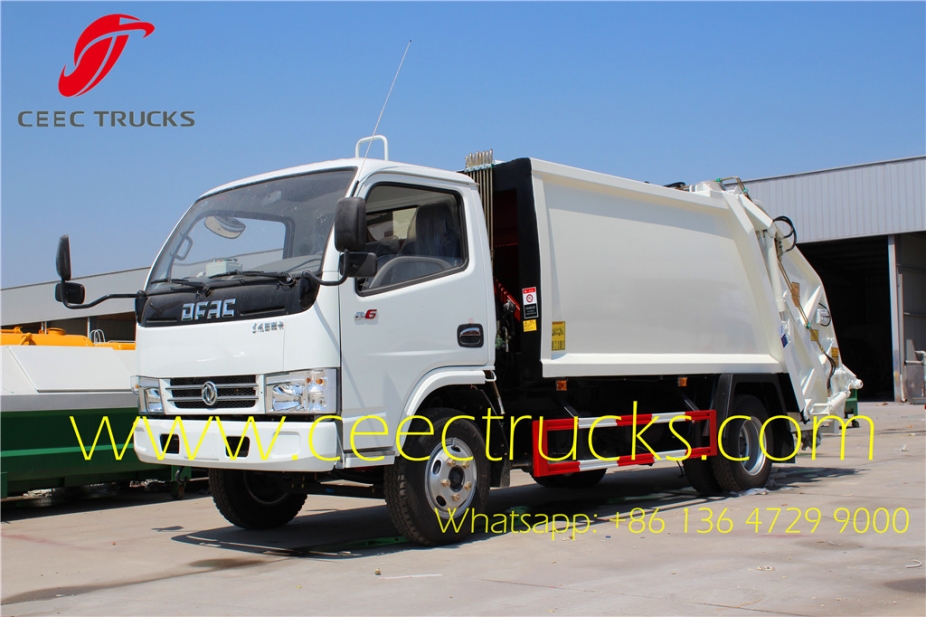

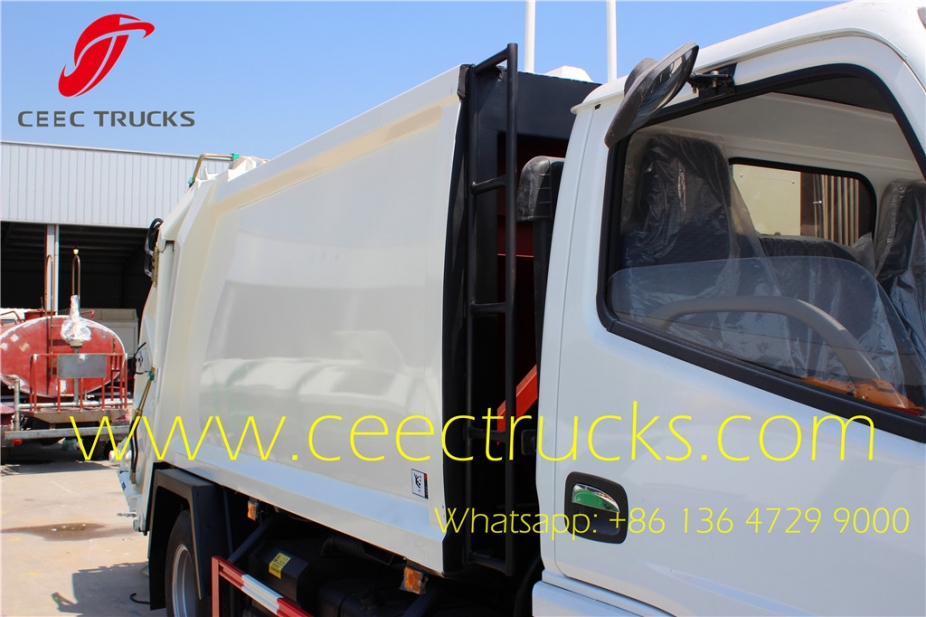

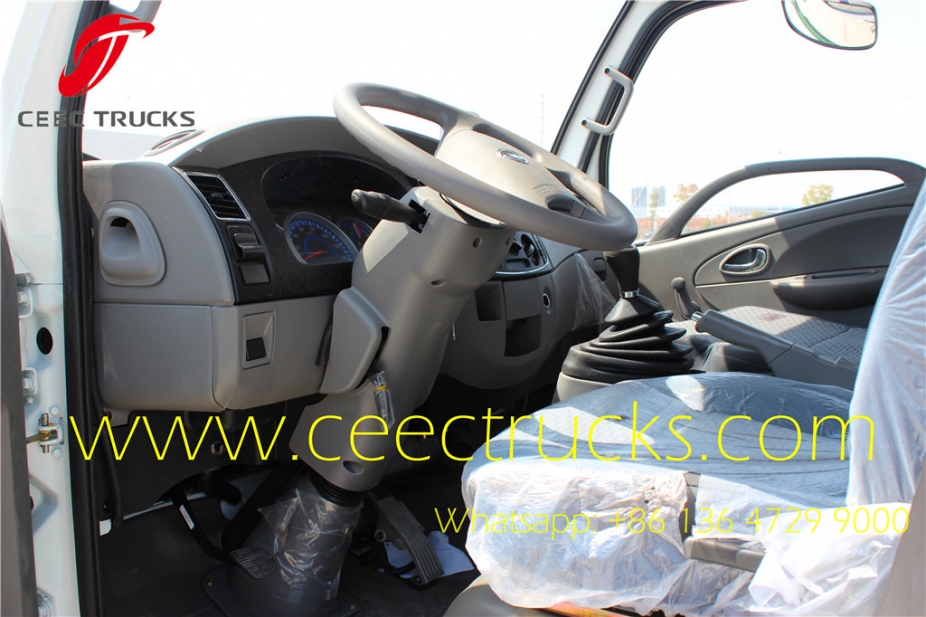

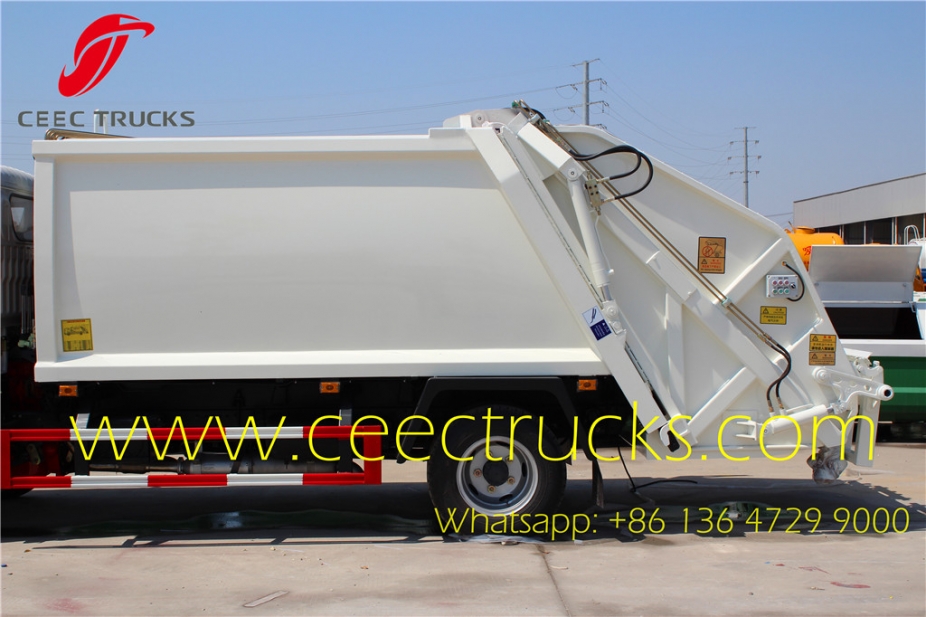

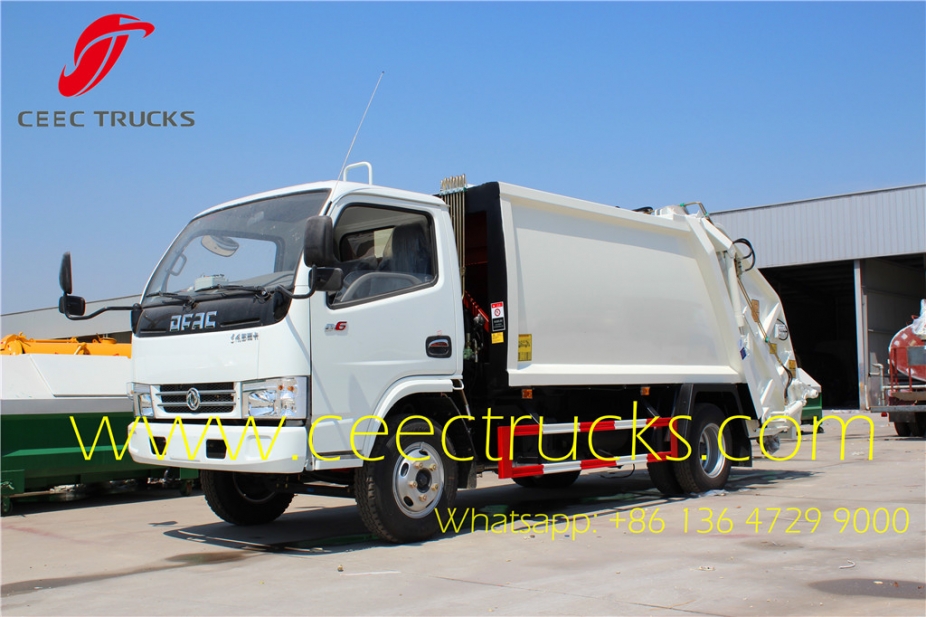

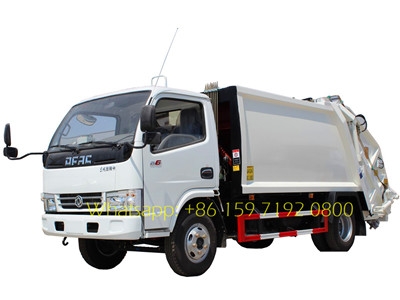

Manufacturer lowest price supply 5 CBM compressed garbage trucks Dongfeng

DFAC 5000 liters compactor rubbish trucks supplier

Myanmar 5 CBM compactor garbage trucks use Dongfeng 3300mm wheelbase 4*2 LHD chassis, CHAOCHAI 95HP engine and 5-shift manual gearbox for easy operaiton. Best quality carbon steel Q235 material compactor body

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    15 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $20,000-29,000
  • Market Price:

    $24000
contact now

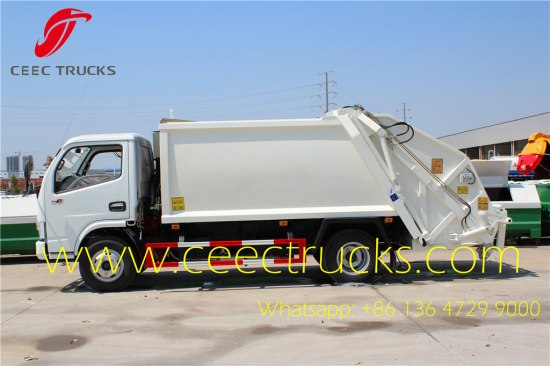

Manufacturer dongfeng 5 CBM compressed garbage truck Price



Dongfeng 5000 liters trash compressed garbage trucks drawing



The garbage compressed truck is widely used in sanitation & municipal, industrial enterprises and residential area. The truck has several garbage tanks to avoid pollution during transporting process. The modified part can be separated from chassis, so it is easy to maintain and the mobility & readability of the truck are kept.
If you have special demand of garbage truck, please contact with us. We may design and modify it for you. We also can add power steering and A/C for you.



Dongfeng 5 CBM garbage compresser trucks drawing



Below details will help know what is 5 CBM Garbage Compactor Truck:

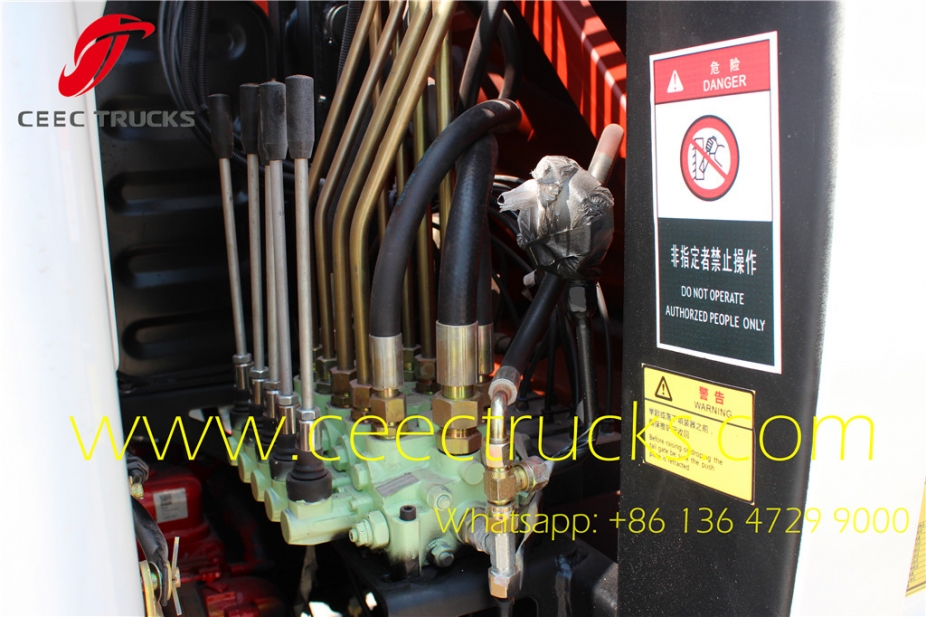

----Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system.

----The garbage truck could apply pressure to the waste to breakdown bulky items, to load and transport more garbage by one time.

----Dirty liquid flows into waste water collection tank,perfectly preventing re-pollution. ----When arriving at destination, thegarbage can be discharged completely.

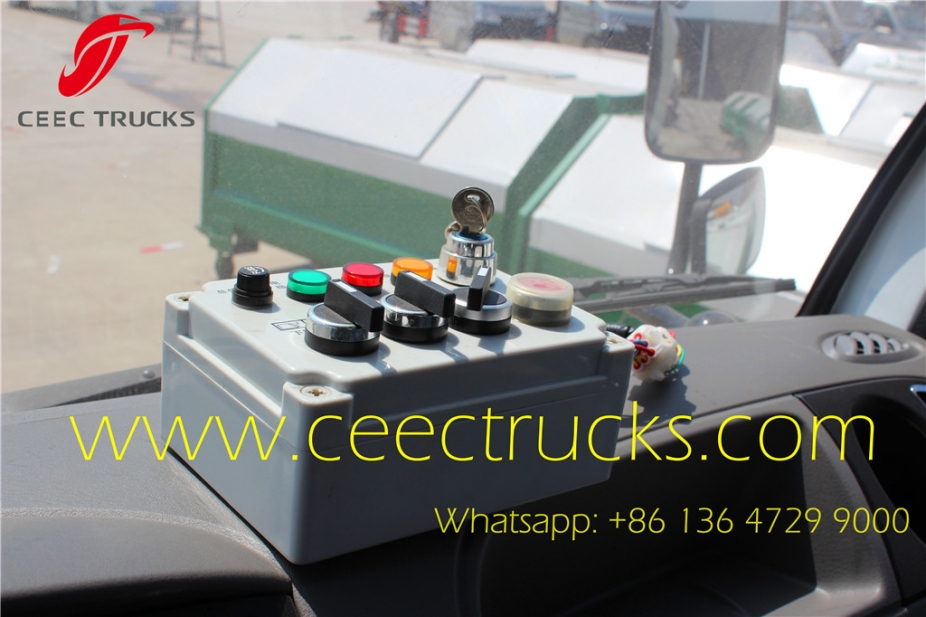

----The operation system could be manual or electrical control

----It is ideal solution for all kinds of solid wastecollection.

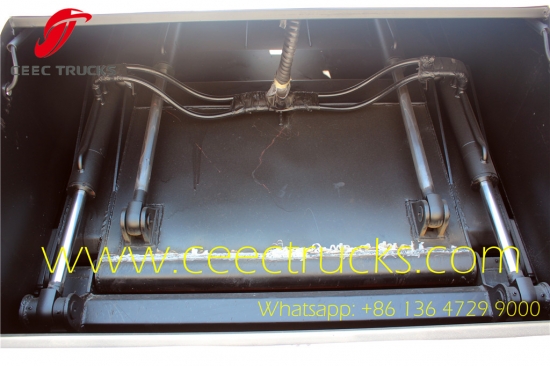

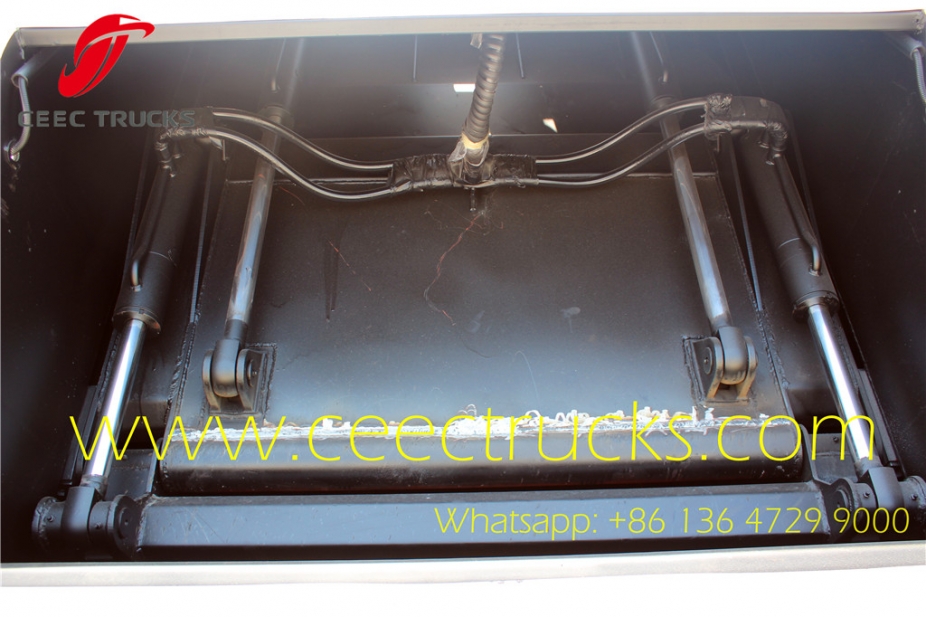

CEEC garbage compactor truck loading system



Above show CEEC produced ISUZU 4 CBM trash compressor truck Compact System, which exported MYANMAR YANGON mainly consist of Tilting Device (optional for 240L & 360L, 660L & 1100L rubbish bins); Slide Plate; Scraper; Push Plate & Rear Tail Gate. All parts are well-designed, strong structure and light self-weight.

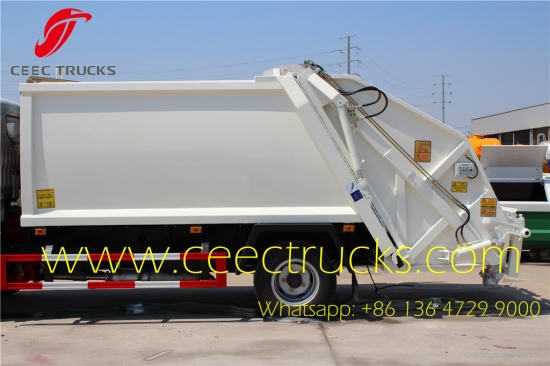

Dongfeng 5000 liters refuse compressed truck



Dongfeng 5000 liters refuse compressed truck



Dongfeng 5000 liters refuse compressed truck



Dongfeng 5000 liters refuse compressed truck



Similar KeyWords:  Garbage compactor truck, trash compactor,waste compactor, refuse compactor, compactor truck, rear loader, dustbin lorry,garbage compactor vehicles, garbage compacting truck, refuse collector, waste compactor, waste compactor truck, refuse collectiontruck, compactor garbage truck,rubbish truck, bin wagon, dustcart, bin lorry,waste collection vehicle



DFAC 5 CBM compactor garbage truck

Item

5cbm compactor garbage truck Dongfeng / DFAC

vehicle

Brand

CEEC TRUCKS

Model

CEEC5060ZYS

Dimension

6450*2050*2500MM

G.W.

6495KGS

Chassis

Brand

Dongfeng

Model

EQ1060

Drive Type

4*2

Steering

LHD

Engine

Brand

Dongfeng

Model

CY4102-C3F

Power

70Kw /95HP

Displacement

3300ml

Emission Level

EURO 3

System

4 stroke, 6-cylinder in line, water cooled with direct injection, turbocharged, inner cooling.

Performance

Max. Speed

80km/h

Min. Turning circle

8m

Min. Ground Clearance

255mm

Max. gradeability

30%

Wheel base

3300mm

Tyre Specifications

7.00-16

No. of Tyre

7pcs (1 spare tyre included)

Axle Capacity

Front 1.8Tons & rear 3.2Tons

Transmission

5forward gears & 1 reverse, Manual

Brake

Air brake, drum brake

Suspension

Leaf spring

Fuel Tank Capacity

80L

Electrics

24V

Cab

Cab Capacity

2 persons allowed

Cab Type

Single row Cab  ,Tilting cab

Superstructure

body

Capacity

5 m³

Material

side material is 3mm high quality carbon steel, bottom  material is 4mm high quality carbon steel

PTO

special PTO for garbage compactor truck

Paint

Rust proofing primer + undercoat +2 finish coats = 4;
Tank color is according to client’s requirements.

Optional

The type of the tire:7.00R16

A/C, Power assisting

The material of the body :Stainless steel

The thickness of the material :5mm carbon steel

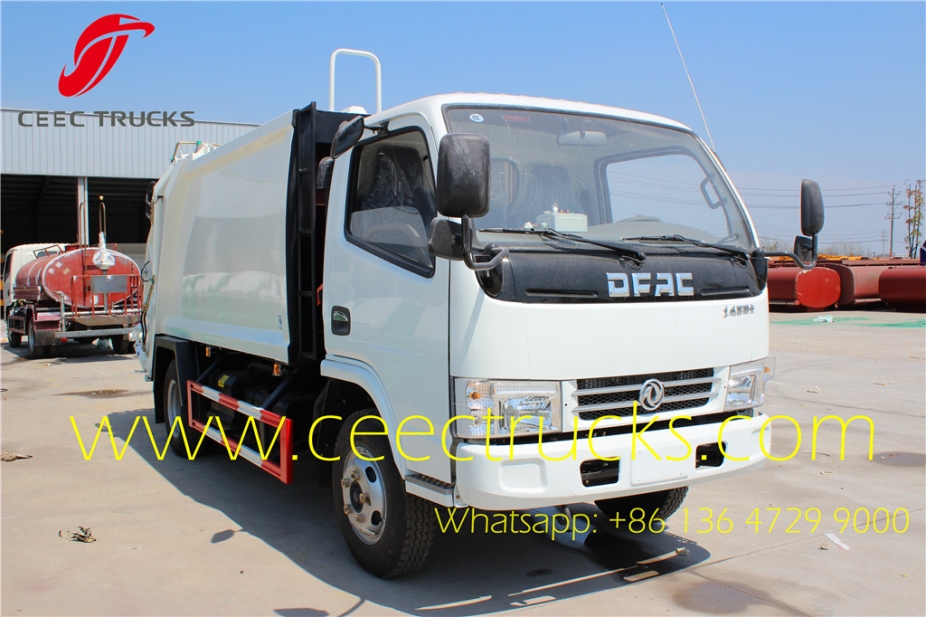

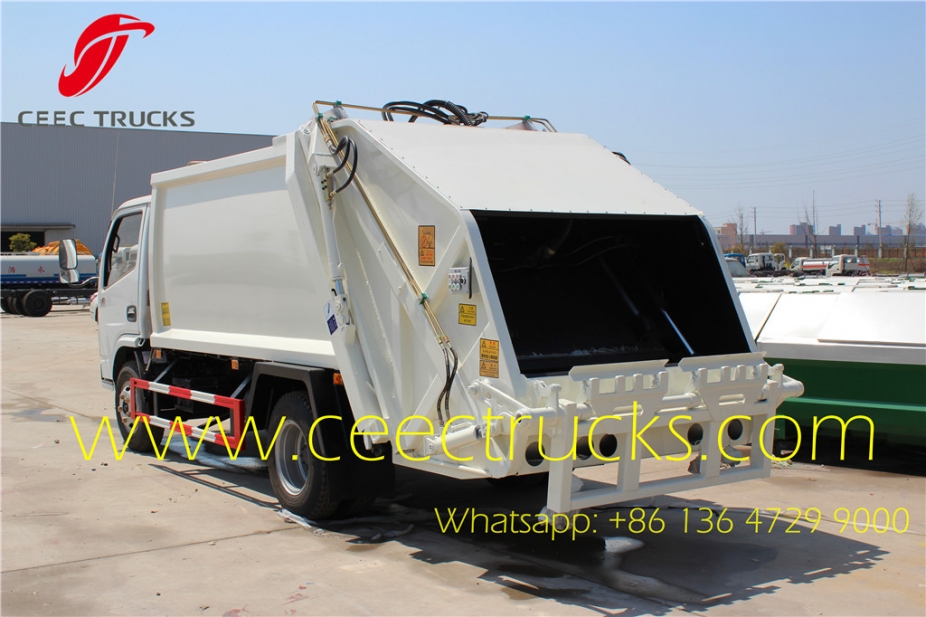

Dongfeng 5000 liters refuse compressed truck

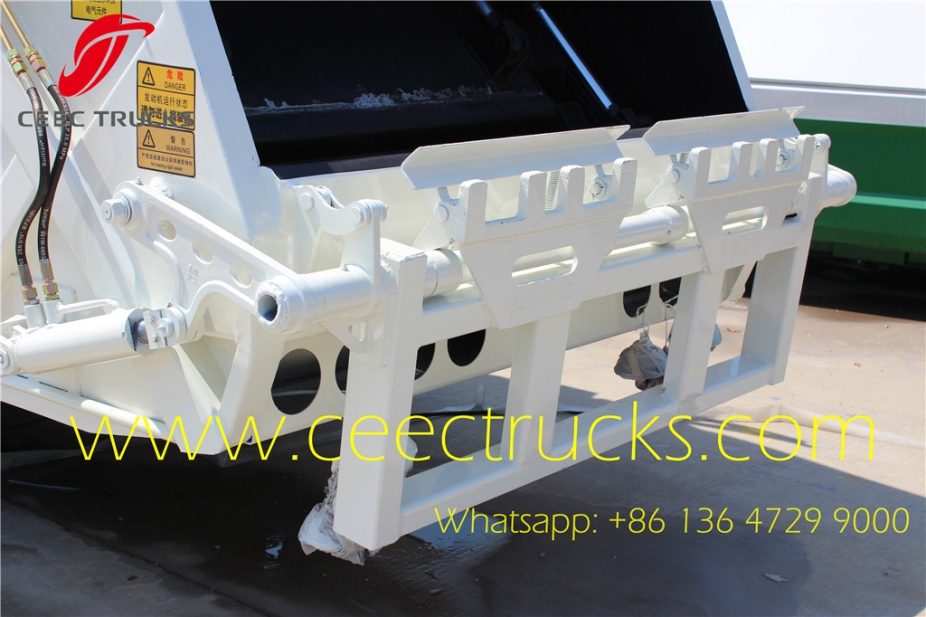

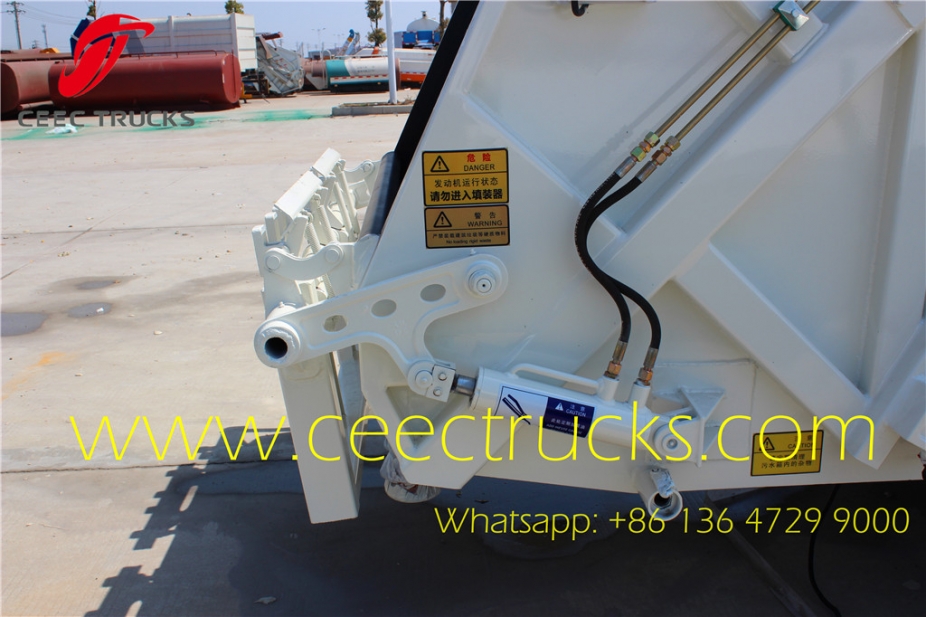

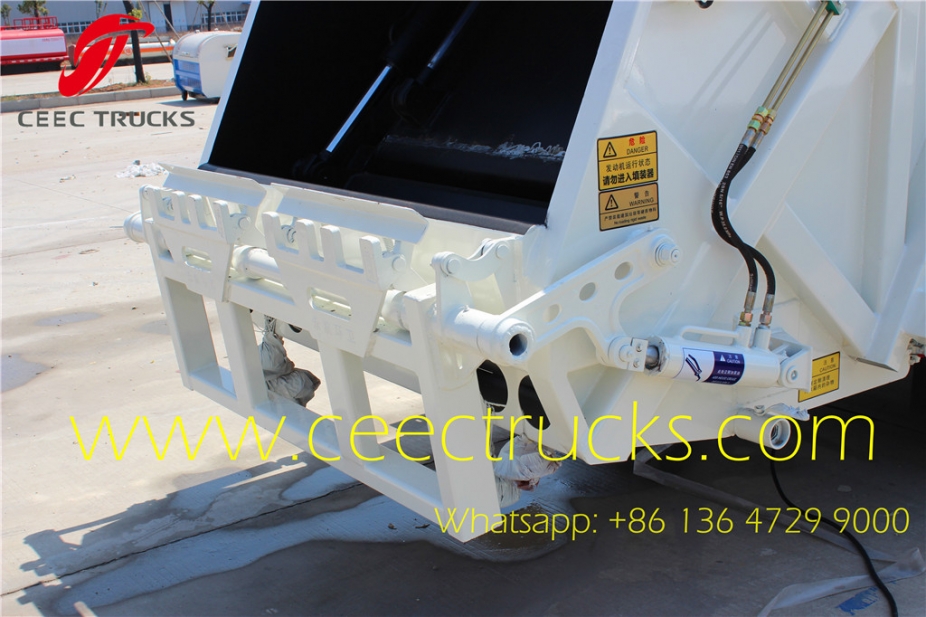

Dongfeng 5000 liters refuse compressed truck rear loading device    Dongfeng 5000 liters refuse compressed truck rear loading device



Dongfeng 5000 liters refuse compressed truck    Dongfeng 5000 liters refuse compressed truck



Dongfeng 5000 liters refuse compressed truck    Dongfeng 5000 liters refuse compressed truck



Dongfeng 5000 liters refuse compressed truck



2016 newly model Garbage compactor trucks on sale





CEEC Recommend environmental protection truck series





SaveSave

----DONGFENG 5CBM Garbage compactor truck is composed of hermitical garbage box, hydraulic system and operating system.

----The garbage truck could apply pressure to the waste to breakdown bulky items, to load and transport more garbage by one time.

----Dirty liquid flows into waste water collection tank,perfectly preventing re-pollution.

----When arriving at destination, thegarbage can be discharged completely.

----The operation system could be manual or electrical control

----It is ideal solution for all kinds of solid wastecollection.



How to find best garbage compactor trucks in CEEC ?

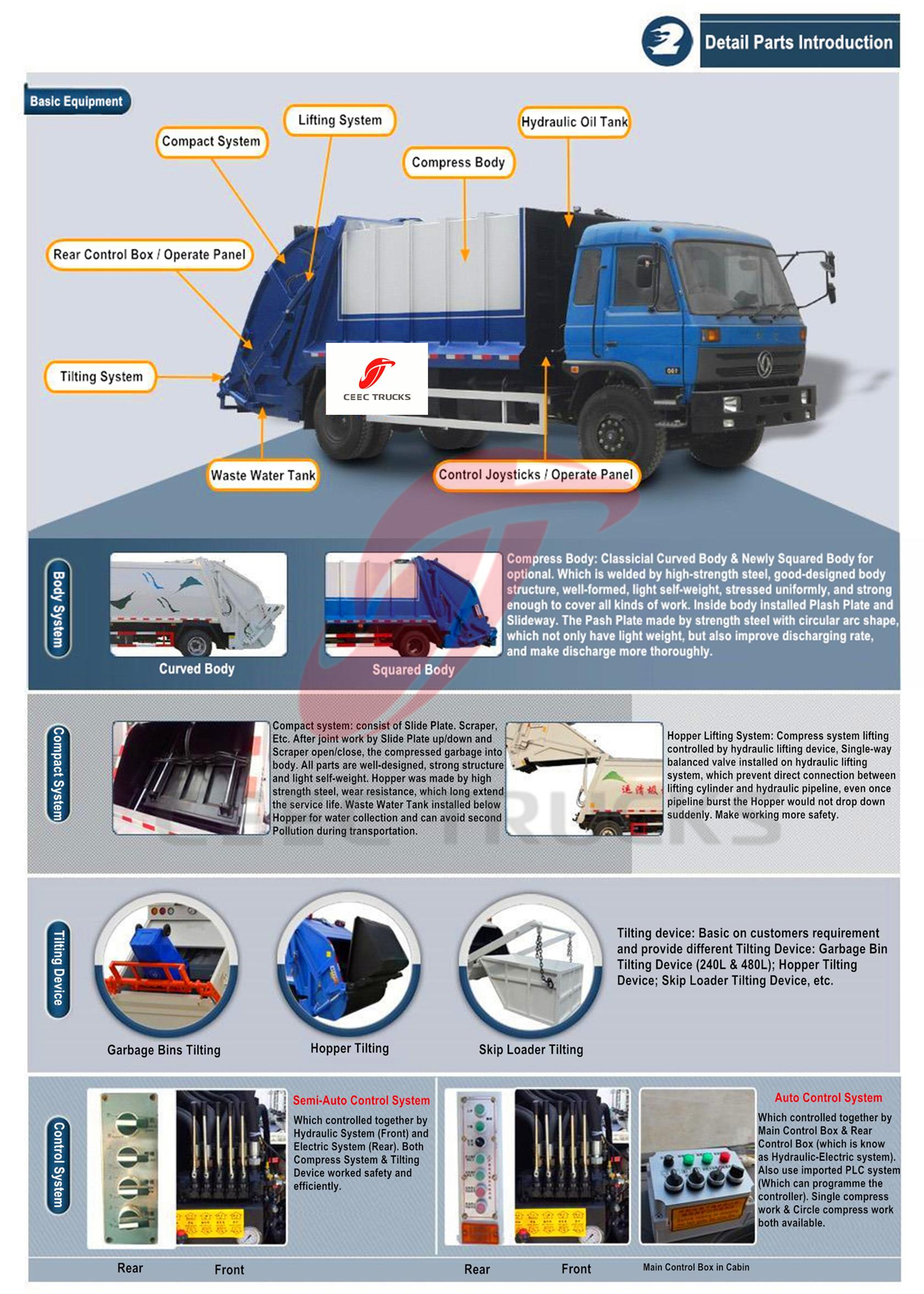

Dongfeng 5000 liters trash compressed garbage trucks feature
