Brand new FAW 6×4 heavy duty crane truck UNIC crane V800

FAW 6×4 340HP Truck Mounted Crane UNIC V800

FAW 8tons crane truck, FAW 6x4 left hand drive chassis, 10-shift manual gearbox, WEICHAI 340HP diesel engine, UNIC V800 telescopic boom crane, cargo body dimension as required, painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

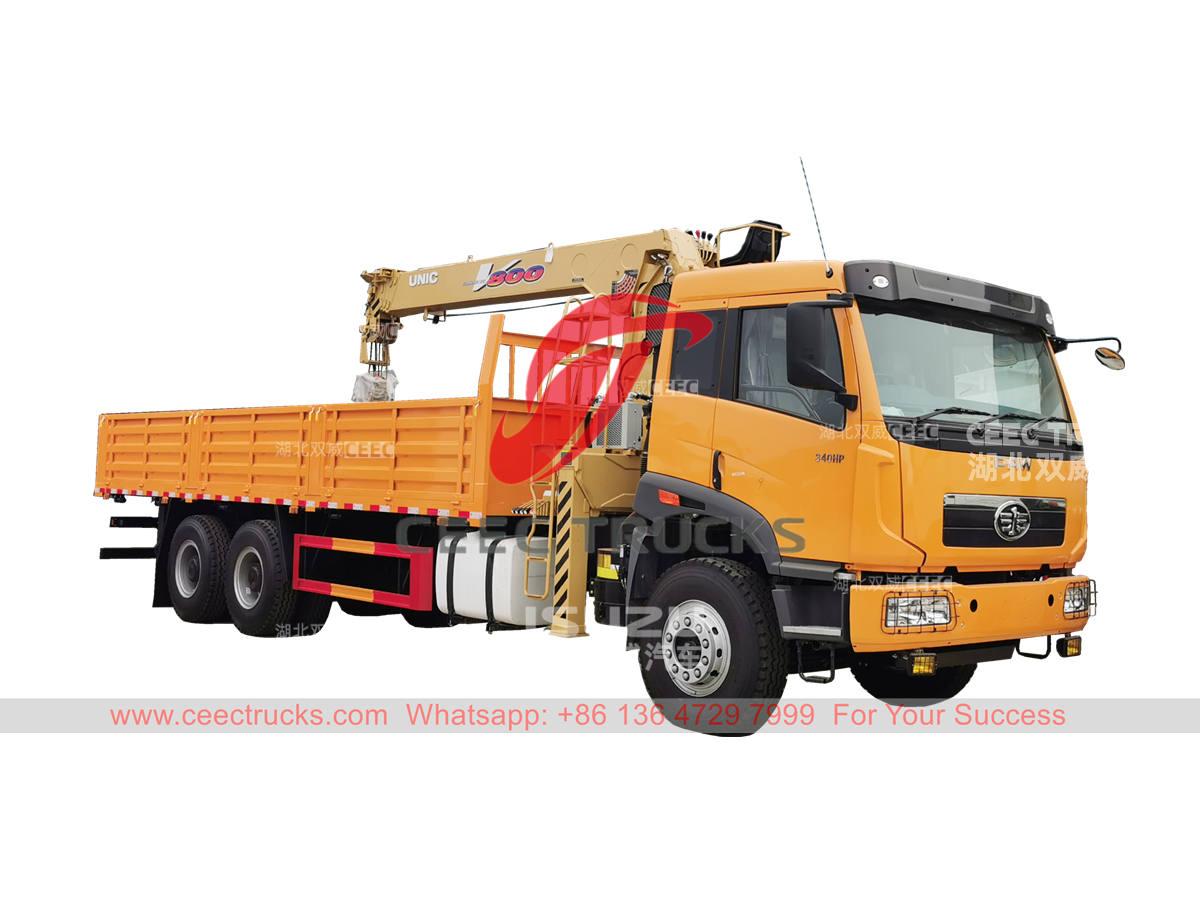

FAW 6×4 340HP crane truck at best price



 Applications:



FAW crane truck (also called FAW boom truck, FAW truck mounte crane UNIC, FAW truck with crane UNIC, FAW telescopic boom crane truck, UNIC crane mounted on truck chassis) is used to lift the cargo, load, transport and unload heavy stuff.



There are telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- FAW chassis ensures perfect performance on driving

---- WEICHAI engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



Crane Features:

---- Single cylinder synchronization guy cable technology makes work efficiency much higher than before.

---- Advanced development means make sure that the design is very reliable.

---- The more symmetrical center design of pentagon & hexagon boom make it has bigger anti-bending capacity.

---- Compact hinge point design take up smaller space

---- The work is more safety after fitted over-winds alarm equipment.

---- The integer lifting winch improved the work efficiency greatly and prolonged work lift of hydraulic system.

---- Float three-point bridge structure design can lower the accessional stress on the chassis when traveling.

---- Self-designed & developed slewing machine with greater drive force can meet varied requirements of working situation.

---- Anti-slewing impulse equipment that make vehicle running safely



 Specifications:



FAW 6×4 Crane Truck (8 Tons boom crane)

General

Vehicle Brand

CEEC

Chassis Brand

FAW

Overall Dimension

9800 * 2500 * 3150 mm

GVW / Kerb Weight

25,000kg / 12,800kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

340 HP

Displacement

9726 ml

Emission Standard

Euro 3

Chassis

Drive Type

6X4 Left hand drive

Transmission

10 speed levers with 2 reverse

Wheelbase/No. of axle

3800+1350 mm / 3

Tire Specification

10.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

6400*2300*1500 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

8000 kg

Slewing Angle

360° All rotation

Crane Weight

950 kg

Installation Space

850 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional



Key words: Truck with crane UNIC, FAW Crane truck, UNIC telescopic boom crane vehicle

Euro 3 type, WEICHAI engine, fuel consumption save 20%

Manual 10-shift mechanical transmission gearbox

12 months fast moving spare parts for FREE

Authorized FAW crane trucks exporter

Training service for FAW boom crane truck.


FAW 340HP 10 wheeler truck with crane UNIC


Custom-made FAW crane truck with UNIC V800 crane


China professional boom truck supplier and exporter, we supply high quality truck mounted crane. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
