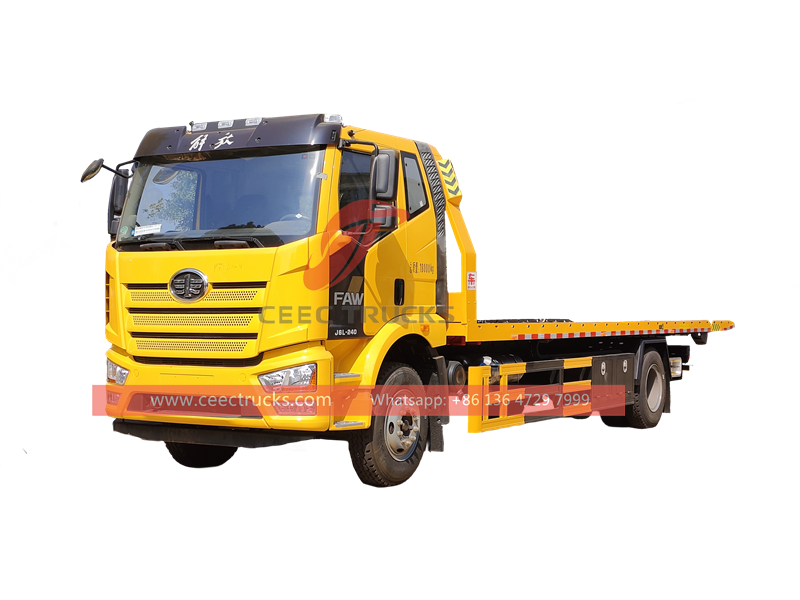

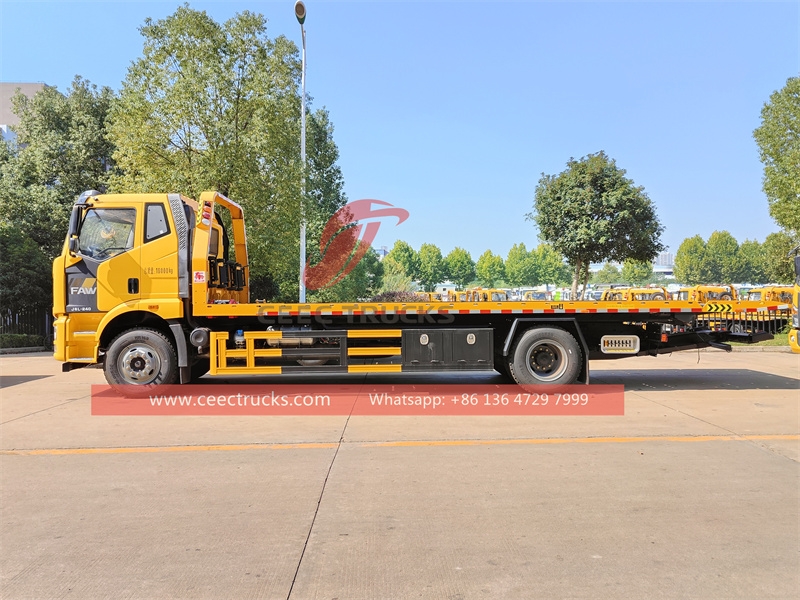

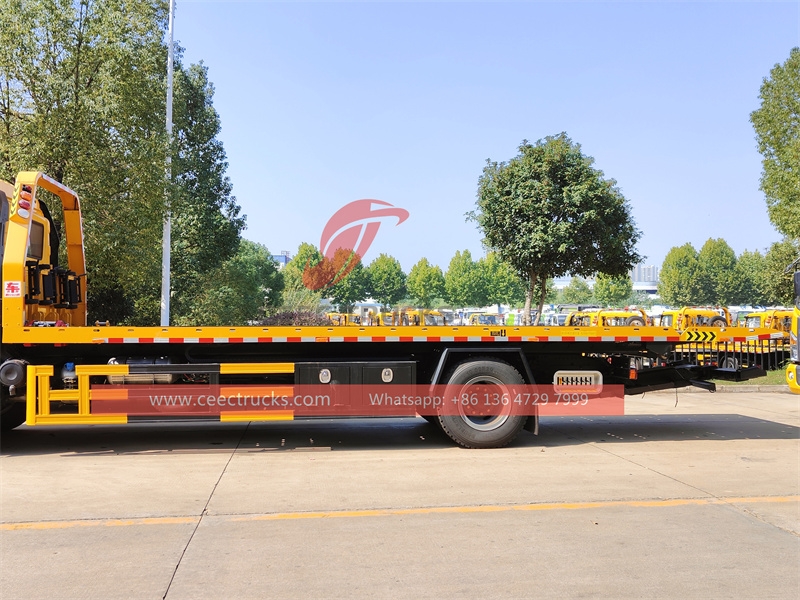

FAW 240HP J6L flat bed towing truck with factory direct sale

FAW J6L flat bed towing truck

FAW J6L flat bed truck for sale, FAW brand 4x2 left-hand-drive truck chassis, FAW brand 240HP diesel engine, Manual 8-shift gearbox, long flat bed with rear hydraulic ladder. all painting and logos depend on request.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days

Inquiry now

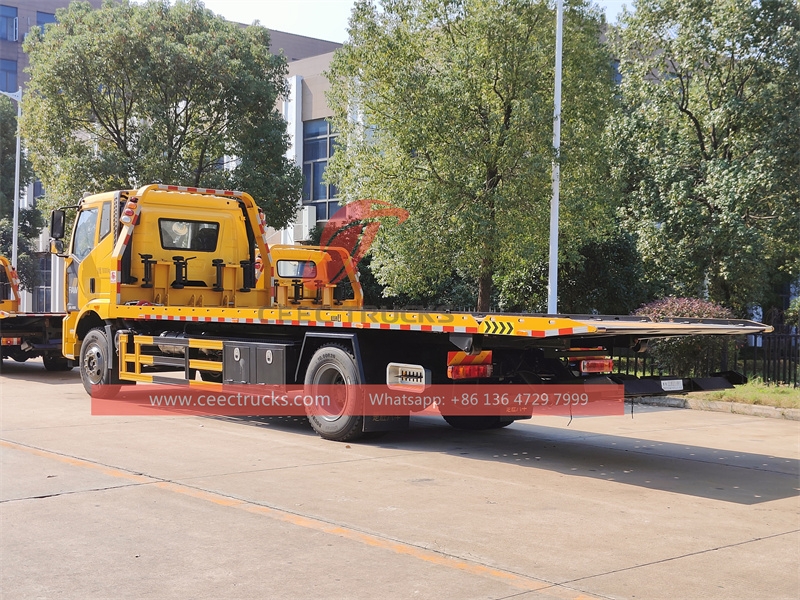

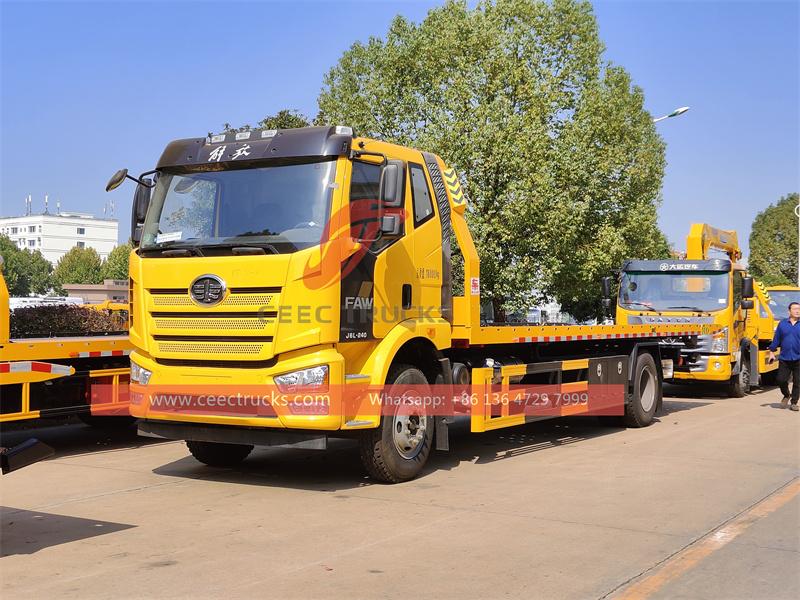

FAW 240HP J6L flat bed towing truck

Applications:

FAW J6L 240HP Flat Bed Truck (also called FAW heavy duty flat bed vehicle, FAW excavator carrier truck,FAW machinery transport vehicle, FAW flatbed truck,FAW excavator transport truck, FAW lorry carrier truck, etc) is used for transporting machine that is non-removable or machinery that can't be driven on road, such as excavator, loader, harvester, machine equipment, etc. It's widely used in the construction, agriculture field.

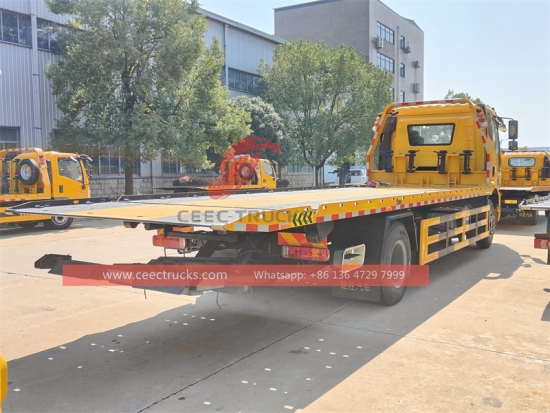

CEEC TRUCKS produced excavator carrier trucks are easy to load machinery, there is a hydraulic ladder at rear of the platform. When loading machinery on, turnover the ladder to ground to build a slope between platform and ground. When finished loading, the ladder should be fold up and fastened by manual.

As for the flat bed carrier trucks, driving type could be 4x2. 4x4, 6x4, 6x6, 8x4, etc.

Key Features:

---- FAW heavy duty truck chassis, perfect performance

---- FAW series engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Famous screen for optional

---- Roof fire extinguisher system to guard safety.

---- Massive, durable, long service life.

Specifications:

FAW 240HP J6L flat bed towing truck
Overall Dimension			8395x2500x2650(mm)
Gross Vehicle Weight			18000kg
Curb Weight			8500kg
Chassis Specification
Chassis Parameters	Chassis Brand		FAW
	Cabin		Single, Left/right Hand Driving
	Engine	Model	CA6DH1-24E6, 6 Cylinders
		Power	176KW/240HP
		Emission Standard	EURO 5
		Displacement	5.7L
		Fuel Type	Diesel
	Gearbox		8 Forward & 1 Reverse Gear
	Front and Rear Axle Load		6500kg/11500kg
	Wheel Base		7100(mm)
	Overhang( Front/Rear)		1400/2990(mm)
	Angle(Approach/departure)		24/9(°)
	Brake System		Air Brake
	Steering Gear		Power Assistant
	Tire		8.25R20, 6 Pieces with 1 Spare Tire
	Maximum Speed		100(km/h)
Superstructure

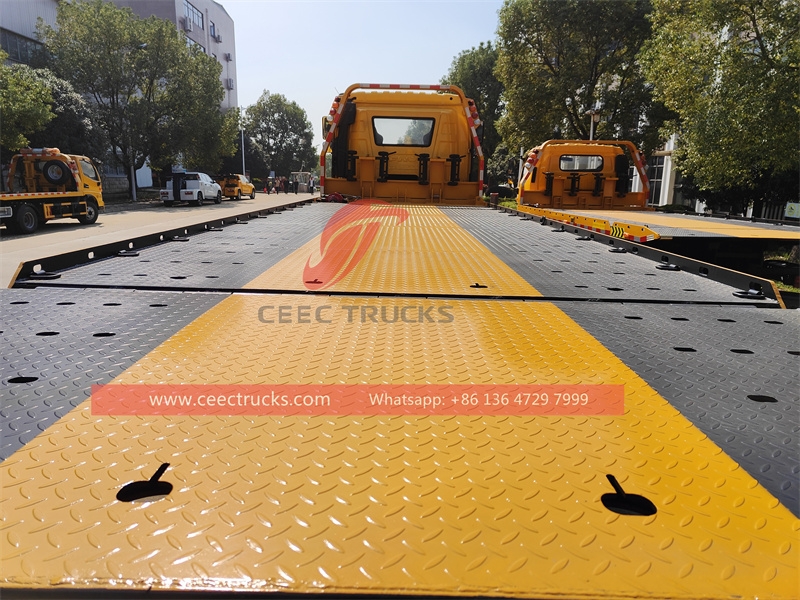

Flatbed	Dimensions		6500x2400 (mm)
	Max. Loading Weight		8000(kg)
	Operating Stroke		2700 (mm)
	Min. Angle of Slope		8(°)
	Platform Height from the Ground		1350(mm)

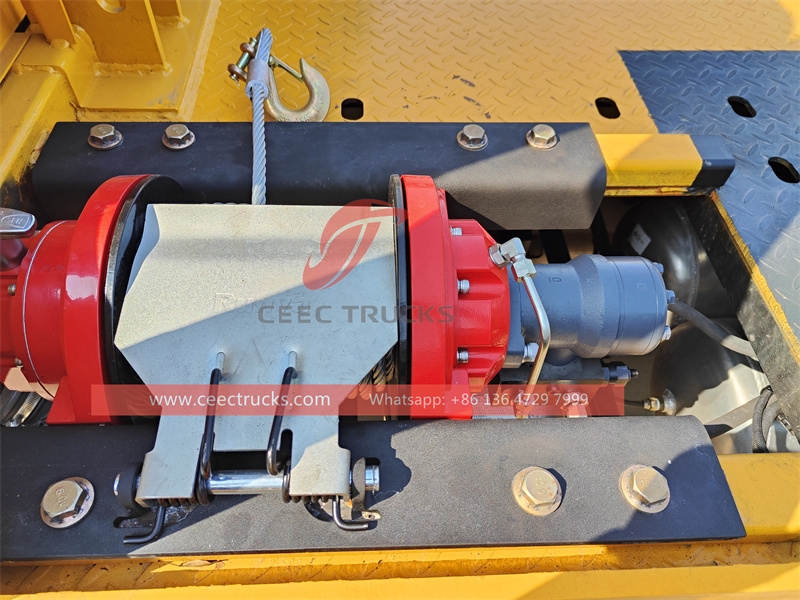

Winch	Quantity		1pc
	Winch Rating Pulling Capacity		6000 (kg)
	Length of Steel Cable		35 (m)

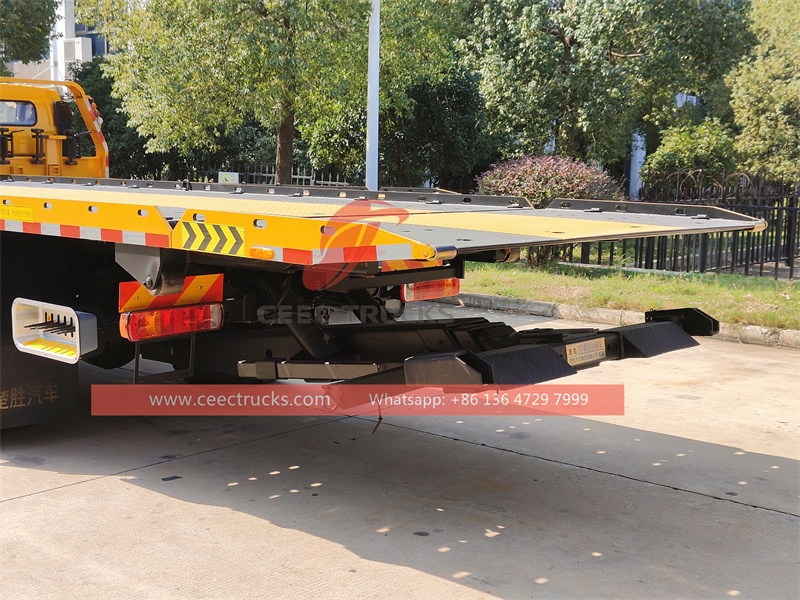

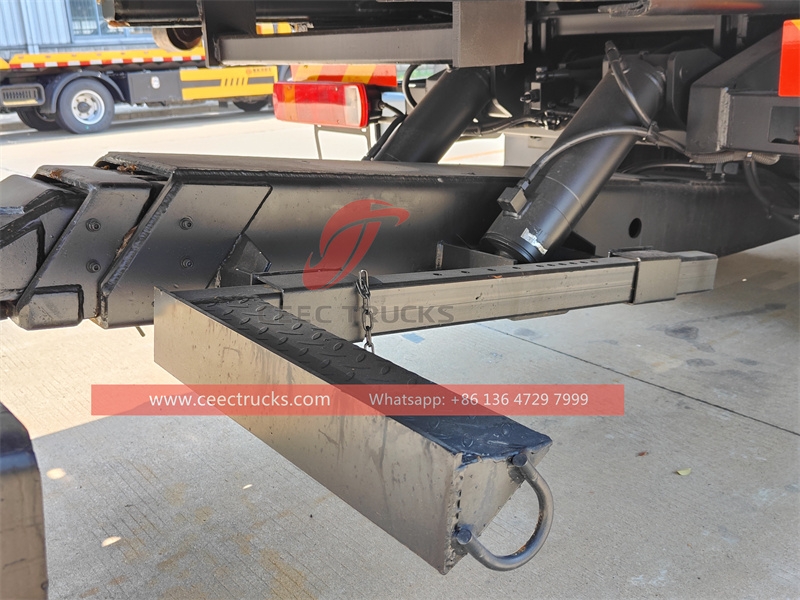

Hoisting Organ	Rating Under-Pulling Capacity		8000 (kg)
	Rating Under-Hoisting Capacity		4000 (kg)
	Fully Extended Max Under-Hoisting Capacity		1600 (kg)
	Max Under-Hoist Useful Length		1640 (mm)

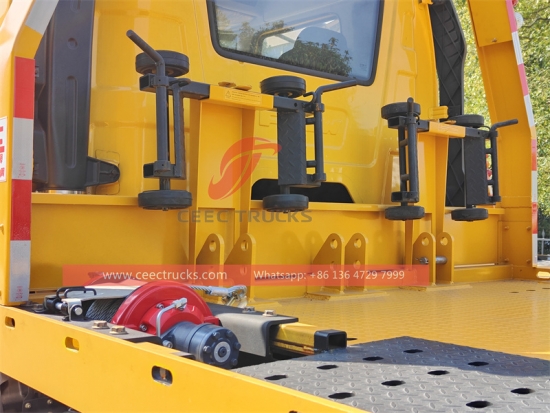

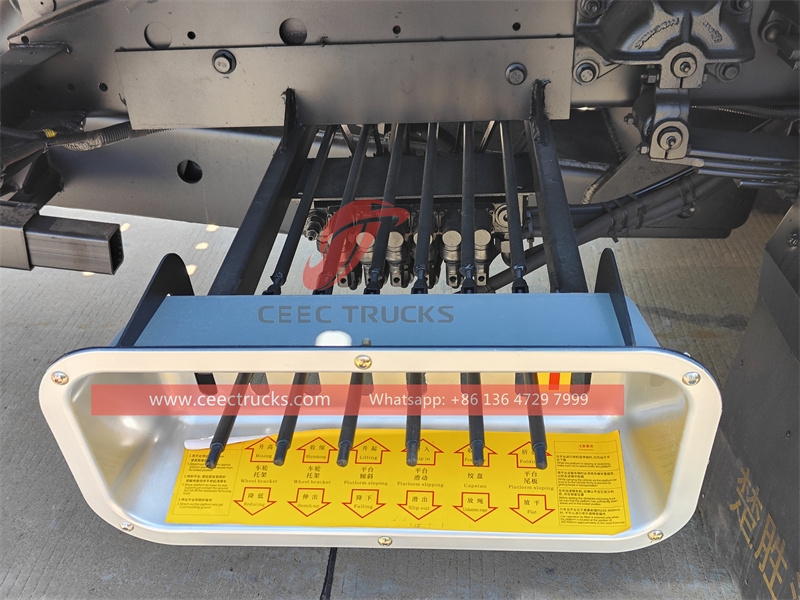

Remarks	1. Equiped with One Set of Auxiliary Wheels 2. Bandages 4pcs 3. Yellow Warning Lamp 1pc 4. Double Side Hydraulic Operation 5. Allow Tow 2 Cars

★ Manual 8-shift manual gearbox, 6 forward & 1 reverse

★ Expert for producing FAW Flatbed truck over 10 years with good reputation

★ Carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for FAW road wrecker trucks

FAW 240HP J6L flat bed towing truck

China best flatbed truck supplier and exporter, we supply the best quality FAW low flat bed trucks. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our FAW Low flat bed vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
