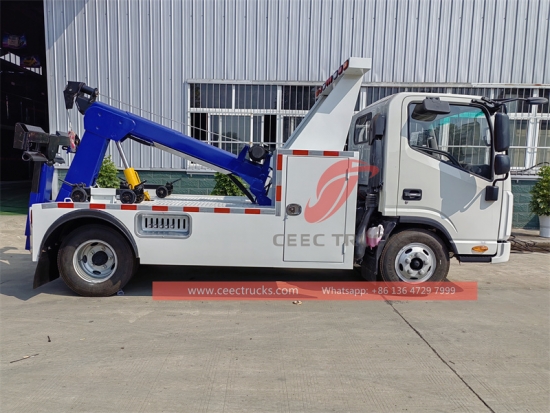

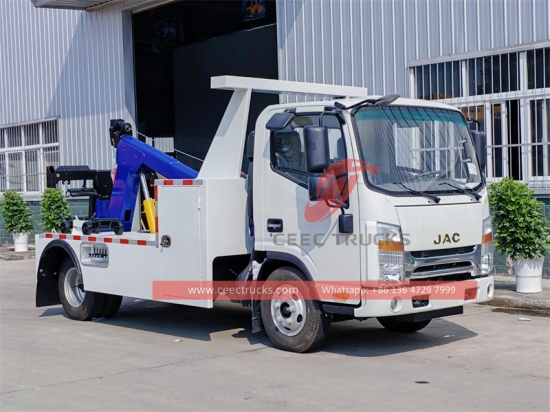

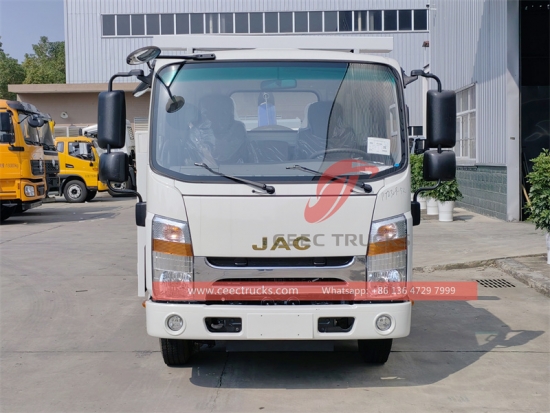

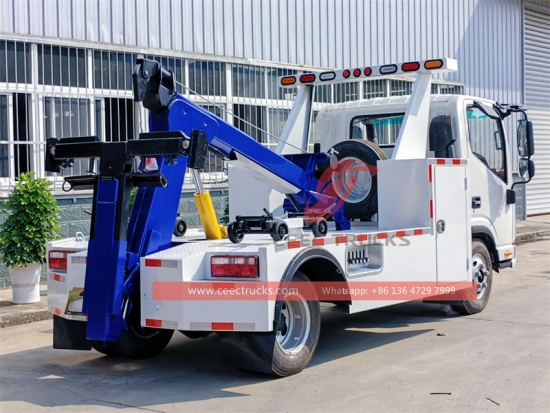

JAC 8tons road wrecker truck, JAC 4x2 classical LHD chassis, Manual 6-shift gearbox, JAC 156HP diesel engine, lifting boom with hydraulic cylinder working, painting and logos depend on requirement.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 Days
Applications:
Road Wrecker truck JAC (also called JAC light duty Wrecker tow truck, JAC Recovery tow vehicle,JAC Road towing truck,JAC Rotator wrecker trucks,JAC Sliding platform recovery truck) is
a high efficiency vehicle mainly used in high ways, airports, seaports,
automobile repair plants and traffic police stations. It can quickly
move away vehicles.
CEEC TRUCKS can supply recovery trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Tons.Towing capacity is optional.
Key Features:
---- JAC light duty chassis, perfect performance
---- JAC engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Telescopic boom crane or Knuckle boom crane can be optional.
---- Safety Devices are available, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
Specifications:
JAC 8tons Wrecker Towing Truck |
||
Chassis model |
JAC 1081P71K1C6V |
|
Cab |
JAC cab, with power steering. Electronic flameout,left hand drive |
|
Driving Type |
4*2 left hand drive |
|
Max Speed (km/h) |
85 |
|
Overall dimension(mm) |
6850×2500×2535 |
|
Mass in working order( kg) |
4500 |
|
GVW( kg) |
5800 |
|
Tank Capacity (L) |
160 |
|
Wheelbase(mm) |
3845 |
|
Approach/Departure Angle |
14/18 |
|
Tire |
215/75R17.5 14PR |
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
Steering |
Hydraulic steering with power assistance |
|
Gear box |
LC6T540B |
|
Enging |
Model |
ISF3.8S5154 |
Horse power |
156HP |
|
Displacement |
2780 L |
|
Braking system |
Service Brake |
Compressed air brake |
Park Brake |
Spring energy |
|
Eletric system |
24v |
|
Upper-Body |
||
Hydraulic Under Lift at Rear |
||
Fully Retracted Lifting weight(kg) |
6000 |
|
Fully Extend Lifting Weight(kg) |
2500 |
|
Max. Rated towing weight(kg) |
8000 |
|
Max effective length of boom(mm) |
760-1899 |
|
Extension traveling of boom (mm) |
839 |
|

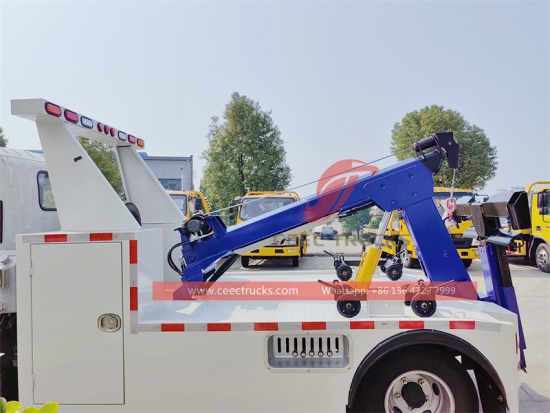

Boom structure |
||
Maximum lifting height(mm) |
3500 |
|
Fully Retracted Lifting weight(kg) |
5000 |
|
Fully Extended Lifting weight(kg) |
2000 |
|
Extension traveling of hoisting boom(mm) |
1800 |
|
Hydraulic winches & steel cables |
||
Type: |
Planetary type |
|
Quantity (set) |
2 |
|
Max. Pulling power of winch(kN) |
60 |
|
Length of steel cable(m) |
40 |
|
Speed of winch (m/min) |
5 |
|
Diameter of winch(cm) |
0.18 |
|
Hydraulic Outriggers |
||
Quantity |
2 |
|
type |
in-built with power elevation &extension |
|
Power take off |
||
Type |
PTO drive from transmission |
|
Wrecker Operation |
||
Description |

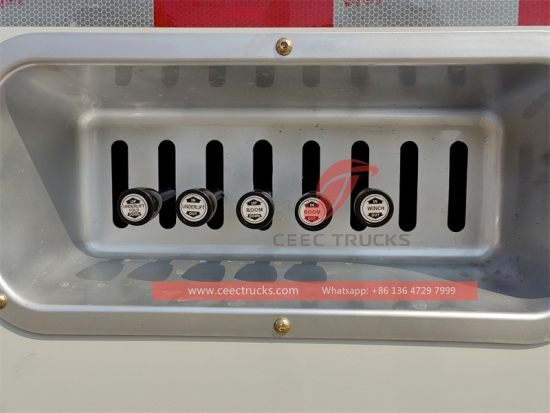

Panel board comprising joysticks and hydraulic meters installed in a suitable place out of crew cabin. |
|
Hydraulic System |
||
Description |
uitable capacity gear pumps for boom movement, telescoping cylinder, power steering and control valves & control system shall be with adequate size oil reservoir, integral oil cooler, valves etc. |
|
Safety Device |
||
Auto brake for winch |
Automatic safe brake in case winch / Engine fail. |
|
Hydraulic valves |
Necessary hydraulic pressure relief & lock valve/ valves |
Light-duty Tow Truck Advantage:
High flexibility: Light-duty tow trucks are generally smaller than heavy-duty trucks and can more easily enter narrow roads or areas. They are suitable for use in various environments such as city streets and highways.
High maneuverability: Due to their smaller size, light tow trucks have better maneuverability and can move and turn more flexibly, making it easier to operate on narrow roads.
Quick response: Light-duty tow trucks are usually equipped with high-performance engines and suspension systems that accelerate and respond quickly, allowing them to quickly reach the scene of an accident or the location that needs to be cleaned up.
Versatility: Light-duty tow trucks can often be modified and equipped as needed and can be used for a variety of different towing jobs, including towing, lifting, clearing obstacles in the road, and more.
Cost-effective: Compared with heavy-duty trucks, light-duty tow trucks usually have lower operating costs, including fuel consumption, maintenance costs, etc. They are suitable for small-scale tow trucks, which can improve work efficiency and reduce
★ Expert for producing JAC Road Wrecker over 10 years with good reputation
★ Carbon steel material
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Training service for JAC road wrecker trucks
