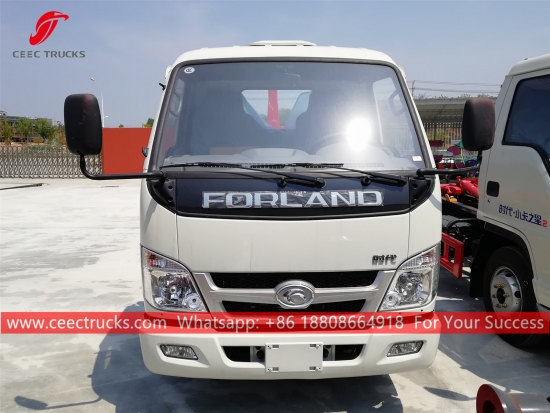

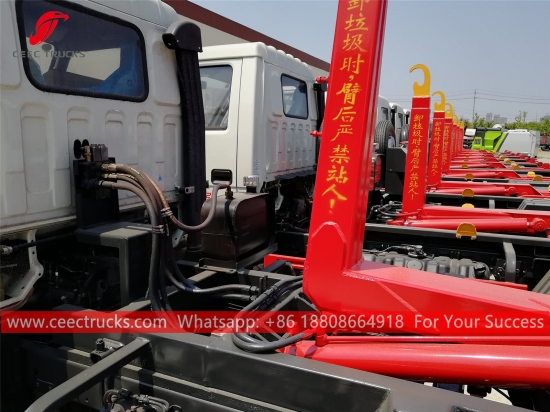

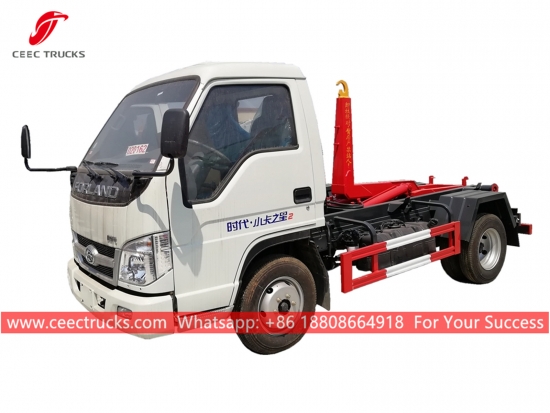

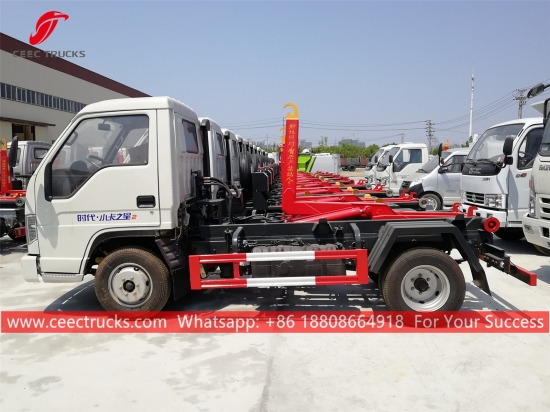

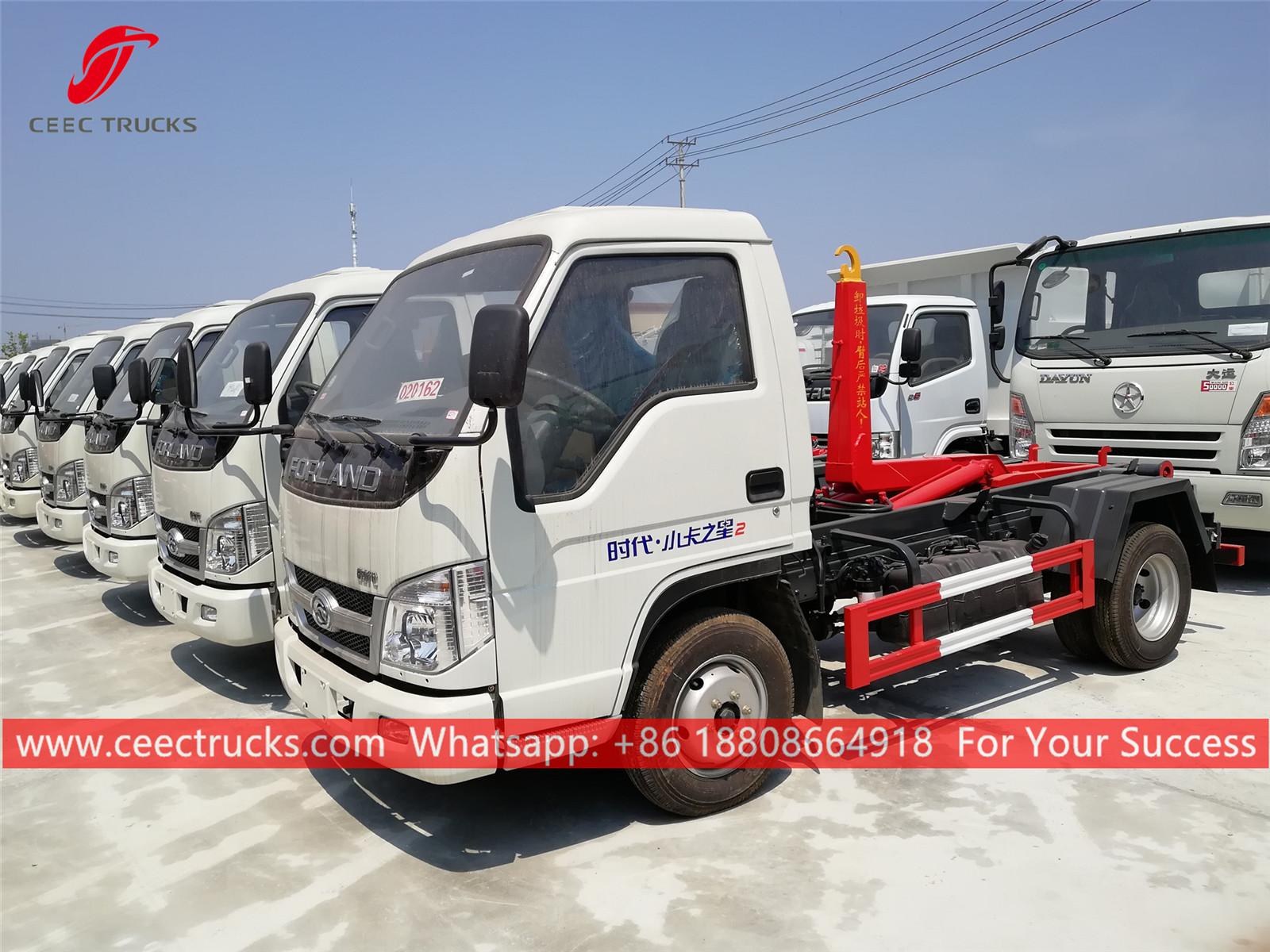

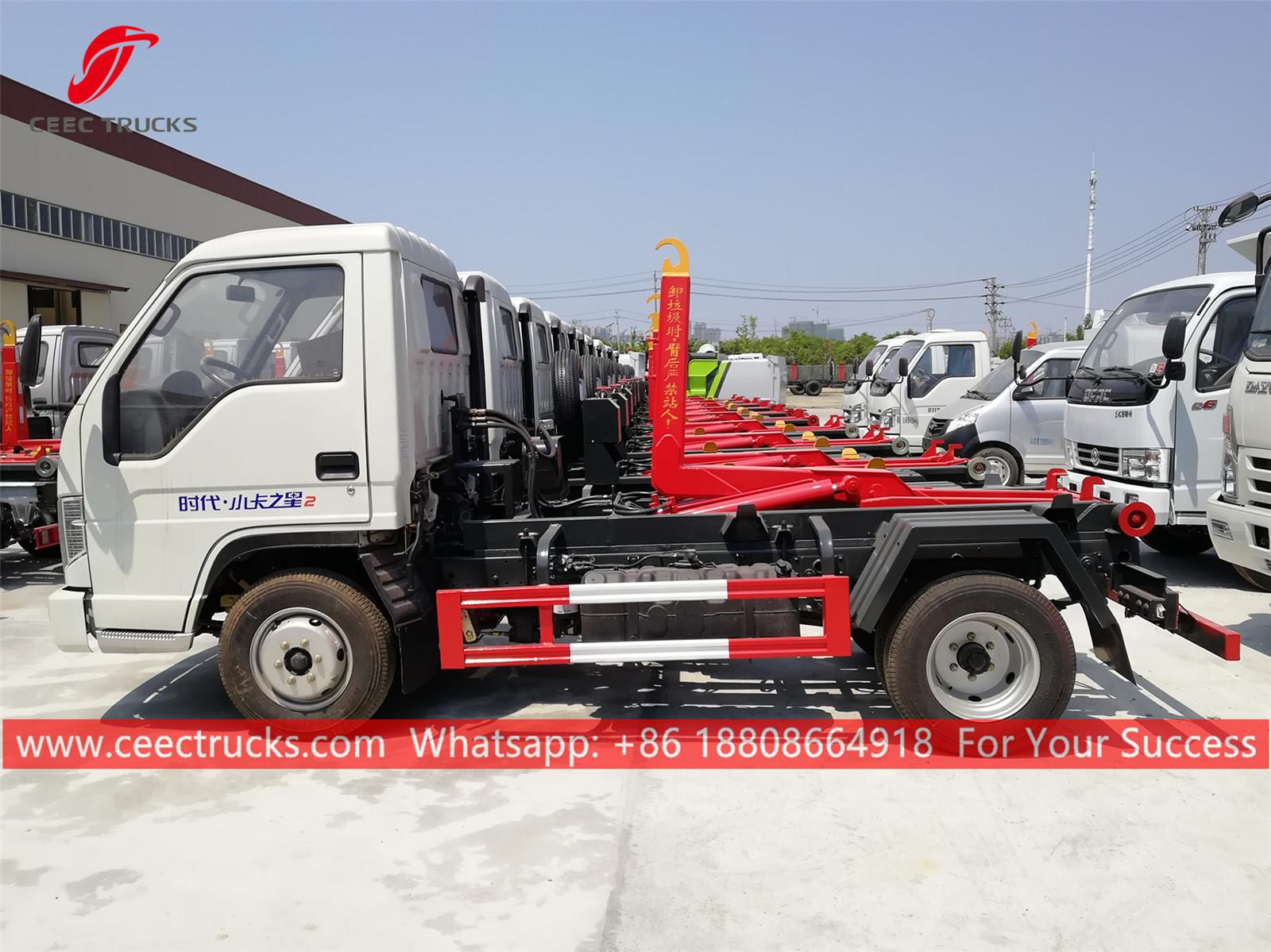

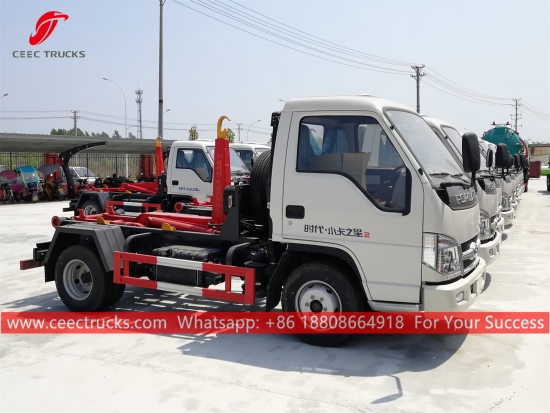

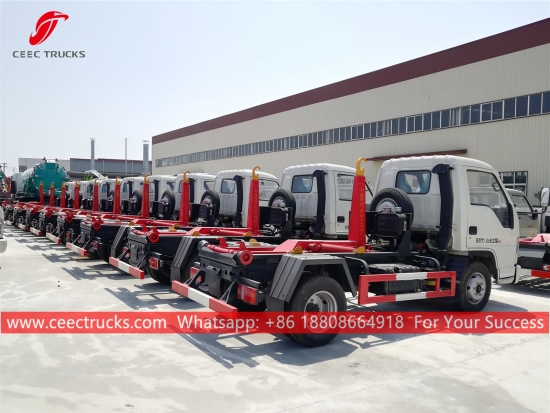

FOTON Mini Hook loader

Mini 3cbm hook loader garbage truck, FOTON 4x2 chassis with 68HP diesel engine, Manual 5-shift manual gearbox, high strength hook loader system, with all kinds of garbage container optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $8,000-16,000
contact now



 Applications:



Small Hook Loader FOTON (also called hook lift garbage truck FOTON, FOTON skip loader garbage truck, mini hook lifting truck, hook lift refuse truck, FOTON hook loader, container detachable garbage truck, hook arm garbage truck, hook lifting waste truck ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.



CEEC TRUCKS roll on roll off trucks loading capacity can ranges from 1tons, 2tons, 3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.



The hook loader with shot peening painting, with all painting color and logos depend on requirement.



 Key Features:



---- FOTON chassis, perfect performance

---- XICHAI / QUANCHAI diesel engine (Japanese brand), super powerful, no overhaul within 100,000 km.

---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

---- Rational design of hook and locking structure, and truck more reliable.

---- Optional Electrical Control in cabin, easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Why choose CHUSHENG certified hook loader truck



 Specifications:



FOTON Mini Hook loader garbage truck (3 cbm)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

FOTON

Overall Dimension

3620 * 1500 * 1990 mm

GVW / Kerb Weight

3,600kg / 1,800kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

QUANCHAI

Power

68 HP (50 KW)

Displacement

1800 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

4X2, (left hand drive)

Transmission

Manual 5 speed levers with 1 reverse

Wheelbase/No. of axle

2300 mm / 2

Tire Specification

6.50-14

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body capacity

3CBM capacity detachable container

Container material

Anti-corrosive steel

Hydraulic system

Chinese top brand cylinders and matched valves

Control Box

1. Electric Control Box in Cabin

2. Hydraulic control valve at rear

Self-discharge angle

≥45 °

Discharging time

≤45 s

Lifting time

≤45 s

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Remote Control Box can be optional.

** Garbage container can be of stainless steel

FOTON chassis, perfect performance

Euro 2 or 3 type, QUANCHAI engine, super powerful

Rational design of hook and locking structure, and truck more reliable.

12 months fast moving spare parts for FREE

Authorized FOTON hook loader trucks exporter

Training service for FOTON hook lift trucks
