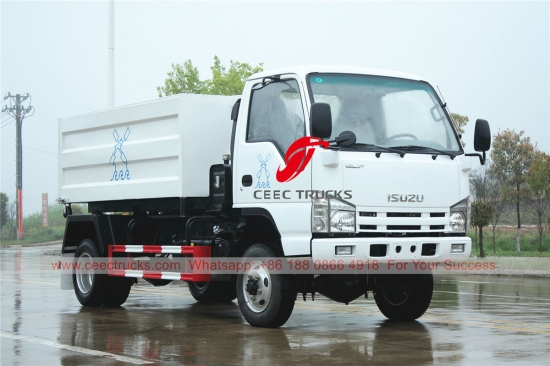

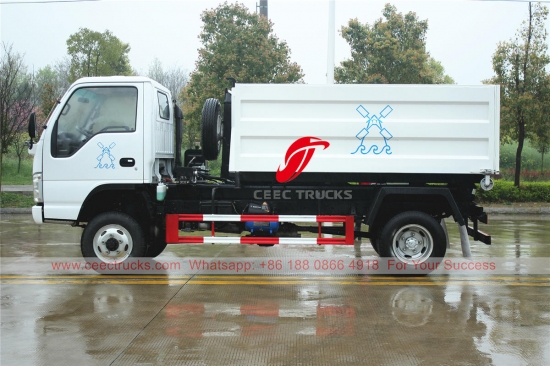

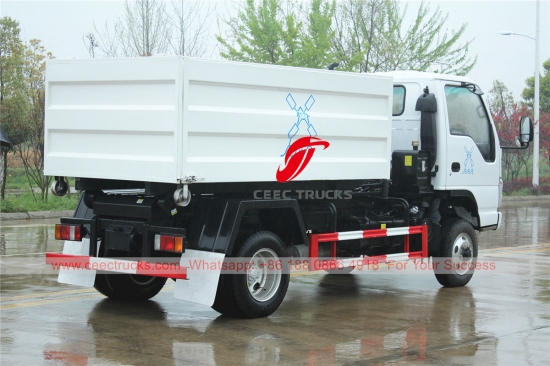

ISUZU 4×4 hook loader

ISUZU 4 cbm hook loader garbage truck, ISUZU 4x4 chassis with ISUZU 98HP diesel engine, MSB 5-shift manual gearbox, high strength hook loader system, with all kinds of garbage container optional. Painting and logos depend on requirement.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days

Inquiry now

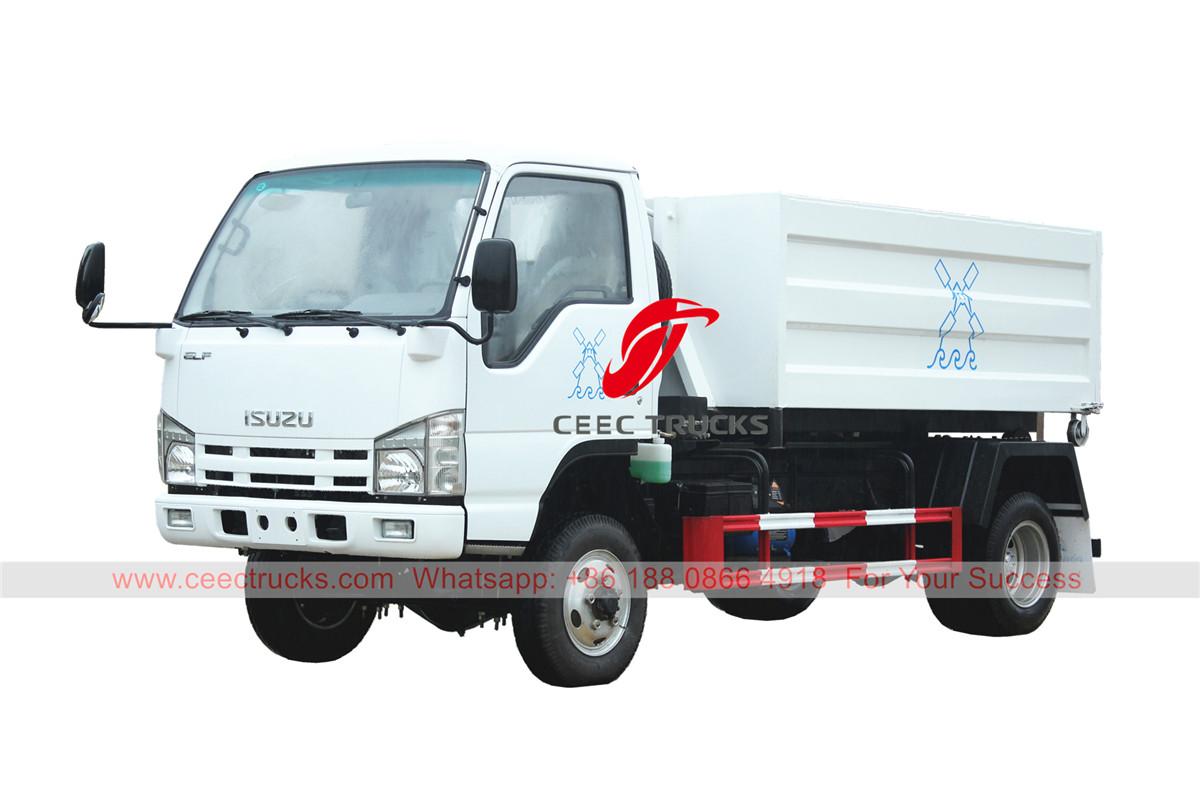

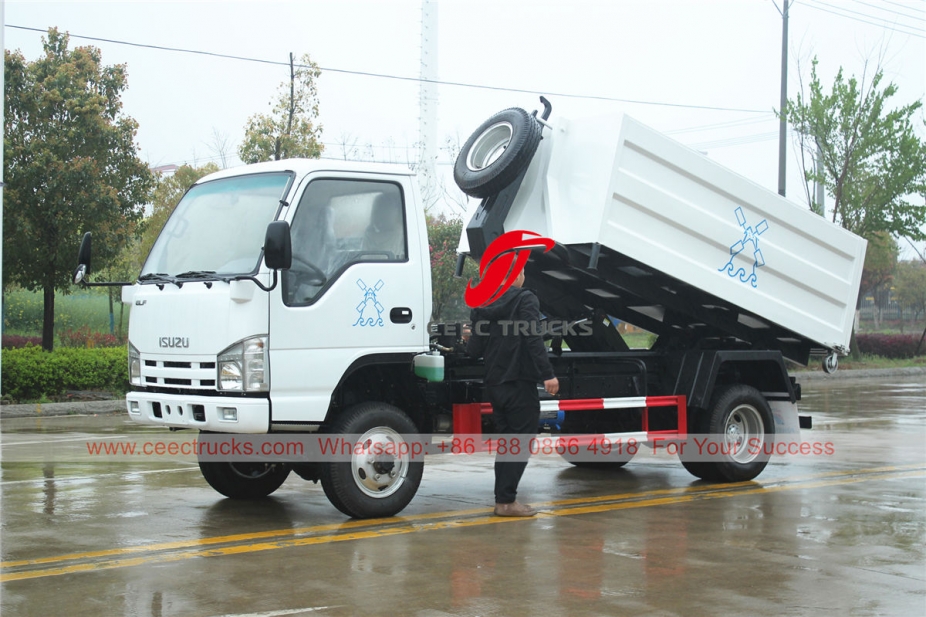

ISUZU 4×4 hook lift truck

Applications:

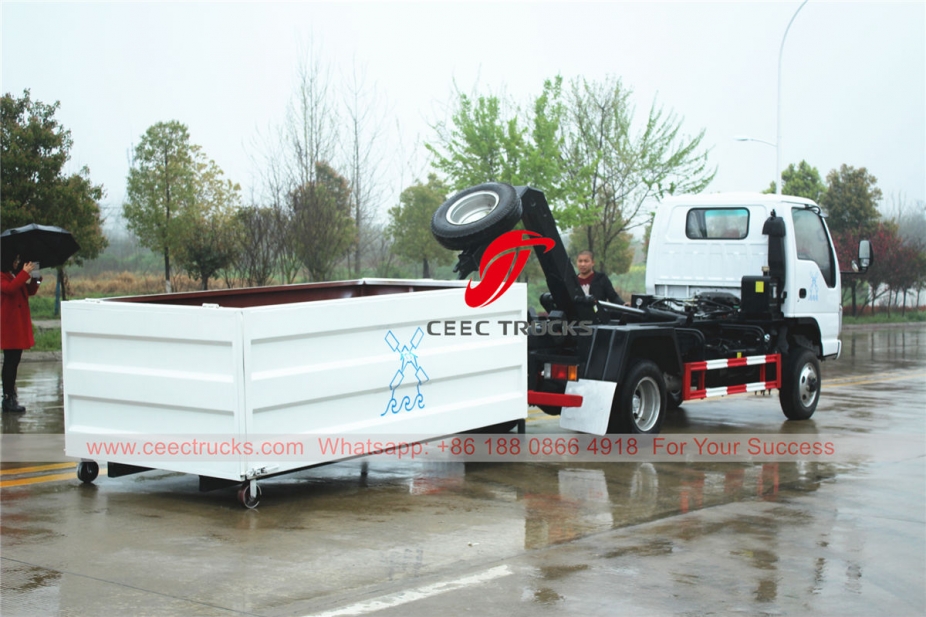

ISUZU Hook Lift Garbage Truck (also called ISUZU Hook loader, hook loader garbage truck, hook lift truck, ISUZU hook loader lorry, ISUZU garbage collector, detachable garbage container truck, refuse collection truck, hook lifting garbage truck ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.

CEEC TRUCKS skip loader trucks loading capacity can ranges from 1tons, 2tons, 3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.

The hook loader with shot peening painting, with all painting color and logos depend on requirement.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU diesel engine (Japanese brand), super powerful, no overhaul within 100,000 km.

---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

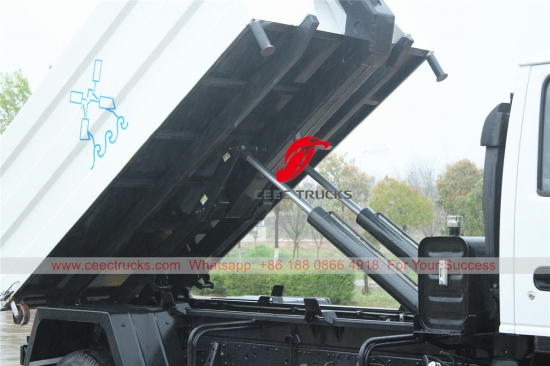

---- Rational design of hook and locking structure, and truck more reliable.

---- Optional Electrical Control in cabin, easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Specifications:

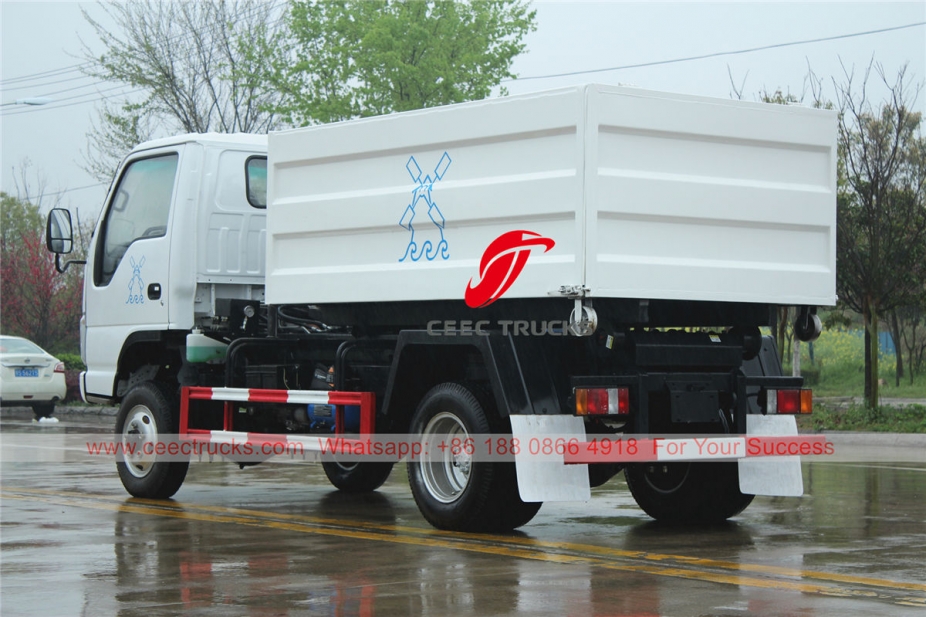

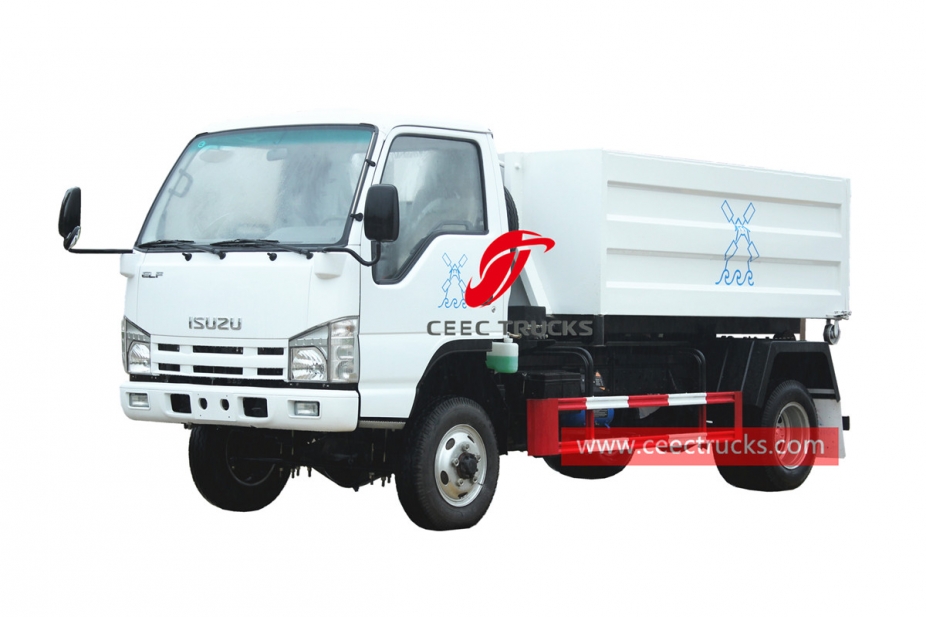

ISUZU Hook lift lorry (4 cbm)
General	Vehicle Brand	CEEC
	Chassis Brand	ISUZU
	Overall Dimension	5300 * 1900 * 2300 mm
	GVW / Kerb Weight	73,000kg / 5,000kg
Cab	Cab Capacity	2 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	98 HP (72 KW)
	Displacement	2999 ml
	Emission Standard	Euro 4 or 5
Chassis	Drive Type	4X2, (left hand drive)
	Transmission	MSB 5 speed levers with 1 reverse
	Wheelbase/No. of axle	3360 mm / 2
	Tire Specification	7.50R16
	Tire Number	6 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint
Superstructure	Body capacity	4CBM capacity detachable container
	Container material	Anti-corrosive steel
	Hydraulic system	Chinese top brand cylinders and matched valves
	Control Box	1. Electric Control Box in Cabin 2. Hydraulic control valve at rear
	Self-discharge angle	≥45 °
	Discharging time	≤45 s
	Lifting time	≤45 s
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
Optional	Back alarm and Camera can be equipped. Remote Control Box can be optional. ** Garbage container can be of stainless steel
