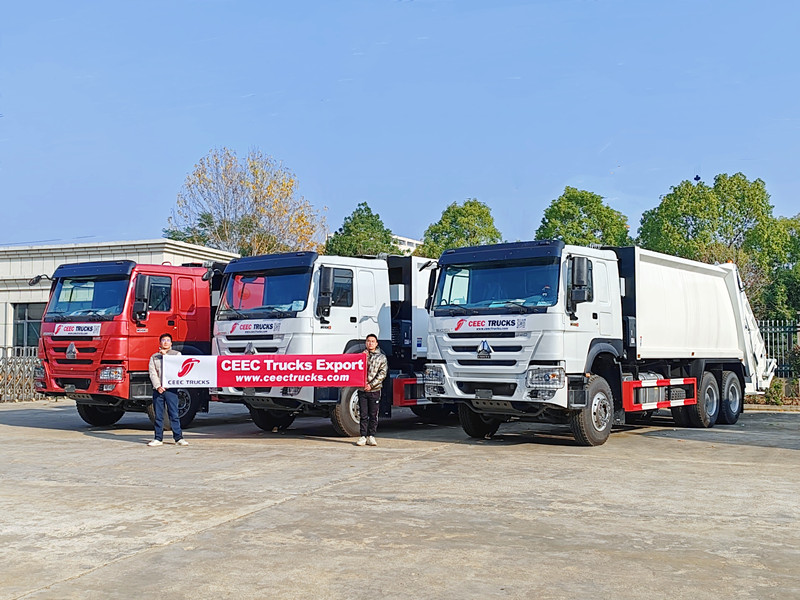

Howo 20 cbm refuse compactor garbage truck

HOWO Rear Load Garbage Truck (also called HOWO garbage compression truck, HOWO rear loader, HOWO waste compactor truck, back load garbage truck, HOWO trash compactor truck, garbage compactor manufacturer) is designed for daily rubbish transport in such living areas as all kinds of cities, large station, port and wharf, airport, and densely-populated areas like industrial and mineral enterprises and military units.

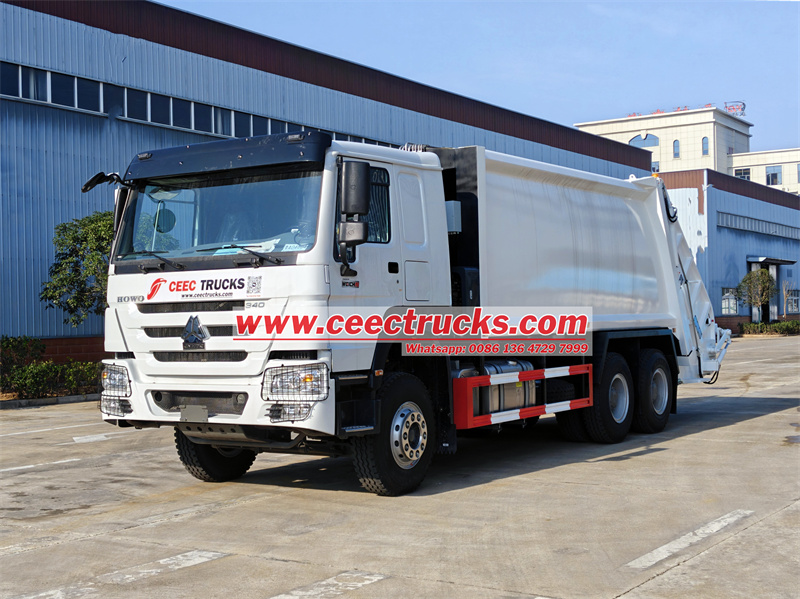

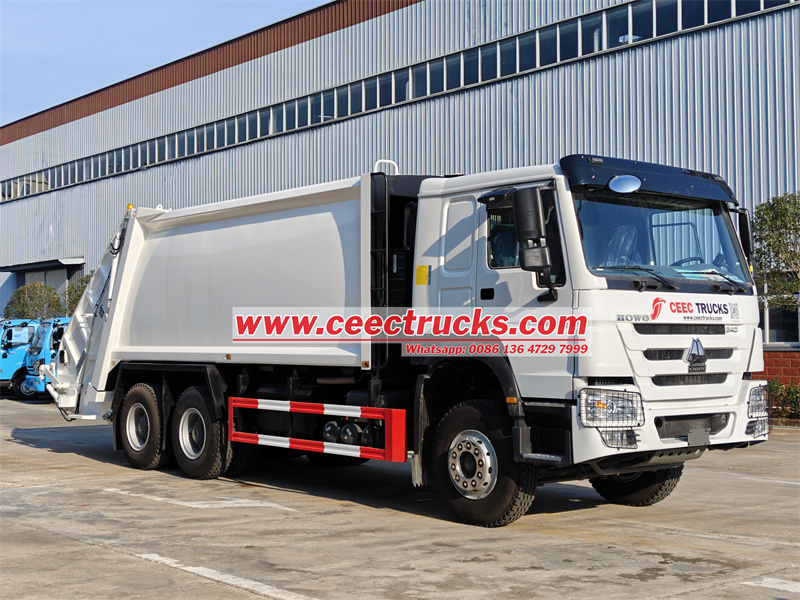

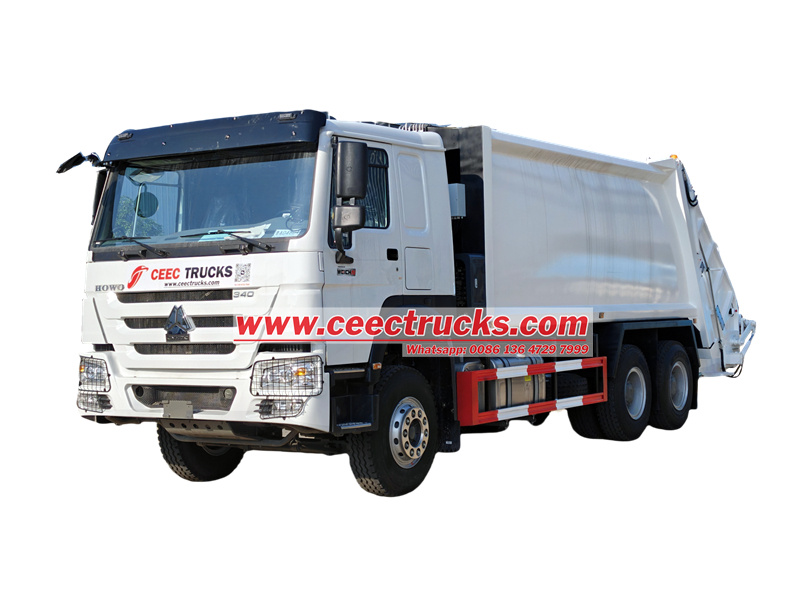

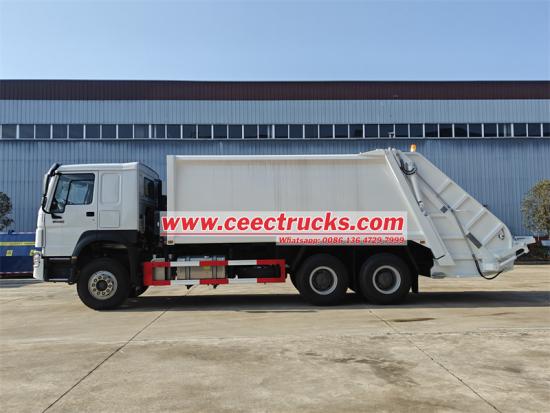

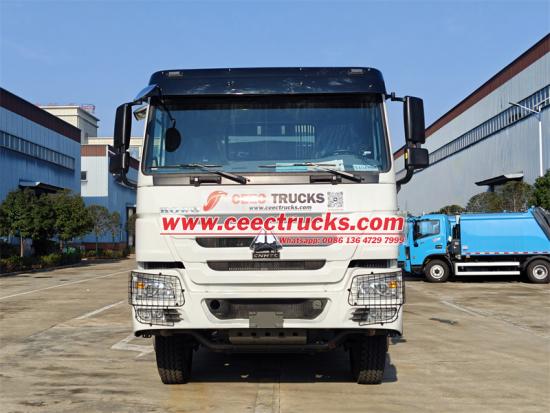

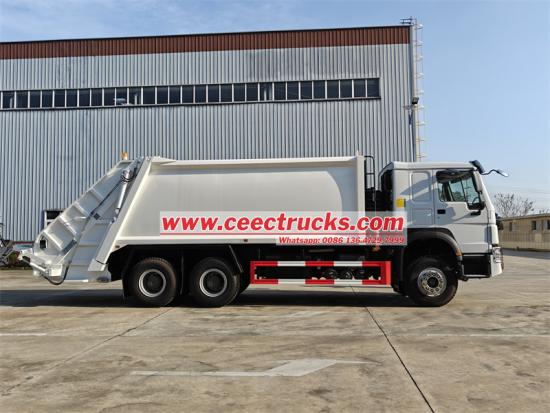

This HOWO 20CBM garbage rear loader truck is a high-performance, large-tonnage urban sanitation equipment, with a 6*4 drive configuration, a total weight of 25 tons, and a rated load of 12.7 tons. It is equipped with a WP10.340 engine, outputting 340 horsepower, and the power system is equipped with turbocharging and intercooling technology. The howo heavy-duty chassis adopts a wheelbase design of 4600+1350mm, with a front axle load of 7 tons and a rear axle double axle load of 13 tons each, ensuring a strong load-bearing capacity.

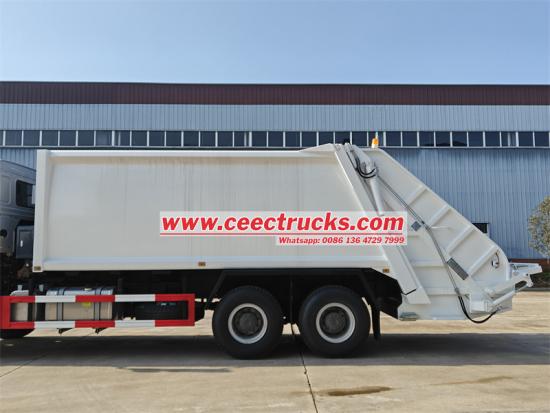

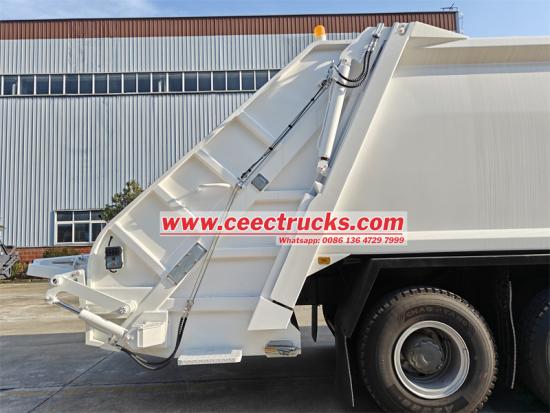

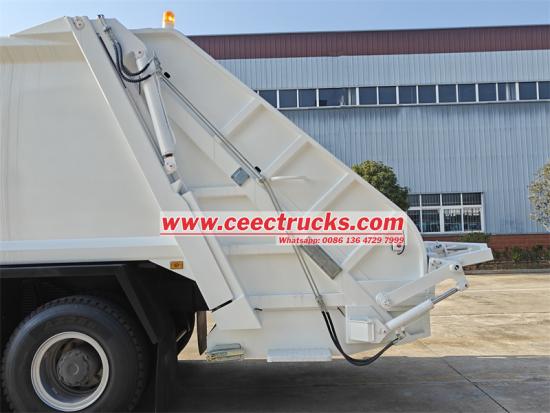

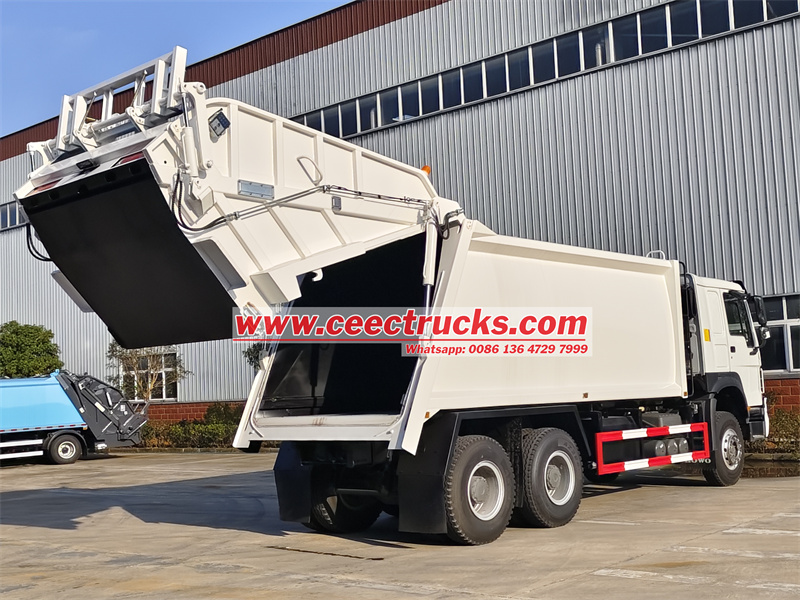

The garbage compactor box has a volume of 20 cubic meters and adopts an arc-shaped integral steel plate welding process. The bottom plate and side plates are both 4mm thick Q235 special steel, with a compression ratio of 1:3.4, and significant loading and unloading efficiency. The loading cycle time under full load does not exceed 40 seconds, and the unloading time does not exceed 45 seconds. The howo 20CBM garbage compactor truck is equipped with a PLC automatic control system, which can realize fully automatic operation, and is equipped with a variety of safety accessories as standard, such as warning lights, emergency stop buttons, fire extinguishers, etc. It is an ideal equipment for modern urban sanitation and transportation.

 Specifications:

Advantage:

The modification advantages of the HOWO 20CBM garbage rear loader truck:

1. Optimized power system: Equipped with Weichai WP10.340 engine, 340 horsepower, 9.726L large displacement design, sufficient torque reserve, turbocharging and intercooling technology, to ensure the stability of the engine under complex working conditions • Euro 3 emission standards, suitable for African countries.

2. Excellent chassis and load-bearing performance: HOWO 6*4 drive configuration, adapt to complex urban road conditions and garbage removal environment, strong load-bearing capacity, 7 tons front axle, 13-26 tons rear axle double axle, reasonable structure, strong anti-deformation ability, wheelbase 4600+1350mm, to ensure the stability and controllability of the howo garbage compactor truck.

3. Scientific design of trash bin: 20 cubic meters of curved tank, compression ratio 1:3.4, high compression efficiency, full plate manufacturing process, using Q235 special steel, the bottom plate and side plate of the tank are 4mm thick, excellent wear resistance and structural strength, effective bucket volume ≥0.8m³, and significant loading and unloading efficiency.

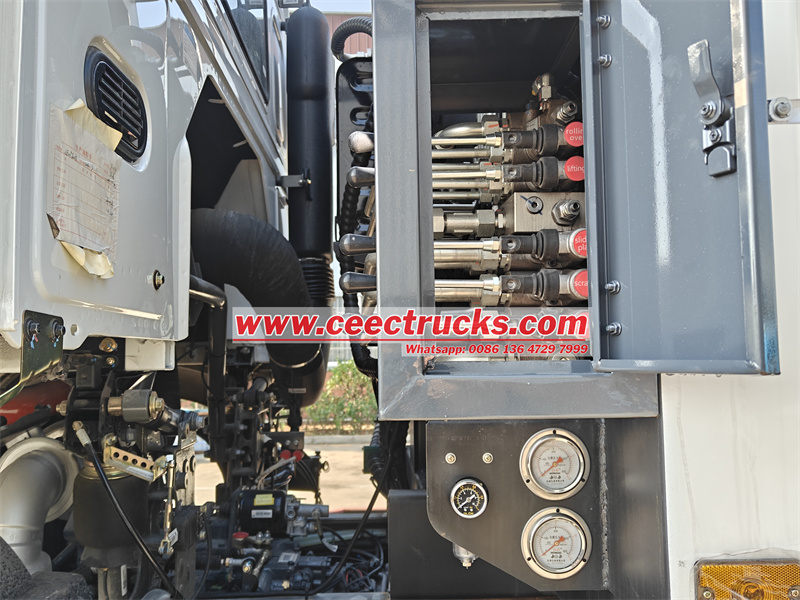

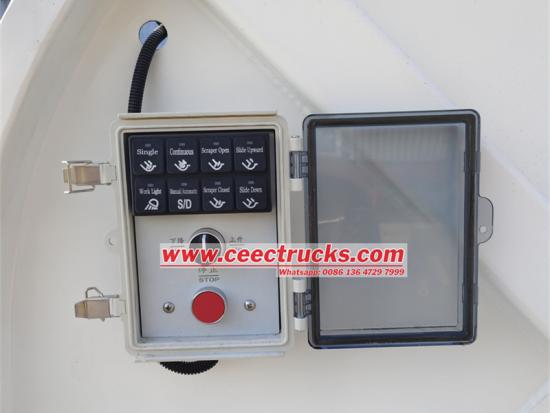

4. Intelligent control system: PLC control system, realizing automatic and manual dual control modes • The maximum pressure of the hydraulic system is 20MPa, ensuring stability and reliability, the engine is fully automatic power control, the loading cycle time is ≤40 seconds, the unloading time is ≤45 seconds, and the working efficiency is high.

5. Humanized and safety design: equipped with a variety of standard safety accessories: warning lights, emergency stop buttons, fire extinguishers, optional rearview cameras and reversing alarm systems, support for a variety of trash cans (240L/660L/1100L), vehicle approach angle 27°, departure angle 14°, strong maneuverability.
