HOWO 20CBM hook lifting garbage truck

HOWO 20 cbm hook lift garbage truck, HOWO 6x4 RHD model chassis with WEICHAI 336HP diesel engine, 10-shift manual gearbox, high strength hook loader system, with all kinds of garbage container optional. Painting and logos depend on requirement.

Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Payment:
T/T, West Union

contact now

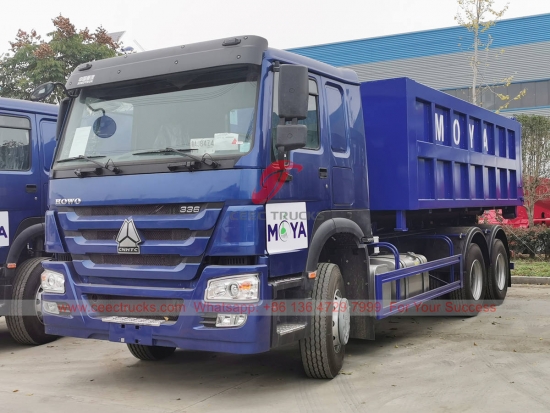

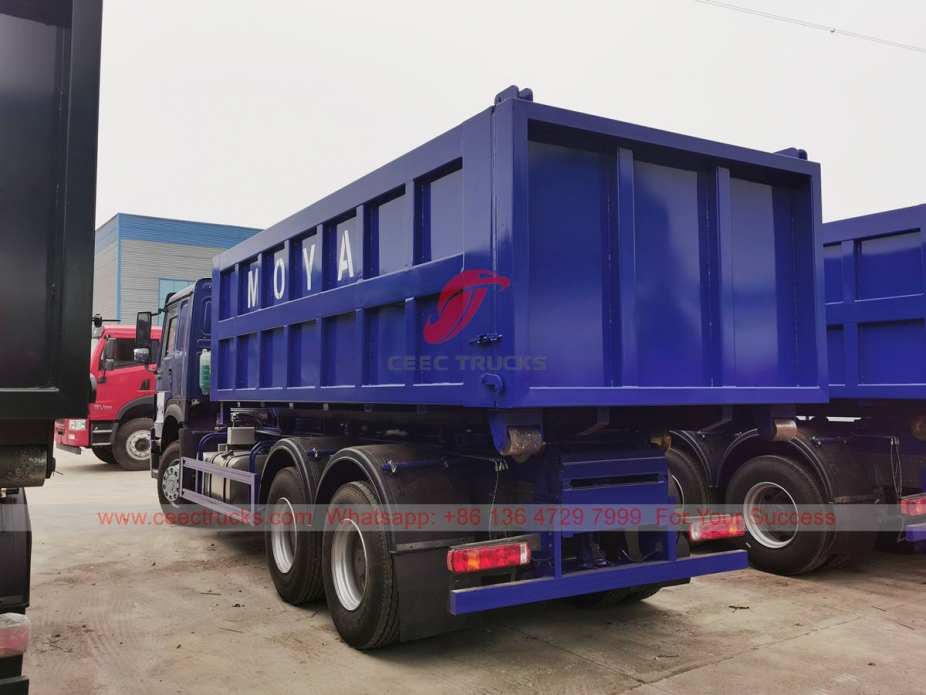

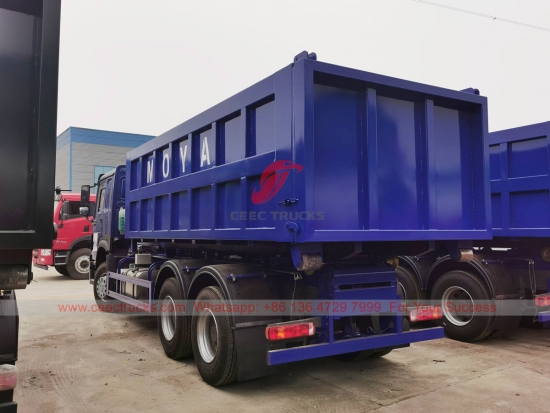

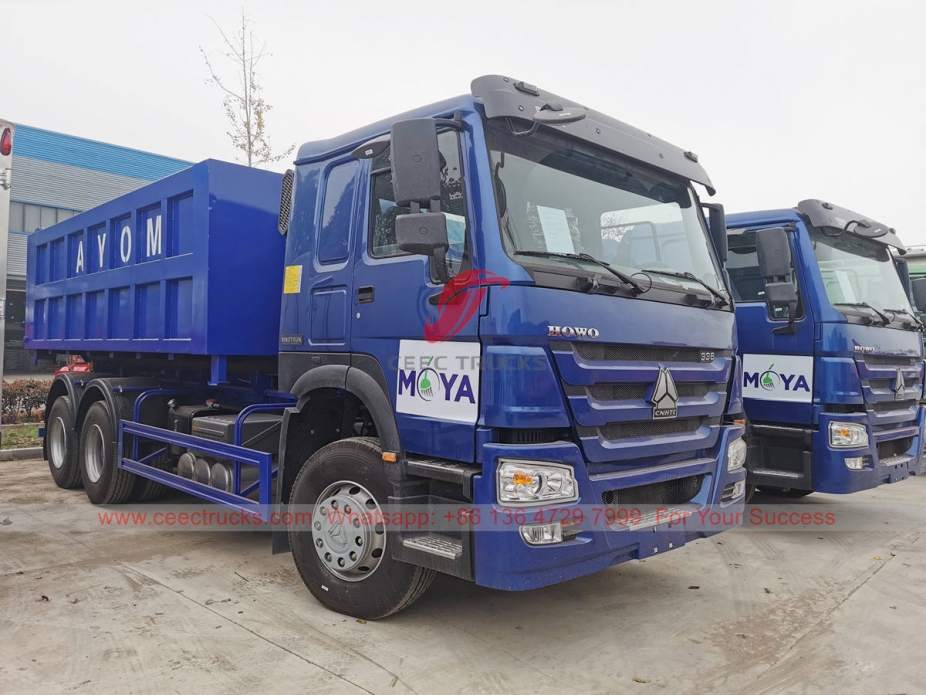

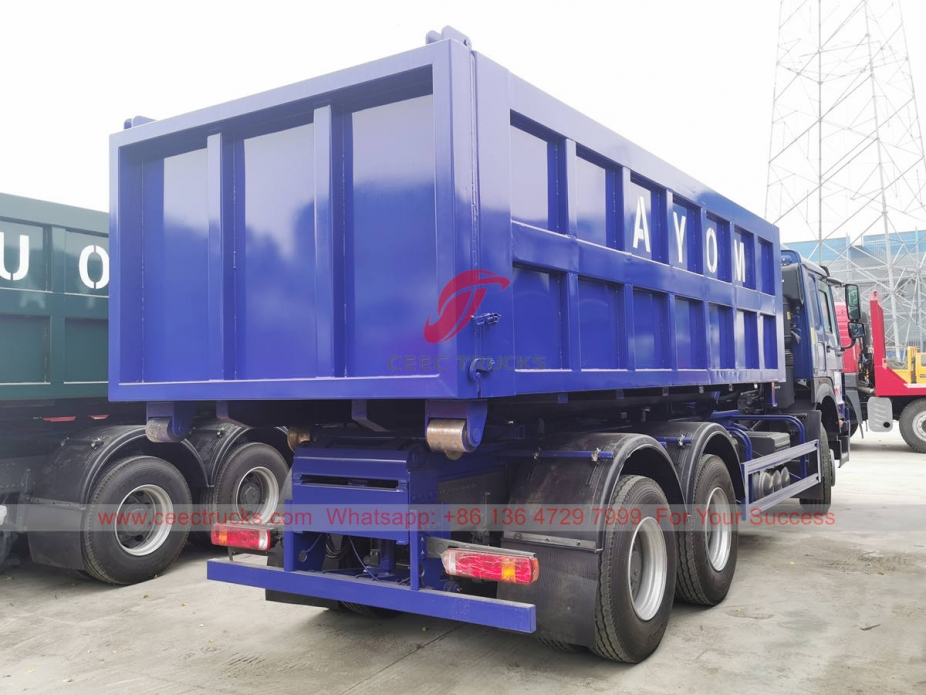

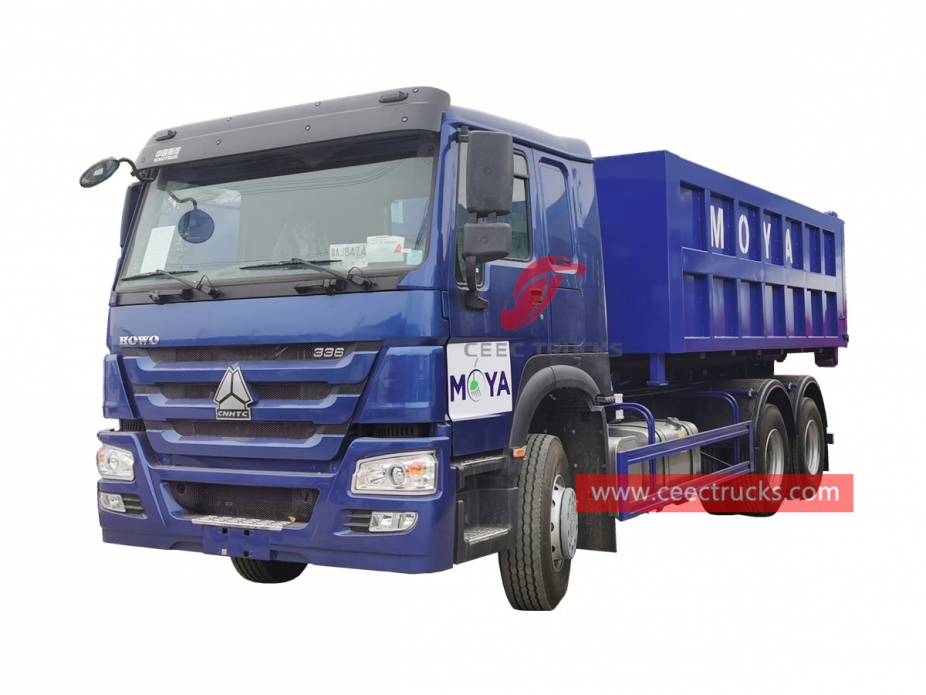

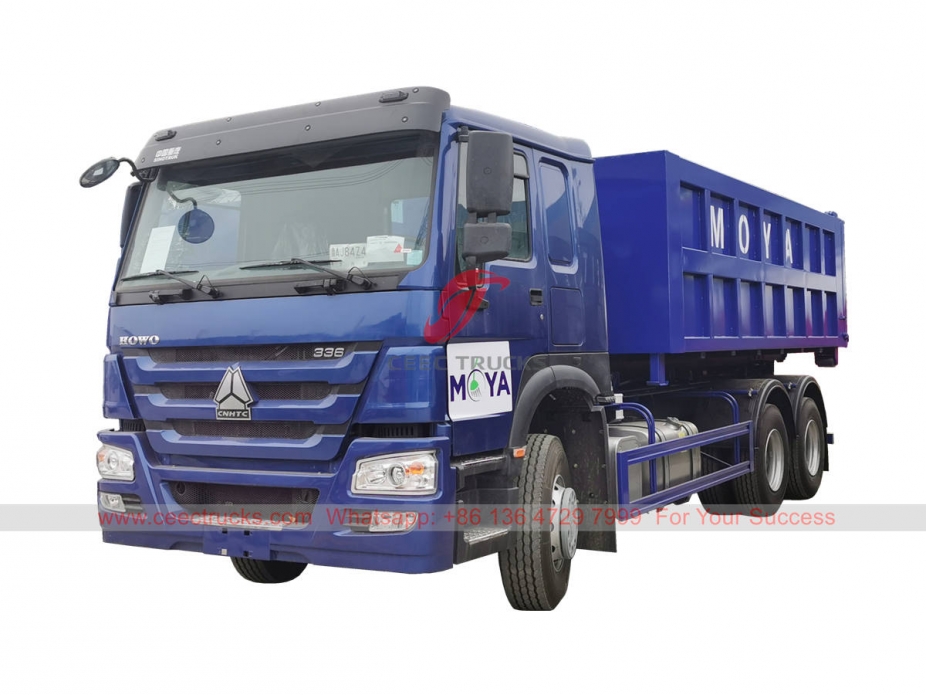

HOWO RHD hook loader with 20CBM container

Applications:

HOWO Hook Lifting Garbage Truck (also called HOWO Hook loading garbage truck, hook load refuse truck, hook lifting container truck, HOWO hook loader lorry, HOWO refuse collector, detachable garbage container truck, hookloader truck HOWO ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.

CEEC TRUCKS hook loader trucks loading capacity can ranges from 1tons, 2tons, 3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.

The hook loader with shot peening painting, with all painting color and logos depend on requirement.

Key Features:

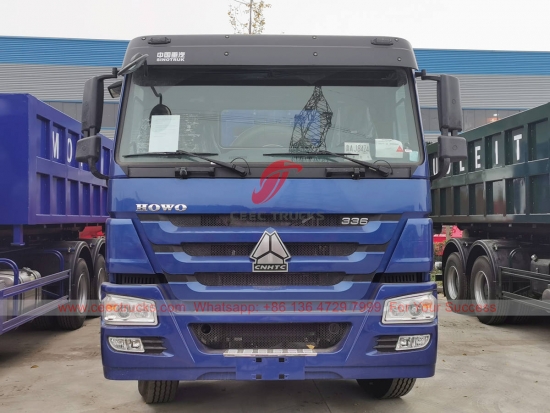

---- HOWO chassis, perfect performance

---- WEICHAI diesel engine (China famous brand), super powerful, no overhaul within 100,000 km.

---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

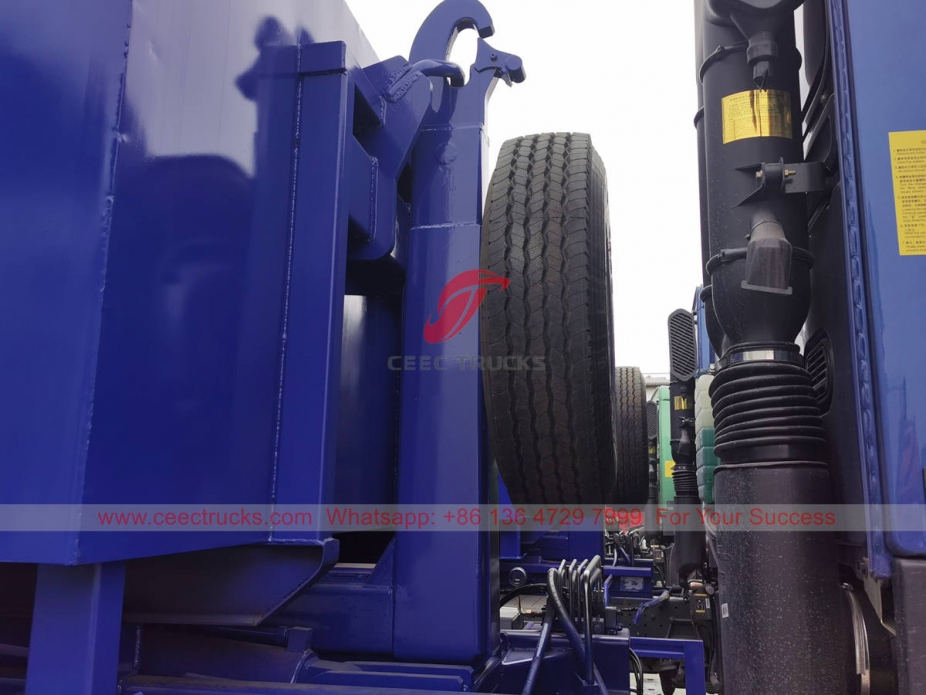

---- Rational design of hook and locking structure, and truck more reliable.

---- Optional Electrical Control in cabin, easy operation and easy maintenance.

---- Various types of refuse container lifter are available.

Specifications:

HOWO Hookloader truck (20 cbm)
General	Vehicle Brand	CEEC
	Chassis Brand	HOWO
	Overall Dimension	9100 * 2500 * 3220 mm
	GVW / Kerb Weight	21,000kg / 9,800kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	WEICHAI
	Power	336 HP (247 KW)
	Displacement	9726 ml
	Emission Standard	Euro 2 or 3
Chassis	Drive Type	6X4 (right hand drive)
	Transmission	HW19710 10 speed levers with 2 reverse
	Wheelbase/No. of axle	4325+1350 mm / 3
	Tire Specification	12R22.5
	Tire Number	10 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint

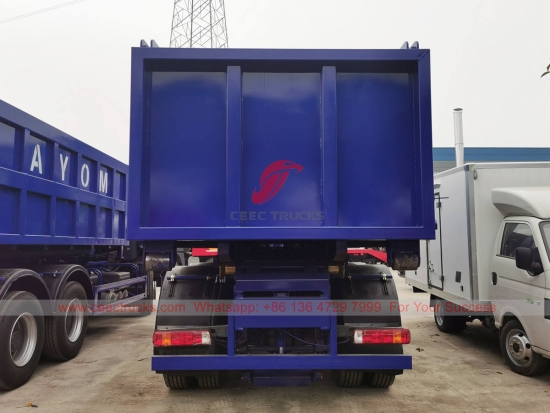

Superstructure	Body capacity	20CBM capacity detachable container
	Container material	Anti-corrosive steel
	Hydraulic system	Chinese top brand cylinders and matched valves

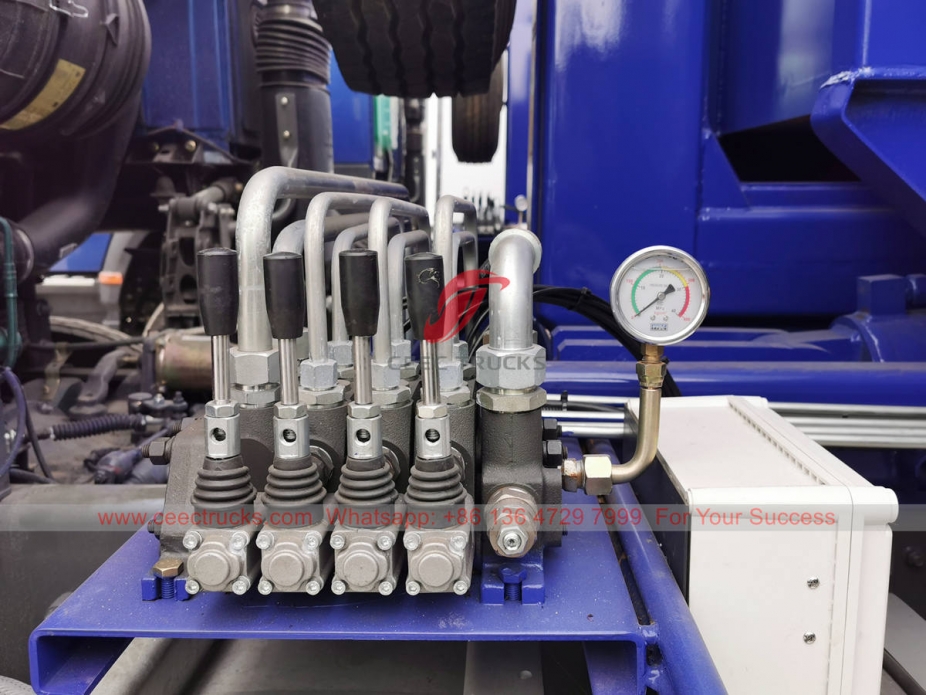

	Control Box	1. Electric Control Box in Cabin 2. Hydraulic control valve at rear
	Self-discharge angle	≥45 °
	Discharging time	≤45 s
	Lifting time	≤45 s
	All standard accessories: Warning lights, music alarm, basic tool kit, English manual...
Optional	Back alarm and Camera can be equipped. Remote Control Box can be optional. ** Garbage container can be of stainless steel

HOWO hook lifting truck supplier

(Factory price HOWO hook loader trucks are ready for delivery)

Key words: hookloader truck, HOWO garbage collection truck, HOWO hook lifting garbage truck
