Good quality 6CBM combined sewage jetting truck, Dongfeng 4x2 LHD chassis, 6-shift manual gearbox, ISF3.8s3168 diesel engine, famous brand high pressure jetting pump and vacuum pump. All painting and logos depend on requirement.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 Days
Applications:
Combined Jetting Suction Truck Dongfeng (also called Combined vacuum jeting truck, suction jet truck, combination sewer cleaning truck, combined jetting suction vehicle, jetting and vacuum truck, vacuum sewage jetting combined truck , combined jetting and suction truck ) is a vehicle that is designed to clear any blockage with jetting nozzles moving in sewage pipeline under high pressure, and clear sewer drain lines by means of a powerful vacuum suction to suck all water plus mud from sewer hole. This truck is widely used for environmental protection.
CEEC TRUCKS combined vacuum jetting truck carry a high pressure pump, a water tank, high-pressure hoses and nozzles; also vacuum, vacuum tanker, suction pipeline. and can be mounted on chassis 4x4, 4x2, 6x4, 6x6, etc

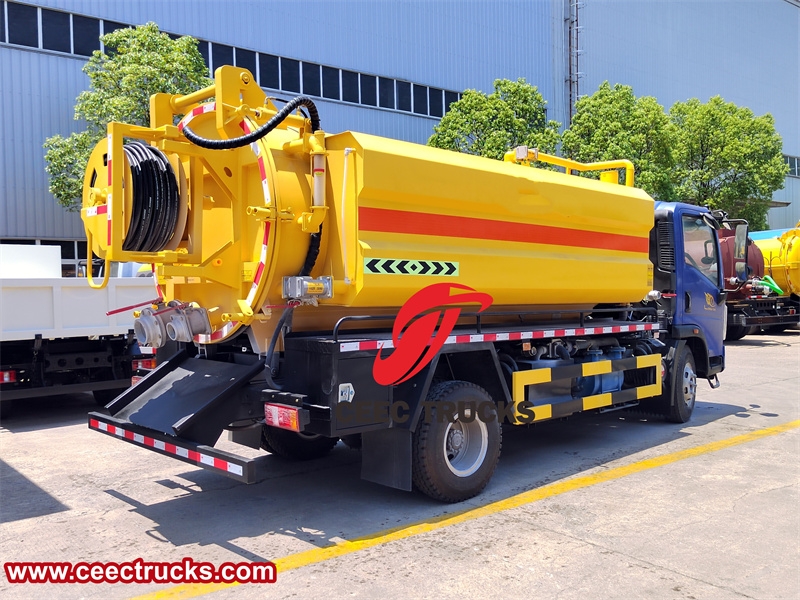

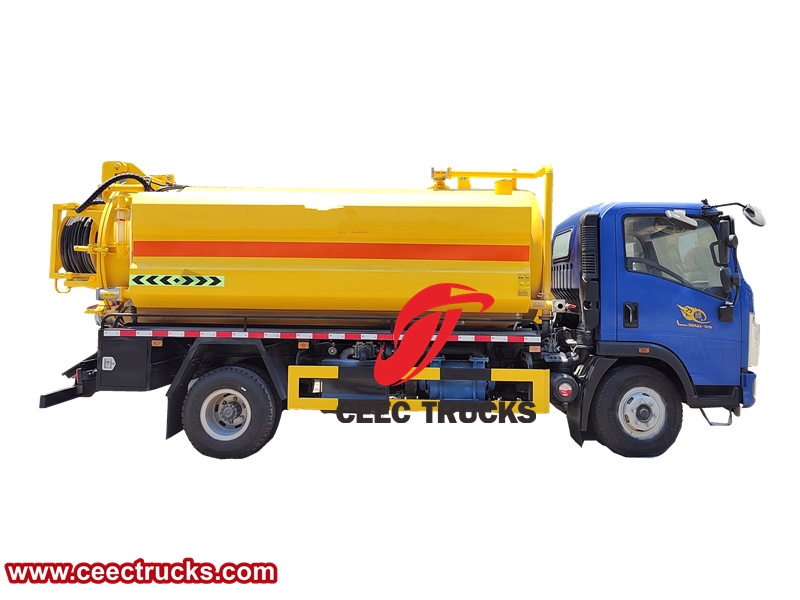

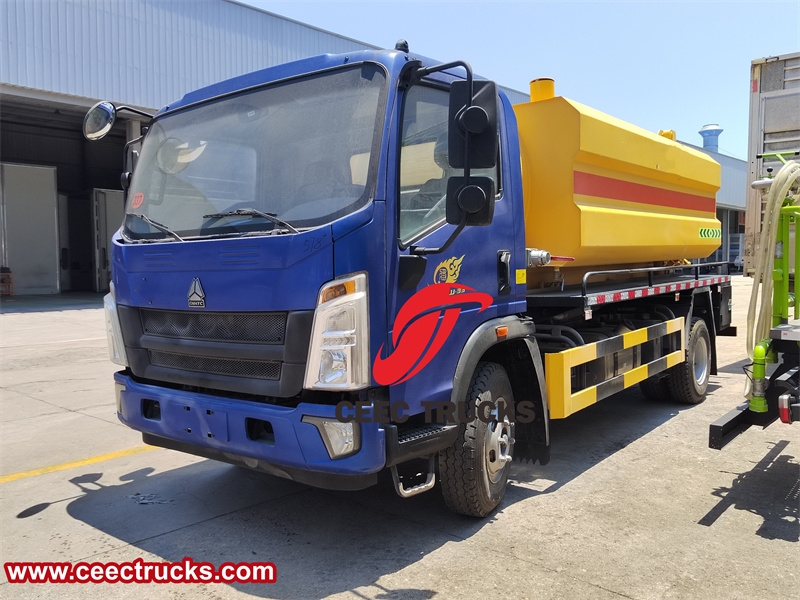

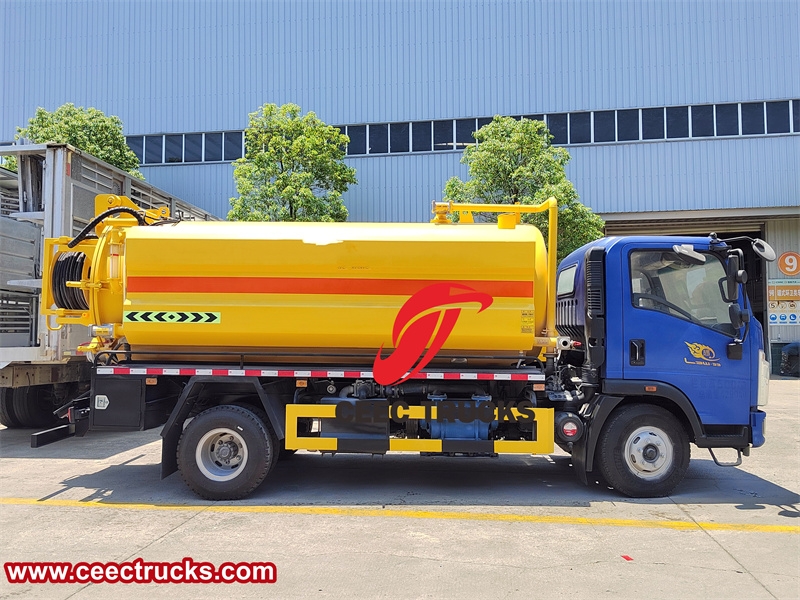

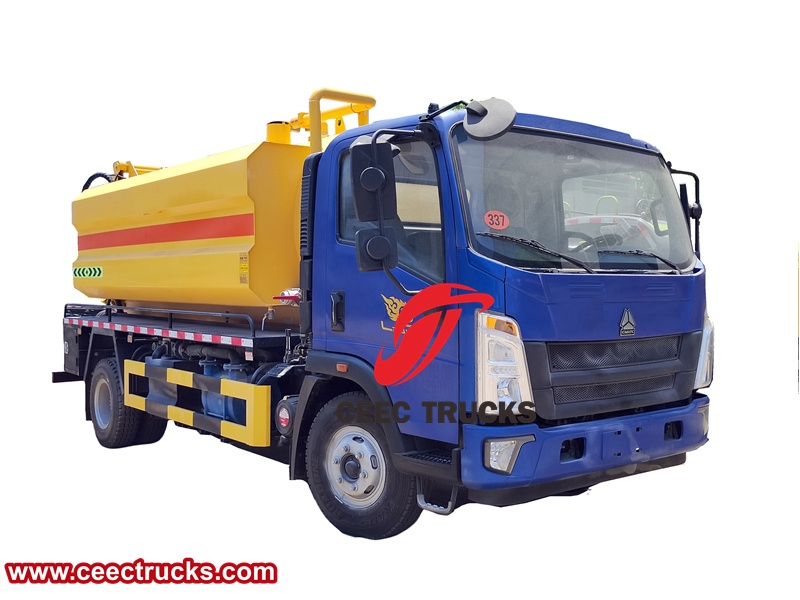

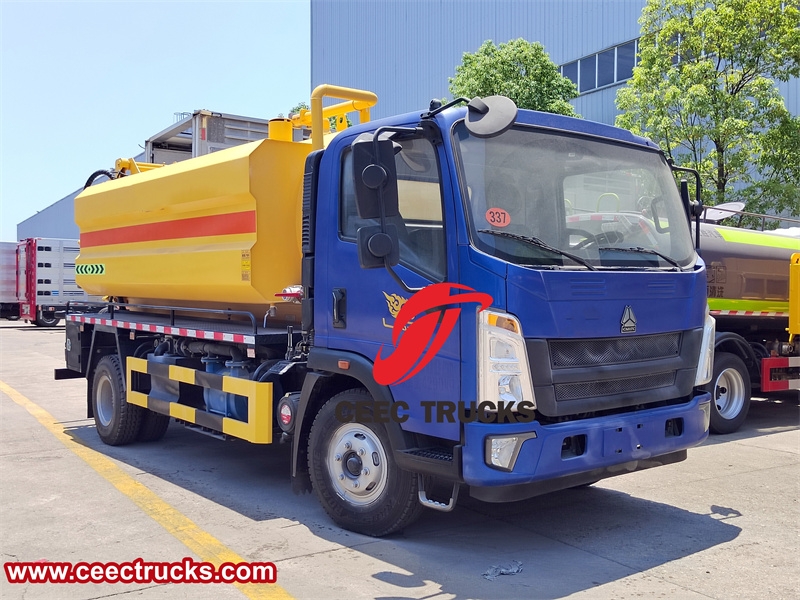

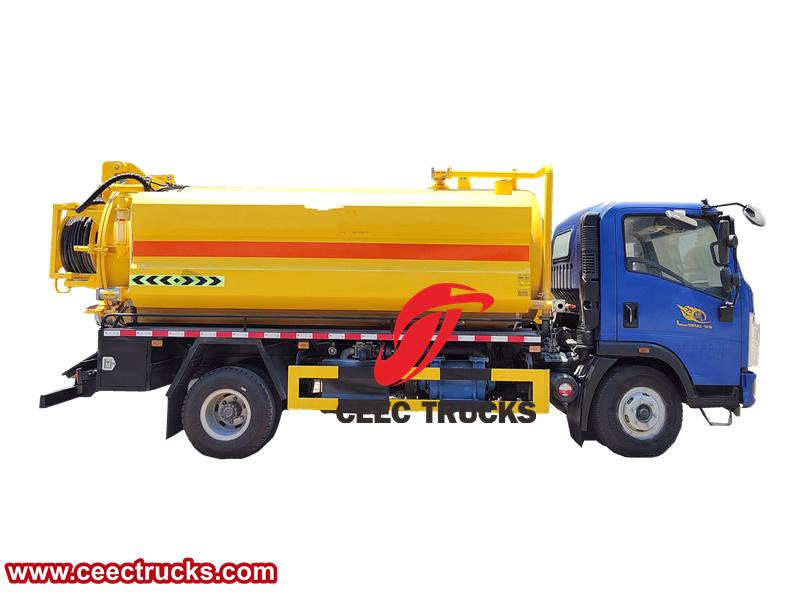

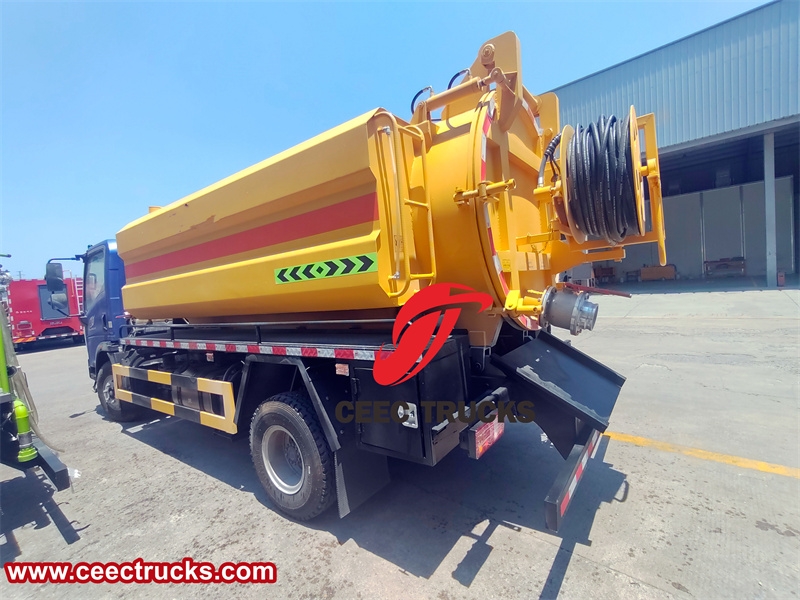

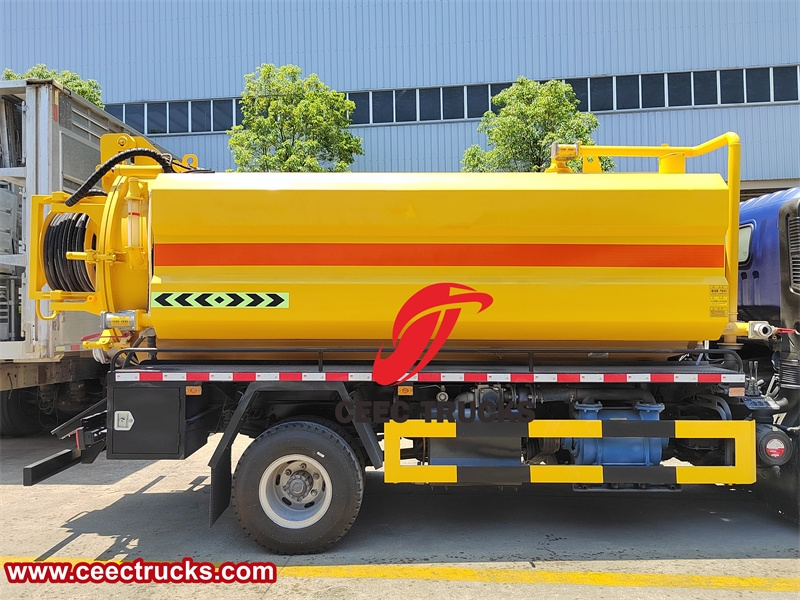

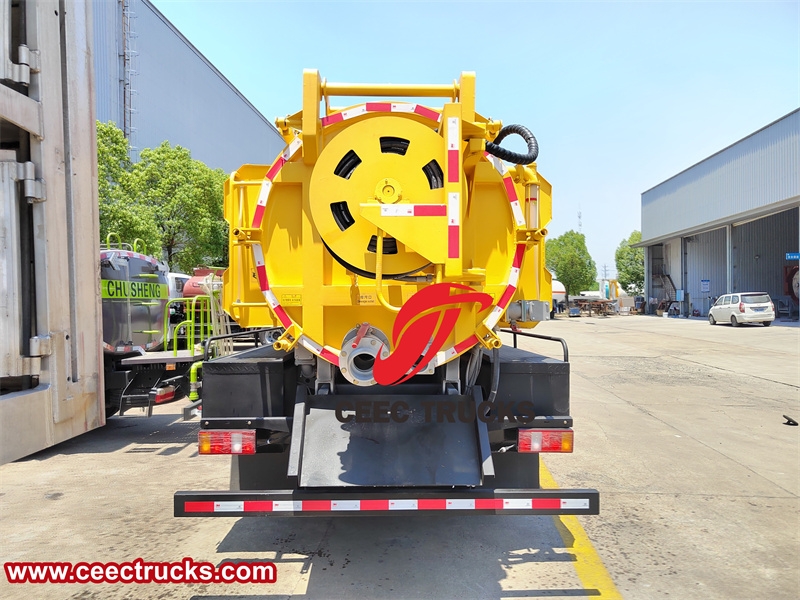

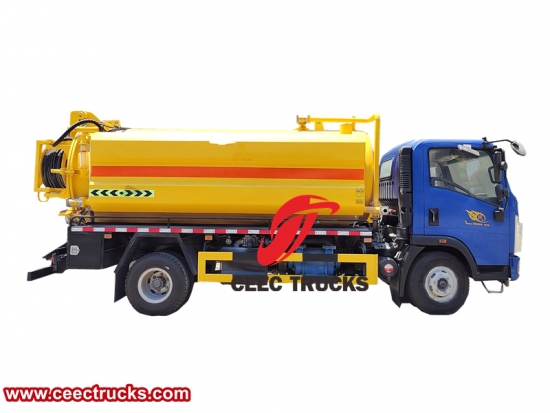

This is a powerful urban sanitation vehicle built on the chassis of a HOWO light truck. The vehicle has a gross weight of 12 tons and is equipped with a 168-horsepower Euro III emission engine, which is powerful. The biggest highlight is that it is equipped with a 5,000-liter sewage tank and a 3,000-liter clean water tank, as well as an efficient MORO PM70A vacuum pump system. This enables it to quickly pump sewage (within 5 minutes) and has an effective suction range of more than 8 meters. The tank body is made of 6 mm thick high-quality carbon steel and can be hydraulically lifted and lowered by more than 45 degrees for easy sewage discharge. Standard configurations include observation windows, sewage valves, cleaning devices, etc., to ensure convenient and efficient operation. In addition, the 200-liter stainless steel fuel tank ensures a long working life. In general, this is a multi-functional dredging vehicle with a reasonable design and reliable performance, which is very suitable for urban pipe network maintenance and environmental sanitation operations.
Key Features:
---- HOWO chassis, perfect performance
---- CUMMINS / YUCHAI / CHAOCHAI engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure
---- Optional Italy imported high pressure pump, super powerful, efficient pump in and out
---- Famous Chinese brand vacuum pump, effictive and dur

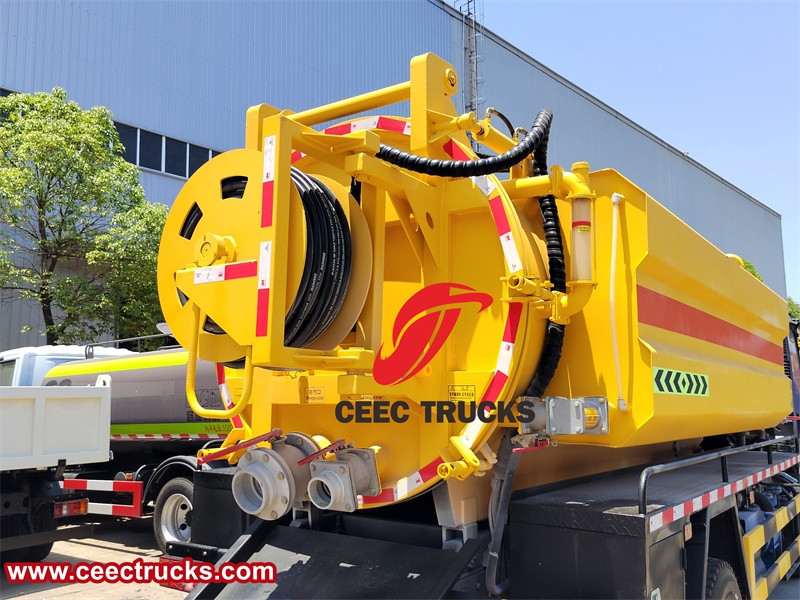

---- High pressure cleaning hose with automatic reel
---- Strong, durable, perfect performance
Specifications:
|

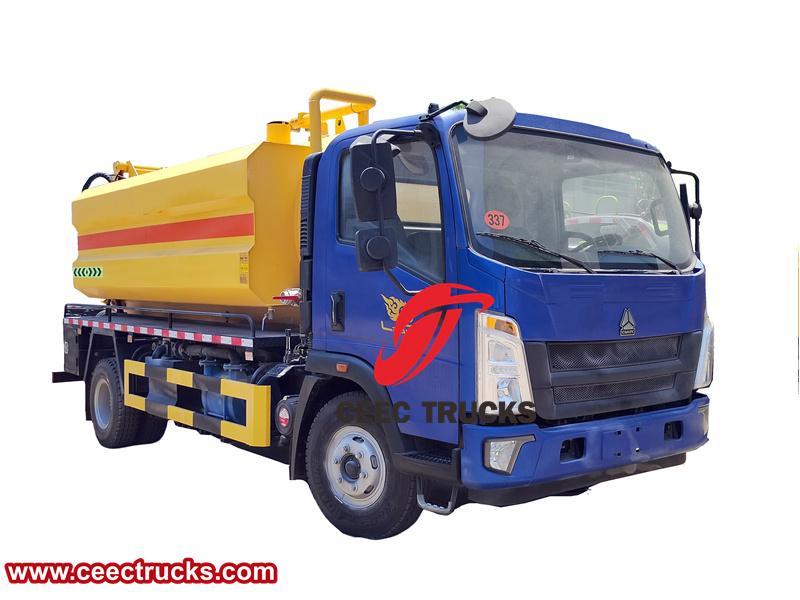

Howo 5,000 liters vactor jetting truck with Moro pump |
||
|
Vehicle Description |
||
|
Overall dimensions |
7200*2300*2700mm |
|
|
GVW |
12000kg |
|
|
Curb weight |
3400kg |
|
|
Sewage tank (m3) |
5+3 |
|
|
Traction type |
4*2 |
|
|
Chassis Description |
||
|
Chassis brand |
HOWO |
|
|
Steering |
LHD |
|
|
Cab |
single row, 3 seats,with A/C |
|
|
Wheelbase |
4200mm |
|
|
Tire specification |
8.25R16 |
|
|
Tire quantity |
6 tires and 1 spare tire |
|
|
Engine |
Engine model |
ISF3.8s3168 |
|
Emission level |
EURO 3 |
|
|
Displacement/output |
3760ml/125kw |
|
|
Horse power |
168HP/2600rpm |
|
|
Weight |
335Kg |
|
|
Fuel |
Diesel |
|
|
Gear box |
Model |
WLY6G70 |
|
Number of gears |
6-speed |
|
|
Brake system |
Air break |
|
|
Axle |
Front |
4T |
|
Rear |
7T |
|
|
Fuel tanker |
Type |
Stainless steel |
|
Capacity |
200L |
|
|
Tanker Description |
||
|
Tanker
|
Capacity |
5000+3000 Liters |
|
Material |
6mm thickness, high quality carbon steel |
|
|
Structure |
Welding, vacuum tank, Cylindrical |
|
|
Pump
|
Type |

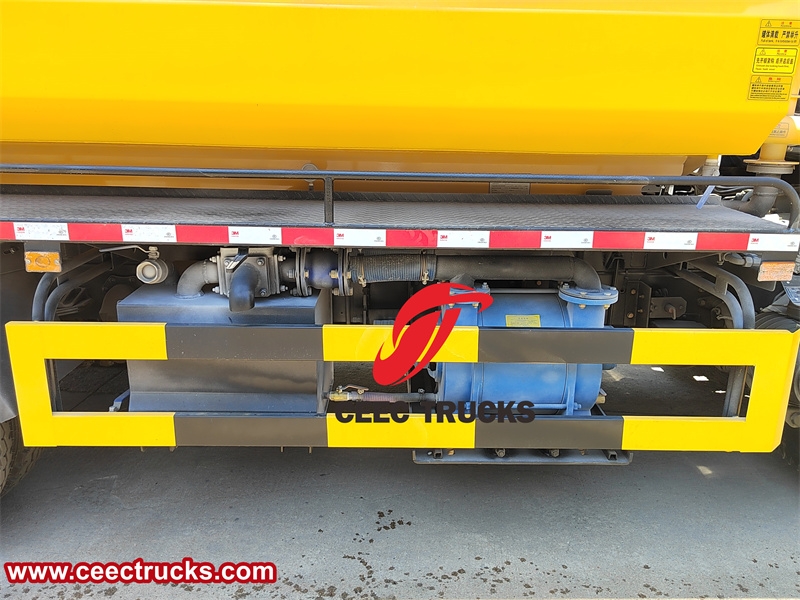

MORO PM70A vacuum pump |
|
Flux |
68(L/S) |
|
|
Rating speed |
800~1000(r/min) |
|
|
Shaft power |
5(kw) |
|
|
Features |
Low speed, low fuel consumption, low noise, high vacuum, high efficiency |
|
|
Pipe |
Suction and discharge pipe |
|
|
Special function |
Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45° |
|
|
Standard configuration |

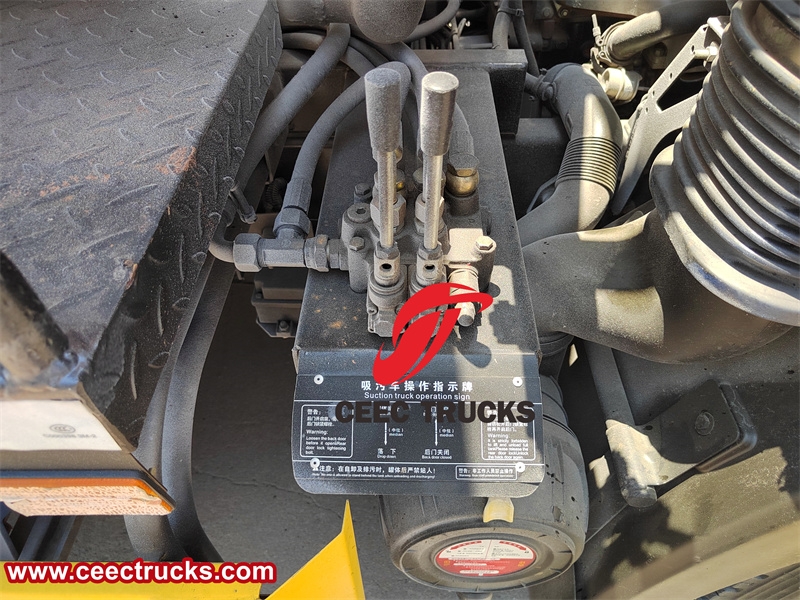

Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators, overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
|
|
|
Optional configuration |
Tanker material: stainless steel. Vacuum pump : China or Spain vacuum pumps. Anti-rust coating inside tank |
|
★ Euro 3 or 4, YUCHAI engine, super powerful
★ Vacuum pump super powerful, efficient pump in and out
★ 12 months fast moving spare parts for FREE
★ Authorized HOWO sewage suction trucks exporter
★ Training service for HOWO combined vacuum jetting trucks
CEEC TRUCKS is a leading exporter of suction jetting trucks in China. We possess over 10-year export experience of combination sewer cleaner. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our jetting and vacuum trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
