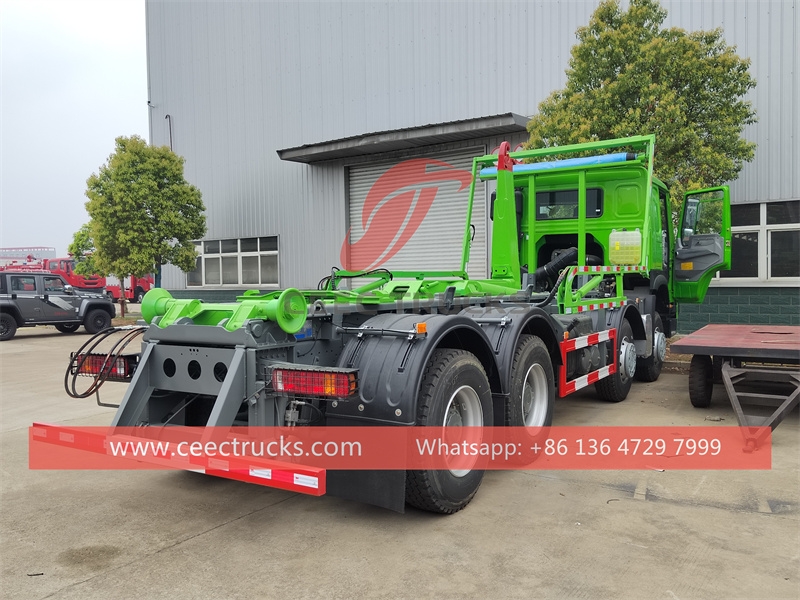

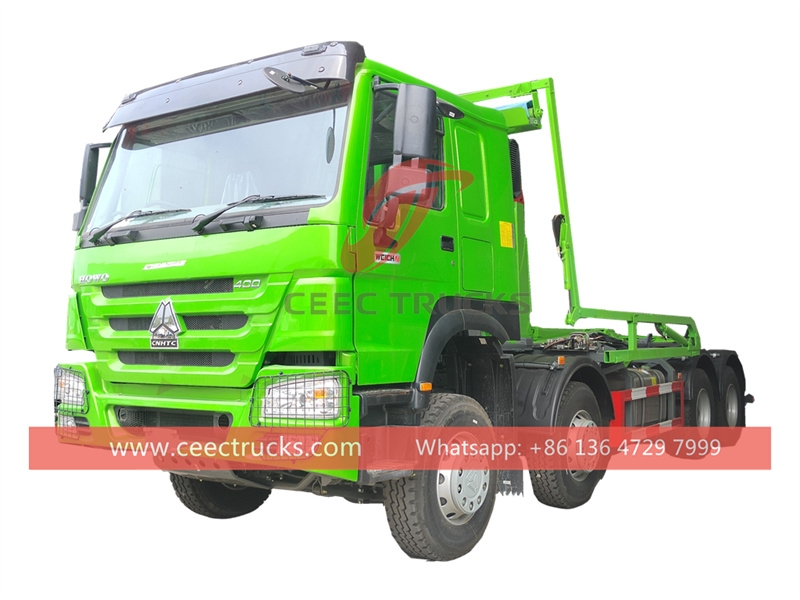

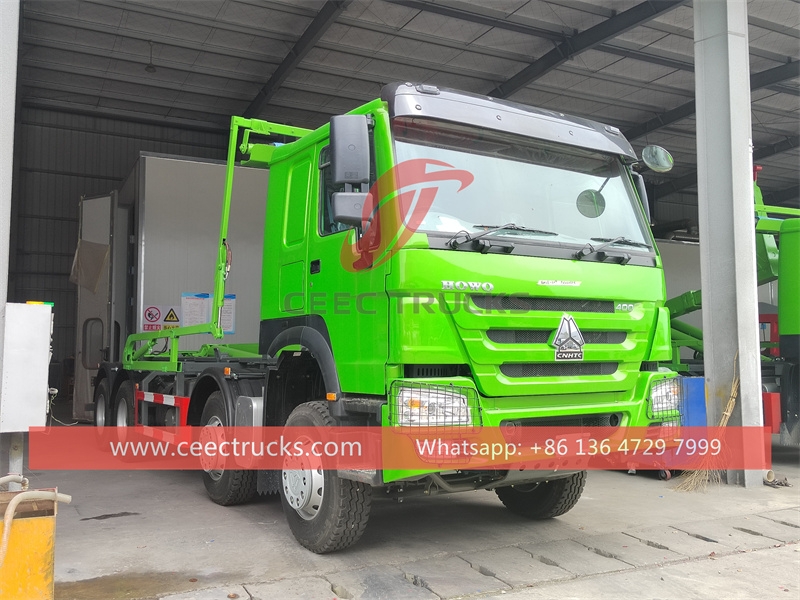

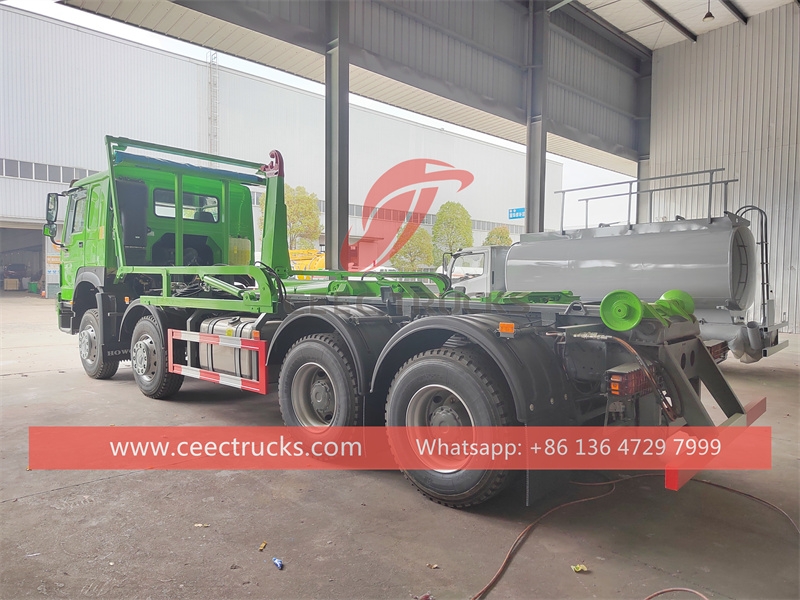

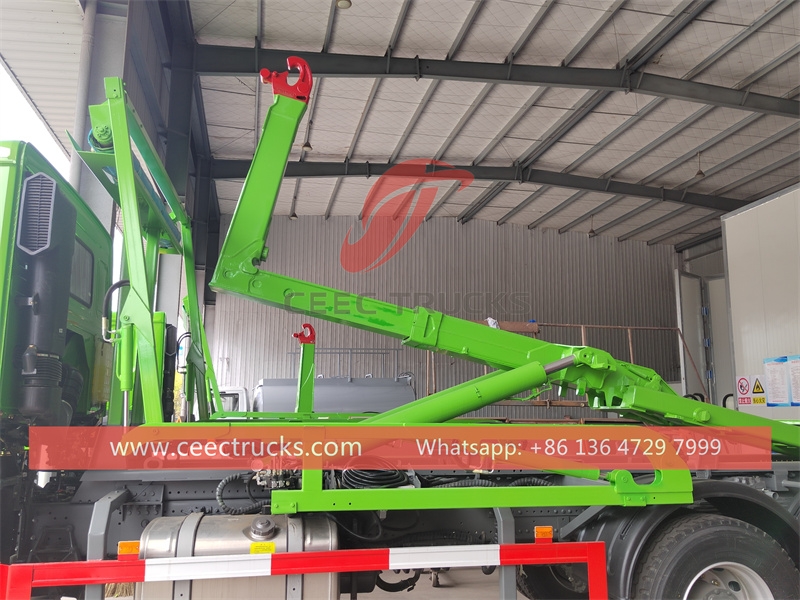

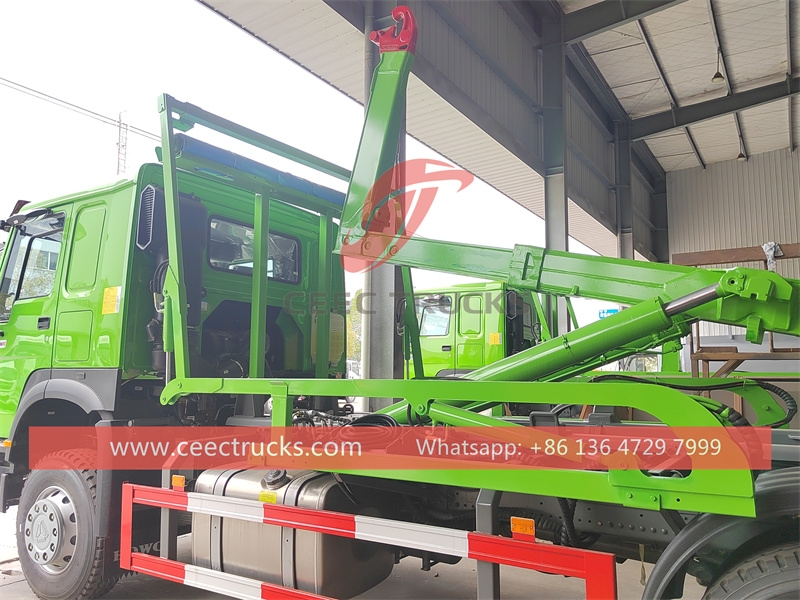

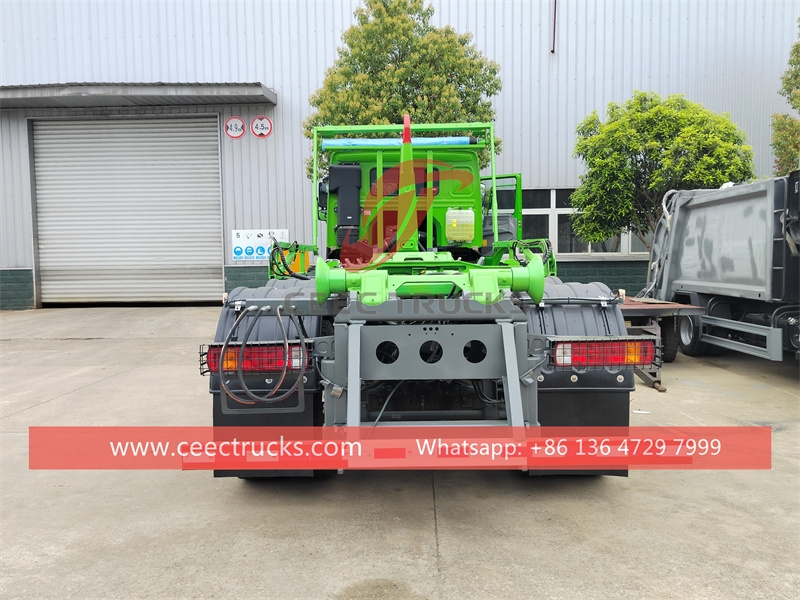

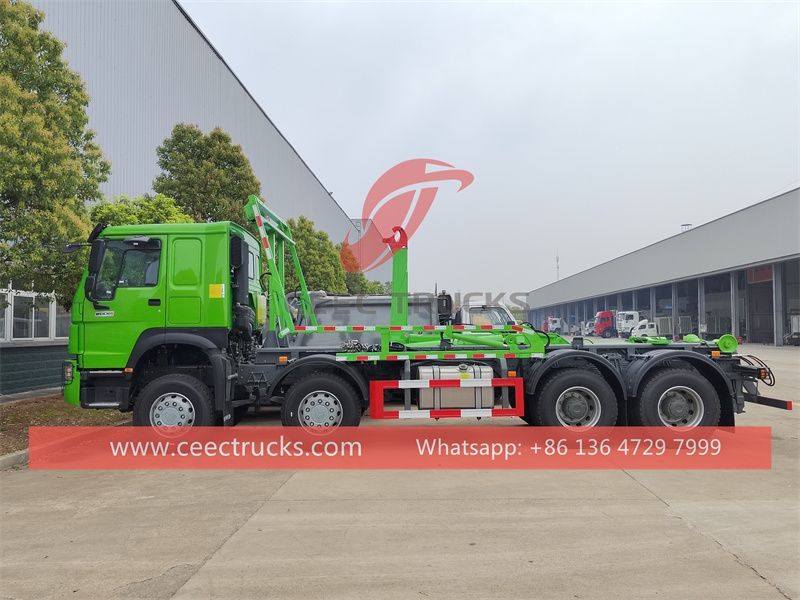

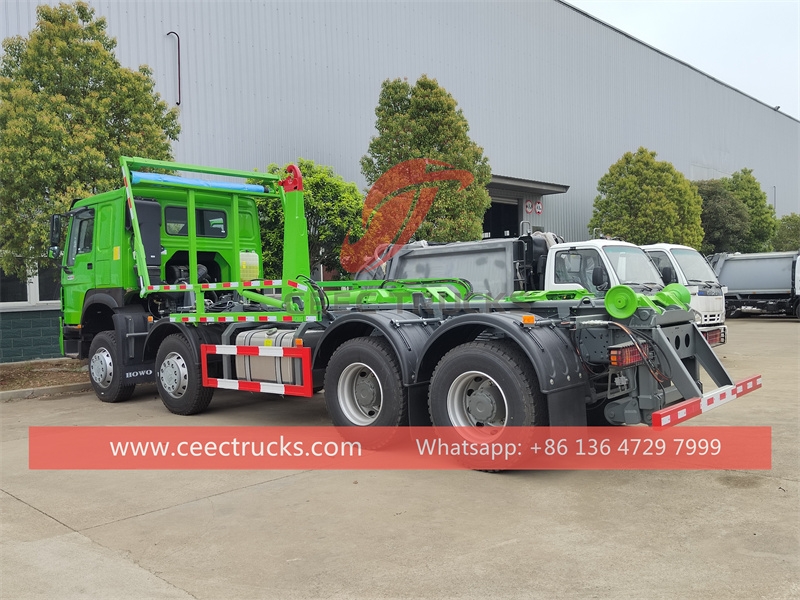

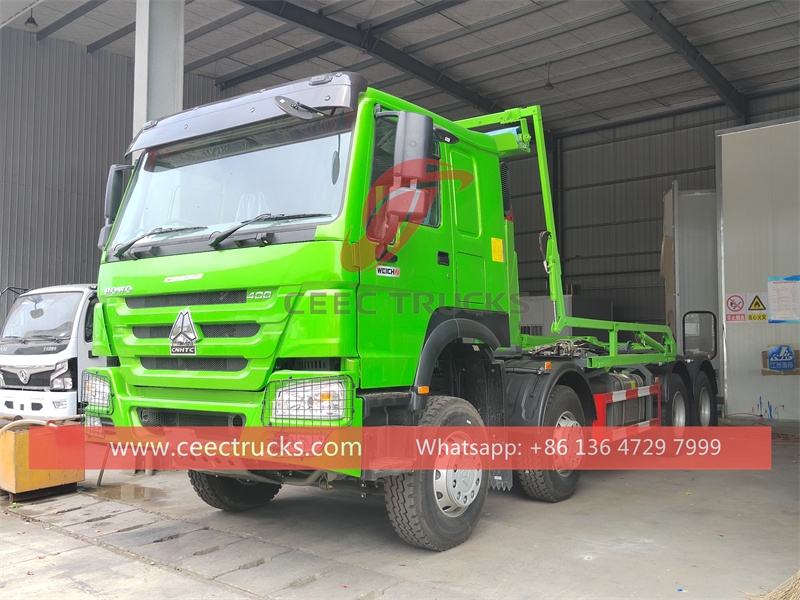

HOWO 12 wheelers 20CBM hook loader

HOWO garbage 8x4 hook lifting truck

HOWO 20 cbm hook lift garbage truck, HOWO 8x4 RHD model chassis with WEICHAI 400HP diesel engine, 12-shift manual gearbox, high strength hook loader system, with all kinds of garbage container optional. Painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

HOWO garbage 8x4 hook loader truck

 Applications:

HOWO Hook Lifting Garbage Truck  (also called HOWO Hook loading garbage truck, hook load refuse truck, hook lifting container  truck, HOWO hook loader lorry, HOWO refuse collector, detachable garbage container truck, hookloader truck HOWO ) is designed to collect and transport municipal solid waste, widely used in residence community, hospital, municipal environmental section, garbage collection and transportation station, etc.



CEEC TRUCKS hook loader trucks loading capacity can ranges from 1tons, 2tons, 3tons, 4tons, 5tons, 8tons, 10tons, 14tons, 18tons, 20tons, 22tons, etc.



The hook loader with shot peening painting, with all painting color and logos depend on requirement.

 Key Features:



---- HOWO chassis, perfect performance

---- WEICHAI diesel engine (China famous brand), super powerful, no overhaul within 100,000 km.

---- Hook loader garbage container body capacity from 1 to 22 Cublic Meter.

---- Rational design of hook and locking structure, and truck more reliable.

---- Optional Electrical Control in cabin, easy operation and easy maintenance.

---- Various types of refuse container lifter are available.



 Specifications:



HOWO Hook loader truck (20 cbm)

General

Vehicle Brand

CEEC

Chassis Brand

HOWO

Overall Dimension

9100 * 2500 * 3220 mm

GVW / Kerb Weight

21,000kg / 9,800kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI

Power

400 HP (294 KW)

Displacement

9726 ml

Emission Standard

Euro 2 or 3

Chassis

Drive Type

8X4 (left/right  hand drive)

Transmission

HW19710 10 speed levers with 2 reverse

Wheelbase/No. of axle

1350+4325+1350 mm / 3

Tire Specification

12R22.5

Tire Number

12 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Body capacity

20CBM capacity detachable container

Container material

Anti-corrosive steel

Hydraulic system

Chinese top brand cylinders and matched valves

Control Box

1. Electric Control Box in Cabin

2. Hydraulic control valve at rear

Self-discharge angle

≥45 °

Discharging time

≤45 s

Lifting time

≤45 s

All standard accessories: Warning lights, music alarm, basic tool kit, English manual...

Optional

** Back alarm and Camera can be equipped.

** Remote Control Box can be optional.

** Garbage container can be of stainless steel


HOWO garbage 8x4 hook loader truck

(Factory price HOWO hook loader trucks are ready for delivery)


Key words: hookloader truck, HOWO garbage collection truck, HOWO hook lifting garbage truck
