Isuzu 143hp Pickup ambulance

This ISUZU pick-up ambulance perfectly combines ISUZU's reliable performance and advanced medical equipment, providing an ideal mobile medical platform for emergency personnel and patients. It adopts a 4x4 drive system and is equipped with a powerful 4KH1CT6H1 engine. The power output of 143 horsepower ensures excellent performance in various road conditions. The engine that meets Euro 6 emission standards is not only environmentally friendly, but also provides a strong torque of 320Nm, allowing this ambulance to respond quickly in emergency situations. The 5-speed gearbox and the maximum speed of 140km/h further enhance its maneuverability, allowing it to quickly reach the scene of the accident.

  • Work capacity:

    6 person
  • Truck model:

    PT5040PKJ
  • Engine power:

    143HP
  • Engine type:

    4KH1CT6H1
  • Axle drive:

    4x4,LHD
  • Gear box:

    MSB 5-speed,manual
  • Remarks:

    With GPS Monitoring

This ISUZU pick-up ambulance features driving comfort and handling. Thanks to the ISUZU pick-up design, this ambulance maintains a good sense of handling and stability. The cab is equipped with an ergonomic seat, an adjustable steering wheel, and a modern infotainment system, all of which help reduce fatigue from long hours of driving. At the same time, the addition of modern safety technologies such as the electronic stability system and anti-lock braking system further improves the safety and driving convenience of the vehicle. These features not only improve the efficiency and safety of the driver, but also indirectly provide a smoother and safer transportation experience for patients.

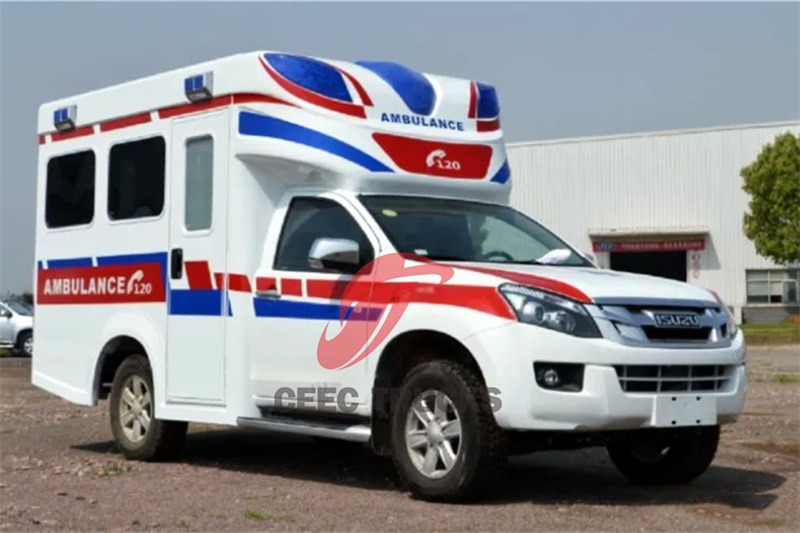

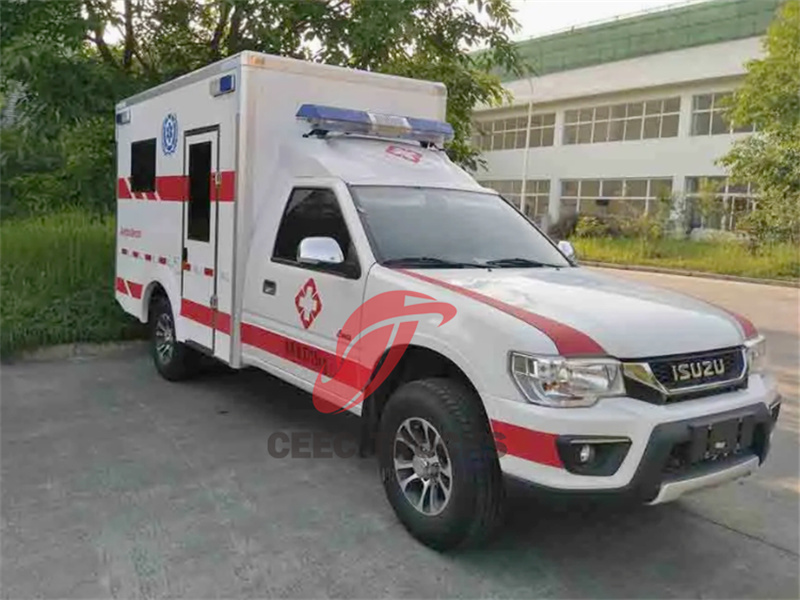

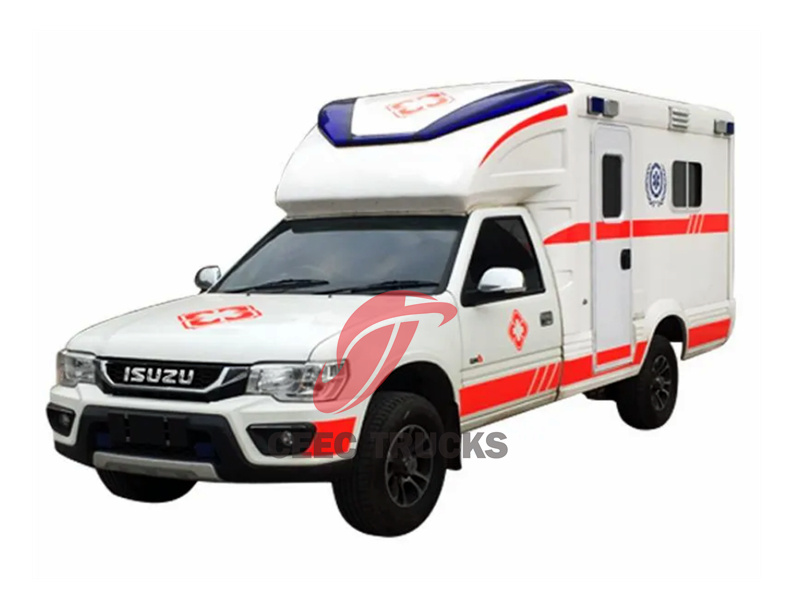

ISUZU pick-up 4x4 ambulance

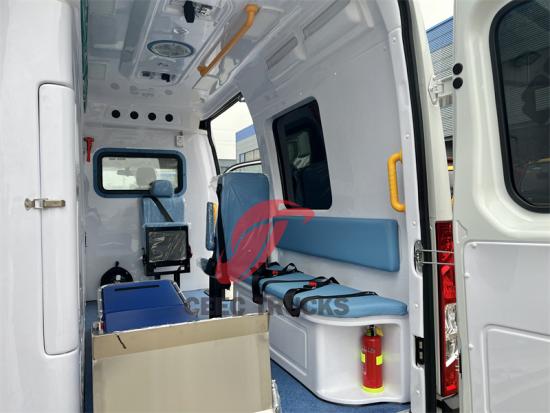

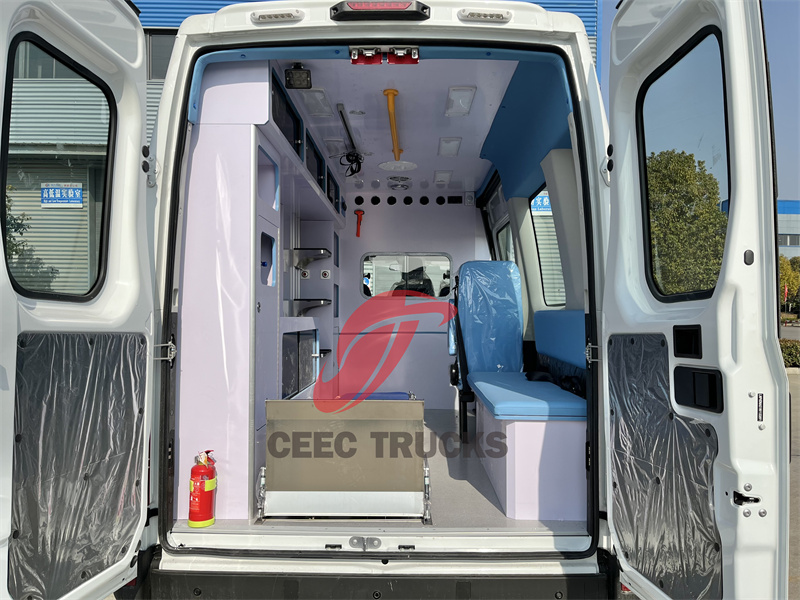

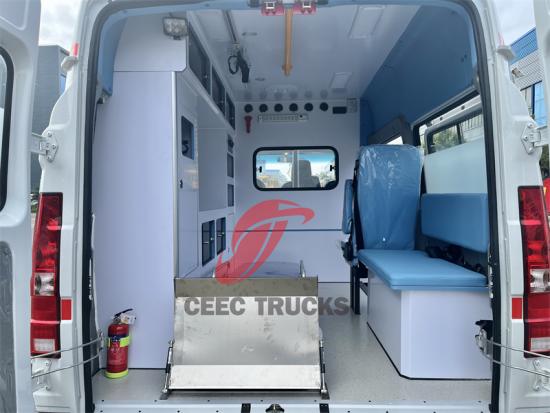

The interior design of the medical cabin is perfect. The automatic loading stretcher system facilitates the quick and safe transfer of patients, while the independent air conditioning and heating system ensures a comfortable environment. UV disinfection lights, ventilation systems and easy-to-clean interior materials work together to create a hygienic medical space. Equipment such as advanced oxygen supply systems, infusion stands and 1000W inverters provide comprehensive first aid support for medical staff. In terms of appearance, the eye-catching white body with bright first aid logo ensures high visibility. The LED warning light and 100W speaker system on the top further enhance its recognition in emergency situations. This ISUZU pick-up 4x4 ambulance represents the pinnacle of modern emergency vehicles. It is not only a reliable means of transportation, but also a mobile life support system. It is undoubtedly a wise investment choice for any medical institution that values efficiency, safety and patient comfort.

ISUZU pick-up 4x4 ambulance

In addition to the regular emergency transport mission, this ISUZU 4x4 pick-up ambulance also has multiple functions that can be used in various emergency situations. For example: In natural disasters, it can be used as a mobile medical station to provide basic medical services to the affected areas. In large public events, it can be used as an on-site emergency center to quickly respond to possible unexpected situations. In remote areas, it can act as a mobile clinic to provide regular medical services to areas lacking medical resources.

The durability and reliability of the ISUZU 4x4 pick-up are fully preserved and enhanced in the modified ambulance. The enhanced suspension system and chassis protection measures enable the vehicle to cope with various adverse road conditions. Anti-corrosion treatment and high-quality sealing systems improve the adaptability of the vehicle in various climatic conditions. Whether in hot desert areas or cold mountainous areas, this ambulance can maintain stable performance. This environmental adaptability makes it an ideal choice for cross-regional and long-distance medical transportation, and is also suitable for performing rescue missions in extreme weather conditions.

ISUZU pick-up 4x4 ambulance

Although based on a traditional commercial vehicle platform, this ISUZU 4x4 pick-up ambulance has not fallen behind the digital trend. It integrates a number of intelligent functions:

1. The on-board GPS navigation system can not only optimize the route, but also share location information with the emergency center in real time.

2. The digital patient monitoring system can transmit the patient's vital signs data to the hospital in real time to prepare for the reception.

3. The intelligent on-board communication system supports remote consultation with the hospital, improving the treatment effect on the way.

4. The on-board camera system not only increases driving safety, but can also be used to record the rescue process for subsequent training and improvement.



Specification:

ISUZU 4x4 pick-up ambulance

New Isuzu Pick-up ambulance Specification

Model

 PST5043XJHN

Overall dimensions(mm)

5450*2011*2676

Wheelbase(mm)

3406

GVW (kg)

3550

Kerb Weight (kg)

2440

Ground clearance (mm)

178

Cab

 Double row,2+3 seats,A/C,USB...

Fuel Type:

Diesel

Fuel tank volume L):

76

Engine Model

4KH1CT6H1

Engine works

4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-coolingdiesel

Exhaust displacement ml:

2999 ml

Engine power :

143HP/105Kw

Maximum torque (Nm/rpm)

320

Emission standards

Euro 6

Drive System

4x4

Transmission

 MSB 5 speed

Max Speed km/h:

140

Tire Size

245/70R17LT, 4pcs + 1 spare tire

Brake system

Front ventilated disc type, rear solid disc type

Rated capacity (including driver)

7-8

Medical Alert Appearance

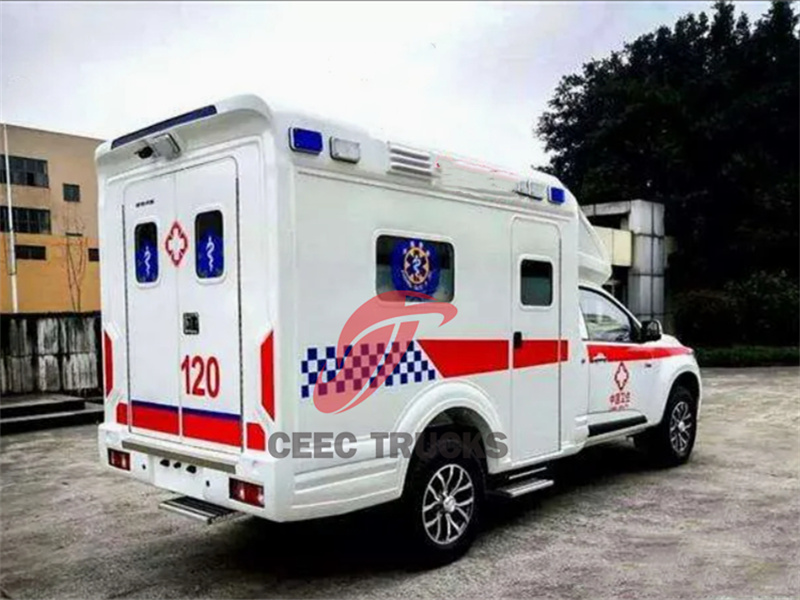

Appearance of vehicle

The car body is white, with body color strips and first aid signs, bright and eye-catching colors. The windows of the medical cabin are pasted with dark colors. Solar film (black film on the left window of the medical cabin, 2/3 frosted glass film on the right rear window)

Warning lights

1. Alarm assembly 1 set: embedded warning light, 100W speaker, alarm handheld.

2. LED sign light (strobe) 1 set: 64 LED (blue), 2 LED (white), a total of 6 lights.

Medical cabin rescue facilities

Rescue system

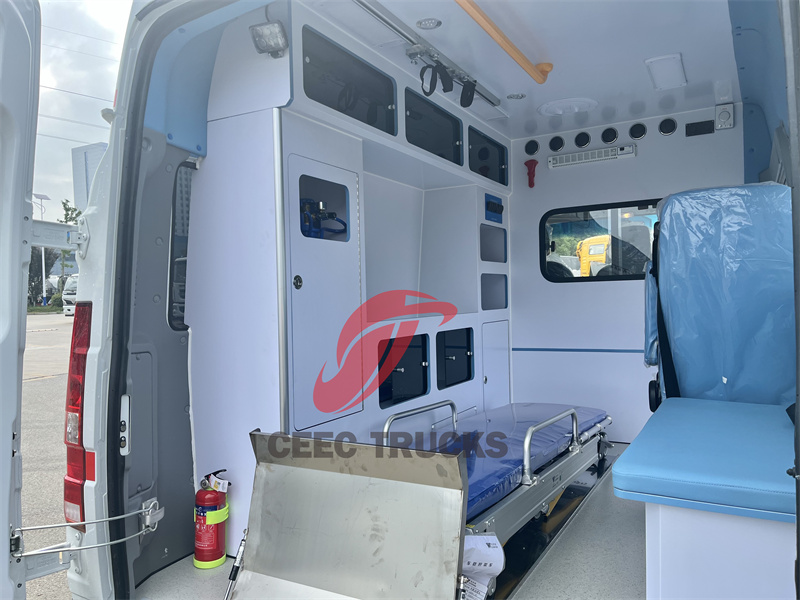

Automatic loading stretcher: The frame is made of high-quality aluminum alloy, which is light, strong and easy to operate. Through operation, the stretcher carrying the patient can be pushed into or pulled out of the ambulance quickly and smoothly. The backrest is supported by an adjustable structure, and the backrest is adjustable. It is equipped with a patient safety belt to facilitate the fixation between the patient and the stretcher.

Stretcher assistance

Made of high-quality stainless steel, it assists the stretcher in getting on and off the vehicle.

Infusion bottle holder

Two  foldable  infusion  bottle  holders  (slide rail type) are installed on the top of the medical cabin.

Oxygen supply system

Special vehicle oxygen supply system assembly, equipped with 2units 10L steel oxygen cylinders, hidden oxygen pipeline, including 2 oxygen terminals, oxygen inhaler and pressure regulating valve

Medical power supply system

Medical cabin power system

1. 1000W intelligent inverter

2. Power control: 1 set of boat-shaped piano-style control panel.

3. 4 220V sockets

Cabin lighting

One set of embedded lighting (4 LEDs), two embedded infusion spotlights and one backfield lighting are installed on the inner ceiling.

Intercom System

An intercom system is installed between the medical cabin and the cockpit.

Disinfection system

UV disinfection lamp

Install a UV disinfection lamp on the upper part of the middle partition

Medical cabin ventilation system



1 ventilation fan on the top of the medical cabin

Medical cabin air conditioning and heating system

Air conditioning/heating

1 set of independently controllable rear air conditioning and rear heating, with independent cooling and heating controls to reasonably regulate the temperature in the medical cabin.



Medical cabin cabinet interior configuration

Middle partition wall assembly

A set of new environmentally friendly material partition wall is installed between the cab and the medical cabin, and a sliding glass observation window is set on the partition wall to facilitate observation and communication between the front and rear cabins.



Cabinet assembly

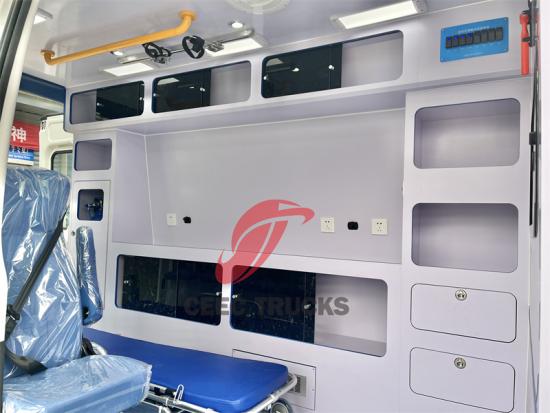

Install 1 set of long equipment cabinet made of new environmentally friendly materials, with sliding window storage space on the cabinet body Install 1 set of oxygen cylinder cabinet made of new environmentally friendly materials, which can accommodate 2 10L oxygen cylinders; Install 1 set of wall cabinet made of new environmentally friendly materials, with sliding window structure for the wall cabinet door, and integrated storage and other functions.

Medical cabin interior

Medical cabin interior: Made of flame-retardant composite materials, waterproof, mildew-proof, antibacterial, and easy to clean.

Medical cabin floor: Made of integral new lightweight materials, the medical floor is acid-base, corrosion-resistant, wear-resistant, anti-static, and easy to clean. The raised edges around the edges prevent dust accumulation and are anti-slip, and are easy to wash with water.

Auxiliary facilities

Seats

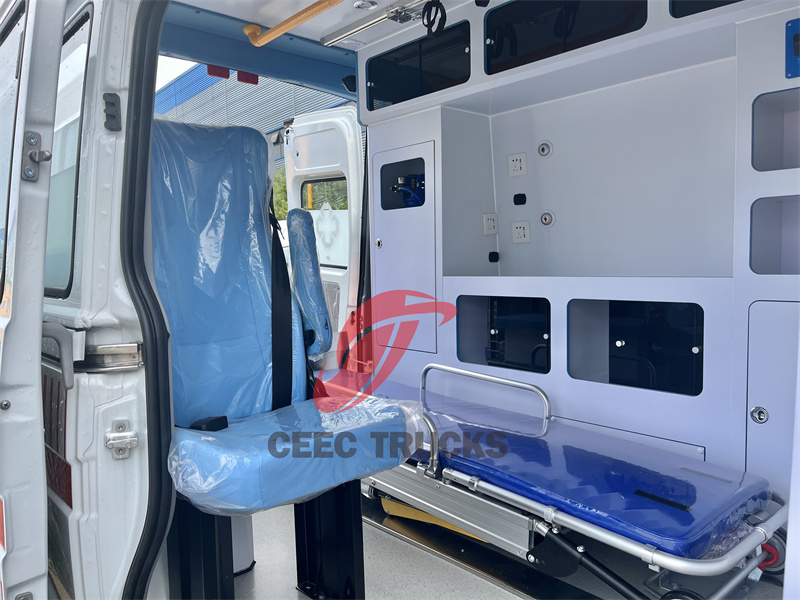

1 set of seats: right cabinet-style bed for two persons made of PVC material, with seat cushion and backrest covered with leather; right cabinet-style bed with single folding seat in front.

Fire extinguisher

1 fire extinguisher (1KG)

Dirt Bucket

1 units 5L stainless steel waste bucket

Safety handrail

Top safety handrail 1 pair



Advantage:

Five core advantages of this ISUZU pick-up 4x4 ambulance:



1. Powerful power and all-terrain adaptability:This ambulance is equipped with Isuzu's powerful and reliable 4KH1CT6H1 engine, which outputs 143 horsepower and 320Nm of torque. Combined with the 4x4 drive system, it can easily cope with various complex road conditions, including city streets, country roads, and even some off-road terrains. This excellent maneuverability ensures that the ambulance can quickly reach remote or difficult-to-access accident sites, greatly improving the efficiency and coverage of emergency response. In an emergency, this all-terrain adaptability may be the key factor in saving lives.

ISUZU 4x4 pick-up ambulance

2. Advanced medical equipment and humanized design:The interior of the medical cabin is equipped with comprehensive and advanced first aid equipment. The automatic loading stretcher system not only facilitates the transfer of patients, but also reduces the physical burden on medical staff. The independently controlled air conditioning and heating systems provide a comfortable environment for patients and medical staff, while the UV disinfection lamp and ventilation system ensure hygienic safety. In addition, the medical cabin is also equipped with a complete oxygen supply system, infusion stand and 1000W inverter and other equipment, providing strong support for various emergency medical treatments. These designs fully reflect the in-depth understanding of medical needs, making the ambulance not only a means of transportation, but also a mobile first aid station.

3. High safety and reliability:As an ambulance modified based on Isuzu pickup trucks, it inherits Isuzu's excellent safety performance. The front ventilated disc brake and rear solid disc brake system ensure excellent braking performance. The body is made of high-strength materials, providing good collision protection. At the same time, as a model that meets the Euro 6 emission standards, it also reflects the importance of environmental protection. This high level of safety and reliability not only protects the medical staff and patients in the car, but also provides a solid guarantee for daily emergency tasks.

ISUZU 4x4 pick-up ambulance

4. Excellent visual recognition and warning system:In an emergency, quick identification and giving way are crucial for ambulances. This ambulance adopts a striking white body with bright first aid signs and color strips, which greatly improves its visibility on the road. The LED warning light combination and 100W speaker system on the top further enhance its warning effect. This high degree of visual recognition not only helps the ambulance pass through traffic quickly, but also serves as a clear warning at the scene of the accident, creating a safe environment for emergency work.

5. Flexible interior space and versatility:Although it is based on the ISUZU pick-up modification, the interior space design of this ambulance is very flexible and efficient. There are multiple lockers and wall cabinets in the medical cabin to accommodate various medical equipment and medicines. The foldable infusion stand, multi-functional seat and other designs reflect the careful consideration of space utilization. This flexible interior layout not only meets the needs of conventional emergency treatment, but also provides the possibility of handling various special situations. Whether it is daily medical transportation or emergency treatment in large-scale accidents, this ambulance can respond flexibly.

ISUZU 4x4 pick-up ambulance



In general, this ISUZU 4x4 pick-up ambulance perfectly combines the reliable performance of commercial vehicles and the advancement of professional medical equipment. It not only meets the high standards of modern emergency work, but also surpasses traditional van ambulances in some aspects. This is undoubtedly an ideal choice for those areas that need to carry out emergency rescue missions in complex terrains, or for medical institutions that pursue high-performance, multi-functional ambulances. It represents a new trend in ambulance design and demonstrates a model of how to perfectly combine commercial vehicle platforms with professional medical needs.

 Euro 6, ISUZU engine, super powerful

 ISUZU chassis, super powerful

 12 months fast moving spare parts for FREE

Authorized ISUZU PICKUP SERVICE trucks exporter

Training service for ISUZU pickup service trucks



ISUZU pick-up 4x4 ambulance



ISUZU pick-up 4x4 ambulance



CEEC TRUCKS is a leading exporter of ISUZU pickup trucks in China. We possess over 10-year export experience of ISUZU trucks. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our ISUZU pickup trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
