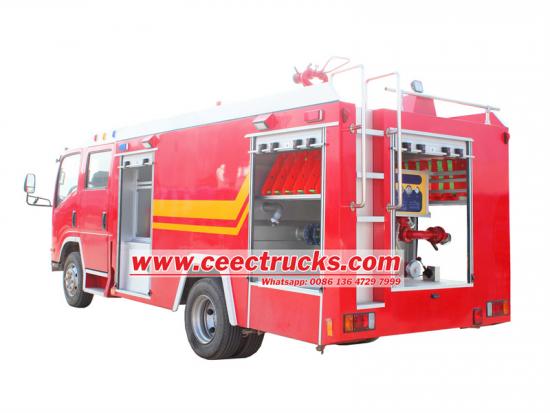

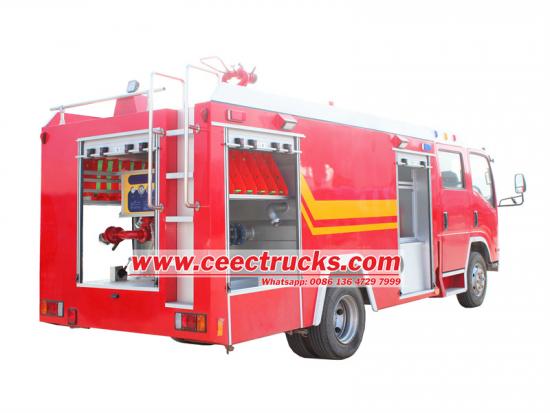

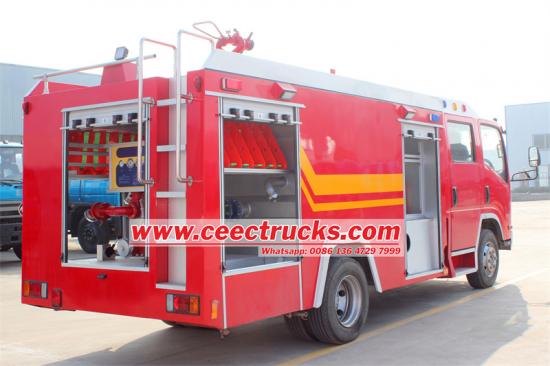

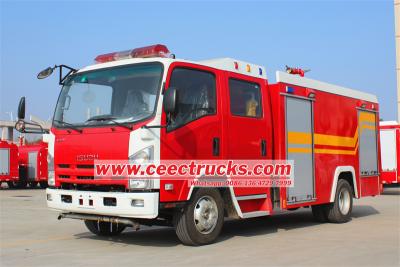

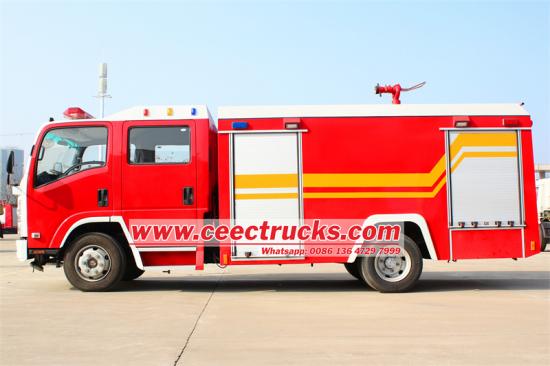

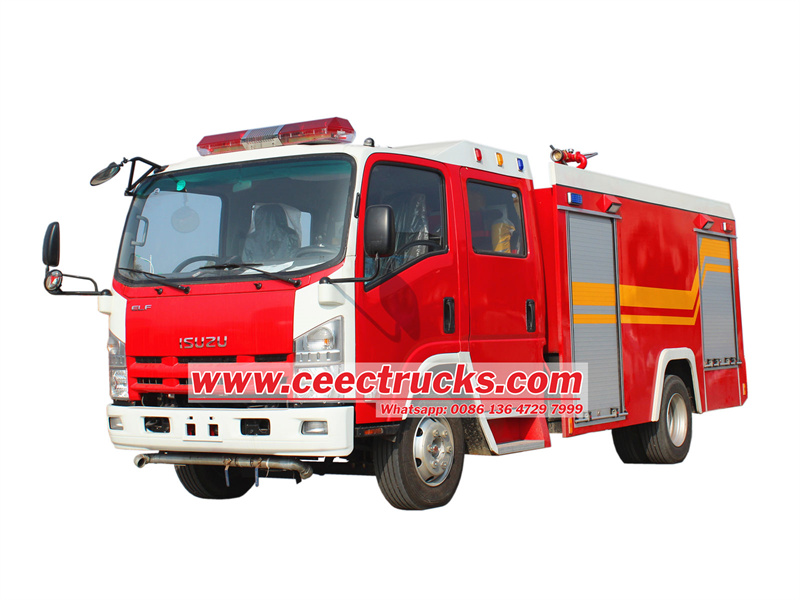

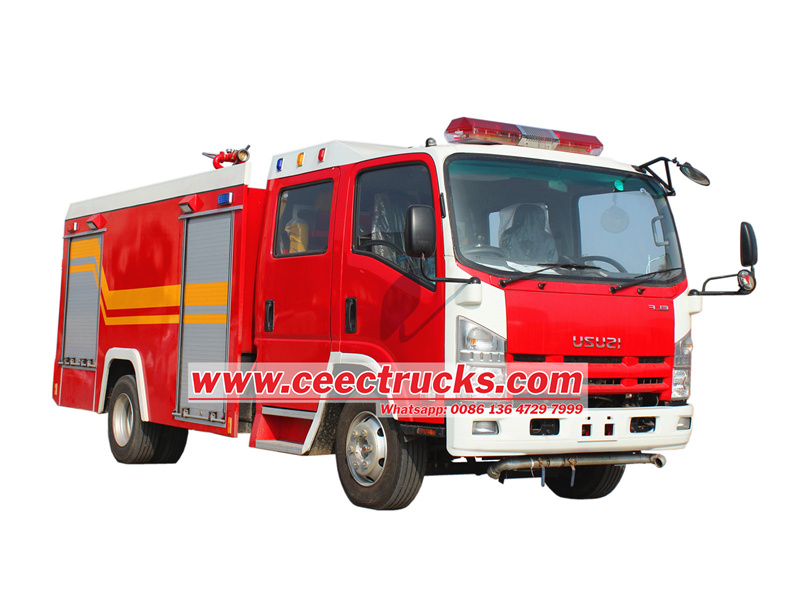

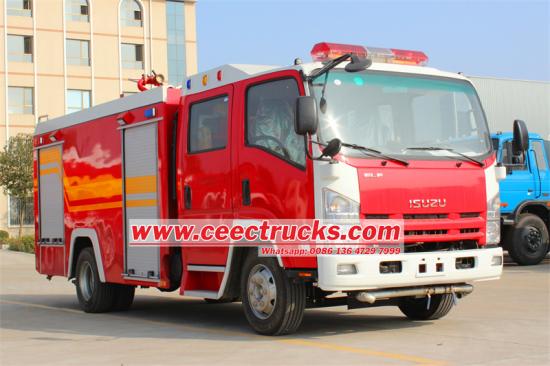

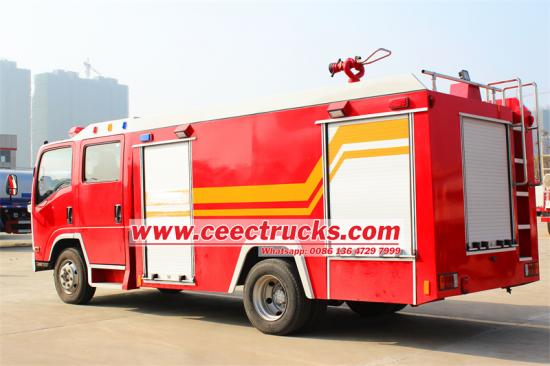

Isuzu ELF dry powder nitrogen fire truck

This is a dry powder nitrogen fire truck built on the ISUZU NPR Chassis. It is equipped with a powerful ISUZU 4HK1-TCG60 engine with a displacement of 5.19L and an output power of 190 horsepower. It adopts a 4X2 drive mode and is equipped with an MLD 6 speed gearbox. The maximum speed can reach 95km/h. It is compact and flexible, and easy to operate to adapt to various complex road conditions.

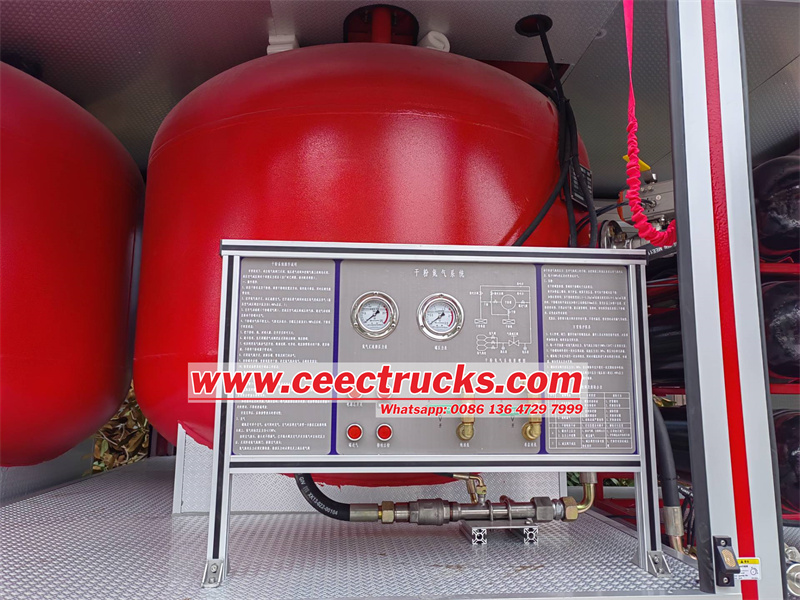

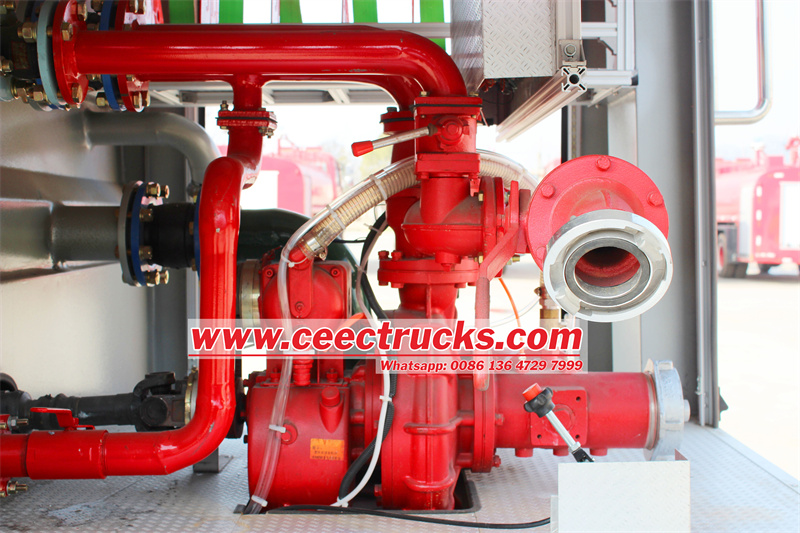

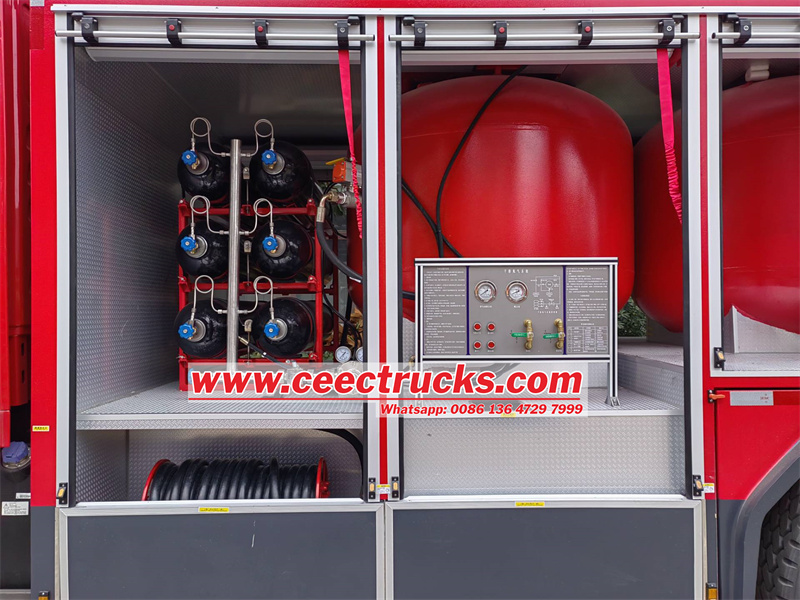

In terms of the fire protection system, the vehicle is equipped with a 2000-liter carbon steel dry powder storage tank and 6 pcs 80-liter nitrogen cylinders with a design pressure of 15MPa. The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 80-120 kg/s. The fire cannon has a spray speed of 40-80 kg/s and a range of 40-60 meters, which can effectively respond to various fire situations. The Isuzu NPR fire truck is also equipped with a full set of standard firefighting and rescue equipment, such as shovels, crowbars, axes and cutting equipment ladders and floodlights are optional.

Specification:

Advantage:

Detailed introduction to the five major advantages of ISUZU NPR dry powder nitrogen fire truck:

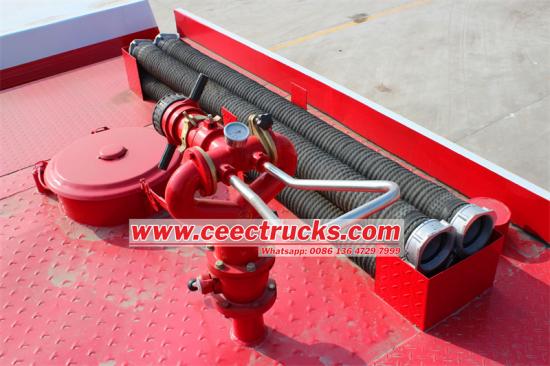

1. Efficient fire extinguishing capability: the ISUZU NPR fire truck is equipped with a large-capacity 2,000-liter dry powder storage tank, combined with 12 80-liter high-pressure nitrogen cylinders, which can release a large amount of dry powder fire extinguishing agent in a short time. Its high-performance fire pump can reach a flow rate of 80-120 kg/s, combined with a pressure range of 1.6-2.5 MPa, it can quickly and effectively extinguish all types of fires. In particular, the vehicle-mounted fire cannon has a spray distance of up to 40-60 meters and a flow rate of up to 60-100 kg/s, allowing the vehicle to perform large-scale fire extinguishing operations while maintaining a safe distance.

2. Excellent maneuverability: It adopts the ISUZU 4HK1-TCG61 engine with a displacement of 5.19L and a power of 190 horsepower, meeting the Euro 6 emission standards. With the MLD 6 forward 1 reverse gear transmission, the maximum speed can reach 95 km/h. The 4500mm wheelbase and 4X2 drive mode make it flexible and maneuverable on urban roads and complex terrain. The 100L fuel tank capacity ensures long-term continuous operation capability. These performance parameters enable the fire truck to quickly reach the fire scene and maintain good maneuverability in various environments.

3. Humanized design: The cab can accommodate 2+4 people and is equipped with an air-conditioning system to ensure that firefighters remain comfortable during long-term operations. The body adopts high-strength rectangular steel pipe and aluminum alloy welded structure, which not only ensures strength but also reduces weight. The roof is equipped with LED lighting and handrails, and an aluminum alloy ladder is installed at the rear to facilitate firefighters to quickly climb to the top for operation. LED lighting is installed on both sides and the top of the car to ensure the field of vision for night operations. These designs fully consider the actual needs of firefighters and improve work efficiency and safety.

4. Advanced warning system: The ISUZU NPR fire truck is equipped with a comprehensive warning system, including a long row of warning lights and sirens on the top of the cab, strobe lights on both sides of the car, and embedded yellow warning lights on the sides of the car and pedals. These devices can not only attract the attention of other road users in an emergency and improve driving safety, but also provide clear warnings to the surrounding environment at the fire scene to ensure the smooth progress of rescue work.

5. Versatility and scalability: In addition to its powerful firefighting capabilities, the ISUZU ELF fire truck is also equipped with a variety of standard firefighting and rescue equipment, such as shovels, crowbars, axes, cutting equipment, and Harrigan crowbars. These tools enable the ISUZU fire engine to cope with a variety of complex fire and rescue situations. In addition, the vehicle also reserves the option of installing ladders and floodlights, which can be customized according to the needs of different fire departments. This versatility and scalability enable the fire truck to adapt to a variety of different rescue scenarios and become a truly multi-purpose firefighting and rescue platform.
