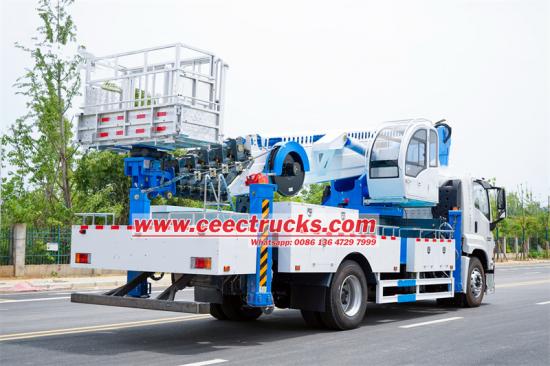

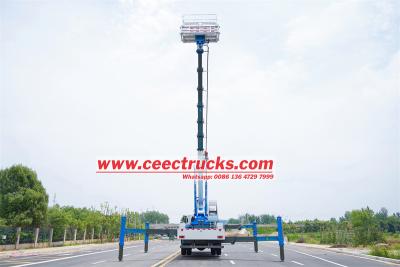

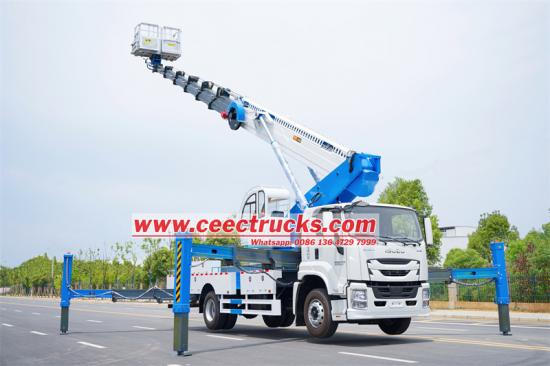

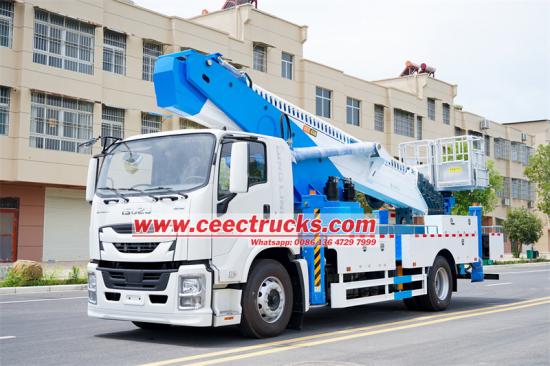

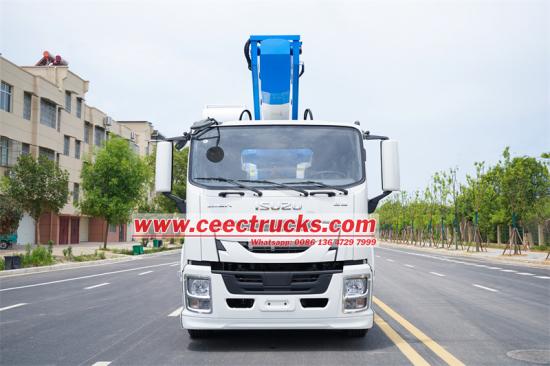

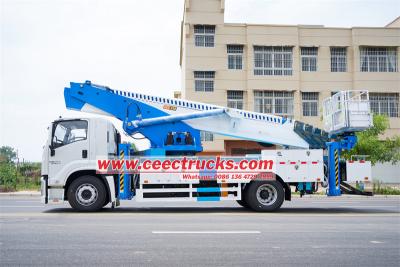

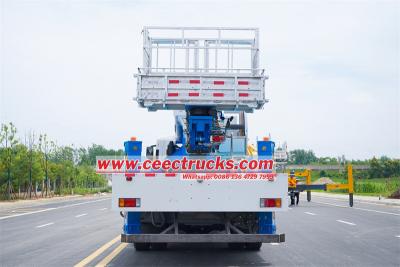

ISUZU GIGA 45m Aerial Platform Truck made in China

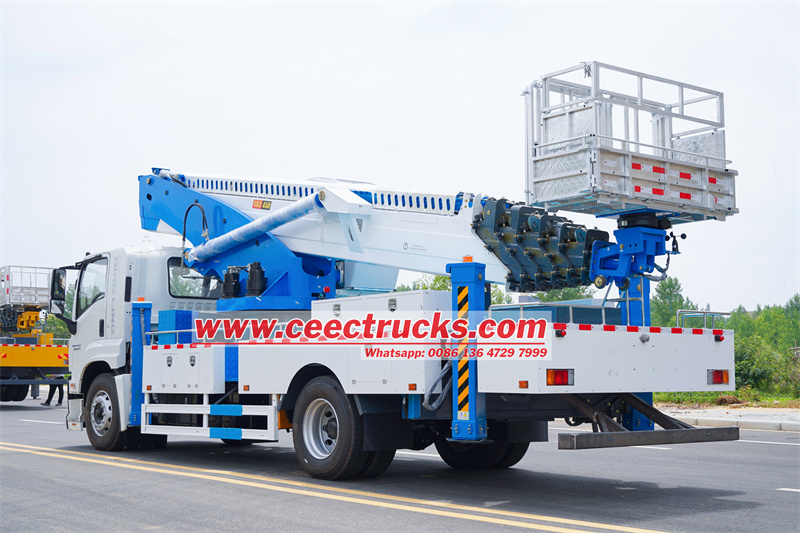

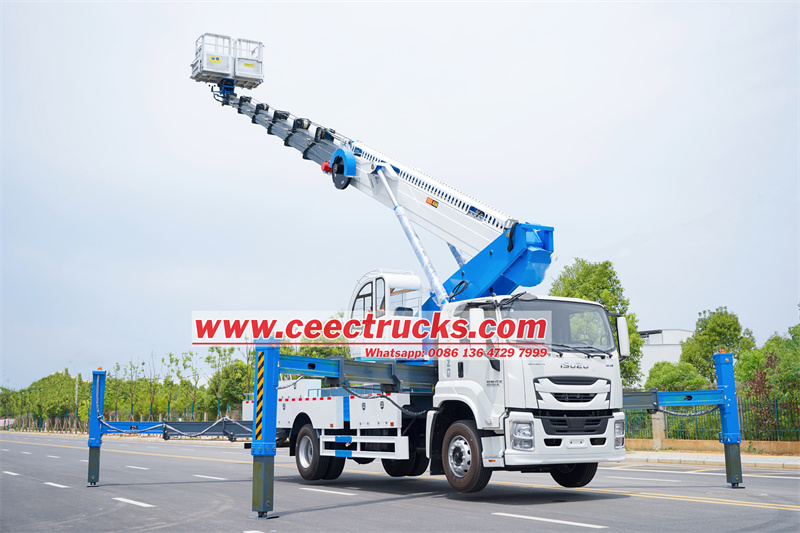

ISUZU FTR 45m aerial platform truck

The ISUZU FTR 45m aerial platform is a professional engineering special truck that integrates excellent technical performance and safety design. Based on the ISUZU New GIGA FTR chassis, the truck is equipped with a 4HK1-TC60 engine with a maximum output power of 205 horsepower and a total vehicle mass of 18,000 kg. The Isuzu FTR aerial platform truck has a maximum working height of 45 meters, a platform height of 27 meters above the ground, a maximum working radius of 7 meters, and a hydraulic static balance system to ensure stability.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days
Work capacity:
45 m
Truck model:
PST5183GKZ
Engine power:
205 HP
Engine type:
4HK1-TC60
Axle drive:
4X2,LHD
Gear box:
Isuzu MLD 6 forward gears& 1 reverse
Remarks:
Remote control, easy to operate

Inquiry now

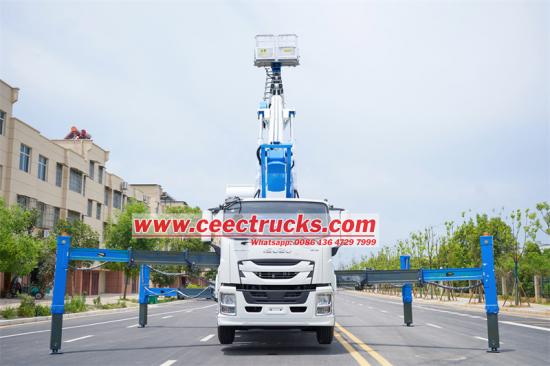

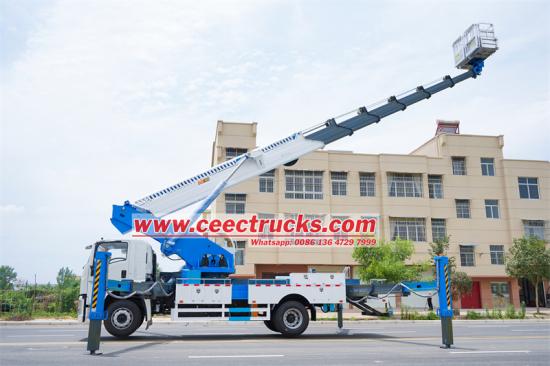

Its unique H-type hydraulic outrigger design has a horizontal and vertical expansion distance of 8,600 mm and is equipped with a two-way hydraulic locking mechanism to ensure stability during operation. The truck is also equipped with a dual operating system of manual and wireless remote control, a platform rated load of 200 kg, 360° hydraulic rotation, and built-in multiple safety protection devices, such as automatic out-of-bounds limit, emergency stop device and leakage protection.

Specification:

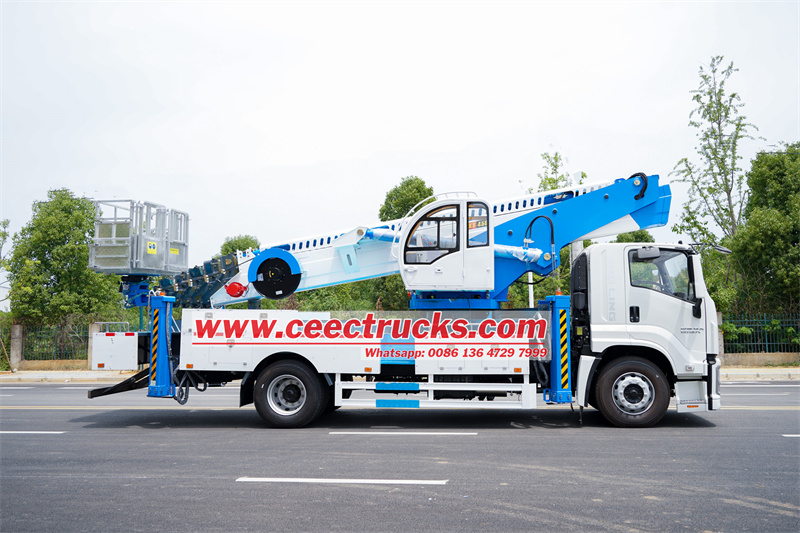

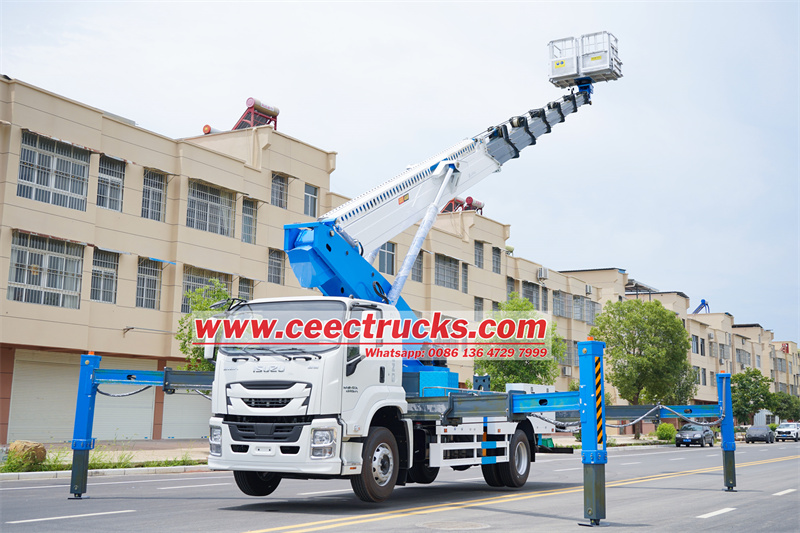

ISUZU FTR 45m aerial platform truck

Isuzu FTR 45m aerial platform truck
Vehicle model		PST5183GKZ			Overall dimensions (mm)	9800×2600×3820
GVW (kg)		18000			Operational height (m)	45
Curb weight(kg)		8600			Max. Speed (km/h)	95
Chassis Description
Chassis Brand				ISUZU GIGA FTR chassis
Cab				Single cab with A/C
Allowable person in cab				3
Wheel base (mm)				4500
Front/Rear overhang (mm)				1110/2475
Number of axles				2
Axle	Front axle (kg)			7500
	Rear axle (kg)			13000
Traction system				4*2
Operation control system				Power steering
Braking system				Air brake
Transmission				MLD 6-speed
Tire specification				295/80R22.5 18PR
Tire quantity				6+1
Engine Description
Engine manufacture				ISUZU Engines
Engine model				4HK1-TC60
Emission standard				Euro 6
Exhaust/output				5190 ml/ 151 kw
Horse power				205HP
Upper Body Description
Max. working height (m)				45
Height of platform above ground (m)				27
Max. working radius (m)				7
Working pressure (Mpa)				16
Control type				1. Manual operation in two positions 2. Wireless remote operation
Type				Insulating type
Rated loading (kg)				200
Adjusting balance mode				Hydrostatic Leveling System
Safety belt				1 set
Rotation Angle				360° Hydraulic
Boom Amplitude Time				160 ≤ t ≤ 180
Boom Telescopic Time				140 ≤ t ≤ 160
Boom Rotation Time				160 ≤ t ≤ 180
Hydraulic leg span			Horizontal(mm)	8600
			Vertical(mm)	8600
Hydraulic leg retraction time (s)				100 ≤ t ≤ 120
Type				H type
Quantity				4 PCS
Adjustment				Adjusted separately or interconnected
Hydraulic lock				Two-way hydraulic lock for four legs
Strobe light on rear landing legs				Two yellow lights
Main structure
Material				High quality carbon steel and profiles, with slip-proof decorative steel plates
Tool box				Mould stamping door with stainless steel door lock
Fencing				Stainless steel tube
Steps				With steps on drivers’ side
Guard railing				High quality cold bending carbon steel profile; High strength
Wheel casing				Injection mold molding, beautiful, high strength
Rotary table
Supporting Boom				Low alloy steel plate welding
Slewing bearing				Single row of four - point contact ball belt outer teeth
Reduction gears				Planetary gear type
Motor				Axial piston motor
Security configuration
Automatic interlock device for get on and off				Prevent the risk of misoperation
Hand-operated emergency pump				When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state
Emergency stop device for working platform				Used for emergency stop operation and restricted boom operation
Automatically limit work range				When the working range reaches the specified value, the dangerous direction is automatically restricted.
Leakage protection device				Equipped with leakage protector to ensure the safety of power supply and power tools

Basic functions and safety configuration:

Isuzu FTR 45m aerial work truck basic functional safety configuration: The truck can achieve platform load of 200kg, maximum working height of 45m, maximum working range of 27m, boom amplitude angle range of -18° ~80°, and hydraulic automatic leveling of the working platform.
Name	Brief Description
Outrigger safety inspection	Real-time detection of the outrigger stress status, once the outrigger looseness is detected, an alarm will be issued to limit movement
Automatic interlocking device for boarding and exiting	Automatically realize interlocking of getting on and off the vehicle to prevent simultaneous operation of getting on and off the vehicle, thus achieving safety protection
Emergency electric hydraulic pump	Get workers back to the ground when the chassis engine or hydraulic main pump fails
Emergency stop device	Three emergency stop devices to ensure that all operations are stopped in an emergency
Automatic Limiting	Ensure that the vehicle operates within a safe operating range
Vehicle level tester	Detect the vehicle's tilt in both the lateral and longitudinal directions
Engine ignition shut down	Both the turntable and the remote control box can control the ignition and shutdown of the engine
Compound Movements	Simultaneous combined movements, such as platform rotation, turntable rotation, boom amplitude adjustment and extension
Chain break protection device	The rope extension is equipped with a balancing mechanism to ensure that the left and right wire ropes are evenly stressed.
Electric emergency operation function	In an emergency, restore the vehicle's motion to ensure that the vehicle can safely return personnel to the ground in dangerous conditions

Safety Features:

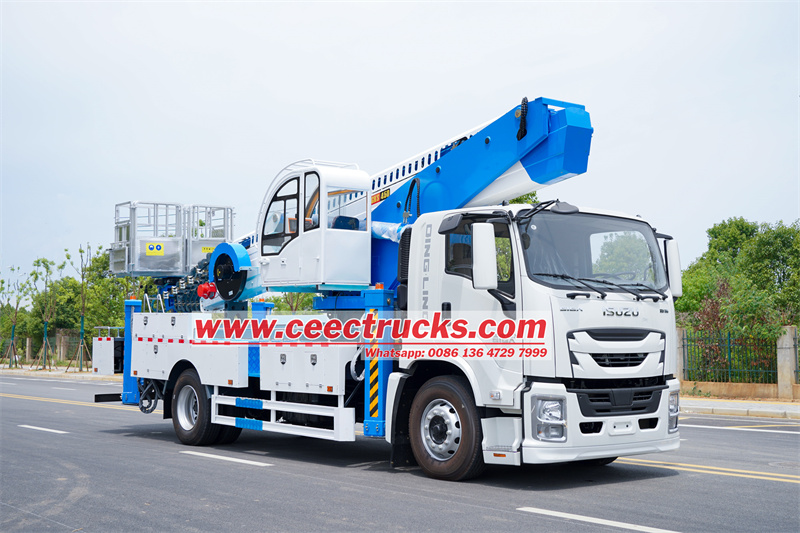

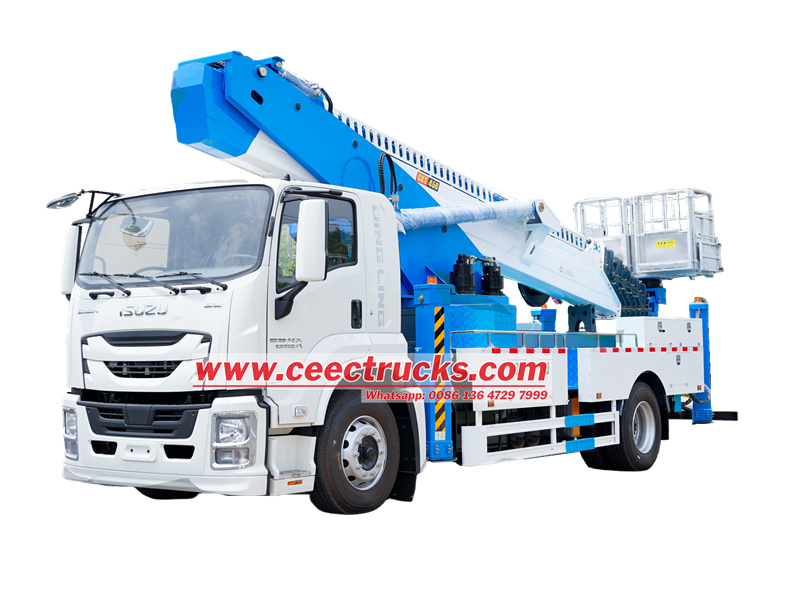

ISUZU FTR 45m aerial platform truck

1. The drag chains used in the dedicated pipeline conveying system of the ISUZU aerial platform truck are all imported brands with high reliability.

2. During the product development process, all structural safety checks, stability analysis, reliability verification and other methods are adopted to ensure the stability and reliability of the product within the operating range. In addition to the rated load test before leaving the factory, a dynamic load test with a coefficient of 1.25 times the rated load and a static load test with a coefficient of 1.5 times the rated load are also carried out. All key structural parts have undergone tens of thousands of fatigue cycle tests and destructive tests to ensure the safety and reliability of the equipment.

3. Complete safety devices, including cylinder retraction devices, outrigger retraction devices, interlocking devices for getting on and off the vehicle, emergency stop devices, soft leg protection devices, extreme deceleration, emergency manual operation and other safety protection systems to ensure the safety of high-altitude operations.

4. The ISUZU FTR 45m aerial platform truck is fully equipped, including high-end fenders, disembarkation operating boxes, etc.

5. All key structural parts are welded with low-alloy high-strength steel, which is strong and light. After multiple tests, they are fully verified to ensure precise matching of structure, electricity and hydraulic pressure. The main control components and key transmission parts are all internationally renowned brands with stable quality and high reliability.

Smooth operation:

1. Start and stop with buffer control to reduce the impact of the action.

2. Proportional reversing valve is used to control the extension and retraction of the outriggers, and the flow is controllable.

3. Balance valve is used to control the start and stop of each boom action to ensure stability during start and stop.

4. Load-sensitive proportional multi-way valve is used to reasonably match the flow and speed.

5. Reasonable arrangement of hinge points, no sudden pressure change in boom amplitude, uniform pressure change, and smooth action.

★ ISUZU engine, super powerful

★ Can be operated at both turret and platform with all English version control plate

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU aerial platform trucks exporter

★ Training service for ISUZU high platform trucks

ISUZU FTR 45m aerial platform truck

CEEC TRUCKS is a leading exporter of Aerial Platform trucks in China. We possess over 10-year export experience of high platform trucks. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our aerial platform trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
