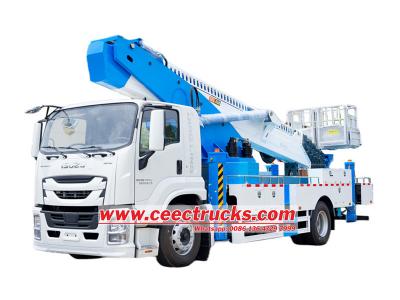

ISUZU FTR 45m Manlift Truck

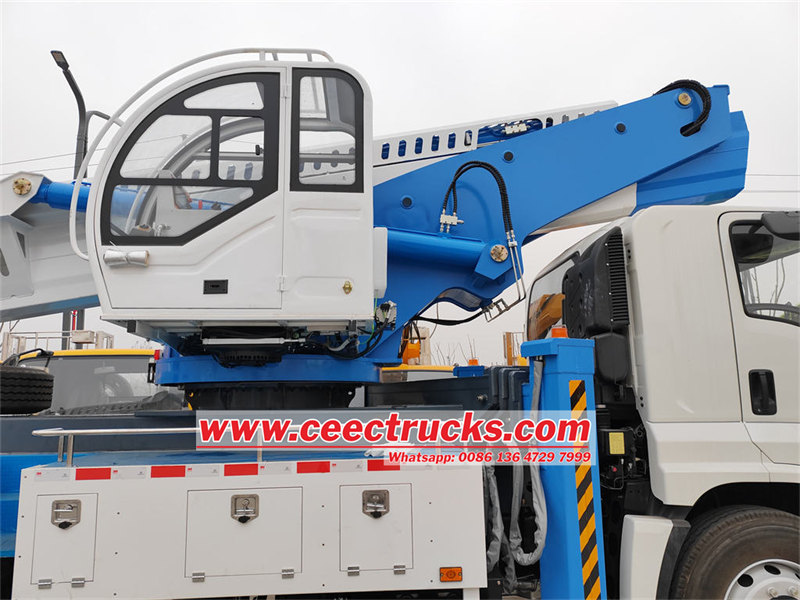

The ISUZU FTR 45m Bucket Lift Truck is a high-performance aerial work platform equipped with an ISUZU 4HK1-TCG60 engine, boasting a power output of 151KW and a working height of 45 meters. It features a seven-section hexadecagonal telescoping boom and a front V-shaped plus rear V-shaped three-section outrigger design, ensuring stable operation. The cabin is spacious and comfortable, equipped with multifunctional facilities. The comprehensive safety design includes cylinder retraction prevention, emergency stop, and other devices. It is widely used in construction, electricity, telecommunications, and other fields, providing efficient, safe, and reliable solutions.

Lead Time:
30 Days
Work capacity:
45 meters
Truck model:
CEEC5180JGK
Engine power:
205 HP
Engine type:
4HK1-TCG60
Axle drive:
4x2, left hand drive
Gear box:
MLD 5-speed,manual
Remarks:
Stainless steel bucket with load of 200kg

Inquiry now

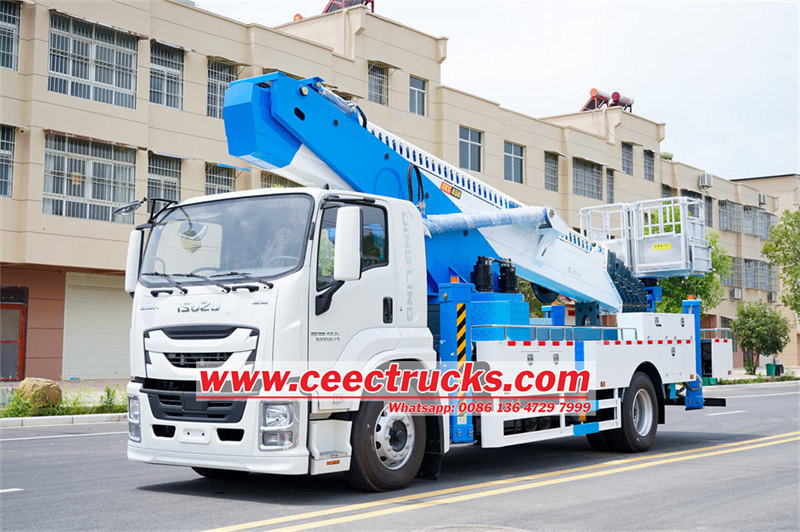

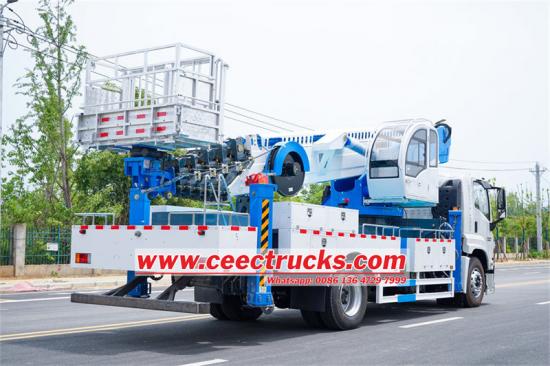

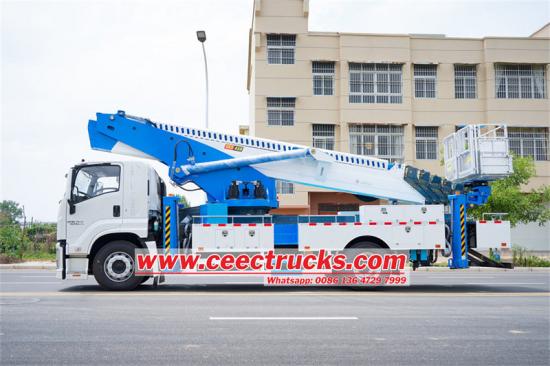

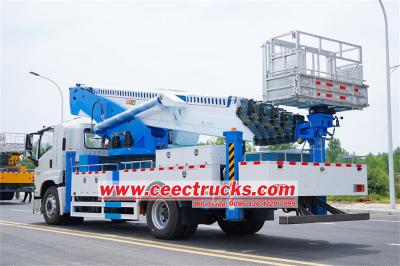

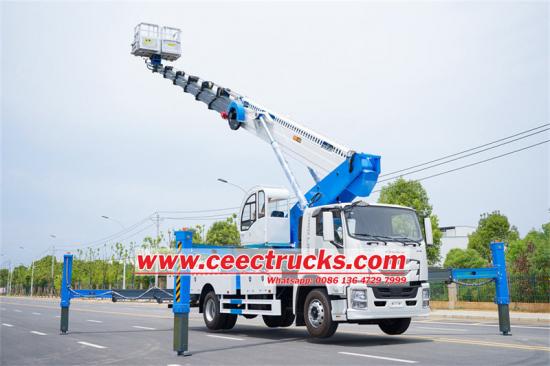

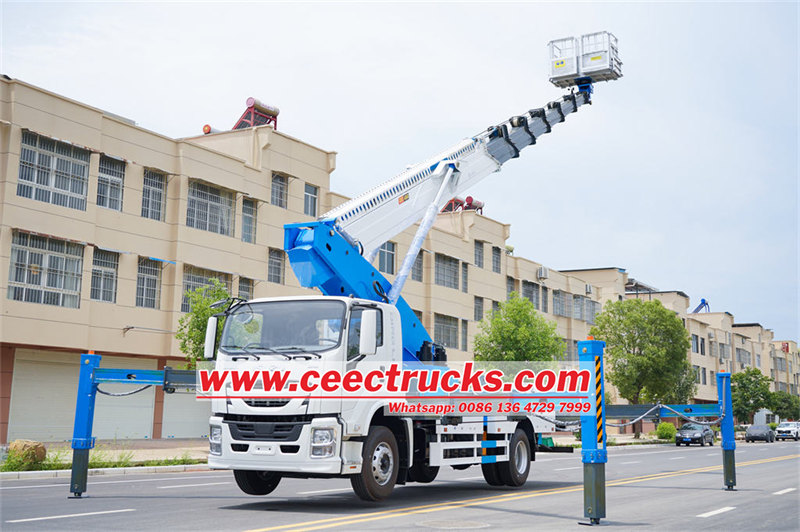

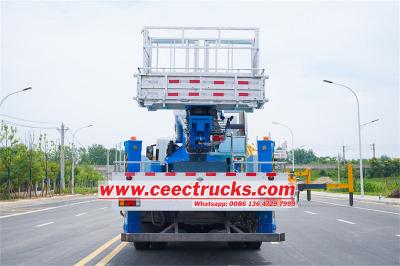

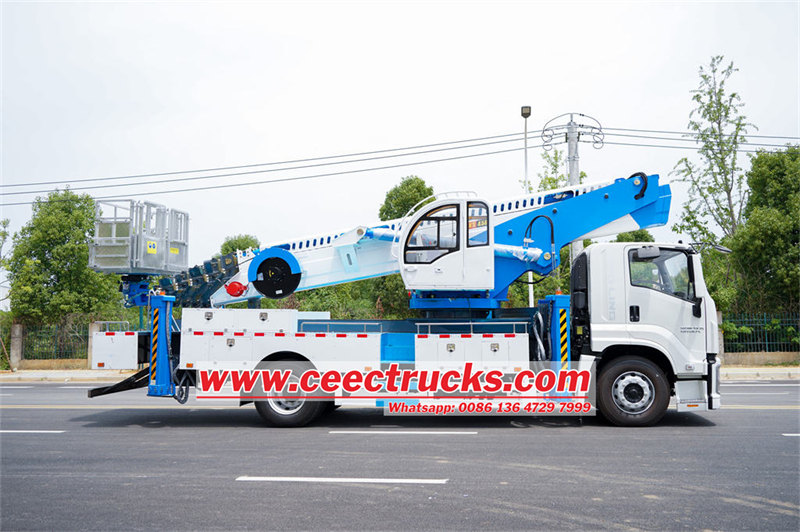

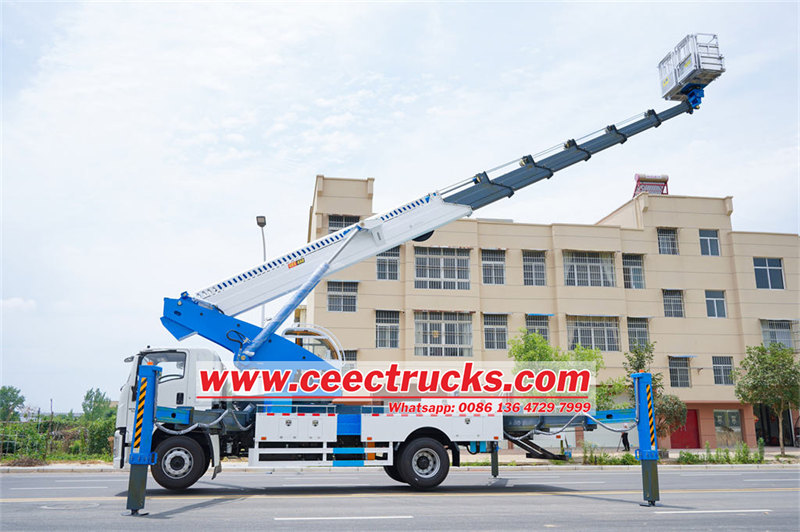

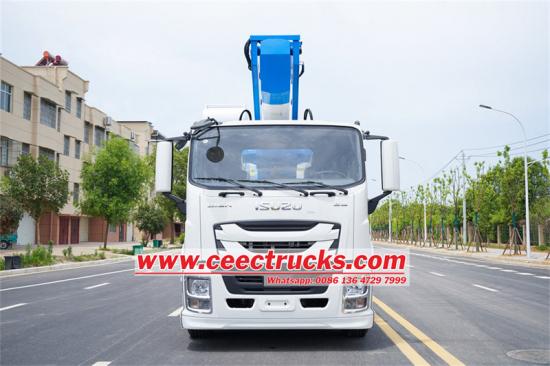

The ISUZU FTR 45m Bucket Lift Truck is an aerial work platform based on the ISUZU FTR chassis. It is equipped with an ISUZU GIGA 4X VC61 cabin, providing a spacious and comfortable working environment for the operator. The vehicle adopts a seven-section hexadecagonal telescoping boom with synchronous telescoping technology, ensuring swift and easy operation with a wide working range. Additionally, its front V and rear V-shaped three-section outriggers design ensures stable operation on various complex terrains. The work platform is positioned at the rear for easy access, and the stainless steel basket has a load capacity of 200kg, meeting diverse aerial work requirements.

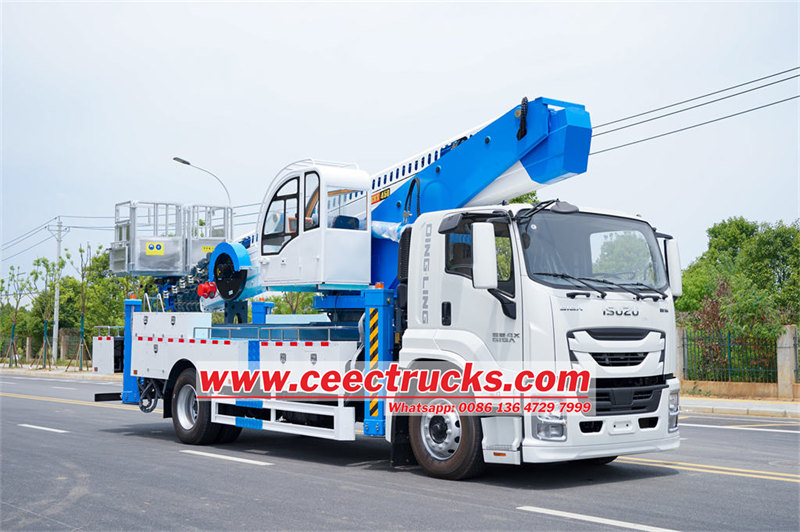

ISUZU FTR 45-meter bucket lift truck

The ISUZU 45m Manlift Truck is powered by an ISUZU 4HK1-TCG60 engine, renowned for its excellent performance and reliability. With a maximum power output of 151KW (approximately 205 hp) and a displacement of 5.193 liters, this diesel engine complies with the Euro 6 emission standard. It not only delivers robust power but also operates quietly and environmentally friendly, providing continuous energy support for aerial work. Furthermore, the vehicle is equipped with a high-quality Isuzu chassis and a high-capacity frame, ensuring stable driving and operational performance on various terrains.

Safety is a top priority for aerial work platforms. The ISUZU FTR 45m Aerial Platform Truck has taken great care in its safety design. It is equipped with various safety protection systems, including cylinder retraction prevention devices, outrigger retraction prevention devices, interlocking devices for boarding and disembarking, emergency stop devices, outrigger protection devices, extreme deceleration, and emergency manual operation, ensuring safe and reliable aerial work. Moreover, the work platform is equipped with safety belts, guardrails, and other protective devices, further safeguarding the operators. These safety devices are designed with full consideration of the uniqueness and dangers of aerial work, providing comprehensive safety protection for operators.

Product Specifications

Items	Descriptions	Specifications
Vehicle parameters	Vehicle brand/Model	CEEC
	Chassis brand/Model	ISUZU FTR
	Cabin	ISUZU GIGA 4X VC61 cabin
	Persons in cab	3
	Drive Type	4×2
	Overall Dimensions (LWH)	980026003800(mm)
	Gross weight	18000 (Kg)
	wheelbase	5000(mm)
	Front/Rare suspension	1110/1710 (mm)
	Approaching/Departure Angle	20/10(°)
	Max driving speed	105 (km/h)
Engine	Brand/Model	ISUZU 4HK1-TCG60
	Power	151 (KW)
	Horsepower	205 (HP)
	Displacement	5.193 (L)
	Fuel type	Diesel
	Emission standard	Euro 6
Axles	Front axle loading	6 T
Axles	5Rear axle loading	13 T
Tire type/number		295/80R22.5; 6+1 PCS
Brake		Air brake
Color		White
Upper body configuration	Platform Working Height	45 meters
	Boom type	Seven-section hexagon working boom, synchronous telescopic

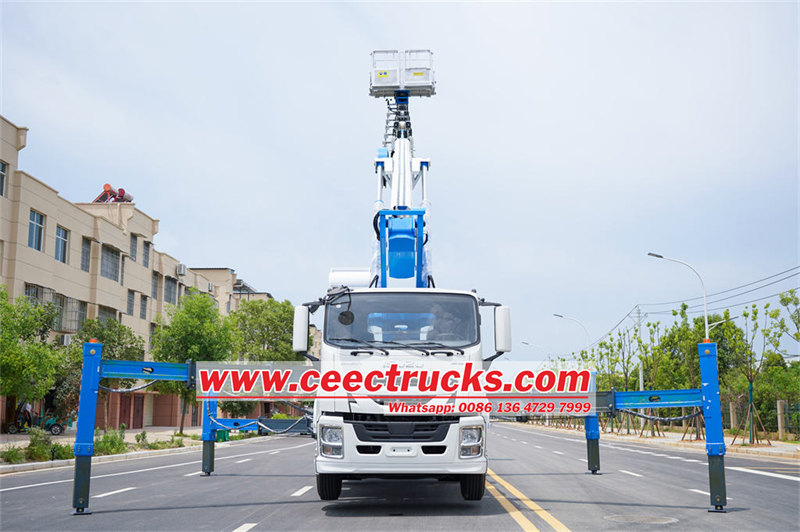

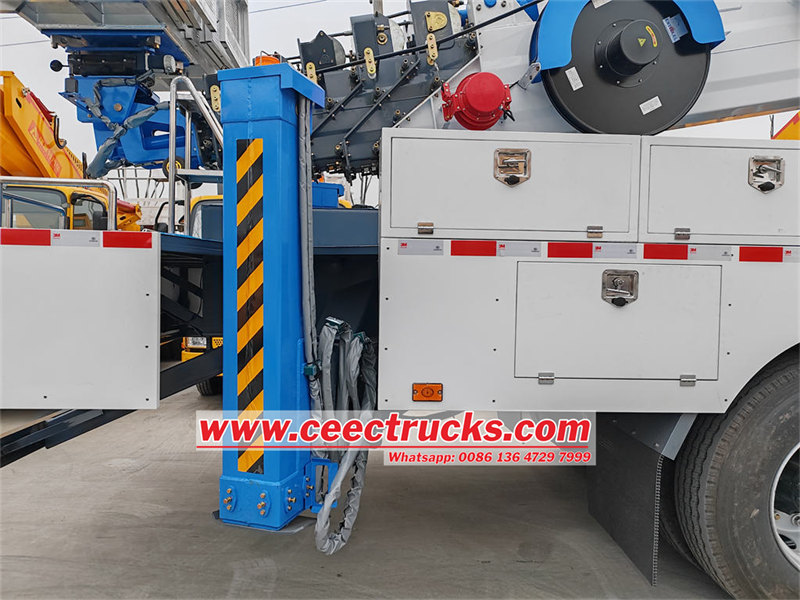

	Outrigger	4 pcs, front V + rear V type hydraulic outriggers Span:8600mm horizontal, 8600mm vertical

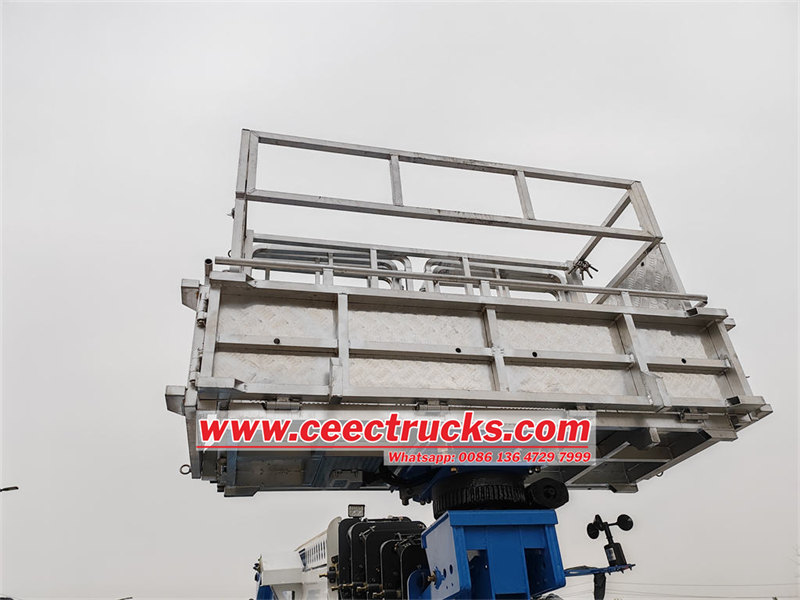

	Bucket	1600×700×1000mm(LWH), 200kg load
	Slewing device	Two-way 360° continuous slewing, 360°slewing basket
	Operating system	Up and down operation both on ground and in bucket, Wireless remote control + platform operation + manual 3 groups of operating system + manual emergency system
	Emergency device	Yes

Applications and Scenarios:

1. Construction: During exterior decoration, curtain wall installation, and steel structure construction of high-rise buildings, the ISUZU 45m Bucket Lift Truck can easily transport workers and materials to the specified height, improving work efficiency and reducing construction risks.

2. Equipment Installation and Maintenance: In the installation and maintenance of electrical, communication, and billboard facilities, the vehicle can accurately position workers at the work site, ensuring installation accuracy and maintenance efficiency.

3. Municipal Maintenance: For the maintenance of street lights, bridges, tunnels, and other municipal facilities, the flexibility and efficiency of the ISUZU 45m Manlifter Truck can significantly shorten maintenance cycles and reduce traffic disruptions.

4. Emergency Rescue: In natural disasters, accident rescues, and other emergency situations, the vehicle can quickly reach the scene, providing a safe work platform for rescuers and enhancing rescue efficiency.
