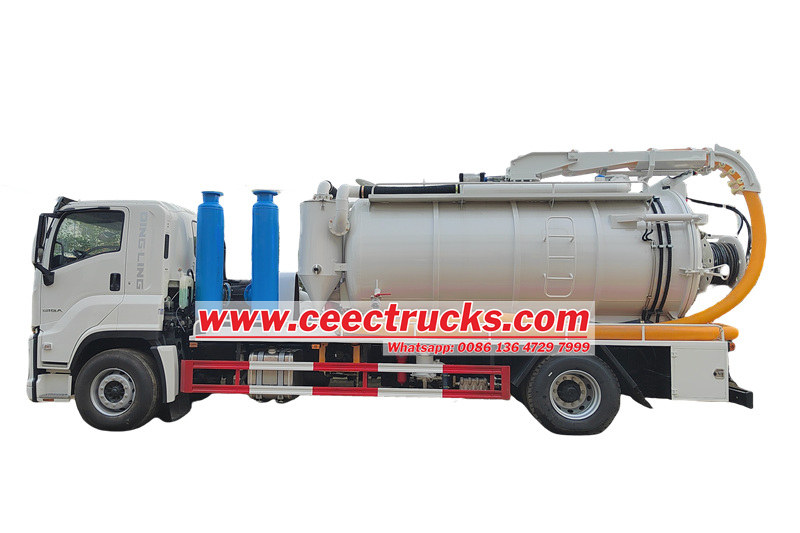

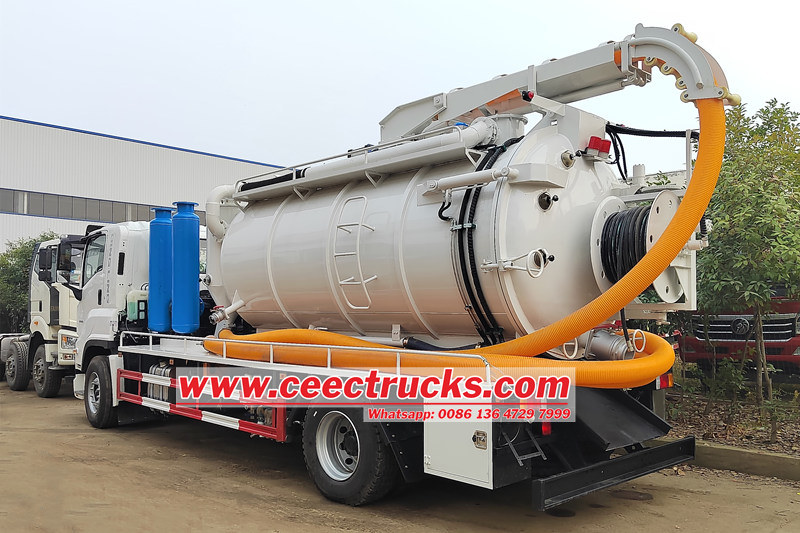

Isuzu Giga 10,000 liters Combined jetting truck

Nov 26, 2024

Isuzu Giga 10,000 liters combined jetting truck is a new type of sanitation truck for sucking and treating sewage. It has fast working speed, large capacity, convenient transportation, and is suitable for collecting and transporting liquids such as feces, mud, crude oil, etc. Due to the configuration of the vacuum pump, its performance has been greatly improved, and it is suitable for the suction, transportation and discharge of silt in the sewer, especially for sucking larger objects such as mud, silt, stones, bricks, etc.

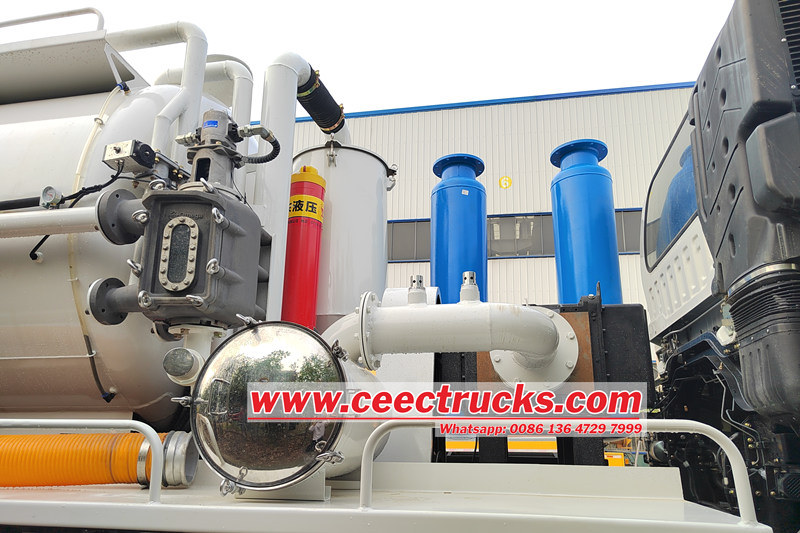

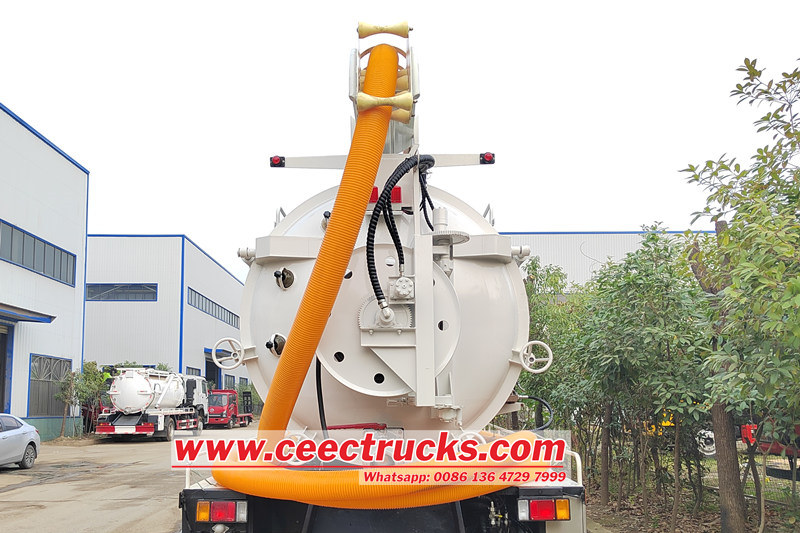

Isuzu combined jetting truck is composed of a power take-off, a transmission shaft, a vacuum suction pump, a pressure tank, a hydraulic part, a pipe network system, a vacuum pressure gauge, a feces viewing window, a hand washing device, etc. The vehicle is equipped with a high-power vacuum suction pump and a high-quality hydraulic system. The tank head is die-cast once, the tank can be opened from behind, and the double-top self-unloading, and the dirt in the tank can be directly dumped through the rear cover.

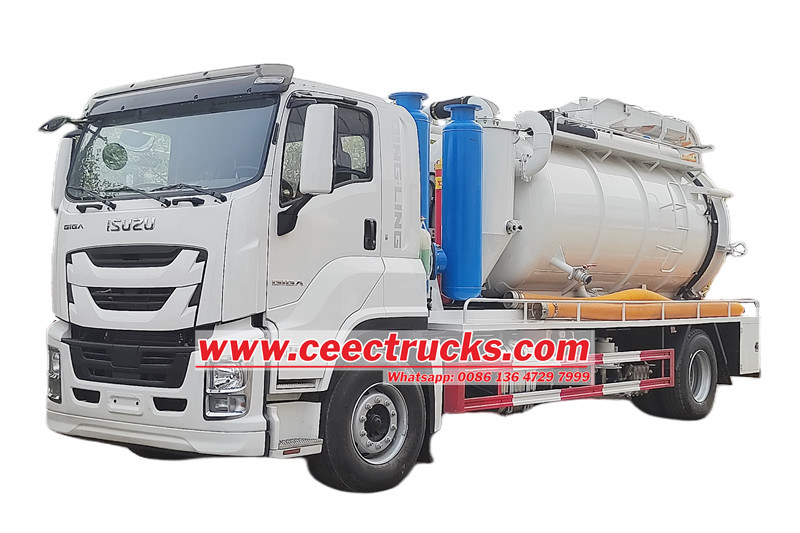

Isuzu Giga 10,000 liters Combined jetting truck is a professional work vehicle carefully modified from the latest Isuzu FVR GIGA 5X chassis. It is equipped with an excellent performance 6HK1 engine with an output power of up to 240 horsepower, providing sufficient power for the combined jetting truck to run smoothly and efficiently even under heavy loads.

ISUZU GIGA 10,000 liters Combined Jetting Truck
Chassis
Overall dimensions	8500x2500x3650 (mm)
GVW/Curb Weight	18000/9500kg
Wheelbase	4500mm
Front/Rear Axle	6500/11500kg
Tire	295/80R22.5, 6+1 tires
Max Speed	105km/h
Transmission	FAST 8 forward and 1 reverse gear, manual
Engine
Fuel Type	Diesel,6 cylinder in line
Brand	ISUZU 6HK1-TCG61
Power	240HP/177Kw
Displacement	7.79L
Emission Standard	Euro 6
Cabin
Type	Isuzu FVR GIGA 5X cabin, one and half row, with A/C
Passenger No.	3
Tanker
Capacity	8,000L vacuum tank and 2000L cleaning water tank
Material	High performance carbon steel
Thickness	6mm
Lifting system	Front lifting cylinder
Lifting angle	45 degree
Equipment	Ladder, level indicator, rear door, baffles, sight glass, valve, manhole.
Anti-flow system	Primary & Secondary Shut-off; Vacuum & Pressure Relief Valve; Silencer etc.

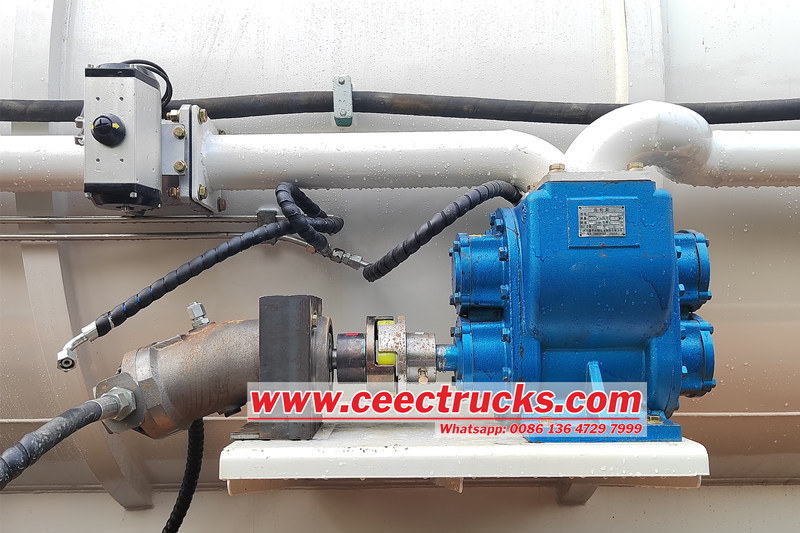

Vacuum Pump
Make/Model	JUROR/PVT400
Type	Blowers and lobe vacuum pumps. Air injection cooled, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. Low noise level. Operating without oil and wear. Long life and high-temperature seal.
Qty	1pcs
Flow Capacity	43300Lt/min（2600 m3/h）
Rotor Speed	3,300rpm
Max. Vacuum	95%
Drive Type	Driven by an electric-pneumatic split-shaft PTO mounted to the truck’s main drive-line without causing any efficiency loss. Motion is transferred to the vacuum pump with heavy-duty pulley belt connections.
High-Pressure Jetting Pump
Make/Model	PINFL/ MGS50
Qty	1pcs
Flow Capacity	287l/min@250bar
Hose Reel	Hose with 1” (inch) dia. & 120 meters long male end, bore to withstand a working pressure of 250 bar, and bursting pressure of 400 bar of lightweight and wear-resistant thermoplastic material.

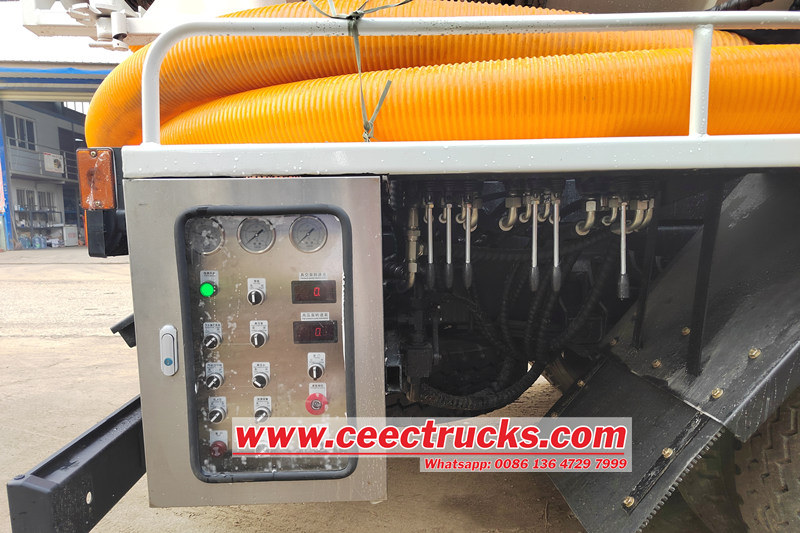

Controls	Manual control valves are mounted in a safe and easily accessible place for ease of maintenance.

The Isuzu 4x2 combination sewer cleaner is known for its durability and reliability. It is built on a sturdy chassis that can withstand heavy loads and rough terrain. The truck components are made from high-quality materials, ensuring that it can withstand the rigors of industrial cleaning operations. Its powerful engine and transmission system provide the necessary power and torque to operate its jetting and vacuum systems smoothly.

The Isuzu giga combined sewer jetting vacuum truck features a versatile design that enables it to perform multiple cleaning tasks. In addition to its jetting system, this truck is also equipped with a vacuum system that can be used for suctioning up debris and sludge. This makes it ideal for cleaning out septic tanks, grease traps, and other industrial facilities. The truck's combination of jetting and vacuum systems allows it to effectively clean and maintain a wide range of environments.

In conclusion, the Isuzu Giga 10,000 liters combined jetting truck is a versatile and efficient vehicle designed for industrial cleaning and maintenance tasks. With its high-pressure jetting system, versatile design, and durable construction, this truck is capable of handling a wide range of cleaning operations effectively. Whether it's clearing out drains, sewers, or industrial tanks, the Isuzu Giga 10,000 liters Combined jetting truck is a reliable and powerful solution for any cleaning challenge.
