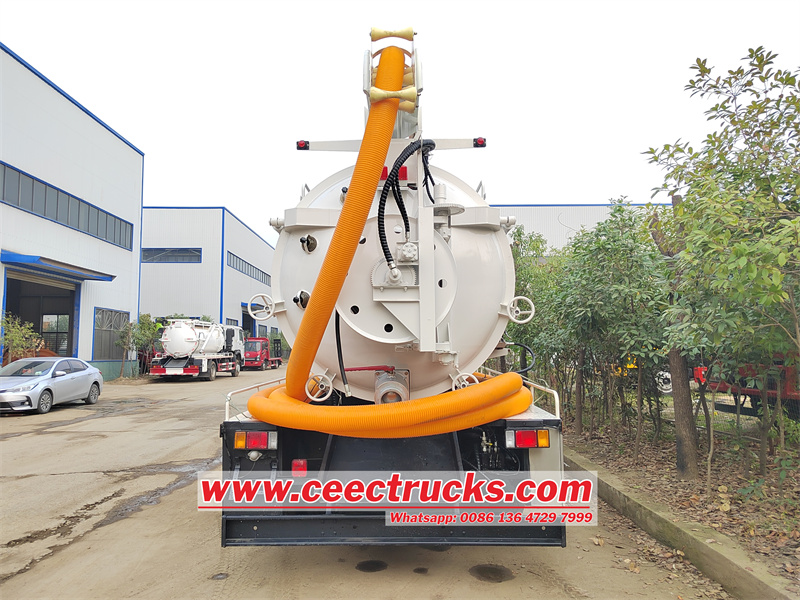

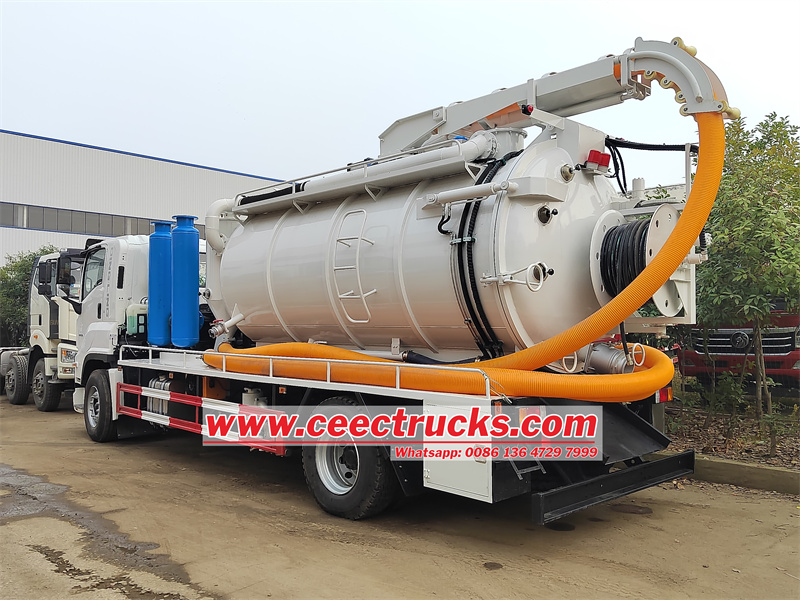

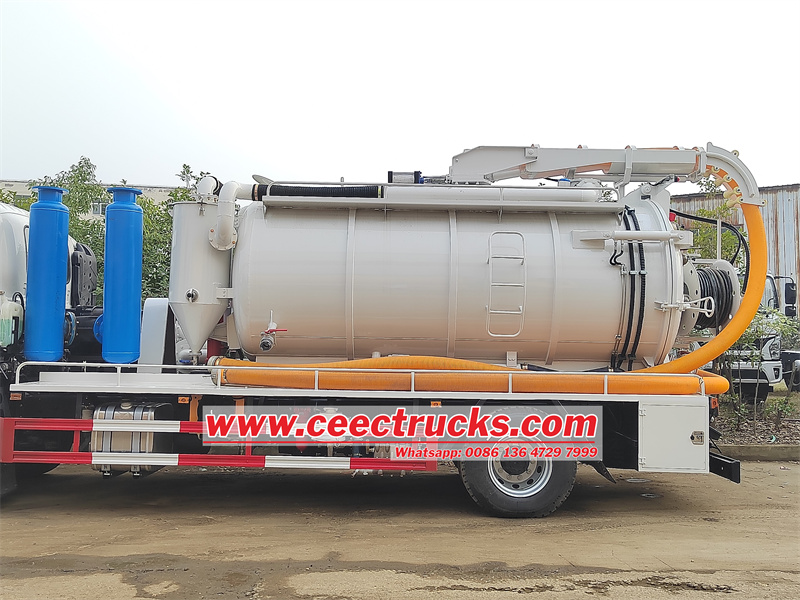

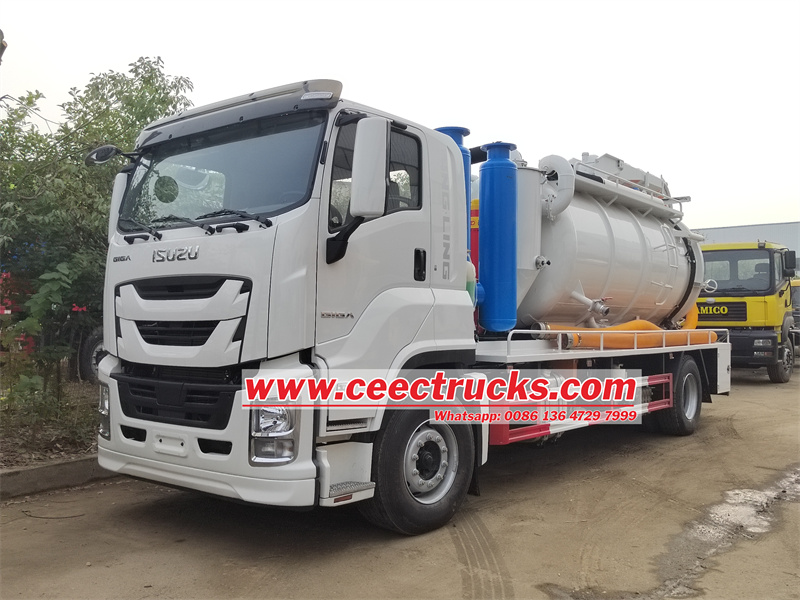

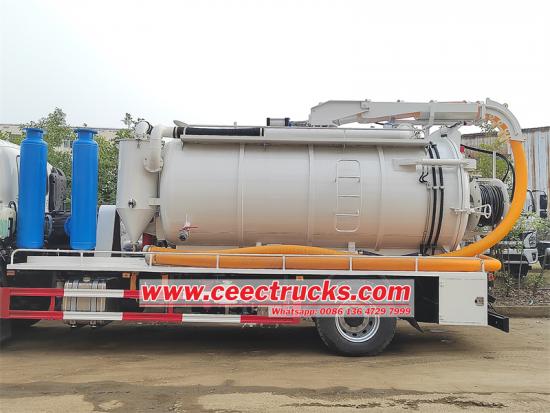

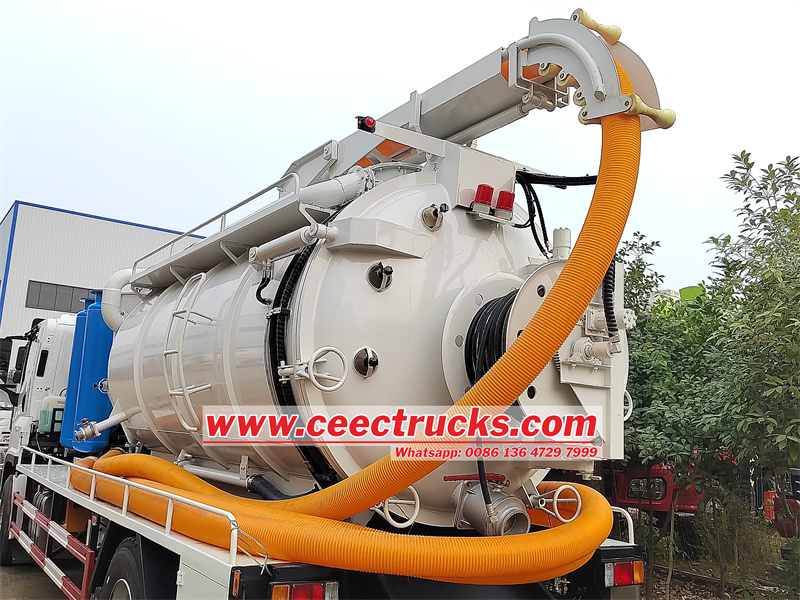

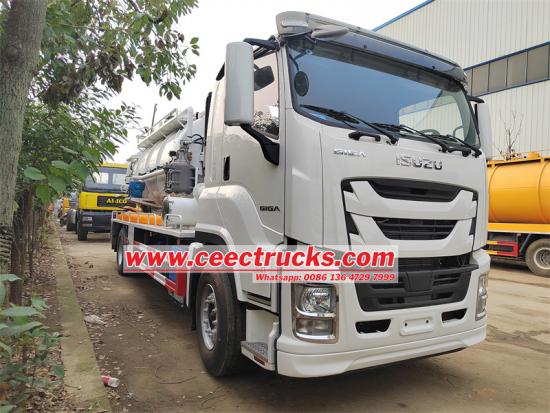

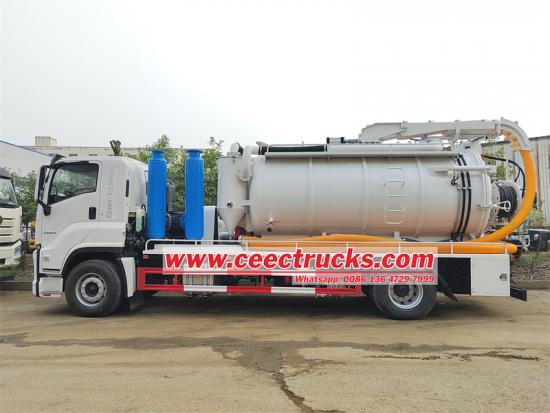

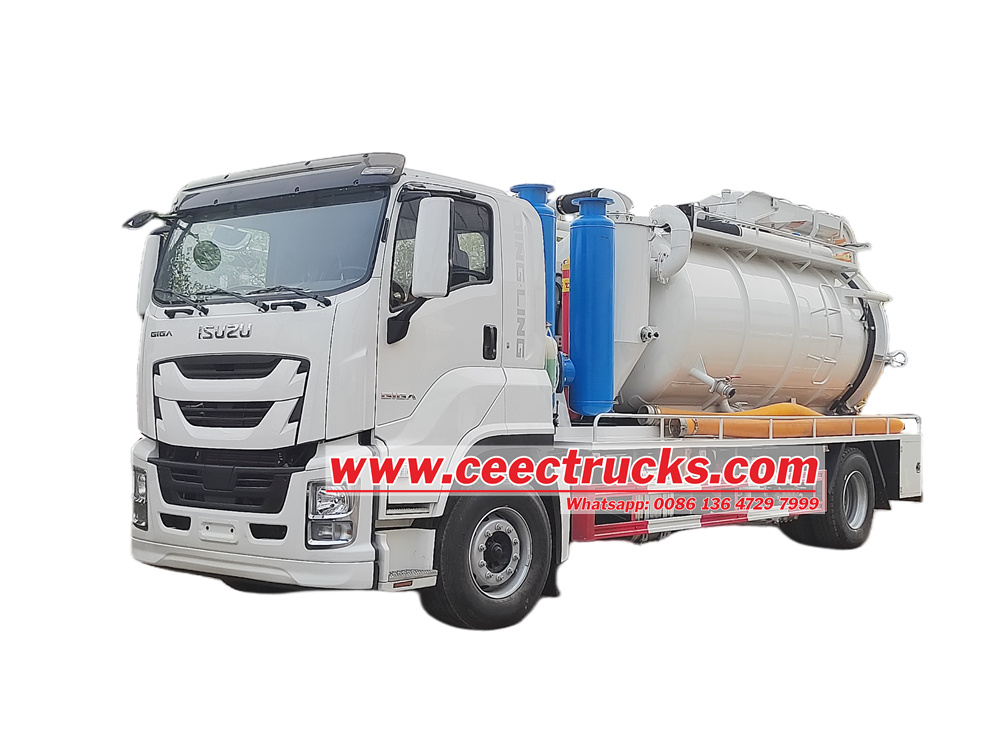

The Isuzu GIGA 10CBM combined sewer jetting vacuum truck produced by CEEC is modified on the new Isuzu FVR GIGA 5X,with 4500mm wheelbase,Isuzu 6HK1 240HP diesel engine,it is 4 cylinder inline, 4 stroke;matching FAST 8 shift gearbox.The Cab is one and half row,with A/C,USB,electronic window,direction assistance.It has 8,000L vacuum tank and 2000L cleaning water tank.
Lead Time:
80 DaysWork capacity:
10000LTruck model:
CEEC5180GXHEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 8-speed,manualRemarks:
8,000L vacuum tank and 2000L cleaning water tankThe core mechanism of the CEEC Isuzu GIGA combined sewer jetting vacuum truck is to use the power of high-pressure water flow to remove and disintegrate obstructions in the sewer. Once the blockage is effectively broken, the remaining sludge, wastewater and semi-solid waste are smoothly sucked into the sludge storage tank with the powerful suction generated by the built-in high-performance vacuum pump.
Features
★ Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
★ Adopt EU vacuum pump (ltaly brand) or equivalent China top brand double vacuum pumps, super powerful,highly efficient

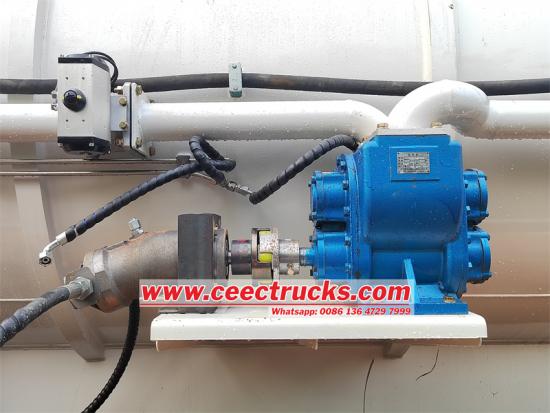

★ Pump can be operated by a hydraulic motor or by an auxiliary engine
★ Overfil system with music horn is equipped, preventing the vacuum pump damage from sewage water into vacuum pumpwhen the tank is full.
★ Nice shape, rational structure, durable and long service life.
Isuzu Giga combined sewer jetting vacuum truck |
|
Chassis |
|
Overall dimensions |
8500 x 2,500 x 3,650 (mm) |
GVW/Curb Weight |
18000/9500kg |
Wheelbase |
4500mm |
Front/Rear Axle |
6500/11500kg |
Tire |
295/80R22.5, 6+1 tires |
Max Speed |
105km/h |
Transmission |
FAST 8 forward and 1 reverse gear, manual |
Engine |
|
Fuel Type |
Diesel,6 cylinder in line |
Brand |
ISUZU 6HK1-TCG61 |
Power |
240HP/177Kw |
Displacement |
7790ml |
Emission Standard |
Euro 6 |
Cabin |
|
Type |
Isuzu FVR GIGA 5X cabin, one and half row, with A/C |
Passenger No. |
3 |
Tanker |
|
Capacity |
8,000L vacuum tank and 2000L cleaning water tank |
Material |
High-quality mild steel carbon model Q235 |
Thickness |
6mm |
Lifting system |
Front lifting cylinder |
Lifting angle |
45 degree |
Equipment |
Ladder, level indicator, rear door, baffles, sight glass, valve, manhole. |
Anti-flow system |
Primary & Secondary Shut-off; Vacuum & Pressure Relief Valve; Silencer etc. |

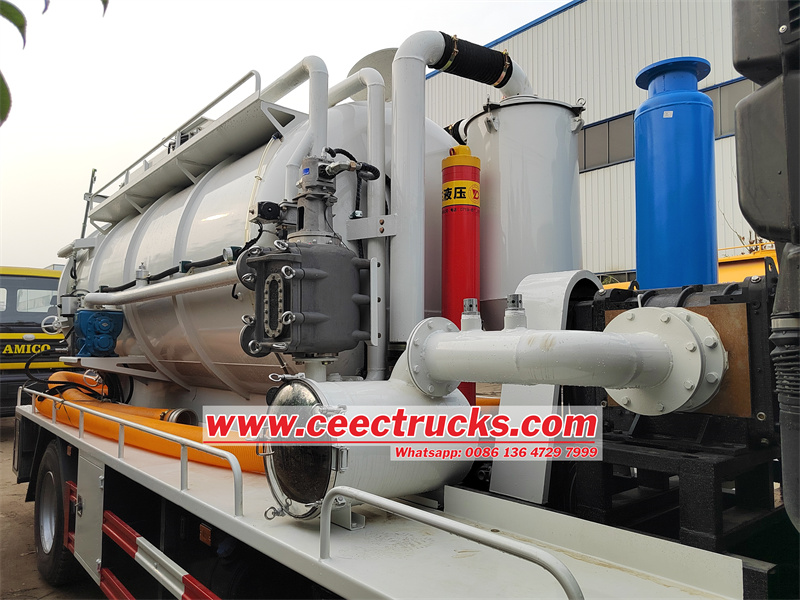

Vacuum Pump |
|
Make/Model |
JUROP/PVT400 |
Type |
Blowers and lobe vacuum pumps. Air injection cooled, heavy duty/multi-cylinder type, strong high-pressure, continuous duty. Low noise level. Operating without oil and wear. Long life and high-temperature seal. |
Qty |
1pcs |
Flow Capacity |
43300Lt/min(2600 m3/h) |
Rotor Speed |
3,300rpm |
Max. Vacuum |
95% |
Drive Type |
Driven by an electric-pneumatic split-shaft PTO mounted to the truck’s main drive-line without causing any efficiency loss. Motion is transferred to the vacuum pump with heavy-duty pulley belt connections. |
High-Pressure Jetting Pump |
|
Brand/Model |
PINFL/ MGS50 |
Qty |
1pcs |
Flow Capacity |
287l/min@250bar |
Hose Reel |
Hose with 1” (inch) dia. & 120 meters long male end, bore to withstand a working pressure of 250 bar, and bursting pressure of 400 bar of lightweight and wear-resistant thermoplastic material. |

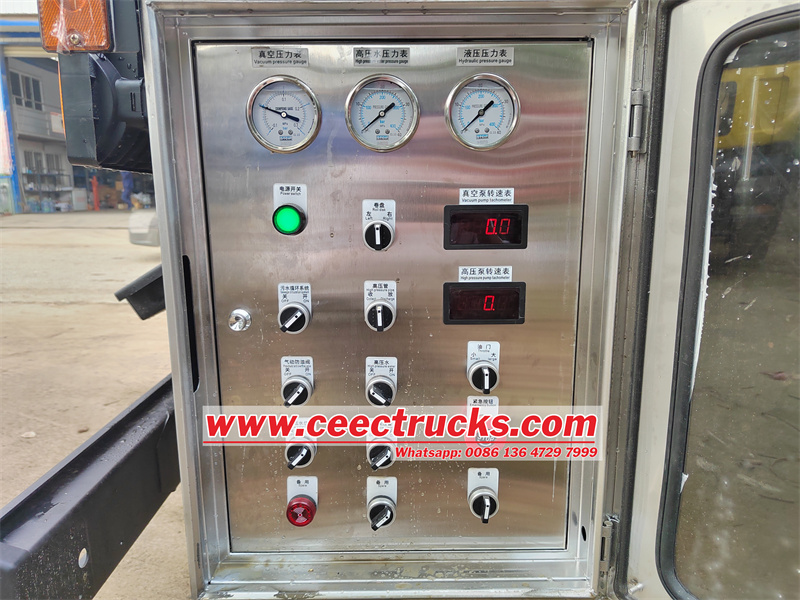

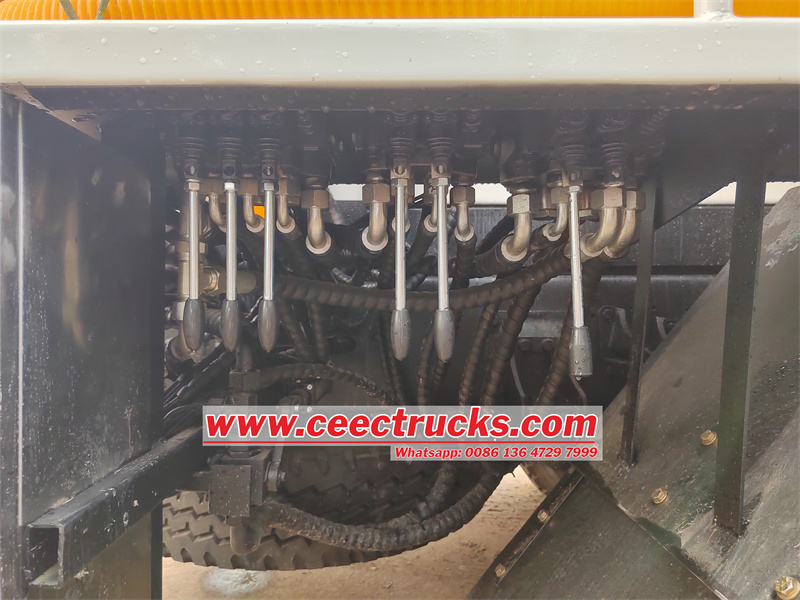

Controls |
Manual control valves are mounted in a safe and easily accessible place for ease of maintenance. |
This innovative system is deeply rooted in the forefront of European technology and design concepts, demonstrating the unremitting pursuit of cutting-edge solutions. The core components of the Isuzu GIGA combination sewer cleaning vehicle are all from the prestigious European brand JUROP, ensuring the excellent quality and performance standards of the products. The vacuum pump has a sophisticated design, stable airflow, quiet operation and strong suction, and has both self-priming and discharge functions, demonstrating its outstanding design characteristics.
PVT vacuum pumps are 3 lobe blowers specifically designed for vacuum plants that must convey gas free from polluting substances, oil or water: this is made possible due to the lack of sliding parts, and therefore oil lubrication within the compression chambers. Moreover, PVT blowers do not need any auxiliary cooling system, as they are provided with a built in air injection cooling system. The specific and accurate lobes profiles grant high volumetric efficiency and high flow rates combined with minimized dimensions and vacuum rates that can reach 93%.

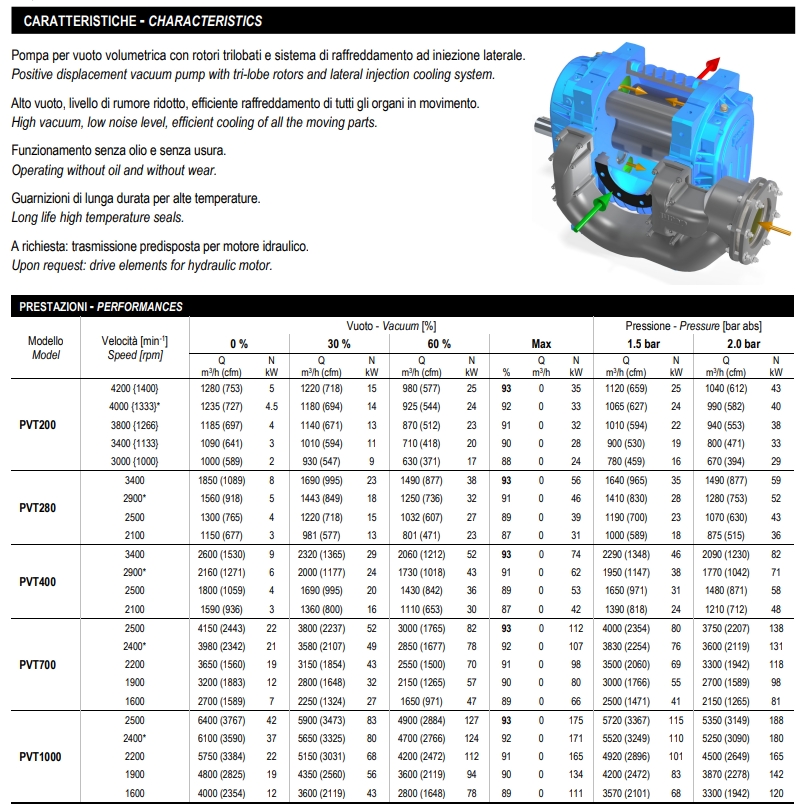

JUROP PVT400 Vacuum Pump
ITALY JUROP PVT400 Vacuum Pump |
||
Specification |
Unit |
Value |
Free Air Flow |
lt/min |
43300 |
Free air capacity |
cfm |
1530 |
Free air flow capacity |
m3/h |
2600 |
Vacuum(93 %) |
Hg |
27.8 |
Continuous Vacuum(93 %) |
Hg |
27.8 |
Pressure max abs |
bar/psi |
2/29 |
Power Vacuum Max. |
kW/hp |
74/100 |
Rotation speed |
rpm |
3300 |
Sound pressure at 7 meters front of pump |
dB |
79 |
Weight |
Kg/lbs |
240/529 |
PVT Series
★ Blowers and vane vacuum pumps. Air jet cooling.
★ Low noise.
★ Oil-free operation, no wear.
★ High temperature seals for long service life
★ Direct drive or with gearbox
★ Remote tank
The streamlined design of the vacuum pump in the Isuzu GIGA 10CBM combined sewer jetting vacuum truck boosts its overall efficiency, facilitating user-friendliness and agile maneuvering. The consistent airflow not only elevates operational stability but also enables smooth collection of sludge, wastewater, and solid waste materials. Additionally, its low noise emission contributes to a quieter operational setting, adhering to modern environmental awareness standards.

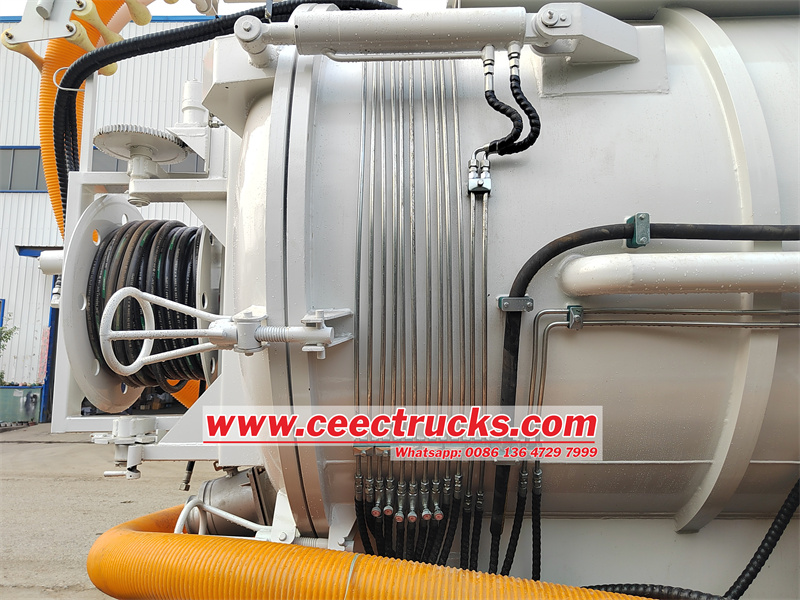

Equipped with high vacuum capabilities, the Isuzu new FVR sewer jetting and vacuum truck excels in addressing a wide range of challenges within sewer systems. By incorporating self-priming and self-draining functionalities, it further refines the operational workflow, making it a versatile and dependable tool for clearing blockages and maintaining the integrity of sewer infrastructures.
★ Euro 6, ISUZU engine, super powerful
★ Vacuum pump super powerful, efficient pump in and out
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU combined jetting trucks exporter
★ Training service for ISUZU combined jet-vac trucks
CEEC TRUCKS is a leading exporter of combined jet trucks in China. We possess over 10-year export experience of combination jetting truck. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our jetting and vacuum trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
