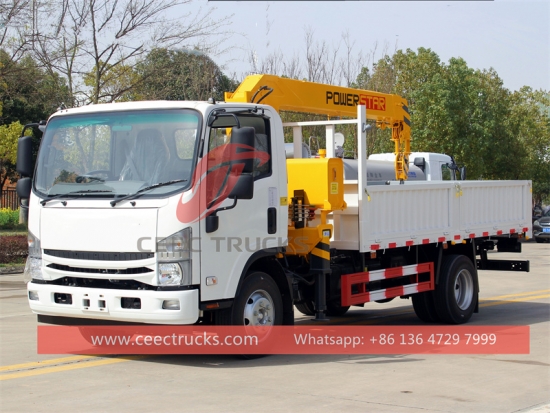

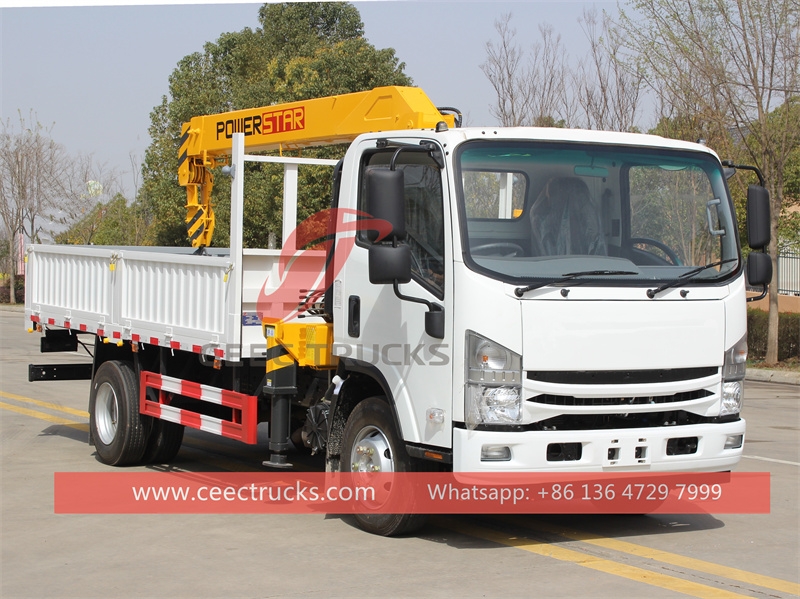

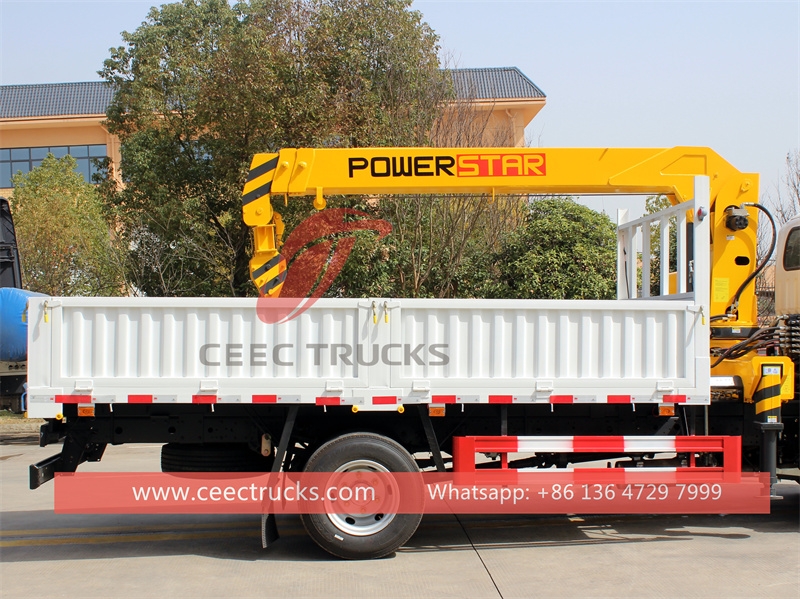

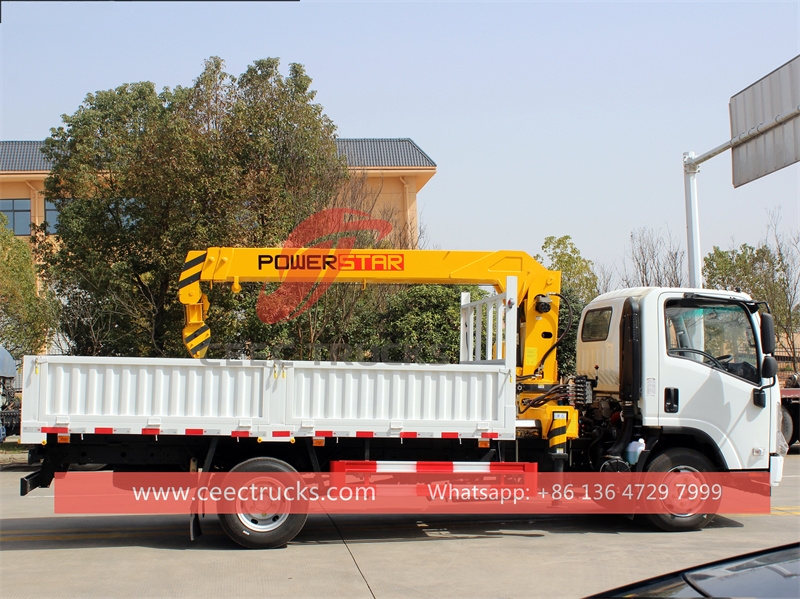

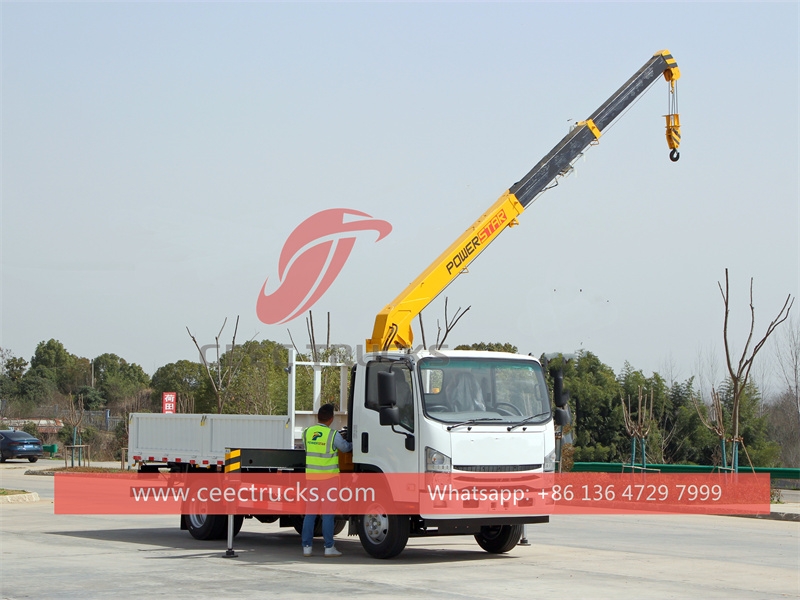

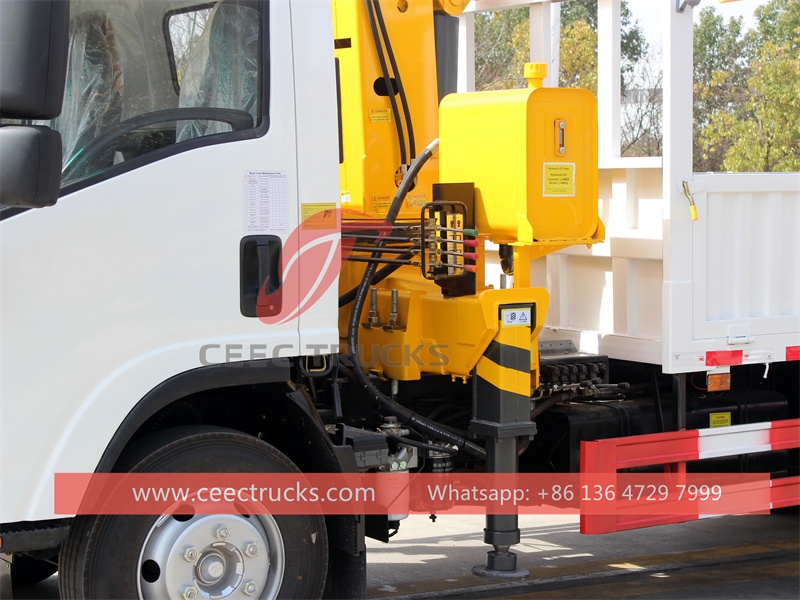

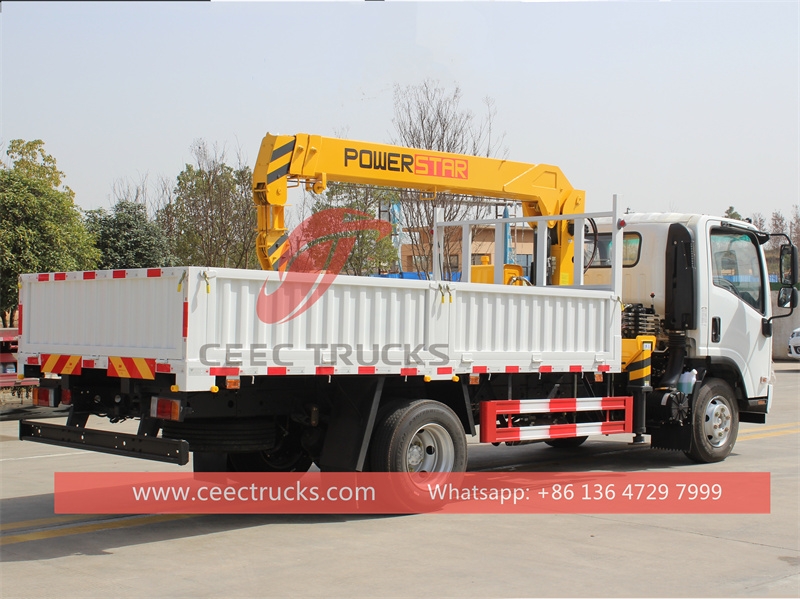

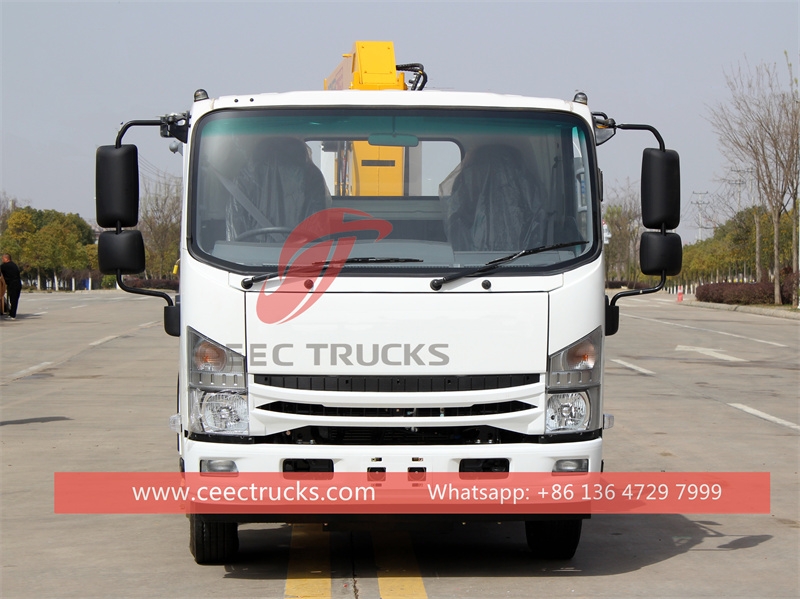

ISUZU 700P 5tons Crane Truck made in China best factory

ISUZU RHD NPR Truck Mounted 5tons Crane

ISUZU 700P 5tons crane truck, ISUZU left hand drive chassis, MLD 6-shift manual gearbox, ISUZU 190HP diesel engine, China famous brand 5 ton telescopic boom crane, cargo body dimension as required, painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

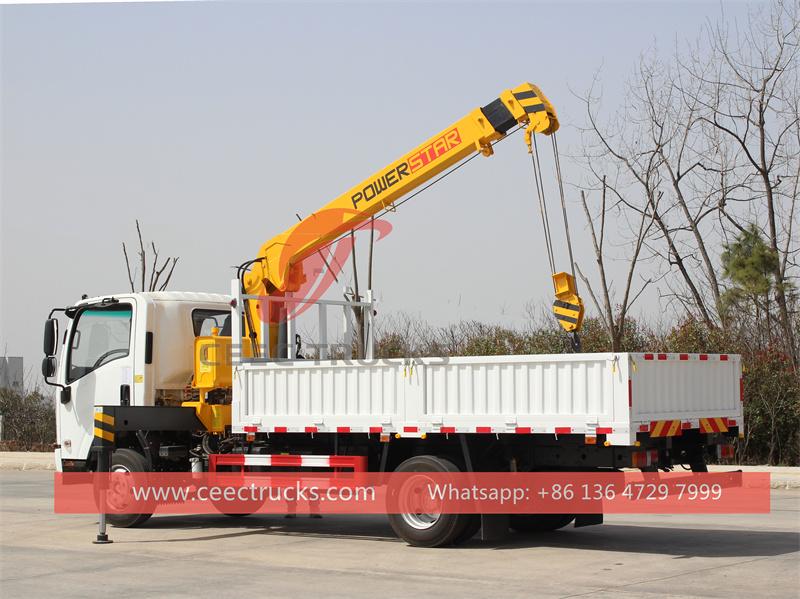

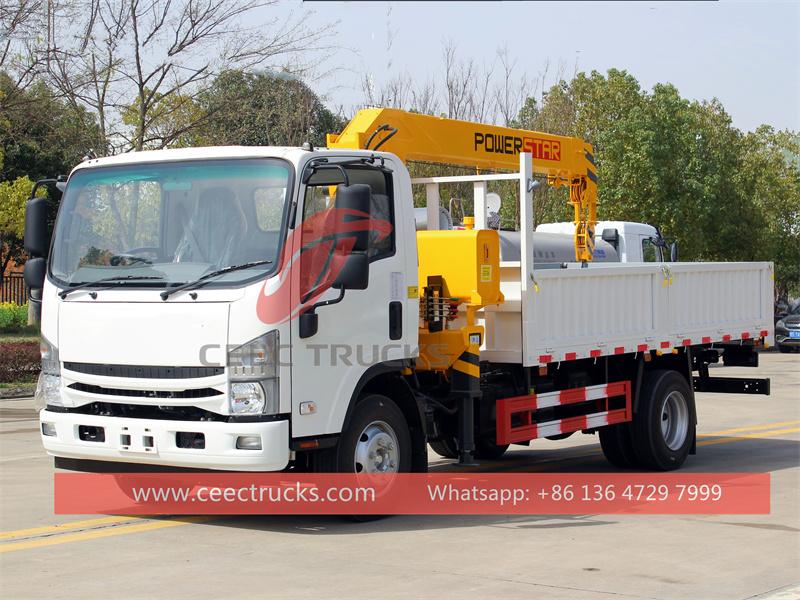

Isuzu NPR cargo truck with 5tons crane



 Applications:



ISUZU RHD 700P 5tons crane truck (also called ISUZU boom crane truck, ISUZU crane truck, ISUZU truck mounted crane, ISUZU boom truck, crane mounted on truck chassis, crane truck manufacturer) is combined ISUZU truck chassis with 5tons crane mounted on it. It is designed to transport and lift heavy loads, making it useful in various industries such as construction, logistics, and utilities. The crane on a crane truck can be operated hydraulically or mechanically, allowing it to lift and lower objects with precision.



There are 5tons telescopic boom cranes and knuckle boom cranes, covering a wide range of capacities as follows:

Telescopic Boom Crane: 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton

Knuckle Boom Crane: 1Ton, 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton, 50T, 100T



CEEC TRUCKS Cranes can be of famous brands as Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



 Key Features:



---- ISUZU chassis ensures perfect performance on driving

---- ISUZU engine, super powerful, no overhaul within 100,000 km.

---- High strength cargo body, nice shape and rational structure.

---- Easy operation and easy maintenance.

---- Premium cranes Palfinger (Canada), Unic (Japan), XCMG (China top brand), Zoomlion, etc.



Crane Features:

--- High lifting capacity for efficient handling of heavy loads.

--- Advanced hydraulic systems and innovative design for superior lifting performance.

--- Safety features like load moment indicators, emergency stop systems, and limit switches for operator safety.

--- User-friendly controls and ergonomic cabins for easy operation.

--- Easy maintenance with readily available spare parts and comprehensive service support.

--- Diverse range of models including all-terrain, truck, crawler, and rough-terrain cranes to meet specific industry

     needs.

--- Superior quality construction for durability and reliability.
--- Trusted global brand with a strong presence and recognition in the construction machinery industry.


 Specifications:



ISUZU RHD 700P truck mounted crane (5 Tons boom crane)

General

Vehicle Brand

CEEC

Chassis Brand

ISUZU

Overall Dimension

7900 * 2500 * 3150 mm

GVW / Kerb Weight

10,500kg / 5,800kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

190 HP

Displacement

5193 ml

Emission Standard

Euro 6

Chassis

Drive Type

Right hand drive

Transmission

6 speed levers with 1 reverse

Wheelbase/No. of axle

4175 mm / 2

Tire Specification

235/75R17.5

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Cargo Box Dimension

4500*2200*500 mm

Crane Type

Telescpoic boom crane

Max Lifting Capacity

5000 kg

Slewing Angle

360° All rotation

Crane Weight

950 kg

Installation Space

850 mm

Control panel

English or Your language

All standard accessories: Basic tool kit, English manual……

Optional

** Knuckle boom crane.

** Hydraulic tipper box.

** Box thickness according to requirement.

** Box height could be nominated
** Remote Control Box optional

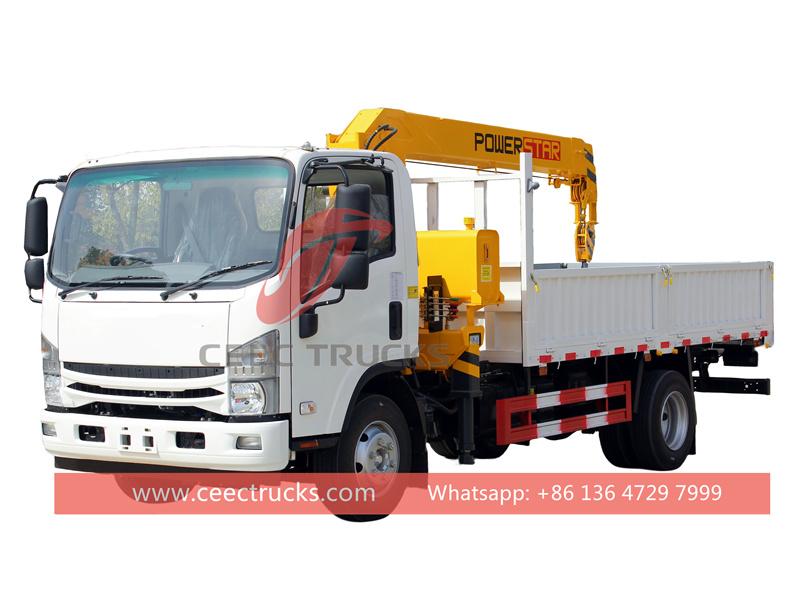

Isuzu NPR cargo truck with 5tons crane

Key words: Truck mounted crane, ISUZU Crane truck, hydraulic boom crane vehicle

Euro 6 type, ISUZU engine, fuel consumption save 20%

Manual 6-shift mechanical transmission gearbox

12 months fast moving spare parts for FREE

Authorized ISUZU boom crane trucks exporter

Training service for ISUZU truck mounted 5tons crane.


Isuzu NPR cargo truck with 5tons crane


Isuzu NPR cargo truck with 5tons crane


China professional boom crane truck supplier and exporter, we supply high quality truck with crane. We can ensure the fast delivery time and 12 months guarantee for our boom trucks. Our crane trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC garbage compactor truck factory review


---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



 export documents
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
