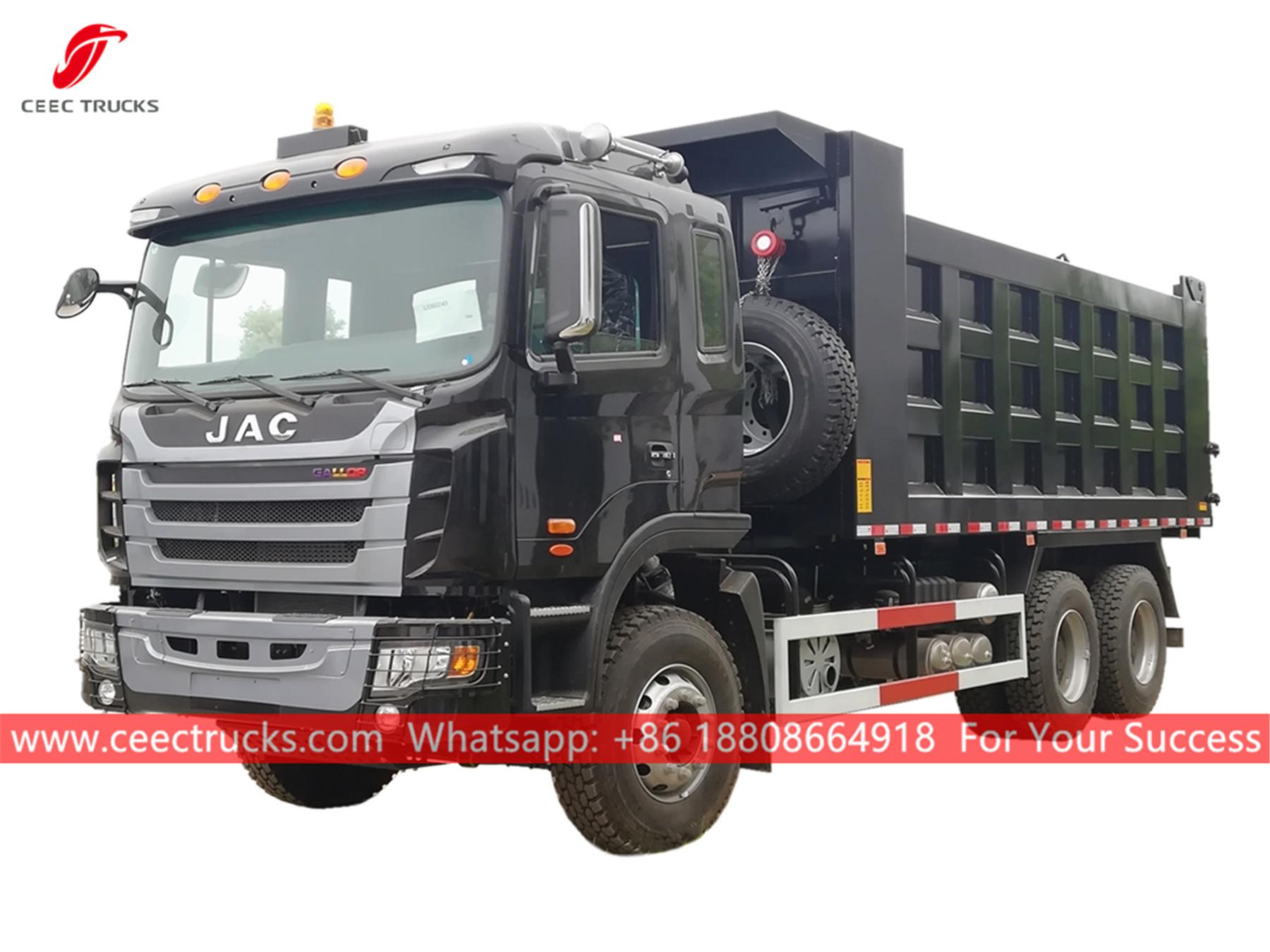

JAC 6x4 Tipper Truck

JAC 40Tons tipper truck, JAC GALLOP 6x4 chassis, FAST 10-shift manual gearbox, famous Chinese brand WEICHAI 310HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now



 Applications:

JAC 6*4 Dumping truck (also called heavy duty dumper truck, JAC dump tipping truck, 10 Wheel Tipping Truck, 40tons dumper trucks, Hyva front lifting tipper truck, rear tipping dump truck, hot sale tipper lorry, low price sand tipper truck) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.

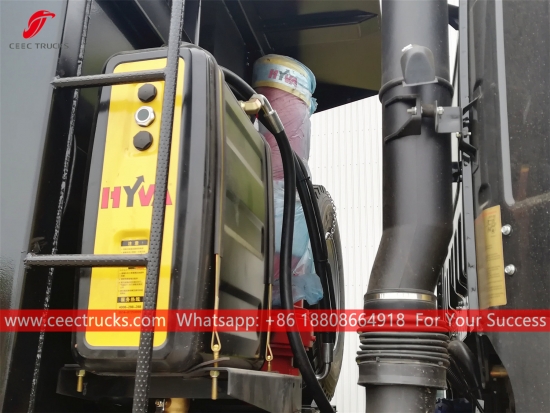

CEEC Trucks dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- JAC heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



JAC 6*4 tipper truck (40 tons)

General

Vehicle Brand

CEEC

Chassis Brand

JAC

Overall Dimension

8495 * 2500 * 3500 mm

GVW / Kerb Weight

25,000kg / 12,450kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI diesel engine

Power

310 HP (228 KW)

Displacement

9726 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

6X4, (LHD or RHD)

Transmission

FAST  10 speed levers with 2 reverse

Wheelbase/No. of axle

3900+1350 mm / 3

Tire Specification

11.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

85 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

40 Tons

Cargo body

5600*2300*1500

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

Cylinder type

T Type or Domestic 180 or HYVA 150

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

FAST 10-shift manual gearbox, 10 forward & 2 reverse

Expert for producing JAC Dump truck over 10 years with good reputation

Carbon steel material

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for JAC tipper trucks



CEEC TRUCKS is the best supplier of JAC Dump vehicles in China. Our JAC 6*4 dump trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC garbage compactor truck factory review


---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



 export documents
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
