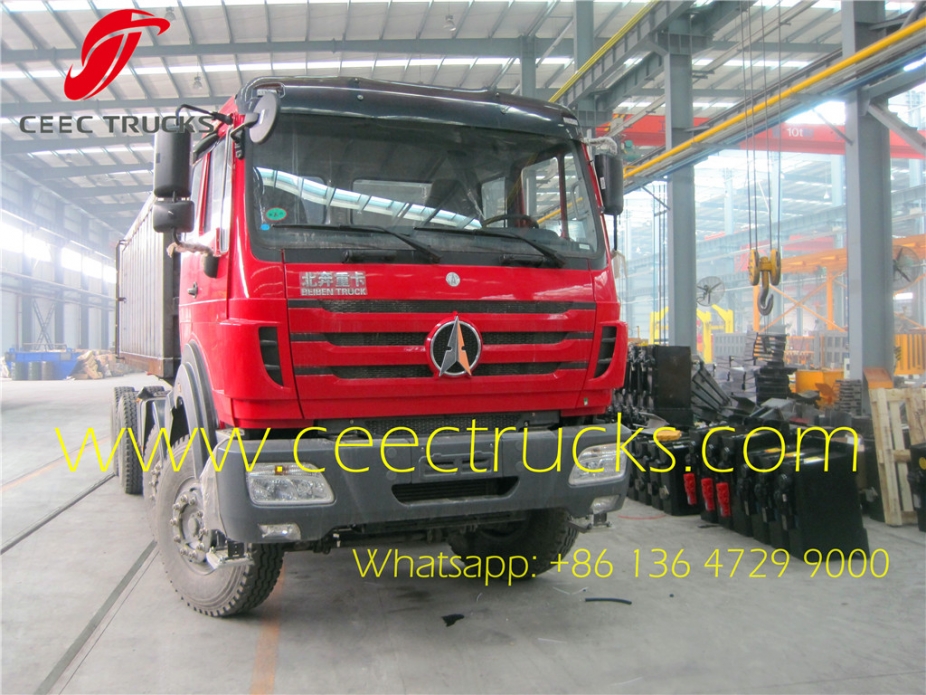

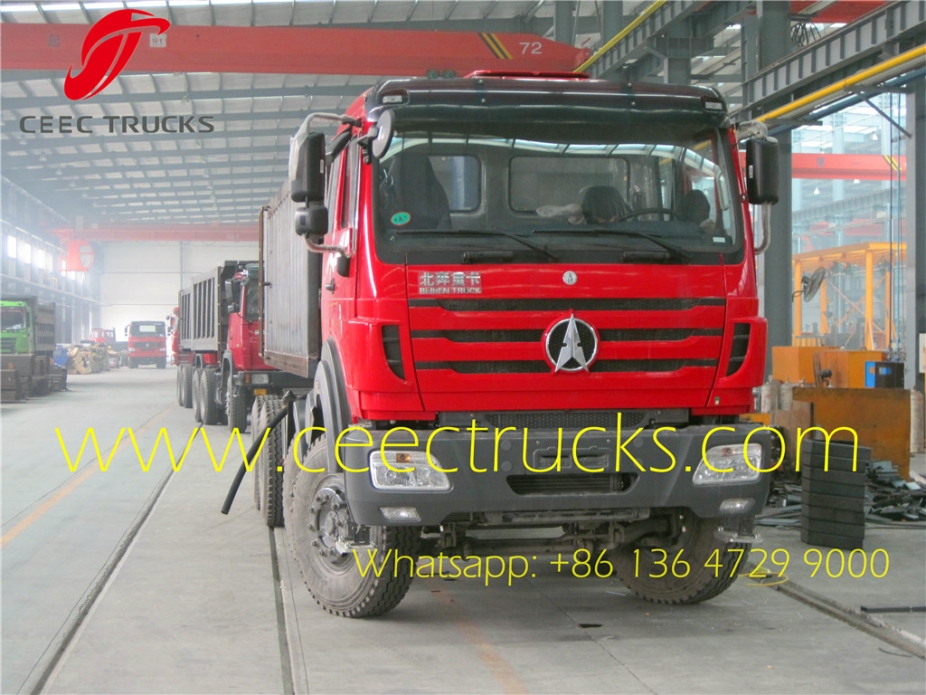

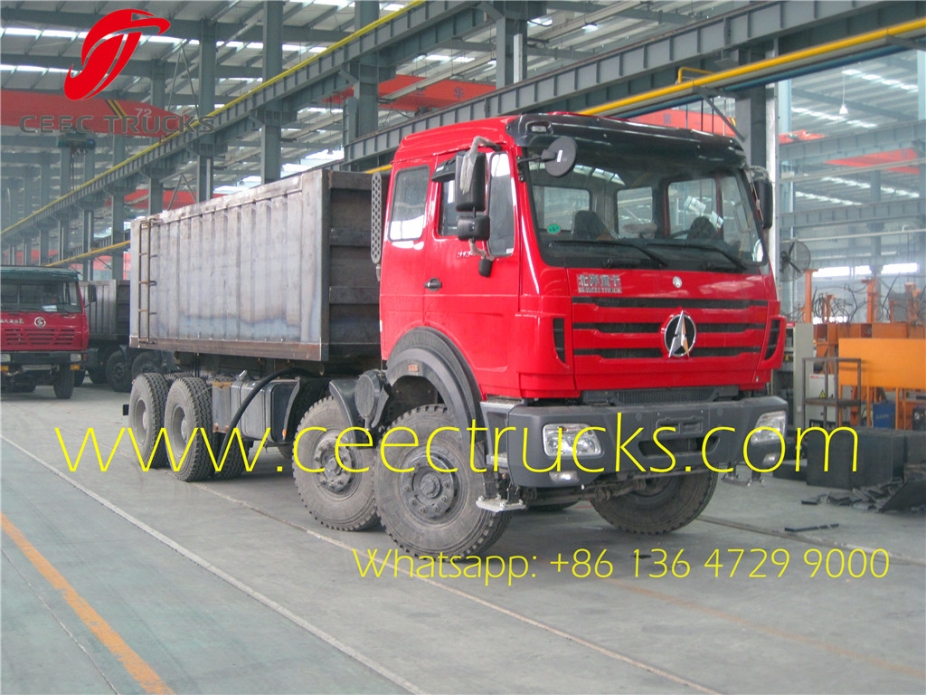

Beiben 50 tons NG80 dump truck Weichai diesel truck

Beiben quarry dump truck 50ton benz technology 12 wheel dumper

Congo beiben 3142 dumper trucks, WP10.420 euro 3 engine with 420HP, FAST 12-sfhit manual mechanical gearbox, Q345 material dumper body with loading capacity 70T, super suitable for mining project. Our 420HP beiben tipper trucks widely export Africa kenya, congo, algeria, etc

  • Product Origin:

    China CEEC
  • Shipping Port:

    Shanghai Seaport
  • Lead Time:

    30 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $54,000-63,000
  • Market Price:

    $60000
contact now

Powerful 420HP Beiben dumper trucks



beiben 3142 NG80 Dump truck



CONGO customer buying beiben 12 wheeler 80T dumper truck advanced features:

Beiben 3142 dumper truck equipped with new NG80B cabin, which has attractive appearanc, and export to congo, kenya and tanzania

WEICHAI engine WP10.420E32 with 340ps, and FAST 12shift manual mechinical gearbox for easy operation

Beiben 12 wheeler tipper trucks loading capacity can be up to 70 T

Specific heavy truck metallic framework and stressed-skin construction, processing security of same level of European automobiles

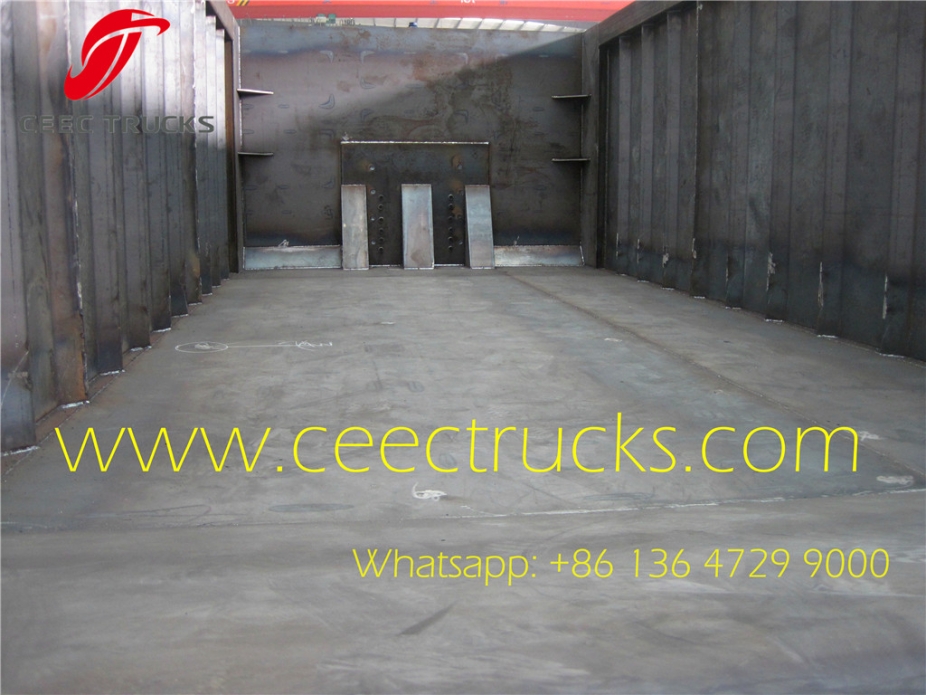

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

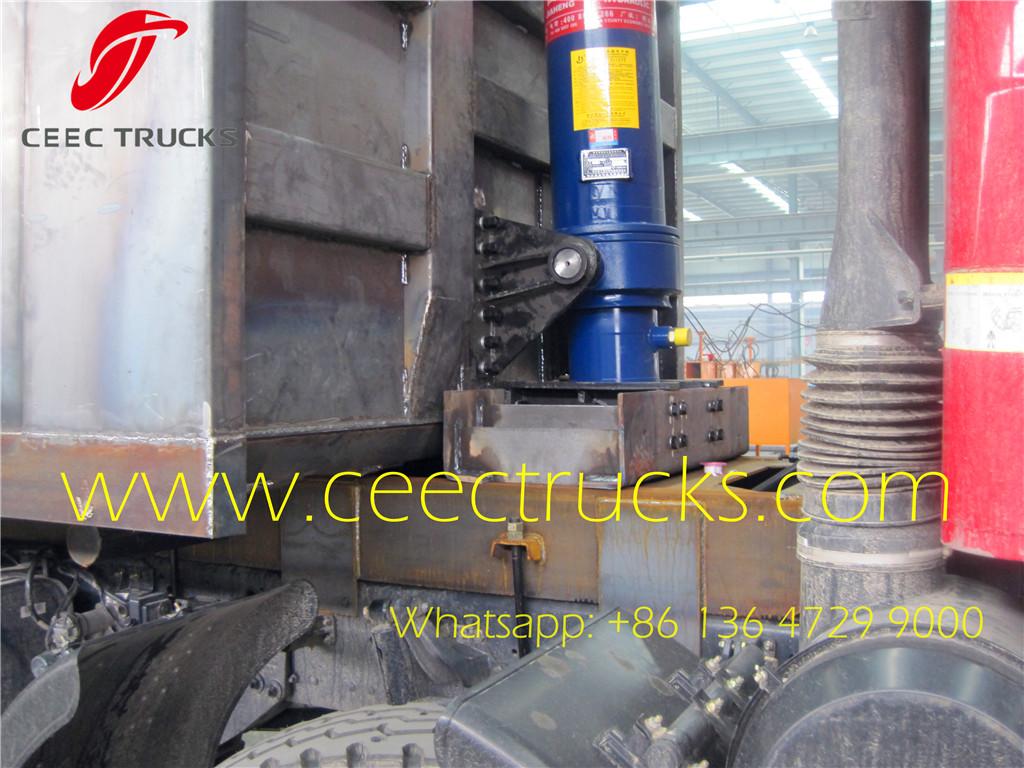

Hydraulic system can be original import brand HYVA hydraulic system

Optional dumper body can be normal shape, square shape, U-shape, etc



Beiben 12 wheel dumper truck supplier



we provides greater durability and superior performance with its newly Beiben NG80B 3142 reinforced heavy-duty trucks of responding to customer’s needs, our beiben tipper trucks widely export Asia countries and Africa contries. mainly include Kenya, Algeria, Congo, Zambia, Tanzania, Cameroon, etc.

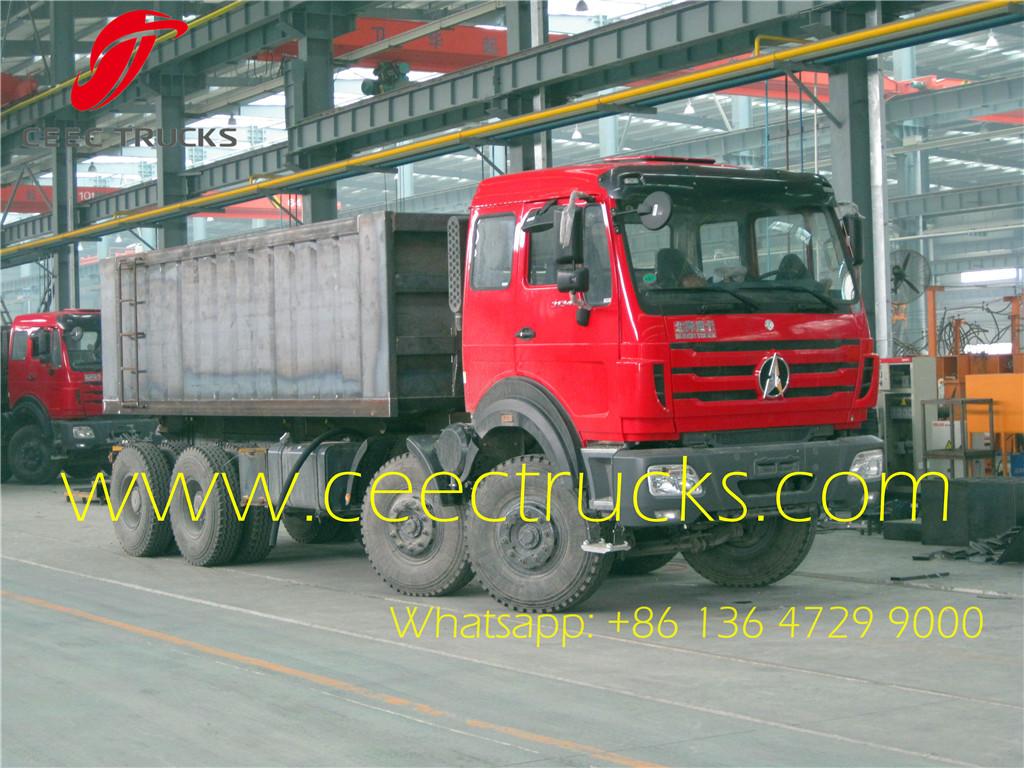

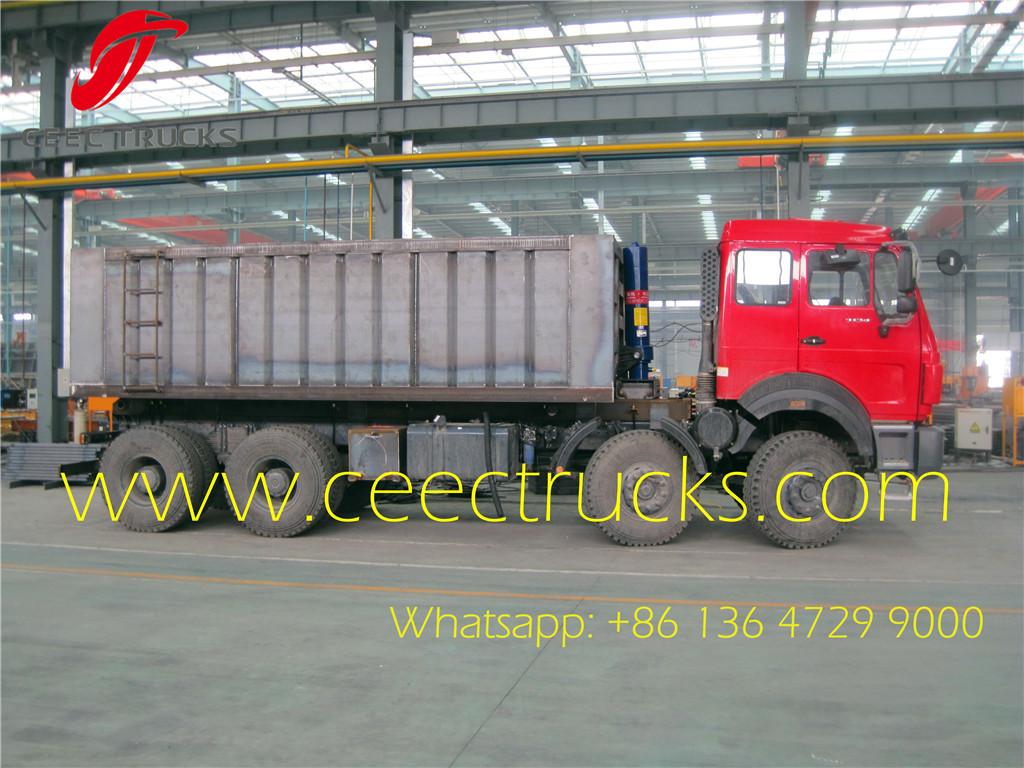

beiben 3142 NG80 Dump trucks supplier



beiben 3142 NG80 Dump trucks supplier



Similar key words: beiben 3142dumper truck, north benz 3138 tipper trucks, beiben 12 wheeler dumpers, beiben100T dumper trucks, north benz 80 T tipper truck, beiben U-shape tipper

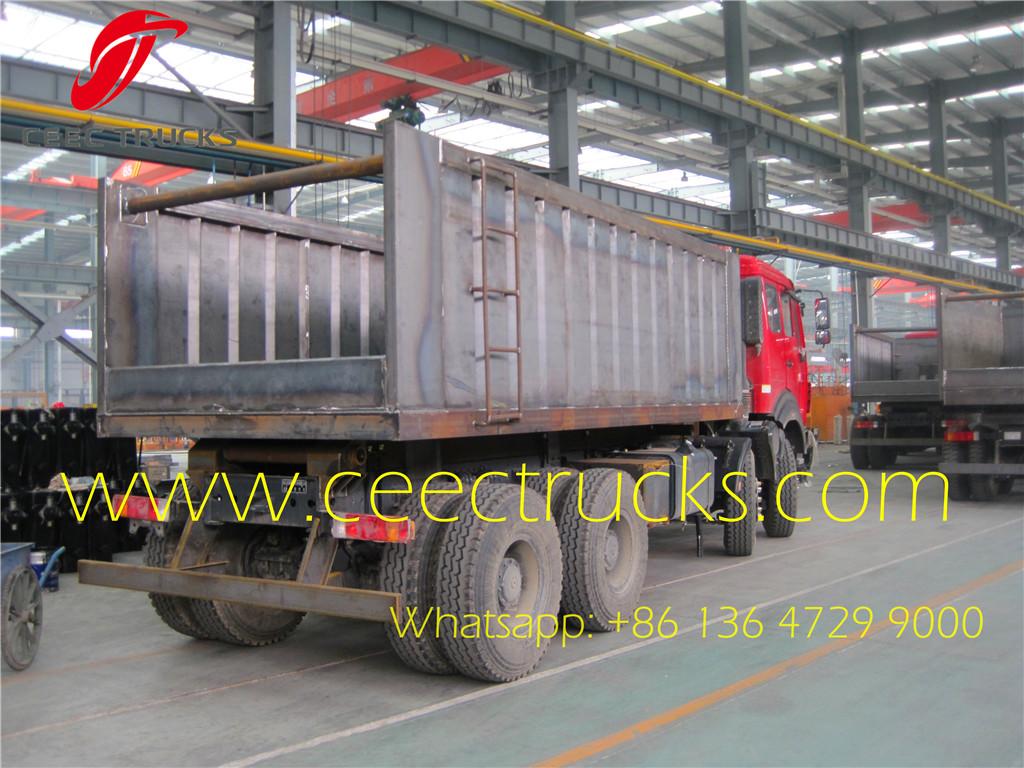

Beiben 12 wheeler dumper truck advantages



Beiben 3142 dumper truck / beiben 8*4 tipper truck manufacturer

Overall dimension(mm)

11380x2500x3484

Wheel base  (mm)

1500+4450+1450

Curb weight kg

11200

Engine

Model

WP10.420E32 (Wei Chai engine. Euro II, Based on Style technology, made in China)

Power, max   kw/rpm

247/2200

Max torque(Nm/rpm)

1250/1200-1600

Emission standard

EUROII

Fuel tanker capacity   L

300

Clutch

Model

GFX420, Single dry frictional disc,Hydraulic boosting

Gearbox

Model

ZF5S-112GP(ZF technical, mechanism,9gears,1 reverse gear, manual,made in China,produed by Bei Ben Transmission)

Brake system

Service brake

Brake gap can be adjusted automatically, double circulation air brake system

Assistant brake

Engine exhaust brake

Park brake

Potential springs pressing on middle and rear wheels

Steering system

Model

ZF8098

Frame of vehicle

Fish belly shape, variable width, variable section side beam structure

Front axle (Mercedes Benz  Technology)

Double-shoe pneumatic brake, non-driving steering axle

Middle and Rear axle (Mercedes Benz Technology)

Double-shoe pneumatic brake, ductile casting casing, with hub redactor, double reduction driving axle

Tyre

12.00R20

Electrical system

Battery

2X12V/135Ah

Generator

28V-35A

Starter

5.4Kw/24V

Cab

Long cab, made by full steel material, anticrash performance can be ensured by double hollow chamber structure. Inner A/C

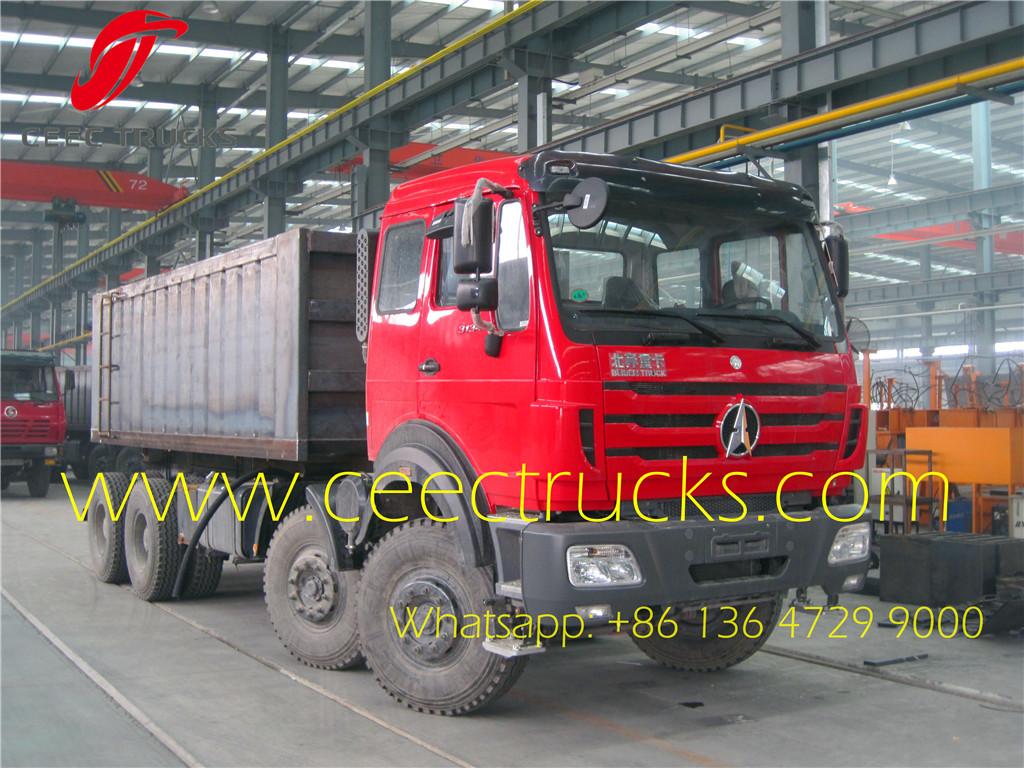

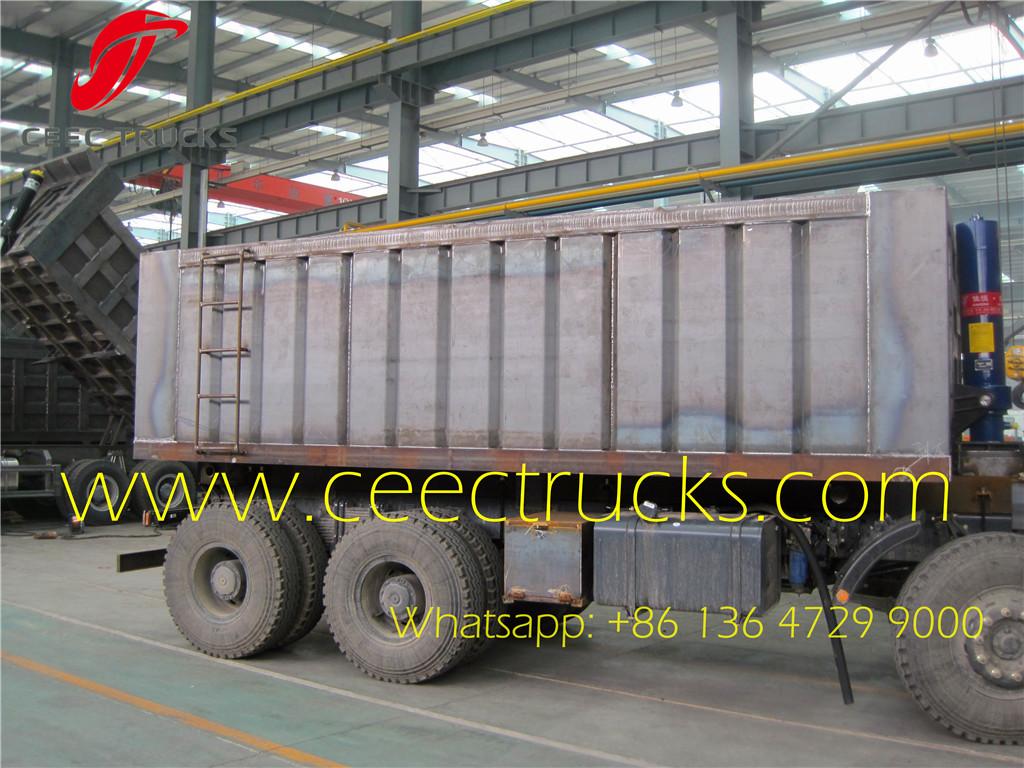

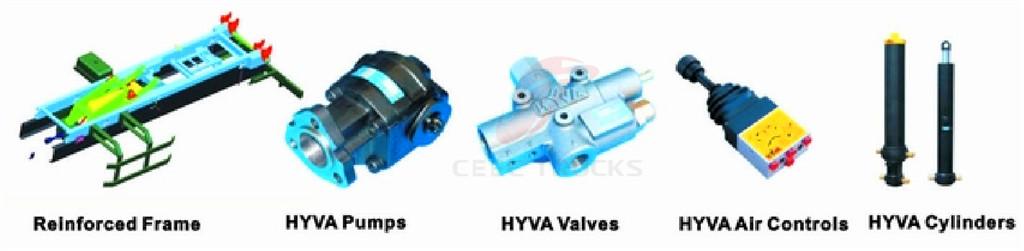

Beiben 12 wheeler dumper truck advantages



Beiben 12 wheeler dumper truck advantages



Beiben 12 wheeler dumper truck advantages    Beiben 12 wheeler dumper truck advantages



Beiben 12 wheeler dumper truck advantages    Beiben 12 wheeler dumper truck advantages



Optional beiben dump trucks on sale





Other beiben trucks display






SaveSaveSave

CEEC TRUCKS supplied north benz 3138, 3142 tipper truck frame is molded by stamping and this guarantees the strength of the crossbeams. The axle technique unique to Benz vehicles boasts of features such as high reliability, fuel economy, high attendance rate, strengthened structure, large cargo capacity, all making it suitable for engineering projects such as road and bridge construction, water conservancy projects, as well as transportation of various heavy goods.


Euro 2 or 3 type, WP10.420E32 engine, fuel consumption save 20%

FAST 12-shift manual mechanical transmission gearbox

Mercedes Benz technology but 30% price lower

Genuine12 months fast moving spare parts for FREE

Authorized beiben dumper trucks exporter

Training service for north benz 3138, 3142 dumper trucks

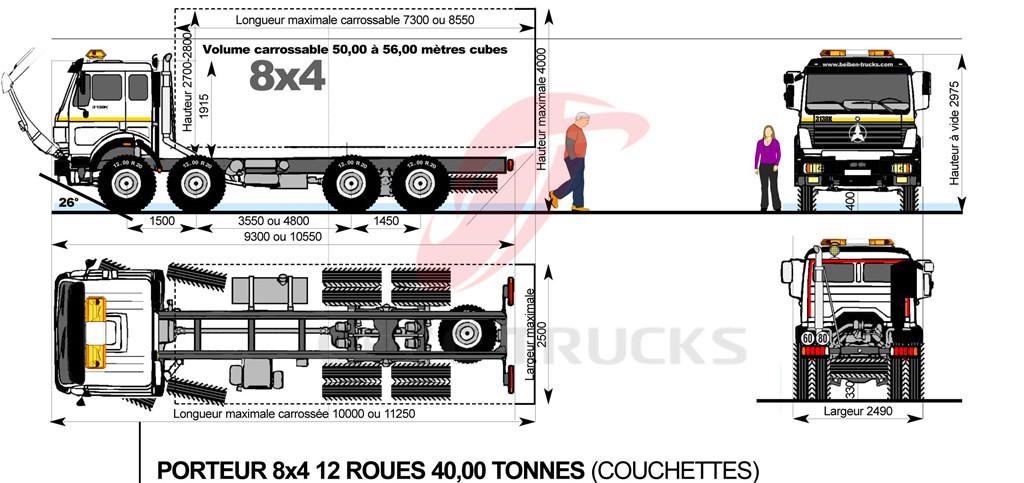

beiben 3142 tipper trucks drawing

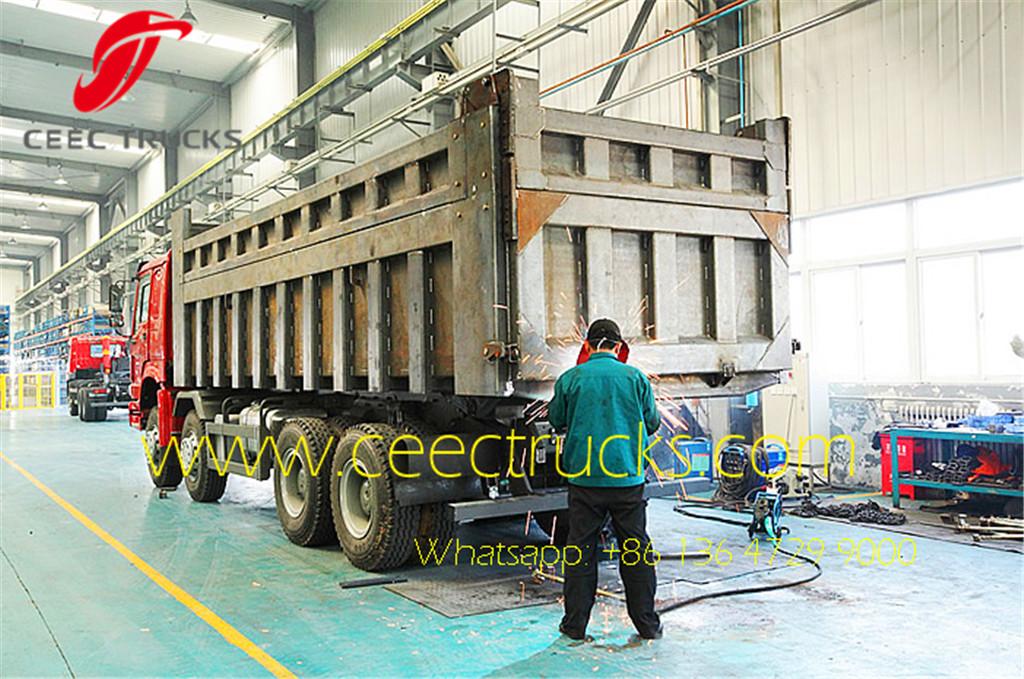

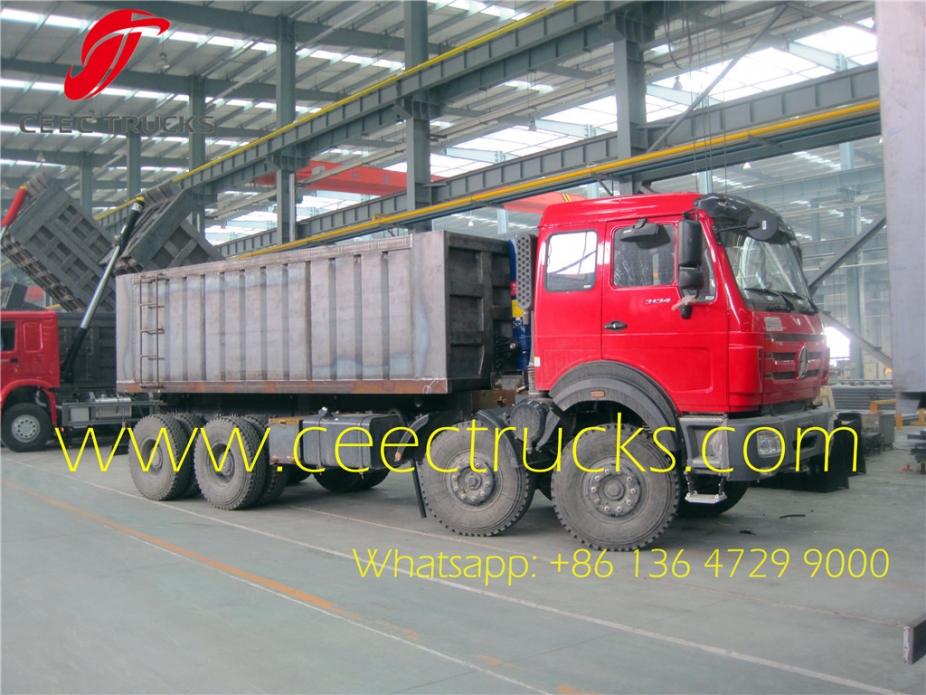

beiben 3142 tipper truck workshop

(Beiben 3142 tippper trucks under production in CEEC factory)
