Isuzu 15 cbm waste compactor trash truck

The Isuzu 15m3 waste management truck is an excellent choice for waste management companies and municipalities seeking a reliable, efficient and environmentally friendly waste disposal solution. With its powerful hydraulic system, intuitive controls and advanced safety features, this truck is sure to exceed your expectations and help you streamline your waste disposal process.

Product Origin:
China CEEC
Shipping Port:
China main port
Lead Time:
30 Days
Payment:
T/T, West Union

contact now

Isuzu 15 cbm waste compactor trash truck also called Isuzu GIGA 4X2 waste compactor truck,Isuzu GIGA 5X chassis cabin rear loader compactor,Isuzu GIGA 15cbm garbage disposal truck, Isuzu GIGA 4x2 waste collection truck,Isuzu GIGA 15cbm waste compressor truck, is a professional vehicle designed for efficient waste disposal. It has an ultra-large capacity of 15 cubic meters and adopts advanced rear-loading compression technology, which can quickly compress and load large amounts of garbage, reduce the number of transportation times, and improve work efficiency.

The Isuzu 15 cbm waste compactor trash truck is equipped with an environmentally friendly and energy-saving engine that meets emission standards and reduces the impact on the environment. The combination of a sturdy and durable chassis and a spacious and comfortable cab ensures stable driving under various complex road conditions and provides a comfortable working environment for the driver. In addition, it is equipped with an intelligent operating system and safety auxiliary equipment to simplify the operating process and improve operational safety. Whether it is urban garbage collection, industrial waste disposal or emergency response in special occasions, Isuzu 15 cbm Waste Management Trash Truck can demonstrate its excellent performance and wide application value.

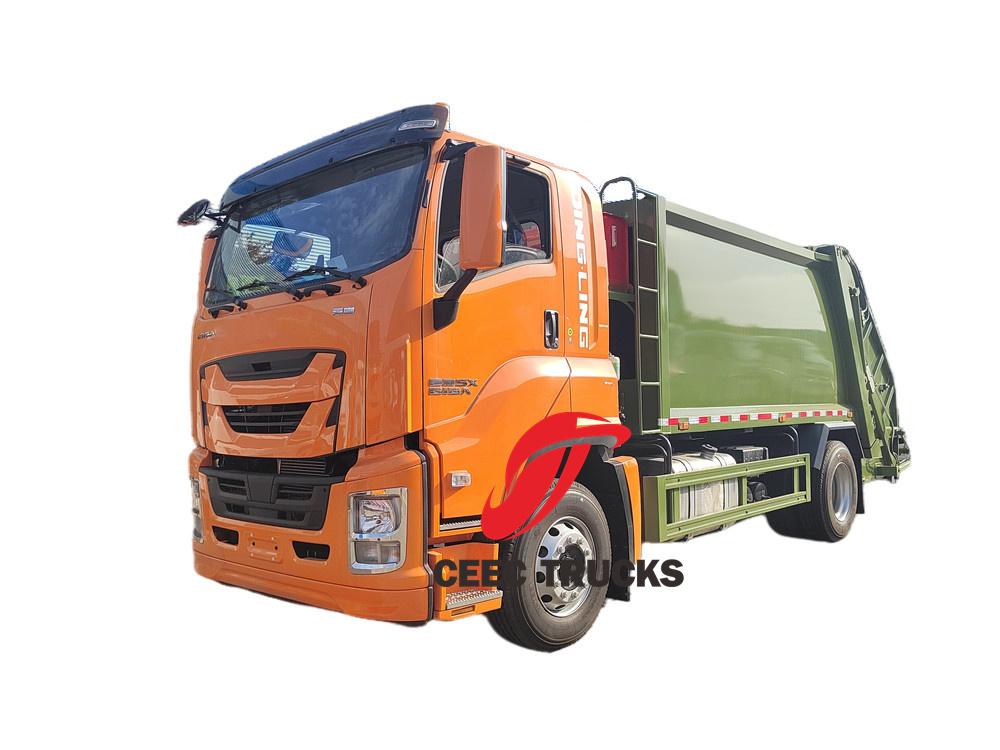

Isuzu 15 cbm waste management trash truck

The Isuzu 15 CBM waste management garbage truck represents a new era in waste management efficiency, blending advanced technology, superior performance and environmentally friendly design. With its Isuzu GIGA rear-loading compactor system, high-capacity storage and durable structure, this truck sets the standard for waste compactor trucks. Whether in an urban or industrial setting, the Isuzu 15 CBM Waste Management Garbage Truck delivers unmatched performance, reliability and sustainability. Experience the future of waste management with this exceptional vehicle from Isuzu.

Isuzu 15 cbm waste compactor trash truck
Truck model	PT5180GYX
Cabin	Isuzu FVR GIGA 5X cabin,driving type 4*2 LHD,one and half row,2 passengers,a sleeper, air conditioner,USB,AC
Overall Size(mm)	870025503200 mm
Bin capacity(mm)	15CBM
Wheel base(mm)	5550
GVW(kg)	18000
Curb weight	11200
Front axle loading capacity(kg)	6500kg
Rear axle loading capacity(kg)	11500kg
Engine	Model	6HK1-TCG61
	Type	4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Hose Power(HP)	240HP/177KW
	Displacement	7790ml
	Emission standard	Euro 6
Max speed	95km/h
Tire	295/80R22.5(6+1 tire)
Transmission	Fast 8-speed,manual
Superstructure	Body capacity	15cbm
	Design	Whole unit with Leakage Proof Design
	Sewage tank	200 liters
	Filling work cycling time	20~25 s
	Garbage Compact Ratio	1/3 - 1/4
	Discharge model	Horizontal Ejection
	Control system	The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on the tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push-buttons, and manually in case
	Control panel	English or Your language
	All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual...
Brake system	Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Electrics	Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light
Optional	Back alarm and Camera can be equipped. Italy multi-way valve can be choose.

In the world of waste management, the Isuzu 15 CBM waste compactor truck stands out as a strong champion. Built on the rugged Isuzu GIGA 5x cab chassis, this revolutionary vehicle combines efficiency, durability and innovation to redefine waste management solutions. Equipped with industry-leading features such as the Isuzu GIGA rear loader compactor and trash compactor technology, this truck sets a new standard for waste management efficiency.

Isuzu 15 cbm waste management trash truck

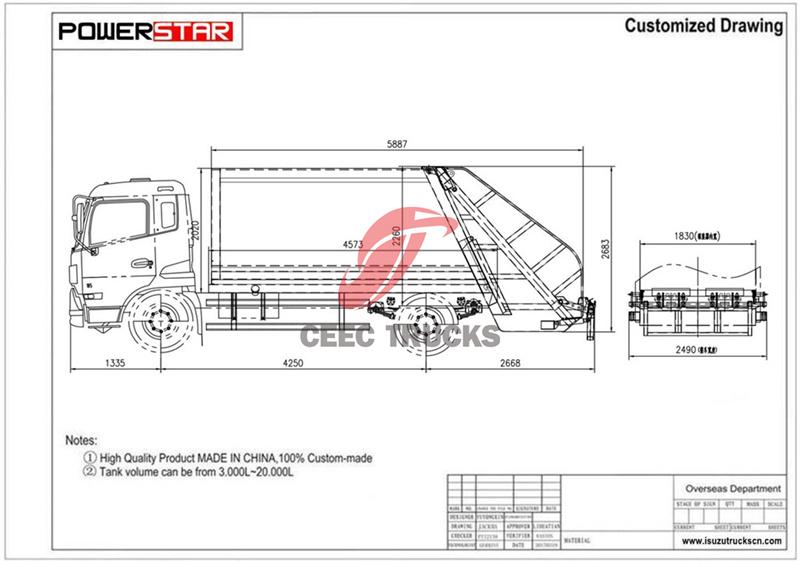

Technical drawing of Isuzu GIGA 15cbm garbage compactor truck

★ Isuzu GIGA Rear Loader Compactor: The Isuzu GIGA rear loader compactor system integrated into the design of this truck ensures maximum efficiency in waste collection. This cutting-edge technology enables fast and hygienic waste disposal, making it a top choice for municipalities, waste management companies and other organizations looking to streamline their waste collection operations.

★ 15 CBM High Capacity: With a 15 CBM waste capacity, this garbage truck can easily handle large amounts of waste. Whether dealing with urban areas, industrial or residential areas, the Isuzu 15 CBM waste management garbage truck effectively meets the needs, ensuring timely and efficient waste disposal.

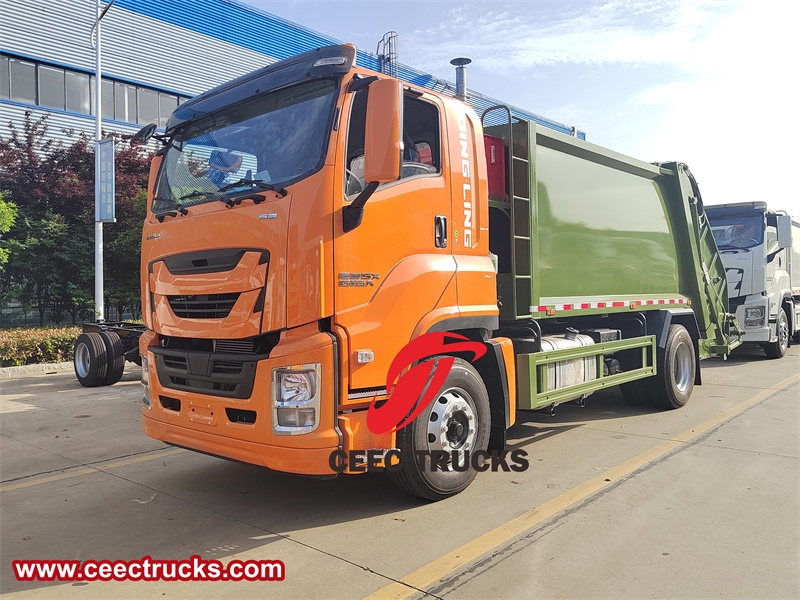

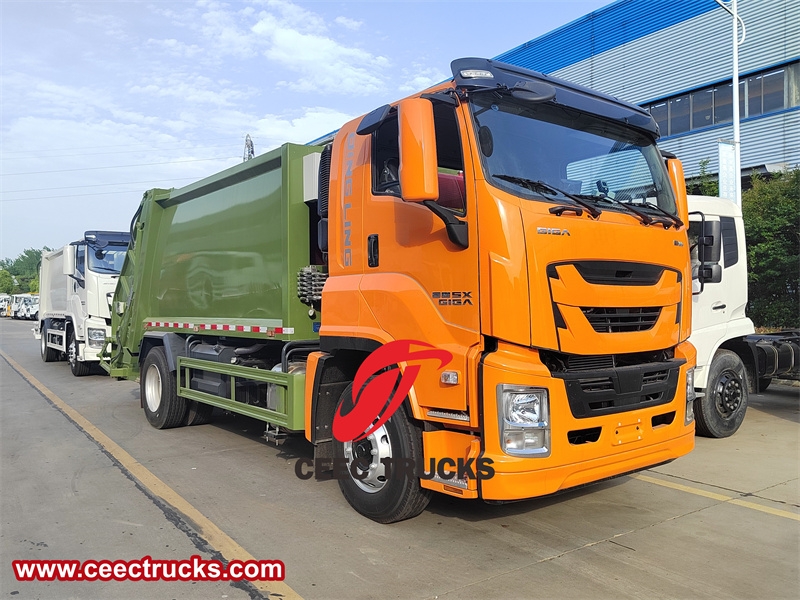

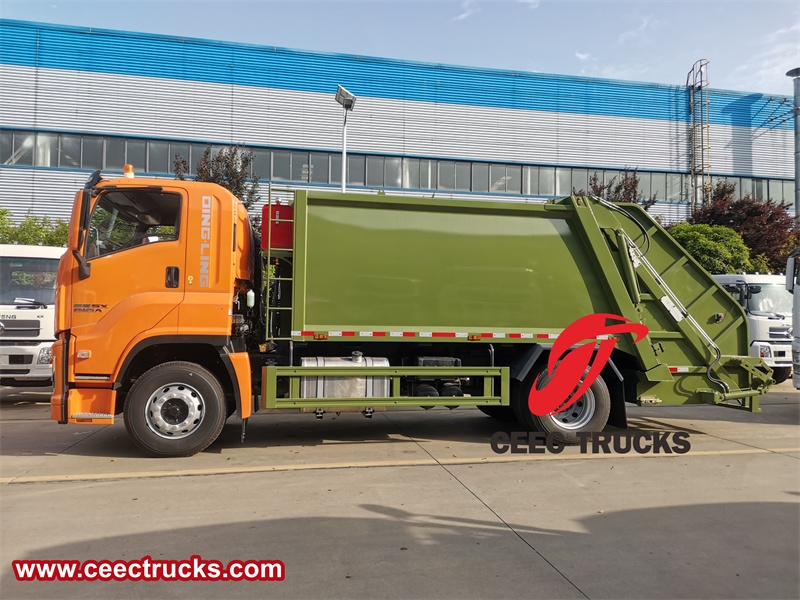

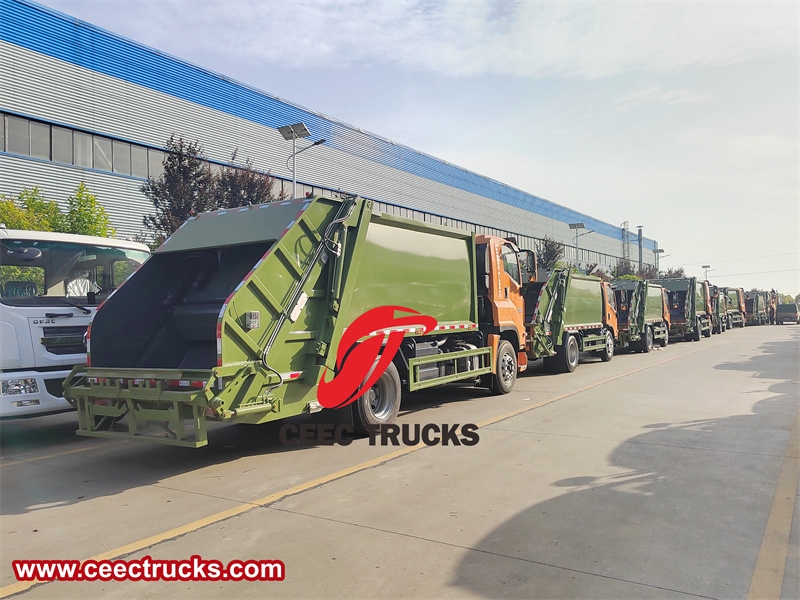

Isuzu GIGA 4X2 waste compactor truck

★ Innovative Waste Compaction Technology: The Isuzu waste compactor features state-of-the-art compaction technology that not only reduces the amount of waste, but also optimizes collection routes. By compacting waste efficiently, this truck helps minimize the number of trips required for waste disposal, resulting in significant cost savings and environmental benefits. Designed to be easy to operate, the Isuzu GIGA 4x2 garbage compactor features intuitive controls that allow the driver to easily load and unload waste quickly and efficiently. The truck’s compact design also makes it easy to maneuver in tight spaces, allowing for easy access to narrow streets and alleys.

★ Eco-Friendly Solution: As sustainability becomes increasingly important in waste management practices, the Isuzu 15 CBM garbage disposal truck stands out as an eco-friendly solution. By optimizing the waste collection process and reducing carbon emissions through efficient operations, this truck meets the growing global focus on environmental protection.

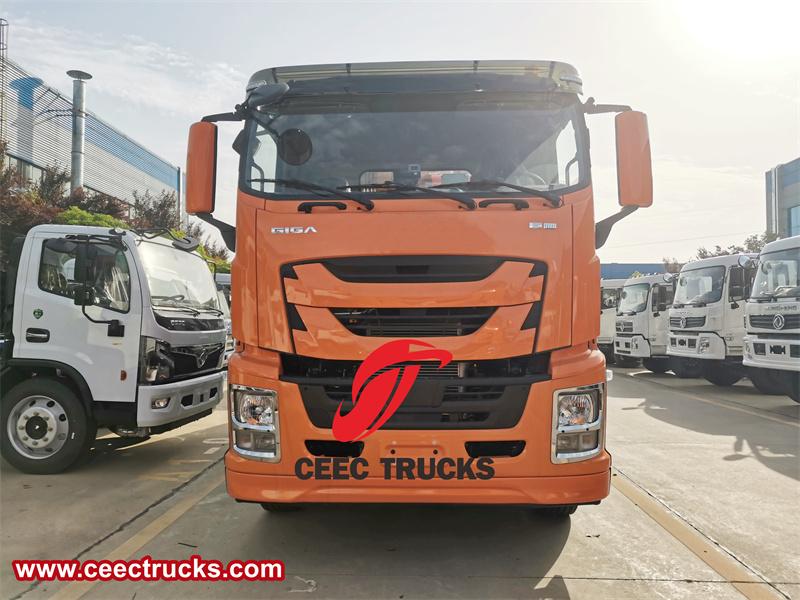

Isuzu GIGA 5X chassis cabin rear loader compactor

★ Durable Design: Built on the reliable Isuzu GIGA 5x cab chassis, this garbage truck is rugged enough to withstand the rigors of everyday use. Whether navigating city streets or traversing rough terrain, the Isuzu 15 CBM trash collection truck is built to perform reliably and continuously in demanding conditions.

★ Versatile Applications: From municipal waste collection to commercial waste disposal, the Isuzu GIGA 5X cabin refuse compactor truck offers a variety of applications across a variety of industries. Its flexibility and efficiency make it ideal for businesses and organizations seeking a comprehensive waste management solution.

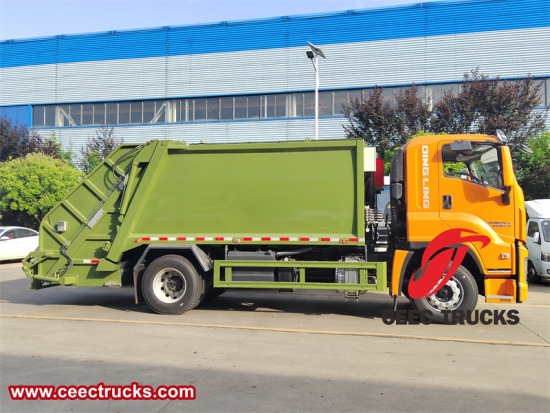

Isuzu GIGA 15cbm garbage disposal truck

Isuzu 15 cbm Waste Management Trash Truck has a wide range of application scenarios, mainly suitable for various environments and occasions that require efficient and large-scale garbage disposal. The following are its main application scenarios:

1. Urban garbage collection and treatment

Residential and commercial areas: In densely populated urban residential and commercial areas, garbage is generated in large quantities and frequently. With its efficient garbage compression capacity and large-capacity loading space, Isuzu 15 cbm Waste Management Trash Truck can quickly collect and transport garbage to keep the urban environment clean.

Public places: Public places such as parks, squares, and stadiums often generate a lot of garbage after activities. This garbage truck can quickly clean up the garbage in these places to ensure the smooth progress of activities and the cleanliness of the environment.

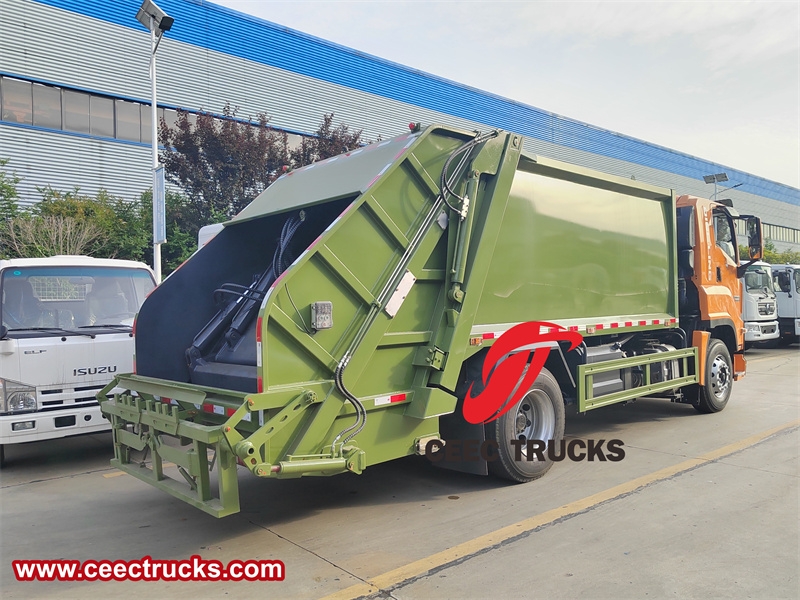

Isuzu GIGA 4x2 waste collection truck

2. Industrial waste treatment

Factories and industrial parks: Various waste and garbage are generated during industrial production. Isuzu GIGA 4x2 rubbish compactor truck is suitable for collecting and treating these industrial wastes to ensure the cleanliness of the production environment and the smoothness of the production process.

Construction sites: The amount of construction waste generated at construction sites is large and varied. This garbage truck can effectively compress construction waste, reduce the number of transportation times and costs, while keeping the construction site clean and safe.

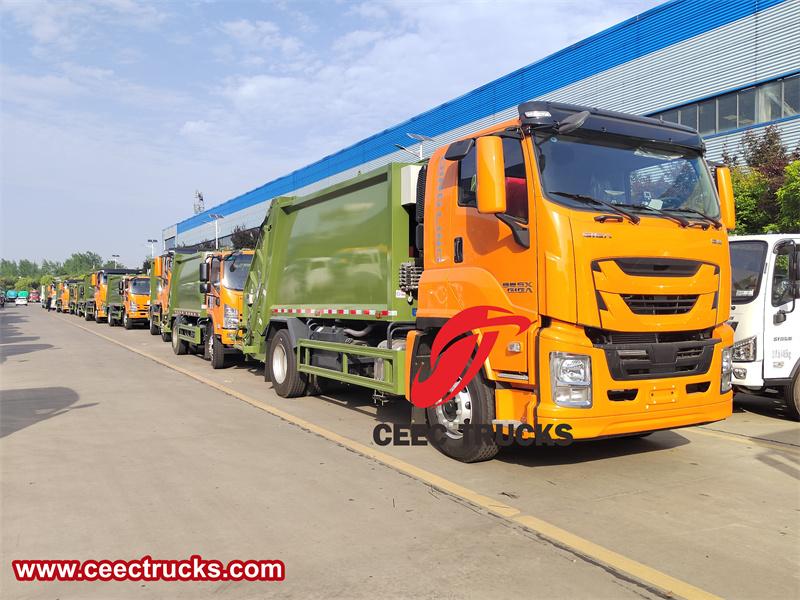

Isuzu GIGA 15cbm waste compressor truck

3. Sanitation Department and Waste Treatment Center

Sanitation Department: As an important tool for urban sanitation departments, Isuzu GIGA 15 cbm garbage truck can assist sanitation workers to efficiently complete garbage collection and treatment tasks and improve the level of urban environmental sanitation.

Waste Treatment Center: In the waste treatment center, this garbage truck can be used in conjunction with other waste treatment equipment to achieve waste sorting, compression and transportation and other processing processes, improving the efficiency and effectiveness of waste treatment.

4. Special Occasions and Emergency Response

Natural Disaster Site: After a natural disaster (such as an earthquake, flood, etc.), a large amount of garbage and waste is often generated in the disaster area. Isuzu 15 cbm Waste compactor truck can respond quickly to help clean up the garbage in the disaster area and restore the environment in the disaster area.

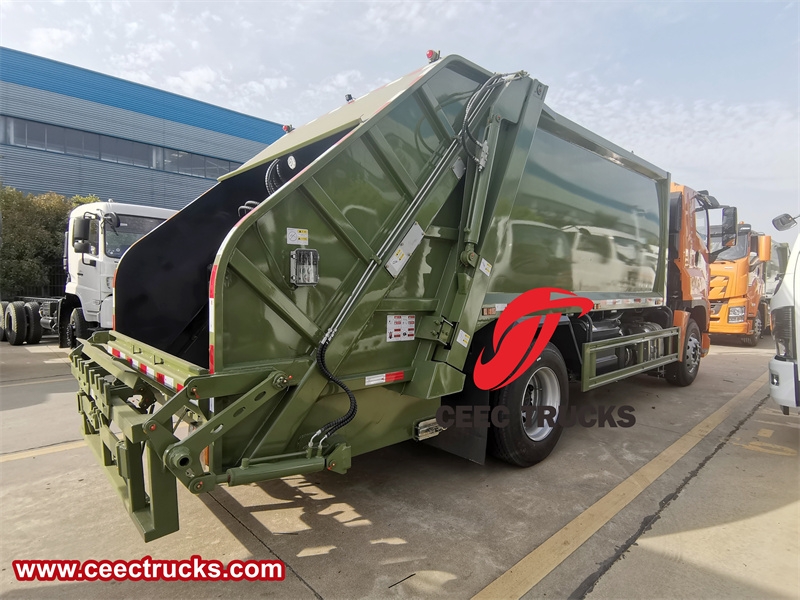

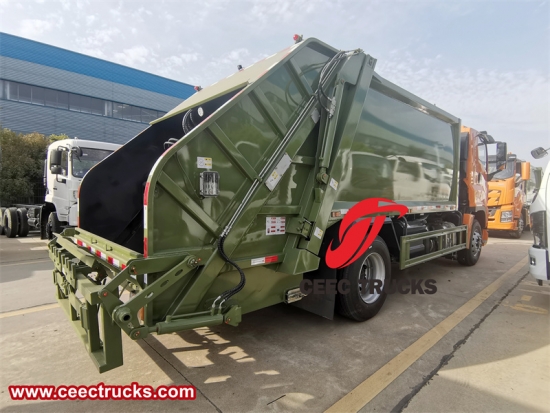

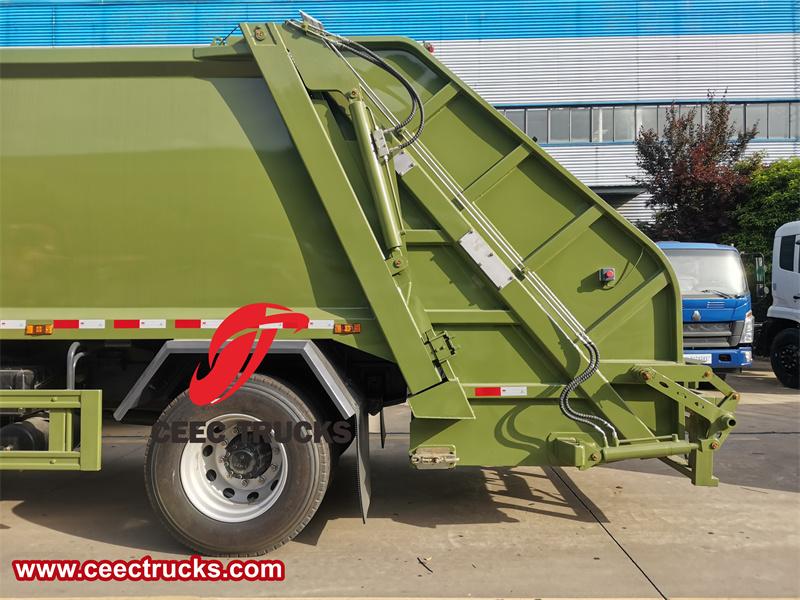

Tailgate side view

★ Enhanced Safety Features: Safety is a top priority in waste management operations, and the Isuzu 15 CBM Waste Management Garbage Truck puts safety first with its advanced features. From ergonomic design elements to cutting-edge safety technology, this truck ensures a safe working environment for operators and pedestrians.

★ Redefining Efficiency: By combining cutting-edge technology, high-capacity waste management capabilities, and environmentally friendly design, the Isuzu 15 CBM Waste Management Garbage Truck redefines the efficiency of waste handling operations. Its innovative features and performance-driven design make it an outstanding choice for those seeking top-notch waste management solutions.

★ Customer-centric Approach: Designed with the customer in mind, the Isuzu 15 CBM Waste Management Garbage Truck offers a user-friendly experience that improves operational efficiency. From intuitive controls to convenient maintenance features, every aspect of this truck has been carefully designed to streamline waste management processes and maximize productivity.

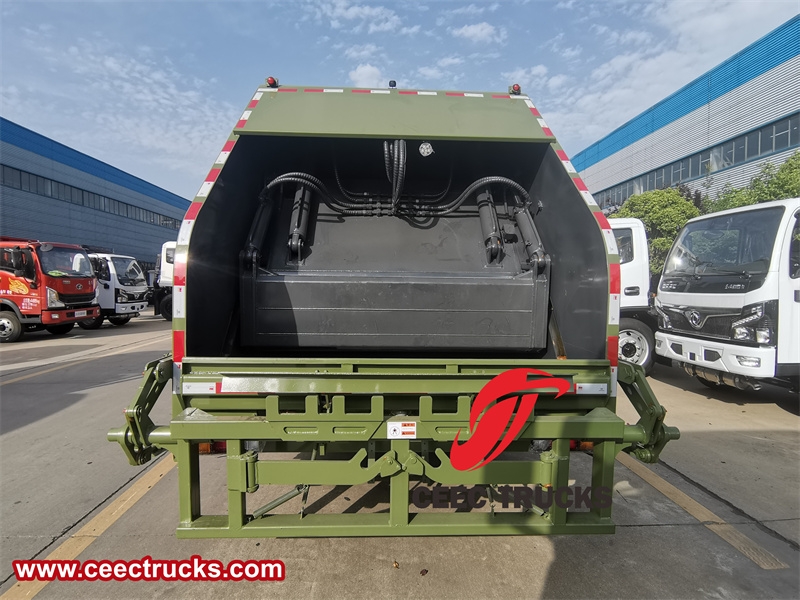

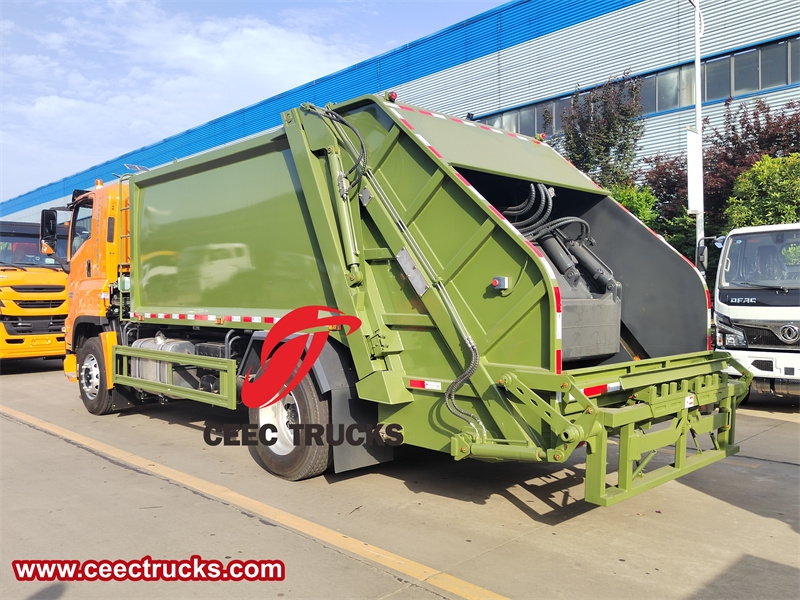

Tailgate side view

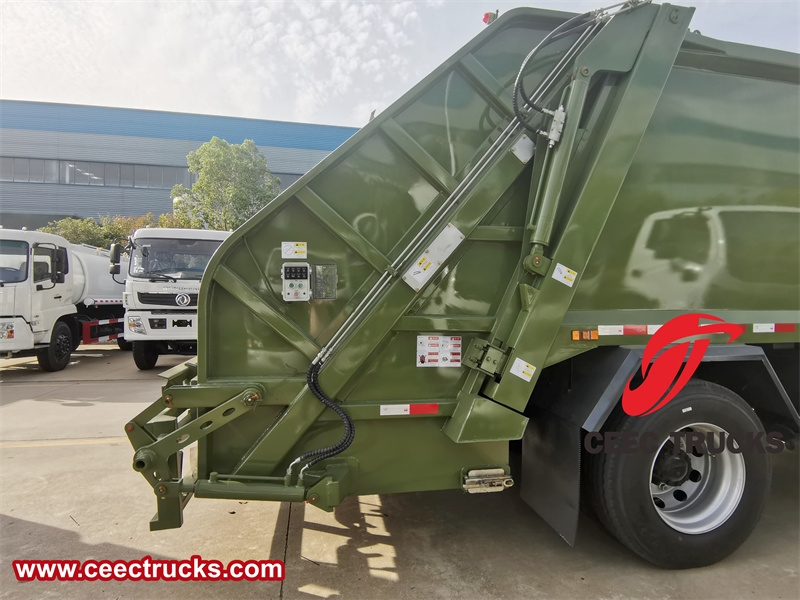

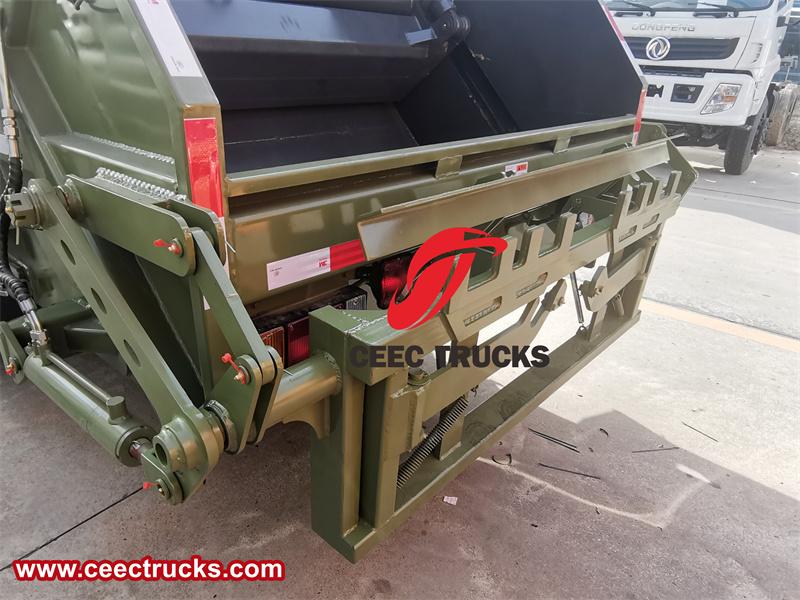

Flip mechanism

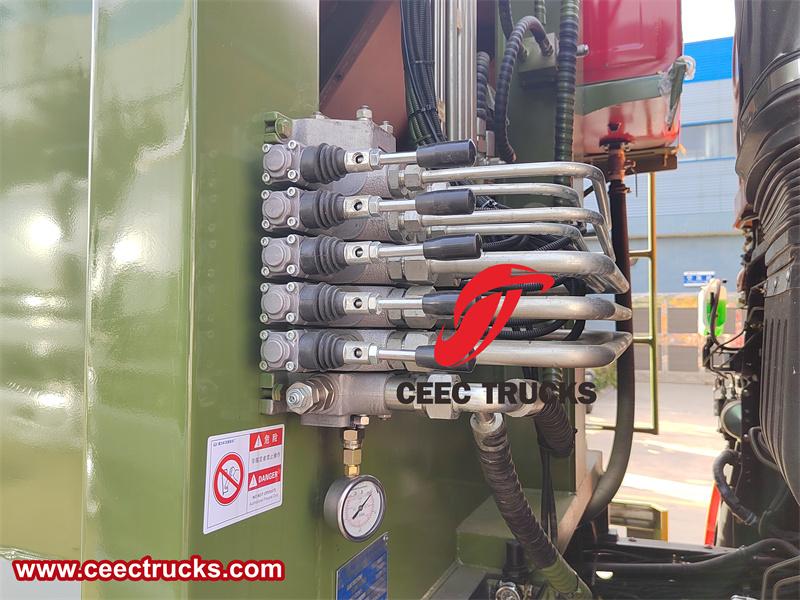

Front hydraulically operated valve

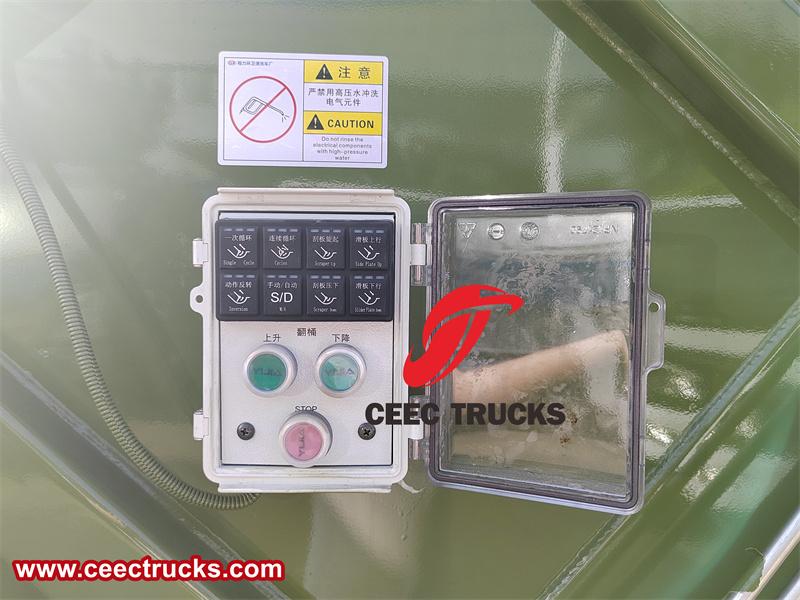

Rear operation box

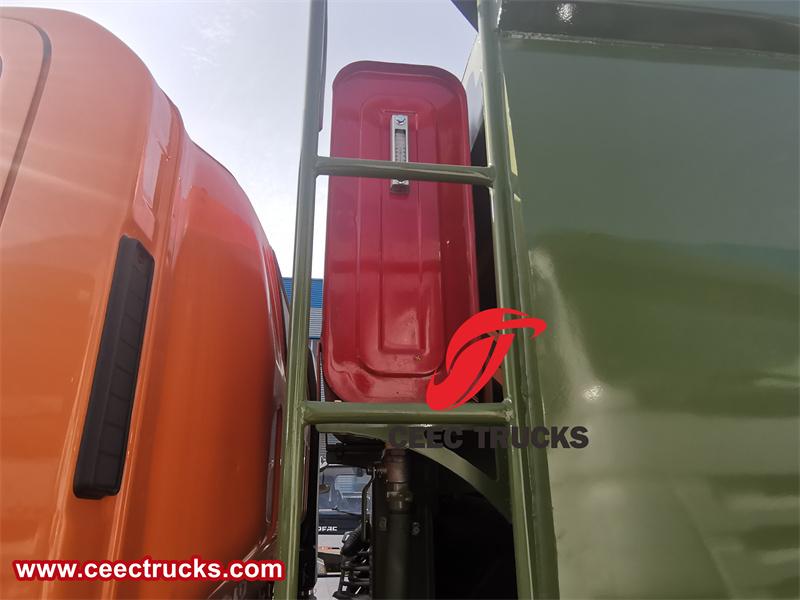

Hydraulic oil tank

★ 6HK1 diesel engine, super powerful

★ Expert for producing waste compressor trucks over 10 years with good reputation

★ Carbon steel material

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for rubbish compression trucks

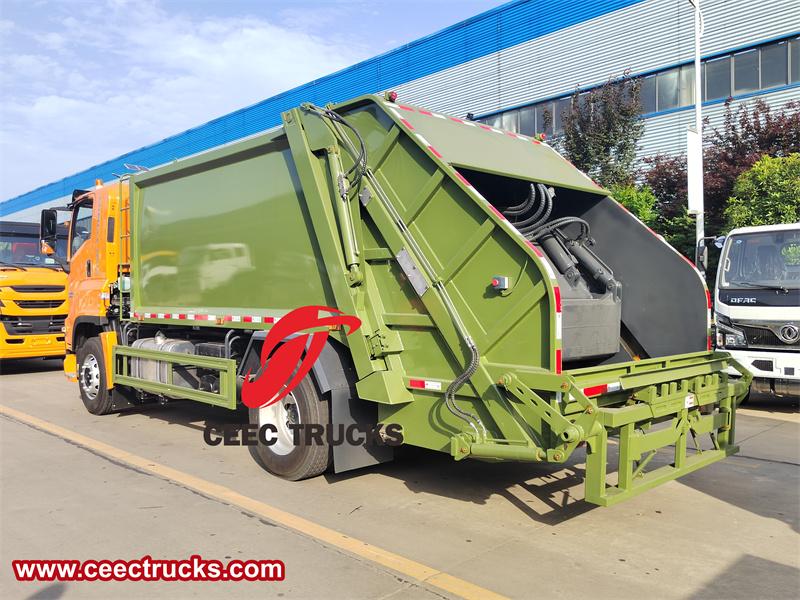

Isuzu 15 cbm trash truck rear loader

CEEC trucks 5000 square meters workshop for garbage compactor trucks.china best garbage compactor truck manufacturer. We are China best sanitation trucks plant and professional upper structure manufacturer. established in 1983 , we specialized in customized garbage compactor truck, road sweeper truck, sewage tanker trucks, water tanker truck, fuel tanker trucks. and other special purpose vehicles.

garbage compactor truck
