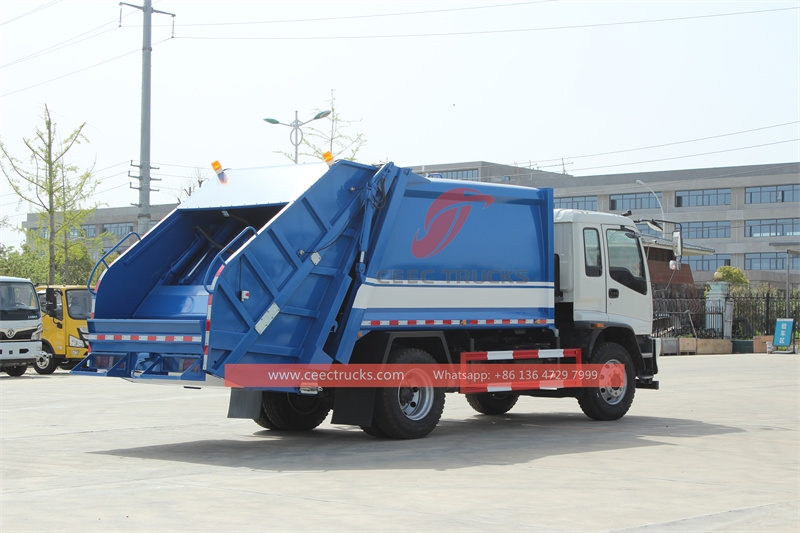

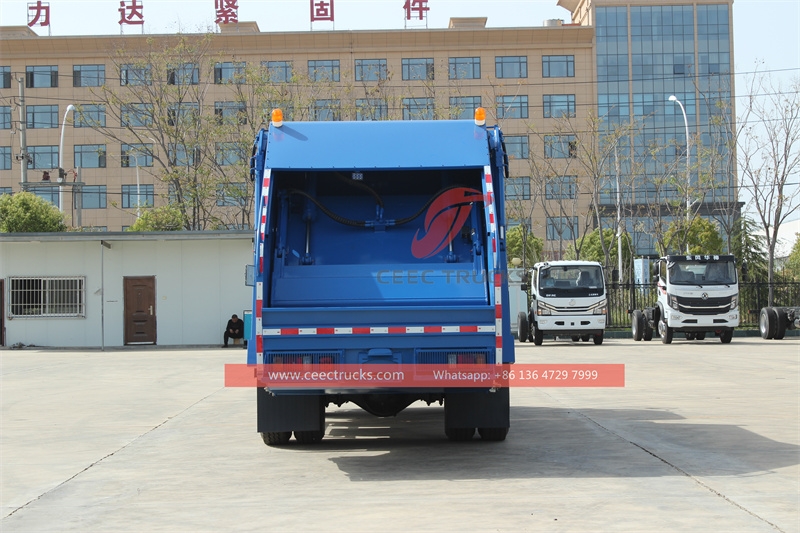

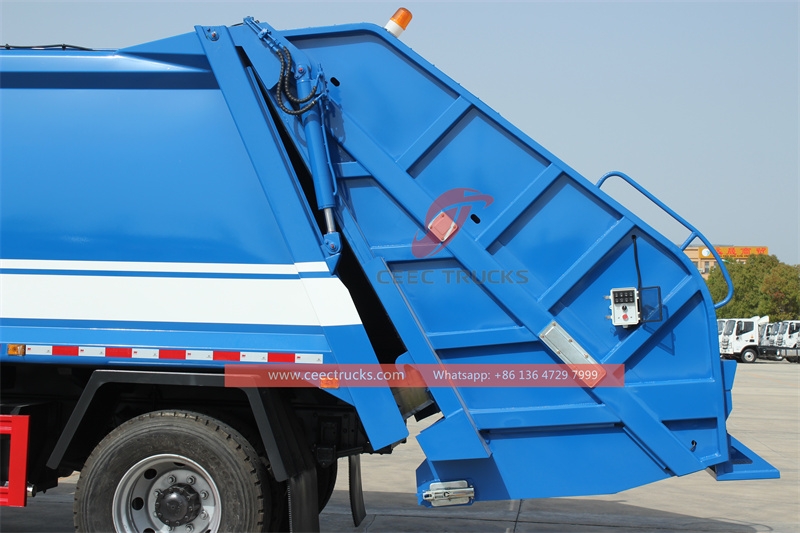

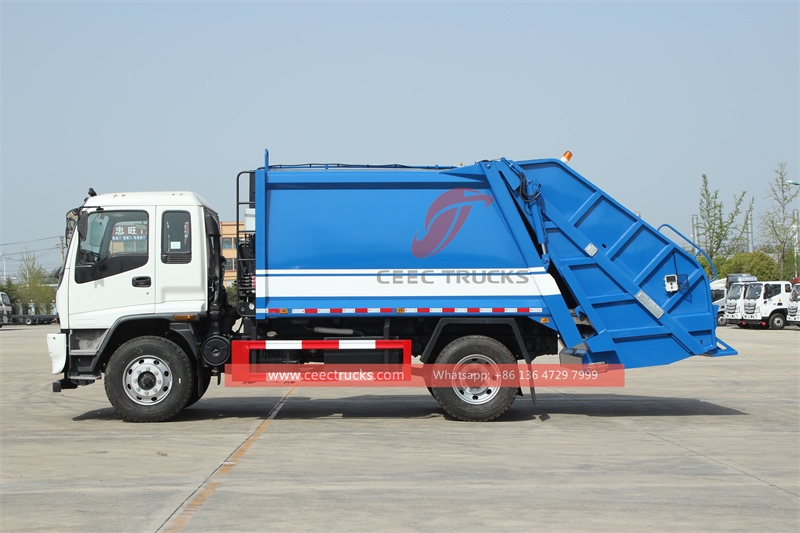

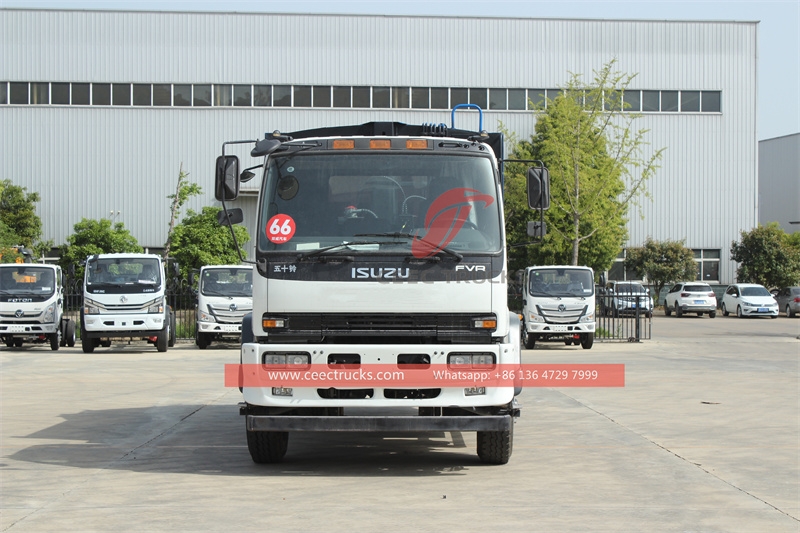

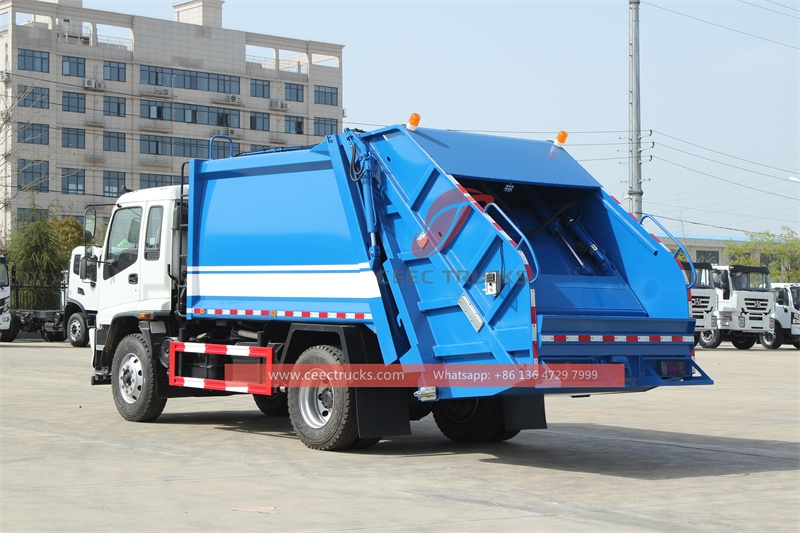

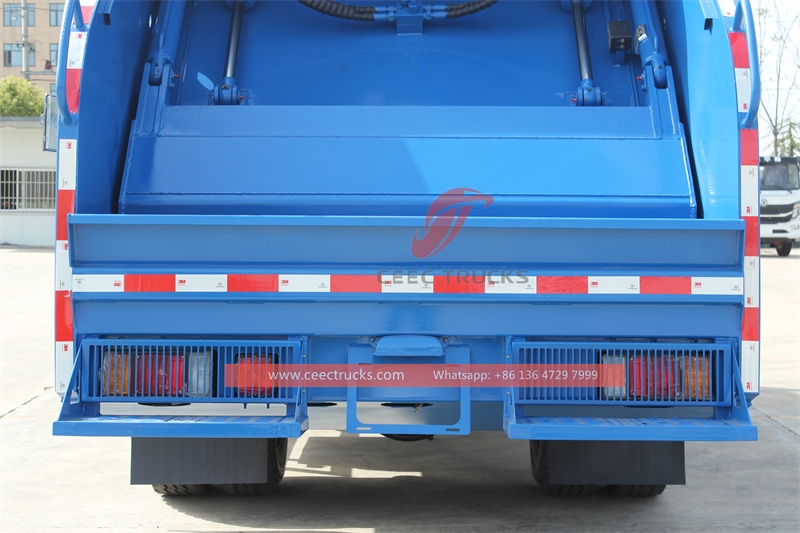

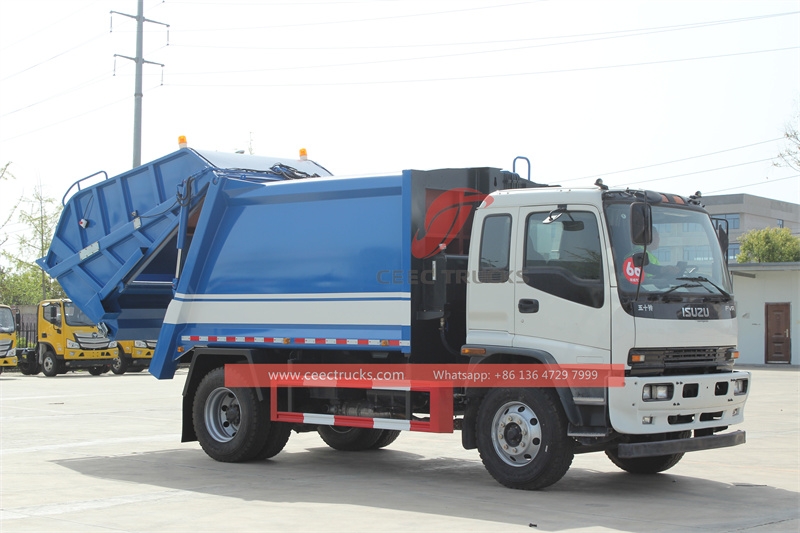

Japan ISUZU 16 CBM garbage compactor truck made in China

ISUZU FVR 16CBM garbage compactor truck with factory direct sale

China TOP quality heavy type ISUZU 16cbm garbage compactor truck, which use ISUZU brand 4HK diesel engine, with engine power up to 240HP, MLD 6-shift manual gearbox for easy operation, strong quality steel material compactor body with inside and outside antirust painting, all logos as required

Product Origin:
China CEEC
Shipping Port:
Shanghai Seaport
Lead Time:
15 Days
Payment:
T/T, West Union
FOB Price:
USD $45,000-55,000
Market Price:
$51000

contact now

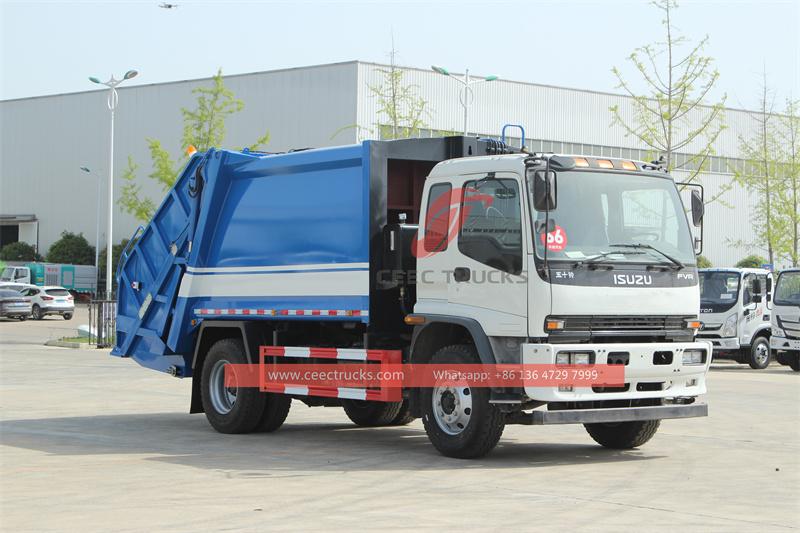

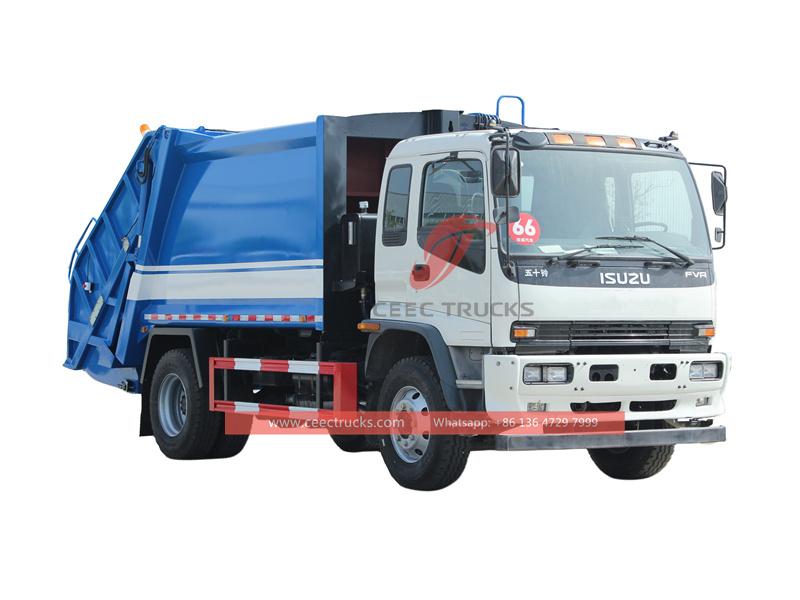

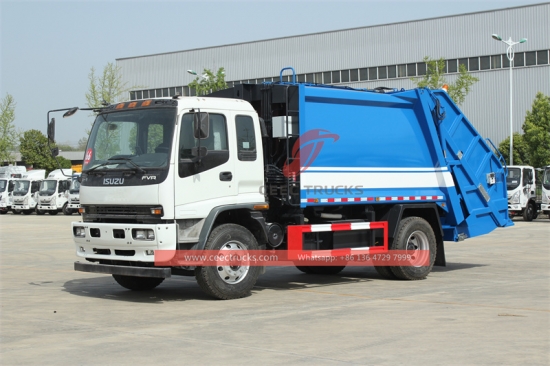

ISUZU FVR 16CBM garbage truck

Applications:

ISUZU FVR 240hp Garbage compactor truck (also called Garbage compressed truck, hydraulic pressing garbage truck, rear loader garbage truck, compactor garbage truck, trash compressor truck, back loading garbage compression truck, waste collection vehicle) is a high-end specialized vehicle used for the collection and transportation of solid waste. It efficiently compacts and compacts large amounts of scrap to maximize space utilization inside the truck.The truck equipped a hydraulic compaction mechanism inside a hopper where the waste is loaded. As the waste is added, the compactor reduces its volume by applying pressure, making it possible to collect and transport more waste in a single trip. It is commonly used in municipal waste management systems to efficiently collect, transport, and dispose of garbage and other solid waste materials.

CEEC TRUCKS compactor garbage truck reduces back-and-forth transport times and prevents rubbish and stinks from spreading and avoids second-time pollution produced by polluted water.

The refuse compactor vehicle tail-gas discharge reaches EUROPEAN standard. which is safe and environmental-protective.

Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU diesel engine, super powerful, no overhaul within 100,000 km.

---- Compression body capacity from 3 to 20 Cublic Meter.

---- Easy operation and easy maintenance.

---- Virious types of refuse container lifter are available.

Specifications:

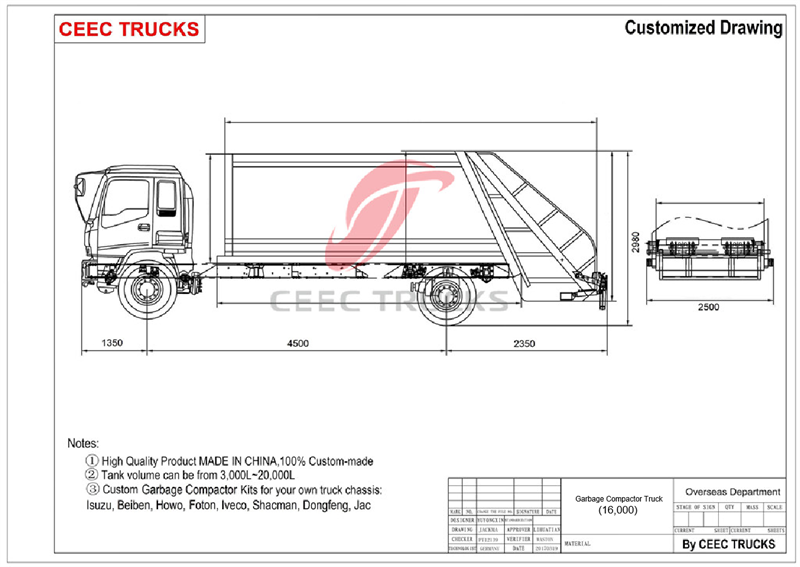

ISUZU FVR Garbage compactor truck (16 cbm)
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	8800 * 2500 * 2980 mm
	GVW / Kerb Weight	17,000kg / 8,300kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Power	240 HP (176 KW)
	Displacement	7780 ml
	Emission Standard	Euro 4 or 5
Chassis	Drive Type	4X2, (left hand drive)
	Transmission	MLD 6 speed levers with 1 reverse
	Wheelbase/No. of axle	4500 mm / 2
	Tire Specification	9.00-20
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint

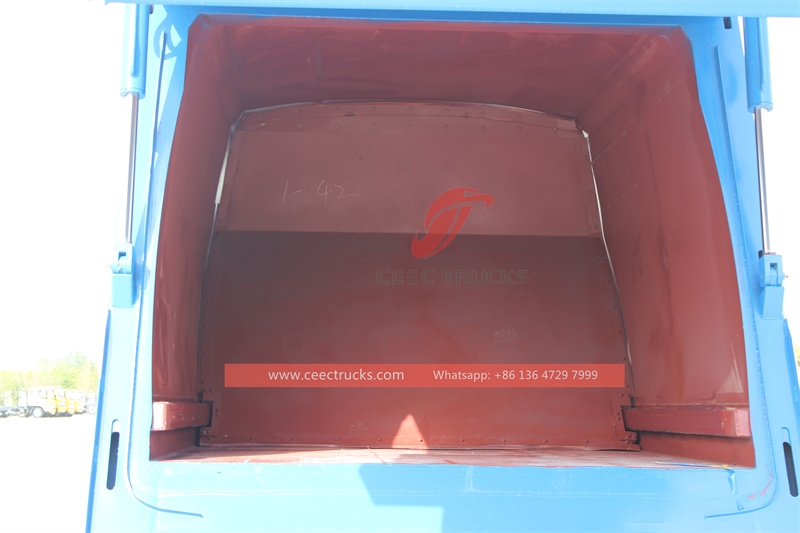

Superstructure	Body capacity	16 cbm
	Fill Hopper capacity	1.3 cbm
	Sewage tank	200 liters
	Filling work cycly time	20~25 s
	Discharge model	Horizontal Ejection

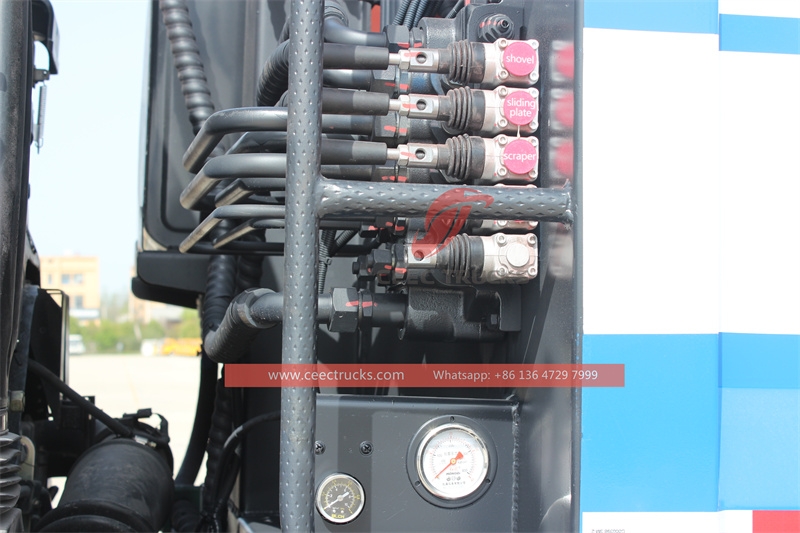

	Control system	Electrically Hydraulic control Manual hydraulic control

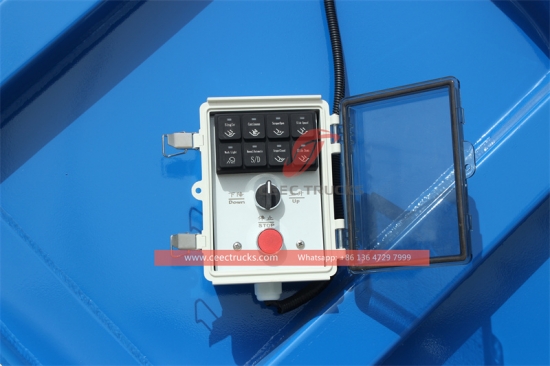

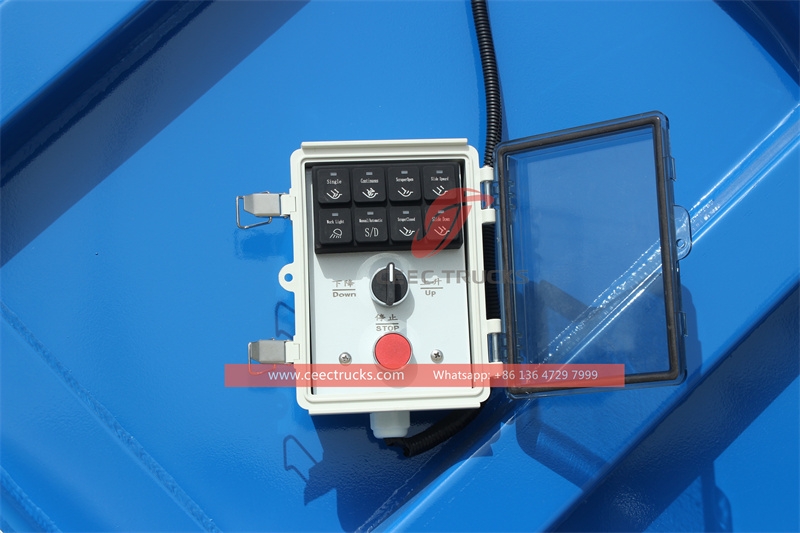

	Control panel	English or Your language

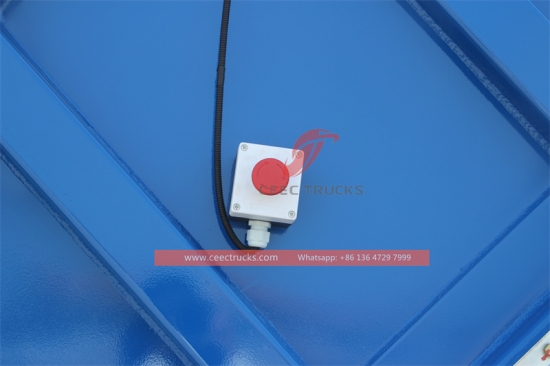

	All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

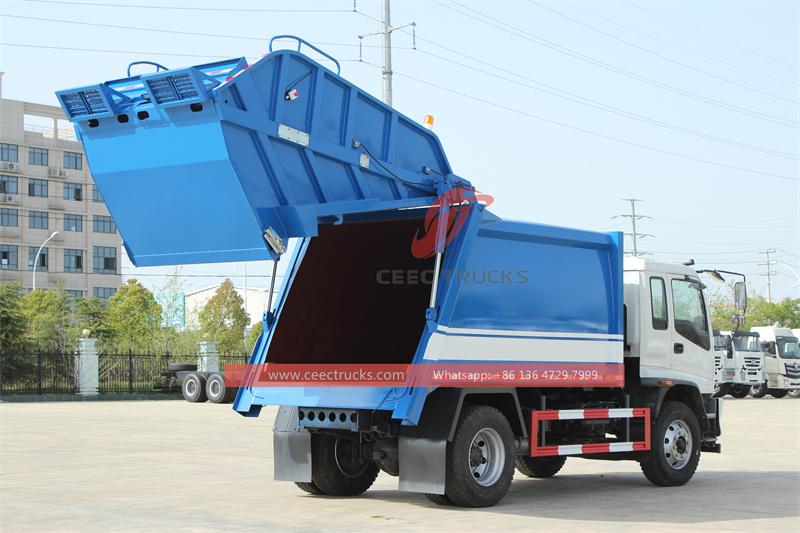

ISUZU FVR 16CBM garbage truck

---- SGS, BV, CONTECNA, CE Qualified.

---- Local engineer training support.

---- 12 months FREE parts.

---- Factory genuine parts supply.

---- 7 days to worldwide by DHL.

Garbage compactor superstructure parts review

CEEC trucks parts sale

---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection...

export documents

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

CEEC garbage compactor truck factory review

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely

Garbage compactor truck export review

---- Shanghai seaport shipping within 7 days.

---- Painting & Logos change for free

---- 100% quality guarantee.

Garbage compactor factory stock

Watch CEEC garbage compactor on YOUTUBE

ISUZU garbage compactor truck: https://www.youtube.com/watch?v=1yyQ7v3R2As

https://www.youtube.com/watch?v=ETEPG-cVBJY

https://www.youtube.com/watch?v=BgBcVGFP1nQ

https://www.youtube.com/watch?v=kKkgQyH9xLI

https://www.youtube.com/watch?v=fbUV2JH9CkM

https://www.youtube.com/watch?v=JKLlXroPz6o
