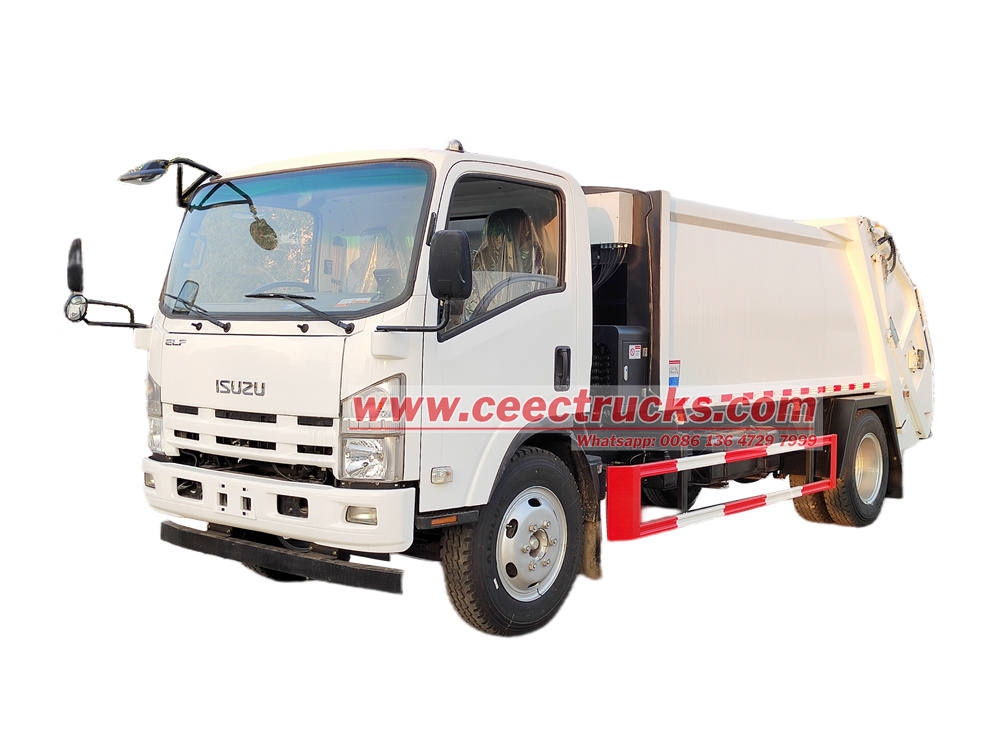

Isuzu ELF cabin single axle rear loader

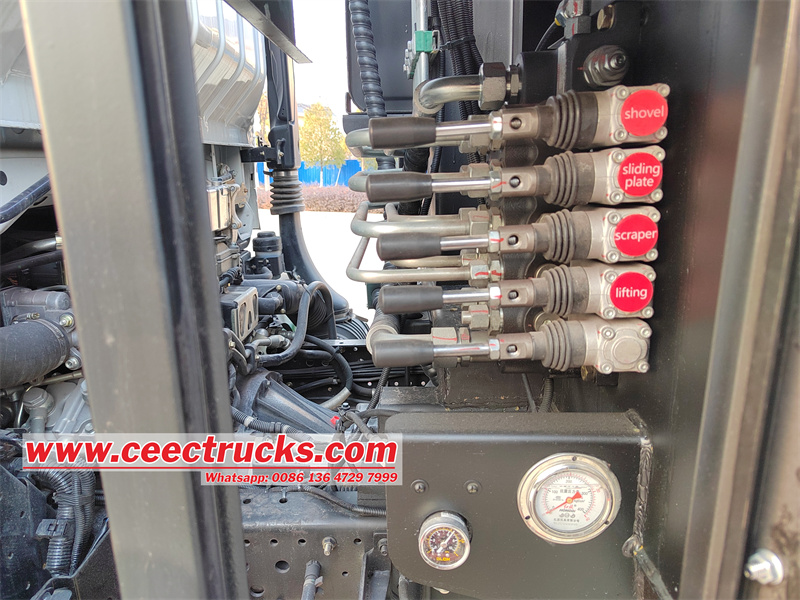

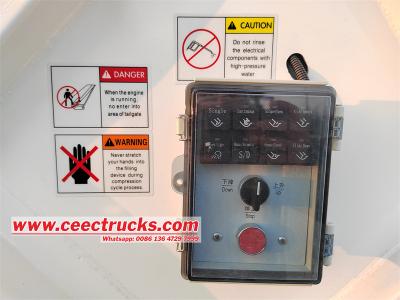

Isuzu 700P garbage compactor truck is a vehicle used for garbage collection and transportation. It is modified based on the Isuzu 700P chassis, with air conditioning, USB, power steering, wheelbase 4175mm, equipped with Isuzu 4HK1 190HP engine, Euro 6 5193ml emission, Isuzu MSB 5-speed gearbox, maximum speed 110Km/h. The upper body is an 8cbm high-strength steel arc box with 4 sides and 5 bottom thickness. The compression system of the vehicle is controlled by Taiwan Yonghong PLC electronic control system, with 3 operation modes including the electronic control box in the cab, the hydraulic manual operating lever on the driver's side, and the electronic control box of the tailgate.

Work capacity:
8CBM
Truck model:
CEEC5110GZK
Engine power:
190HP
Engine type:
Isuzu 4HK1-TCG61
Axle drive:
4X2,LHD
Gear box:
lSUZU MLD 6 forward and 1 reverse,manual
Remarks:
With PLC electric control system and hydraulic valve control system

Inquiry now

Isuzu ELF cabin single axle rear loader is a modern sanitation vehicle that integrates intelligence, efficiency and environmental protection. It is equipped with an advanced PLC automatic control system to realize the automation of the entire process of garbage loading, compression and unloading, greatly improving the working efficiency. The powerful compression system equipped with the vehicle can effectively compress the garbage to a capacity of 8 m³, greatly improving the single transportation volume and work efficiency. The vehicle is also equipped with a specially tuned power system to adapt to complex urban working conditions, combining power and fuel economy. In terms of environmental protection performance, a multiple sealing design is adopted to prevent leachate leakage, and the exhaust gas treatment system meets the latest emission standards. The powerful compression system equipped with the vehicle can effectively compress the garbage to a capacity of 8cbm.

● 30 years experience in garbage compactor truck designing
● Fast delivery time, quick 10 days shipping time
● 24 months long guarantee time assurance
● CKD, SKD parts service, container shipping, save freight
● OEM customized service, print your company logo

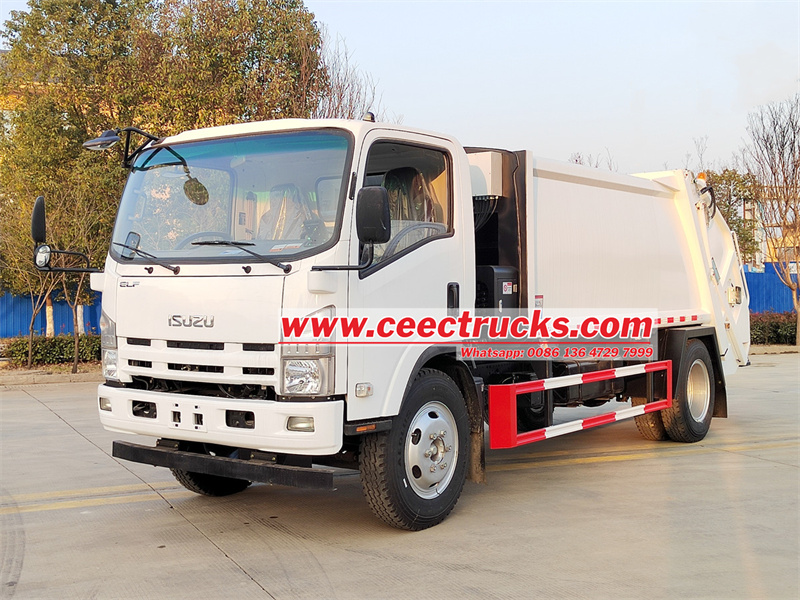

Isuzu ELF cabin single axle rear loader

Garbage compactor truck structure

The Isuzu 8cbm garbage compactor truck is modified on the second-class chassis of the car. It is mainly composed of a shovel (garbage pushing mechanism), a car body, a car chassis, a slide plate and a scraper (filler compression mechanism) and a dumping device.

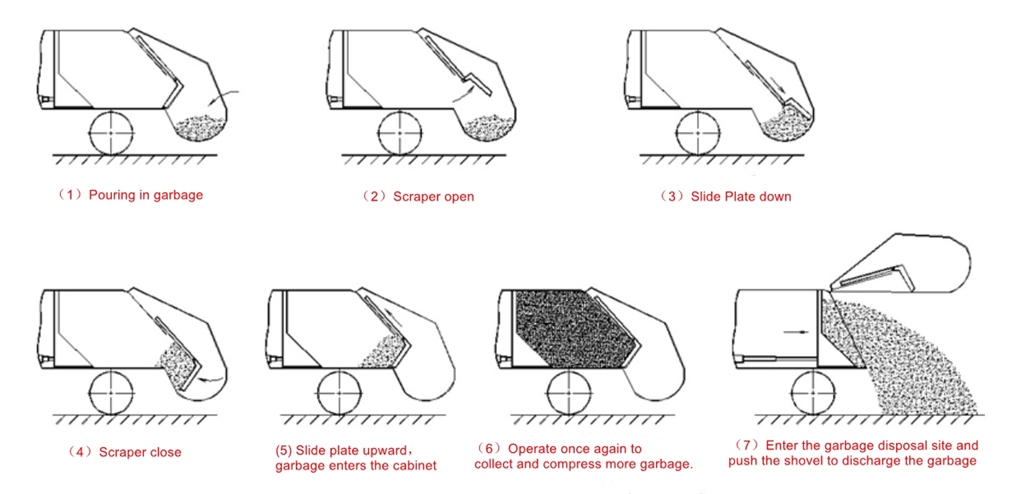

The working process of the compression garbage truck is shown in the figure.

Isuzu ELF 700P rear loader compactor
Chassis
Chassis Brand	lSUZU
Driving Type	4*2,LHD
Cab	Isuzu 700P single row，2 seats，with A/C,USB, direction assistance
Dimension	7280×2300×2580 (mm)
Gross Weight	11000kg
Curb Weight	6200kg
Wheelbase	4175(mm)
Front/rear Axle Loading Capacity	4000/7000kg
Front/rear Suspension	1110/2095(mm)
Max Speed	110(Km/h)
Tire	235/75R17.5 16PR, 6+1 PCS
Gear Box	lSUZU MLD 6 forward and 1 reverse,manual
Engine
Type	4 stroke,4 cylinders, in-line, water cooling, Supercharged intercooling,diesel
Model	Isuzu 4HK1-TCG61
Horse Power	190HP/139Kw
Max. Torque	507N.m
Rated Speed	2600 rpm
Max. Torque Speed	1600-2600rpm
Displacement	5193cc
Emission Standard	Euro 6
Superstructure
Tank Volume	8CBM
Tank Shape	Arc-shape/Square Optional
Tank Material thickness	Bottom:5mm Side:4mm
Tank Material	Q345 high strength manganese steel plate
Compression Ratio	≥2.5
The effective volume of the bucket	≥0.8m³
Loading cycle time	≤40 s
unload garbage time	≤45s
control method	Automatic, Manual
Maximum pressure of hydraulic system	20MPa
Control System	Taiwan Yonghong electric control system
Engine power control	Fully automatic control

As an efficient vehicle designed for urban garbage collection and transportation, the compression system of Isuzu 700P 8cbm Rear Loader Truck is undoubtedly one of the core highlights of vehicle performance. Through advanced technology and design, the system realizes efficient compression and tight loading of garbage, greatly improving the transportation capacity and operation efficiency of the vehicle.

1. Compression system

The compression system is mainly composed of key components such as compression cylinder, push plate, hydraulic system and control system. During the operation, after the garbage is put into the loading bucket, the hydraulic system starts to work, pushing the push plate forward to compress the garbage preliminarily. As the push plate continues to advance, the garbage is gradually compacted and filled into every corner of the loading bucket. When the loading bucket reaches the preset load or compression ratio, the system automatically stops the compression operation and prepares for the transportation of garbage.

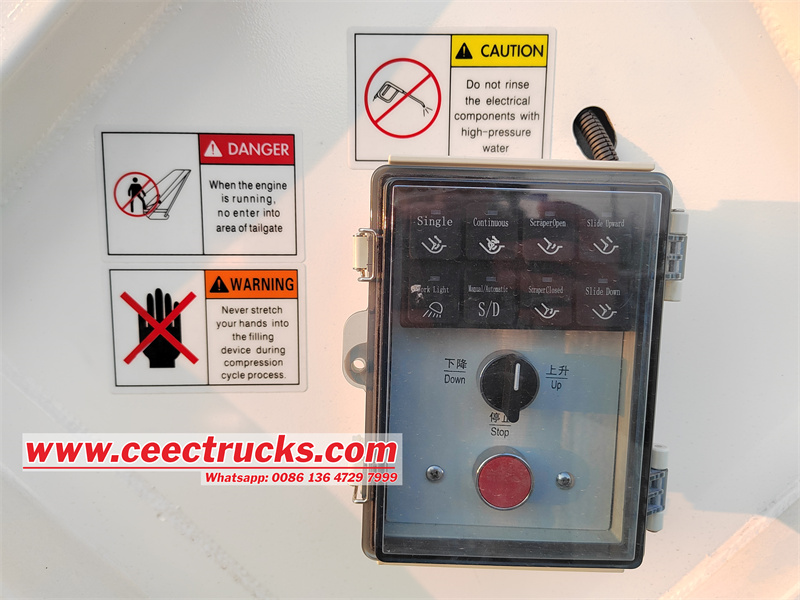

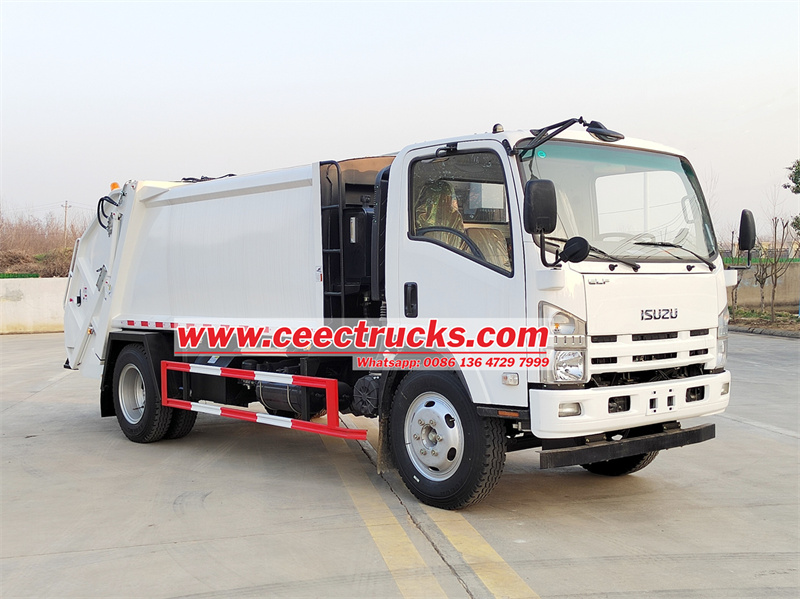

Isuzu Automatic PLC control rear loader truck

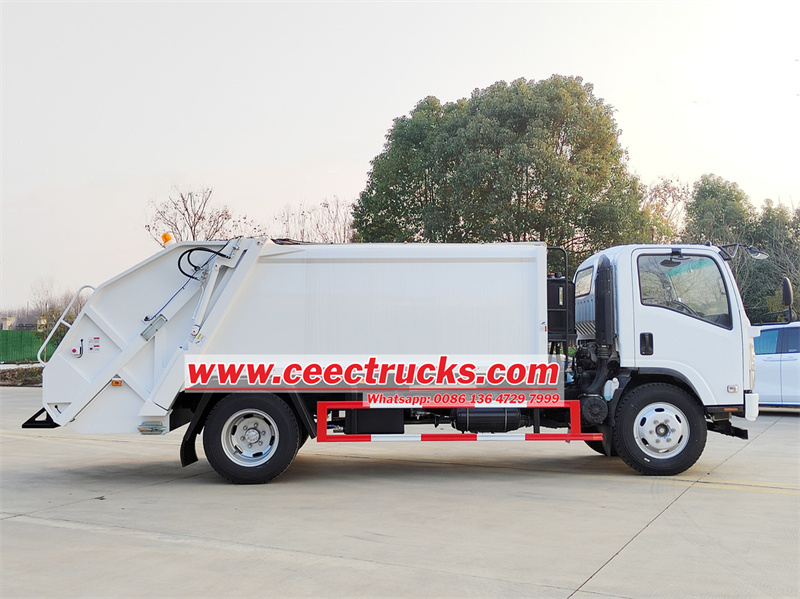

Isuzu 8 cbm rear loader recycling truck

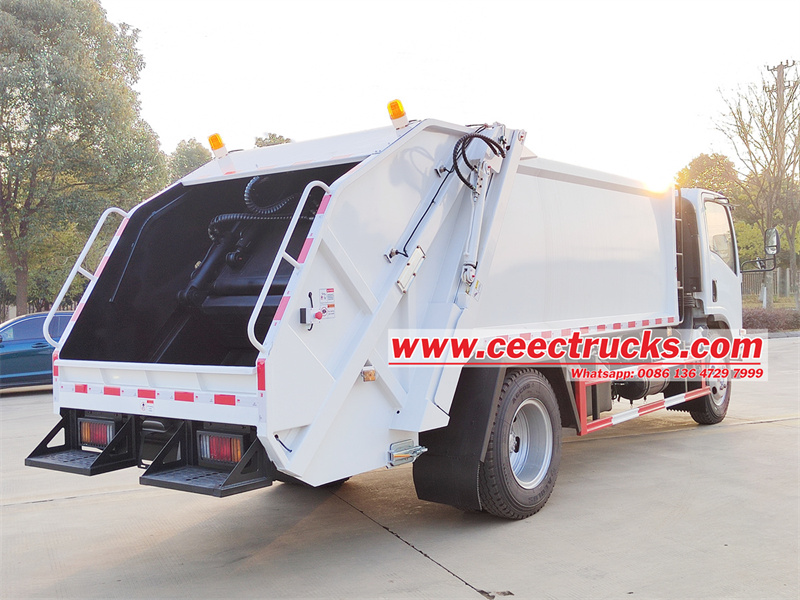

Isuzu ELF 700P rear loader compactor truck

2. Efficient compression technology

●. Multi-stage compression design: In order to improve the compression efficiency, the compression system of Isuzu 700P adopts a multi-stage compression design. This means that during the compression process, the garbage will undergo multiple gradual pressurization processes, thereby achieving a higher compression ratio and a tighter loading effect.

●. Intelligent pressure control: The system is equipped with an intelligent pressure sensor that can monitor the pressure changes in the compression cylinder in real time. When the pressure reaches the preset value, the system automatically adjusts the output pressure of the hydraulic system to avoid equipment damage or increased energy consumption caused by excessive compression.

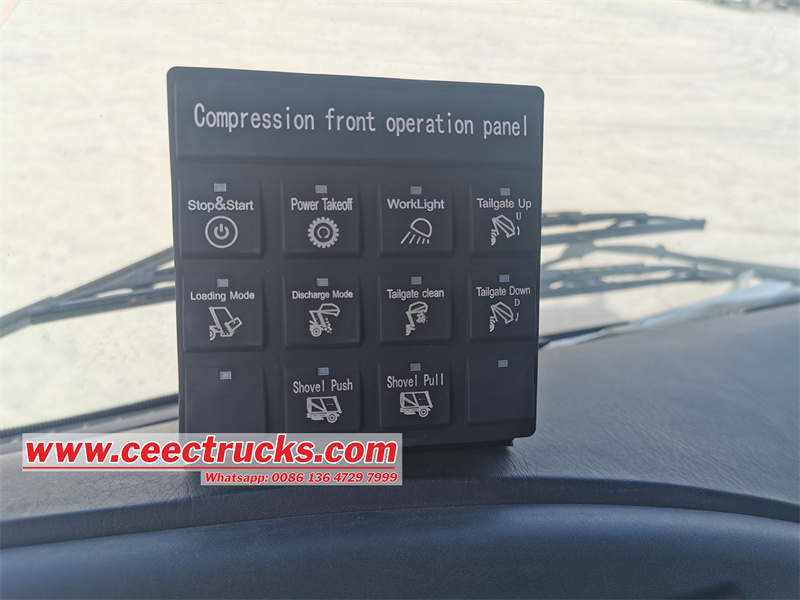

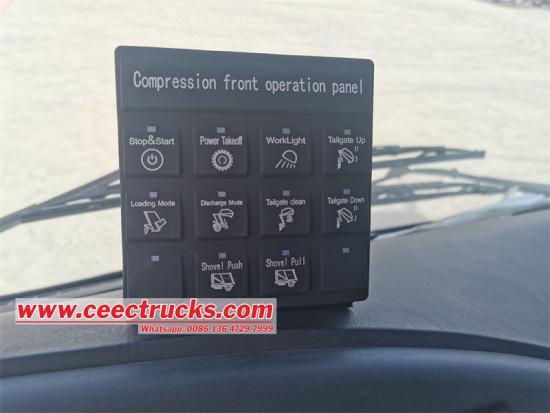

●. Advanced PLC electronic control system: With the help of advanced PLC control system, the compression system of Isuzu 700P can achieve precise control of vehicle loading and unloading operations, improving the automation and efficiency of operations.

Isuzu NPR 700P 8cbm garbage compactor truck
