Isuzu 700P water fire fighting truck

Isuzu 700P water tender fire truck

Isuzu 700P 5m3 water tank fire truck is equipped with a large capacity of 5m3 water tank, with high-efficiency water pump system and long-range fire cannon, which can quickly respond to the fire scene and provide a continuous and stable water supply. It is a fire truck with complete functions and excellent performance, and is an important equipment for fire departments to deal with emergency situations such as fires.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China main port
  • Lead Time:

    35 Days
  • Payment:

    T/T, West Union
contact now

1

Isuzu 700P water tender fire truck also called Isuzu 700P water fire fighting truck ,Isuzu 700P 5m3 water tank fire truck,Isuzu NPR 700P water fire engine,Isuzu ELF 700P double row water fire tender truck,Isuzu 700P 4x2 5 tons fire rescue truck,Isuzu 700P 5cbm pumper fire truck.


The Isuzu 700P water tender fire truck is a professional firefighting equipment that combines efficient firefighting with flexible mobility. It is built on the sturdy and durable Isuzu 700P chassis, equipped with a double-row cab, and provides a spacious and comfortable driving space. The vehicle is equipped with a large capacity 5cbm water tank to ensure that sufficient water can be quickly and continuously provided for firefighting operations at the fire scene. Its high-pressure water pump system can efficiently spray water to directly hit the fire source and effectively curb the spread of the fire. In addition, the Isuzu 700P 5cbm fire truck also has excellent off-road performance and passability, and can easily cope with various complex road conditions and terrain conditions, ensuring that it can quickly arrive at the scene in an emergency to perform firefighting and rescue tasks. This fire truck is a powerful assistant for the fire department to deal with emergencies such as fires.

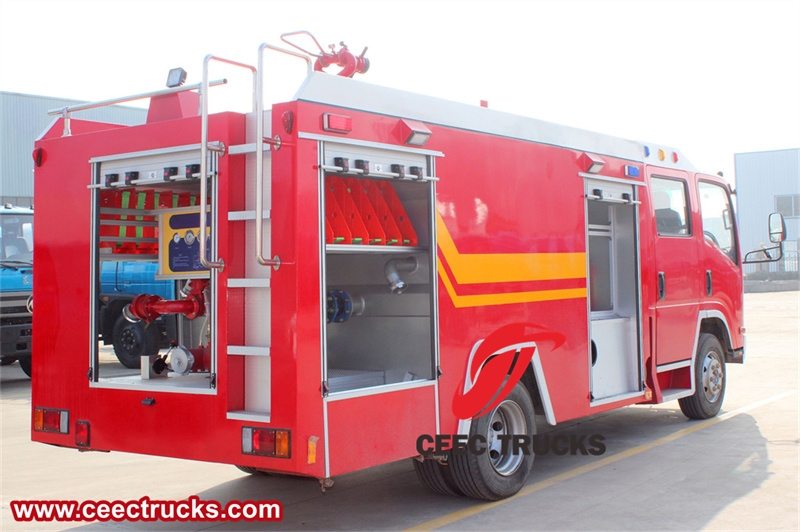

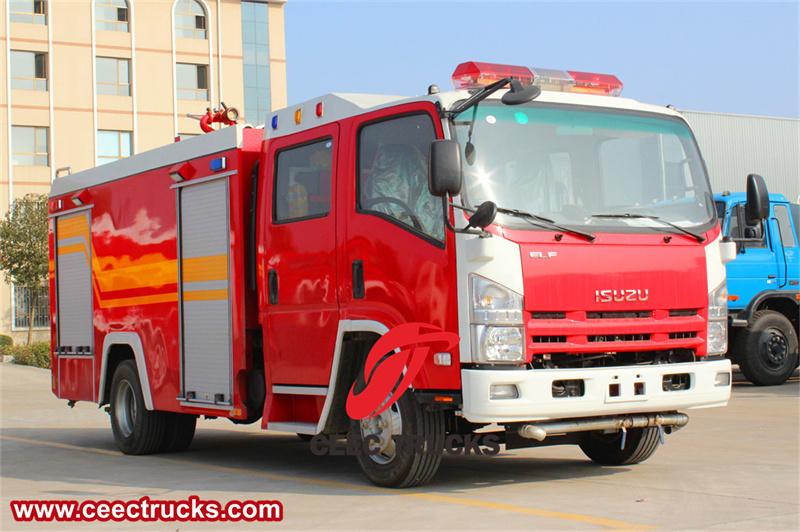

Isuzu 700P water fire fighting truck

The Isuzu fire truck has a reasonable body design, good off-road capability and stability, ensuring that it can quickly arrive and operate effectively under various complex road conditions. In addition, the vehicle is also equipped with a variety of professional firefighting equipment and tools, such as fire extinguishers, fire axes, shovels, pickaxes, etc., as well as a full set of personal protective equipment for firefighters, providing firefighters with all-round safety protection.



2


Isuzu 700P 5m3 water tank fire truck

Main specification

Chassis brand

ISUZU

Truck model

PT5110GZR

Overall dimension(L*W*H)

7240x2270x3080mm

GVW

10550kg

Curb Weight

5000kg

Water tank volume

5000 litres

Cabin

double cabin,with Air conditioner, electronic windows, USB,

Chassis

Drive modle

4x2, left hand drive

Front axle loading

4000kg

Rear axle loading

7000kg

Wheel Base

4175mm

Front/rear suspension

1110/1955mm

Approach/departure angle

20/17 (°)

Tyre modle & number

235/75R17.5, 6+1

Transmission

ISUZU MLD 6-speed, with reverse

Voltage

Have 2 batteries , each 12 volts

Color

Red and yellow including tanker , standard

Brake

Air brake, With ABS

Max speed

110km/h

Engine

Brand

ISUZU

Model

4KH1-TCG61

Engine Type

Four-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling

Horse power

190HP/139kw

Displacement

5193ml

Emission

Euro VI

TANK SPECIFICATION

Tank capacity

  5000 liters water tank

Tank material

All Tank made of carbon steel .Thickness:4mm,





Fire pump

Model

/

CB10/30 model ,low pressure pump

Pressure

Mpa

1.0&1.3

Max flow

L/s

30

Max suction height

m

7

Rated speed

r/min

2600

Time of drawing water (s)

s

≤45

Input

/

one nozzle , diameter : 100mm

Outlet

/

2 nozzles, diameter: 65mm

Fire monitor

Model

/

PS30W,mounted on the tank as photo,standard



nozzle range

Water (m)

55

Rated discharge

L/s

30

Rated Working pressure

Mpa

0.7

Rotation angle

(°)

360

Standard  configuration

Have alarm rotating light and  which is mounted on top of the cabin , have fire-fighting equipment, and vehicle tools.


3

The Isuzu 700P Water Fire Fighting Truck is a formidable and versatile piece of emergency response equipment designed to tackle the most challenging fire scenarios with efficiency and precision. Built on the robust and reliable Isuzu 700P chassis, this fire truck combines the power of a heavy-duty truck with the specialized capabilities required for firefighting operations.

 Technical drawing of Isuzu 700P water fire fighting truck

Technical drawing of Isuzu 700P water fire fighting truck

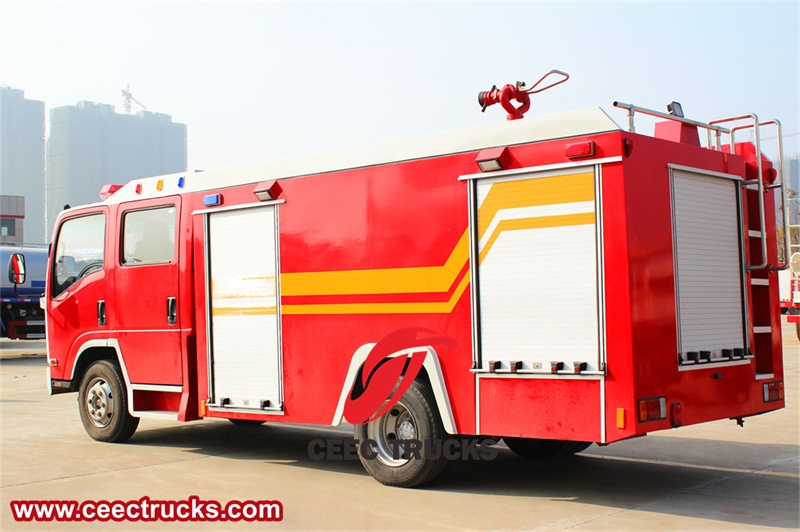

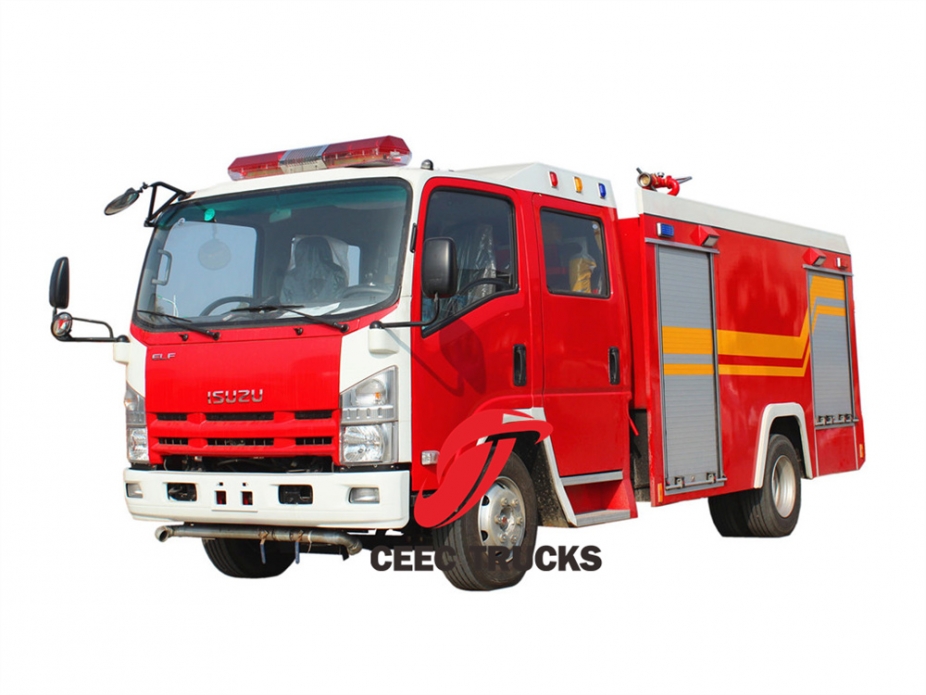

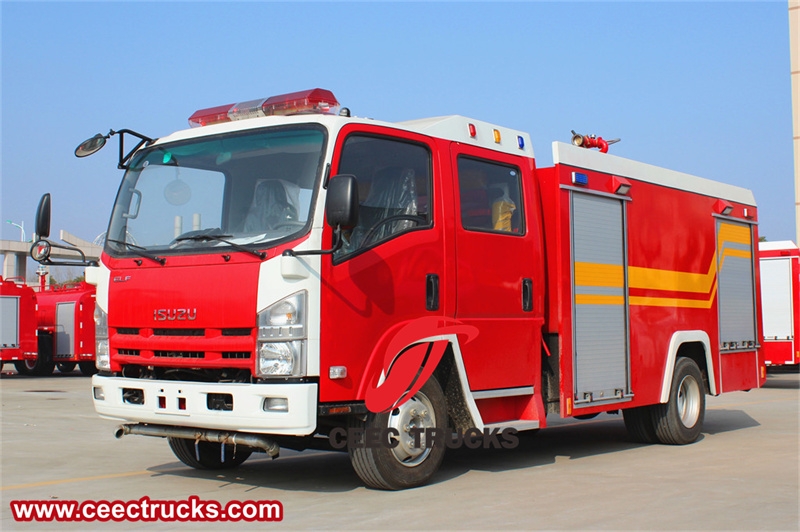

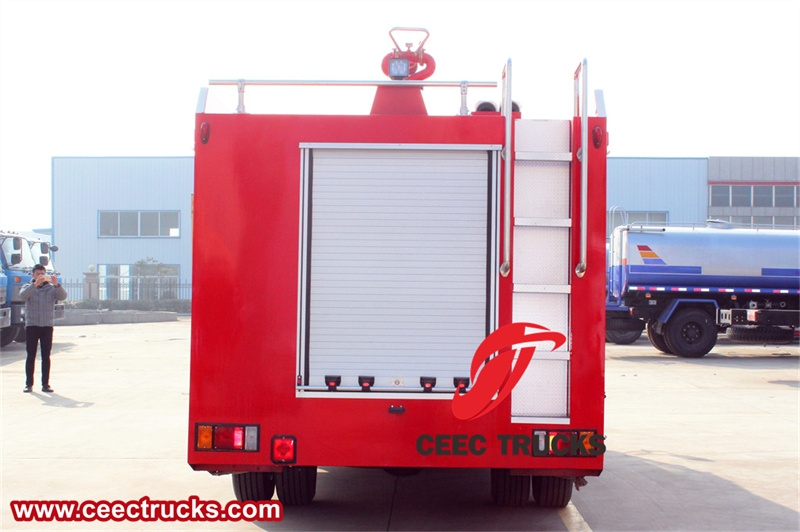

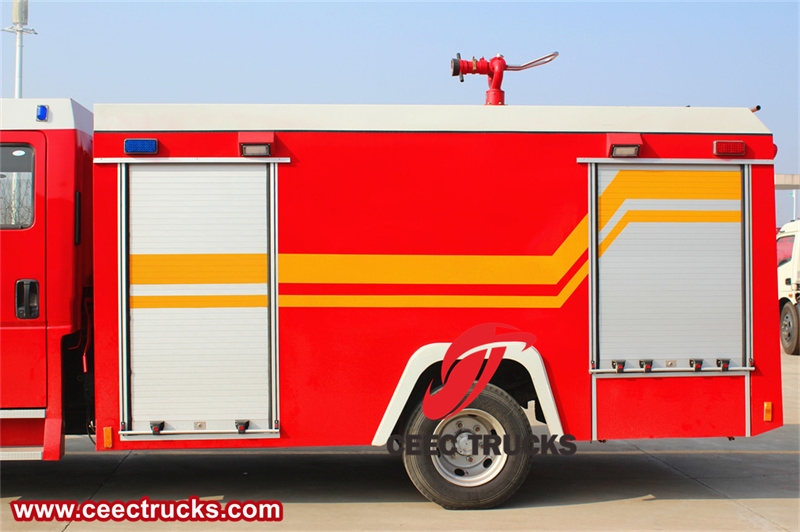

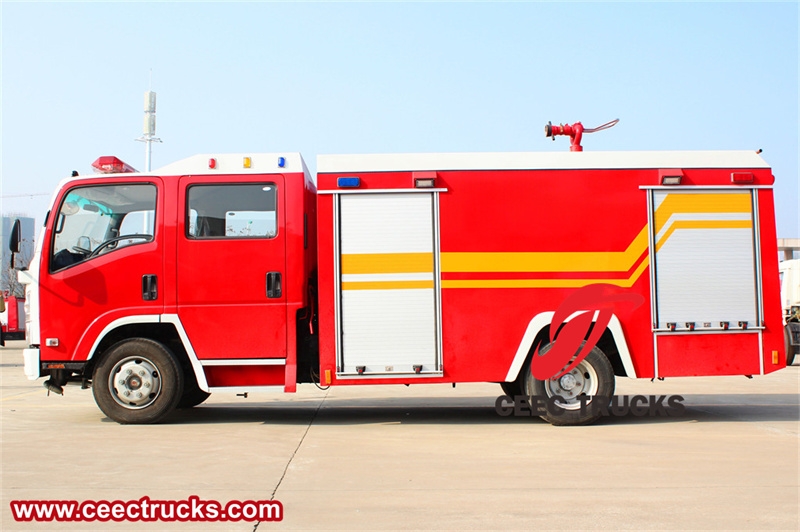

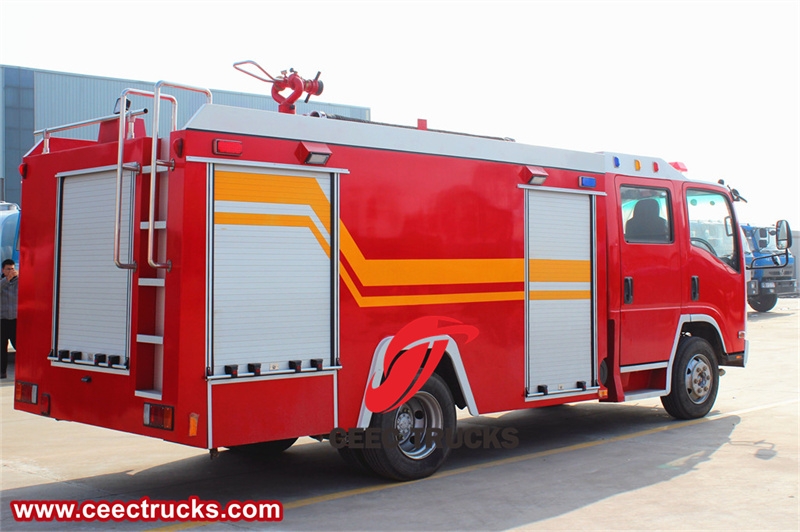

Isuzu 700P water fire fighting truck

Isuzu 700P water fire fighting truck


At the heart of the 700P Water Fire Fighting Truck lies its powerful engine, which is designed to deliver the torque and horsepower necessary to navigate through rough terrain and maintain high-speed response times. The engine is paired with a durable transmission system that ensures smooth and reliable shifting, even under the most demanding conditions. This combination of power and durability allows the truck to quickly reach the scene of a fire, regardless of its location.



One of the key features of the Isuzu 700P Water Fire Fighting Truck is its large capacity water tank. This tank is designed to hold a significant amount of water, allowing the truck to provide a continuous supply of water to firefighters on the ground for extended periods. The tank is also equipped with a high-pressure pump system that can deliver water at a rapid rate, enabling firefighters to quickly extinguish fires and prevent them from spreading.

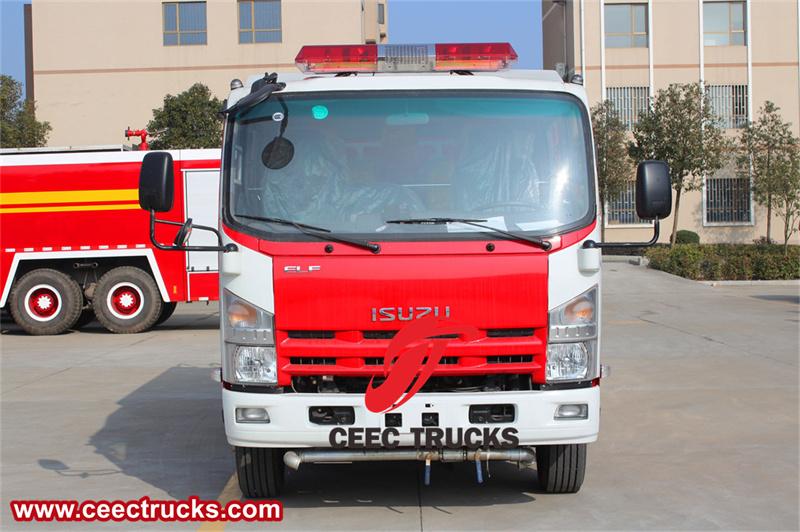

 Isuzu 700P 5m3 water tank fire truck

Isuzu 700P 5m3 water tank fire truck

 Isuzu 700P water tender fire truck

 Isuzu 700P water tender fire truck


In addition to its water tank and pump system, the Isuzu 700P Water Fire Fighting Truck is equipped with a variety of specialized firefighting tools and equipment. These include hoses, nozzles, and other accessories that are designed to help firefighters direct water and other firefighting agents with precision and accuracy. The truck also features a ladder system that allows firefighters to access hard-to-reach areas, such as the upper floors of buildings or the tops of trees.

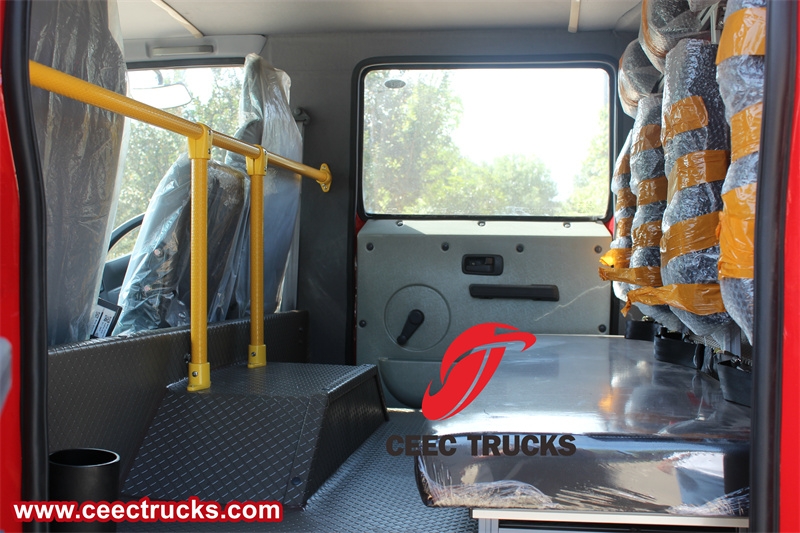

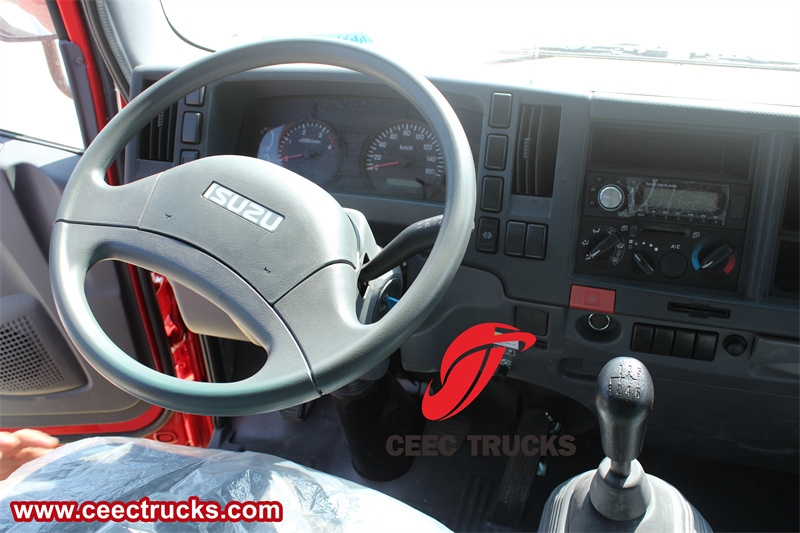

The design of the Isuzu 700P Water Fire Fighting Truck is focused on safety and ease of use. The cab is spacious and comfortable, providing firefighters with a clear view of the road and the surrounding area. The truck is also equipped with advanced safety features, such as airbags, anti-lock brakes, and stability control systems, to help protect firefighters in the event of an accident.



The versatility of the Isuzu 700P Water Fire Fighting Truck is another one of its key strengths. This truck can be configured to meet the specific needs of different fire departments and emergency response agencies. For example, it can be equipped with foam systems for fighting oil and chemical fires, or with specialized equipment for rescuing people from vehicles or buildings.

Isuzu NPR 700P water fire engine

Isuzu NPR 700P water fire engine


Application scenarios:

• Urban firefighting: Applicable to fire fighting and rescue tasks in urban streets, commercial areas, residential areas and other areas.



• Industrial firefighting: Able to deal with fire and accident rescue in industrial sites such as factories, warehouses, and oil fields.




• Other rescue tasks: In addition to firefighting tasks, it can also be used for other emergency rescue tasks such as personnel search and rescue and material transportation.


Isuzu ELF 700P double row water fire tender truck

Isuzu ELF 700P double row water fire tender truck


★ Performance and Power

1. Firefighting efficiency: The vehicle is equipped with a large-capacity 5-cubic-meter water tank to ensure that sufficient water can be provided for firefighting operations quickly and continuously at the fire scene. The equipped high-pressure water pump system can spray water out in a high-pressure form, directly impacting the fire source, effectively curbing the spread of the fire, and improving the efficiency of firefighting.


2. Off-road capability: The Isuzu 700P chassis has excellent off-road performance and passability, and can easily cope with various complex road conditions and terrain conditions, including rugged mountain roads, muddy wetlands, etc., to ensure that it can quickly reach the fire scene in an emergency.


3. Stability: The design of the whole vehicle focuses on stability, and the body can be kept stable when driving at high speed or climbing at low speed, improving driving safety. This is crucial for firefighting operations in emergency situations, and can ensure that firefighters can effectively perform their tasks in a stable environment.


4. Engine: The Isuzu 700P water tank fire truck is equipped with the Isuzu 4HK1-TCG61 engine, 190 horsepower, 5193ml displacement, matched with the MLD 6-speed gearbox, flexible gear position, and strong carrying capacity.


Isuzu 700P 4x2 5 tons fire rescue truck

Isuzu 700P 4x2 5 tons fire rescue truck


★ Tank Capacity

The water tank is made of high-quality carbon steel material, and the interior is treated with anti-corrosion to ensure the cleanliness of the water and the reliability of long-term use. The structural design of the water tank is reasonable, which not only ensures sufficient capacity, but also takes into account the balance and stability of the vehicle, ensuring that the vehicle body can be kept stable when driving at high speed or climbing at low speed. The water tank is also equipped with necessary safety devices, such as anti-overflow valves, pressure sensors, etc., to ensure safety during water filling and use.



The water tank capacity of the Isuzu 700P double-row 5-cubic-meter fire truck reaches 5 cubic meters. This capacity design fully considers the actual needs of firefighting operations and ensures that sufficient water can be provided for firefighting operations quickly and continuously at the fire scene. The 5-cubic-meter water tank capacity enables the fire truck to spray small and medium-sized fires for a long time after one water filling, effectively curbing the spread of fire and improving firefighting efficiency. The larger water tank capacity also means that the fire truck does not need to frequently travel between the water source and the fire scene, thus saving valuable time and allowing firefighters to focus more on the firefighting operation itself. Whether it is a fire fighting task in different scenarios such as urban streets, commercial areas, residential areas or industrial areas, the 5 cubic meter water tank capacity can provide sufficient support to meet diverse fire fighting needs.

  Isuzu 700P 5cbm pumper fire truck

 Isuzu 700P 5cbm pumper fire truck


 Water pump system

The water pump system and fire cannon of the Isuzu 700P double-row 5-cubic-meter fire truck are its important fire-fighting equipment. They work together to provide strong support for firefighting operations through efficient pumping systems and precise injection control.

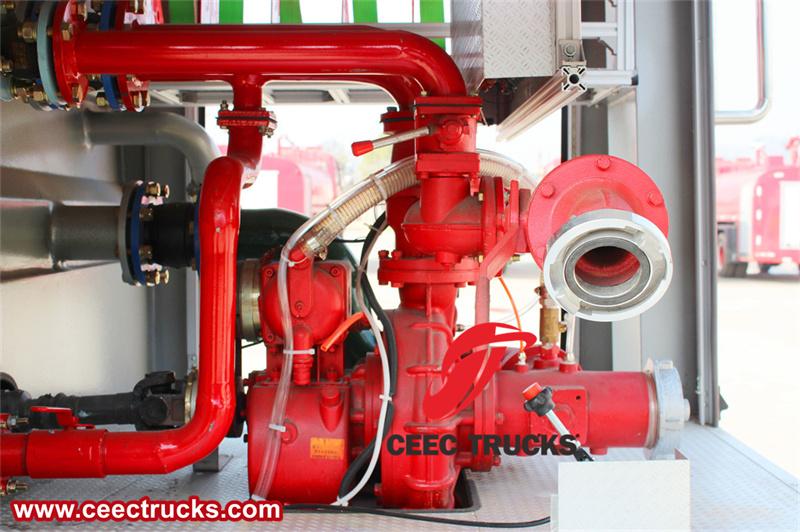

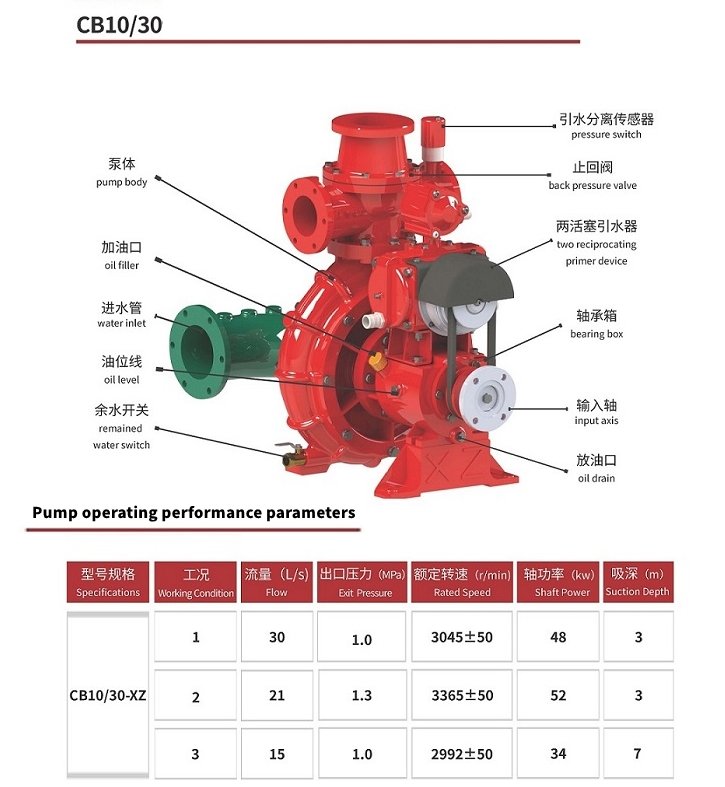

1.CB10/30 fire pump

This CB series medium and low-pressure fire pump fire pump can provide a flow rate of 30L/s (30 liters per second) under standard working conditions, which means that it can quickly and massively deliver water to the source of the fire. The working pressure of the pump is usually 1.0MPa (megapascals), which ensures that the water can be ejected with sufficient pressure to directly impact the source of the fire and improve the fire-fighting effect.



Working principle

The CB10/30 fire pump converts mechanical energy into kinetic energy and potential energy of water, pumps water out of the water tank and pressurizes it, and then delivers it to the fire cannon or other water spraying devices through pipelines. The impeller inside the pump body rotates under the drive of the drive device, generating centrifugal force to suck water from the water inlet and push it to the water outlet.


Features

·High efficiency: The pump is reasonably designed and can reach the rated flow and pressure in a short time to meet the needs of rapid fire extinguishing.


·Durability: The pump body is made of excellent material and has a compact internal structure, which can withstand high working pressure and long-term use.


·Easy maintenance: The design of the pump takes into account easy maintenance, and component replacement and repair are relatively convenient.

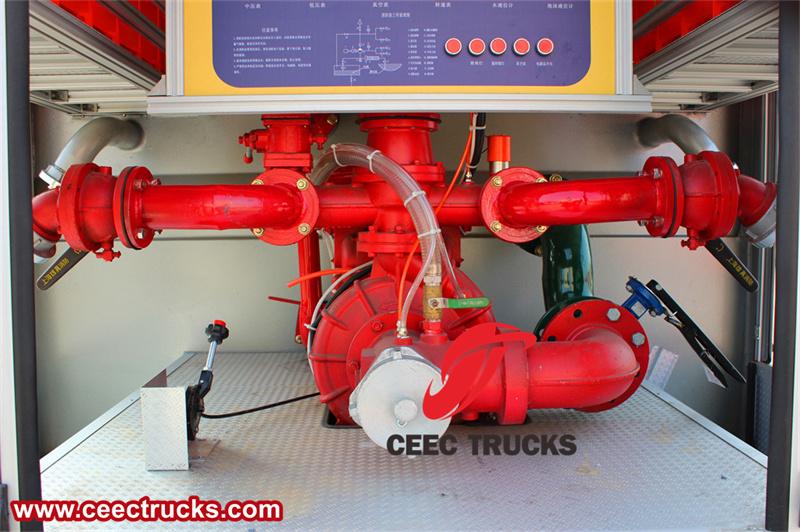

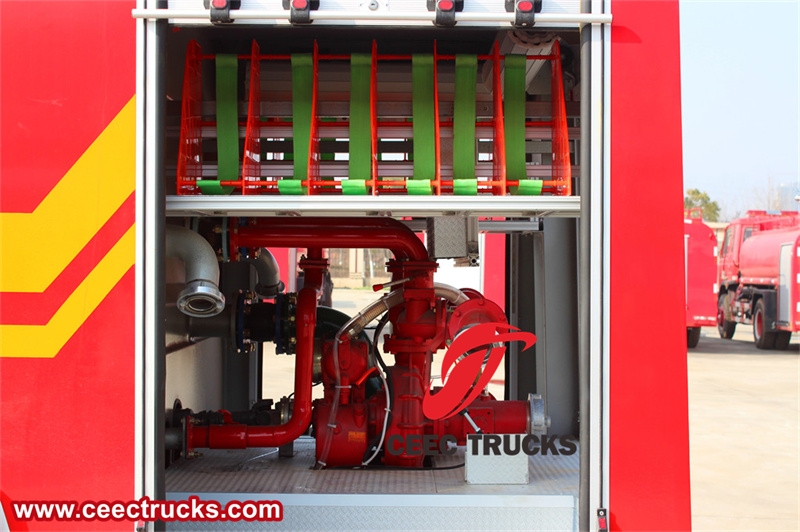

 Fire pump

CB10/30 fire pump

Fire pump

CB10/30 fire pump

CB10/30 fire pump

CB10/30 fire pump

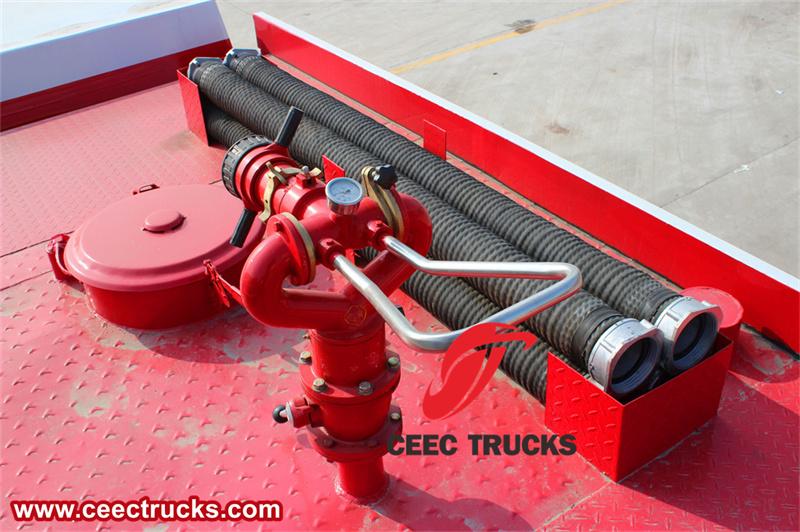

2.PS30W fire monitor

Matched with the CB10/30 fire pump, the PS30W fire monitor can spray at a flow rate of 30L/s after receiving the water flow from the fire pump. Under standard working pressure, the range of the fire cannon can usually reach more than 60 meters, which can cover a large fire extinguishing area.



Working principle

The PS30W fire monitor sprays water at high speed and high pressure by adjusting the direction and angle of the water flow. The nozzle and adjustment mechanism inside the cannon body can accurately control the spray direction and flow of the water flow to meet the needs of different fire extinguishing scenarios.


Features

·Strong flexibility: The spray direction and angle of the fire cannon are adjustable, which can flexibly respond to various fire extinguishing scenarios.


·Long range: The longer range enables the fire monitor to cover a larger fire-fighting area and improve the fire-fighting efficiency.


·Easy operation: The design of the fire monitor takes into account the ease of operation. Firefighters can control the direction and flow of water through simple operations.

Fire monitor

Fire monitor

 3.control panel

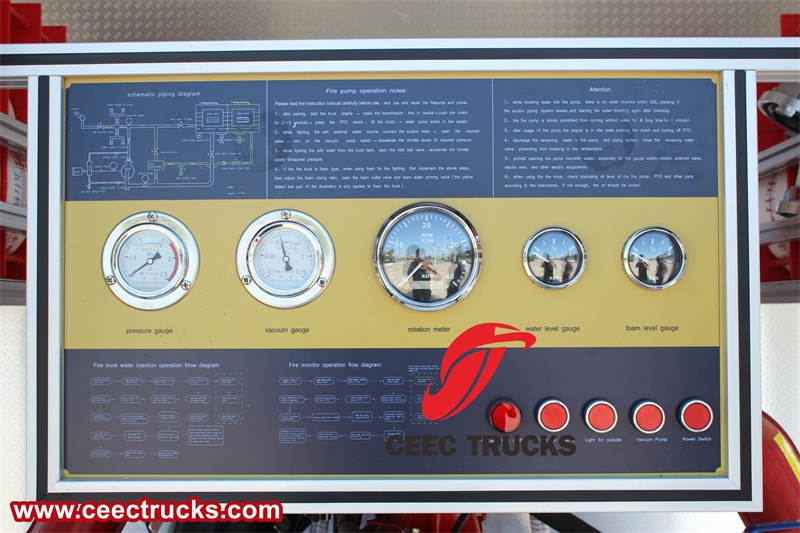

 The control panel of this fire truck is simple and practical, equipped with key instruments such as pressure gauge, vacuum gauge, water pressure gauge and tachometer. The pressure gauge displays the pressure inside the system, and the vacuum gauge monitors the suction status to ensure the normal operation of the system. The water pressure gauge accurately displays the water pressure of the water pump system, providing important reference information for firefighters. The tachometer monitors the engine speed to help firefighters understand the working status of the engine.


These instruments are reasonably distributed and clearly display various parameters, helping firefighters to quickly understand the status of the vehicle and respond accordingly. The layout of the control panel is intuitive and easy to operate, allowing firefighters to respond quickly in emergencies and ensure the smooth progress of rescue work. The accuracy and functionality of the pressure gauge, vacuum gauge, water pressure gauge and tachometer enable firefighters to efficiently control the vehicle and respond to various emergencies, ensuring the effective development of firefighting work.

 Control panel

Control panel


★ Specialized fire equipment and tools

The Isuzu 700P double-row 5tons fire truck is not only equipped with core equipment such as an efficient water pump system and a long-range fire cannon, but also equipped with a variety of professional firefighting equipment and tools, such as fire extinguishers, water filters, water distributors, water collectors, fire axes, shovels, pickaxes, wrenches, fire hoses, fire hoses and fire suits. These equipment and tools together constitute a complete firefighting system, providing strong support and guarantee for firefighters in firefighting and rescue missions.


Communication equipment: It is equipped with advanced communication systems, including on-board walkie-talkies, radio communication equipment, etc., to ensure that firefighters can maintain communication with the outside world while performing their tasks.


Fire extinguisher: The vehicle is equipped with a dry powder fire extinguisher for rapid firefighting in the early stage, or for emergency treatment when fire pumps and fire cannons cannot be used immediately.

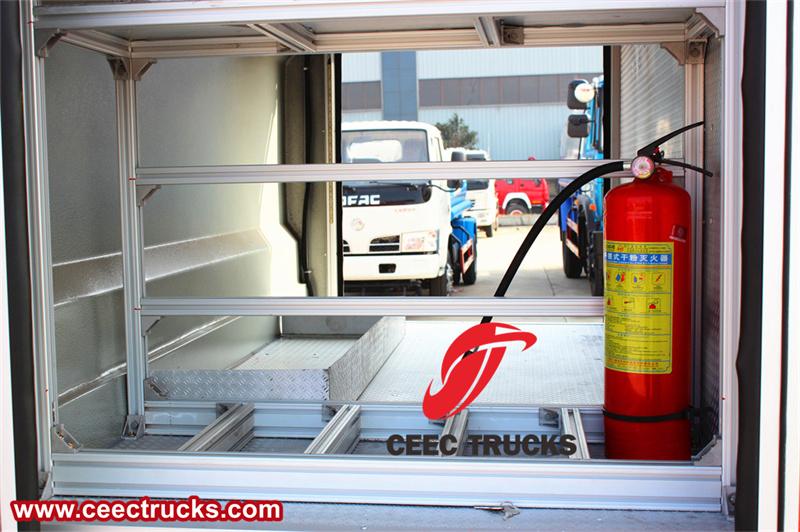

Dry powder fire extinguisher

Dry powder fire extinguisher

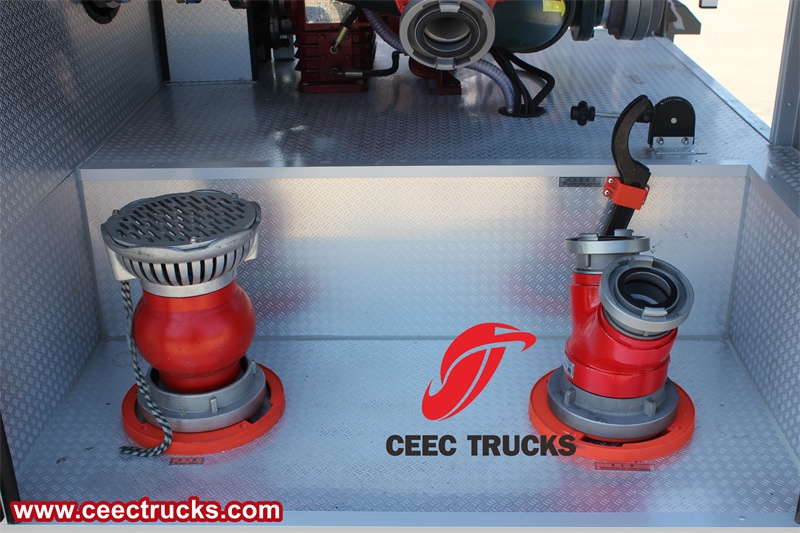

Water filter: The water filter is used to filter impurities in the wild or in places with poor water conditions to ensure the cleanliness and safety of firefighting water. In an emergency, being able to quickly find and purify water sources is essential for continuous firefighting operations.


Water distributor and water collector: The water distributor is used to distribute the water flow output by the fire pump to different fire monitors or water guns to achieve multi-point simultaneous fire extinguishing. When multiple water sources are needed to supply water at the same time, the water collector can collect the water flow from multiple water sources and then supply it to the fire pump.


 Water filter and water separator

Water filter and water collector

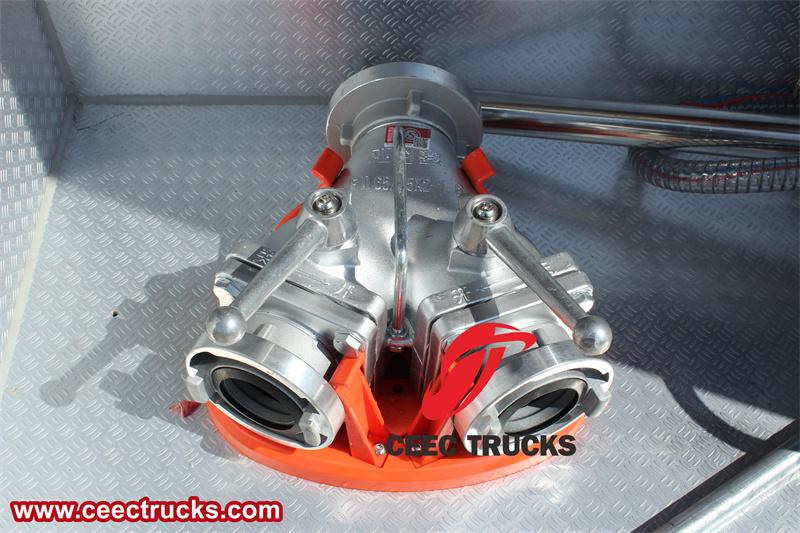

water distributor

Water distributor

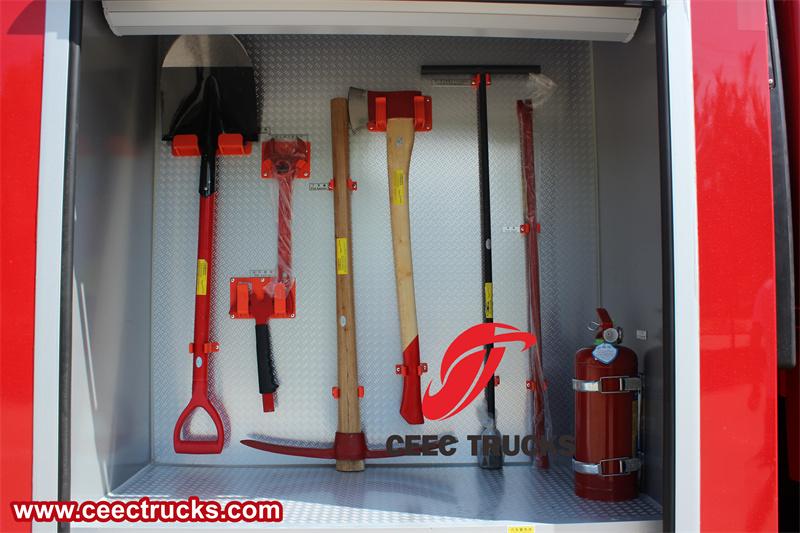

Fire axe, shovel, pickaxe, fire wrench: The fire axe is used to break obstacles such as doors, windows, walls, etc., so that firefighters can enter the fire scene or approach the fire source. Shovel and pickaxe are used for digging, cleaning soil and rocks during rescue or cleaning, and are firefighters' right-hand men in complex environments. Wrenches are used to quickly disassemble and install fasteners such as bolts and nuts on firefighting equipment.


Fire hose: The fire hose is a flexible pipe connecting the fire pump and the fire hose or fire monitor, which has the characteristics of pressure resistance, wear resistance, and corrosion resistance. The fire hose can adjust the flow and direction of the water flow by controlling the switch and nozzle of the water gun to achieve precise strikes on the fire source.


Fire suits: Made of special materials, they have the functions of fireproofing, heat insulation, waterproofing, and breathability, providing all-round protection for firefighters. They usually include helmets, protective clothing, fireproof boots, gloves and other parts to ensure that the key parts of firefighters such as the head, body, and limbs can be effectively protected in the fire scene.


 Fire axe, shovel, pickaxe, fire wrench

 Fire axe, shovel, pickaxe, fire wrench

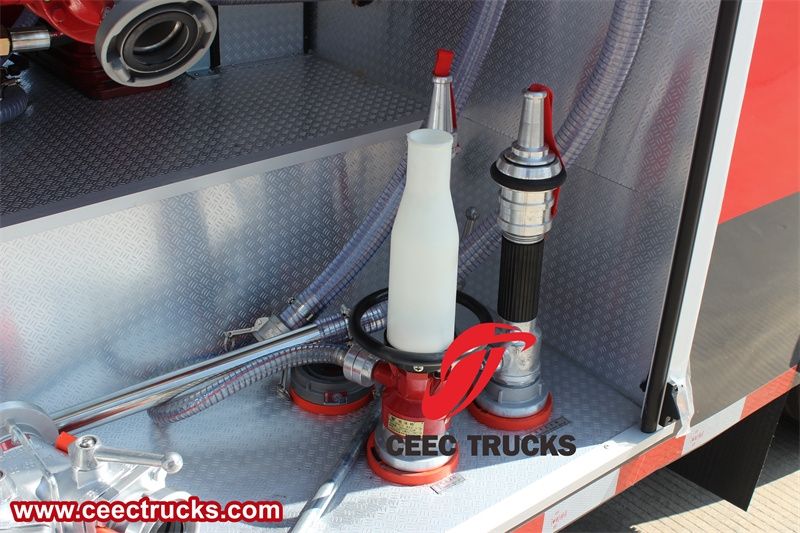

Water gun

Water gun

 Euro 6 type, ISUZU engine, super powerful

 Water tank and Foam tank capacity can be optional.

 12 months fast moving spare parts for FREE

 Authorized ISUZU fire trucks exporter

 Easy operation and easy maintenance

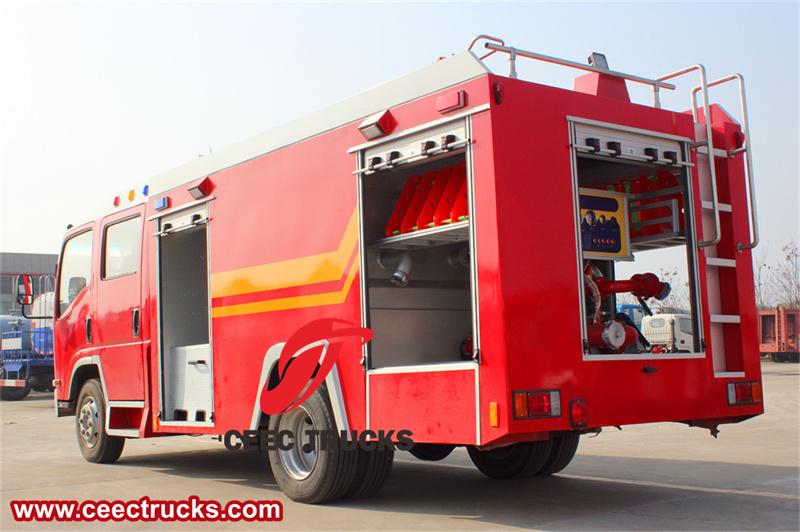

Isuzu 700P fire truck


Isuzu 700P fire truck
