The Isuzu 4x4 all-wheel drive maintenance vehicle is a vehicle used for emergency service maintenance of trapped vehicles. It is modified based on the Isuzu all-wheel drive pickup truck with a tool room added to the rear. It uses a powerful 4KH1CT6H1 engine with 143 horsepower, is equipped with an Isuzu MSB 5-speed transmission with smooth shifting, and a 76L diesel fuel tank. It can provide long-distance driving and provide protection for service maintenance vehicles. It is widely used in industry, agriculture, construction, transportation and other fields.
Lead Time:
60 DaysWork capacity:
900kgTruck model:
PT5030XGXEngine power:
143HPEngine type:
4KH1CT6H1Axle drive:
4X4,LHDGear box:
MSB 5-speed,manualRemarks:

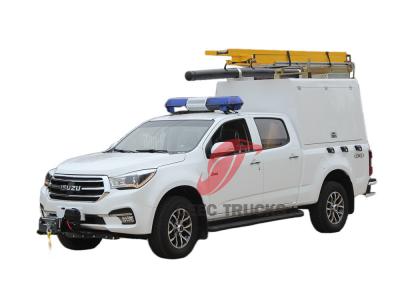

Isuzu 4x4 off road maintenance service pickupIsuzu customized 4x4 emergency service truck also called Isuzu 4x4 drive utility service truck,Isuzu pickup truck maintenance vehicle,Isuzu 4X4 mobile service pickup truck,Isuzu pick up tool maintenance vehicle,Isuzu 4WD workshop service pick up,Isuzu pickup off-road maintenance vehicle. Powered by a powerful 4KH1CT6H1 engine with 143 horsepower, the Isuzu 4x4 drive utility service truck is an excellent vehicle designed to meet the diverse needs of utility service providers. Combining power, durability and versatility, this truck is both reliable and efficient.
Isuzu 143HP Pickup Truck Service Vehicle is a multi-functional vehicle designed for vehicle maintenance, roadside assistance and construction sites. It combines the powerful power, durability and flexibility of Isuzu pickup trucks with various tools and equipment required for maintenance services, providing a comprehensive solution for various maintenance tasks.
Specifications
|
Isuzu 4x4 Pickup service truck |
||
|
Drive Model |
4x4,LHD |
|
|
Vehicle Main Dimensions |
Dimensions(L x W x H)mm |
5660×1885×2550 |
|
Wheel base (mm) |
3406 |
|
|
Wheel track (front/rear) (mm) |
1570/1570 |
|
|
Approach/Departure angle(°) |
28/21 |
|
|
Cab |
Double row,2+3 seats,A/C,USB... |
|
|
Weight in KGS |
Curb Weight |
2200 |
|
GVW. |
3175 |
|
|
Max. driving speed(km/h) |
140 |
|
|
Engine |
Model |
4KH1CT6H1 |
|
Type |
4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling，diesel |
|
|
Horse Power(HP) |
143HP/105Kw |
|
|
Displacement(ml) |
2999 |
|
|
Max torque(N·m） |
320 |
|
|
Max torque speed(rpm) |
1450 |
|
|
Emission standard |
Euro VI |
|
|
Fuel tank volume (L) |
76 |
|
|
Fuel form |
Diesel |
|
|
Gearbox |
MSB 5 forwards & 1 reverse |
|
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Tire |
245/70R17LT, 4pcs + 1 spare tire |
|
|
Brakes |
Exhaust brake |
|
|
UPPER |
Trailer hook |
2 units,front and rear both have |
|
Pillow |
Equipment,at the top of cabin |
|
|
φ125 pipeline |
Equipment,at the top of cabin |
|
|
Ladder |
Equipment,at the top of cabin |
|
|
Handle |
6 pcs,3 pcs on each side of the rear body |
|
|
Rear tool box |
Equipment,at the rear of pickup |
|
|
Storage Box |
4 drawer storage box in the tool box |
|
|
Mobile small cart |
Equipment,in the tool box |
|
|
Lighting |
Equipment,Inside the tool box top |
|
Applications
Isuzu's 4x4 drive utility service truck is a powerful expression of power, durability and practicality. This automotive engineering marvel blends rugged performance with versatility to meet the needs of industries ranging from construction and maintenance to emergency services and agriculture. With reliability at its core, the Isuzu 4x4 Drive Multi-Purpose Service Truck offers unrivalled performance and adaptability to meet the demands of challenging terrains and demanding work environments.
Technical drawing of Isuzu 4x4 utility service truck

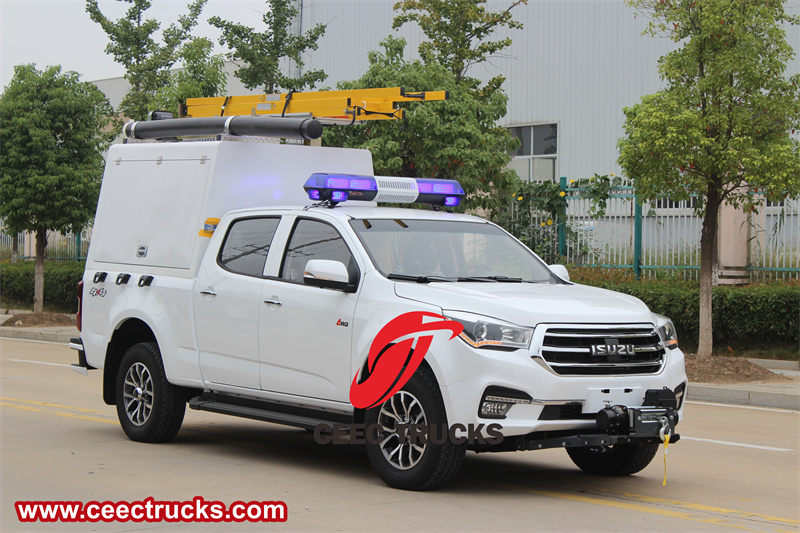

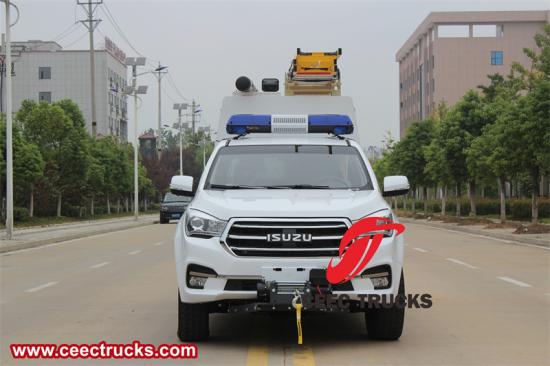

Isuzu 4x4 utility service truck
This service truck has a striking, eye-catching exterior design that reflects the power and flexibility inherent in its DNA. The prominent grille, coupled with the iconic Isuzu badge, subtly hints at the mechanical prowess behind it. The rugged bumpers, flared wheel arches and practical lines convey a sense of utility, emphasising that the truck is ready to tackle any task.
At the heart of this powerplant is the powerful 4KH1CT6H1 engine, engineered to deliver optimal performance in all conditions. The Isuzu 4x4 drive mobile service truck has a reliable powertrain that produces 320 torque and 143 horsepower, ensuring it can confidently traverse challenging terrains effortlessly. Whether traversing rocky terrain, muddy trails or steep inclines, this truck's 4x4 drive system provides the traction and control needed to conquer the most demanding environments.

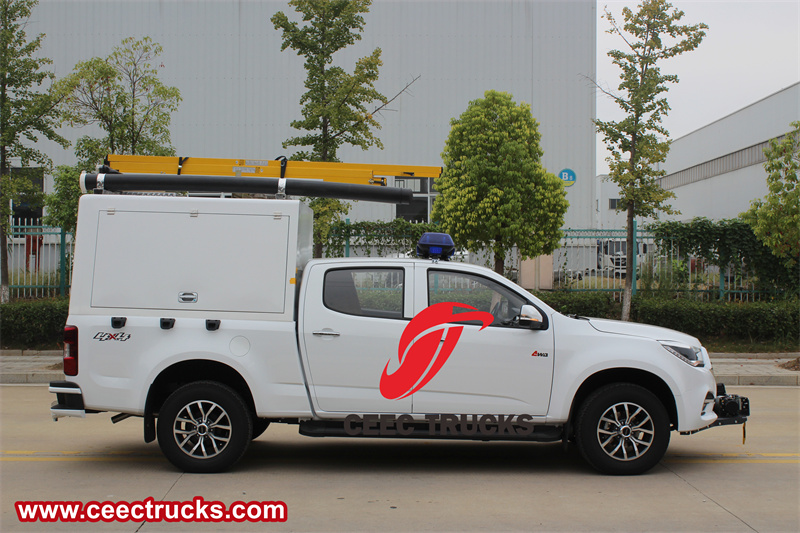

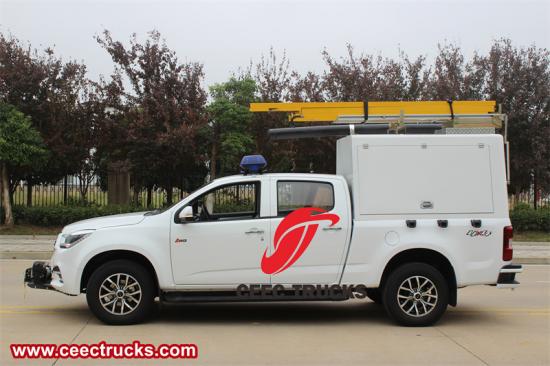

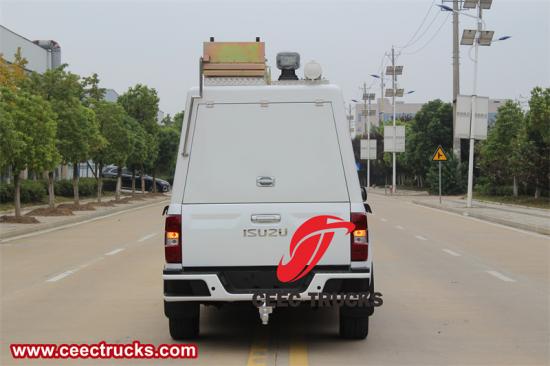

Isuzu pickup truck maintenance vehicle

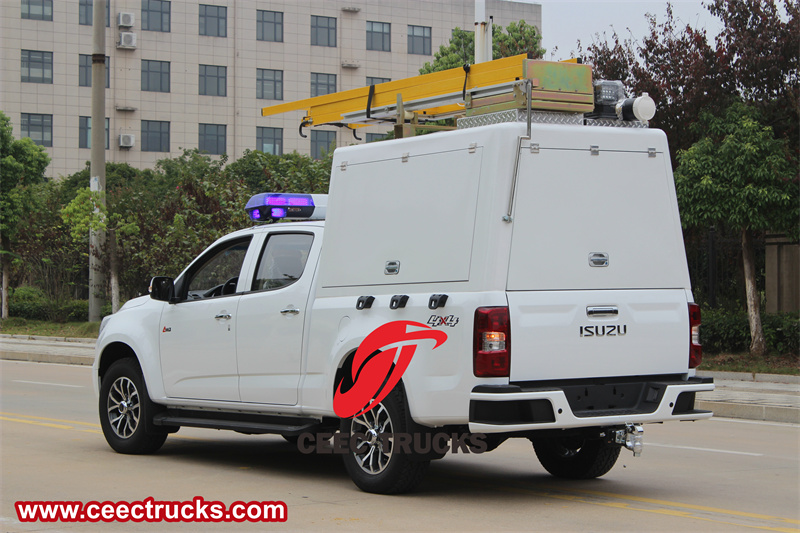

Isuzu 4X4 mobile service pickup truck
Step inside the spacious cab and you'll find a carefully crafted interior designed with comfort, ergonomics and functionality as top priorities. The vehicle features 2+3 double-row seats that are designed to fit and comfortably support you during long drives, while intuitive controls put essential functions at the driver's fingertips. The dashboard is equipped with a variety of instruments and displays that provide important information about the vehicle's performance and status.
The rear of the Isuzu 4x4 Drive multi-purpose service truck features a carefully crafted tool box that is a veritable equipment storage and organization center. This rear compartment embodies the epitome of functionality, providing ample space for storing tools, spare parts and essential gear while maintaining accessibility and security.

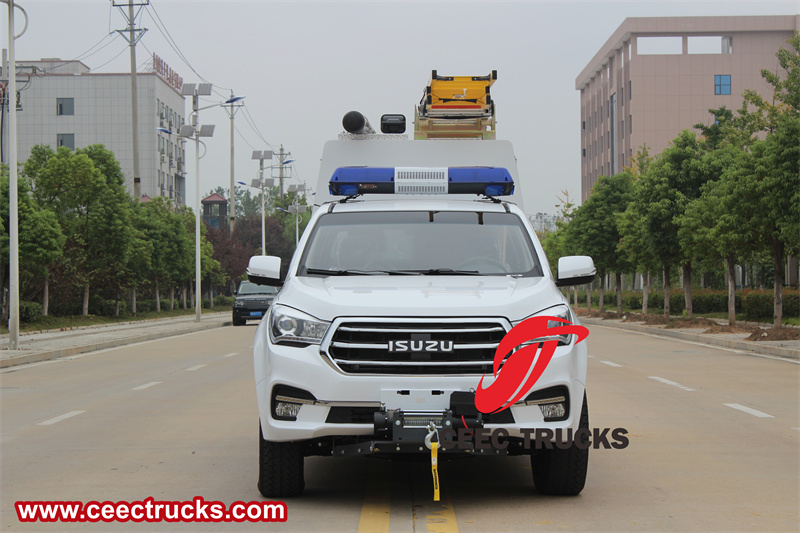

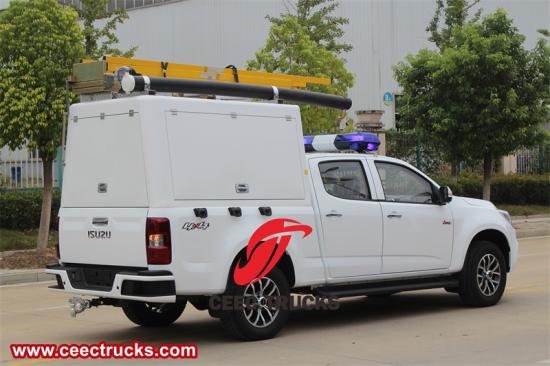

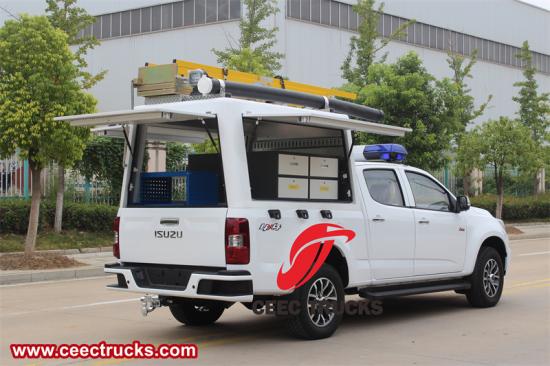

Isuzu pick up tool maintenance vehicle
Isuzu 4WD workshop service pick up
The rear tool box of the Isuzu 143 HP pickup service truck is one of the core features of its functionality, designed to be both practical and efficient to meet the needs of a variety of maintenance scenarios. The toolbox is made of reinforced materials to withstand the rigors of daily use, and the doors on both sides and the rear can be supported and extended to facilitate access to tools, reduce pressure on the user's hands and enhance the overall user experience.
The toolbox is divided into two layers for storing tools of different categories and sizes. The upper layer is equipped with a customized multi-functional four-compartment toolbox containing a variety of common repair tools, electrical testing equipment, fasteners and consumables for quick vehicle diagnosis and repair. The lower layer is equipped with a mobile cart for maintenance tools, in addition to three large plastic boxes for use.
The integrated lighting fixtures at the bottom illuminate the interior of the toolbox, ensuring visibility even in dim light conditions. This feature is very useful during night operations or low-light environments, which can improve safety and facilitate work during periods of low visibility. In addition, the lighting system can be easily turned on and off, providing flexibility and saving energy when not in use.

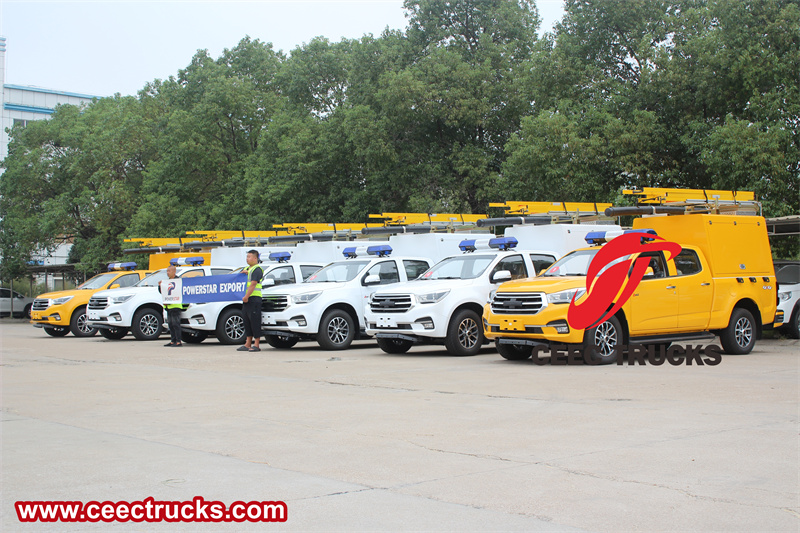

6 units Isuzu customized 4x4 emergency service truck

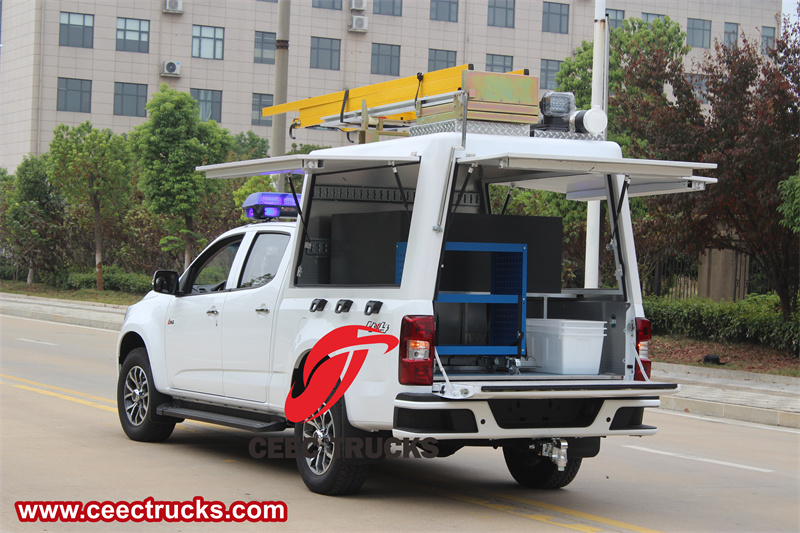

Isuzu 4x4 off road pickup rescue truck
Isuzu 143HP pickup truck maintenance service vehicle, as a high-performance commercial vehicle designed for maintenance, inspection and emergency services, has a wide range of uses covering multiple fields such as industry, agriculture, construction, and transportation, mainly including the following aspects:
1. Road rescue service
Equipped with comprehensive inspection tools and emergency rescue equipment, it can quickly respond to emergencies such as traffic accidents and vehicle failures, and provide on-site repairs, towing, refueling, tire replacement and other services for trapped vehicles to ensure smooth roads and driving safety.
2. Industrial facility maintenance
Suitable for daily maintenance and emergency repairs of industrial facilities such as factories, mines, and oil fields. With strong off-road capabilities and professional inspection toolboxes, it can easily reach every corner of the facility, solve equipment failures, and ensure the stable operation of the production line.

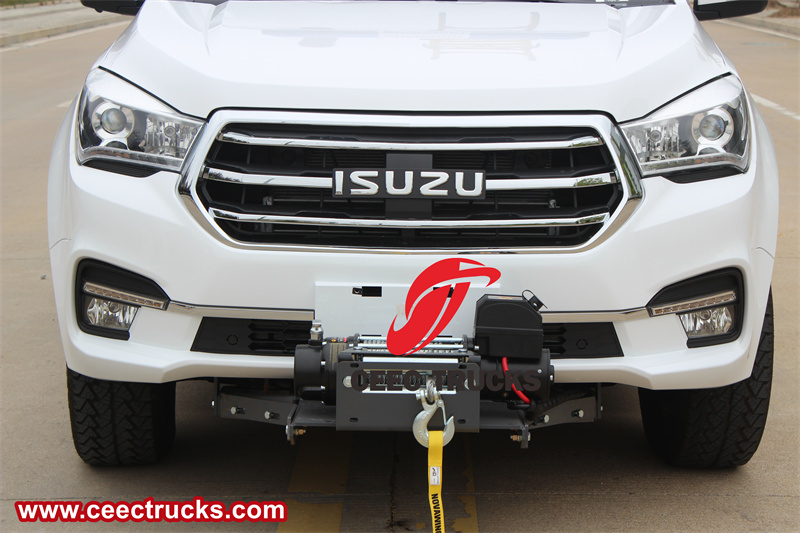

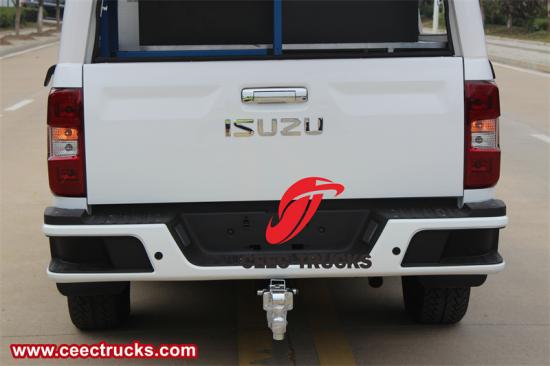

Trailer hook
3. Agricultural machinery maintenance
Provide on-site maintenance services for agricultural machinery such as tractors, harvesters, and seeders in agricultural operating environments such as farmland and farms. The vehicle's high ground clearance and four-wheel drive system enable it to cross the fields and repair mechanical failures in time to ensure that agricultural production is not affected.
4. Construction support
At construction sites, this vehicle can be used to transport small construction materials, tools and equipment, while providing on-site maintenance services for construction machinery. Its sturdy body structure and spacious storage space can meet the diverse needs of construction sites.

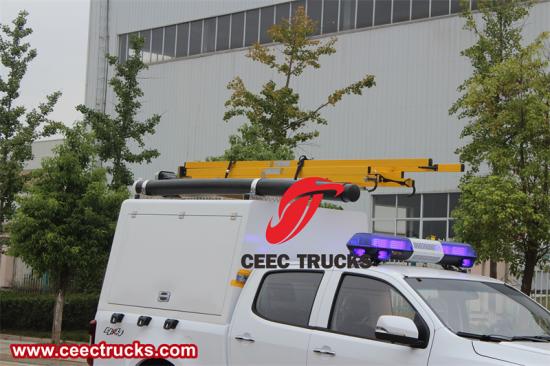

Pillow,Ladder and φ125 pipeline

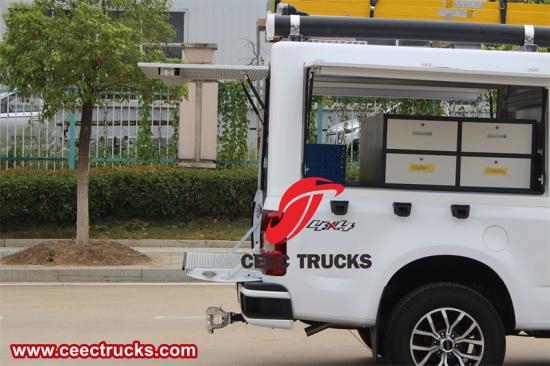

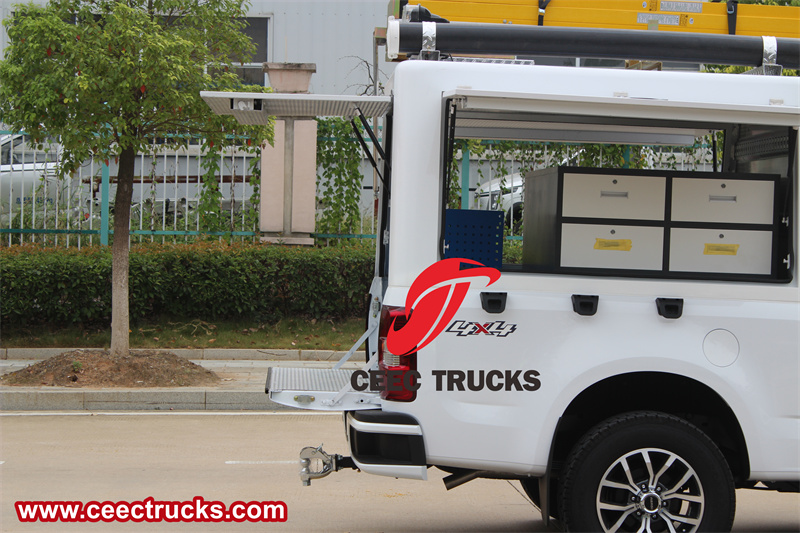

Four drawer tool box
5. Power and communication facility inspection
Equipped with professional testing instruments and maintenance tools, it is used for inspection and maintenance of infrastructure such as power lines and communication base stations. The vehicle's high mobility and stable power system support long-term operations in remote or complex terrains, ensuring the safe operation of infrastructure.
6. Urban public services
In urban environments, it can be used for inspection and maintenance of urban lighting, traffic signals, public facilities, etc. The vehicle's efficient communication and navigation systems enable it to quickly respond to urban service needs and improve public service efficiency.

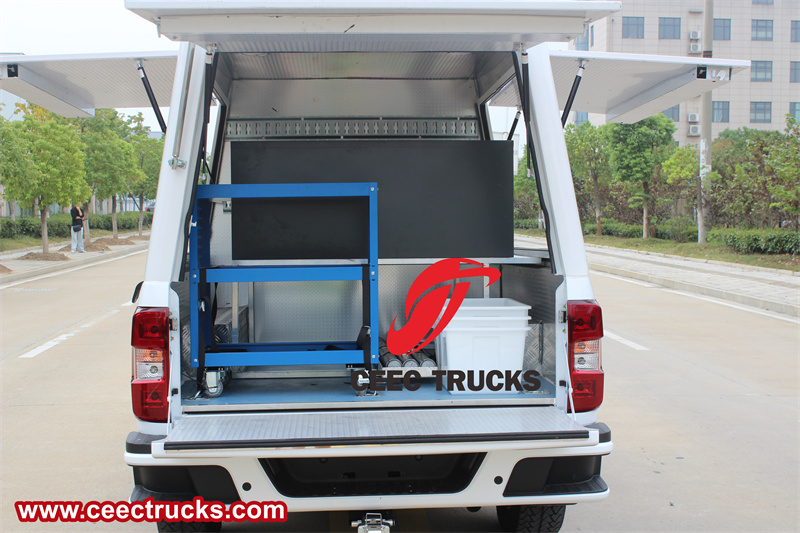

Tool box

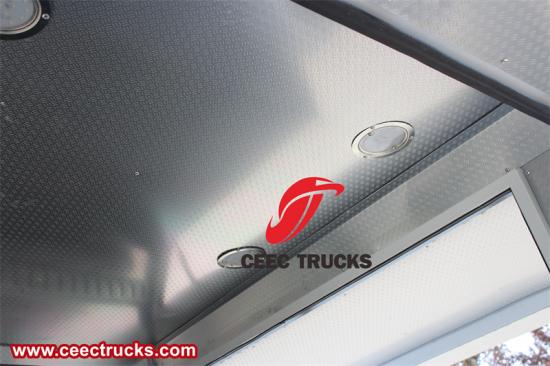

Lighting
★ Euro 6, ISUZU engine, super powerful
★ ISUZU chassis, super powerful
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU PICKUP SERVICE trucks exporter
★ Training service for ISUZU pickup service trucks
CEEC TRUCKS is a leading exporter of ISUZU pickup trucks in China. We possess over 10-year export experience of ISUZU trucks. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our ISUZU pickup trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
