Isuzu mini waste compactor rear loader

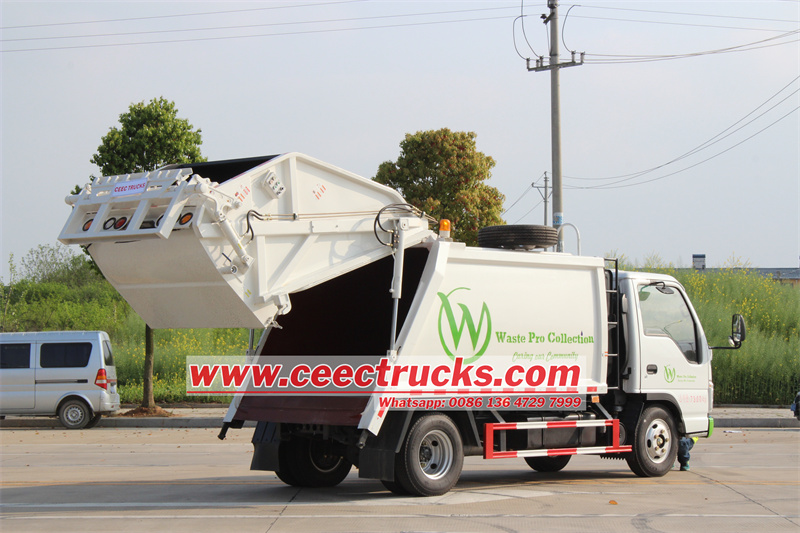

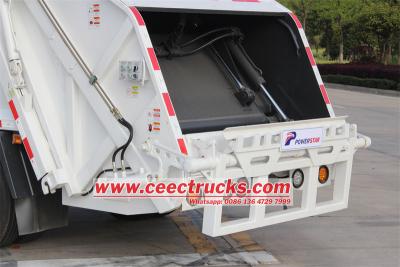

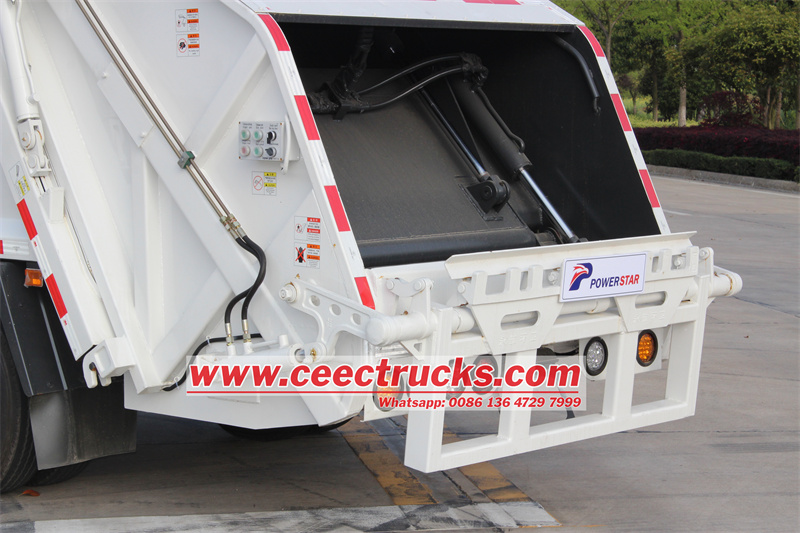

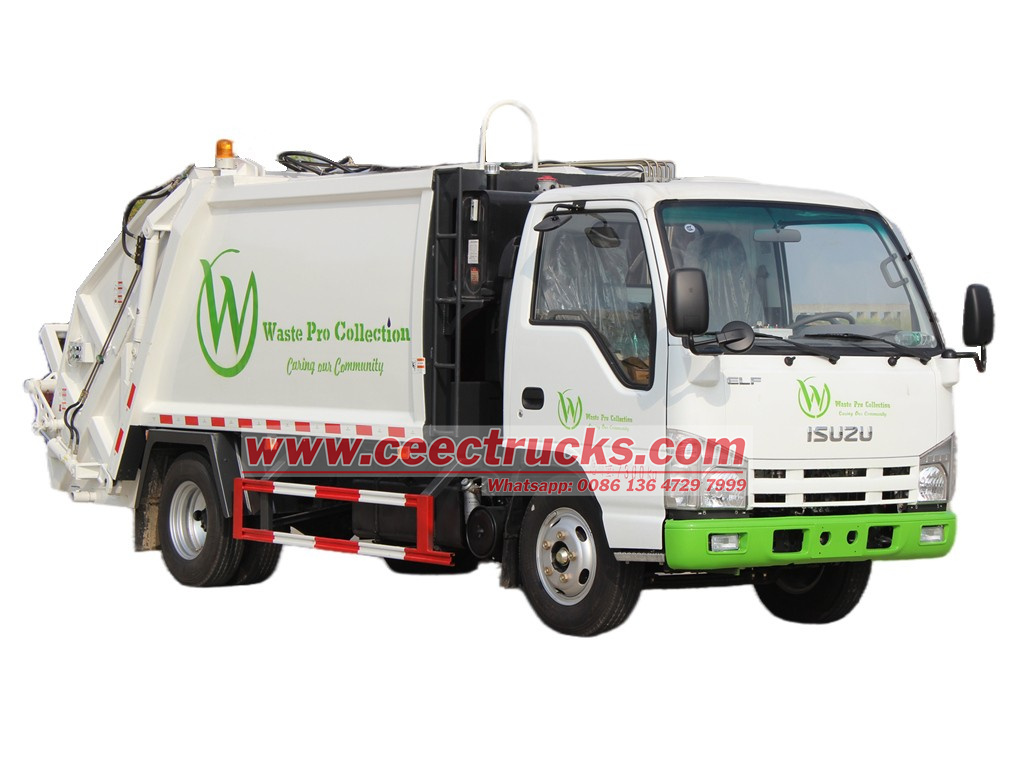

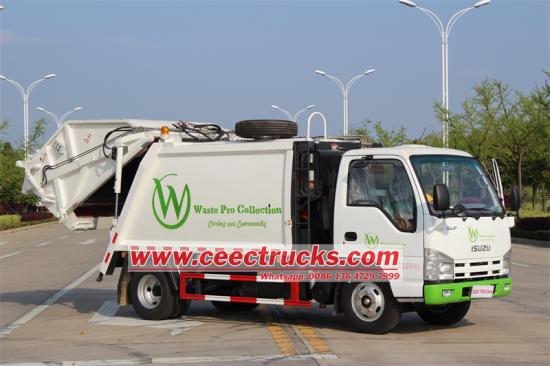

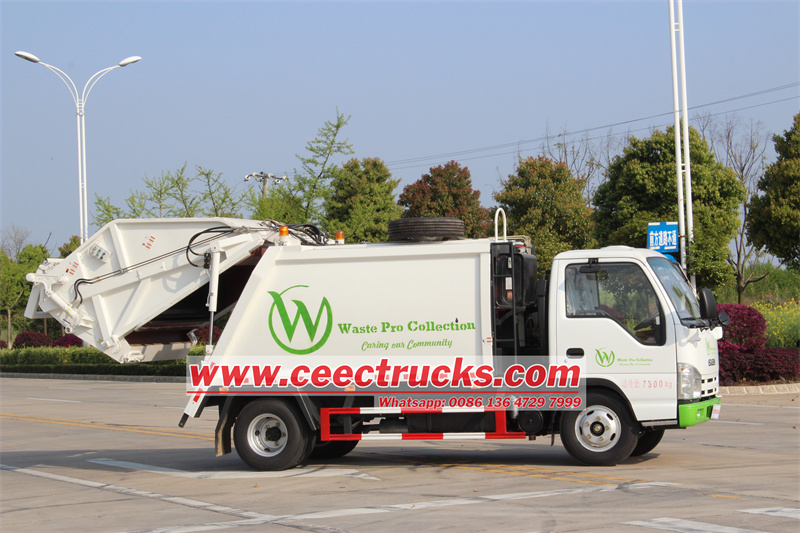

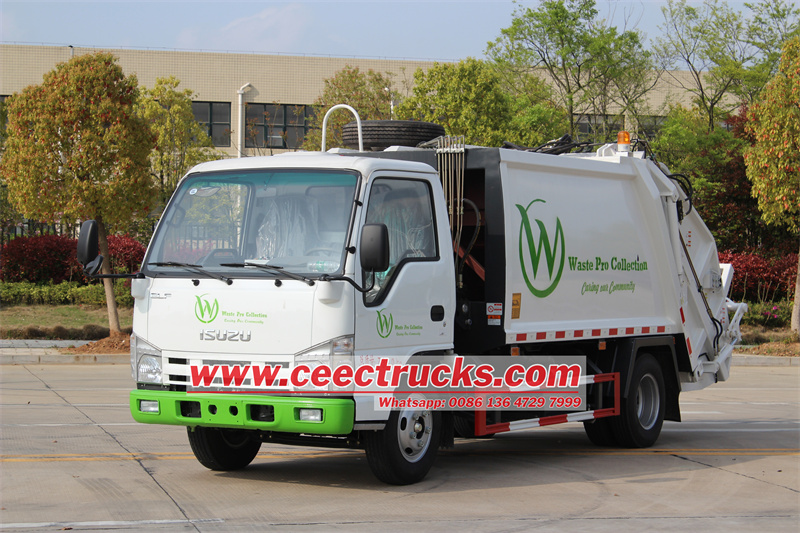

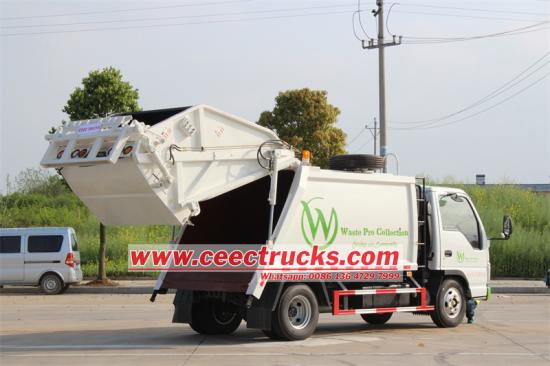

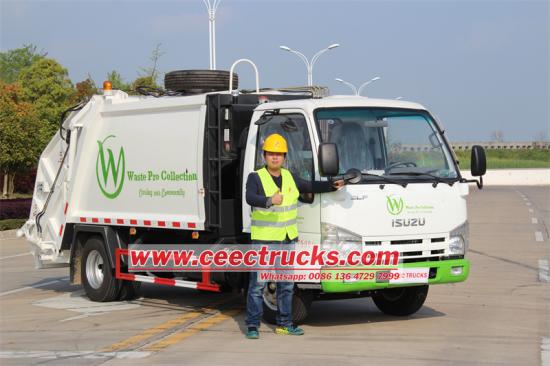

Year 2025 Isuzu 6cbm waste compactor truck produced by CEEC TRUCKS is equipped with Isuzu 4x2 NKR mini ELF 100P chassis, Isuzu 120HP 4KH1CN6LB diesel engine, Euro 6 standard with 2999ml displacement, 3360mm wheelbase, 2+1 seats with AC inside cabin, air brake system with ABS, Inline 4-cylinder 4-stroke diesel engine, direction assistance. The truck has 3 operation modes, including CAN-BUS electric control in the cab, hydraulic joystick, CAN-BUS electric control box in the tailgate hopper, also rear tilting device can be customized to loading 240L bins and 1100L bins, both plastic bins and metal bins are available.

The Isuzu NKR rear loader compactor truck is an efficient sanitation vehicle designed for urban garbage collection and treatment. It adopts advanced hydraulic transmission system and electronic control operation technology to achieve automatic loading, efficient compression and convenient unloading of garbage. The vehicle is equipped with a sturdy and durable garbage box, which can accommodate a large amount of garbage and reduce the number of transportation times.

During the loading process, the compression mechanism compacts the garbage tightly through reciprocating motion, which improves the loading efficiency and transportation capacity. At the same time, the electronic control system provides an intuitive and easy-to-use operation interface, allowing operators to easily monitor and control the entire working process. The vehicle is suitable for urban and rural garbage collection, with the advantages of high efficiency, environmental protection, and flexible operation, and is an ideal choice for modern garbage management.

● China best ISUZU mini ELF 100P rear loader garbage compactor truck factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements

● Promptly delivery. any order is welcome.

● 24 month quality guarantee term

Technical Parameter of the ISUZU rear loader waste compactor truck:

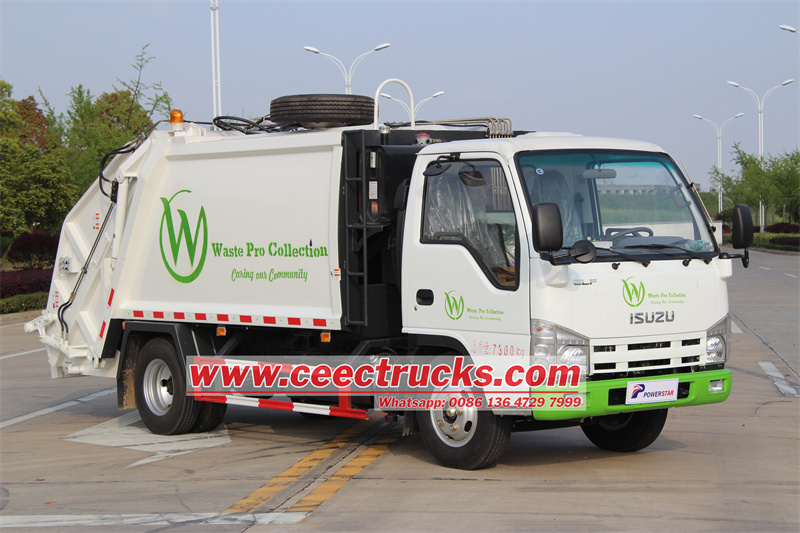

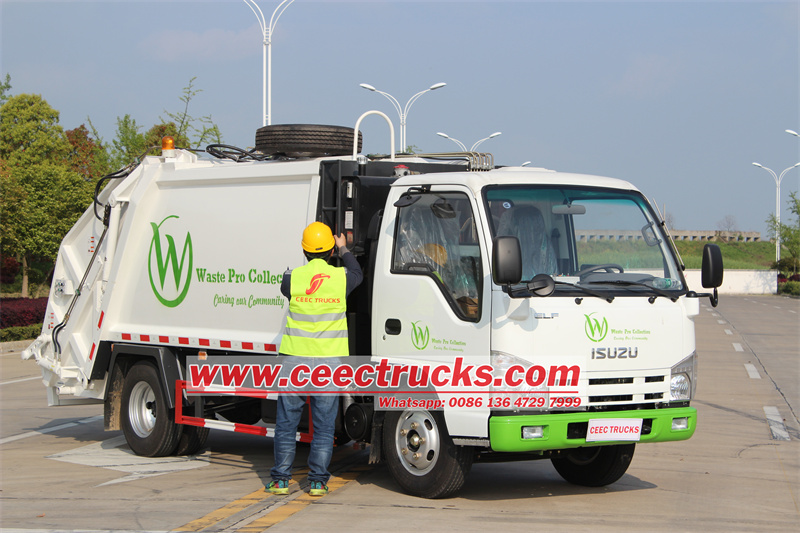

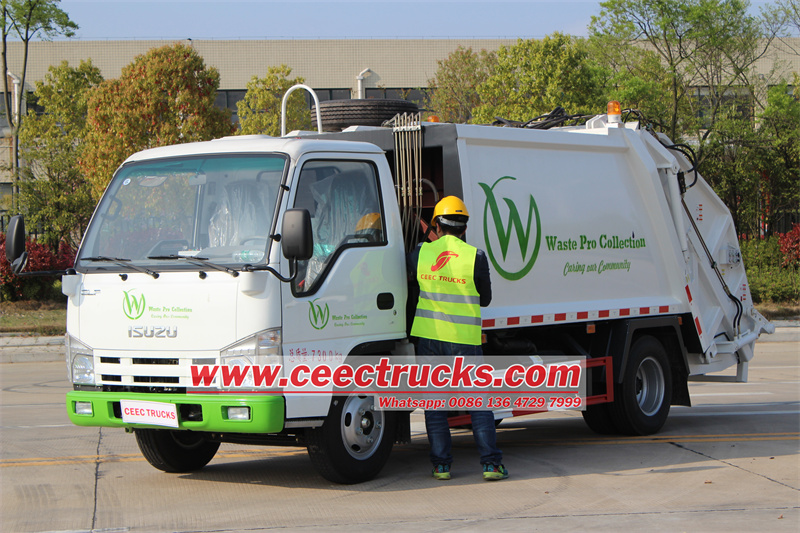

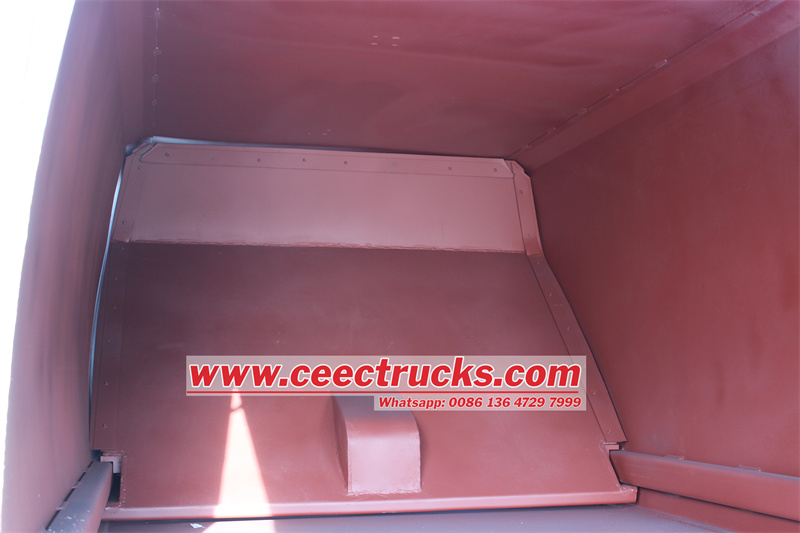

Isuzu 6 cubic meters mini ELF 100P waste compactor truck is a special vehicle designed for collecting and transporting garbage. Which is built on the Japanese Isuzu mini 100P chassis, it is solid and stable, providing good load-bearing capacity and driving stability. The compactor body adopts a streamlined arc box design with a volume of 6 cubic meters. It is made entirely of high-strength manganese steel T420 plates. The full welding process ensures that the box is sturdy and durable without leakage risk. Also can have the Isuzu rear loaders with compactor body and hopper customized made of HARDOX material, thickness for side and floor 4mm.

2025 year designed ISUZU garbage compactor truck is driven and controlled entirely by a hydraulic system. Specifically, the power generated by the vehicle's engine is transmitted to the oil pump through a power take-off and a transmission shaft. As the oil pump rotates, it generates high-pressure oil, which then drives the relevant hydraulic cylinders to work by operating the control switches on the multi-way directional valve. These cylinders drive specialized mechanisms to complete the tasks of garbage loading, compression, and unloading, respectively. And the ISUZU new NKR NPR can be mounted with Japanese brand diesel engine as below options:

4KH1CN6LB model with 88KW / 120HP, emission 2999cc

4KB1-TCG60 model with 97KW / 132HP, emission 2999cc

4KH1CN6HB model with 97KW / 132HP, emission 2999cc

4KH1N6MD model with 103KW / 140HP, emission 2999cc

4KH1N6HD model with 110KW / 150HP, emission 2999cc

4JZ1-TCG60 model with 110KW / 150HP, emission 2999cc

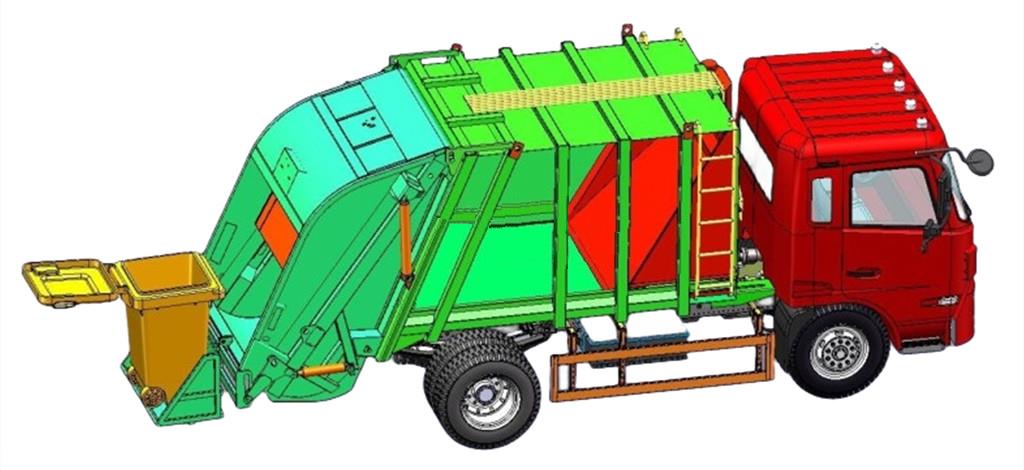

ISUZU mini ELF 6cbm trash compactor truck is mainly composed of sealed garbage bin, hydraulic system, operating system and ISUZU mini 100P truck chassis. The whole vehicle adopts a fully sealed design to ensure that no secondary pollution will be caused during garbage collection and transportation. The Isuzu rear loader truck use compression mechanism in the garbage bin is driven by the hydraulic system to compress the garbage and increase the loading capacity. And when discharge garbage, the sewage in the compression process will be collected in a special sewage tank to avoid secondary pollution caused by sewage spilling.

How to choose most suitable ISUZU waste compactor truck:

The ISUZU Garbage Compactor Truck makes use of the special power take off (PTO) to get power from the engine, and then transfer the power to the Gear Pump so to rotate the pump. The pump start working to transfer hydraulic oil to cylinders through pipelines, and cylinders working to make all garbage trucks equipment working, including tailgate, push plate, slide plate, scraper and tilting device. And then realize all function of the garbage compactor truck.

ISUZU 100P 6cbm garbage compactor truck has the characteristics of high compression ratio and large loading capacity, and the maximum crushing pressure can reach a high level, and the loading capacity is equivalent to more than two and a half times the same ton of waste compression garbage, which greatly improves the garbage collection efficiency. The whole truck adopts a fully sealed design and is equipped with a sewage collection system, which effectively solves the problem of secondary pollution during garbage transportation. With the use of advanced computer control system CAN-BUS, all filling and unloading operations can be operated by the driver alone. The system supports both fully automatic and semi-automatic operation modes, which reduces the labor intensity of sanitation workers.
