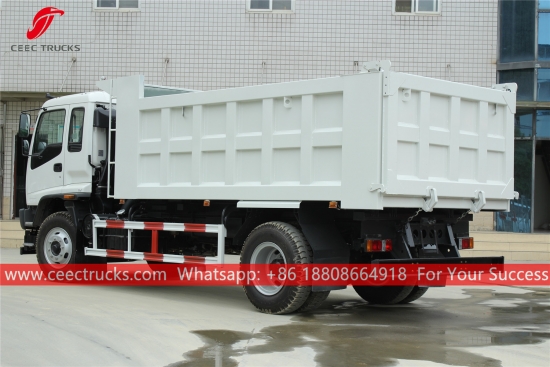

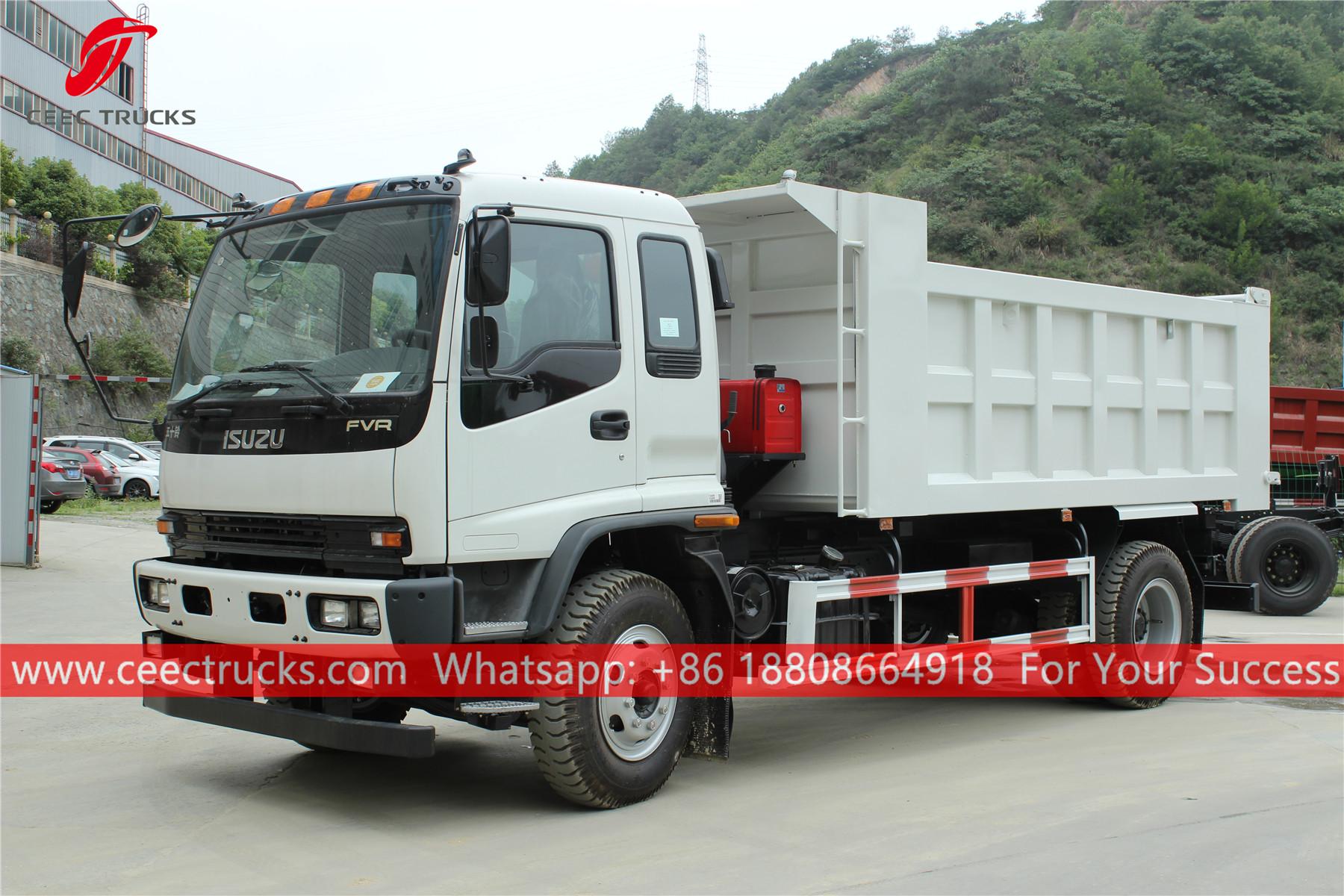

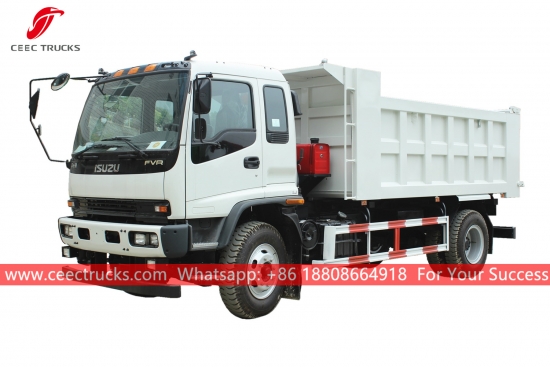

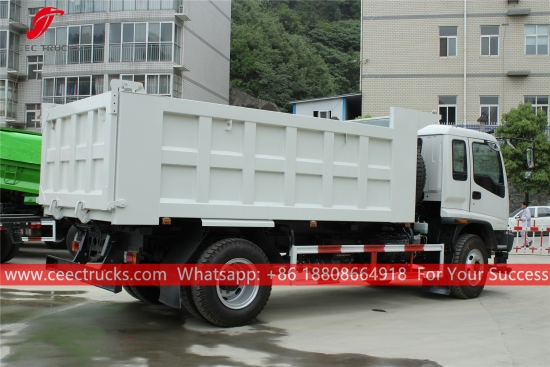

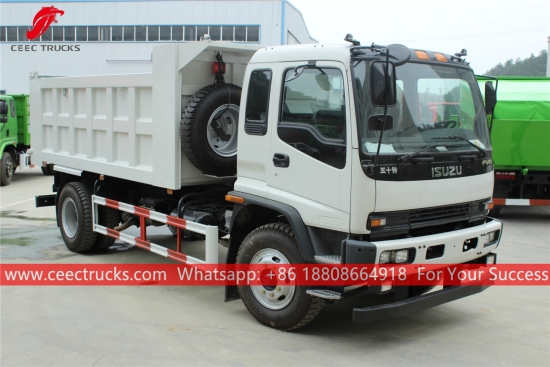

ISUZU FVR Dump truck

ISUZU FVR dump truck, ISUZU 4x2 LHD chassis, MLD 6-shift manual gearbox, ISUZU 240HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on customer's requirement.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
20 Days

Inquiry now

Applications:

ISUZU FVR Dumping truck (also called ISUZU heavy duty tipper truck, ISUZU 4X2 dumper truck, ISUZU new dump truck, hydrualic dump truck ISUZU, 6 wheels construction tipping truck, ISUZU dump vehicles) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.

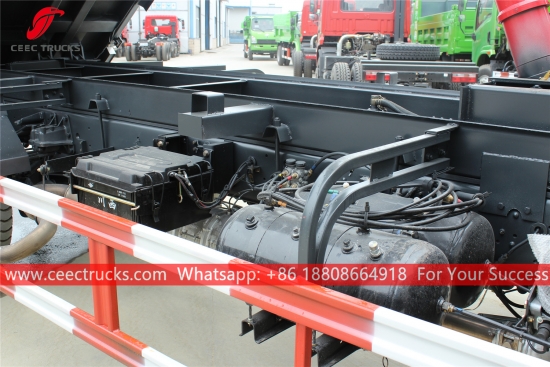

CEEC TRUCK dump truck is manufactured with the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front or middle hydraulic system, etc.

Key Features:

---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 10ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.

Specifications:

ISUZU FVR Dump truck
General	Vehicle Brand	CEEC TRUCKS
	Chassis Brand	ISUZU
	Overall Dimension	6950 * 2500 * 3170 mm
	GVW / Kerb Weight	16,000kg / 9,250kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU diesel engine
	Power	240 HP (177 KW)
	Displacement	7790 ml
	Emission Standard	Euro 4
Chassis	Drive Type	4X2 (LHD)
	Transmission	MLD 6 speed levers with 1 reverse
	Wheelbase/No. of axle	4500 mm / 2
	Tire Specification	11.00R20
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Superstructure	Pay loading capacity	20 Tons
	Cargo body	450022001500
	Thickness of cargo body	Option 1: Bottom 8mm, Side 6mm Option 2: Bottom 10mm, Side 8mm

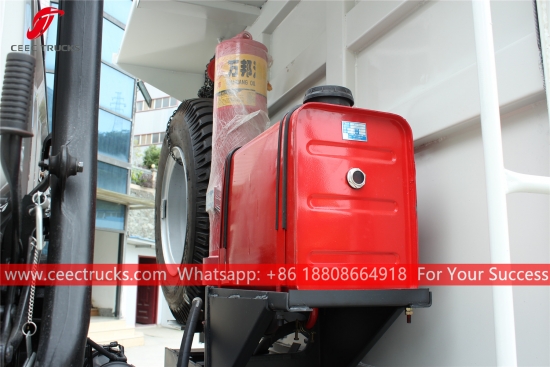

	Cylinder type	T Type or Domestic 220 or HYVA 200

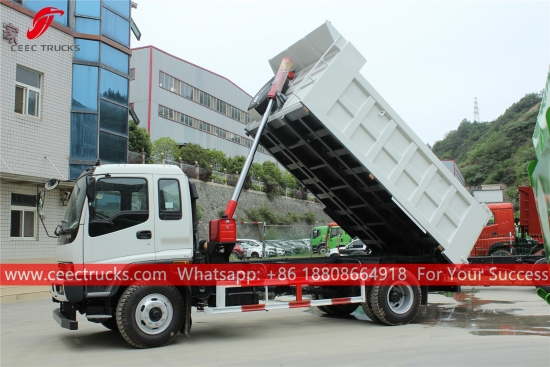

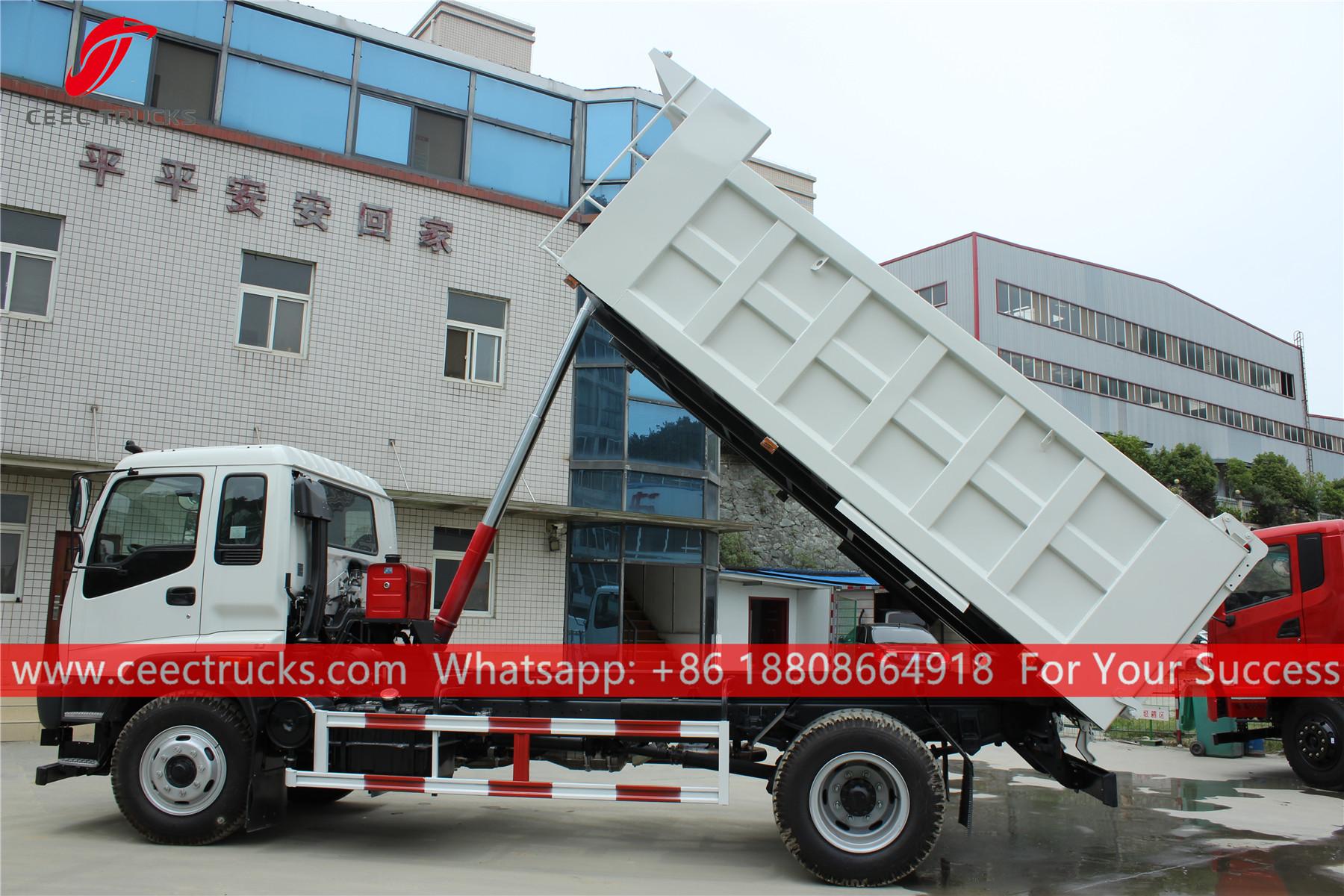

	Lifting system	Middle or Front
	Control	in the cabin
	Color & LOGO	According to wish
	All standard accessories: All steel body with drop sides. Auto release removable tailgate. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Other tipper body can be choose. ** Other material and plate thickness can be choose.

★ Euro 4 type, ISUZU engine, fuel consumption save 20%

★ MLD 6-shift manual mechanical transmission gearbox

★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU tipper trucks exporter

★ Training service for ISUZU dumper trucks

China best dump truck supplier and exporter, we supply the best quality JAC 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our dumping trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
