Isuzu FVR pumper tanker fire truck

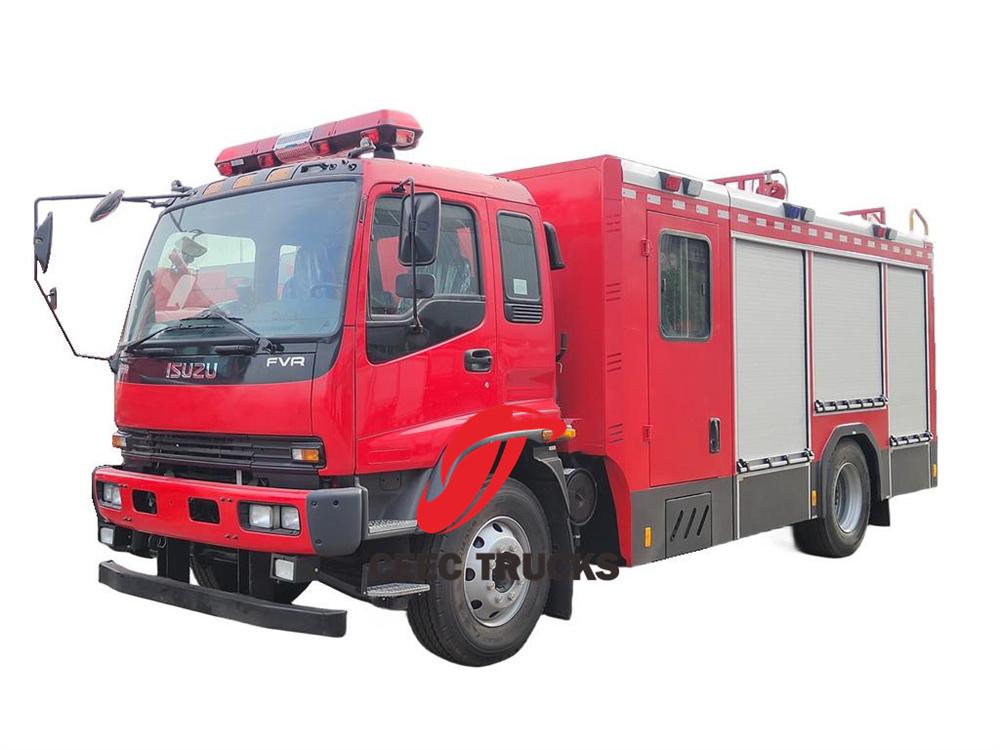

Isuzu FVR fire rescue pumper truck

The Isuzu FVR 10-ton Fire Rescue Truck is a versatile and powerful addition to any firefighting fleet, designed to tackle a wide range of emergency situations with efficiency and precision. This robust vehicle seamlessly blends the capabilities of a water pumper and a foam tanker, offering a comprehensive solution for combating fires of varying intensity and nature.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China main port
  • Lead Time:

    35 Days
  • Payment:

    T/T, West Union
contact now

1

Isuzu FVR fire rescue pumper truck also called Isuzu FVR foam water fire fighting truck,Isuzu FVR 4x2 10tons fire engine,Isuzu heavy rescue fire truck,Isuzu FVR pumper tanker fire truck,Isuzu 10tons foam fire tender.The Isuzu FVR fire rescue pumper truck stands as a formidable guardian against blazing infernos, a robust titan designed to combat the most intense fires with unwavering efficacy. At its core, this powerful firefighting machine embodies a fusion of strength, precision, and reliability, seamlessly integrated into a singular purpose - to protect lives and property in the face of relentless flames.




The heart of this vigilant sentinel lies in its 7-cbm water tank, storing a copious supply of life-saving water to extinguish fires swiftly and decisively. Complementing this reservoir of liquid salvation is a 3-cubic-meter foam tank, unleashing a potent blanket of foam to smother even the most voracious flames with remarkable efficiency. Together, these dual tanks form an unparalleled reservoir of firefighting prowess, ensuring that no fire remains unchallenged in its path.



Navigating treacherous roads with agility and precision, the Isuzu FVR 10 tons Pumper Tanker fire truck maneuvers effortlessly through crowded streets, responding to emergencies with unprecedented speed. Powered by a robust engine that propels it forward with unwavering determination, this fire truck surges towards danger zones, a beacon of hope amidst the chaos of a fire-stricken landscape.

Isuzu FVR fire rescue pumper truck

Key feature:

---- ISUZU chassis, perfect performance

---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.

---- Water tank and Foam tank capacity can be optional.

---- Easy operation and easy maintenance.

---- Various types of fire equipment are available.


2


ISUZU FVR 10tons foam water fire rescue truck

Manufacturer

POWERSTAR TRUCKS INDUSTRY CO.,LIMITED

Vehicle Brand Series

ISUZU

Vehicle Model

PT5180GXZ

Chassis parameters

Overall dimensions

mm

8250*2500*3400

Gross weight

kg

18000

Curb weight

8000

Rated payload

10000

Wheel track F/R

mm

2060/1855

Wheel base

4,500

Driving type

4*2

Chiassis model

ISUZU FVR

Number of axles

2

Tire specification

295/80R22.5

Number of Tires

6+1

Passengers

3+4

Engine

Engine model

6HK1-TCG61

Gear box

FAST 8-speed, manual

Type of fuel

Diesel

power

HP

240HP/177Kw

Max speed

Km/h

95

Displacement

7790ml

Emission standard(TAS)

EURO  6

Fire performance

 Tank capacity

water tank capacity:7cbm

foam tank capacity:3cbm

Fire pump

Brand: Shanghai RongShen

Model: CB10/40

Low-pressure:40L/S

Fire monitor

Brand: ChengDU West

Model:PL8/32

Flow:32L/S

Water jet distance:≥60m

Foam jet distance:≥48m

Electronic alarm

LY  CJB-100-C24

Alarm lamp

LY TBD-XF-168LED


Built on the sturdy Isuzu FVR platform, renowned for its durability and reliability, this fire truck exudes a sense of strength and readiness from the moment it rolls into action. The FVR chassis, known for its robust construction and excellent maneuverability, ensures that the truck can navigate through tight city streets as well as traverse rugged terrain with ease, making it an ideal choice for diverse firefighting environments.

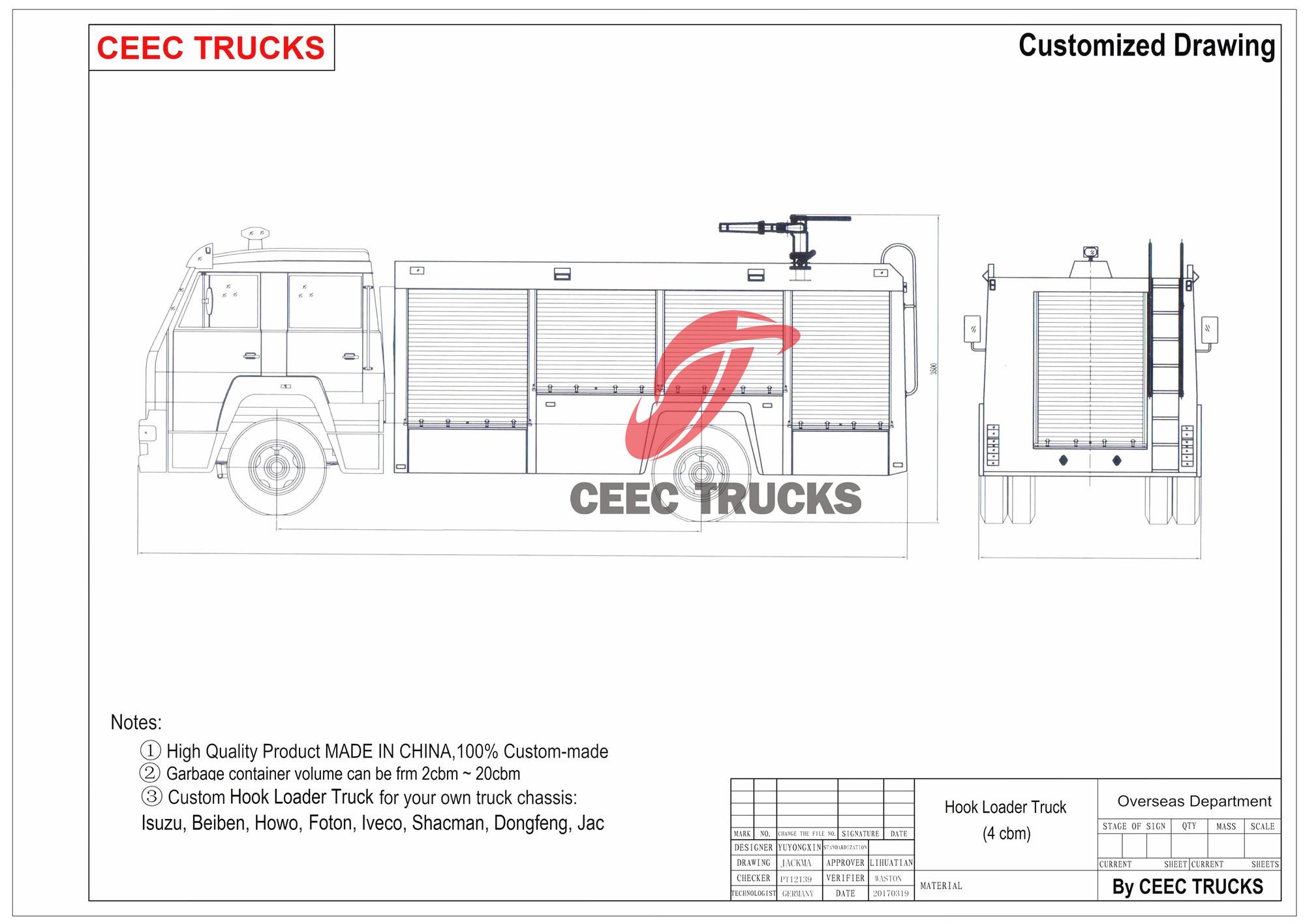

 Technical drawing of Isuzu FVR pumper tanker fire truck

Technical drawing of Isuzu FVR pumper tanker fire truck


At the heart of this vehicle lies its impressive water and foam storage capacity. Equipped with a 7-cubic-meter water tank and a 3-cubic-meter foam tank, the Isuzu FVR 10-ton Pumper Tanker is well-equipped to deliver large volumes of water or foam as needed, ensuring that firefighters have ample resources at their disposal to douse even the most stubborn blazes. The separate tanks for water and foam allow for quick and easy switching between the two media, depending on the nature of the fire, enhancing operational flexibility.



The pump system on this fire truck is designed to deliver maximum performance under demanding conditions. Capable of pumping water or foam at high pressures and flow rates, it ensures that water can be directed precisely where it's needed, whether it's to saturate a large area quickly or to penetrate deep into the heart of a fire. The powerful pump, coupled with a comprehensive network of hoses and nozzles, gives firefighters the tools they need to tackle fires of all sizes and types.



In addition to its impressive fire suppression capabilities, the Isuzu FVR 10-ton Pumper Tanker also boasts a range of features that enhance safety and ease of operation. The cab is ergonomically designed to provide a comfortable and secure workspace for the driver and crew, while the truck's lighting and warning systems are designed to ensure maximum visibility and safety on the road. The vehicle is also equipped with advanced communication systems, enabling seamless coordination with other emergency services during large-scale operations.

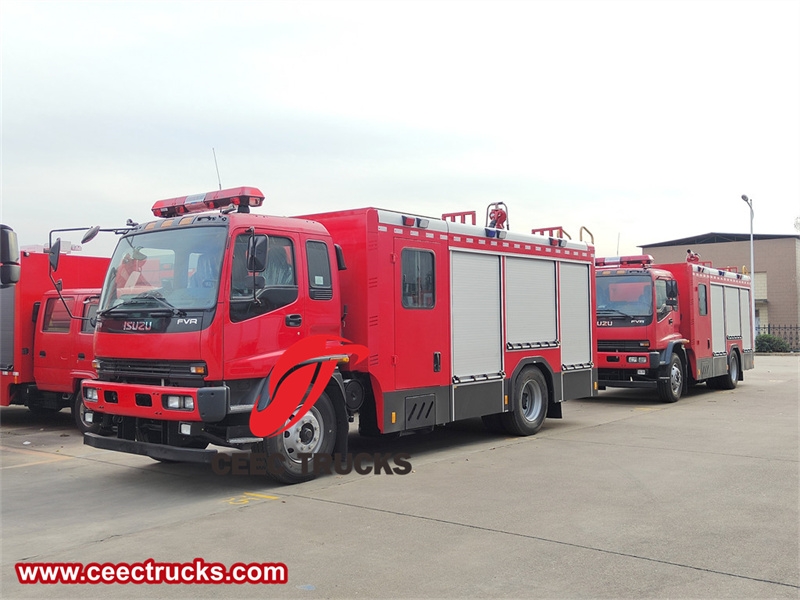

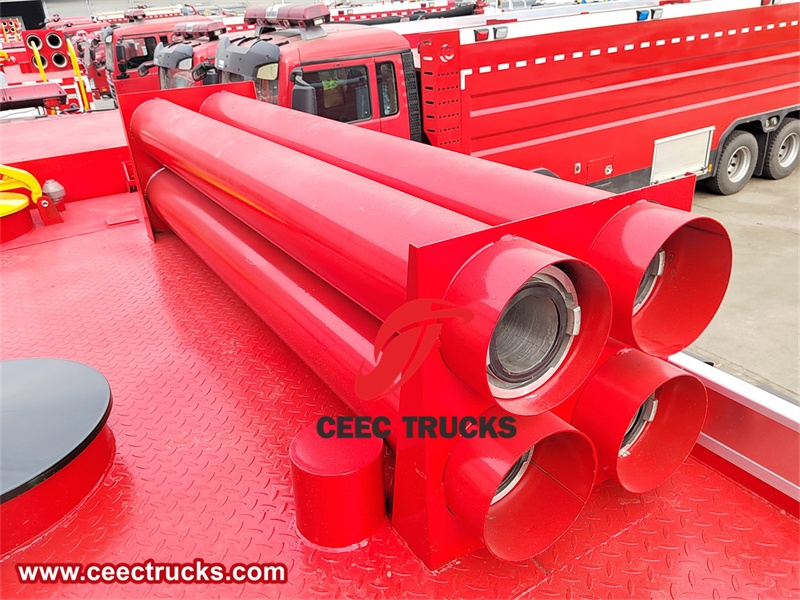

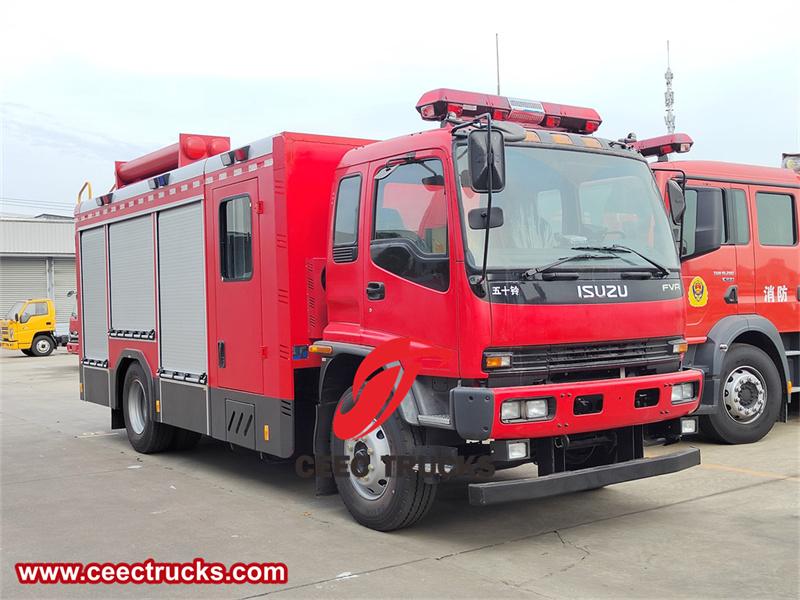

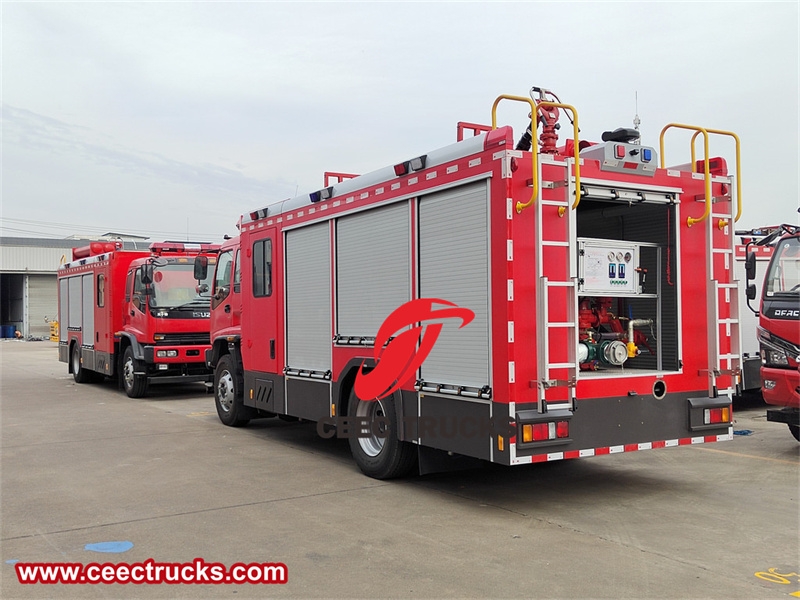

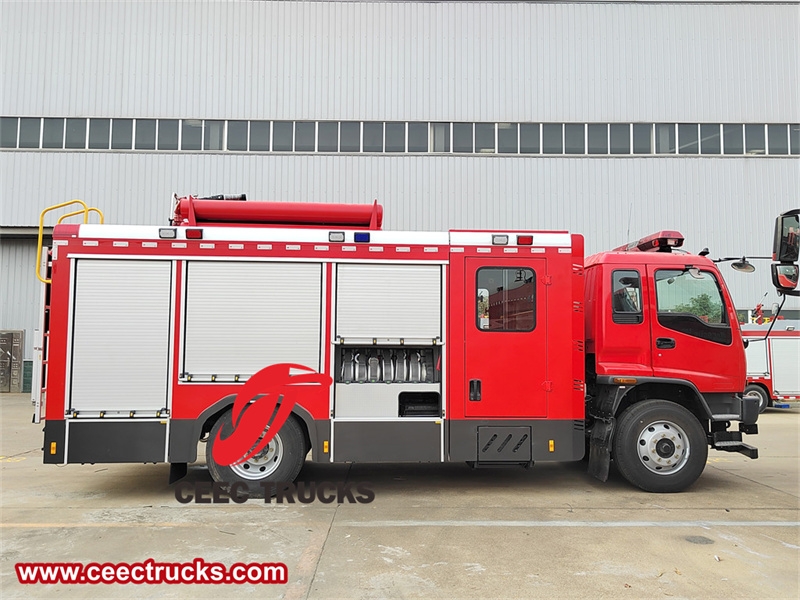

Isuzu FVR pumper tanker fire truck

Isuzu FVR pumper tanker fire truck


★ Chassis and Body

The Isuzu FVR chassis is made of high-strength materials that have been rigorously tested to ensure they can withstand the rigors of daily use in the firefighting environment. Its rugged design is reflected in every aspect, from the sturdy frame to the heavy-duty suspension system that ensures smooth, stable handling even on rough terrain.



The fire truck body mounted on the FVR chassis is equally impressive in design and functionality. The cab is located at the front of the vehicle and is a single-row design with a sleeper compartment, providing a comfortable and safe working space for the driver and crew. The sleeper compartment is a welcome addition, allowing firefighters to rest and recharge during long operations or transportation to and from the scene.



The interior of the cab is ergonomically designed to maximize comfort and efficiency. The driver's seat is adjustable and equipped with all the necessary controls, ensuring that the driver has full control of the vehicle even in adverse conditions. The cab is also equipped with an advanced communication system, allowing the driver and crew to stay in touch with other emergency services and coordinate their efforts during large-scale operations.

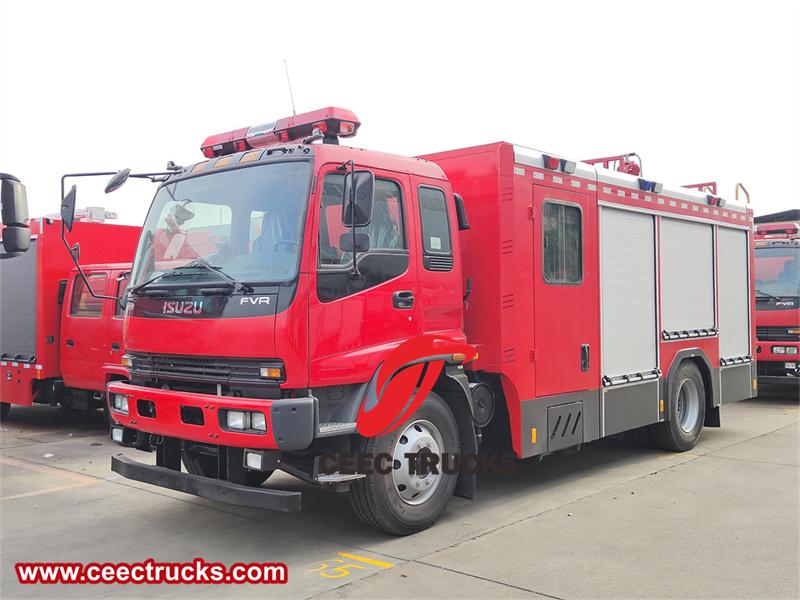

 Isuzu FVR foam water fire fighting truck

Isuzu FVR foam water fire fighting truck


The front of the body has been cleverly transformed into a firefighter's room, proving the vehicle's versatility and customization options. This spacious area can accommodate four firefighters, providing them with a safe and secure space to prepare for missions or rest during long operations. The firefighters' room is equipped with all the necessary amenities, including seats, air conditioning, to ensure that the crew is well-equipped and comfortable when saving lives and property.



The 7cbm water tank and 3cbm foam tank installed at the rear of the vehicle, the pump room and the tool room together form a powerful firefighting system, which is a solid backup in firefighting operations.



The overall design of the Isuzu FVR 10-ton fire truck is a clever fusion of form and function. The sturdy chassis and well-equipped cab provide a solid foundation for the vehicle's excellent firefighting capabilities, while the modified firefighters' room demonstrates the vehicle's versatility and commitment to the needs of the firefighters who operate it. These elements combine to create a powerful and reliable fire truck that is ready to take on any challenge it encounters.

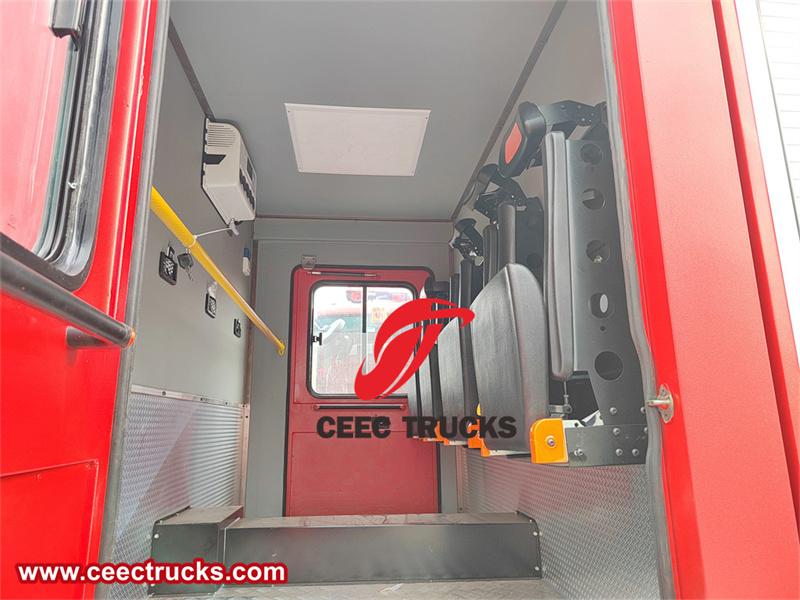

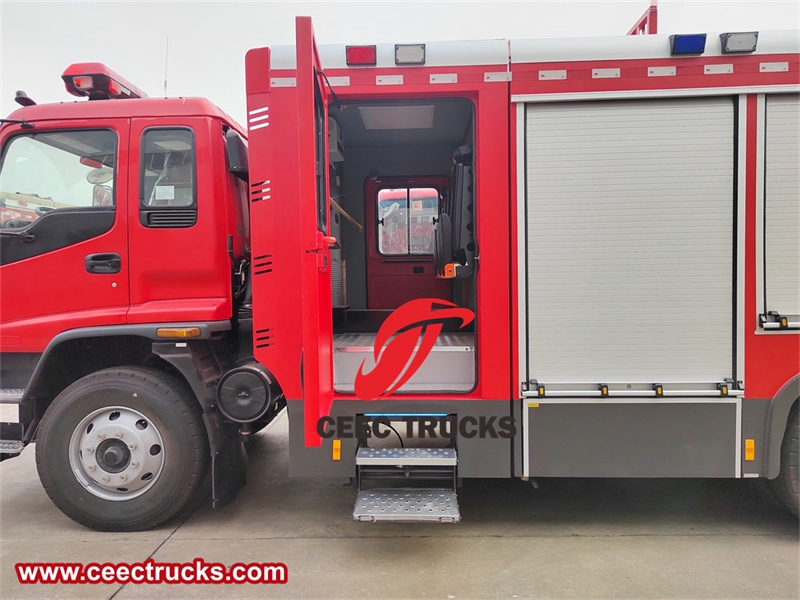

 Additional firefighter room

Additional firefighter room


★ 7cbm water tank and 3cbm of foam tank

● 7cbm water tank

The 7cbm water tank located at the rear of the vehicle body has become a solid backing in the firefighting operation with its huge capacity. This water tank is made of high-strength and corrosion-resistant materials to ensure that the water quality is not affected during long-term storage and transportation. Its design fully considers the balance and stability of the vehicle, and it can remain stable even when driving at high speed or on rough roads.



The water tank is equipped with an efficient water supply system, including a high-pressure water pump, water pipes, valves, etc., which can quickly transport the stored water to the fire extinguishing device. There are water filling ports and exhaust holes on the top of the water tank for quick filling and exhaust, ensuring easy and fast operation.



Safety protection devices such as overflow prevention devices, pressure relief valves, etc. are installed inside and outside the water tank to prevent safety problems caused by overpressure or overvolume. The surface of the tank is coated with anti-corrosion paint to increase its service life and reduce maintenance costs.

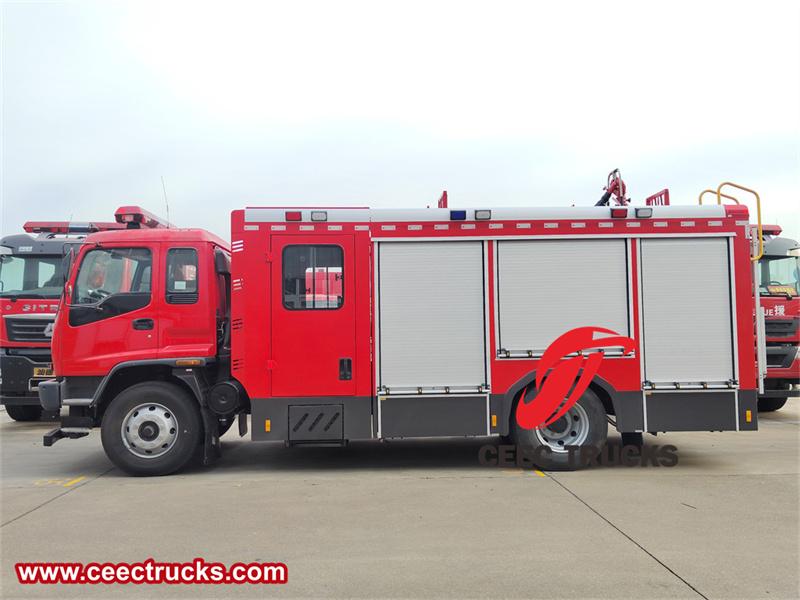

 Isuzu heavy rescue fire truck

Isuzu heavy rescue fire truck


In this huge water tank, 7cbm of water are waiting quietly, eagerly waiting for the moment of release. A sturdy network of pipes and valves snakes through the fire truck's frame, connecting the water tank to the high-pressure pump, which pushes the water in the tank toward the center of the flames. With the flick of a switch, this lifesaver tank is activated, pushing the water in its tank toward the flames with unyielding strength and determination.


The water gushes out of the tank and passes through the fire hose with unparalleled strength, turning into a torrent of liquid, rushing towards the source of the fire. The huge amount of water in the tank ensures that firefighters have sufficient water to enable them to continue to attack the flames until the flames are finally suppressed and extinguished.


● 3cbm Foam Tank

The 3 cbm foam tank next to the water tank is a powerful assistant for specific fire situations. Compared with the powerful power of the water tank, the 3 cbm foam tank installed in the Isuzu FVR 10-ton pump tank fire truck adds additional versatility and power to its firefighting arsenal. Foam, known for its suffocating properties and enhanced fire-extinguishing efficacy, has become a professional tool in the hands of firefighters, allowing them to extinguish particularly stubborn fires with unparalleled efficiency.

 Isuzu FVR fire rescue pumper truck

Isuzu FVR fire rescue pumper truck


The foam tank is connected to the water supply system and the foam liquid is mixed with water in a certain proportion through the foam proportioner and then transported to the fire extinguishing device. After the foam liquid stored in the foam tank is mixed with water, it can quickly form a layer of foam covering the surface of the burning object, effectively isolating the air and achieving the purpose of rapid fire extinguishing.



The foam tank is also made of high-quality materials and equipped with an advanced mixing system to ensure that the foam liquid and water can be mixed accurately and efficiently.



Upon receiving the order, the foam tank immediately goes into action, spraying a dense cloud of fire-extinguishing foam, enveloping the flames under suppression, cutting off the oxygen supply and suppressing their greedy hunger. This foam has the greatest fire-extinguishing ability and can firmly adhere to the surface, forming a barrier to deplete the fire of fuel and accelerate its extinguishing.



The integration of foam tanks in the firefighting equipment of fire trucks highlights their adaptability and readiness to deal with various fire situations. By combining the extinguishing power of water with the suffocating effect of foam, this fire truck enables firefighters to adapt their firefighting methods to the unique challenges presented by each fire emergency they encounter.



In essence, the 7cbm water tank and 3cbm foam tank embody the firefighting capabilities of the Isuzu FVR 10-ton fire truck - large capacity, precise delivery, and a variety of fire extinguishing agents, all perfectly combined to form a powerful line of defense against the devastation of fire. With these two major firefighting power reserves, firefighters are ready to face and conquer the most terrible fires, protecting life and property with unwavering determination and efficiency.

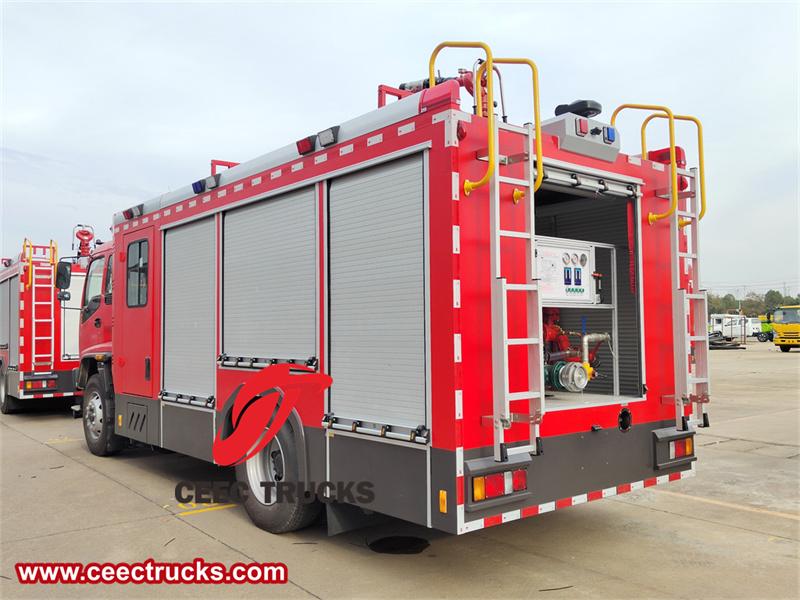

Isuzu 10tons foam fire tender

Isuzu 10tons foam fire tender


★ CB10/40 fire pump and PL8/32 fire monitor

● CB10/40 fire pump

The CB10/40 fire pump is one of the core power sources of the fire truck. It is responsible for pumping water or foam liquid from the water tank and foam tank and delivering it to the fire monitor or other fire extinguishing equipment at high pressure. The pump has the following characteristics:


1. Flow and pressure: The flow rate of the CB10/40 fire pump is 40L/s (liters/second), and it can work stably under a certain pressure. This combination of flow and pressure enables the fire pump to respond quickly to fire extinguishing needs and provide sufficient water to extinguish the fire.


2. Compact structure: The pump adopts a compact design, which is easy to install and maintain on the fire truck. At the same time, its structure is also optimized to ensure stability and reliability when running at high speed.

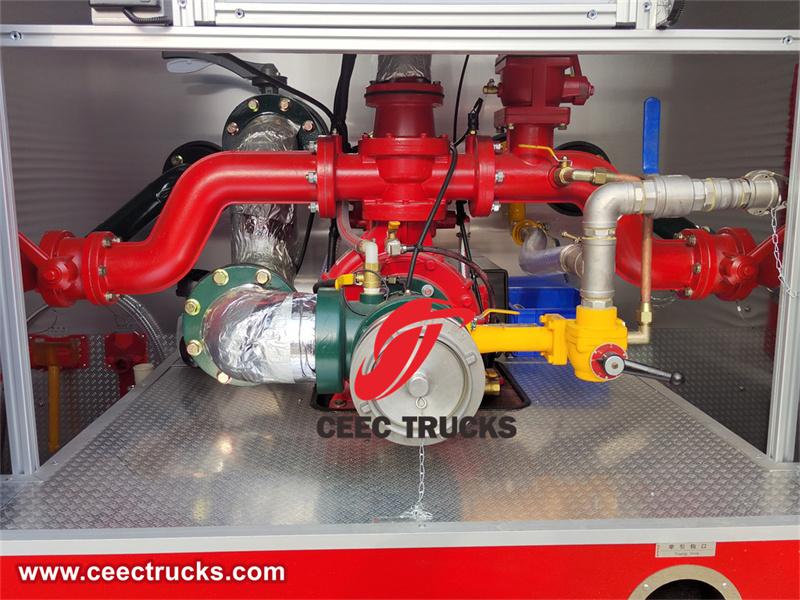

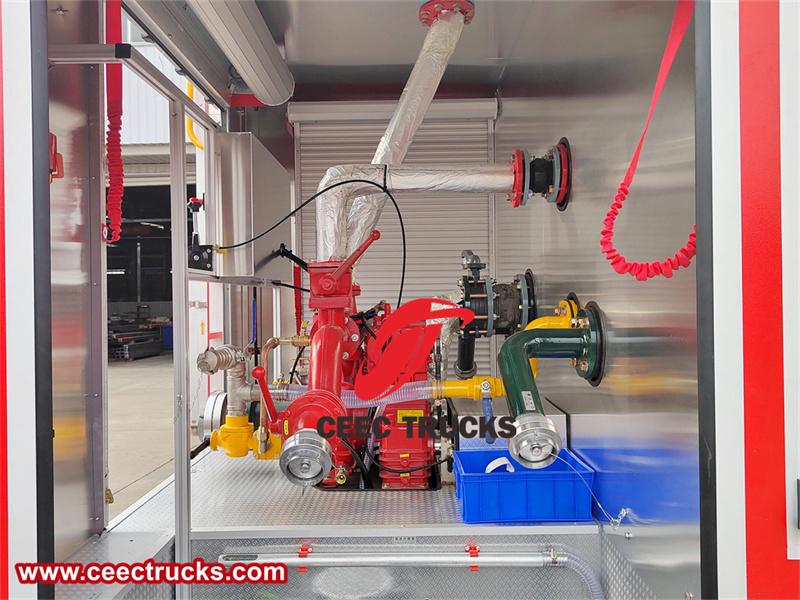

CB10/40 fire pump

CB10/40 fire pump


3. High efficiency: The CB10/40 fire pump adopts advanced pumping technology and materials and has the characteristics of high efficiency. It can deliver a large amount of water or foam liquid to the designated location in a short time, improving the efficiency of fire extinguishing.


4. Durability: The pump body and key components are made of high-strength, corrosion-resistant materials to ensure long-term stable operation in harsh firefighting environments. In addition, the pump has been rigorously tested and verified to ensure its durability and reliability.

 CB10/40 fire pump

CB10/40 fire pump

Flow (L/S)

Outlet pressure(Mpa)

Rated speed(r/min)

Crank power (kw)

Suction depth(m)

40

1

3916±50

68.2

3

28

1.3

4163±50

69.4

3

20

1

3700±50

50

7

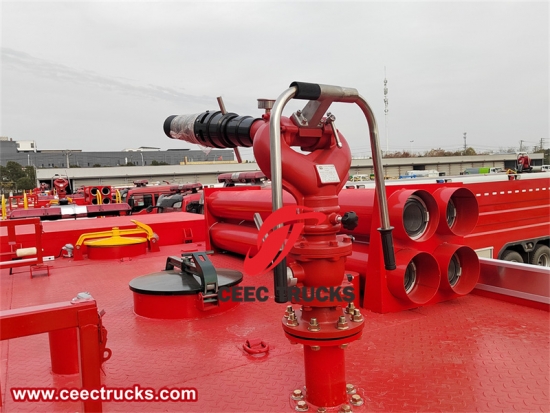

● PL8/32 Fire Cannon

The PL8/32 fire cannon is one of the important fire extinguishing devices on the fire truck. It can spray water or foam liquid to the fire scene at high speed and high pressure to extinguish the flames and cool the burning materials. The fire cannon has the following characteristics:



1. The flow rate of the PL8/32 fire cannon is 32L/s, and the range is ≥60m. Its flow rate and range are usually matched with the CB10/40 fire pump to ensure that the water provided by the pump can be fully utilized. Its range can reach tens of meters or even farther, and can cover a larger fire extinguishing area.


2. Low inlet pressure, can spray water or foam liquid, remove the foaming tube to use as a water cannon, and also has the function of blooming and direct current

Light weight, precision cast aluminum material, equipped with automatic drain valve; the operating handle can be adjusted to use the angle; with horizontal and elevation locking functions, long range, concentrated jet, high foaming multiple, large protection area, flexible and convenient operation, the gun body can be rotated horizontally and in elevation.

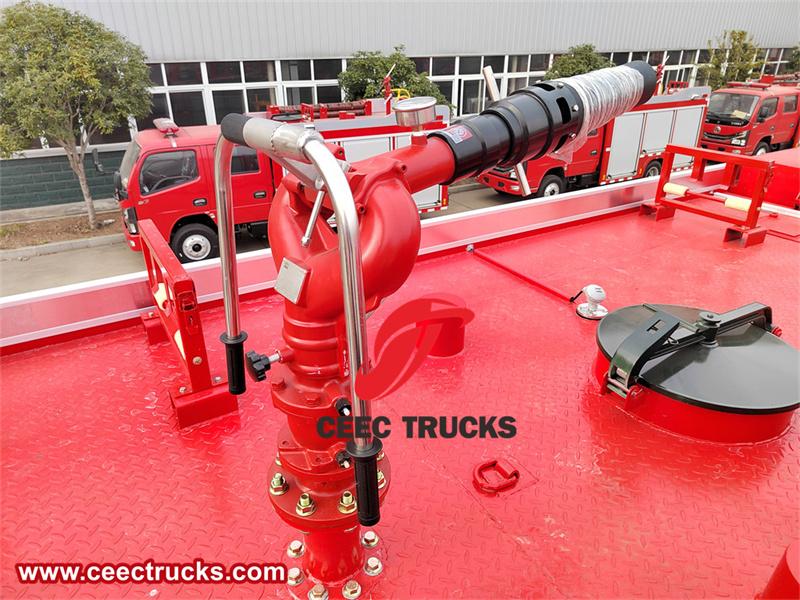

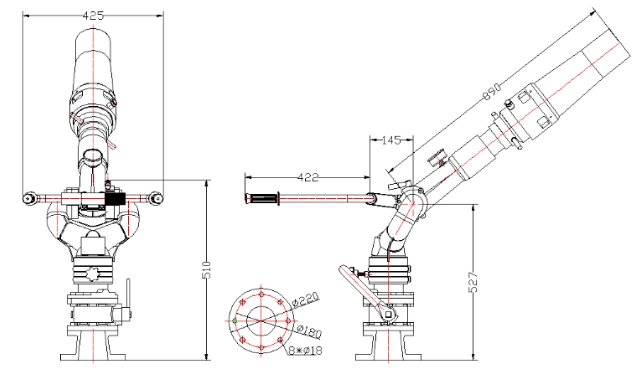

PL8/32 fire monitor

PL8/32 fire monitorPL8/32 fire monitorPL8/32 fire monitor

Model

Flow
(L/s)

Range(m)

Rated working pressure(Mpa)

Pitch rotation
(°)

Horizontal rotation
(°)

Length × Width × Height
(mm)

Weight
(Kg)

Water

Foam

PL8/32

32

≥60

≥48

0.80

-45~+70

0~360

1400*425*660

23

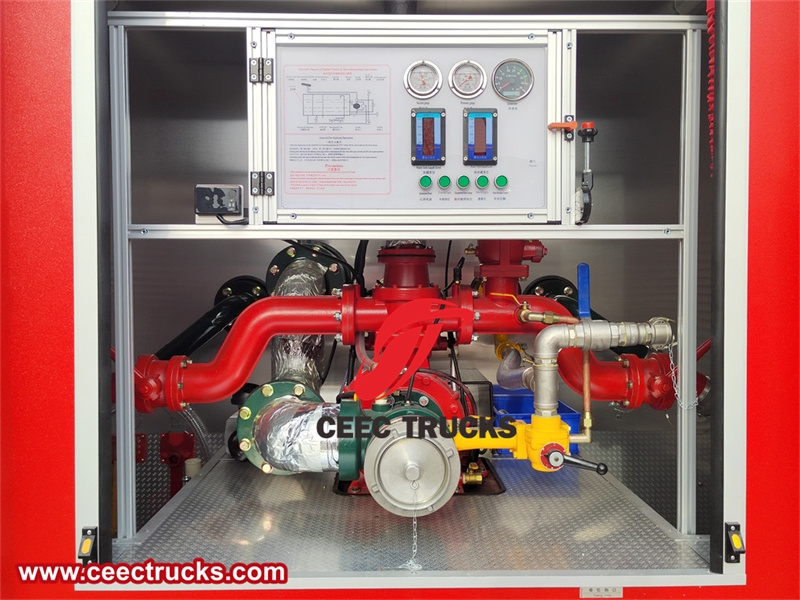

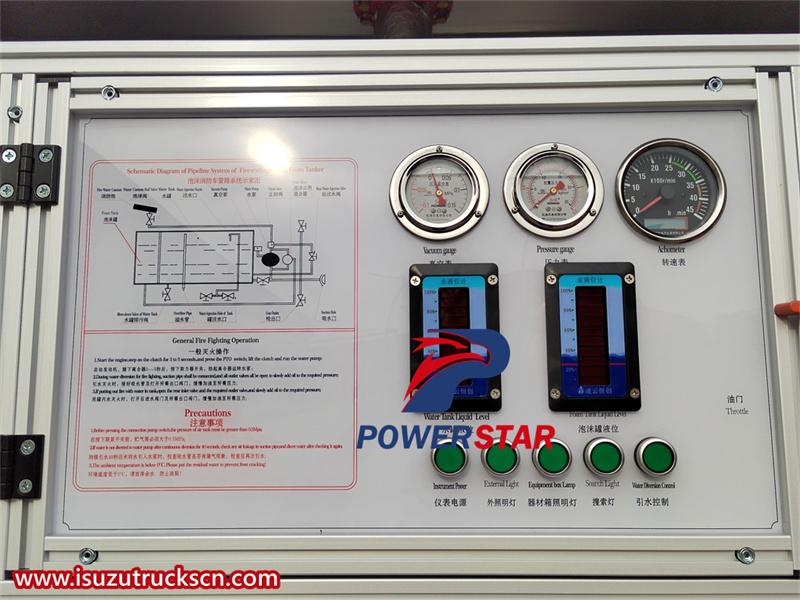

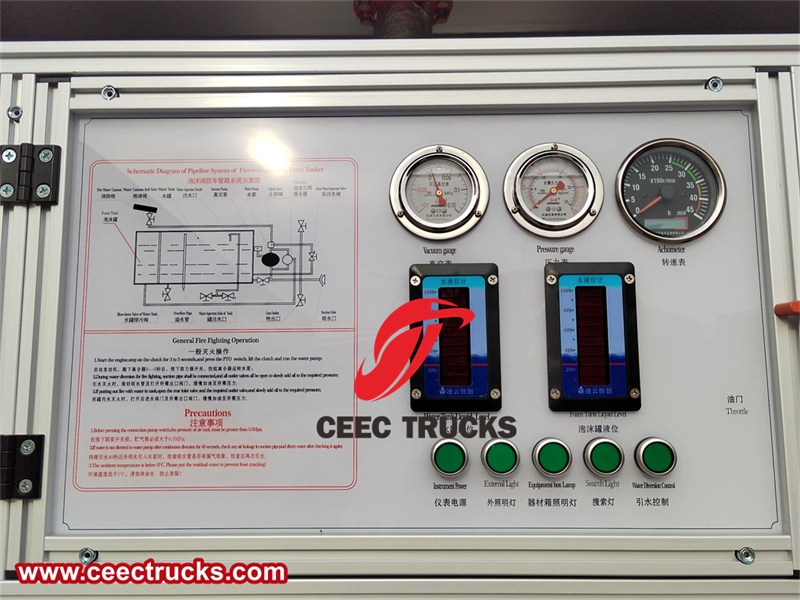

● Control Panel

The control panel of the Isuzu FVR 10-ton pumping fire truck is a highly advanced and fully functional hub that carries the key to firefighters' decisions and actions in critical moments, playing a vital role in this complex and life-and-death battlefield. The existence of a structural diagram allows operators to quickly understand the internal layout and key components of the vehicle, which helps them to respond quickly when responding to emergencies.



Critical instruments such as vacuum gauges, pressure gauges and tachometers are embedded in the panel, providing instant data feedback, allowing firefighters to monitor the operating status of the engine and pumps to ensure that the fire truck is in the best condition for fighting. The accurate readings and reliability of these dials are crucial to guide firefighters to adjust their strategies for fire scene operations.



The water tank and foam tank level indicators blend practicality and intuitiveness, helping firefighters to know the level of liquid in the vehicle's pumping device at any time. The water tank and foam tank level data can guide firefighters to control the operation of the pump and ensure that sufficient extinguishing medium is maintained during operations to ensure the smooth progress of firefighting tasks.

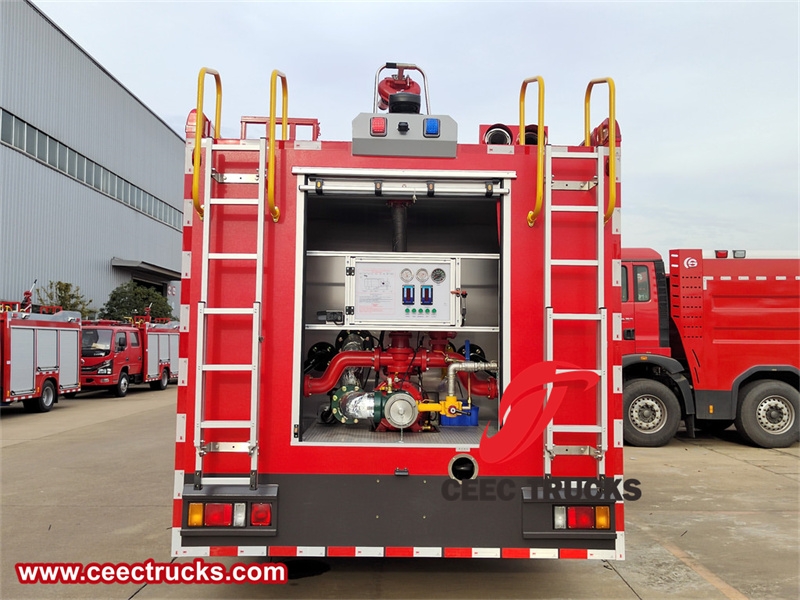

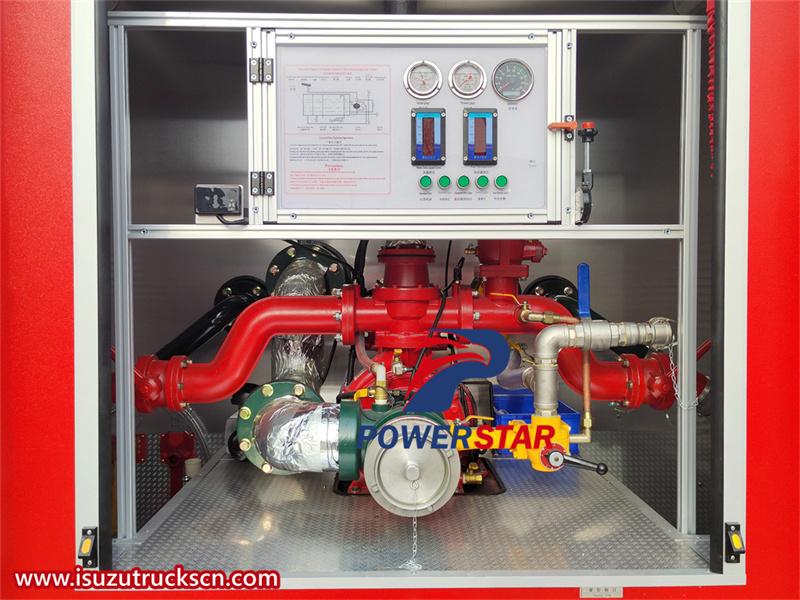

 Control panel

Control panel

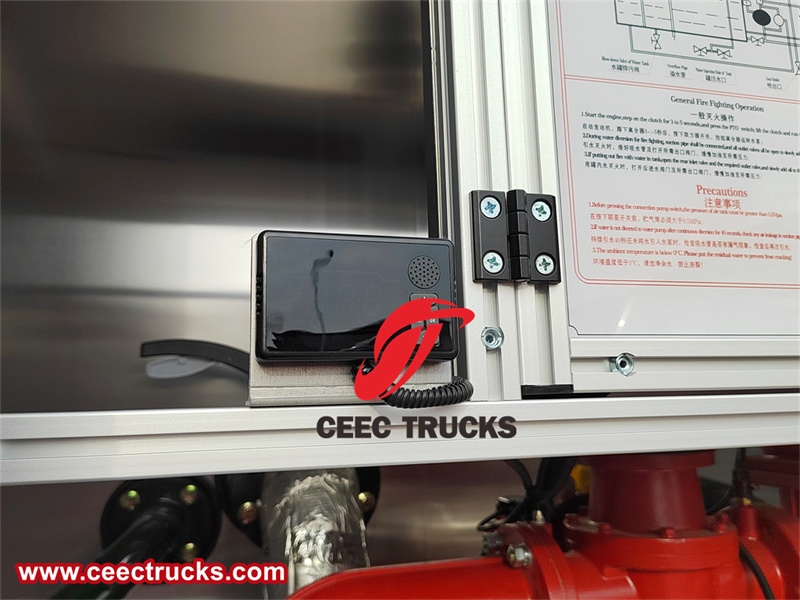

In addition, the instrument panel also includes the equipment power controller and the switch for the external lights and equipment box lights. The integration of these features provides firefighters with a variety of lighting options to help them maintain clarity and stability in operation at night or in adverse weather conditions. The search light provides firefighters with a wider field of view, allowing them to quickly locate the fire point and take corresponding firefighting and rescue actions.



The presence of the water diversion controller on the control panel allows firefighters to operate the vehicle's water cannon in real time and accurately aim at the focus of the fire. The key to this function is that firefighters can adjust the direction and intensity of the water cannon to maximize the firefighting effect and ensure that the disaster is controlled in the shortest time.



Overall, the control panel of the Isuzu FVR 10-ton pumping fire truck integrates a series of functions and equipment, providing firefighters with a set of practical and intuitive tools to help them respond and take action quickly when responding to various fire emergencies. This powerful and intelligent control center is one of the keys to the efficient operation and firefighting of fire trucks, and embodies the power of technology and human wisdom in protecting life and property.


Control panel

Control panel


★ Firefighting equipment

The firefighting equipment carried by the Isuzu FVR 10-ton pumping fire truck is comprehensive and carefully selected to provide firefighters with all-round support and protection to cope with various complex fire scene situations. These key equipment items cover the needs of various types of firefighting and rescue work, ensuring that firefighters can quickly and effectively carry out corresponding actions when faced with challenges.

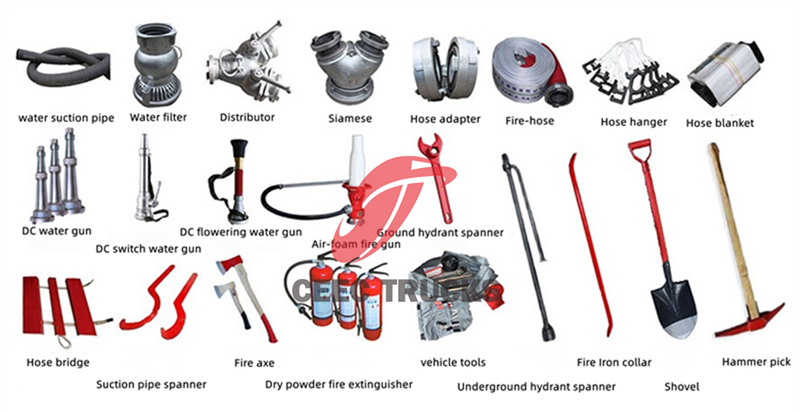

Firefighting equipment

Firefighting equipment


Fire extinguisher: The fire truck is equipped with a dry powder fire extinguisher, which is suitable for extinguishing fires such as oil and electrical equipment.


Water collector: It is designed to quickly collect water from various water sources (such as fire hydrants, rivers, ponds, etc.) and transport it to the water tank of the fire truck. It usually has a large water suction port and strong suction to cope with the water intake needs in different environments and conditions.


Water distributor: At the fire extinguishing scene, the water distributor is used to divide the fire hose or foam pipeline into multiple lines so that water or foam can be supplied to multiple fire points at the same time. This helps to improve the efficiency of firefighting and shorten the time of firefighting.


Water filter: It is used to filter impurities and contaminants in the water to ensure that the water quality delivered to the fire truck or fire extinguishing device is clean and free of impurities. This is especially important when taking water from a wild water source to prevent blockage and damage to firefighting equipment.

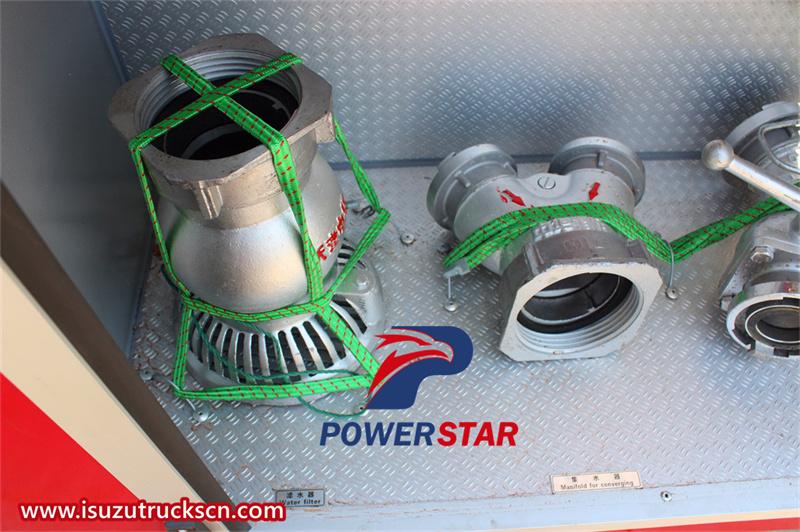

Water collector,water distributor,water filter

Water collector,water distributor,water filter


Water gun and foam gun: Water gun and foam gun are the main tools used by firefighters in firefighting operations. These spraying devices can aim water or foam directly at the source of the fire and quickly reduce the fire. Their design is flexible and efficient, allowing firefighters to use them flexibly in different situations.


Fire hoses: Usually woven from high-strength synthetic fibers, they are pressure-resistant, wear-resistant, and corrosion-resistant. Fire hoses are indispensable equipment for firefighting work, providing firefighters with the ability to transport water over long distances. These sturdy and durable hoses can be connected to fire hoses or other water outlets to flexibly supply water and help extinguish the source of the fire.


Fire axes: Mainly used to break down obstacles (such as doors, windows, walls, etc.) so that firefighters can enter the fire scene for rescue or firefighting. Its blade is sharp and the handle is sturdy and durable.

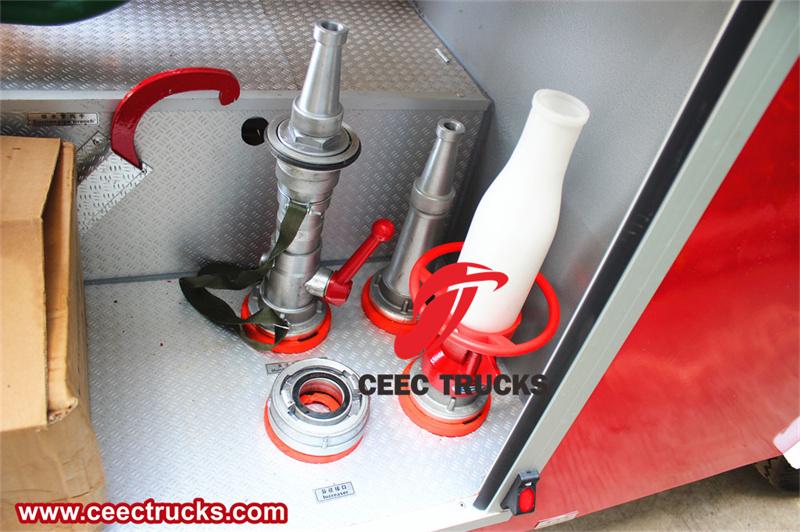

Water gun and foam gun

Water gun and foam gun


Fire shovels and fire picks: Used for digging, shoveling, and other operations, such as opening up firefighting channels and removing burning materials. These tools usually have long handles and sharp blades, which are convenient for use in complex environments.


Fire wrench: a special tool used to tighten or loosen hose connectors and other parts to ensure a firm and reliable connection.


Firefighter protective clothing: made of special materials such as flame retardant, heat insulation, and waterproof, it can protect firefighters from flames, high temperatures, chemicals, etc. These protective clothing usually have a multi-layer structure, including an outer flame retardant layer, a middle insulation layer, and an inner comfort layer.


Fire helmets, fire boots, respirators, etc.: As supporting equipment for protective clothing, these equipment provide firefighters with all-round protection to ensure that they can work safely in dangerous environments.

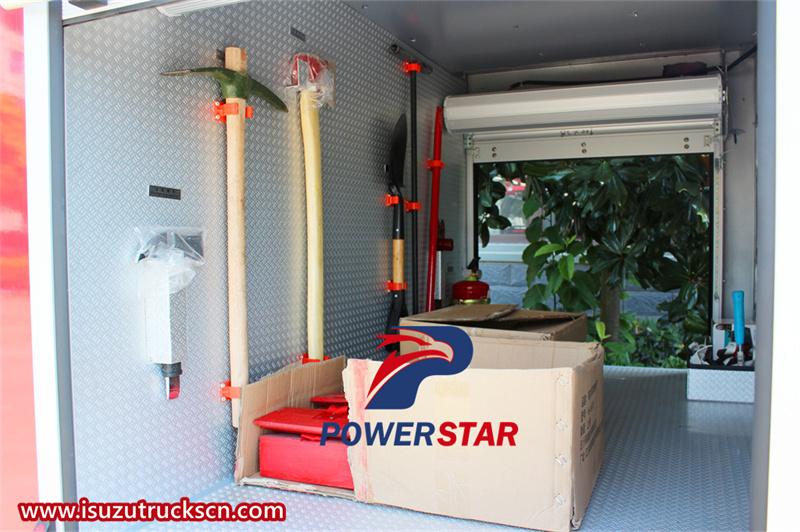

Fire shovel, axe, pickaxe

Fire shovel, axe, pickaxe

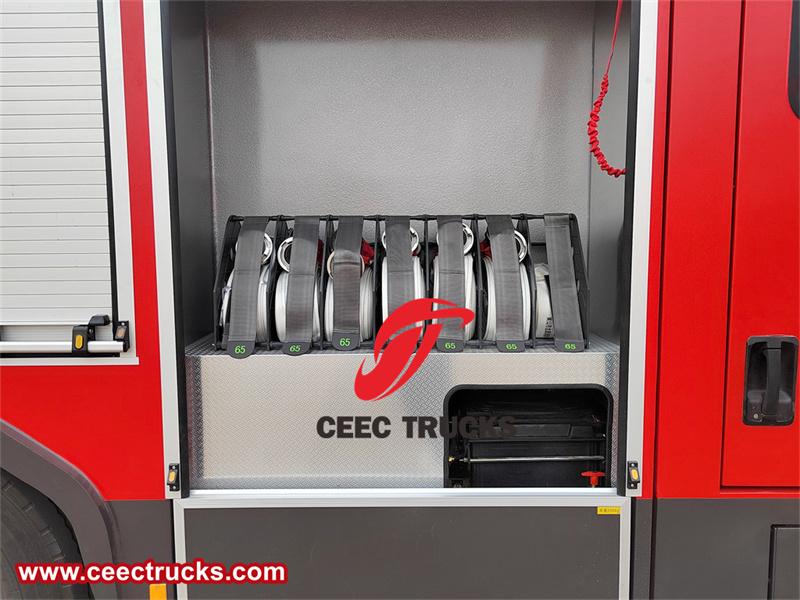

Fire hose

Fire hose

 Euro 6 type, ISUZU engine, super powerful

 Water tank and Foam tank capacity can be optional.

 12 months fast moving spare parts for FREE

 Authorized ISUZU fire trucks exporter

 Easy operation and easy maintenance

Isuzu FVR fire rescue pumper truck


Isuzu FVR fire rescue pumper truck
