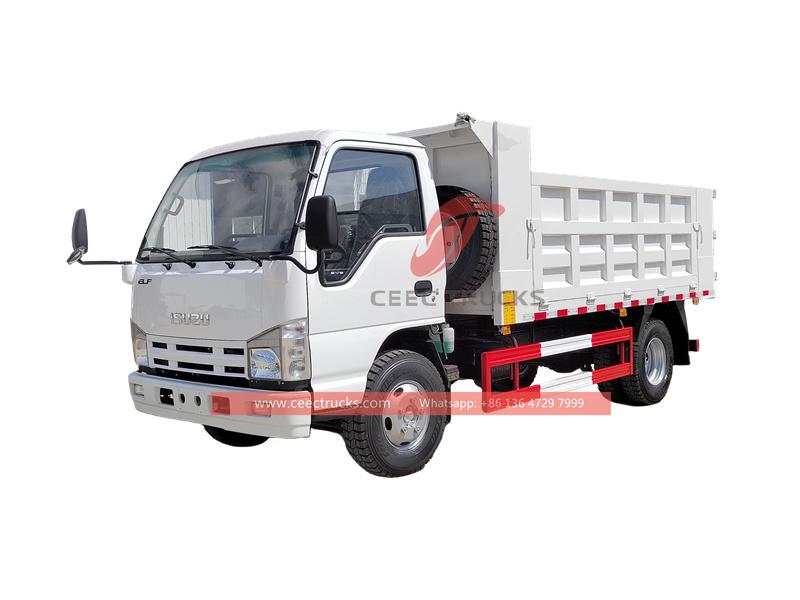

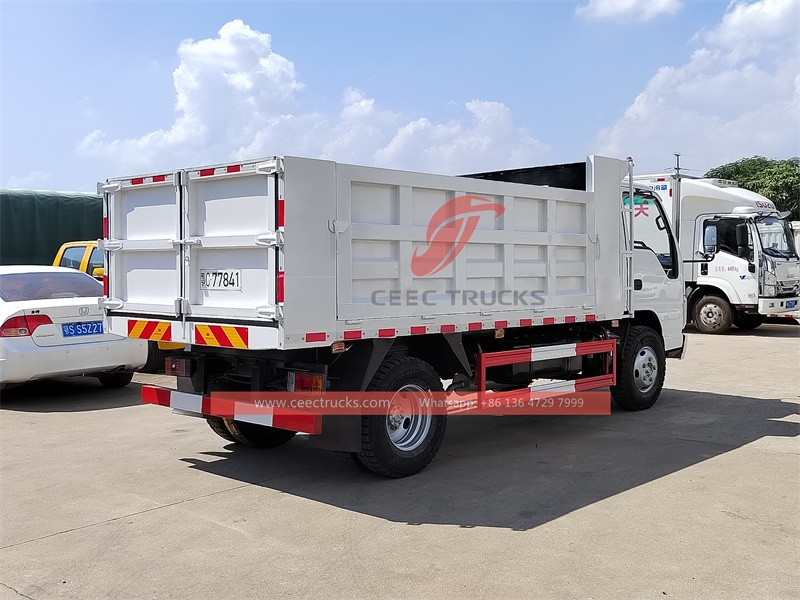

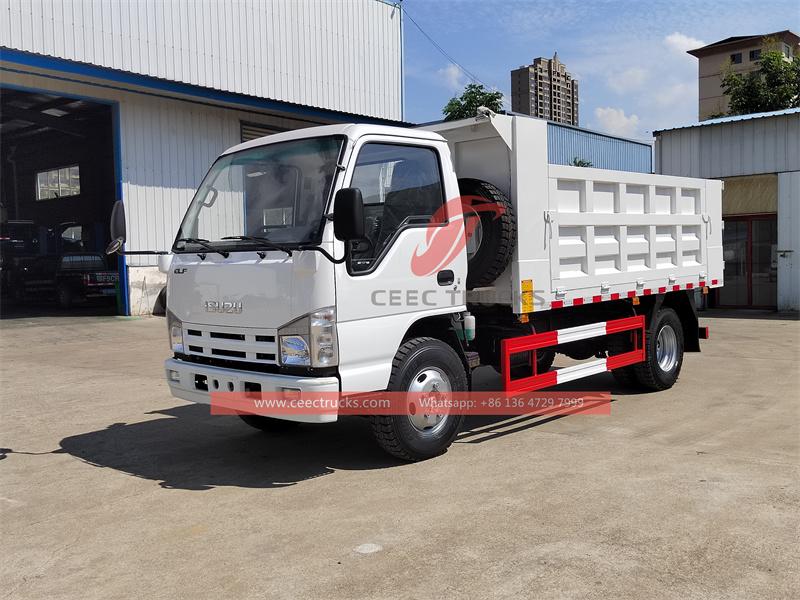

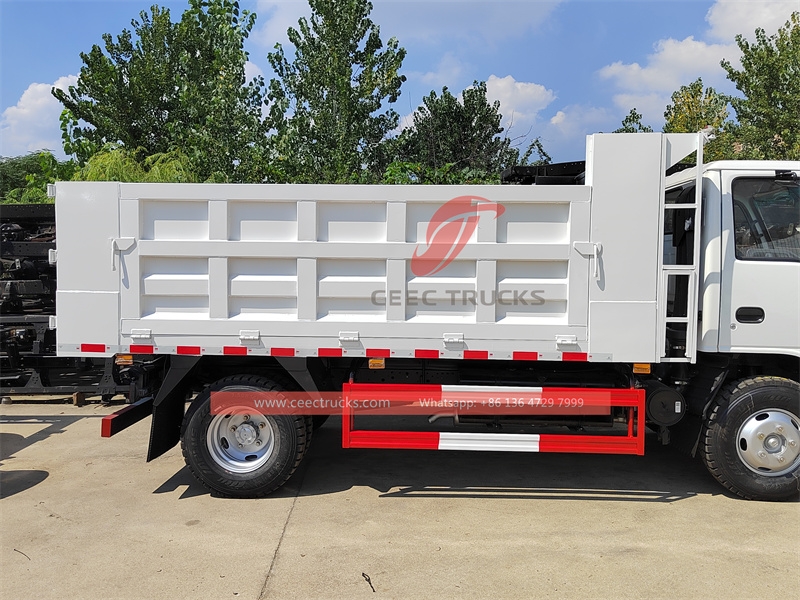

ISUZU 4x2 drive tipper truck, Oringial ISUZU ELF cabin 6 wheeler truck chassis ,MSB 5-shift manual gearbox, ISUZU 98HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on customer's requirement.
Payment:
T/T, West UnionProduct Origin:
China CEECShipping Port:
China Main PortLead Time:
20 Days
Applications:
ISUZU 3 tons Dump truck (also called ISUZU 4×2 tip-truck, ISUZU 4×2 dump truck, ISUZU 6 wheeler drive tipper truck, ISUZU mini dumper truck, ISUZU 6 wheels tip-truck, ISUZU tipper lorry) is used for the transportation and dumping of loose materials such as gravel, sand, dirt, and debris.The hydraulic bed which can be raised and tilted to pour out or "dump" their load at a desired location. It's also efficient and quick unloading of materials. Additionally, dump trucks are also used for hauling and disposal of waste, including garbage and debris from demolition or renovation projects.
CEEC TRUCK dump truck is manufactured with the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front or middle hydraulic system, etc.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payload from 1ton to 40 tons.
---- Easy operation and easy maintenance.
---- Various types of tipper body are available.
Specifications:
|
General |
Vehicle Brand |
CEEC TRUCKS |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
5900 * 2000 * 2350 mm |
|
|
GVW / Kerb Weight |
7,300kg / 4,200kg |
|
|
Cab |
Cab Capacity |
2 people allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU |
|
|
Power |
98 HP (72 KW) |
|
|
Displacement |
2999 ml |
|
|
Emission Standard |
Euro 5 |
|
|
Chassis |
Drive Type |
4×2 (LHD) |
|
Transmission |
MSB 5 speed levers with 1 reverse |
|
|
Wheelbase/No. of axle |
3360 mm / 2 |
|
|
Tire Specification |
7.00R16 |
|
|
Tire Number |
6 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Pay loading capacity |
2 Tons |
|

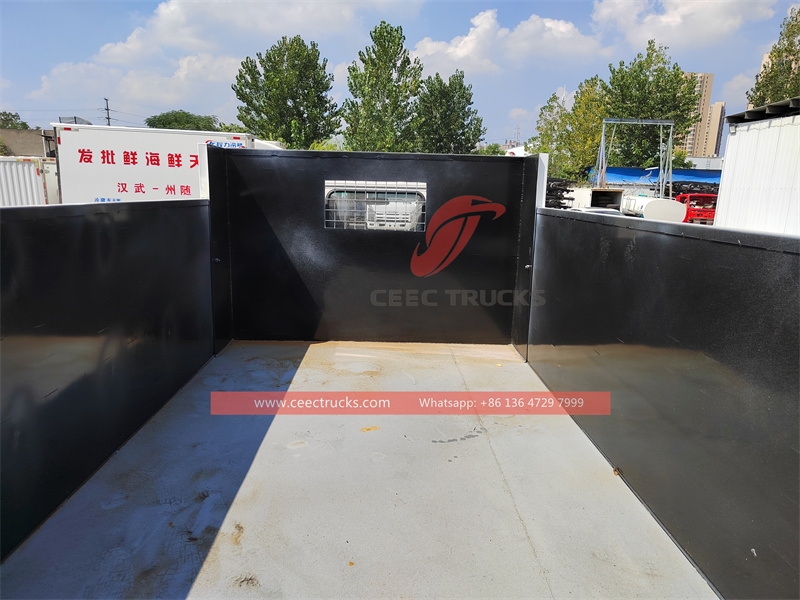

Cargo body |
3600*2000*400 |
|
|
Thickness of cargo body |
Option 1: Bottom 2mm, Side 3mm Option 2: Bottom 3mm, Side 4mm |
|
|
Cylinder type |
T Type or Domestic 220 or HYVA 200 |
|
|
Lifting system |
Middle or Front |
|
|
Control |
in the cabin |
|
|
Color & LOGO |
According to wish |
|
|
All standard accessories: All steel body with drop sides. Auto release removable tailgate. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… |
||
|
Optional |
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
|
★ Euro 5 type, ISUZU engine, fuel consumption save 20%
★ MSB 5-shift manual mechanical transmission gearbox
★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU tip-trucks exporter
★ Training service for ISUZU dump trucks
China top dump truck supplier and exporter, we supply the high quality Japan ISUZU dumper truck, ISUZU 6 wheeler tipper truck, ISUZU 10 wheeler dump truck, ISUZU 12 wheeler tipper lorry. We can ensure the fast delivery time and 12 months guarantee for our tip-trucks. Our ISUZU dump trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
