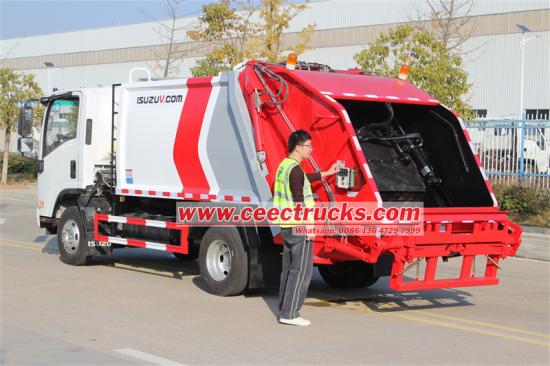

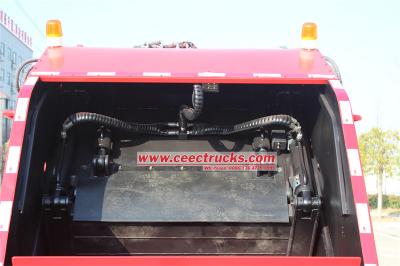

ISUZU ELF 8CBM rear loader waste collection truck

Isuzu ELF 120HP rear load trash truck

The ISUZU KV100 8CBM garbage rear loader truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu ELF chassis, the garbage rear loader is equipped with a 120HP engine and a 5-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Isuzu KV100 garbage compactor truck is suitable for garbage collection and transportation in various environments, including cities and townships.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
40 Days
Work capacity:
8CBM
Truck model:
CEEC5040ZYS
Engine power:
120HP
Engine type:
Isuzu 4KH1CN6HB
Axle drive:
4X2, LHD
Gear box:
MSB 5F & 1R
Remarks:
Customized painting and logos

Inquiry now

The ISUZU KV100 8CBM garbage rear loader truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu ELF chassis, the garbage rear loader is equipped with a 120HP Euro 6 engine and a 5-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the ISUZU KV100 8CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

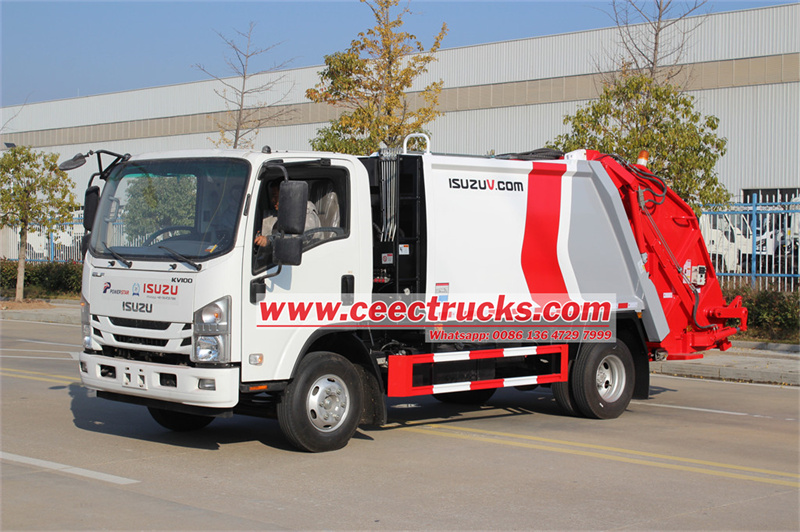

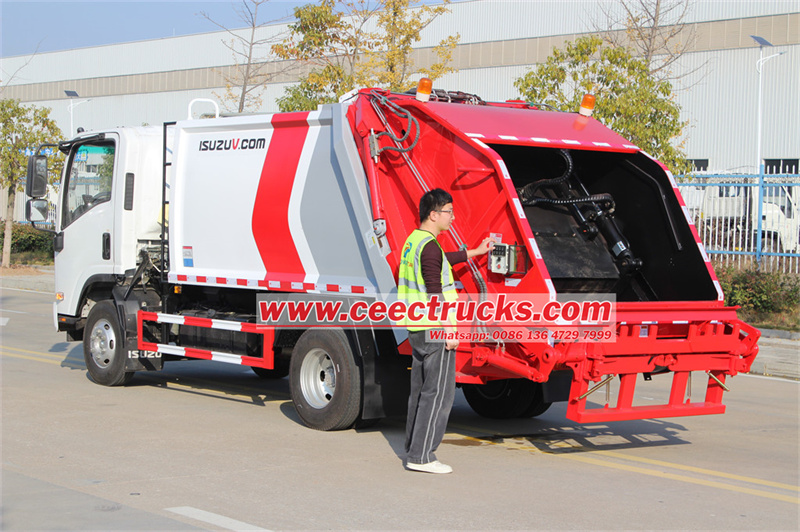

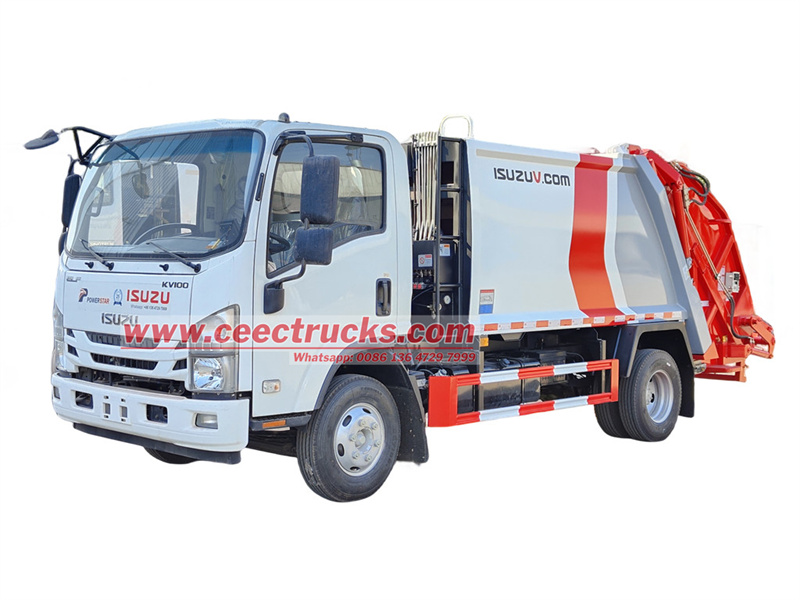

ISUZU ELF garbage compactor truck

● China best Isuzu waste compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck.
● We can offer your a good after-sell service

Specification:

ISUZU 8CBM REAR LOAD GARBAGE TRUCK SPECIFICATIONS
Chassis Model	ISUZU ELF 120hp
Engine	Make: ISUZU
	Diesel 4-stroke direct injection diesel engine
	Engine model:4KH1CN6HB, Euro 6 emission standard
	4-cylinder in-line with water cooled, turbocharged and intercooler
	Maximum output: 120HP/88KW
	Maximum torque: 507 Nm
	Displacement: 2.9 L
Transmission	ISUZU, 5 forwards and 1 reverse, manual
Drive system	Left hand drive
Chassis	Frame: U-profile parallel ladder frame and reinforced subframe
	Front suspension:8 pcs semi-elliptic leaf spring
	Rear suspension:10+6 pcs semi-elliptic lea spring
	Fuel tank: 100 L capacity with locking fuel cap
Steering	Power steering, hydraulic steering with power assitance
Brakes	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
	ABS
Wheels & Tyres	Tire: 7 pcs 700R16
	Optional:750R16
Driver's Cab	ISUZU NPR wide cab, with three seats, A/C, electric glass, central lock
Dimensions mm	Wheel base	3360 MM
	Overall length	6300 MM
	Overall width	2250 MM
	Overall height	2570 MM
Weight kg	Curb weight	6900 KG
	Rated Loading Capacity	4000 KG
	Gross vehicle weight(GVW)	8500 KG
	Front axle loading capacity	2500 KG
	Rear axle loading capacity	4500 KG
Compactor Body	Volume of body(m3)	8
	Volume of filler(m3)	2
	Time of one filling cycle(s)	≤25
	Lifting time of filler (s)	8-10
	Time of discharge (s)	≤40
	Pressure of hydraulic system (Mpa)	18
	Front/rear sewage capacity (L)	250+150

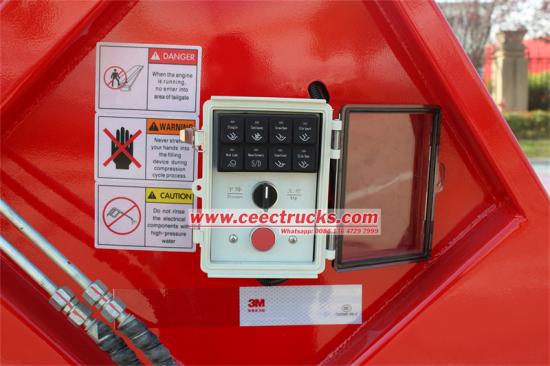

	Control system	CAN-bus (electrical) and manual (hydraulic)

What are the performance tests of a good ISUZU garbage compactor truck?

►Loading mechanism High efficiency: no-load cycle time ≤35 seconds, accurate positioning of the garbage bin, and no residue when dumping garbage. Reliability: It can be started and stopped at any position under load conditions, and it runs smoothly without jamming.

►Compression mechanism Strong compression: cycle time ≤30 seconds, no shaking or abnormal noise during compression, and no permanent deformation of the mechanism. Durability: Passed 12,000 compression cycle tests to ensure long-term stable operation.

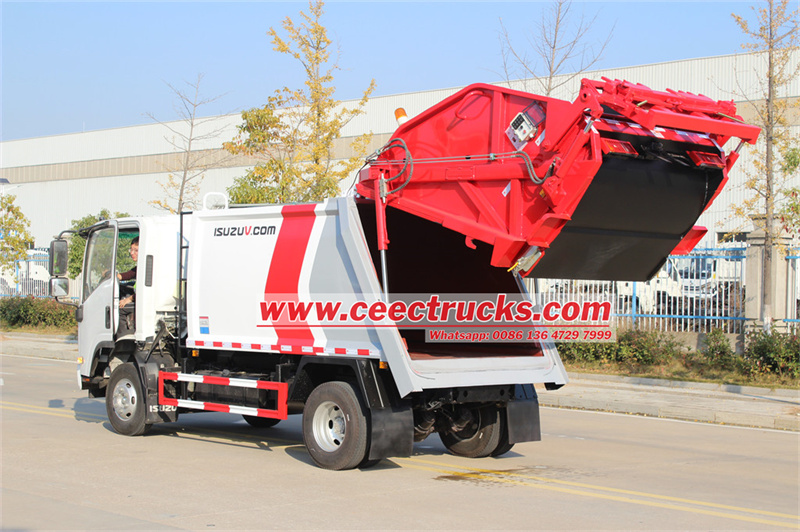

►Unloading mechanism Complete unloading: The unloading cycle is completed within 60 seconds, and there is no residue in the garbage bin. Anti-leakage design: The unloading door is reliably locked, and there is no risk of opening it automatically during driving.

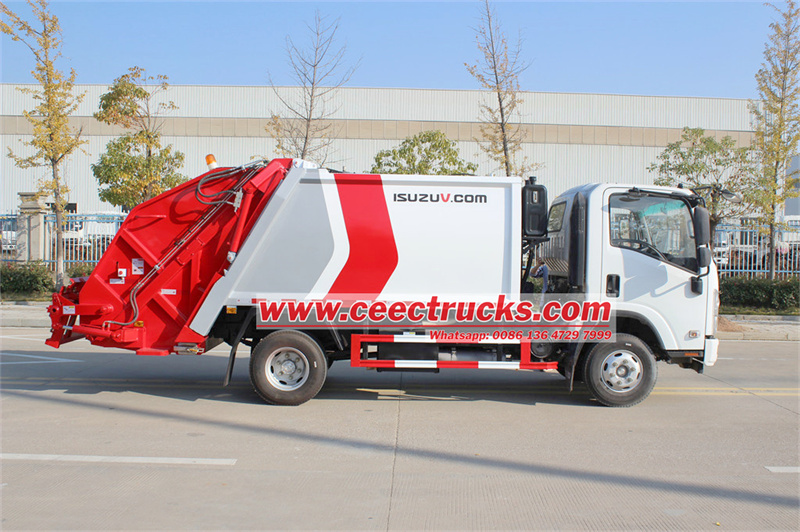

ISUZU ELF garbage compactor truck

►Zero leakage of sewage Sealing test: The garbage bin is filled with 30-50mm of water and there is no leakage after standing for 60 minutes. Anti-corrosion treatment: The inner wall of the box is made of anti-corrosion material to extend the service life.

►Hydraulic system No leakage verification: No oil leakage in hydraulic pipelines and joints under rated pressure. Cleanliness control: The solid contamination of hydraulic oil meets the standard limit to ensure long-term operation of the system.

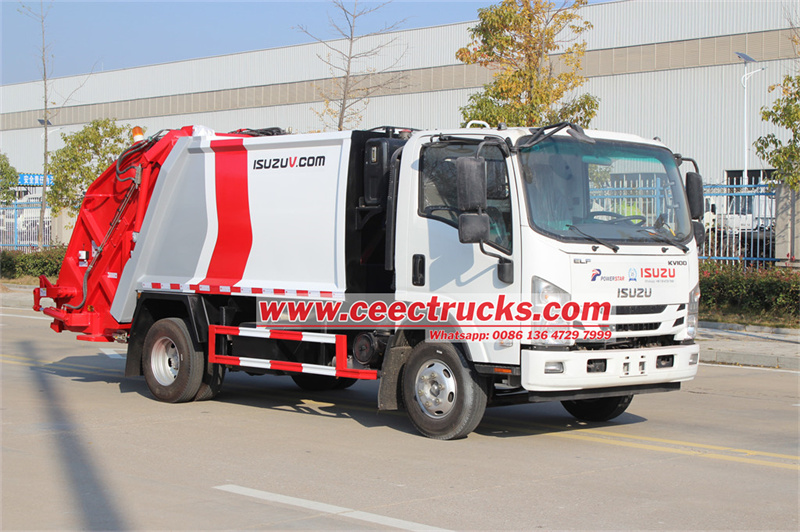

ISUZU ELF garbage compactor truck

►Ultra-long durability test：12,000 cycles for the feeding and compression mechanisms and 1,000 cycles for the unloading mechanism to simulate a high-intensity working environment. Reliability ≥ 80%: The failure rate is extremely low, and the average trouble-free working time is leading in the industry.

►Fault classification management：Adopt four-level fault classification (fatal/serious/general/minor), strictly record and optimize the design to ensure worry-free use for users.

★ Japanese ISUZU diesel engine, super powerful

★ Expert for producing garbage compactor truck over 10 years with good reputation

★ Carbon steel material T420

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for compression garbage trucks
