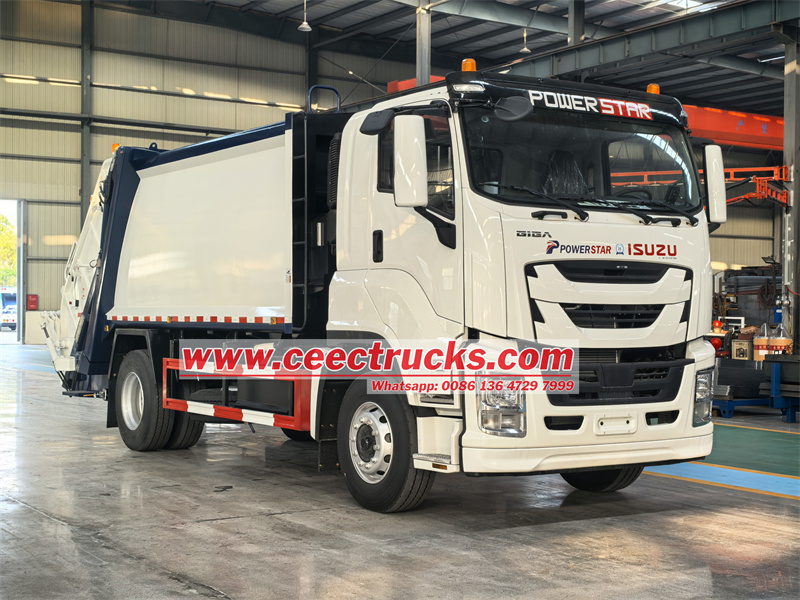

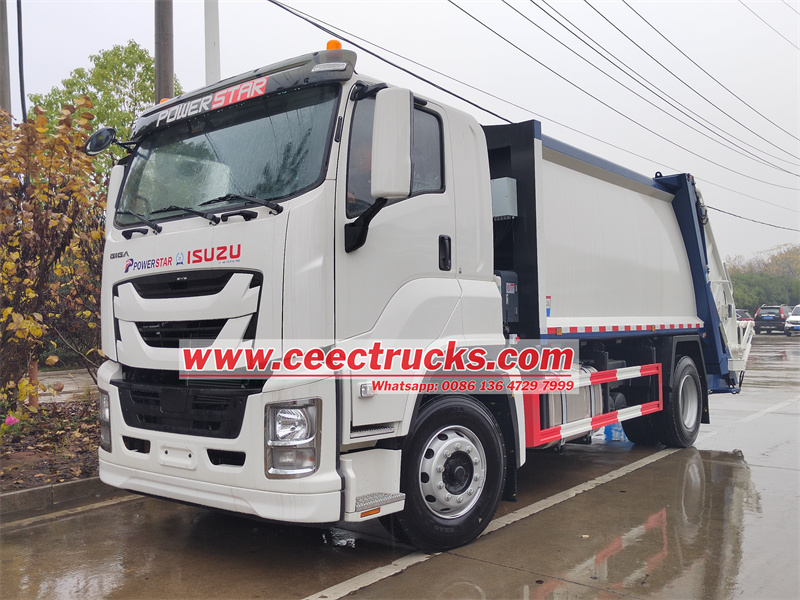

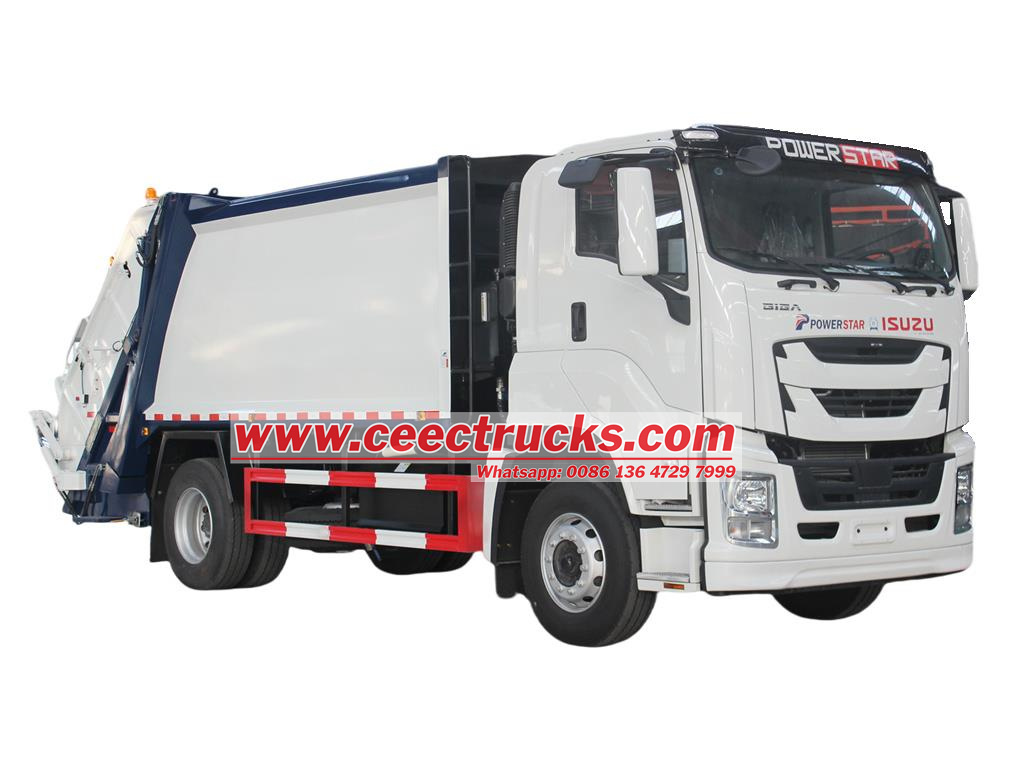

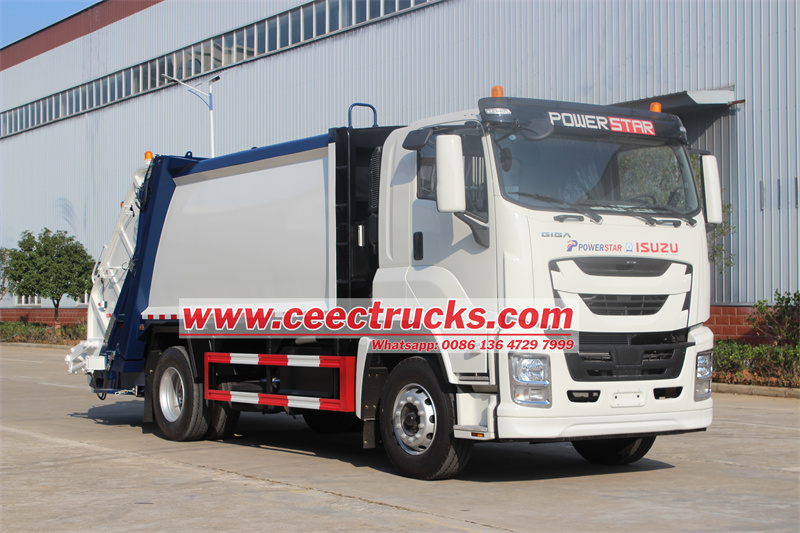

Isuzu GIGA 5X trash truck rear loader

ISUZU GIGA rear loader garbage truck also called ISUZU GIGA 5X Waste Management Rear Loader Truck is a specialized vehicle used for waste collection and disposal. It plays a crucial role in maintaining cleanliness and hygiene in our communities.

The ISUZU GIGA 5X 16cbm rear loader truck is equipped with a large container at the back, which can hold a significant amount of waste materials. The truck follows a scheduled route to collect trash from residential and commercial areas. Once the truck is full, it transports the waste to a designated disposal site, such as a landfill or recycling center.

The ISUZU trash truck rear loader has a unique feature that sets it apart from other waste collection vehicles. It is equipped with a hydraulic lifting system, which allows the operator to lift and dump the waste container into the truck without physical contact. This feature not only ensures the safety of the operator but also improves efficiency and reduces the risk of littering.

● China best ISUZU GIGA rear loader garbage truck factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements

● Promptly delivery. any order is welcome.

● 24 month quality guarantee term

Garbage disposal trucks, also known as waste management trucks or simply garbage trucks, are essential vehicles used for collecting and transporting waste materials. They play a crucial role in maintaining cleanliness and ensuring proper waste management in communities. Garbage disposal trucks come in various types and sizes, but they all serve the same purpose. One of the most common types is the rear-loading garbage truck. This type of truck has a large compartment at the rear that can be lifted and emptied into the truck's hopper. It is designed to collect waste from residential areas and small businesses. Another type of garbage disposal truck is the front-loading truck. This type is commonly used for collecting waste from commercial establishments and industrial areas. It has a hydraulic arm at the front of the truck that lifts and empties standardized waste containers into the truck's hopper

Advanced technical parameter for Isuzu GIGA 5X garbage compactor truck:

★ Adopt world-class Japanese ISUZU brand GIGA 4X2 Chassis, High power and Fuel efficiency, Reliability, Uptime

★ All Structural made of High Strength Steel T420 material

★ CAN-BUS electric control and Hydraulic control for easy operation

★ Matched with ISO9001 and CCC quality

★ Optional rear loading device for garbage loading

★ Optional ISUZU GIGA Chassis 4x2, 6x4, 8x4 and engine 6UZ1 and 6WG1

Product Parameters for ISUZU GIGA rear loader truck

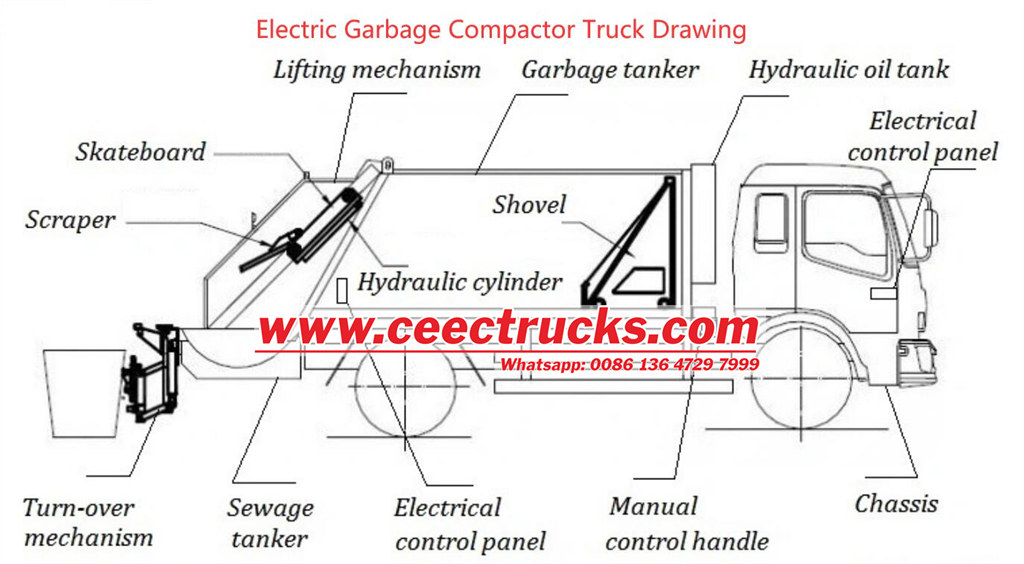

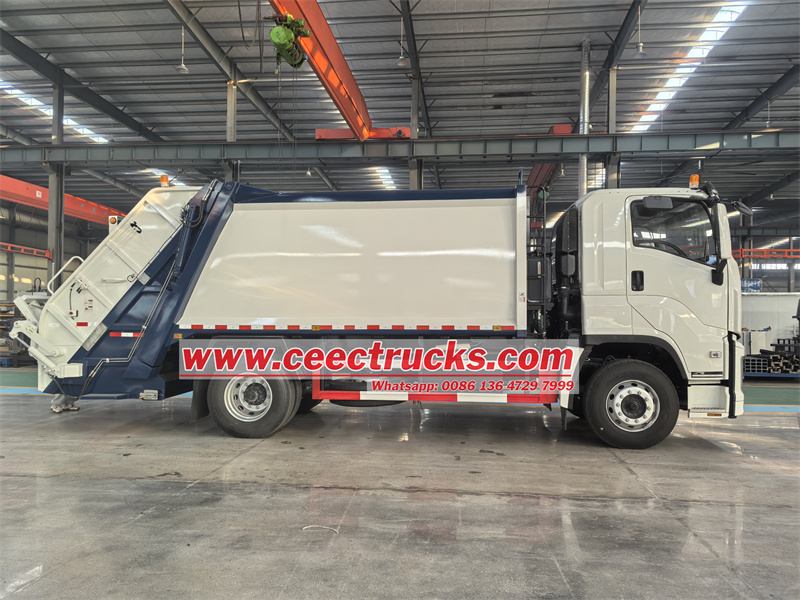

Isuzu GIGA 5X rear loader garbage truck components

ISUZU GIGA rear loader compression garbage truck is an efficient, environmentally friendly and durable garbage disposal equipment, combining the reliability of ISUZU GIGA 5X 4x2 truck chassis and the advanced nature of rear-loading compression technology, and is widely used in urban sanitation operations. Its efficient compression capacity, automated operation and environmentally friendly design make it an important tool for modern garbage disposal.

Compactor Body: welded with high-strength steel plates (such as T420 or Q550), the bin is designed as a streamlined or rectangular structure, with a flat bottom and arc-shaped top and side surfaces, which is both lightweight and high-strength, with a compression ratio of 1:2.5 or more1:3 or 1:4.

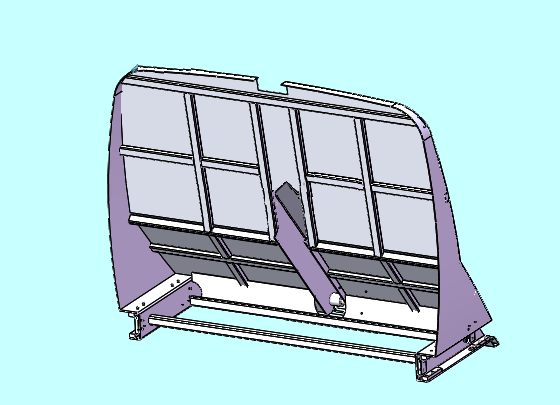

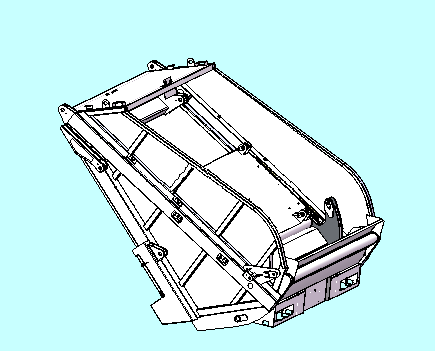

Push Plate and Compression System: including components such as slide plates, scrapers, and push shovels. The slide plates drive the scrapers to crush and compress the garbage in both directions, and the push shovels evenly distribute the garbage through back pressure to ensure that the bin is fully loaded. And below 3D drawing help you better understand what is rear loader truck drawing

.

Electronic control system: Customized CAN-BUS system or integrated with imported PLC (programmable controller) to achieve automatic control, with emergency braking, explosion-proof valves and other safety protection functions. The Isuzu 240HP refuse truck (garbage truck) is a carrier truck consisting of a Refuse Body on its chassis. The main function of a Refuse Truck is to do the collection of all kinds of waste: garbage, solid waste, and recycling objects and having them transported to bigger facilities for waste treatments. Garbage trucks are mostly used by municipal duties and private companies.

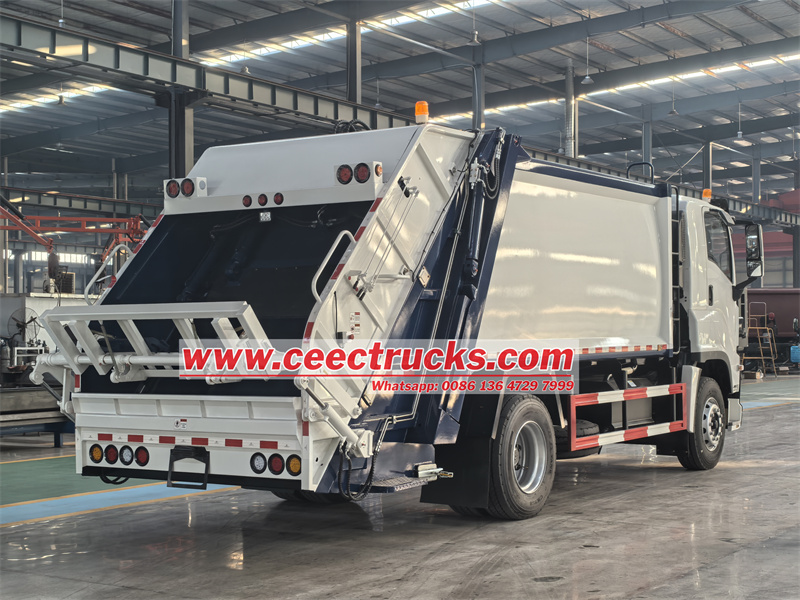

Garbage collection assembly: High Strength steel material T420 tanker body for garbage storage, with tailgate, slide plate, scraper, push plate and tilting device, also matched with suitable hydraulic cylinder to realize garbage loading and unloading working.

Actuator device: includes power take off, gear pump. drive line, hydraulic oil pipeline hose, etc., which can pass the power from the chassis to the gear pump, then to realise all functions.



The working process of compressed garbage truck-mounted trash cans is mainly divided into four links: collection, compression, transportation and unloading.

The first is the collection link. Garbage workers will gather trash cans scattered throughout the city to fixed collection points. At these collection points, one or more compressed garbage trucks are waiting. The vehicle is equipped with a special lifting and unloading device to facilitate the connection of the trash can to the vehicle. When the compressed garbage truck arrives at the collection point, the garbage worker will connect the trash can with the compressed garbage truck. During the connection process, it is necessary to ensure that the trash can is placed correctly and close to the trash can loading area of the vehicle for subsequent compression processing.

After the connection is completed, workers will use locking rods to lock the trash can on the vehicle to ensure that there will be no accidents during transportation. After completing the collection process, the compressed garbage truck will begin compression processing. First, the vehicle will move the compression device to the designated position, and then press the device down over the trash can. The compression device has strong pressure and can compress the waste into a smaller volume.
