Isuzu mini pumper fire truck

Isuzu NKR water tender fire truck

In the realm of firefighting and emergency response, profound significance rests within the design and functionality of fire trucks, serving as crucial tools in battling blazes and mitigating disasters. Among these essential vehicles, the Isuzu Mini Pumper Fire Truck emerges as a beacon of efficient emergency response, blending compact design with potent firefighting capabilities.

  • Product Origin:

    China CEEC

  • Shipping Port:

    China main port

  • Lead Time:

    30 Days

  • Payment:

    T/T, West Union
contact now

1

Isuzu NKR water tender fire truck also called Isuzu Mini Pumper Fire TruckIsuzu 100P mini fire truck,Isuzu ELF 100P double row fire engine,Isuzu ELF 4X2 2 tons firefighting truck,Isuzu 100P mini fire tender.The Isuzu NKR water tender fire truck blends a compact design with powerful firefighting capabilities, making it a versatile and indispensable asset in emergency response scenarios. Built on the Isuzu 100P double cab chassis, this specialized vehicle embodies the perfect balance of flexibility, functionality, and resilience.

Isuzu mini pumper fire truck

The Isuzu Mini Pumper Fire Truck is a powerful and versatile emergency vehicle that is ideal for use in both urban and suburban environments. Equipped with a 1.5 cubic meter water tank and a 0.5 cubic meter foam tank, this truck provides firefighters with the resources they need to respond to a variety of fire and rescue scenarios. Its compact design, excellent maneuverability, and a host of features make it a valuable asset to any fire department or emergency response team.



In addition to its outstanding firefighting capabilities, the Isuzu Mini Pumper Fire Truck is designed with ease of use and maintenance in mind. Its compact design and powerful steering capabilities allow it to easily navigate narrow streets and alleys, allowing firefighters to reach the scene of a fire quickly and efficiently. The truck's durable construction and simple layout also allow technicians to easily access and service any parts that may need attention, ensuring the truck is always ready for emergency situations.


2


Isuzu mini pumper fire truck







Main specification

Truck brand

POWERSTAR

Chassis model

PT5020GXY

Overall dimension(L*W*H)

6390*2000*2750

Water tank volume

1500L

Foam tank volume

500L

Cabin

Double row cabin,2+3 seats,with Air conditioner, electronic windows, USB,











Chassis

Drive modle

4x2,LHD

Front axle loading

2500kg

Rear axle loading

4800kg

Wheel Base

3360mm

Front/rear suspension

1110/1920mm

Tyre size & number

700R16,6+1

Transmission

MSB 5-speed,manual

Color

Red and white

Brake

Oil brake

Max speed

100km/h







Engine

Brand

Isuzu

Model

4KH1CN6LB

Engine Type

4-cylinder, in-line, water cooling, direct injection(DI) type, turbocharged, intercooling

Horse power

120HP/88Kw

Displacement

2999ml

Emission

EURO 6

Fire SPECIFICATION

Tank capacity

1500L water tank and 500L foam tank

Tank material

All Tank made of carbon steel. Thickness:4mm, The foam tank inside is painted with

Anticorrosion material





Fire pump

Model

CB10/20,Normal pressure pump

Pressure

≥1.0 Mpa

Max suction height

7 m

Flux

20 (L/S)

Rated speed

3060 (r/min)

Time of drawing water

≤35 (s)







Fire monitor

Model

SP20

Flux

20 (L/S)

Rated Working pressure

1 Mpa

Rotation angle

360 (°)

Fire fighting nozzle range（water）

≥50 m

Fire fighting nozzle range（foam）

≥45m

3

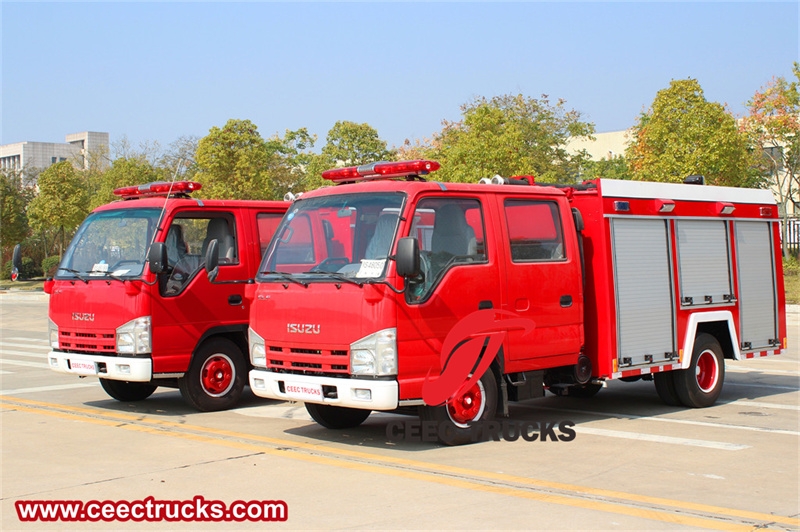

★ Isuzu 100P double-row cab chassis

The Isuzu mini pumper fire truck is modified on the basis of the Isuzu 100P double-row cab chassis. The vehicle has a double-row cab and can carry a total of 5 firefighters, which greatly increases the load of firefighters, can effectively transport firefighters to the fire scene, and greatly improves efficiency.



The Isuzu 100P double-row cab is equipped with an Isuzu brand engine with a displacement of 2.99L, which meets the National VI b stage emission standards, with a maximum output power of 120 horsepower and a maximum torque of 290 Nm. This power system has been optimized in terms of intake and exhaust systems, combustion systems, etc., to improve economy and environmental protection. The engine is matched with the Isuzu MSB 5-speed gearbox. This power chain combination has been verified for a long time in the market, with a large market share and many customers, and is highly evaluated in the industry. The Isuzu 100P double-row cab is equipped with a 2.5-ton steering front axle and a 4.8-ton drive rear axle. The rear axle main reduction ratio is moderate, ensuring good load-bearing capacity and stability. The vehicle uses 700R16 tires, which are not only reliable and durable, but also can further help the vehicle save fuel.

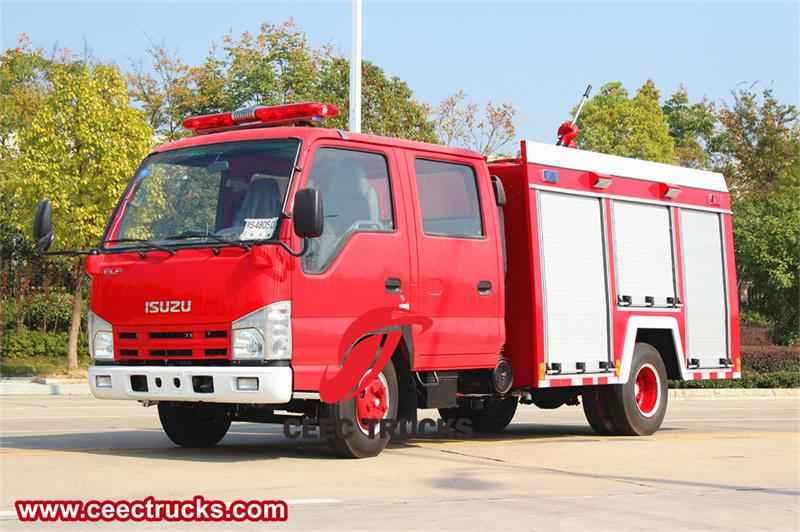

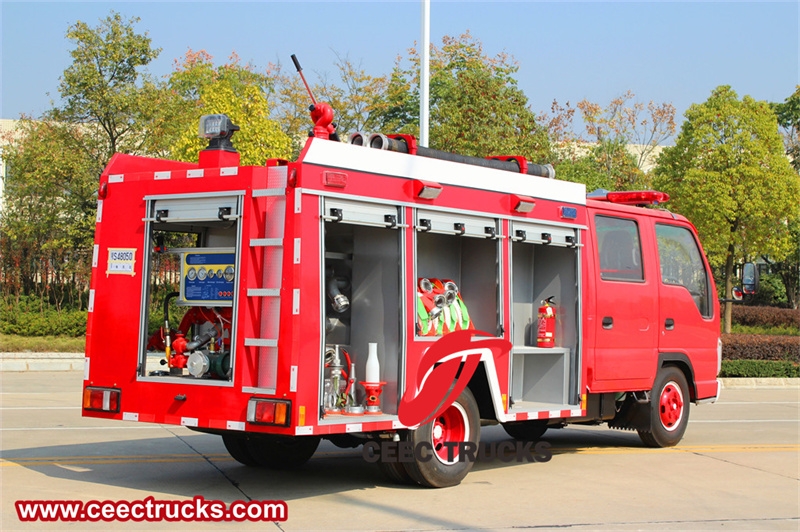

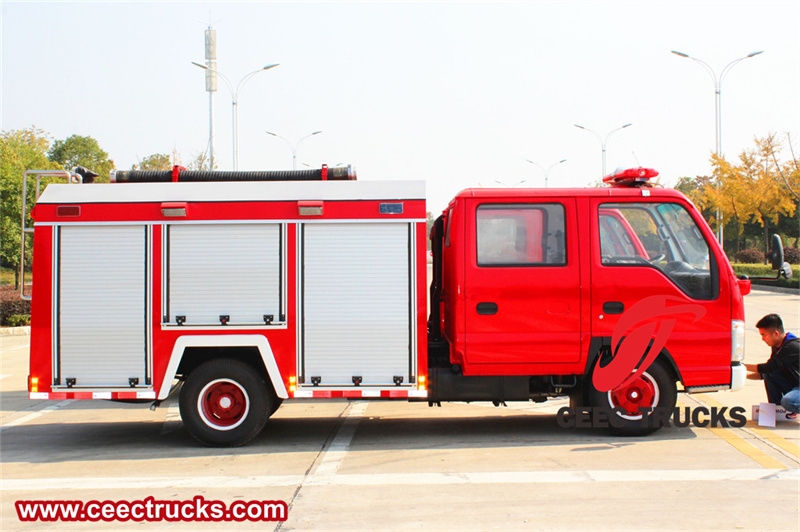

 Isuzu mini pumper fire truck

Isuzu mini pumper fire truck

Isuzu ELF double row fire engine

Isuzu ELF 100P double row fire engine


★ Fire truck tank

The Isuzu ELF mini fire fighting truck is a compact yet powerful addition to any fire department's fleet, designed to tackle a variety of firefighting and rescue scenarios with agility and efficiency. At the core of its capabilities lies its 1.5 cubic meter (cbm) water tank and 0.5cbm foam tank, which provide the truck with the resources it needs to suppress fires and protect lives.



The 1.5cbm water tank is the backbone of the Isuzu mini pumper's firefighting capabilities. This ample capacity ensures that the truck can carry enough water to extinguish small-to-medium-sized fires, allowing firefighters to respond swiftly and effectively to incidents. The water tank is designed for easy access and refilling, minimizing downtime and ensuring that firefighting efforts can continue uninterrupted. Whether it's a kitchen fire in a high-rise apartment building or a brush fire in a nearby park, the Isuzu mini pumper's water tank provides the necessary volume of water to get the job done.

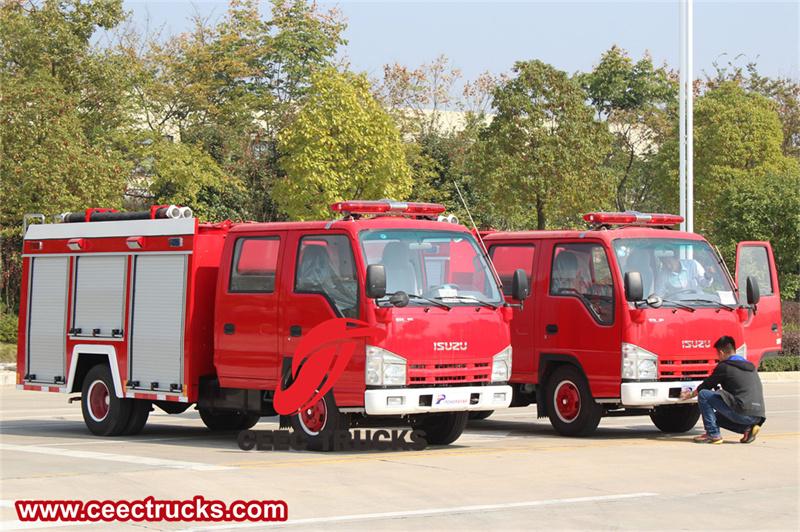

  Isuzu ELF mini fire fighting truck

 Isuzu ELF mini fire fighting truck


Complementing the water tank is the 0.5cbm foam tank, which adds an extra layer of protection and enhances the truck's fire-suppression capabilities. Foam is a crucial tool in firefighting, as it creates a barrier between the fuel and the flames, reducing the risk of reignition and allowing firefighters to gain control of the situation more quickly. The foam tank is seamlessly integrated into the truck's design, ensuring that foam can be deployed smoothly and efficiently, even in challenging conditions. Whether it's a gasoline spill on a busy highway or a chemical fire in an industrial setting, the Isuzu mini pumper's foam tank provides the necessary resources to safely and effectively extinguish the flames.



The combination of the water and foam tanks makes the Isuzu mini pumper a highly versatile firefighting tool. Firefighters can use the water to cool hot surfaces and suppress flames, while the foam is used to create a barrier that prevents the fire from spreading. This dual-pronged approach allows firefighters to tackle fires more effectively, reducing the risk of damage to property and minimizing the risk to life.

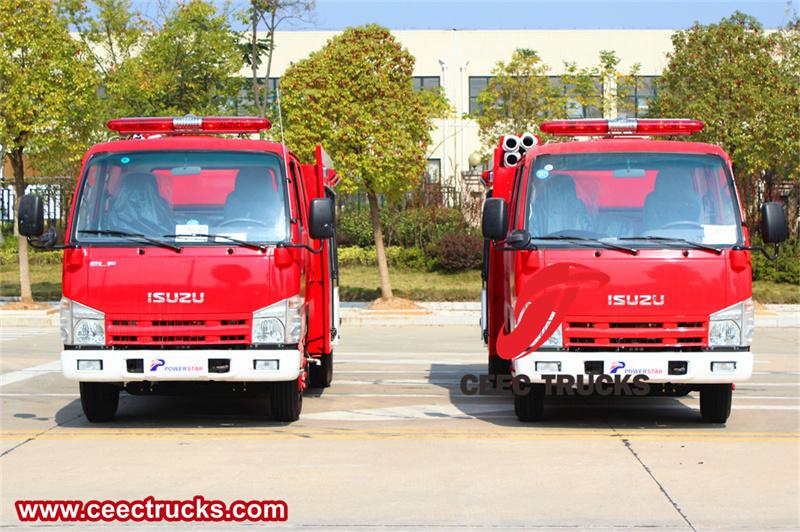

 Isuzu 100P 2tons fire tender

Isuzu 100P 2tons fire tender

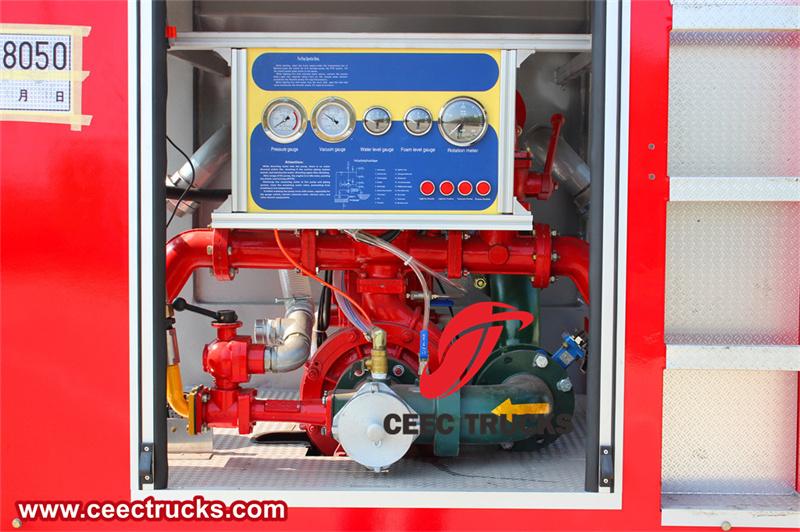

★ Fire pump and control panel

At the heart of the Isuzu Mini Pumper Fire Truck’s firefighting capabilities lies the powerful CB10/20 atmospheric pump, a key component that ensures efficient and precise delivery of water and foam during firefighting operations. Renowned for its reliability and effectiveness, this high-performance pump system is the lifeline of firefighting efforts, enabling firefighters to extinguish fires with unparalleled efficiency.



Carefully integrated into the design of the fire truck, the CB10/20 atmospheric pump is able to quickly and controlled dispense water and foam, which is essential for effectively responding to fires of varying intensities and types. Whether responding to structural fires or flammable liquid incidents, the pump system facilitates the strategic deployment of firefighting agents, allowing firefighters to quickly adjust tactics as the emergency evolves.



CB10/20 atmospheric pump key features:

Durability: Built with durability in mind, the CB10/20 pump is made with premium materials and precision engineering to withstand the rigors of firefighting.



Versatility: Capable of delivering water or foam at the right flow and pressure, it is versatile enough to handle a variety of firefighting tasks.


Easy maintenance: The pump is designed with easy access to key components, facilitating routine maintenance and repairs, ensuring long-term optimal performance.



fire pump

CB10/20 fire pump


The control panel of the fire monitor equipped with a CB10/20 pump is the central hub for monitoring and controlling the operation of the pump, providing firefighters with unparalleled precision and control over the water and foam discharge rate. The intuitive interface of the control panel allows operators to easily adjust flow, monitor pressure levels and adjust operating parameters to ensure optimal firefighting performance in dynamic emergency situations. The seamless integration of the pump system and the control panel highlights the adaptability and versatility of the Isuzu mini pump fire truck in responding to various fire incidents.



Key Features:

User-friendly interface: The control panel features clear labeling and ergonomic controls, allowing firefighters to operate easily even in stressful conditions.


Comprehensive monitoring: The panel displays key information such as pressure gauge, vacuum gauge, water level gauge, foam level gauge, tachometer, allowing firefighters to make informed decisions.


Emergency shutdown: The control panel is equipped with an emergency stop button to ensure the pump can be safely shut down in an emergency.



By combining the CB10/20 atmospheric pump with an advanced control panel, the Isuzu Mini Pumper Fire Truck improves operational efficiency and control during firefighting missions. Seamless coordination between the pump system and the control panel optimizes the flow of firefighting agents, allowing firefighters to proactively respond to fires and execute precise firefighting strategies. This integration underscores the vehicle's commitment to operational excellence and solidifies its reputation as a reliable and effective firefighting asset.

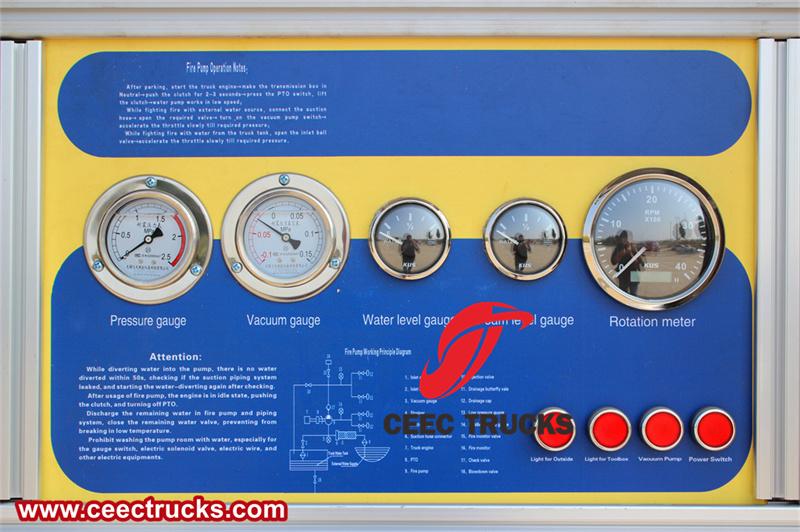

control panel

Control panel


★ Fire equipment

Isuzu fire trucks are equipped with comprehensive equipment design, covering all aspects from firefighting to rescue, designed to cope with various fire and rescue scenarios, ensuring that firefighters can perform tasks quickly and effectively. The following is a brief description of these main equipment and their uses:

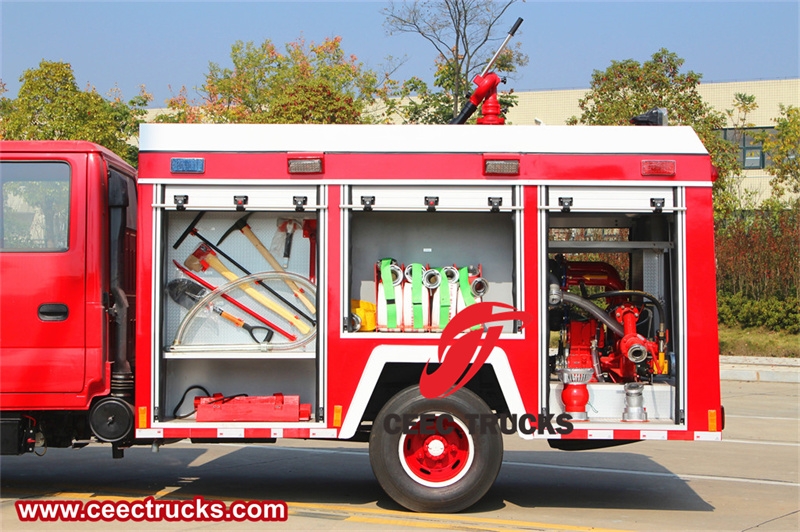

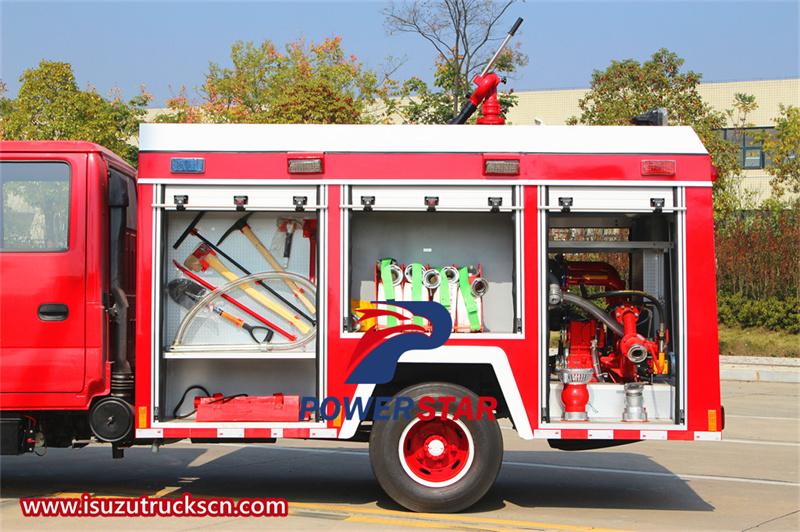

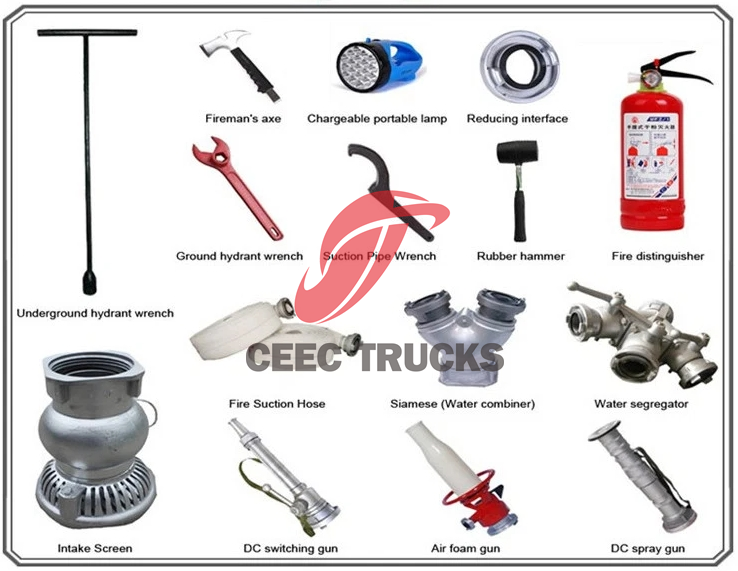

 fire equipment

Fire equipment


Foam water combination fire cannon: This is a multi-functional fire cannon that can spray water or foam mixture. It can adjust the spray pattern and range according to the fire situation, and effectively extinguish different types of fires, especially flammable liquid fires such as oils and chemicals.


DC switch water gun: Also known as a DC water gun, it directly impacts the fire source through high-pressure water flow, and is suitable for extinguishing solid material fires such as wood, paper, etc. Its switch design makes it easy for firefighters to quickly control the opening and closing of the water flow.


fire equipment

Fir equipment


Air foam fire gun: This fire gun sprays air foam, which can cover the fire source and isolate oxygen, thereby quickly extinguishing the fire. It is particularly suitable for fires of oils, greases and certain chemicals.



Fire extinguishers: An indispensable part of firefighting equipment, they are usually designed to be portable so that they can be put into use quickly at the beginning of a fire.

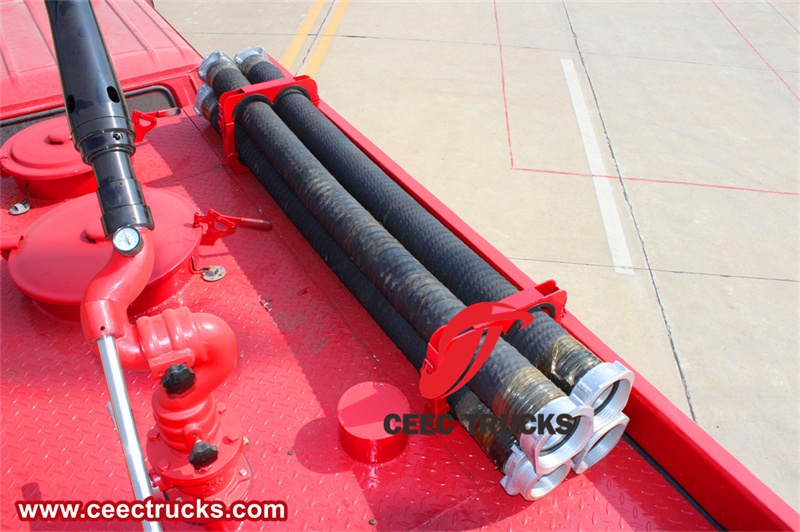

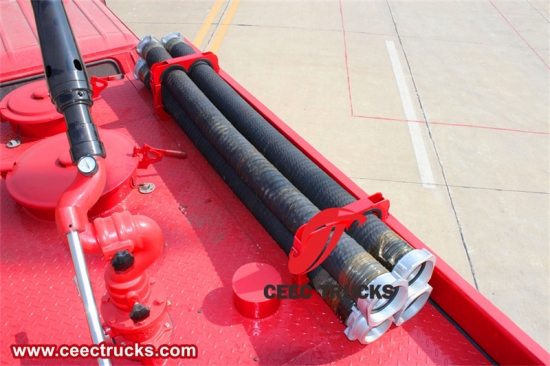

Suction pipe: used to draw water from water sources (such as fire hydrants, ponds, rivers, etc.) and supply it to fire pumps.


Fire hose: a flexible pipe connecting fire pumps and fire monitors, water guns and other equipment, used to deliver high-pressure water flow or foam.

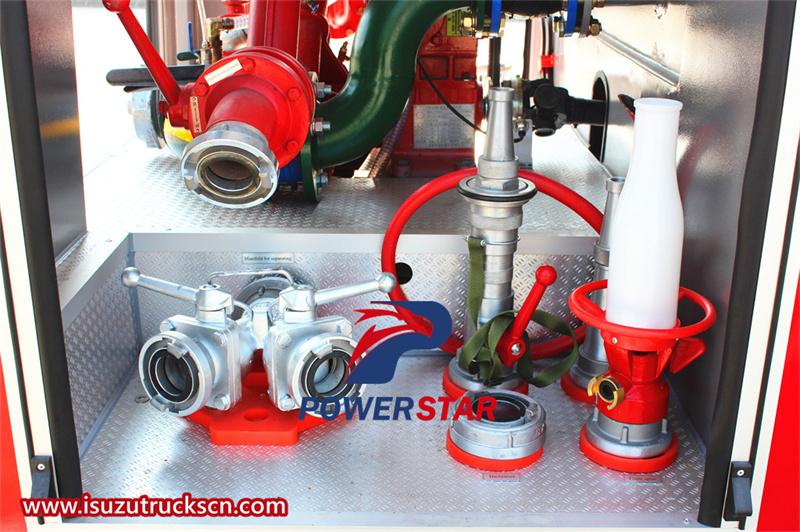

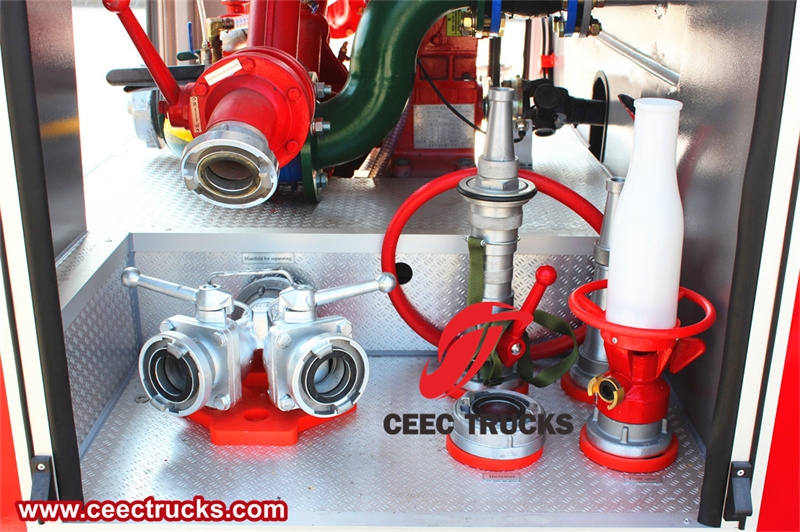

Water filter，Two-way distributor

Water filter，Two-way distributor


Water filter: installed on the suction pipe, used to filter impurities in the water, prevent impurities from entering the fire pump and fire equipment, and protect the equipment from damage.


Two-way distributor: also known as a multi-directional joint, used to divide the fire hose into two or more branches so that water can be supplied to multiple directions at the same time.


Joint, hose joint, hose blanket, hose bridge, hose hanger: these devices are used to connect, fix and protect fire hoses to ensure that the hoses will not break, knot or be otherwise damaged during use.


Ground fire hydrant wrench, underground fire hydrant wrench, suction pipe wrench: used to open and close different types of fire hydrants and suction pipe valves.

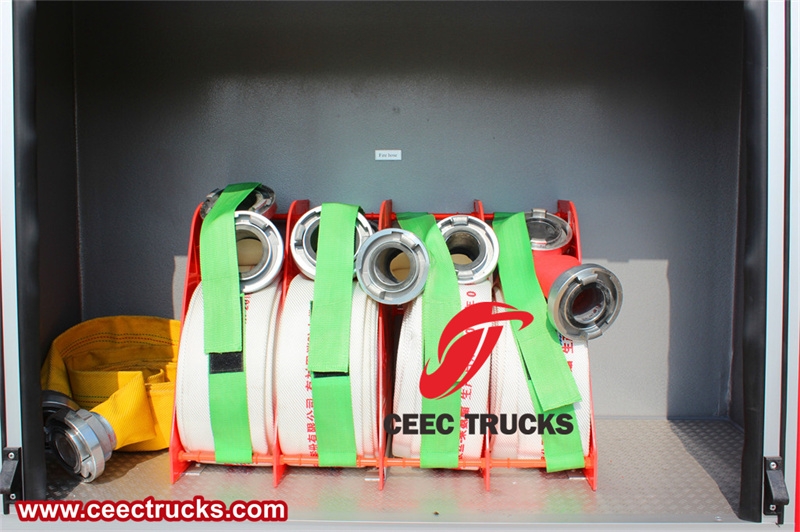

Fire Hose

Fire Hose


Fire axe, shovel, fire iron ring, hammer pick: these tools are used to break obstacles, clean up the fire scene, dig and other tasks to help firefighters approach the source of the fire or perform other rescue work.


Fire blanket: used to cover the fire source, isolate heat and oxygen, or serve as a temporary shelter.


Handheld radio equipment: used for communication between firefighters to ensure contact between the inside and outside of the fire scene and coordinate actions.


Ladder: used to climb buildings, trees, etc. so that firefighters can approach the fire source or conduct rescue.


Full set of firefighting suits: including protective clothing, helmets, gloves, boots, etc., to provide firefighters with comprehensive protection from flames, high temperatures, smoke, chemicals, etc.

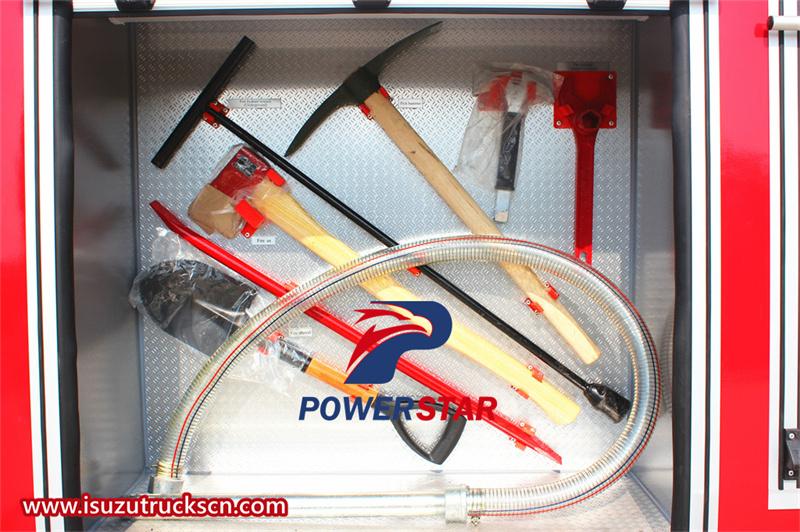

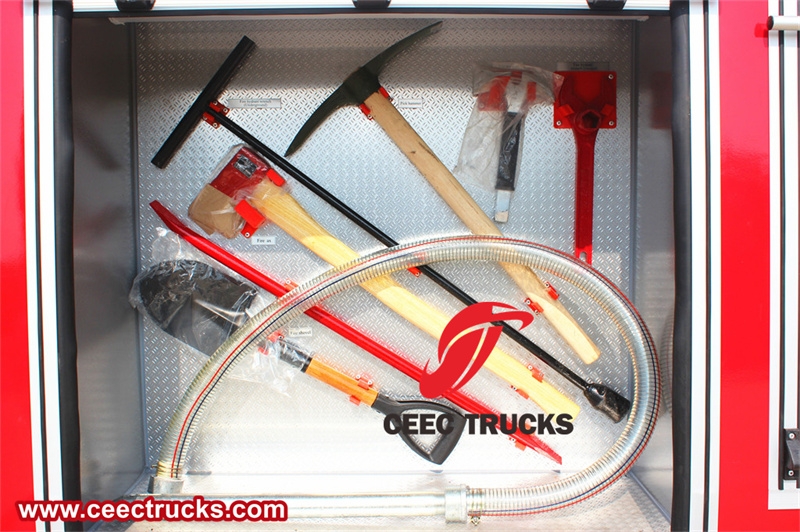

Fire axe, shovel, fire iron ring, hammer pick

Fire axe, shovel, fire iron ring, hammer pick

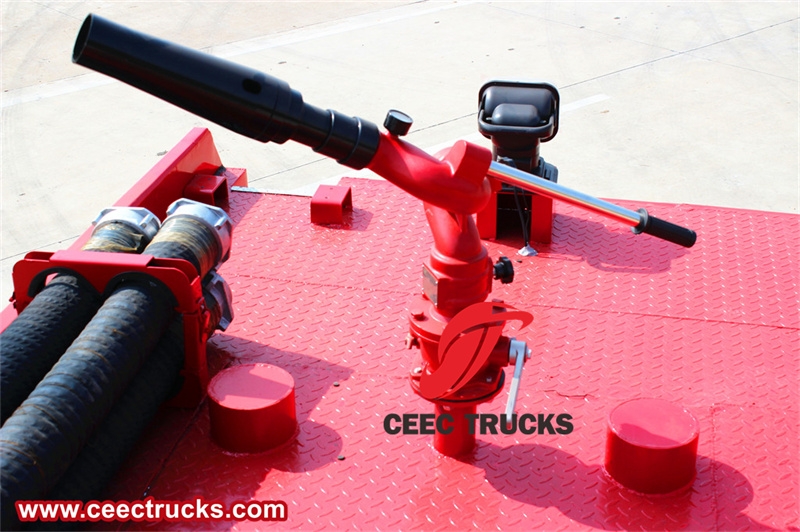

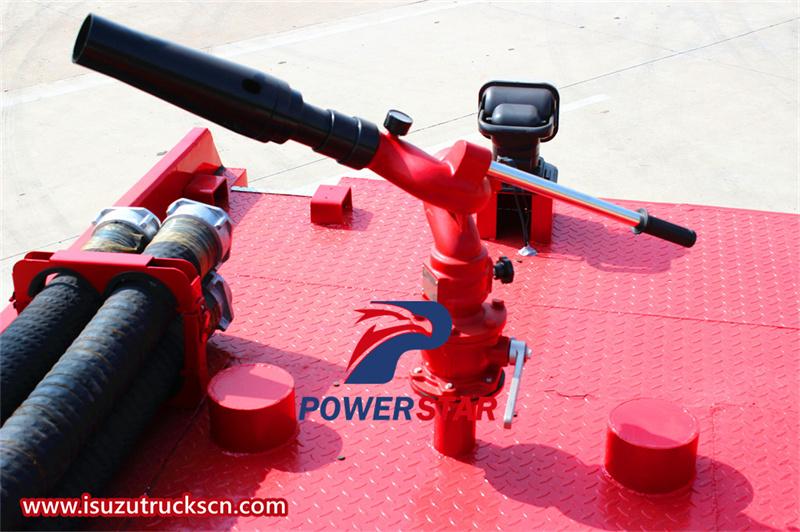

Fire monitor

Fire monitor

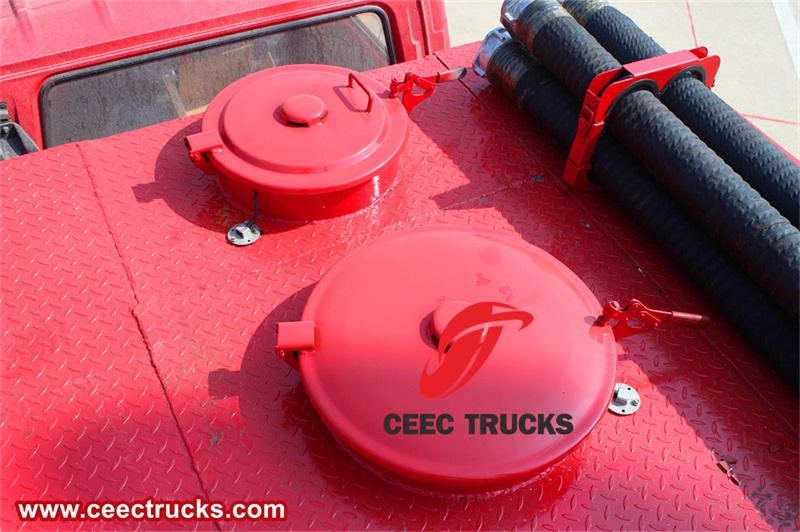

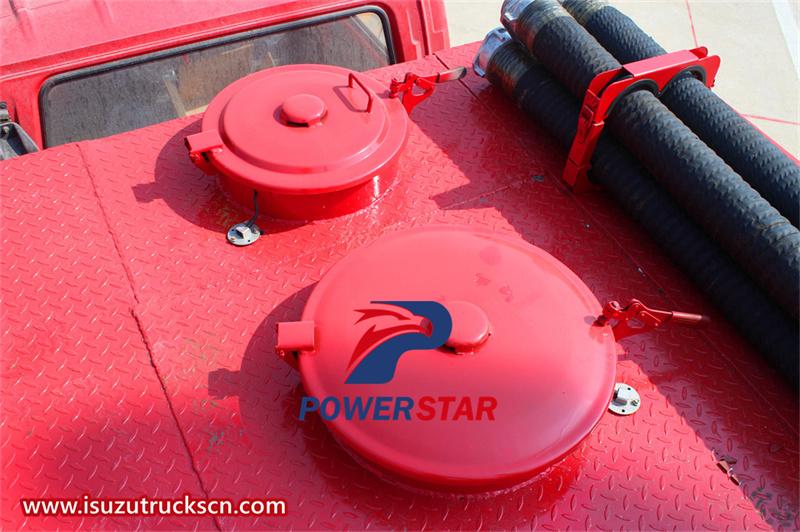

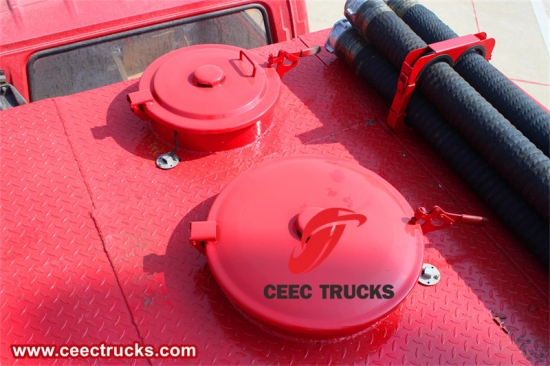

Tank capping

Water and foam tank capping

★ Euro 6 type, ISUZU engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU fire trucks exporter

★ Easy operation and easy maintenance

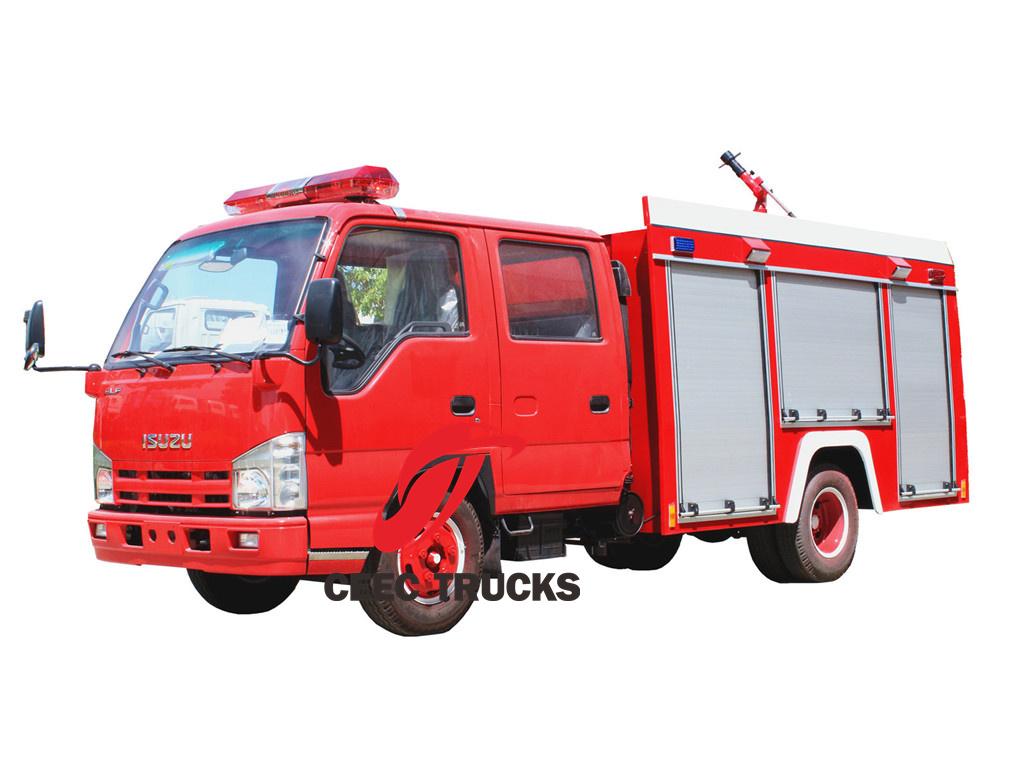

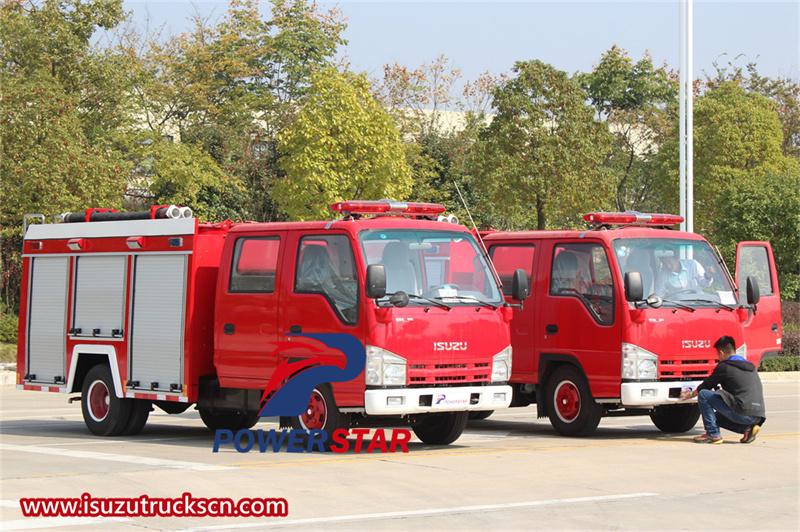

Isuzu mini fire truck


Isuzu mini fire truck
