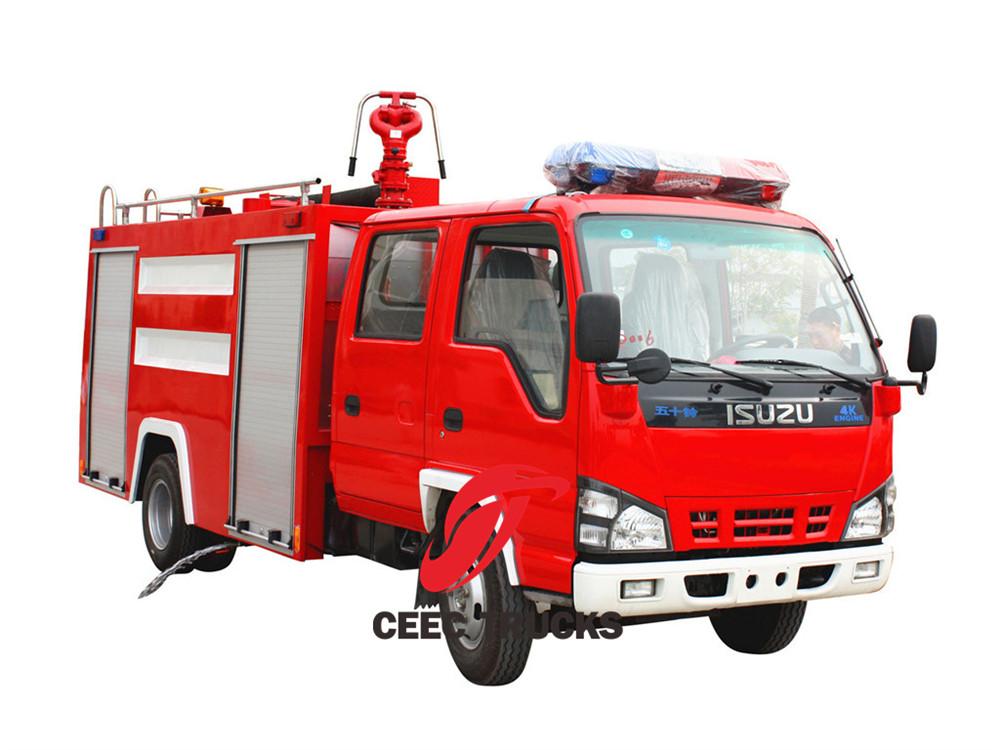

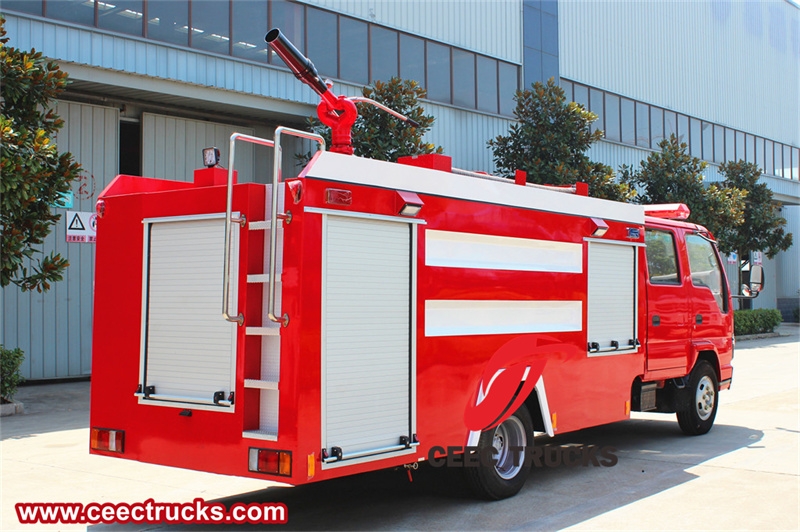

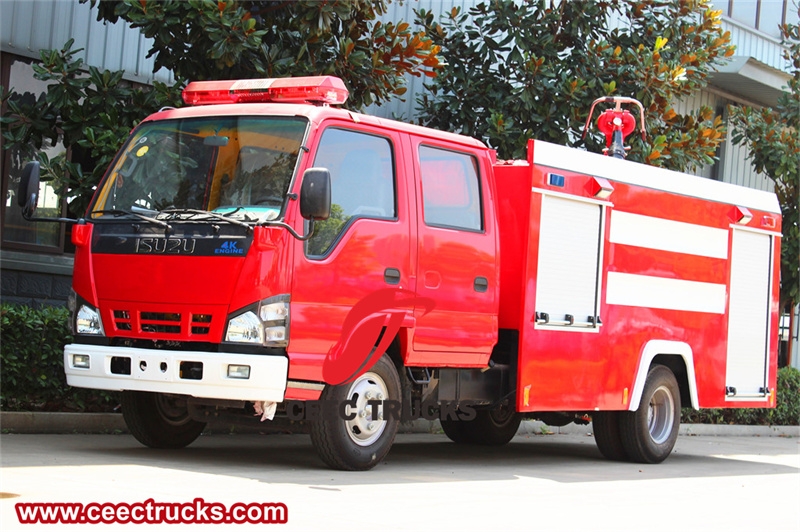

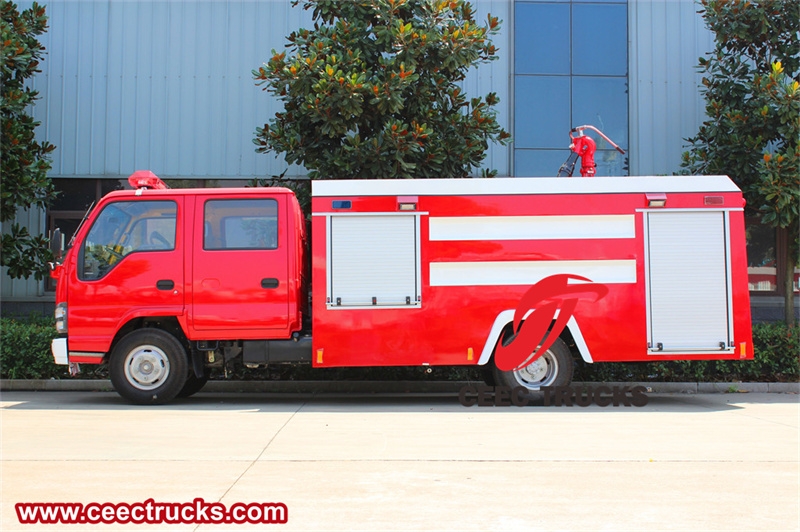

Isuzu NQR 600P fire truck

Isuzu NQR firefighter truck price

The Isuzu NQR 600P fire truck is a special vehicle designed for the fire fighting field, with excellent performance and multiple functions. The vehicle adopts the Isuzu NQR 600P chassis, which is powerful, solid and durable, and can cope with various complex road conditions. The vehicle is reasonably designed and divided into multiple parts, including the front equipment box, the middle tank (which can be loaded with water and foam mixture) and the rear pump room, which is convenient for firefighters to quickly access equipment and carry out fire fighting operations.

  • Product Origin:

    China CEEC

  • Shipping Port:

    China main port

  • Lead Time:

    35 Days

  • Payment:

    T/T, West Union
contact now

1

Isuzu NQR fire fighting truck price also called Isuzu NQR 600P double-row fire truck,Isuzu NQR 600P fire tender truck,Isuzu NQR 3tons foam water fire truck,Isuzu NQR 600P pumper fire truck.The Isuzu NQR 600P double-row fire truck is a fire rescue vehicle designed for emergency fire incidents. The Isuzu NQR fire fighting truck is equipped with advanced firefighting equipment, including a foam-water mixed injection system and a high-efficiency fire pump, which can provide a water flow of 30 liters/second at a pressure of 1MPa to effectively deliver fire-extinguishing liquid to the source of the fire.


The fire truck is equipped with a PS30W fire cannon with a long-range injection function, a wide coverage area, and can control the spread of fire. In addition, the fire truck is equipped with air foam fire guns, fire extinguishers, suction pipes, fire hoses and other tools to deal with different fire situations. The fire truck is also equipped with rescue tools such as water filters, wrenches, fire axes, shovels, fire iron rings, hammer picks, ladders, etc., providing comprehensive support and protection. The Isuzu NQR 600P double-row fire truck provides firefighters with powerful firefighting and rescue capabilities through its comprehensive firefighting equipment and tools, ensuring that they can act quickly and effectively when responding to fire emergencies to protect community safety and property.

Isuzu NQR fire fighting truck price

The Isuzu NQR 600P fire truck not only has the ability to independently extinguish fires, and is particularly suitable for extinguishing oil fires and urban fires, but can also supply water and foam mixture to the fire scene to improve firefighting efficiency. Its fire pump and fire monitor have superior performance and long range, which can meet the needs of different firefighting scenarios. In addition, the vehicle is also equipped with a variety of safety devices and intelligent systems to ensure the safety of firefighters during operations.


2

Isuzu NQR 600P fire fighting truck

Vehicle description

Overall dimension

6250*2000*2950(mm)

GVW

7300kg

Curb weight

4285kg

Chassis brand

Isuzu

Traction type

4*2,left hand drive

Chassis description

Cab

Structure: flat-head, original double-row seat four-door passenger compartment.
Seat setting: 2 persons in the front row and 3 persons in the back row.

Wheelbase

3360mm

Tire specification

7.00R16

Tire quantity

6+1

Max speed

95km/h

Engine

Engine model

4KH1CN6LB

Emission level

Euro 6

Displacement/output

2999ml/88kw

Horse power

120HP

Gear box

Model

ISUZU

Number of gears

MSB 5 forward gears& 1 reverse

Brake system

Type

Oil brake

Service brake

Dual-circuit compressed air brake

Park brake

Power spring brake acting on rear wheel

Auxiliary brake

WEVB

Axle

Front

2.5T

Rear

4.8T

Suspension

Front

7- Leaf spring with shock absorber

Rear

9+6-Leaf spring

Overhang

Front

1110mm

Rear

1780mm

Wheel track

Front

1504mm

Rear

1425mm

Up-parts description

Tanker capacity

Water tanker

2000L

Foam tanker

1000L

Standard configuration

1 set manhole with quick lock and open device;
1 set overflow device;
1 set fluid level gauge;
1 set drain outlet with manual controlled.



Fire pump

Model

CB10/30, normal pressure pump

Flow

30L/s

Pressure

1.0Mpa

Suction depth

7m

Fire monitor

Model

PS30W

Flow

30L/S

Pressure

1.0MPa

Range

≥55m

Rotation angle

Horizontal 360°
Pitch -35°~70°

Other configuration

Equipped with sandwich PTO, pipeline system;
Equipped with equipment box and pump box;
Equipped with flip pedal and electric system.
Other fire equipment.


3

Isuzu NQR 600P double-row fire truck is like a brave warrior, ready to face the challenge of burning. Its appearance is sturdy and powerful, and the gleaming firefighting equipment reflects firm determination. The huge body is loaded with fire-fighting weapons, like a guardian in armor, swearing to protect people's safety.



At the fire scene, the fire truck is like a fierce storm, the high-pressure pump bursts out a surging stream of water, and the PS30W fire cannon whistles out like a magic arrow, accurately aiming at the source of the fire, turning the trickling water into the nemesis of the raging sea of fire. The air foam fire gun is like a magician, interweaving air and foam to lay a dense barrier, encircling the fire and preventing it from spreading.


There are many tools for life and death hidden inside the fire truck, and each tool is like a skilled dancer, dancing to solve problems at the rescue site. The ladder extends a helping hand and lifts the firefighters to a high altitude, while the axe and shovel faithfully open a path to safety for them.



The Isuzu NQR 600P double-row fire truck is a powerful assistant to firefighters. No matter how fierce the fire is, it can quickly attack, rescue countless lives, and work tirelessly to protect the battle for safety.


Isuzu NQR fire fighting truck

Isuzu NQR fire fighting truck


Vehicle Design

Like a vigilant guardian, the Isuzu NQR fire truck exudes majesty with its rugged design and resolute stance. Its sleek exterior is painted in a striking red that gleams in the sun, hinting at its inherent toughness. The vehicle’s angular silhouette conveys a sense of readiness for battle, as if it is forever ready to wrestle the fires of hell and conquer chaos.



Approaching the Isuzu NQR, one is immediately drawn to its towering stature. The truck towers over the rest of the world, instilling confidence and assurance in those who rely on its lifesaving abilities. Bright, flashing emergency lights adorn its roof, emitting a dazzling glow that demands attention and respect. The distinctive siren echoes around with its majestic wail, announcing the arrival of a powerful force ready to tackle any fire.



Upon closer inspection, the Isuzu NQR’s cab is meticulously designed to be efficient and practical. Two large doors open to reveal a spacious interior, equipped with a state-of-the-art control panel and communications system. The driver's seat is comfortable and the control is strong, ensuring that the operator can easily and accurately traverse challenging terrain. Each control knob and switch is carefully designed for easy and quick operation, and can respond quickly in high-pressure situations. The cab is a double-row design that can accommodate 2+3 seats, which greatly increases the loading capacity of the fire truck and can transport as many firefighters as possible to the fire scene quickly, improving efficiency.

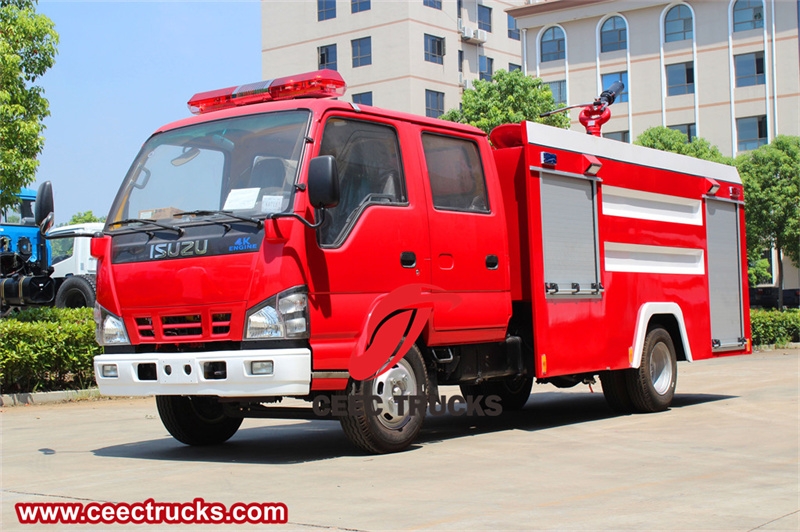

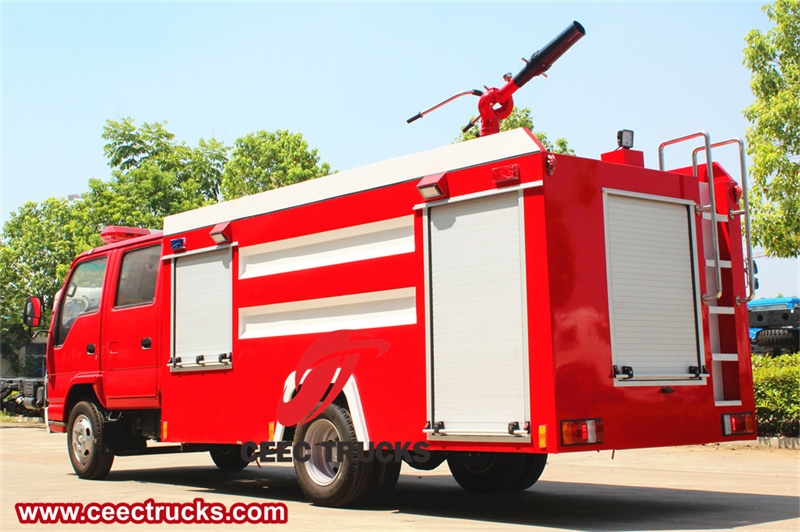

 Isuzu NQR 600P fire truck

Isuzu NQR 600P fire truck


Powerful engine

Isuzu's 4KH1CN6LB engine has a maximum output power of 120 horsepower and a maximum torque of 290 Nm. The engine is matched with the Isuzu MSB 5-speed gearbox. This power chain combination has been verified for a long time in the market, with a large market share and many customers, and is highly evaluated in the industry. This engine is a powerful power source for the Isuzu 600P double-row foam water fire truck, representing a model of reliability and performance in the field of fire trucks. This advanced engine is the heart of these machines, providing the necessary vitality and endurance to overcome the most daunting challenges with unwavering efficiency.



Built with precision engineering and cutting-edge technology, the 4KH1CN6LB engine is designed to prioritize power, durability, and fuel efficiency. Its turbocharged intercooled configuration ensures optimal performance in high-stress situations, allowing the fire truck to respond to emergencies quickly and decisively without compromising power output.

 Isuzu fire truck

Isuzu 600P double row fire engine


The engine's rugged construction is evident in every component, from the hardened pistons and cylinder block to the cleverly designed fuel injection system. Every detail of the 4KH1CN6LB engine has been carefully designed to ensure seamless operation and long life even in the most challenging firefighting conditions.



When an Isuzu fire truck starts its engine, the 4KH1CN6LB emits a powerful roar, ready to push these vehicles to the forefront of any firefighting operation. The engine's advanced electronic control system seamlessly synchronizes each component, optimizing performance and ensuring maximum power output when it is most needed.



In addition, the 4KH1CN6LB engine has a displacement of 2.99L and meets Euro VI emission standards, and its low emission characteristics are perfectly aligned with environmental standards, highlighting Isuzu's commitment to sustainability and environmental protection. This engine not only performs well, but also focuses on reducing carbon footprint, making it a responsible choice for firefighting fleets around the world.

 Isuzu NQR 3tons foam water fire truck

Isuzu NQR 3tons foam water fire truck


Water Tank + Foam Tank Joint Operation

The 2 cubic meter water tank and 1 cubic meter foam tank equipped on Isuzu NQR fire trucks play a key role in enhancing the firefighting capabilities of these vehicles, improving their firefighting efficiency, and protecting lives and property in emergency situations.



The huge capacity water tank is the main storage for firefighting in these fire trucks. The large amount of water stored in the water tank ensures a continuous flow of liquid, allowing firefighters to extinguish flames with precision and power. This resource plays an important role in cooling strong heat sources, preventing the spread of fire, and ultimately controlling dangerous situations.

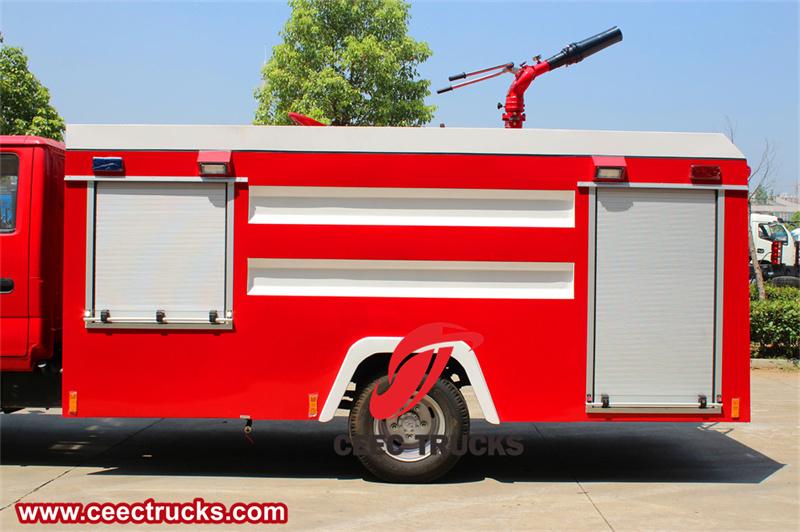

 Fire truck tank

Fire truck tank


Complementing the water tank is the foam tank, a foam storage specifically for firefighting, designed to extinguish flames with amazing efficiency. Foam is a powerful suppressant that forms a thick coating on the burning surface to extinguish flames quickly and thoroughly. When used in conjunction with water, foam can enhance the firefighting process by suppressing flames, reducing the likelihood of re-ignition, and minimizing damage to buildings and assets.



During firefighting operations, the synergy between the water tank and foam tank within these fire trucks is essential to effectively respond to a variety of fire situations. By combining the rapid cooling properties of water and the suffocating effect of foam, firefighters can tailor their firefighting methods to different types of fires, including those caused by flammable liquids or combustible materials. This dual capability ensures that the fire truck can handle a variety of emergency situations with precision and flexibility.

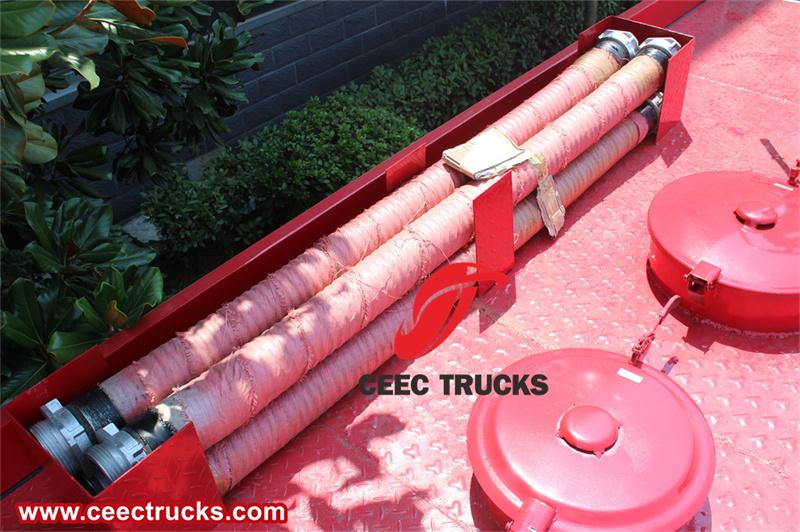

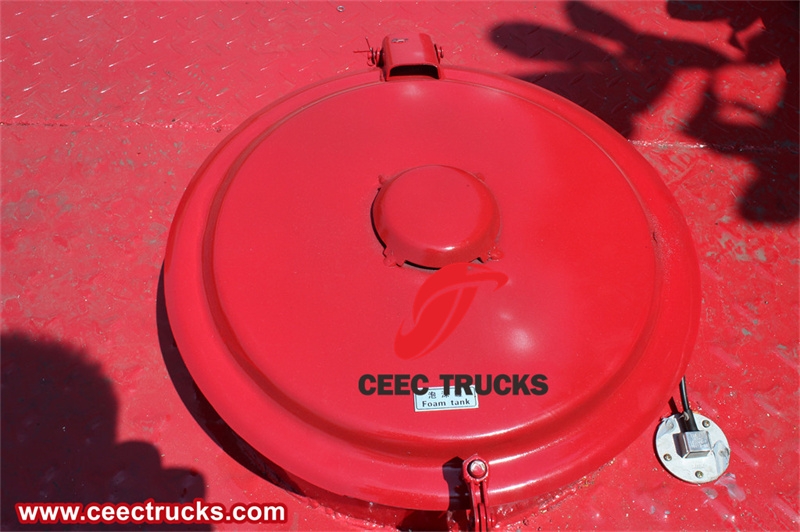

 water tank and foam tank capping

water tank and foam tank capping


Powerful Pumping System and Control Panel

Moving to the rear of the truck, the core of its firefighting capabilities is revealed. The powerful water pump is capable of delivering an impressive flow rate, ready to release a large amount of water flow at any time. The water pump is a CB10/30 vehicle fire pump with a flow rate of 30L/s/1.0Mpa and a maximum suction depth of 7 meters. It is paired with a PS30W fire monitor, which greatly improves firefighting efficiency.



The pumping system is a miracle of engineering ingenuity, ready to release water flow and foam with great power and efficiency. When firefighters activate the system, the fire pumps inside these trucks go to work, drawing water from reserves and propelling it through high-pressure hoses with unwavering intensity. The pumping system’s massive power and flow rate allow firefighters to precisely direct water and foam to reach even the most inaccessible fires with ease.



In addition, the pumping system’s versatility allows firefighters to dynamically adjust flow rates and pressures to suit the changing needs of firefighting operations. Whether fighting a raging blaze or a subtle local fire, the system provides firefighters with precise control, helping them adjust their firefighting methods to fight the fire with optimal efficiency.

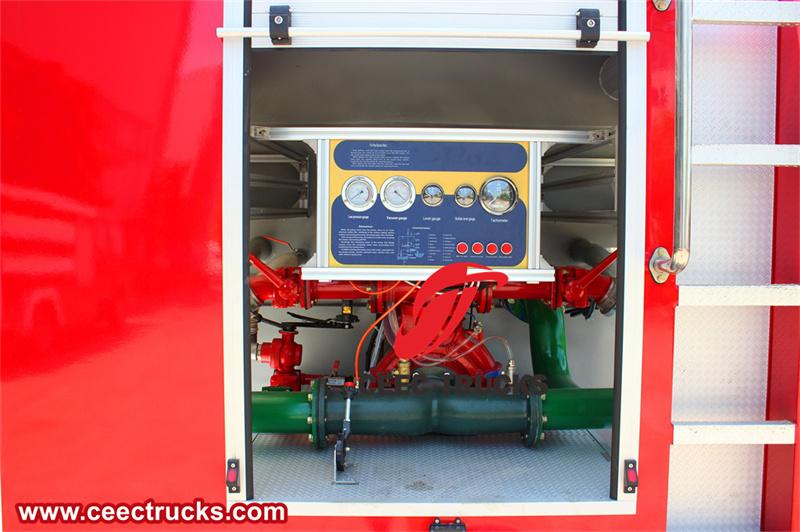

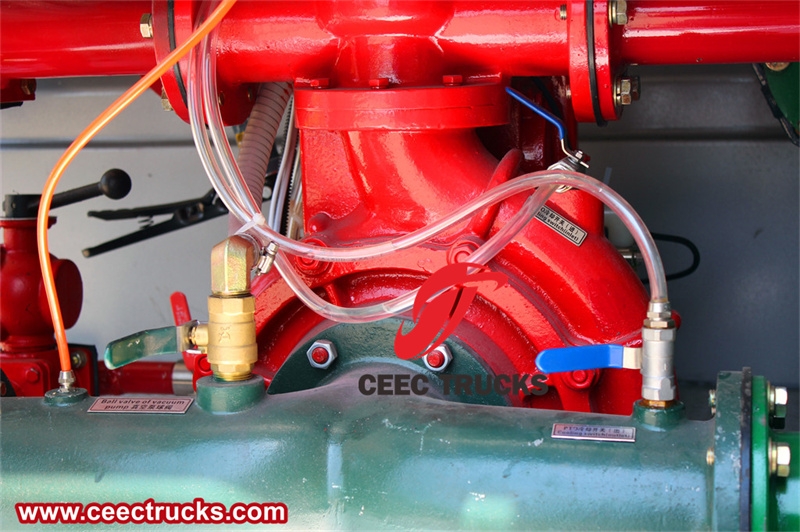

Fire pump

Fire pump

Switch and Ball Valve

Switch and Ball Valve


Complementing the pumping system is the control panel, a sophisticated interface that allows firefighters real-time monitoring and operational oversight. The control panel is adorned with an array of illuminated buttons and digital displays that provide a comprehensive view of the fire truck’s vital functions and parameters. From regulating water flow to adjusting foam concentration, every aspect of firefighting operations is meticulously managed through the panel’s intuitive controls.



As firefighters navigate the chaos of a fire scene, the control panel serves as their tactical command center, enabling them to make split-second decisions with confidence and accuracy. The ergonomic layout of controls ensures quick access to key functions, allowing firefighters to respond quickly to changing situations and optimize their firefighting efforts for maximum effect.



During firefighting operations, the synergy between the pumping system and the control panel is essential. The seamless integration of these components allows firefighters to fully utilize the full capabilities of the fire truck, skillfully and efficiently directing water and foam to extinguish fires and restore safety to hazardous areas.

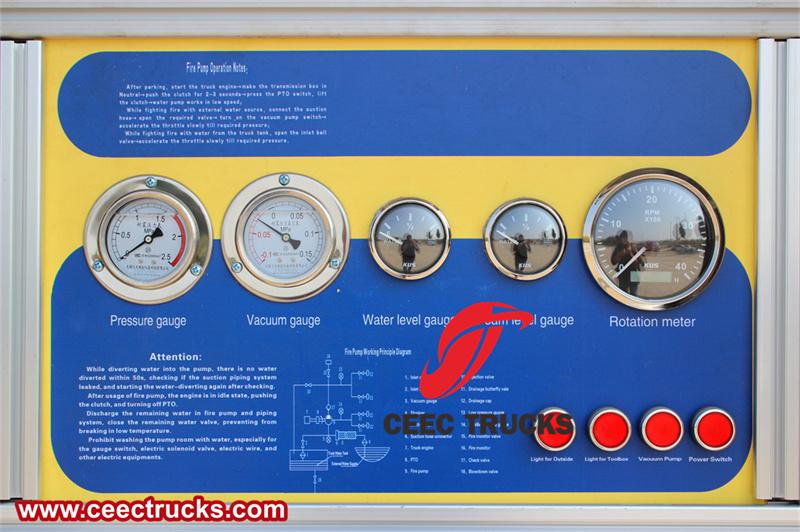

control panel

control panel


Comprehensive firefighting equipment

When standard water or foam attacks are simply not enough, the NQR is equipped with a range of specialized firefighting tools and equipment, including fire extinguishers, hoses, etc. These tools, combined with the truck's impressive maneuverability and versatility, make it a true multi-purpose firefighting machine that can respond to a variety of emergency situations.



Equipped with a wide range of firefighting equipment and tools, these Isuzu NQR fire and rescue vehicles and Isuzu 600P dual-discharge foam fire trucks provide comprehensive support for firefighters, allowing them to effectively respond to various fire situations and protect community safety and property.

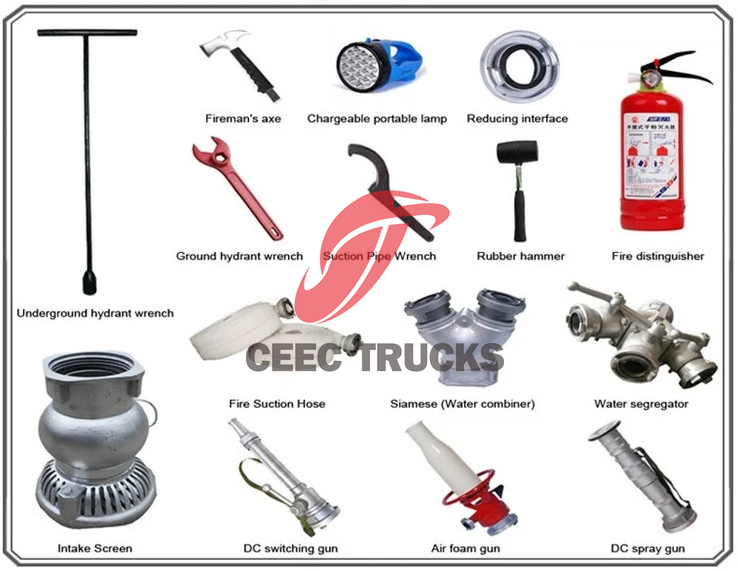

 fire equipment

Fire equipment

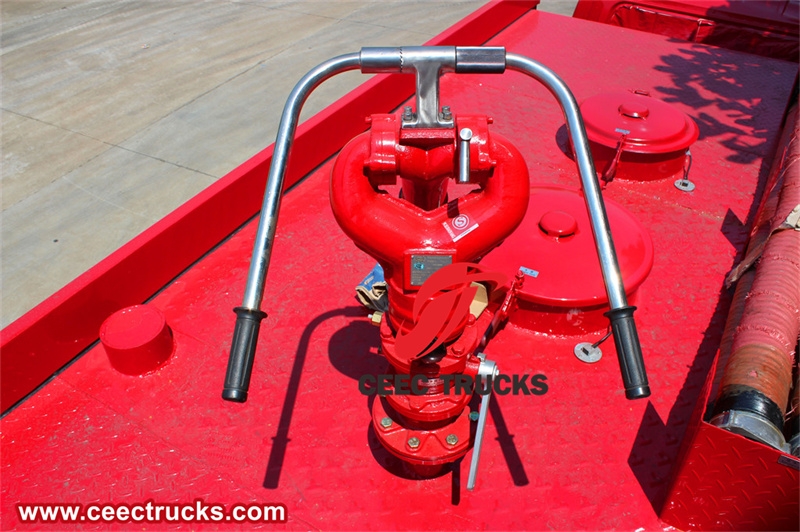

- **Foam Water Combination Fire Cannon**: These fire trucks are equipped with a fire cannon with a foam and water mixed jet, which provides a more dignified and powerful firefighting effect. The combination of foam and water can effectively extinguish the flames, form a larger suppression layer, and effectively reduce the risk of fire spread.



- **DC switch water gun**: The DC switch water gun is a powerful assistant for firefighters when dealing with fires. This water gun has a convenient switch design that can quickly switch the water discharge state, allowing firefighters to flexibly control the water flow, accurately aim at the fire source, and achieve efficient fire extinguishing.



- **Air foam fire fighting gun**: The air foam fire fighting gun is a fire extinguishing tool for large-area coverage. It can cover a wide area in a short time and form a foaming layer, effectively extinguishing the fire and reducing the oxygen supply to prevent the spread of the fire.

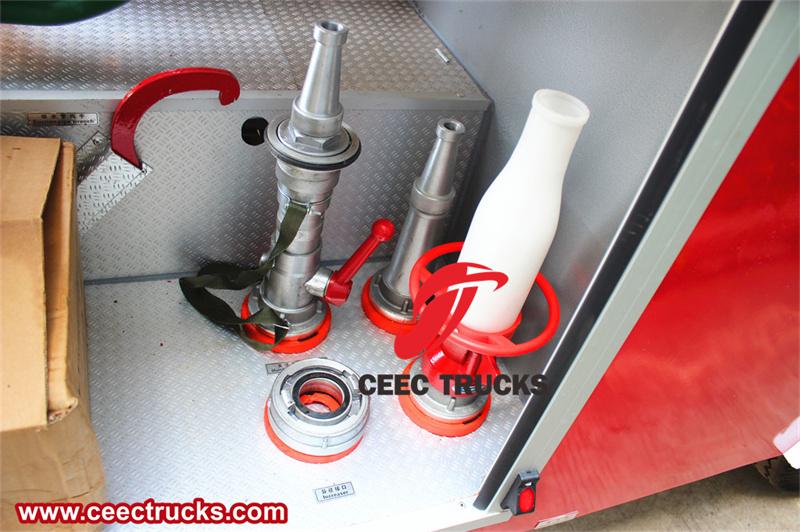

 Water gun，fire gun

Water gun，fire gun


- **Fire extinguisher**: The fire truck is also equipped with various types of fire extinguishers, which can be used to extinguish fires in the early stage or small-scale fires. The fire extinguishers are reasonably distributed, allowing firefighters to quickly pick them up and put them into use to prevent the fire from spreading further.



- **Water suction pipe**: The water suction pipe is used for fire trucks to suck water from external water sources when water is needed. This equipment ensures that the fire truck has sufficient water support on site to ensure continuous firefighting operations.



- **Fire hose**: Fire trucks carry fire hoses of various lengths and types for delivering water and fire extinguishing agents. Fire hoses are high-strength and wear-resistant, providing firefighters with reliable firefighting support.

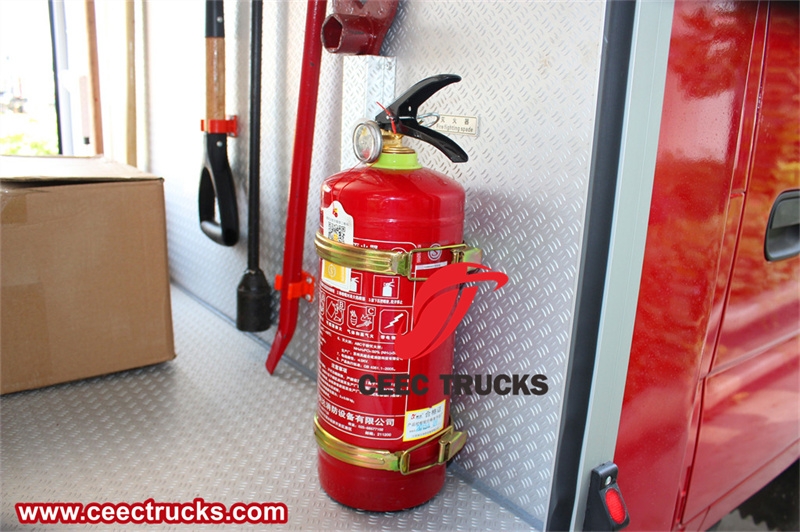

 Fire extinguisher

Fire extinguisher

Hose wrap and hook

Hose wrap and hook


- **Water filter**: The water filter can ensure that the water source used in the firefighting process is clean and free of impurities, preventing blockage or damage to the equipment during use in turbid water.



- **Wrench, fire axe, shovel, fire iron ring, hammer pick**: These tools such as wrench, fire axe, shovel, fire iron ring and hammer pick provide firefighters with a variety of operating tools for fighting fires, opening closed doors and windows, and performing rescue and obstacle removal.

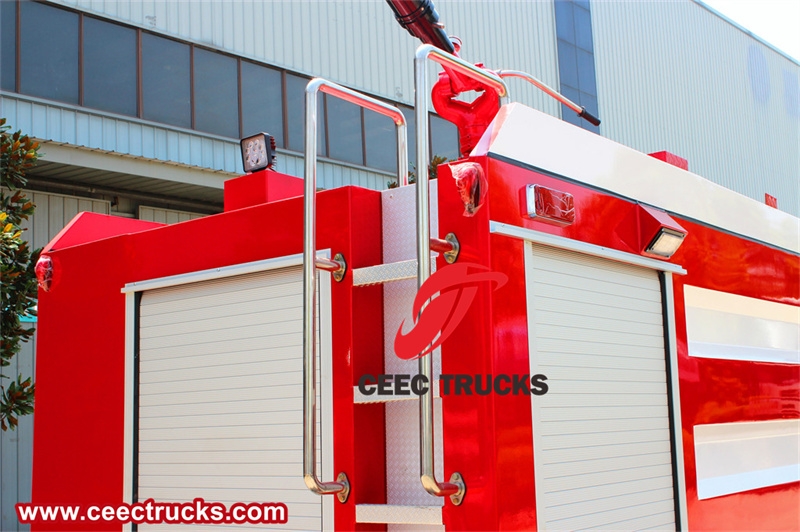

- **Ladder**: Ladders are important auxiliary tools for firefighters, which can help firefighters climb high-rise buildings and enter high places for firefighting and rescue work.



The completeness and diversity of these firefighting equipment ensures that the Isuzu NQR fire and rescue vehicle and the Isuzu 600P double-drainage foam fire truck have comprehensive firefighting and rescue capabilities, enabling firefighters to perform various tasks in various emergency situations, protect community safety and effectively respond to sudden dangers.

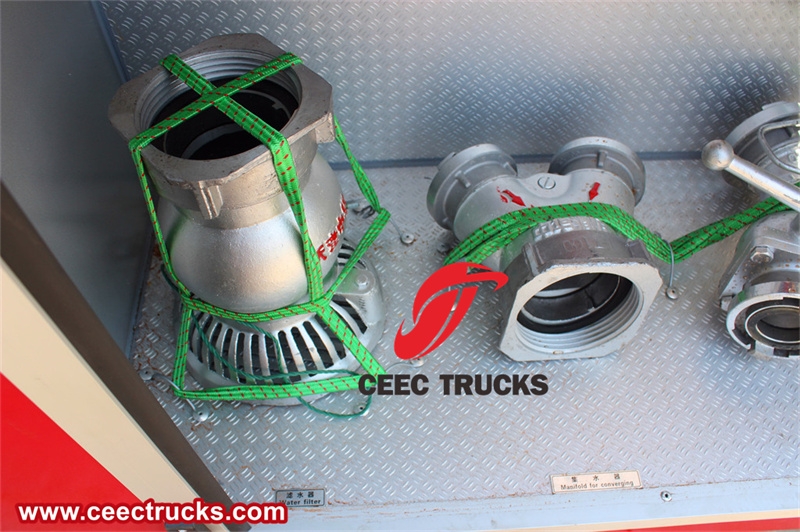

Water collector Water filter

Water collector，Water filter

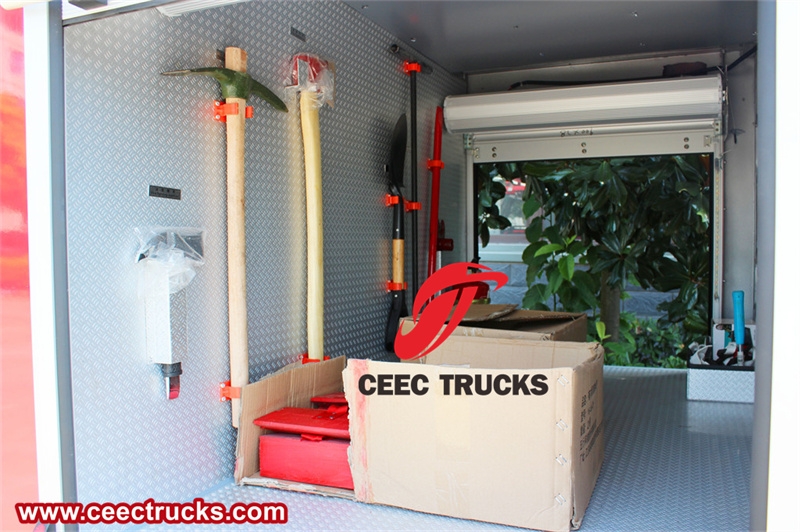

Wrench, fire axe, shovel, fire iron ring, hammer pick

Wrench, fire axe, shovel, fire iron ring, hammer pick

★ Euro 6 type, ISUZU engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU fire trucks exporter

★ Easy operation and easy maintenance

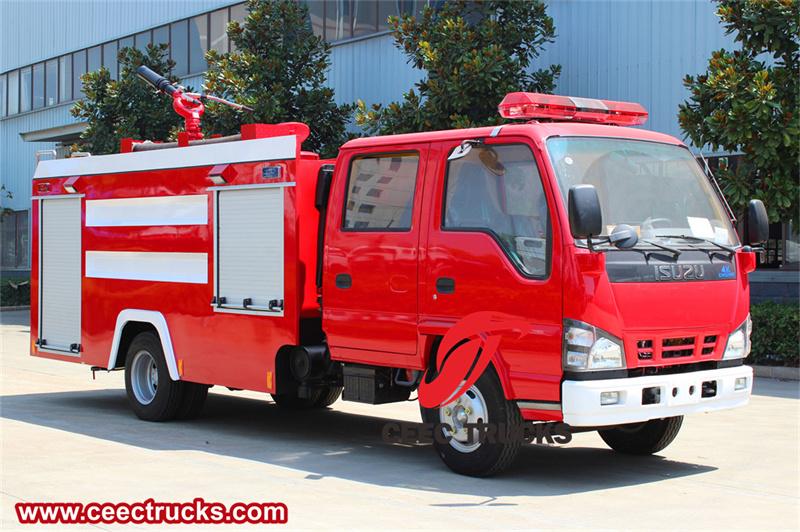

Isuzu 600P fire truck


Isuzu 600P fire truck
