Isuzu NPR off-road rear loader truck

The ISUZU NPR off-road 10CBM garbage compactor truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu NPR 4x4 chassis, the garbage rear loader is equipped with a 190HP Euro 6 engine and a six-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the ISUZU off-raod 10CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

Payment:
T/T, West Union
Product Origin:
China CEEC
Shipping Port:
China Main Port
Lead Time:
40 Days
Work capacity:
10CBM
Truck model:
CEEC5110F4ZYS
Engine power:
190HP
Engine type:
Isuzu 4HK1-TCG61
Axle drive:
4X2/4x4, LHD/RHD
Gear box:
MLD 6F & 1R
Remarks:
4x4 off-road

Inquiry now

The ISUZU NPR off-road 10CBM garbage compactor truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu NPR 4x4 chassis, the garbage rear loader is equipped with a 190HP Euro 6 engine and a six-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the ISUZU off-raod 10CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

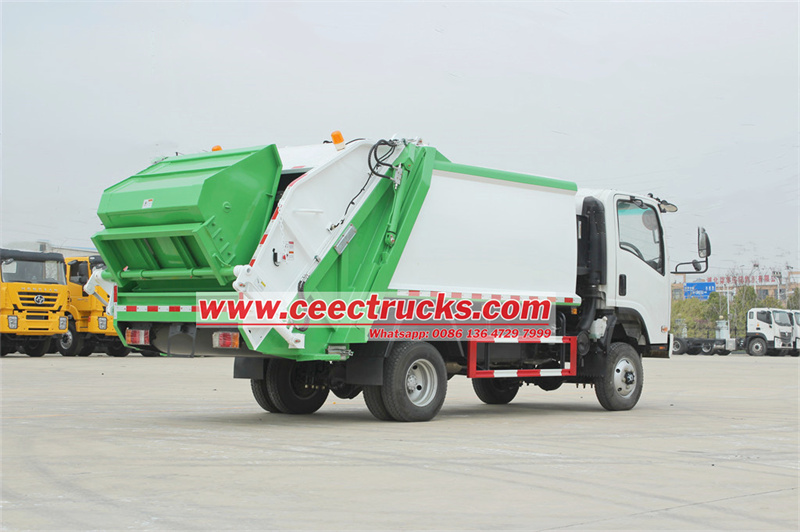

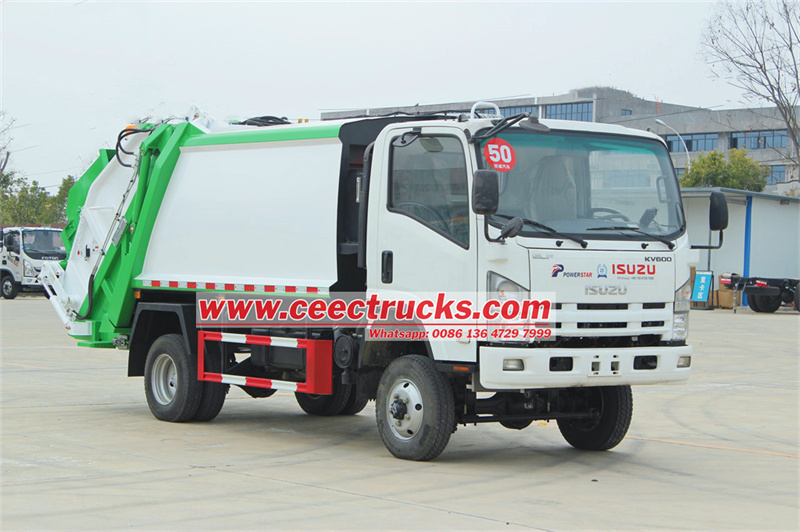

ISUZU NPR 4x4 garbage compactor truck

● China best Isuzu waste compactor truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

ISUZU NPR 4x4 garbage compactor truck

ISUZU 4x4 NPR REAR LOAD GARBAGE TRUCK
Chassis Model	ISUZU ELF 190hp
Engine	Make: ISUZU
	Diesel 4-stroke direct injection diesel engine
	Engine model:4HK1-TCG61, Euro 6 emission standard
	4-cylinder in-line with water cooled, turbocharged and intercooler
	Maximum output: 189HP/139KW
	Maximum torque: 507 Nm
	Displacement: 5.2 L
Transmission	ISUZU MLD, 6 forwards and 1 reverse, manual
Drive system	Left/Right hand 4x4 drive
Chassis	Frame: U-profile parallel ladder frame and reinforced subframe
	Front suspension:8 pcs semi-elliptic leaf spring
	Rear suspension:10+6 pcs semi-elliptic lea spring
	Fuel tank: 100 L capacity with locking fuel cap
Steering	Power steering, hydraulic steering with power assitance
Brakes	Service brake: dual circuit compressed air brake
	Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels
	ABS
Wheels & Tyres	Tire: 7 pcs 235/75R17.5
	Optional:8.25R20
Driver's Cab	ISUZU NPR wide cab, with three seats, A/C, electric glass, central lock
Dimensions mm	Wheel base	4175 MM
	Overall length	7400 MM
	Overall width	2300 MM
	Overall height	2640 MM
Weight kg	Curb weight	6900 KG
	Rated Loading Capacity	4000 KG
	Gross vehicle weight(GVW)	11000 KG
	Front axle loading capacity	4000 KG
	Rear axle loading capacity	7000 KG
Compactor Body	Volume of body(m3)	10
	Volume of filler(m3)	2
	Time of one filling cycle(s)	≤25
	Lifting time of filler (s)	8-10
	Time of discharge (s)	≤40
	Pressure of hydraulic system (Mpa)	18
	Front/rear sewage capacity (L)	250+150
	Control system	CAN-bus (electrical) and manual (hydraulic)

Features Design:

1. Compactness and maneuverability optimization

►Short wheelbase body design (wheelbase ≤3.8m) + rear wheel steering assist system, achieving ≤10m turning radius

►Low chassis ground clearance (≤300mm) adapted to underground parking lot height limit (2.2-2.5m)

►Lightweight assembly (vehicle curb weight ≤5 tons) takes into account both load and flexibility

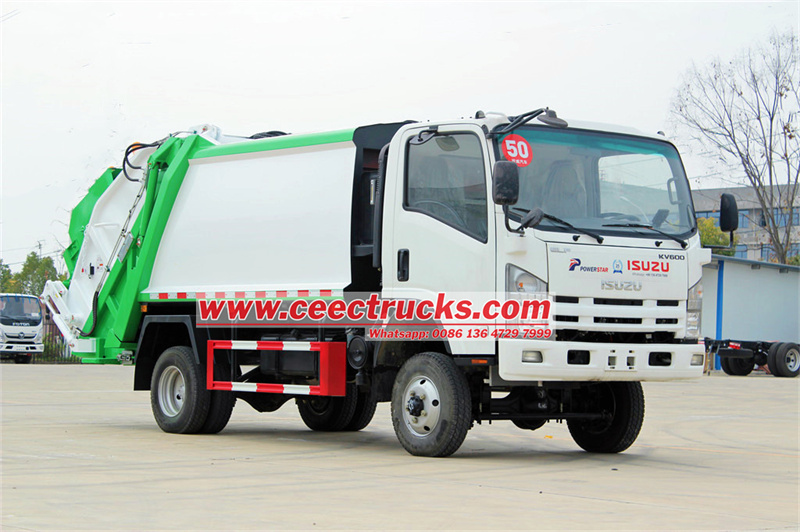

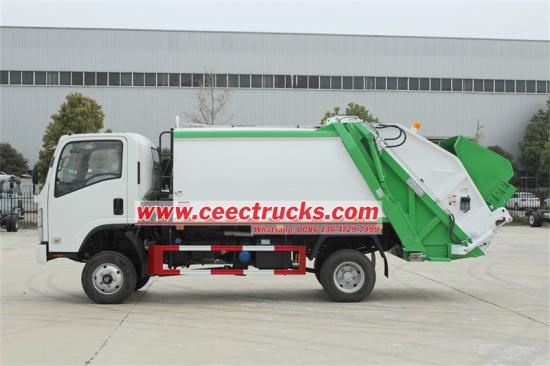

ISUZU NPR 4x4 garbage compactor truck

2. Efficient compression system

►Two-stage spiral compression mechanism (compression ratio ≥3:1) with intelligent pressure sensor

►Modular hydraulic power unit (working pressure ≥18MPa) + energy-saving start-stop control

►Sealed push plate structure (leakage rate ≤0.1%), standard sewage diversion trough

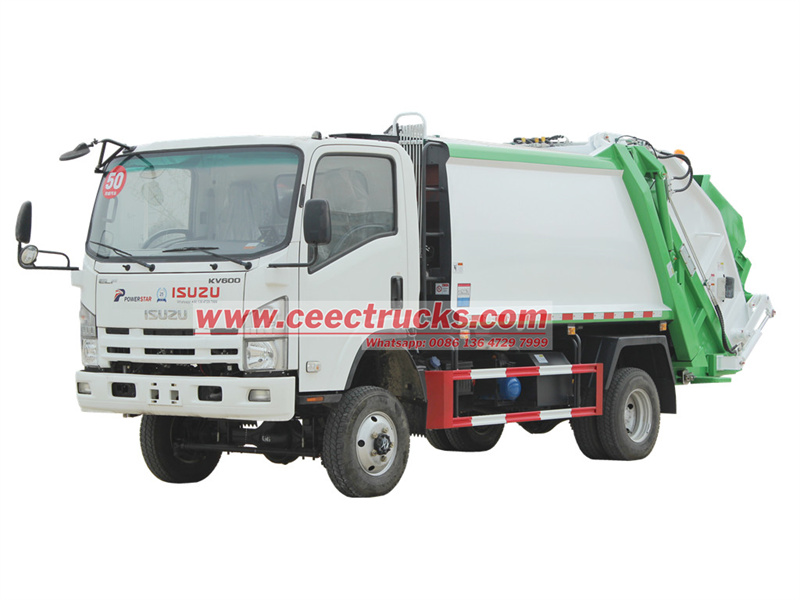

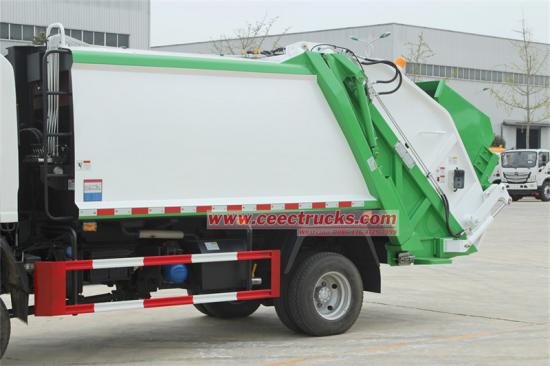

ISUZU NPR 4x4 garbage compactor truck

3. Intelligent operation system

►CAN bus integrated control system (including load monitoring/fault self-diagnosis)

►Reversing radar + 360° surround image (IP69K protection level)

►Remote monitoring module (4G transmission + GPS trajectory tracking)

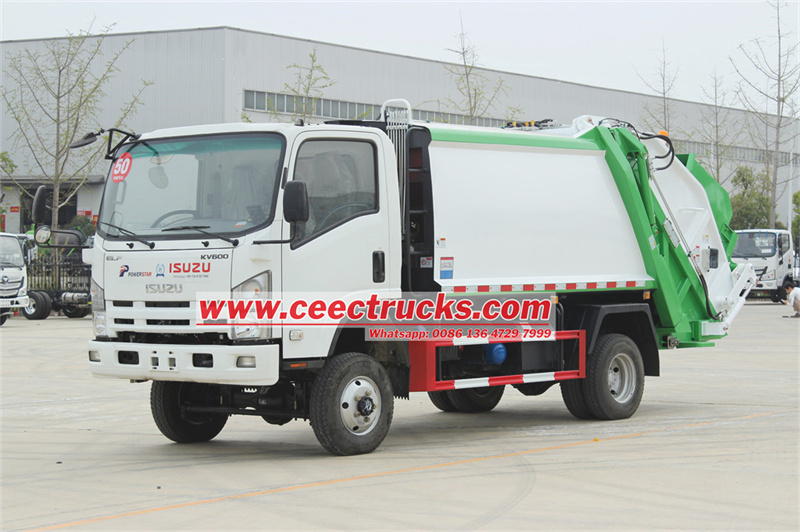

ISUZU NPR 4x4 garbage compactor truck

4. Enhanced scene adaptability

►Two-way side-mounted/rear-mounted compatible mechanism (adaptable to 240-660L standard barrels)

►Wear-resistant composite steel plate carriage (HB400 hardness + anti-corrosion coating)

►Anti-slip working platform (friction coefficient ≥0.8) + LED warning light set

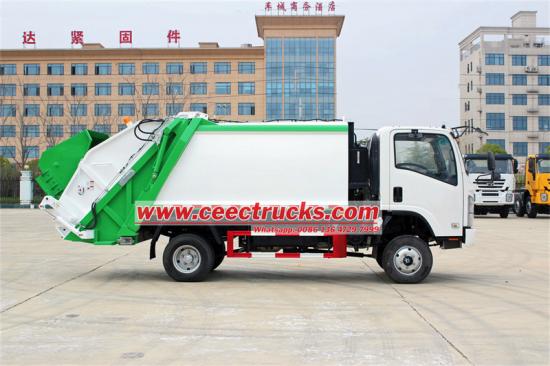

ISUZU NPR 4x4 garbage compactor truck

Application:

1. Urban residential areas Scenario characteristics: large garbage production and concentrated distribution require high-frequency collection.

Adaptability: The full-drive system can operate flexibly on narrow roads or slippery roads, and the compression function increases the single load capacity and reduces the number of transportation times.

2. Commercial areas and public places Scenario characteristics: shopping malls, office buildings, scenic spots and other places have complex types of garbage (such as packaging, kitchen waste), which need to be cleaned quickly.

Adaptability: The compression function can efficiently handle large-volume garbage (such as cartons, foam), and the full-drive system adapts to urban congested road conditions.

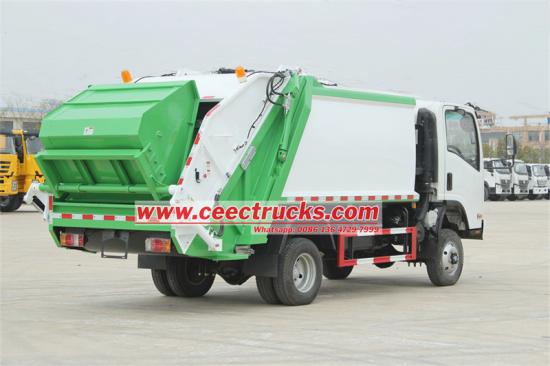

ISUZU NPR 4x4 garbage compactor truck

3. Townships and rural areas Scenario characteristics: poor road conditions (dirt roads, steep slopes), and scattered garbage.

Adaptability: All-wheel drive improves passability, compression technology reduces transportation costs, and is suitable for long-distance, low-density garbage collection and transportation.

4. Industrial areas and construction sites Scenario characteristics: heavy garbage (such as metal waste, construction debris), complex environment.

Adaptability: The high compression ratio design accommodates heavy garbage, and the full-drive system adapts to muddy and rugged terrain on the construction site.

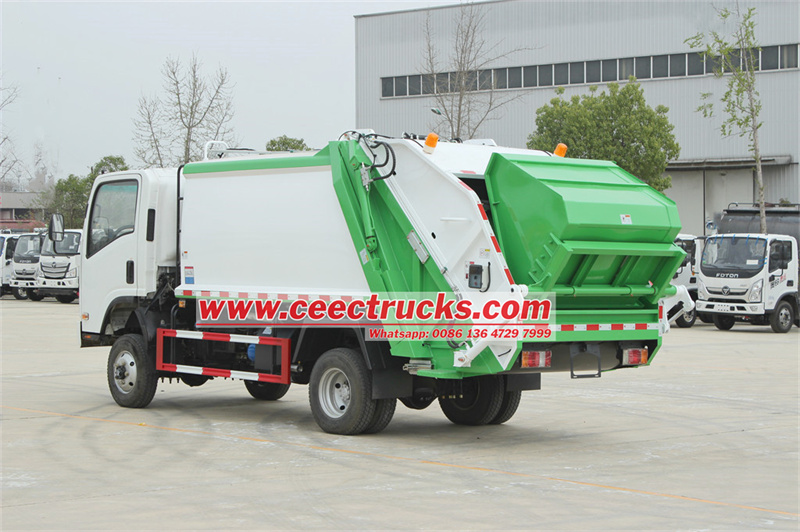

ISUZU NPR 4x4 garbage compactor truck

5. Emergency scenarios (such as natural disasters, large-scale events) Scenario characteristics: A large amount of sudden garbage needs to be cleaned up quickly.

Adaptability: High mobility to quickly reach the scene, compression function to improve emergency handling efficiency.

6. Mountainous and sloping terrain Scenario characteristics: There are many slopes and sharp curves, and traditional garbage trucks are prone to slipping.

Adaptability: All-wheel drive provides stable traction to ensure safety when climbing and cornering.

★ Japanese ISUZU diesel engine, super powerful

★ Expert for producing garbage compactor truck over 10 years with good reputation

★ Carbon steel material T420

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for compression garbage trucks
