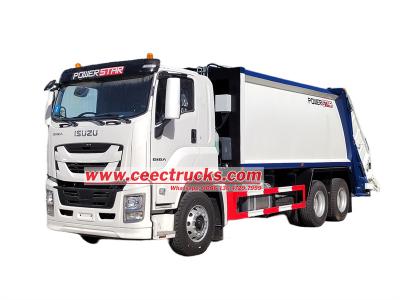

Isuzu 20 cbm rear loader compressed garbage truck

Africa Isuzu GIGA 6UZ1 rear loader garbage truck

This Isuzu GIGA 6x4 heavy-duty garbage compactor truck is an outstanding work in the field of sanitation engineering and a strategic weapon for urban cleaning. Equipped with a 6UZ1-TCG61 engine, it has a powerful output of 380 horsepower, a displacement of 9.839L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 25-ton total weight configuration and 12.7-ton load capacity can fully meet the daily garbage removal needs of large and medium-sized cities.

Lead Time:
80 Days
Work capacity:
20cbm
Truck model:
CEEC5250GXH
Engine power:
380HP
Engine type:
6UZ1-TCG61
Axle drive:
6X4,LHD
Gear box:
FAST 12-speed,manual
Remarks:
Isuzu VC61 6x4 cabin,large capacity garbage bin

Inquiry now

This Isuzu GIGA 6x4 heavy-duty garbage truck is an outstanding work in the field of sanitation engineering and a strategic weapon for urban cleaning.Equipped with a 6UZ1-TCG61 engine, it has a powerful output of 380 horsepower, a displacement of 9.839L, and turbocharging and intercooling technology. It is not only powerful, but also meets the stringent Euro 6 emission standards. Its 25-ton total weight configuration and 12.7-ton load capacity can fully meet the daily garbage removal needs of large and medium-sized cities.

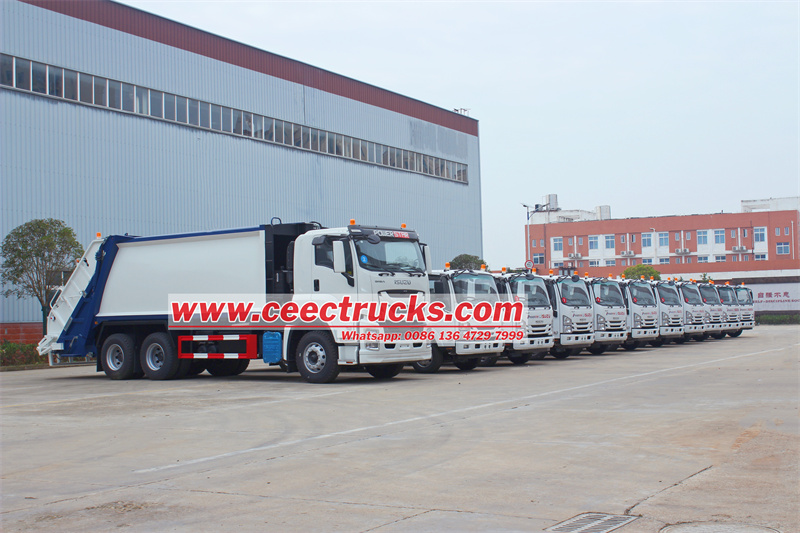

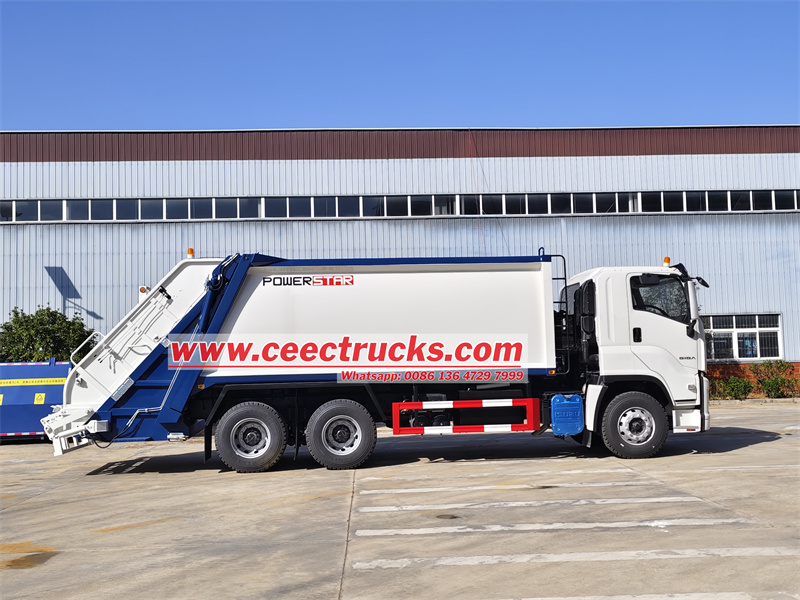

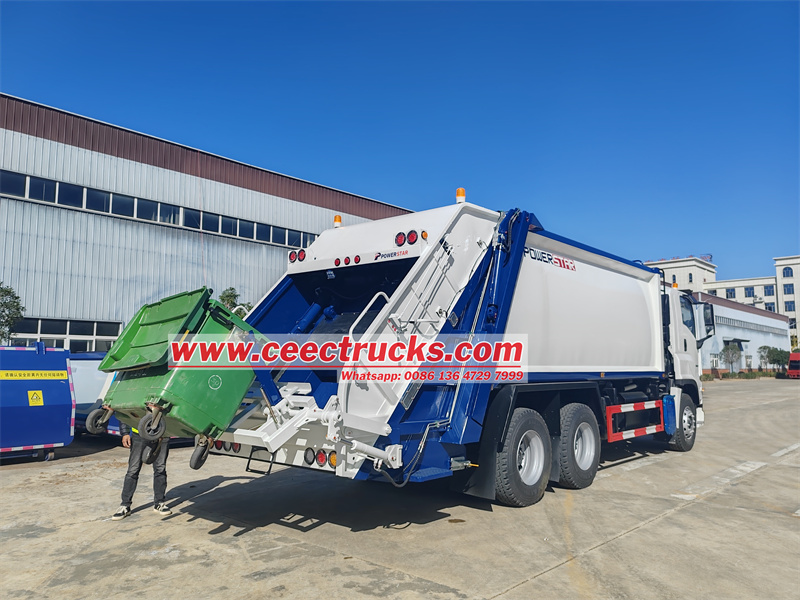

ISUZU GIGA 6x4 garbage compactor truck

The ISUZU GIGA garbage compactor truck adopts an advanced 12 front and 1 rear gearbox, combined with a 6*4 drive form to ensure stability and efficiency in complex road conditions. The 20-cubic-meter curved tank body is made of Q235 special steel, with a tank body thickness of 4mm and an overall molding process. The compression ratio is as high as 1:3.4, ensuring the ultimate garbage compression efficiency. The fully automatic hydraulic control system has a single loading and unloading cycle time as short as 40-45 seconds, and is equipped with PLC intelligent control, which is easy and fast to operate. In manual mode, the operator can use the operating lever and electric control buttons to complete operations such as compression and unloading of the garbage compartment.

Specification:

Product Name	ISUZU GIGA rear loader Truck
Model	CEEC5250GXH
Driving Type	6*4
Gross Weight	25000kg
Related Loading Mass	12700kg
Curb Weight	11680kg
Dimension	1050023802850mm
Wheelbase	4350+1350(mm)
Front Axle Loading Capacity	7000kg
Rear Axle Loading Capacity	13000kg x 2pcs
Approach angle	20°
Departure angle	13°
Front Suspension	1130mm
Rear Suspension	2140mm
Tire	295/80R22.5
Max Speed	90 (Km/h)
Fuel tank	400L
Engine parameters
Model	6UZ1-TCG61
Horse Power	380 hp
Displacement	9.839L
Emission Standard	Euro 6
Type	6-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling)
Gear Box
Gear Box	12 forward and 2 reverse
Superstructure Parameter
Tank Volume	20 CBM
Tank Shape	Arc-shape
Tank Material thickness	Bottom:4mm Side:4mm
Tank manufacturing process	Whole board manufacturing
Tank Material	Q235 (Special Steel)
Compression Ratio	1 : 3.4
The effective volume of the bucket	≥0.8m³
Loading cycle time	≤40 s
unload garbage time	≤45s
control method	Automatic,Manual
Maximum pressure of hydraulic system	20MPa
Control System	PLC
Control panel	English or Your language
Engine power control	Fully automatic control
standard accessories	Dust bin lifter,Ladder, warning lights, Emergency stop button, handrail, fire extinguisher, basic tool kit, English manual……
Optional	Back alarm and Camera can be equipped. Italy mulit-valve can be choose. ** 240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose.

Advantage:

The 5 point performance advantages of the ISUZU GIGA 20CBM rear loader are as follows:

1. Ultimate power system: The 6UZ1-TCG61 engine is equipped with turbocharging and intercooling technology, with an output of 380 horsepower and a large displacement of 9.839L. It is not only powerful, but also fully meets the Euro 6 emission standards, reflecting the perfect balance between high efficiency, energy saving and environmental protection.

2. Leading load and stability: 6*4 drive configuration, 25 tons total weight, 12.7 tons actual load capacity, 7 tons front axle and 13 tons each on the double rear axle, ensuring excellent stability and strong passability under complex road conditions.

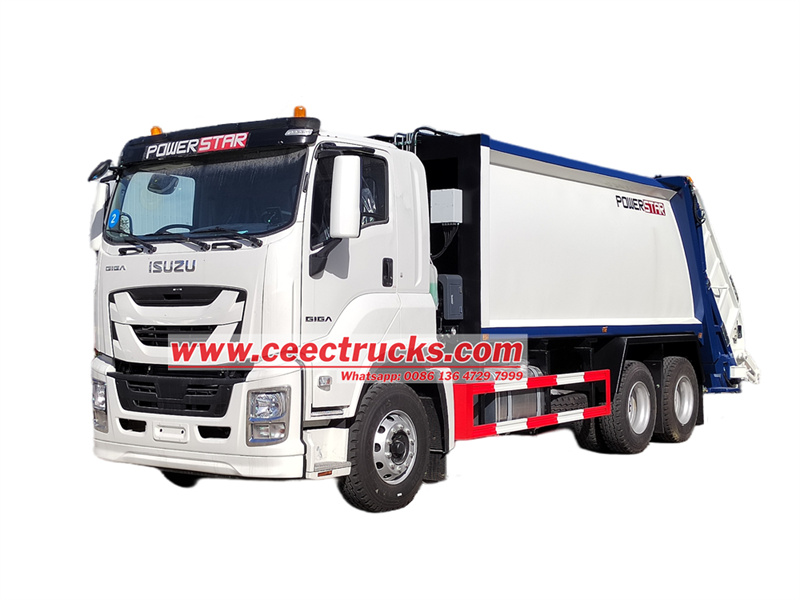

ISUZU GIGA 6X4 garbage compactor truck

3. Intelligent garbage disposal: 1:3.4 high compression ratio, 20 cubic meters curved tank, single loading and unloading cycle time controlled at 40-45 seconds, PLC intelligent control system, to achieve high efficiency and accuracy of garbage disposal.

4. Excellent structure and craftsmanship: Made of Q235 special steel, the tank is 4mm thick, with 12 front and 1 rear gearbox and a maximum speed of 90km/h, showing the rigor and precision of the craftsmanship.

5. Comprehensive safety configuration: Equipped with multiple safety devices such as alarm, camera, emergency stop button, fire extinguisher, etc. English/localized control panel is provided, fully considering the operator's experience and safety needs.

PlC System:

The application of PLC system in compression garbage truck has significant advantages:

1. Precise control: The compression process is accurate to milliseconds, and the compression force, angle, and time can be precisely controlled, which increases the compression efficiency by 15-20%, reducing the risk of manual misoperation.

2. Intelligent management: Real-time data collection and monitoring, automatic recording of each garbage loading and unloading parameters, traceable operation trajectory and working status, and support for remote diagnosis and management.

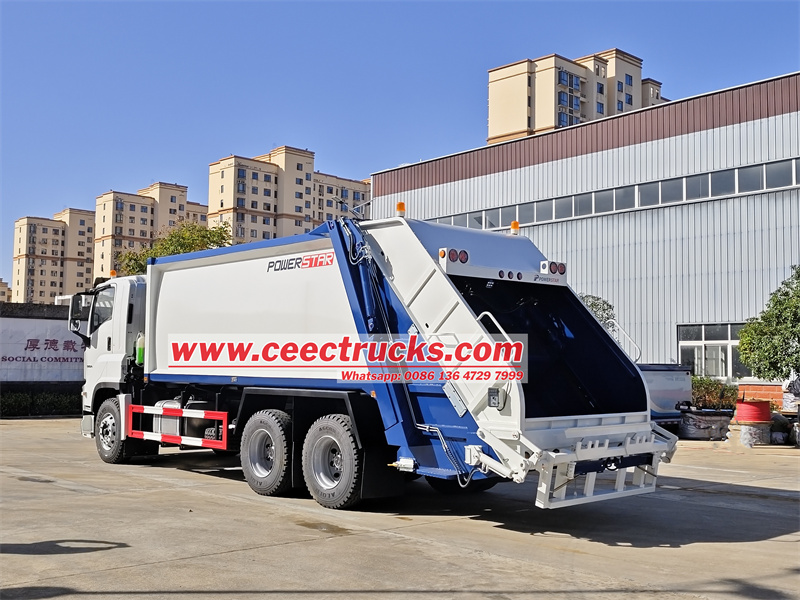

ISUZU GIGA 6X4 garbage compactor truck

3. System stability: Strong anti-interference ability, operating temperature range of -20℃ to 65℃, service life of up to 10-15 years, and failure rate lower than traditional hydraulic control systems.

4. Energy saving and environmental protection: Precisely control the energy consumption of the hydraulic system, reduce invalid energy consumption, real-time monitoring of oil temperature and pressure, and reduce energy consumption by about 20-25%.

5. Convenient maintenance: Modular design, fast fault location, remote firmware upgrade, and significantly reduced maintenance costs.

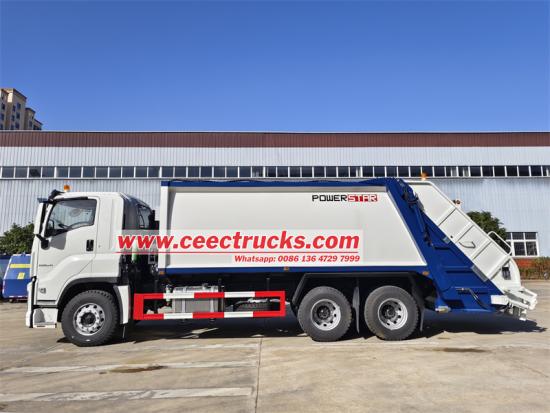

ISUZU GIGA 6X4 garbage compactor truck
