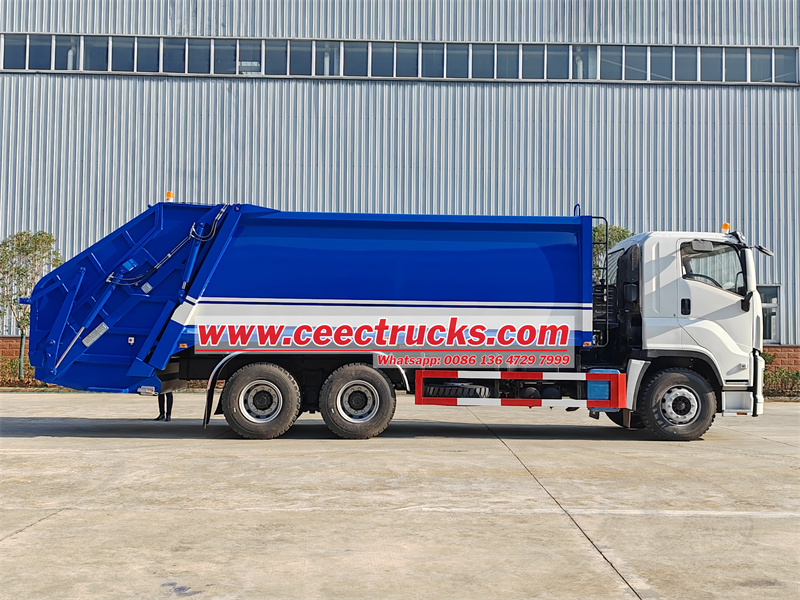

Philippine Isuzu 20 cbm rear loader garbage truck

Philippine Isuzu 10 wheel rear loader garbage truck

CEEC's Isuzu GIGA 6×4 rear loader compactor is equipped with an Isuzu GIGA 6x4 chassis, an Isuzu 380HP diesel engine, Euro 6 15681ml displacement, a wheelbase of 4800+1370mm/3, air brake, power steering, intercooler, 315/80R22 tires, 2 seats and 1 sleeper, air conditioning, power steering, loading capacity of 20 cbm, and a large floor-standing bucket with a fully sealed garbage bucket flipping mechanism at the tail of the garbage bin.

Lead Time:
80 Days
Work capacity:
20cbm
Truck model:
CEEC5350GXH
Engine power:
420HP
Engine type:
6WG1-TCG60
Axle drive:
6X4,LHD
Gear box:
FAST 12-shift gearbox
Remarks:
20cbm garbage capacity，rear full seal flip hopper

Inquiry now

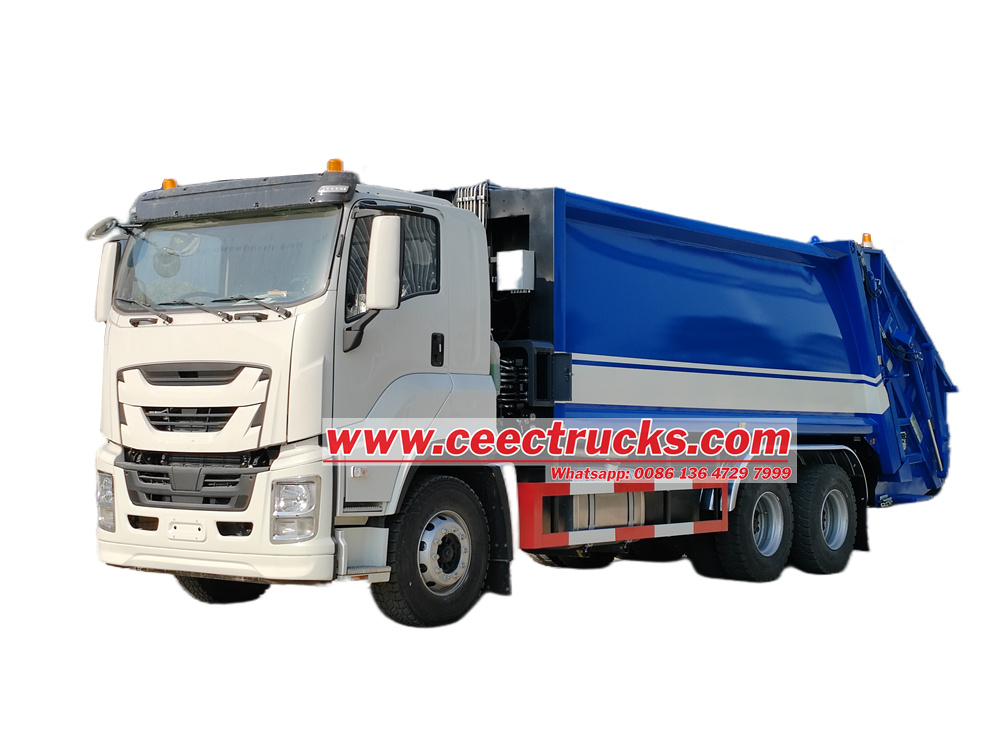

The Philippine Isuzu 10 wheel rear loader garbage truck is an advanced garbage collection and transfer vehicle designed for cities and surrounding areas in the Philippines. This model adopts a powerful 6x4 drive system, equipped with a high-performance Isuzu 420HP diesel engine and a FAST 12-speed gearbox. The vehicle is equipped with an advanced rear-mounted garbage collection system with a loading capacity of up to 20 cubic meters. The full seal flipping hopper which is suitable for large-scale application scenarios such as large garbage transfer stations and landfills.

Philippine Isuzu 10 wheel rear loader garbage truck Key Features:

★ Various size body from 3cbm to 25cbm,with beautiful appearance

★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km

★ Good sealing, no secondary pollution caused by sewage leakage when dumping garbage

★ Adopting electric, gas and hydraulic centralized control, with automatic and manual operation modes

★ Diffient rear flip systerm are optional

★ Can be put into 20",40"container and ship to worldwide

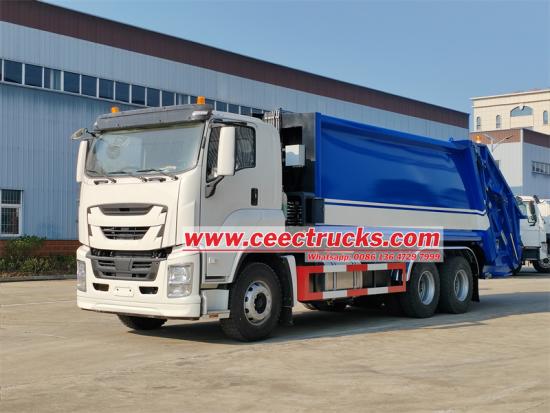

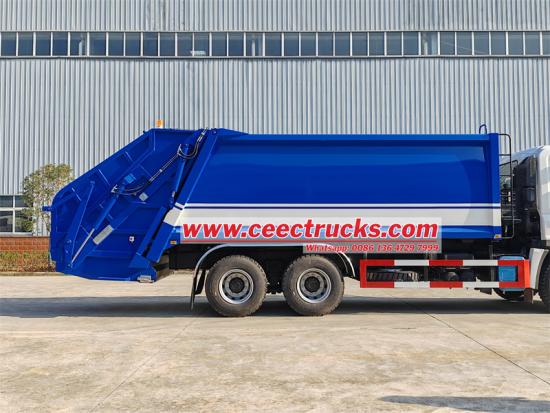

Isuzu GIGA 6X4 20CBM rear loader garbage truck
General	Vehicle Brand	CEEC
	Chassis Brand	ISUZU
	Overall Dimension	1061025503450mm
	GVW / Kerb Weight	35000/10500kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Chassis	Drive Type	6X4 (left hand drive)
	Wheelbase/No. of axle	4800+1370mm/3
	Transmission	FAST 12 speed levers with 2 reverse,manual
	Tire Number	10 tires and 1 spare tire
	Tire Specification	315/80R22.5
	Max Speed	95/h
Engine	Fuel Type	Diesel, 6 cylinder Inline,4 stroke,
	Model	Isuzu 6WG1-TCG60
	Power	420HP/309Kw
	Maximum Torque	2250N.m
	Maximum torque speed	900-1300rpm
	Displacement	15681ml
	Emission Standard	Euro 6
Superstructure	Paint	Metallic paint
	Cpacity	20 cbm
	Fill Hopper capacity	2.4 cbm
	Sewage tank	200 liters
	Filling work cycly time	20~25 s
	Discharge model	Horizontal Ejection

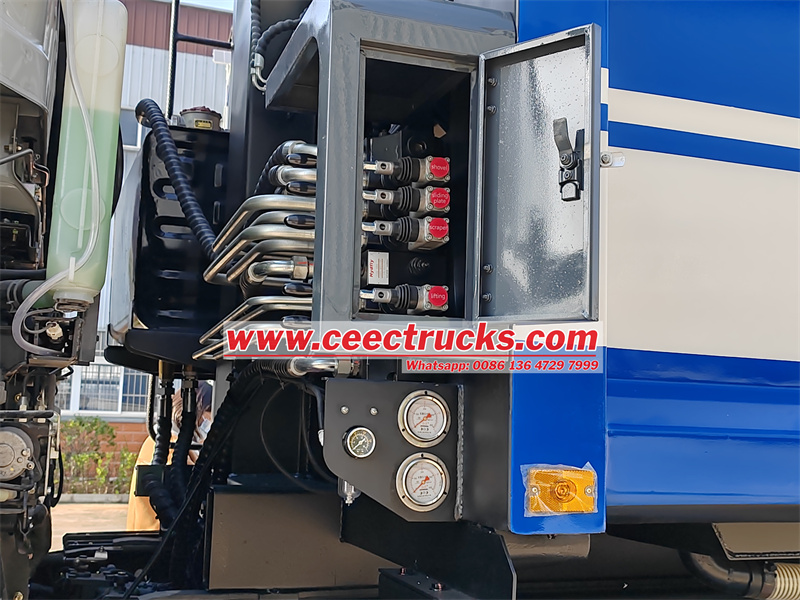

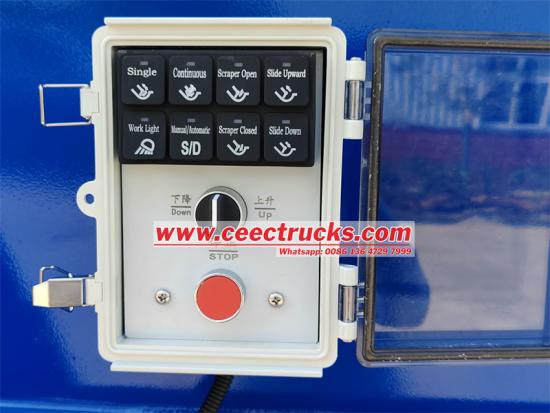

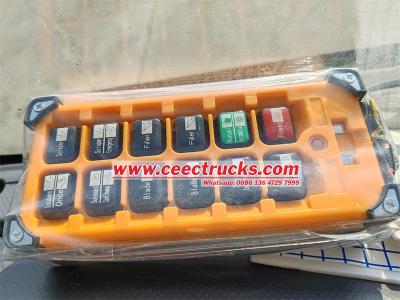

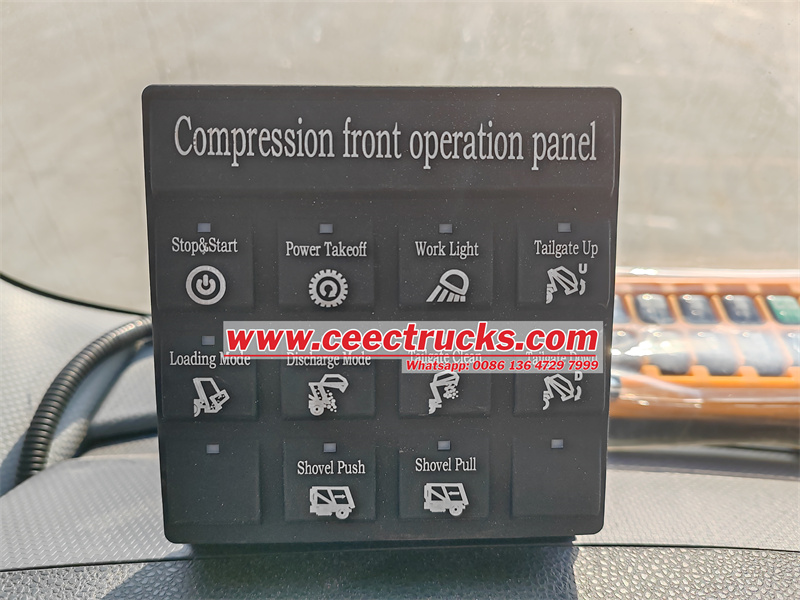

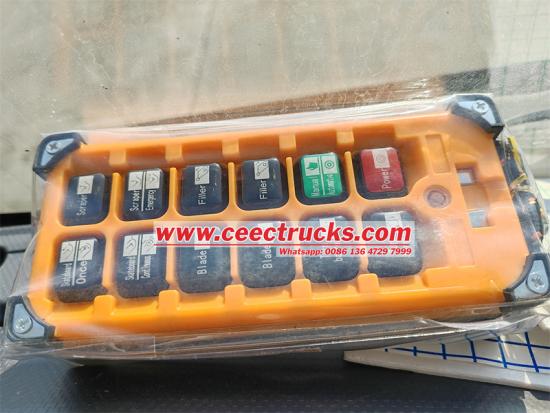

	Control system	Electrically Hydraulic control Manual hydraulic control
	Control panel	English or Your language
Optional	All standard accessories: Garbage bin lifter, ladder, warning lights, emergency stop button, handrail, fire extinguisher, basic tool kit, English manual...

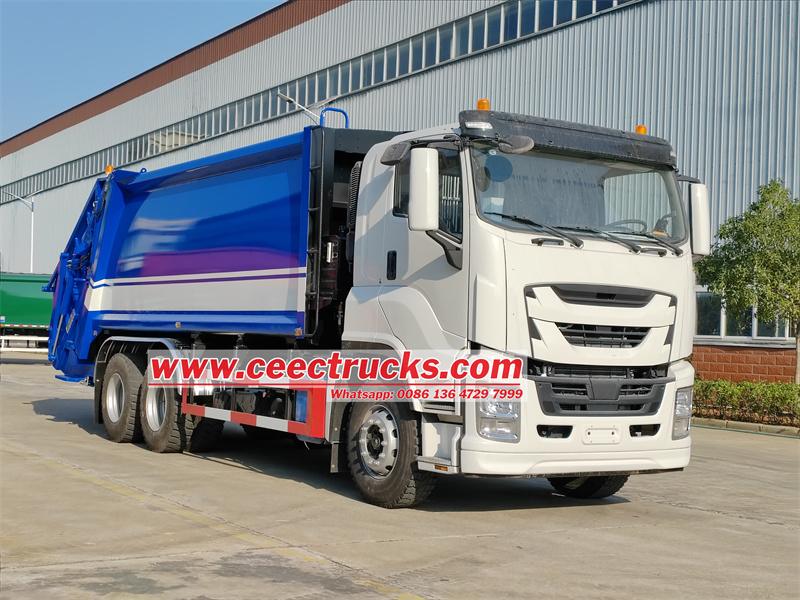

Isuzu giga 420 hp high compaction rear loader

Isuzu GIGA 6x4 heavy rear loader compactor is a representative of compression garbage trucks. The design of its rear flip mechanism is crucial for garbage collection and loading efficiency. The following are four types of rear flip mechanisms that can be selected for compression garbage trucks, each with its own unique characteristics and applicable scenarios:

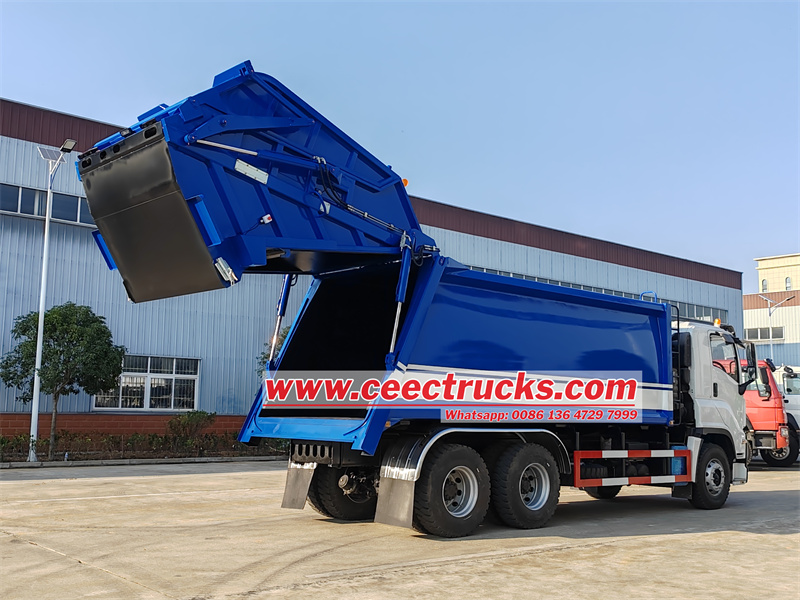

Philippine 20cbm rear loading garbage truck Isuzu

1. Bin Lift Flip Mechanism

The mechanism can fix barrels of different specifications through the flip frame and unload by flipping, such as 120L, 240L, 300L, 660L plastic barrels, round iron barrels, etc. When the garbage truck arrives at the collection point, the driver operates the joystick, and the garbage bin lifting and flipping mechanism automatically grabs and lifts the garbage bin, and then flips it, so that the garbage is poured into the compression box in the car. After the flip is completed, the mechanism automatically puts the empty barrel back to its original position. The whole process is fast and efficient. The mechanism is suitable for places such as residential areas and commercial blocks where garbage bins need to be replaced frequently.

2. Swing arm flip mechanism

The swing arm flip mechanism is a more flexible way of loading garbage. It uses a swing arm and hydraulic drive to lift the garbage container or large pieces of garbage from the ground or low platform, and then flip it into the compression box in the vehicle. At present, many garbage stations in many areas still use pit-type swing arm buckets. It is mainly suitable for garbage transfer in remote areas such as sparsely populated areas.

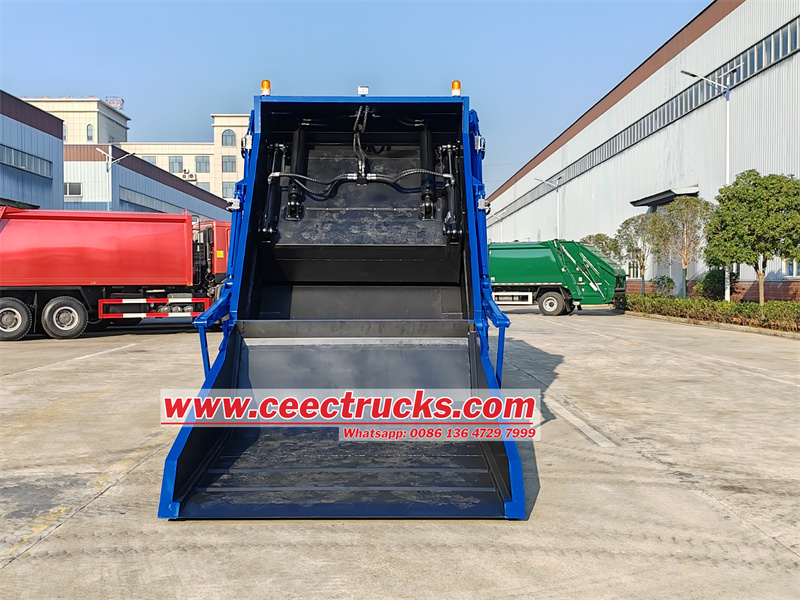

Isuzu 6x4 6WG1 garbage truck with compactors

3. Semi-Sealed Flip Hopper

The semi-sealed flip hopper is a design that combines sealing and ease of operation. The front half of the hopper is usually designed to be flippable, and the flipping action is achieved by hydraulic drive to pour the garbage into the compression box. The back half of the hopper remains fixed to form a semi-enclosed space, which helps to reduce the scattering of garbage and the spread of odor during loading. This design is suitable for garbage transfer in small garbage transfer stations and urban garbage transfer.

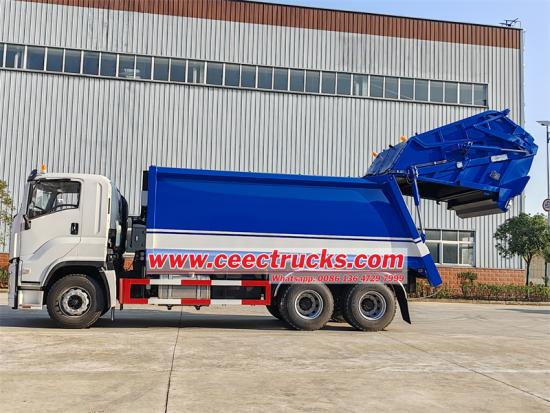

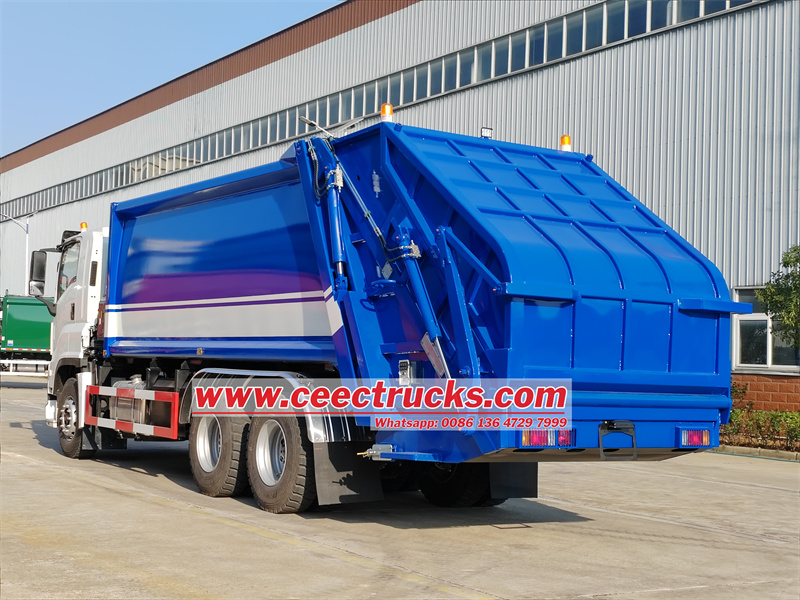

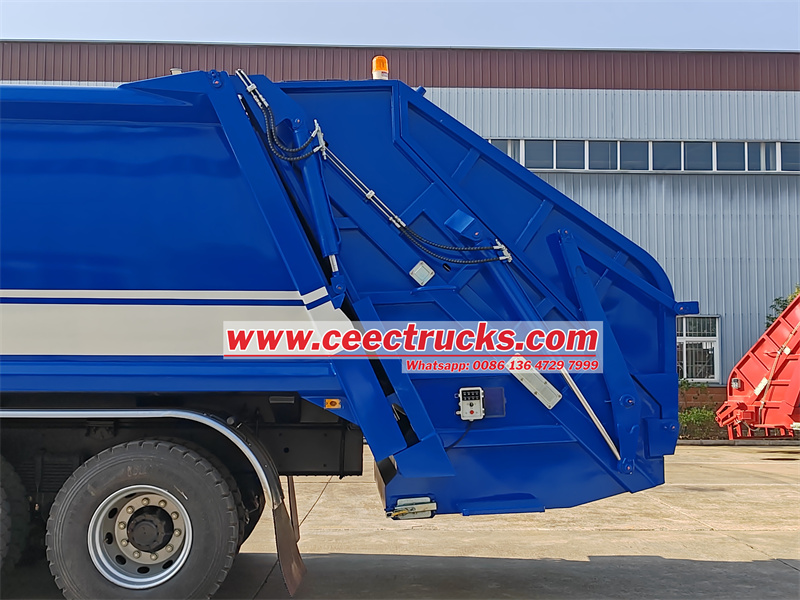

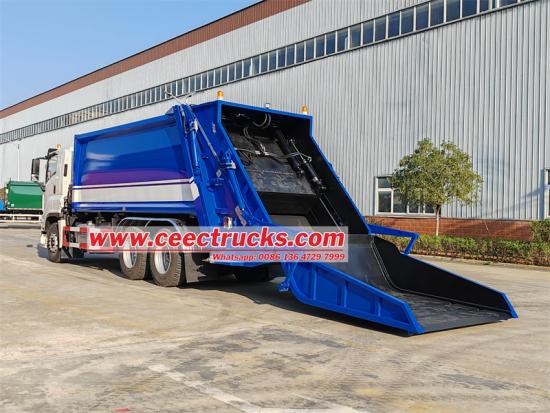

4. Full Seal Flip Hopper

It completely encloses the garbage loading process, from lifting, flipping to dumping the garbage container, the entire process is carried out in a sealed environment. This design not only effectively prevents garbage scattering and odor diffusion, but also reduces noise pollution and improves the comfort of operators. The fully sealed flip hopper is mainly suitable for large-scale application scenarios such as large garbage transfer stations and landfills.
