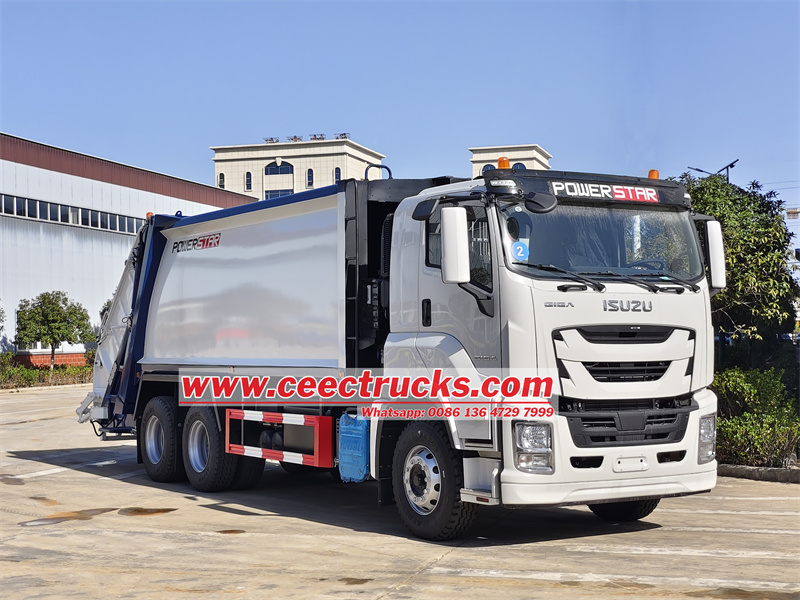

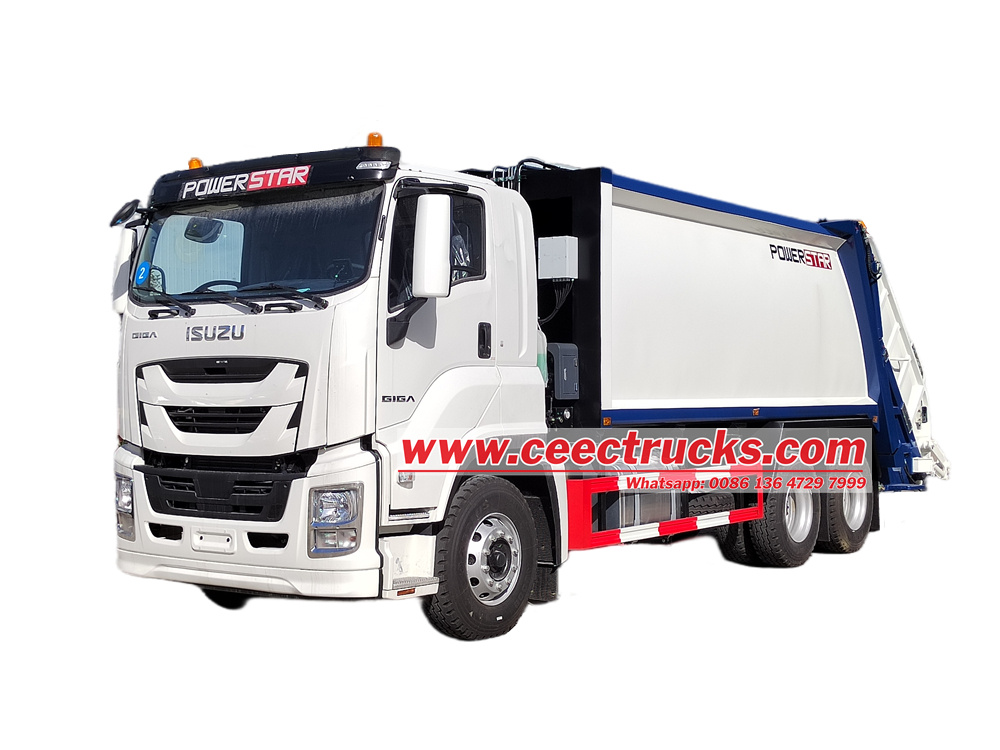

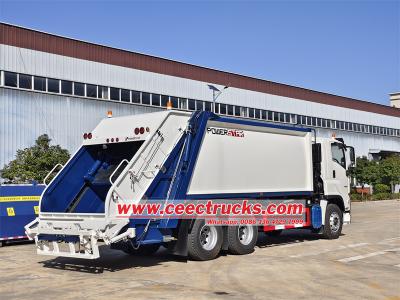

Isuzu 20 cbm rear loader compressed garbage truck

Isuzu giga 6UZ1 engine rear loader recycling truck

The CEEC's GIGA 6x4 20cbm rear loader compactor is modified on the Isuzu VC61 6X4 GIGA chassis,the wheelbase is 4600+1370mm,with Isuzu 380HP 6UZ1 diesel engine，FAST 12 shift gearbox，A/C,USB，direction assistance, the upper body is a 20cbm garbage bin,which can disposal more waste and provide a strong support for municipal sanitation work.

Lead Time:
80 Days
Work capacity:
20cbm
Truck model:
CEEC5250GXH
Engine power:
380HP
Engine type:
6UZ1-TCG61
Axle drive:
6X4,LHD
Gear box:
FAST 12-speed,manual
Remarks:
Isuzu VC61 6x4 cabin,large capacity garbage bin

Inquiry now

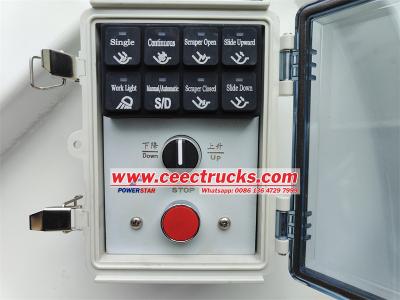

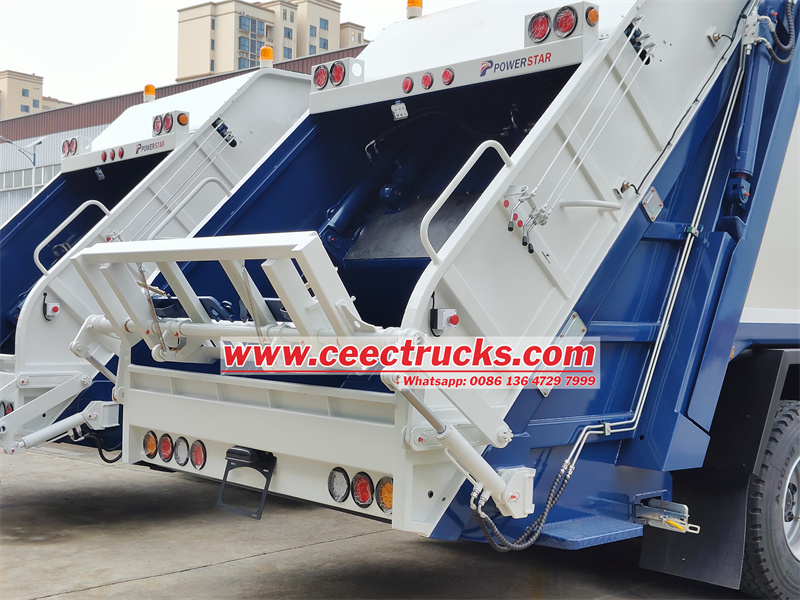

Isuzu giga 6UZ1 engine rear loader recycling truck, as a heavy-duty transport vehicle designed for efficient urban garbage disposal, The 6x4 compressed garbage truck utilizes a sophisticated compression system powered by hydraulic cylinders to efficiently compact waste, maximizing loading capacity. It features versatile controls, including electric operation in the cab and manual/electric options at the tailgate, providing operators with flexibility and ease of use.

Key Features:

★ Various size body from 3cbm to 25cbm,

★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km

★lmported SlEMENS PLC integrated control high-efficient working

★Diffient rear lifting systerm are optional.

★Can be put into 20",40"container and ship to worldwide

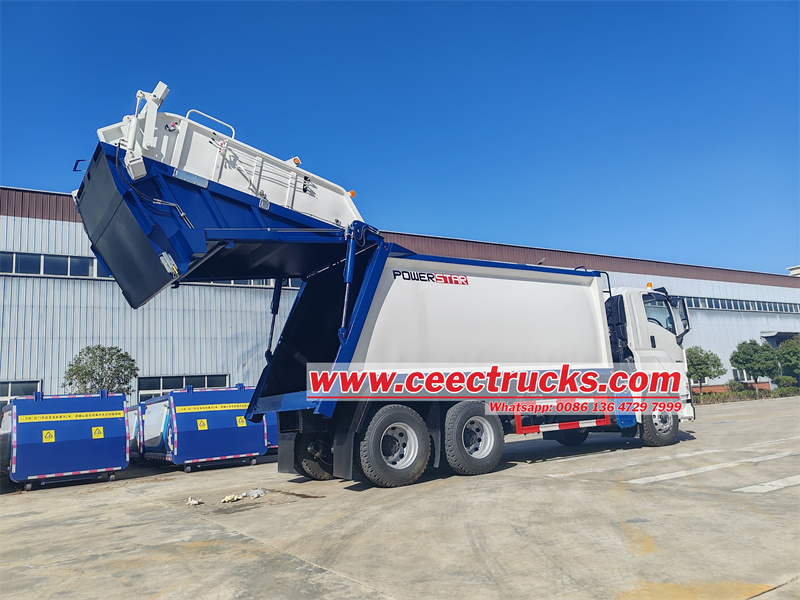

Isuzu GIGA 6x4 20cbm rear loader recycling truck
Main specification	Vehicle brand	CEEC
	Chassis brand	ISUZU GIGA 6X4
	Overall dimension(LWH)	10050×2550×3400mm
	Garbage tank capacity	20CBM
	Gross weight	25000kg
	Curb weight	9200kg
Chassis	Drive model	6x4 left hand drive

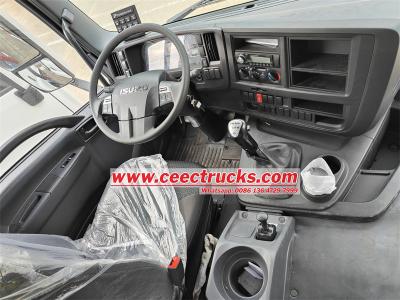

	Cabin	Isuzu VC61 model ,one row and a sleeper, allowable 3 passengers, A/C, USB, direction assistance
	Front axle loading capacity	7ton
	Rear axle loading capacity	18ton / 2 axles
	Wheel Base	4600mm+1370mm
	Transmission	FAST, 12 gears forwards and 2 reverse,manual
	Tyre size & number	315/80R22.5,10+1
	Max speed	95km/h
Engine	Model	6UZ1-TCG61
	Engine Type	6 cylinder in-line, Diesel, water-cooling
	Horse power	380HP/278Kw
	Rotating speed	1800rpm
	Max torque	1800N.m
	Displacement	9,839ml
	Emission	Euro 6
Garbage tank	Volume of compartment	20cbm
	Thickness	Side :4mm ; Bottom:5mm
	Material	Carbon steel, inner epoxy anticorrosive
Performance	Compression ration	≥1:3.4
	Loading cycle time	15～20 sec
	Discharging time	10～18 sec
	Discharging system	Horizontal ejection
	Waste water tank	200L
	Control way	Manually and electrical control
	Control panel	English or your language

Isuzu giga 6UZ1 engine rear loader recycling truck

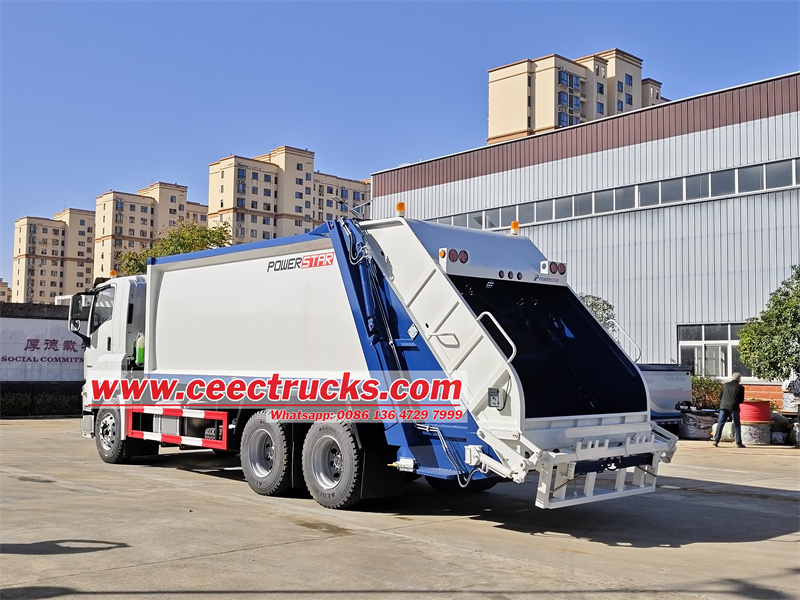

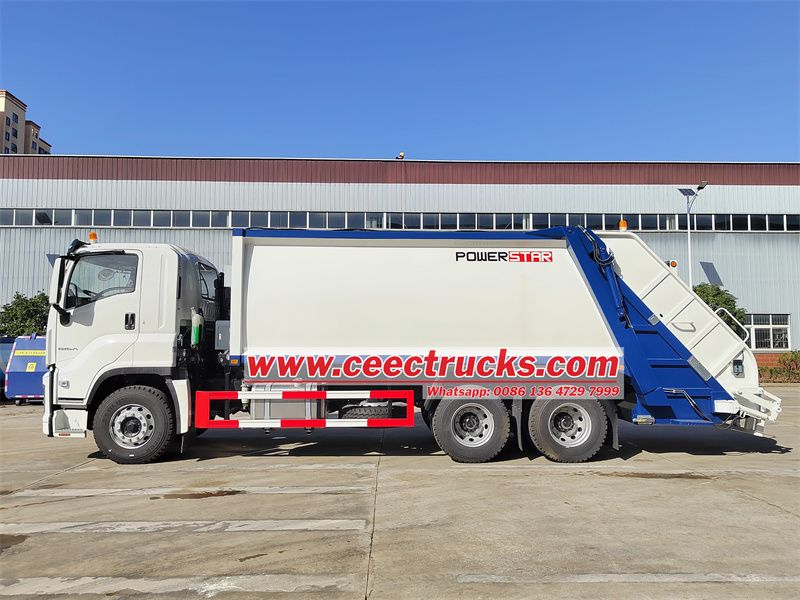

Isuzu 20 cbm integrated rear loader refuse truck

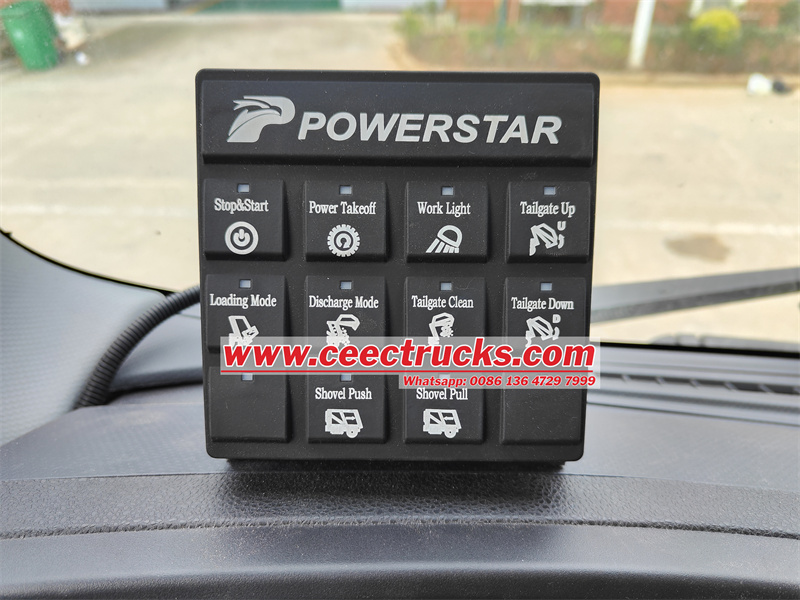

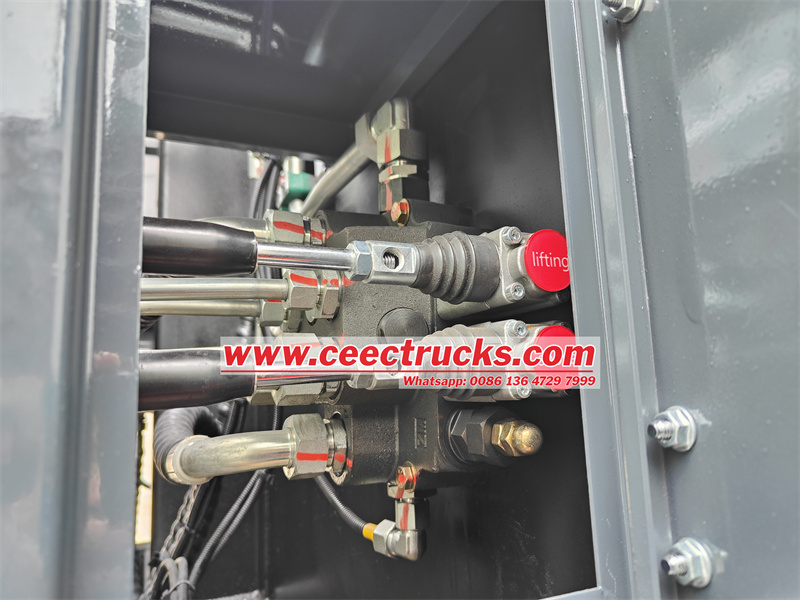

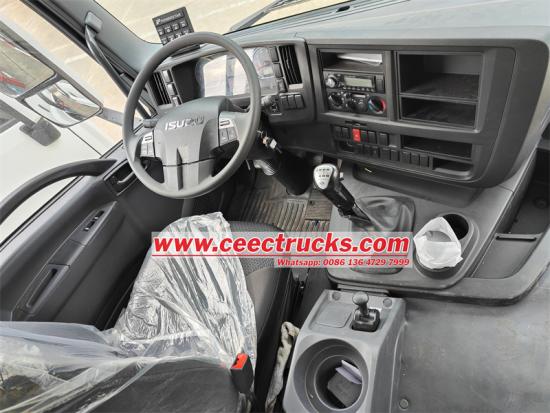

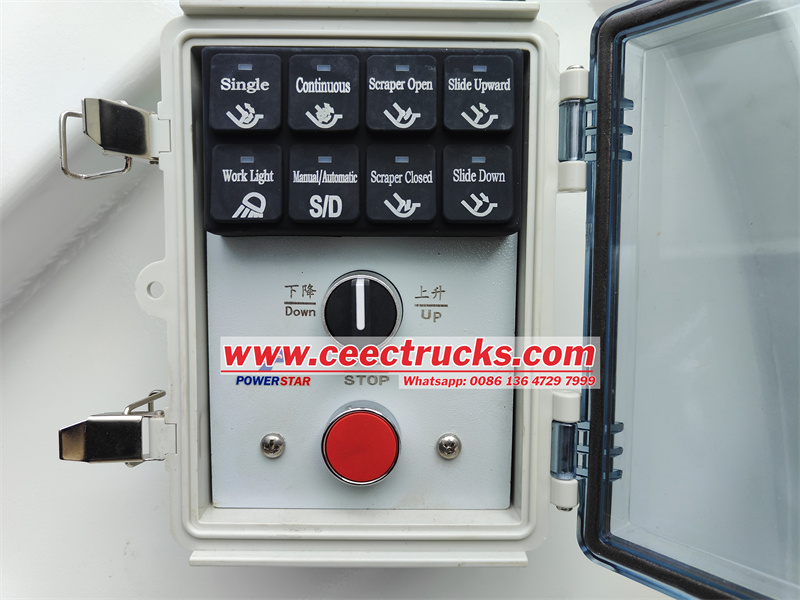

The Isuzu Giga 6x4 rear loader compactor truck features a powerful compression system driven by hydraulic cylinders, which significantly minimizes waste volume. Its cabin-mounted electric control box, driver-side hydraulic lever, and tailgate-mounted electric/manual controls provide versatile operation. This robust design ensures efficient waste management and loading capacity, making it ideal for various waste collection tasks.

Core power

The vehicle is equipped with Isuzu's self-developed 6UZ1-TCG61 high-performance engine, which is a large-displacement diesel engine designed for heavy-duty commercial vehicles. Its maximum power reaches 380 horsepower 278 kilowatts, ensuring that the vehicle can still provide sufficient power output when facing complex and changing operating environments, whether it is shuttling through narrow streets or performing high-intensity garbage compression operations.

Isuzu GIGA 6x4 20cbm rear loader compactor

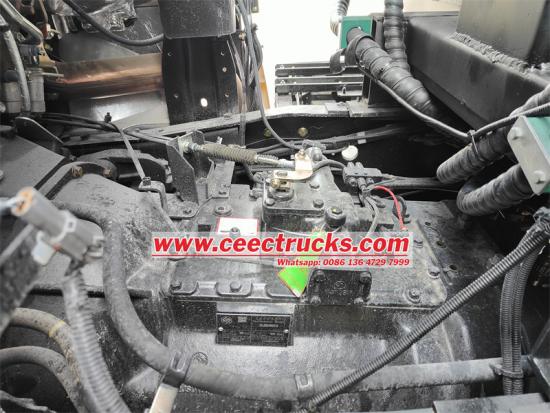

Transmission system

Matched with this powerful engine is the Fast brand 12-speed manual transmission, which is famous for its smooth shifting, high transmission efficiency and strong carrying capacity. The 12 forward gears provide the driver with a wide range of speed ratios, which can be flexibly adjusted according to different road conditions and operating requirements, ensuring good fuel economy and improving driving comfort and controllability.

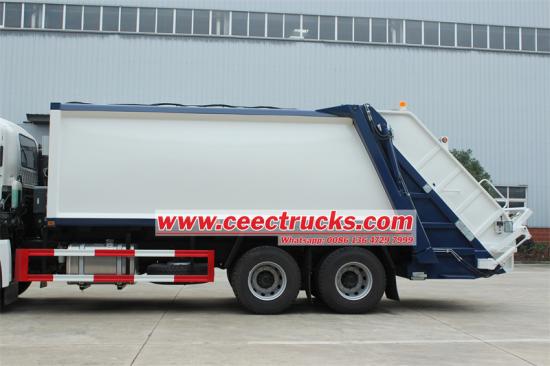

Box design

One of the biggest highlights of the Isuzu Giga 20 cubic compression garbage truck is its 20 cubic meter compression garbage bin. The box is made of high-strength, corrosion-resistant materials, ensuring durability and stability for long-term use. The built-in high-efficiency compression mechanism can strongly compress the garbage, greatly increasing the single load volume and reducing the number of transfers, thereby improving the efficiency of garbage collection and reducing operating costs.

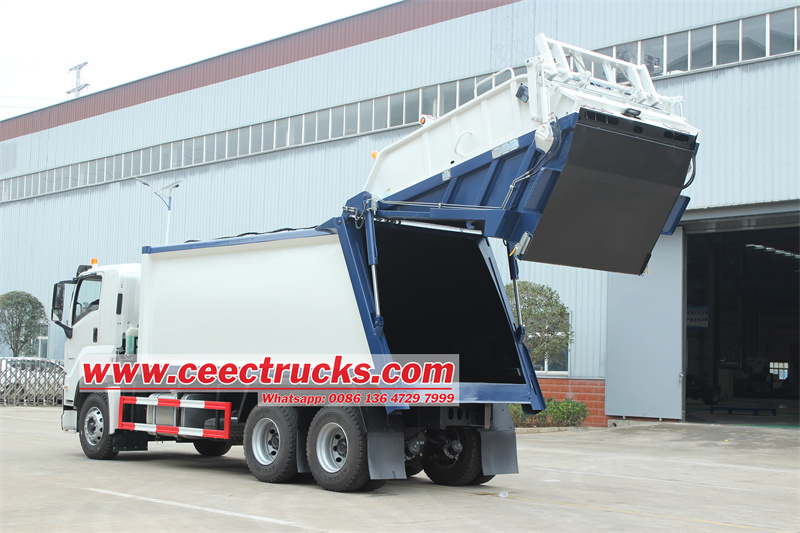

Isuzu GIGA 6x4 heavy duty waste compactor truck

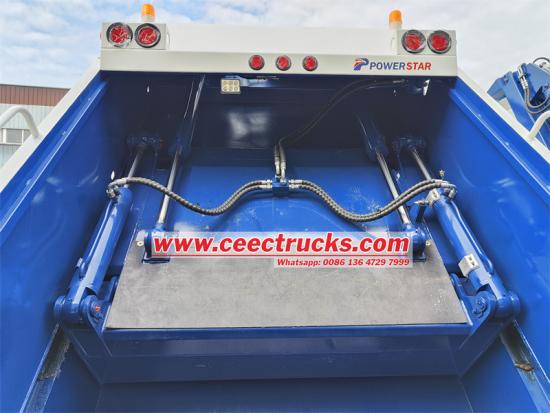

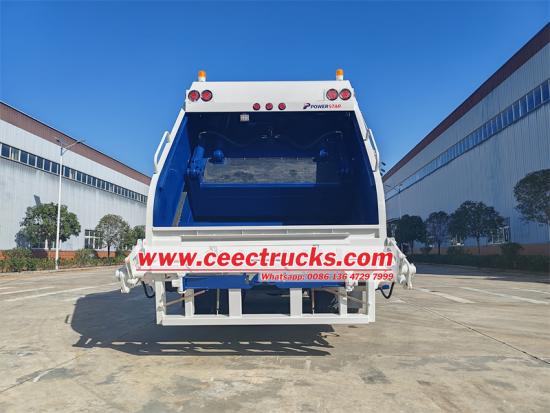

Compressed Mechanism

The compression mechanism of the Isuzu Giga 6x4 20m³ garbage compactor truck is the core of its efficient operation. Utilizing advanced hydraulic drive technology, this mechanism employs high-pressure hydraulic cylinders to propel a compacting plate within the garbage compartment, achieving robust compression of waste materials. This process significantly reduces the volume of waste, thereby enhancing loading efficiency and minimizing the number of transfer trips required.
