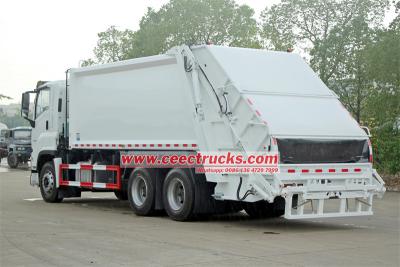

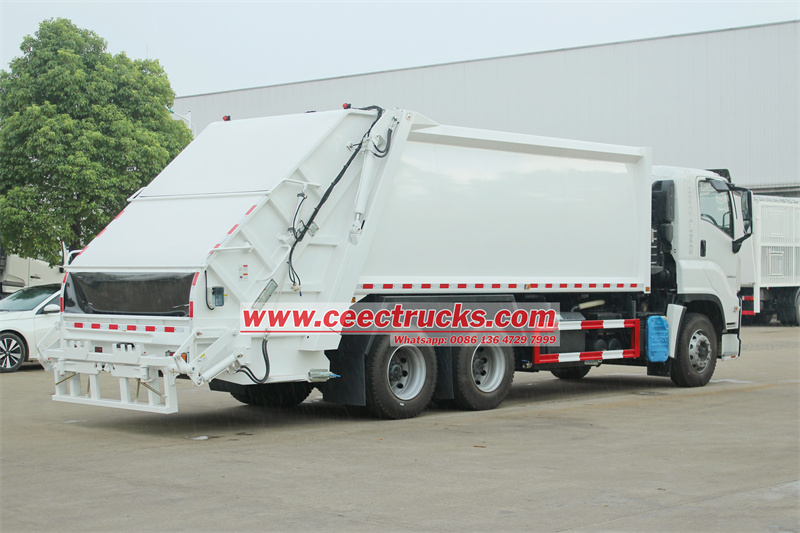

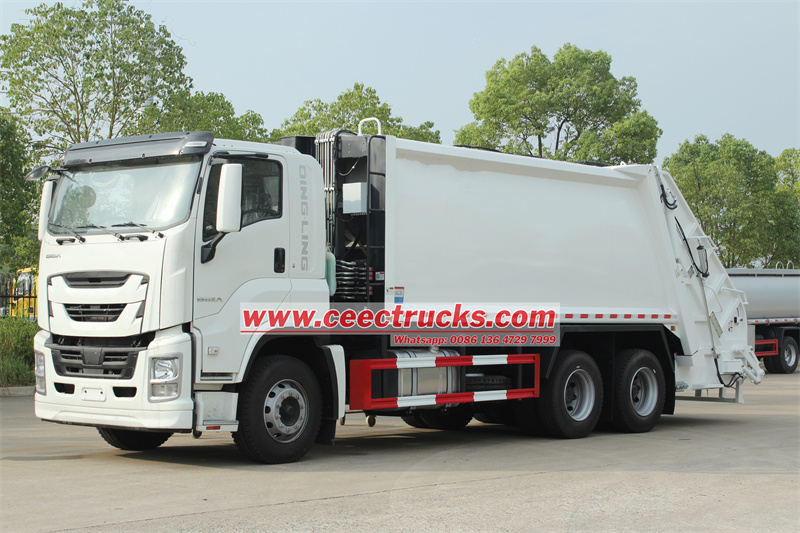

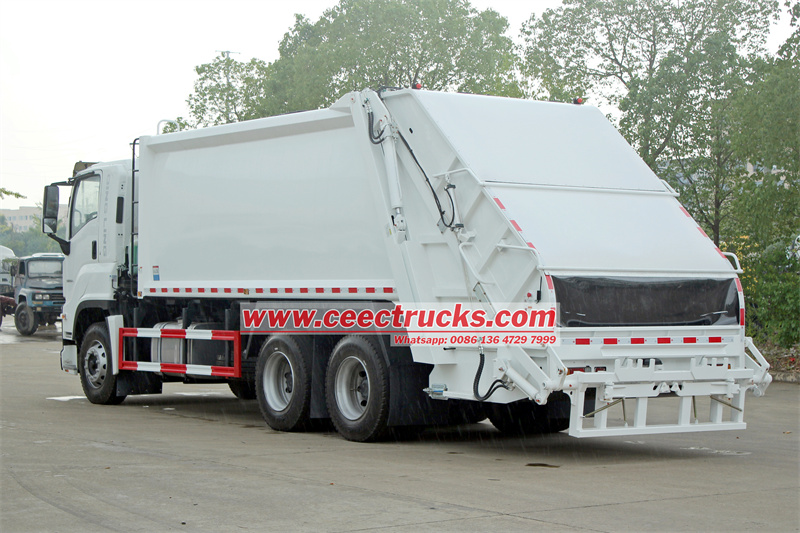

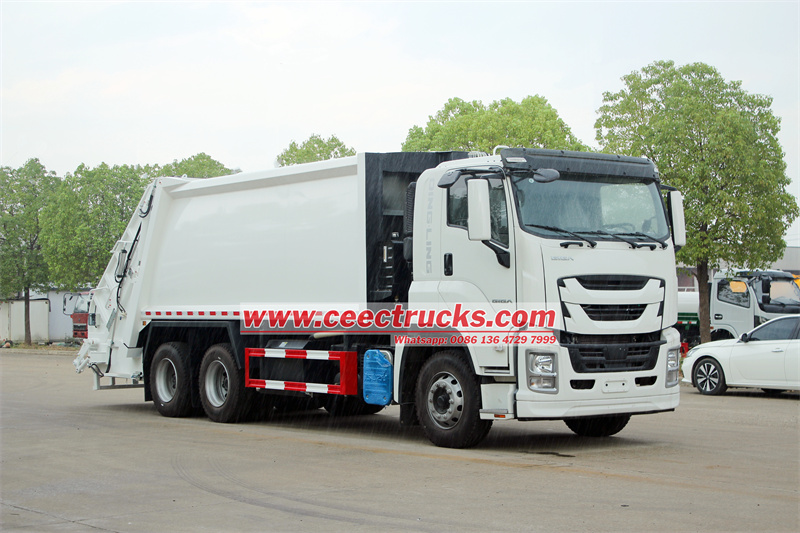

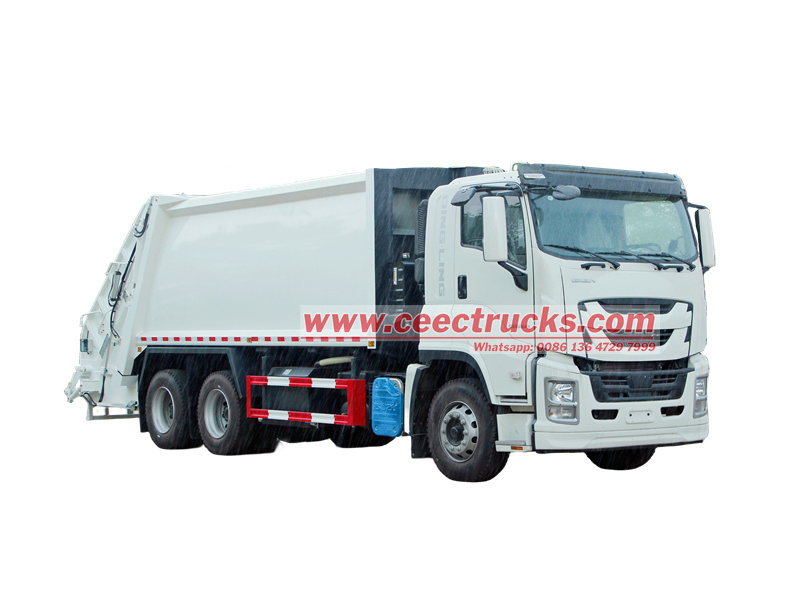

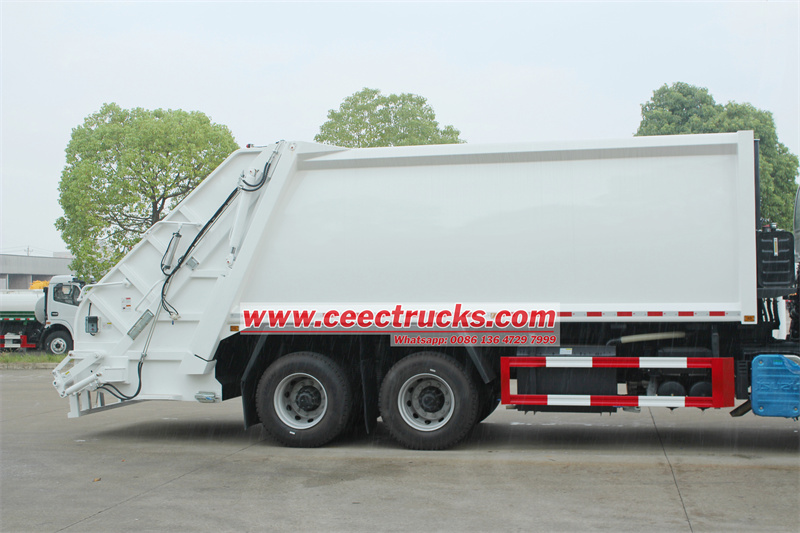

The ISUZU GIGA 20CBM garbage compactor truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, there by enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu GIGA chassis, the garbage rear loader is equipped with a 380HP Euro 6 engine and a 12-speed transmission,offering robust power performance and stable driving capabilities. With its compactor design and easy operation, the ISUZU GIGA 20CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.
Work capacity:
20cbmTruck model:
CEEC5260GXWEngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
6X4,LHDGear box:
Fast 12 forwards 2 revers,manualRemarks:
With CAN-BUS electric control systemThe ISUZU GIGA 20CBM garbage compactor truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, there by enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu GIGA chassis, the garbage rear loader is equipped with a 380HP Euro 6 engine and a 12-speed transmission,offering robust power performance and stable driving capabilities. With its compactor design and easy operation, the ISUZU GIGA 20CBM hydraulic garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.
● China best Isuzu waste compactor truck factory
● More than 30 years professional manufacturer experience.
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service
Specification:
|
ISUZU GIGA REAR LOAD GARBAGE TRUCK |
||
|
Chassis Model |
ISUZU GIGA 380hp |
|
|
Engine |
Make: ISUZU |
|
|
Diesel 6-stroke direct injection diesel engine |
||
|
Engine model:6UZ1-TCG61, Euro 6 emission standard |
||
|
6-cylinder in-line with water cooled, turbocharged and intercooler |
||
|
Maximum output: 380HP/279kW |
||
|
Maximum torque: 1800N·m |
||
|
Displacement: 9.839L |
||
|
Transmission |
ISUZU Fast, 12 forwards and 2 reverse, manual |
|
|
Drive system |
Left hand drive |
|
|
Chassis |
Frame: U-profile parallel ladder frame and reinforced subframe |
|
|

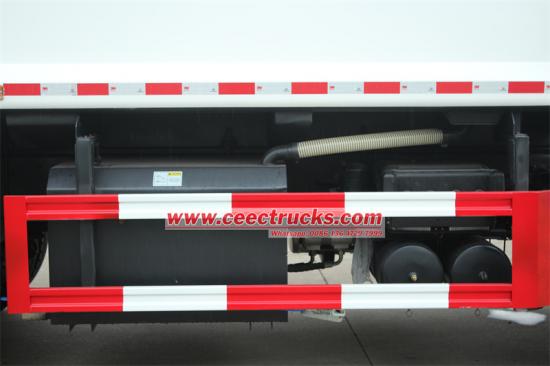

Fuel tank: 400 L capacity with locking fuel cap |
||
|
Steering |
Power steering, hydraulic steering with power assitance |
|
|
Brakes |
Service brake: dual circuit compressed air brake |
|
|
Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels |
||
|
ABS |
||
|
Wheels & Tyres |
Tire: 10 pcs 295/80R22.5 |
|
|
Driver's Cab |
ISUZU GIGA cabin, with three seats, A/C, electric glass, central lock |
|
|
Dimensions mm |
Wheel base |
4600+1370 MM |
|
Overall length |
10800 MM |
|
|
Overall width |
2500 MM |
|
|
Overall height |
2850 MM |
|
|
Weight kg |
Curb weight |
12800 KG |
|
Rated Loading Capacity |
20000 KG |
|
|
Gross vehicle weight(GVW) |
33000 KG |
|
|
Front axle loading capacity |
9000 KG |
|
|
Rear axle loading capacity |
13000+13000 KG |
|
|
Compactor Body |
Volume of body(m3) |
20 |
|
Volume of filler(m3) |
2 |
|
|
Time of one filling cycle(s) |
≤25 |
|
|
Lifting time of filler (s) |
8-10 |
|
|
Time of discharge (s) |
≤40 |
|
|
Pressure of hydraulic system (Mpa) |
18 |
|
|
Front/rear sewage capacity (L) |
250+150 |
|
|
Control system |
CAN-bus (electrical) and manual (hydraulic) |
|
Let's learn about the structure of high-quality ISUZU GIGA garbage rear loader truck
——Chassis system: Isuzu GIGA garbage compactor truck, equipped with Isuzu special engine 6UZ1 model, 380 horsepower engine, gearbox (such as Fast 12-speed gearbox) and drive system, supports National V/National VI emission standards. Chassis configuration includes air brake, ABS, original air conditioning, remote control key, to ensure driving stability and convenient operation.
——Garbage compartment: The compartment is made of high-strength materials, high-quality carbon steel such as Q345 manganese steel, and is formed by fully sealed welding. The volume ranges from 4 cubic meters to 20 cubic meters. The compartment design includes an arc structure, a two-way compression push plate, a sewage tank (volume ≥ 200L) and an anti-leakage sealing device to effectively prevent secondary pollution.

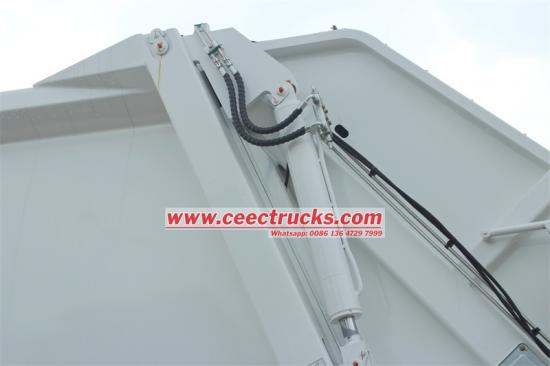

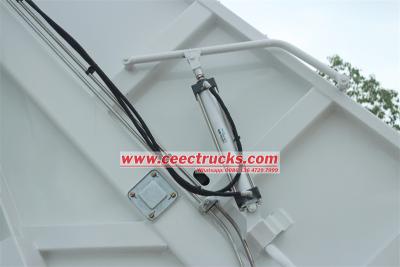

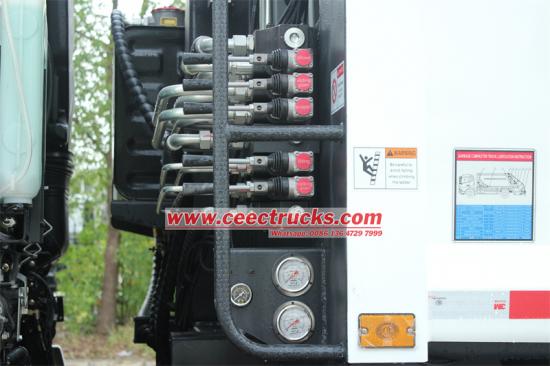

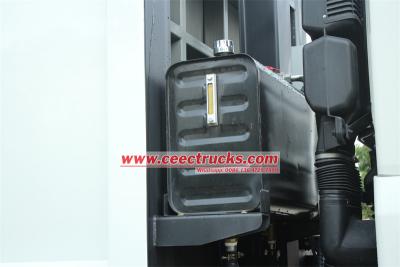

——Hydraulic system: It consists of a fuel tank, an oil pump, a multi-way valve, a hydraulic cylinder, a pipeline, etc. The hydraulic pressure is usually set to 16Mpa, and the power is obtained from the engine through the power take-off to drive loading and unloading, compression, lifting and other actions.

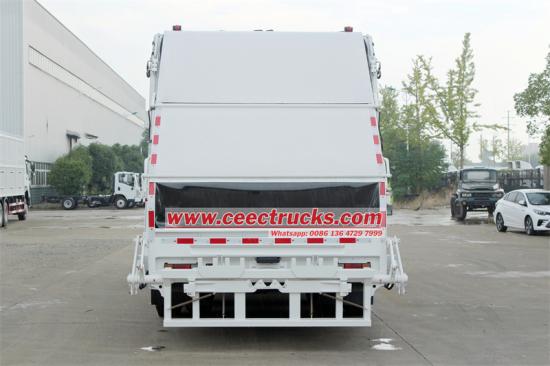

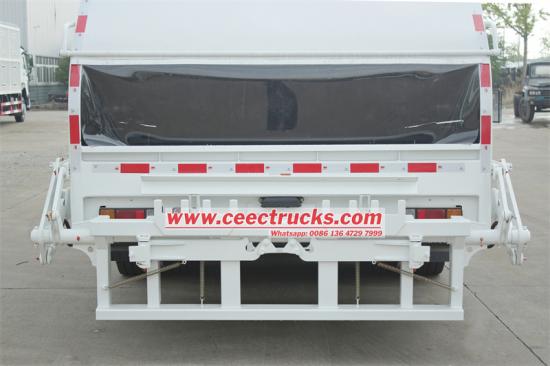

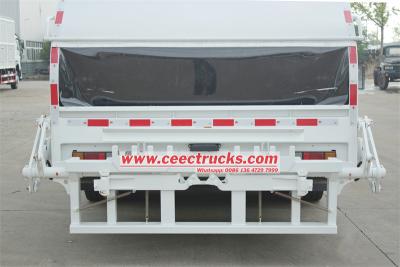

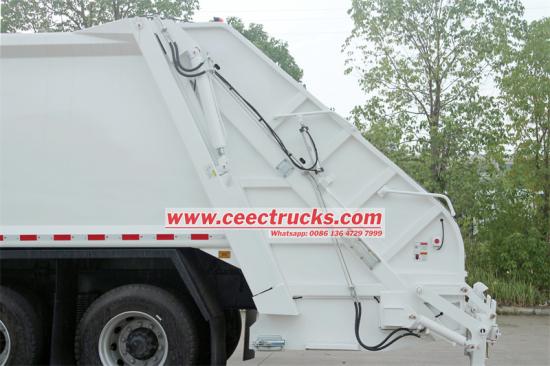

——Loading and unloading and compression mechanism: Loading mechanism, rear flip bucket hanging mechanism can adapt to 240L、660L or 1100L standard trash bins, realize one-button automatic loading, and complete single garbage dumping within 15 seconds. Compator mechanism, push shovel and scraper compactor garbage in both directions, the compression ratio can reach 1:3, and the peristaltic compaction function controlled by PLC can increase the loading capacity.
——Control system: adopts electromechanical and hydraulic linkage control, supports electronic control in the cab, wireless remote control and manual operation. PLC programming realizes automated operation (such as automatic throttle control, cycle compactor), integrated operation, and improved efficiency.
★ ISUZU 6UZ1 diesel engine, super powerful
★ Expert for producing ISUZU rear load trash trucks over 10 years with good reputation
★ T420 high-strength special steel material
★ 12 months free fast moving spare parts
★ All English version control box, panel, and owner's manual, for easy understanding
★ Training service for ISUZU rubbish compactor trucks
